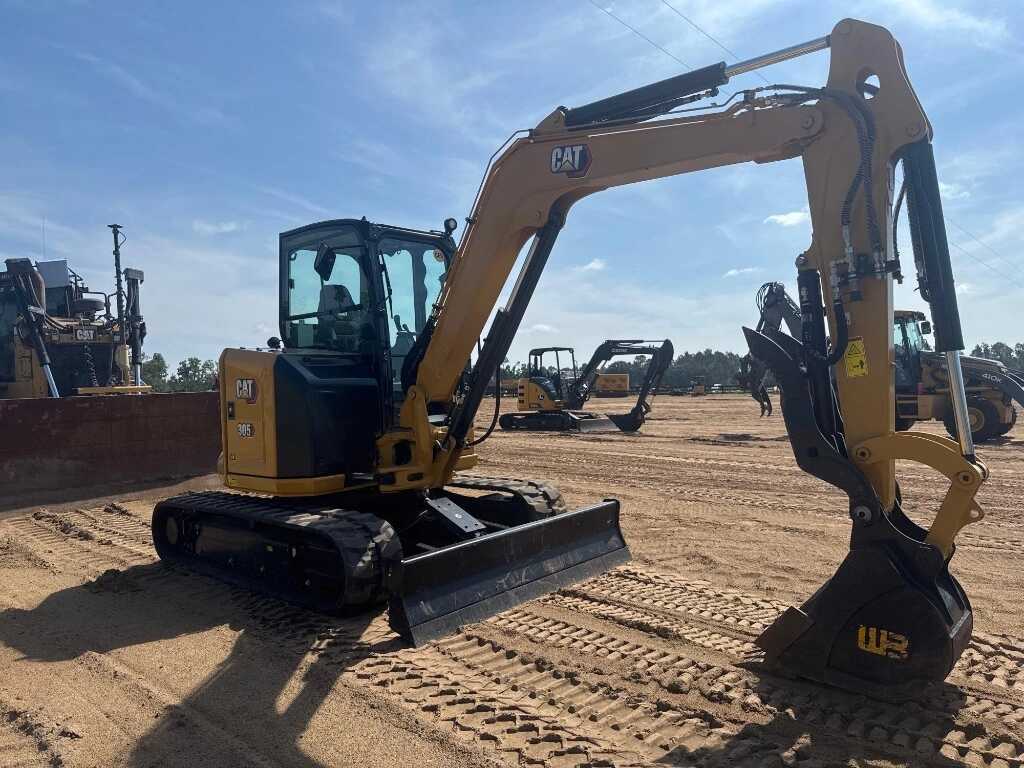

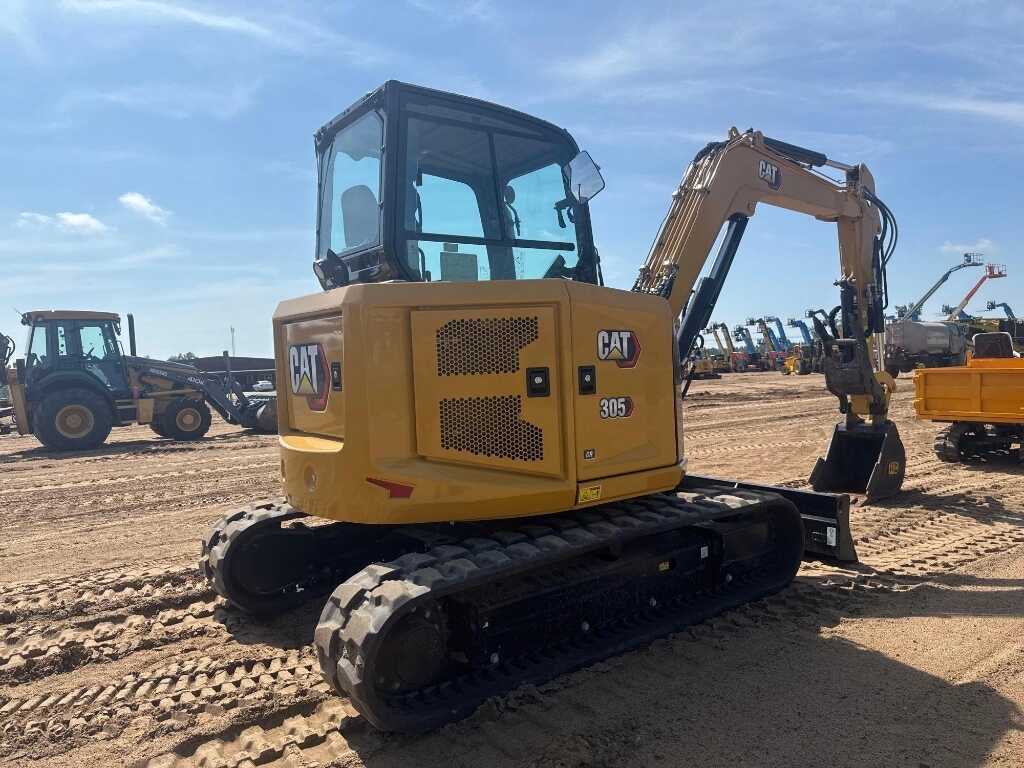

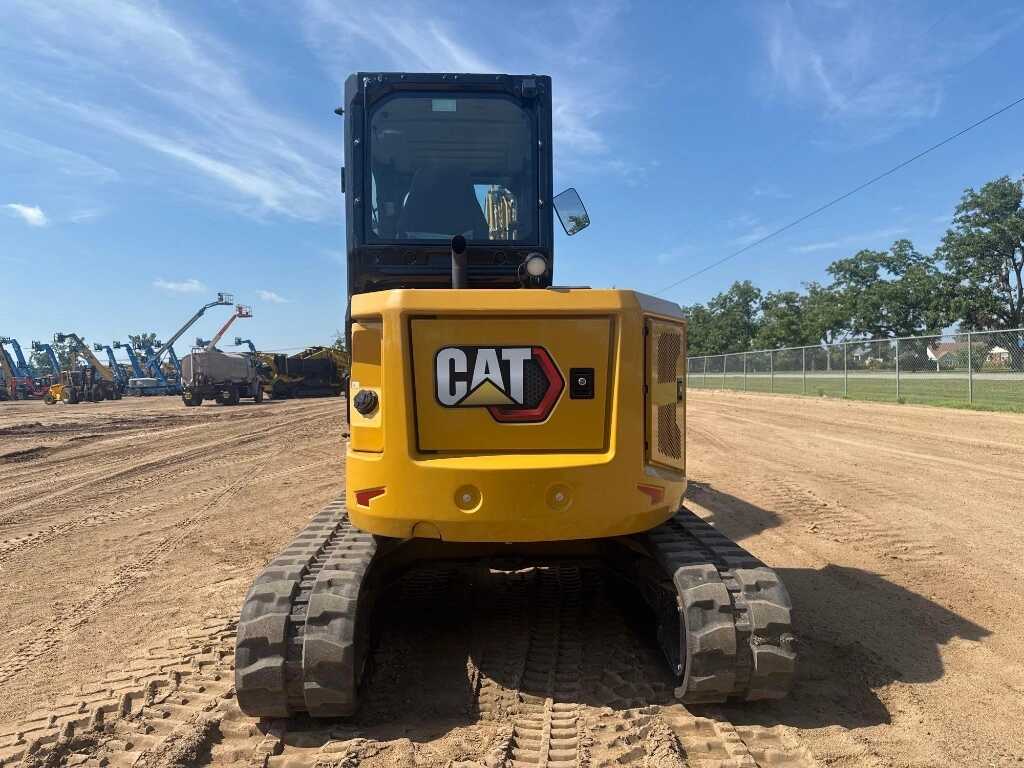

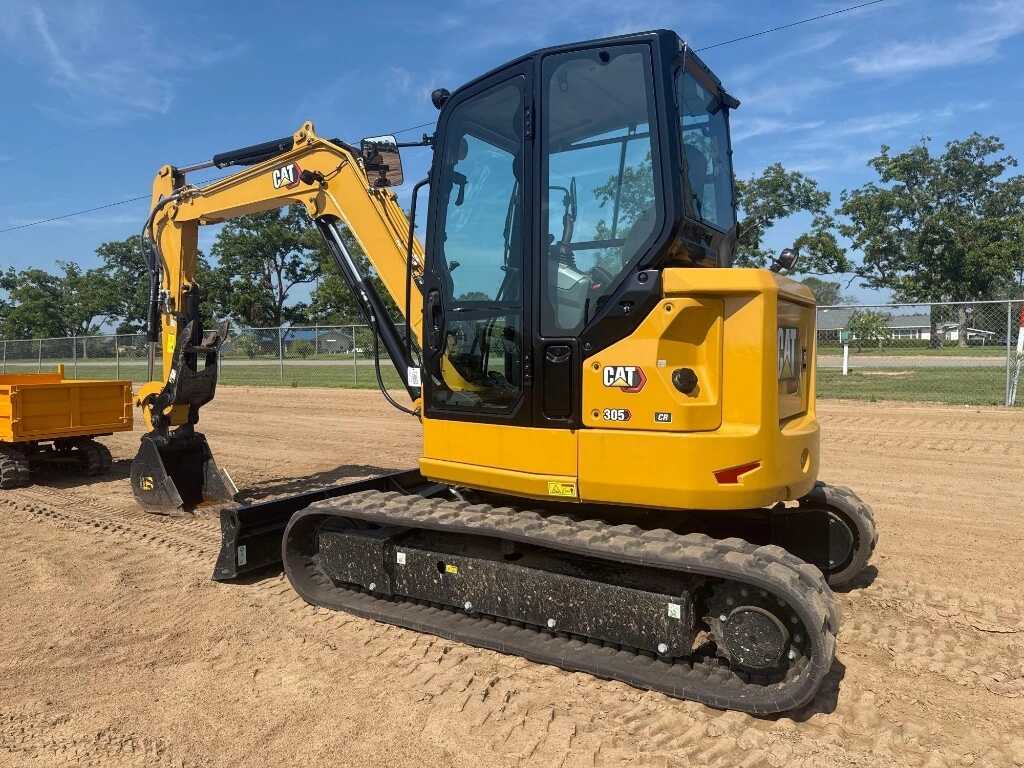

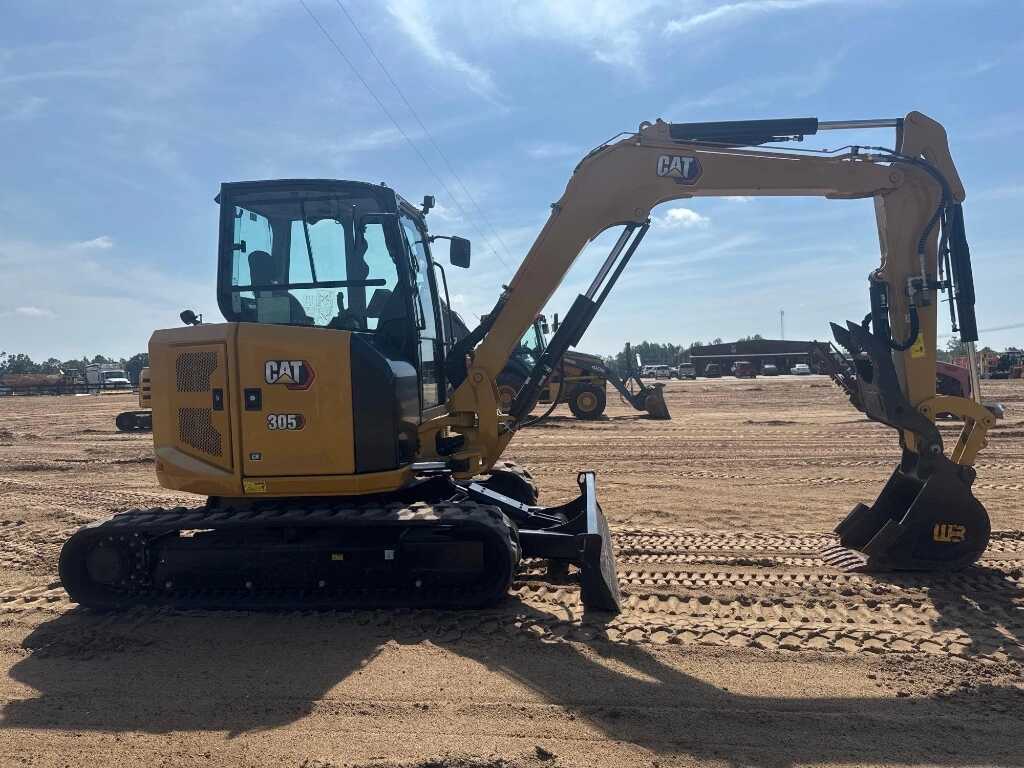

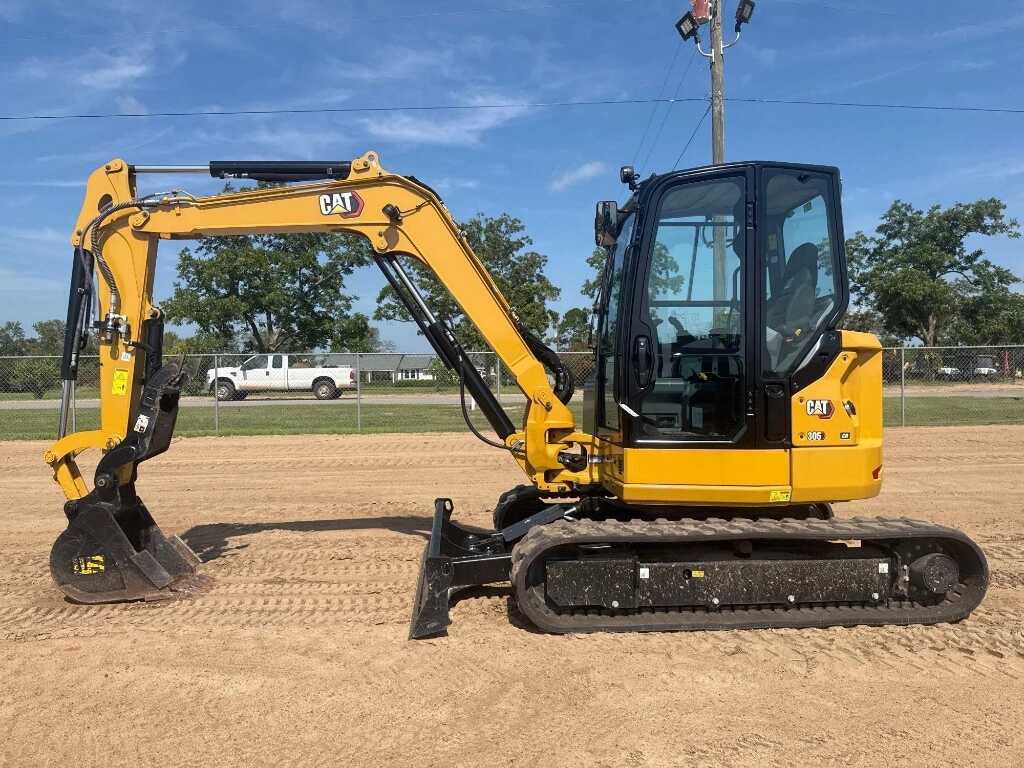

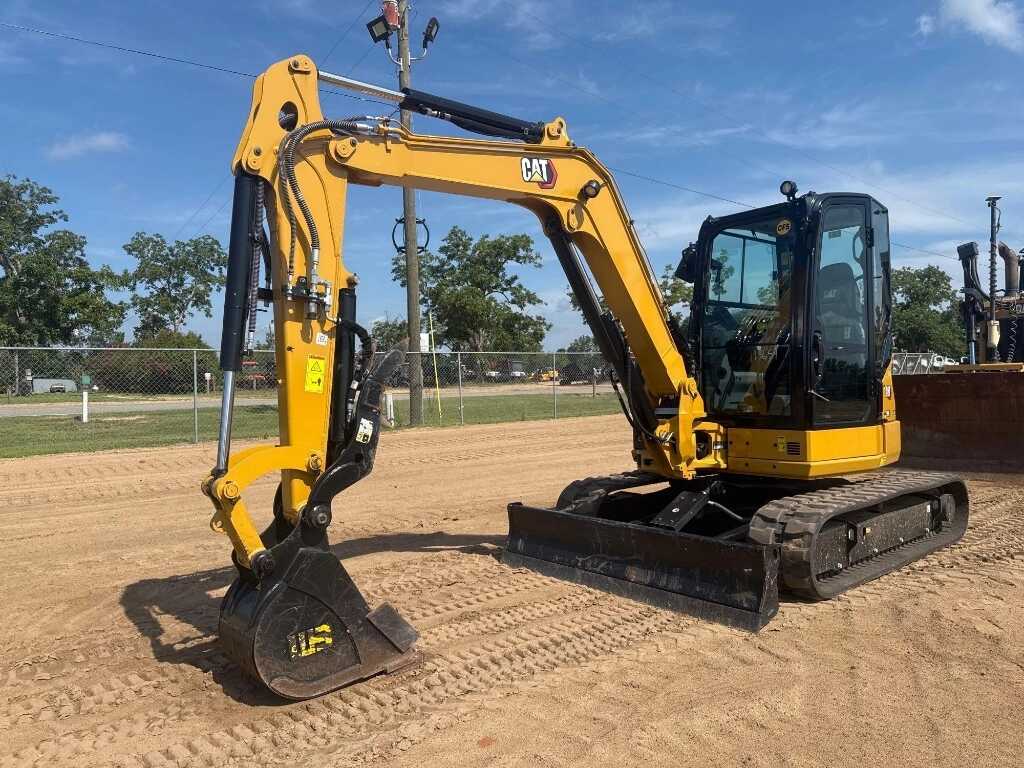

Comes with FULL WARRANTY UNTIL 6/30/2029 OR 3,000 HOURS! Machine was just fully cleaned, serviced, greased and looked over. Photos just taken! Delivery available!

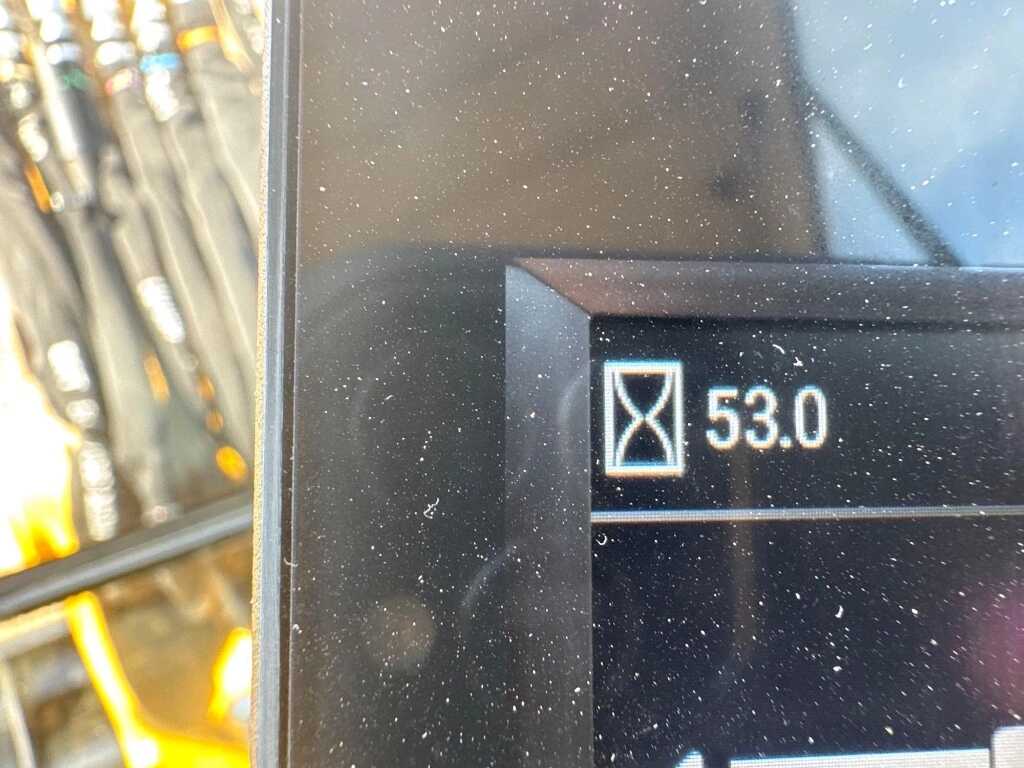

– 52 Well Maintained Hours!

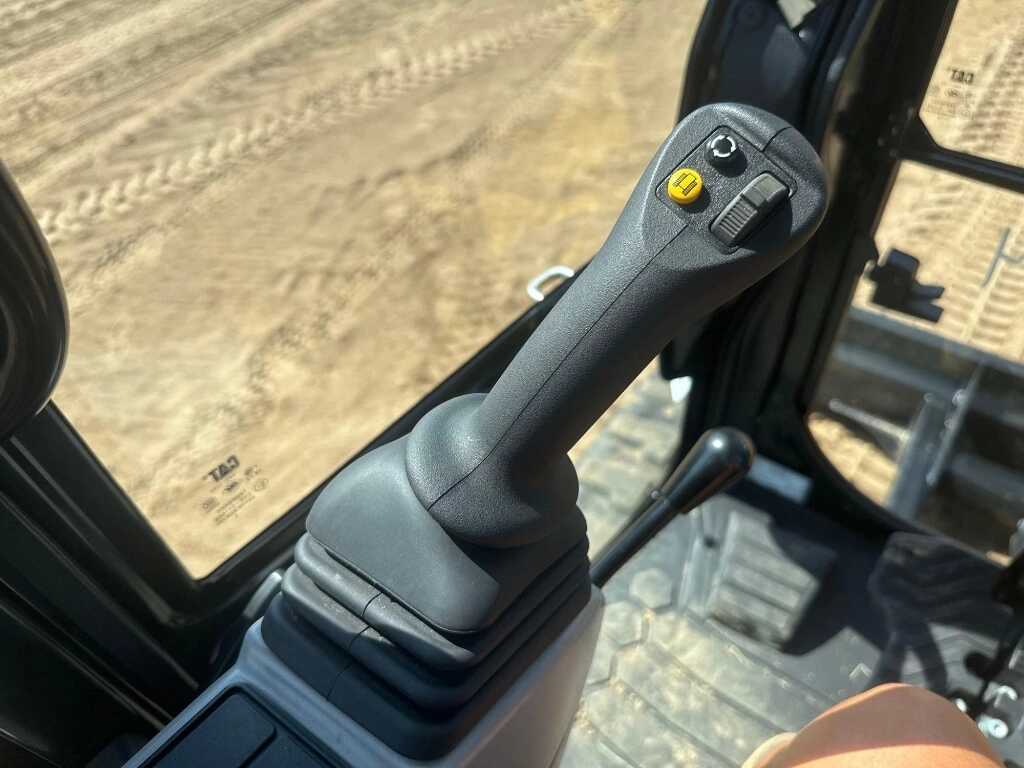

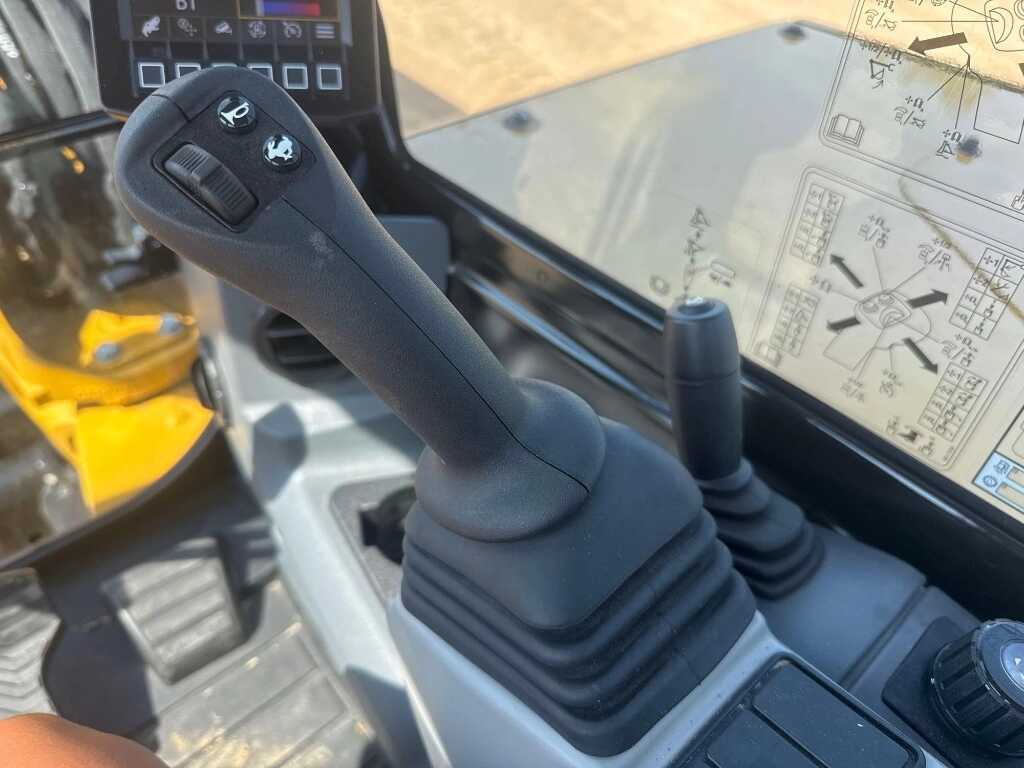

– Stick Steer

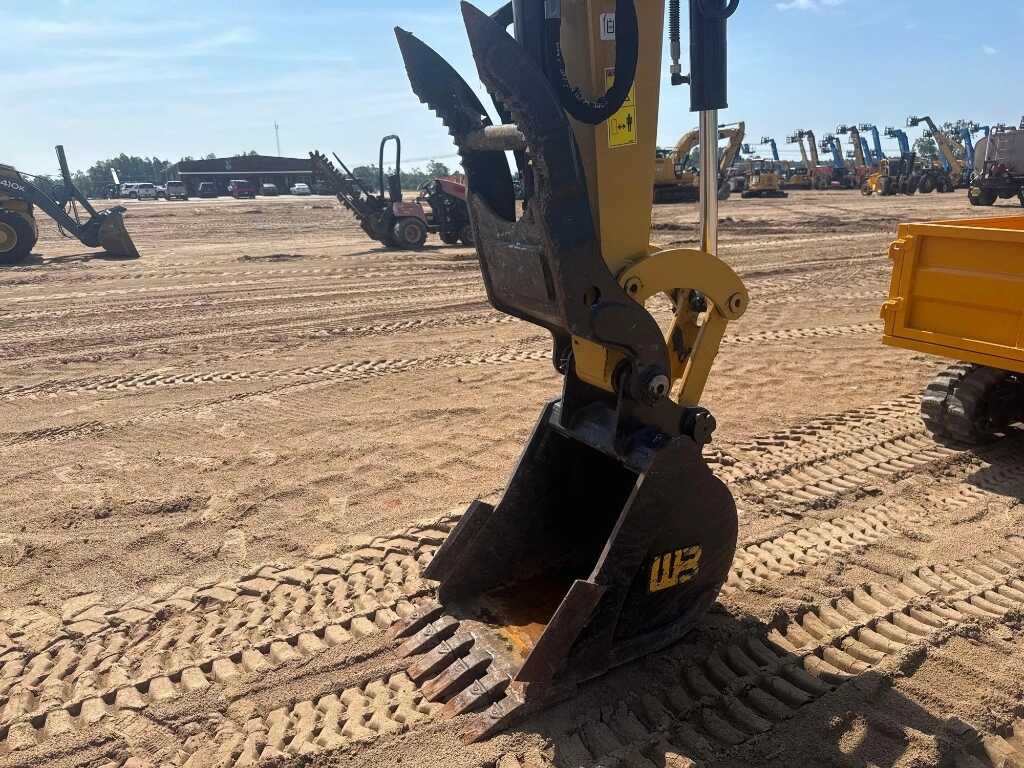

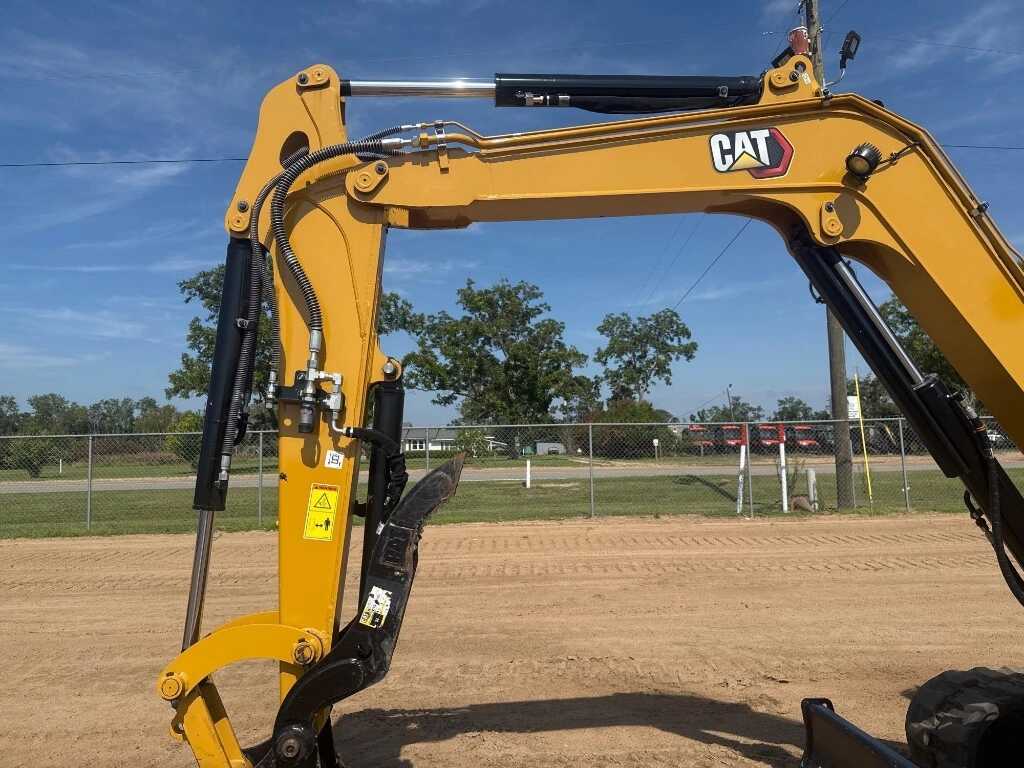

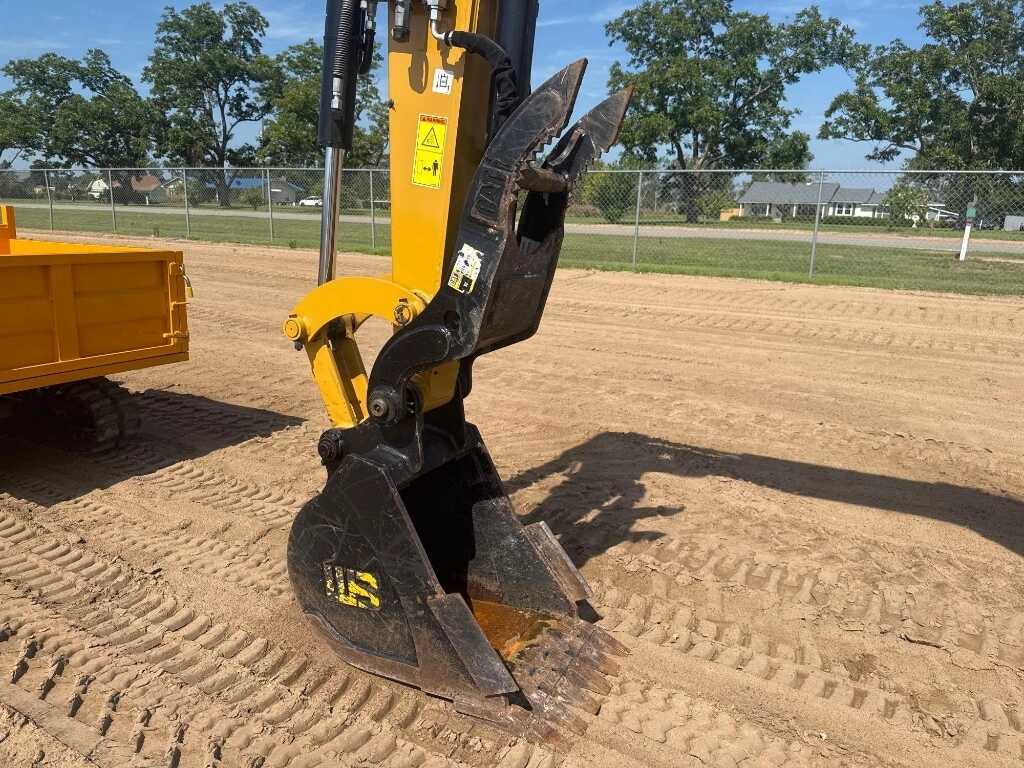

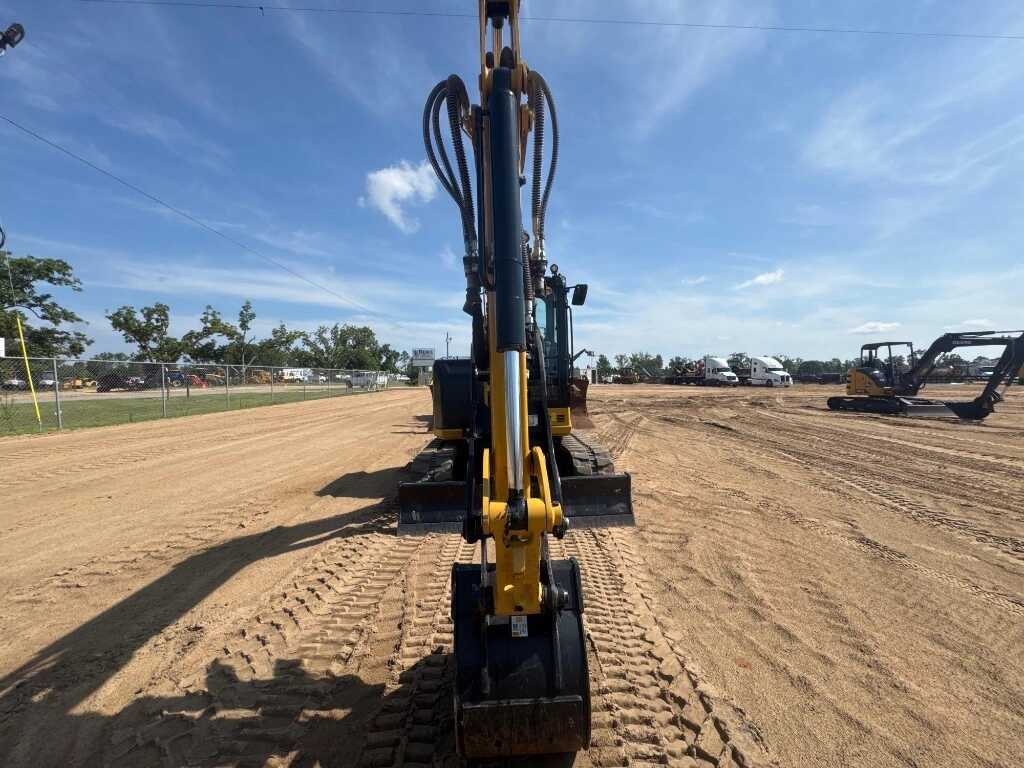

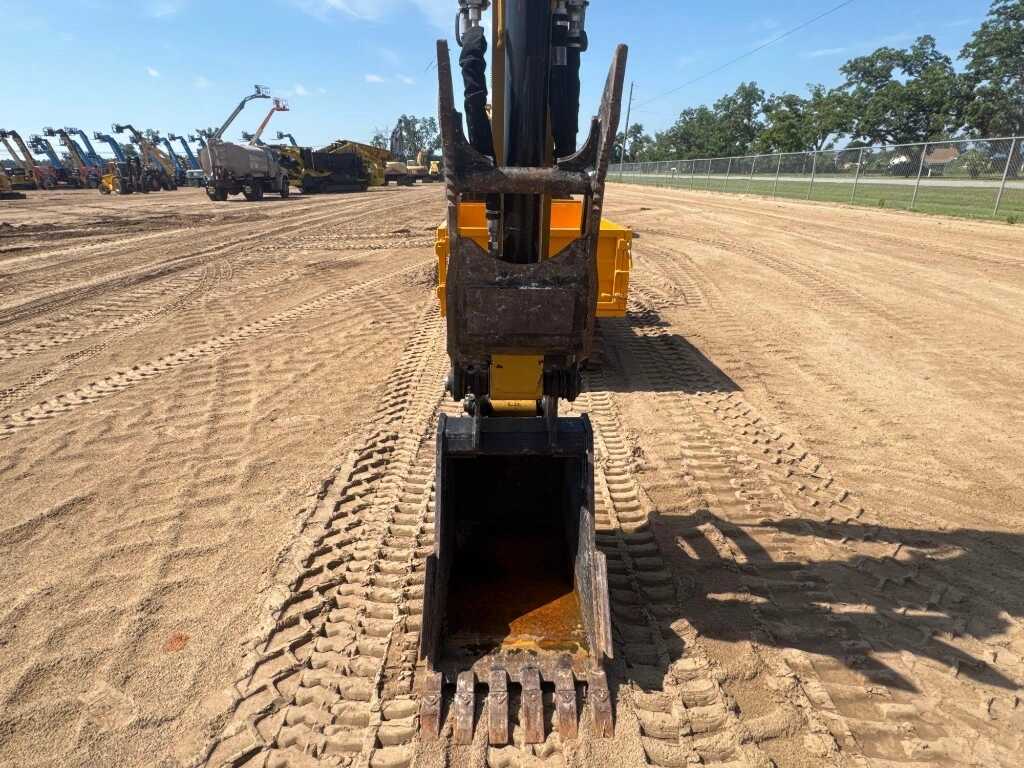

– Hydraulic Thumb
– Secondary AUX Hydraulics

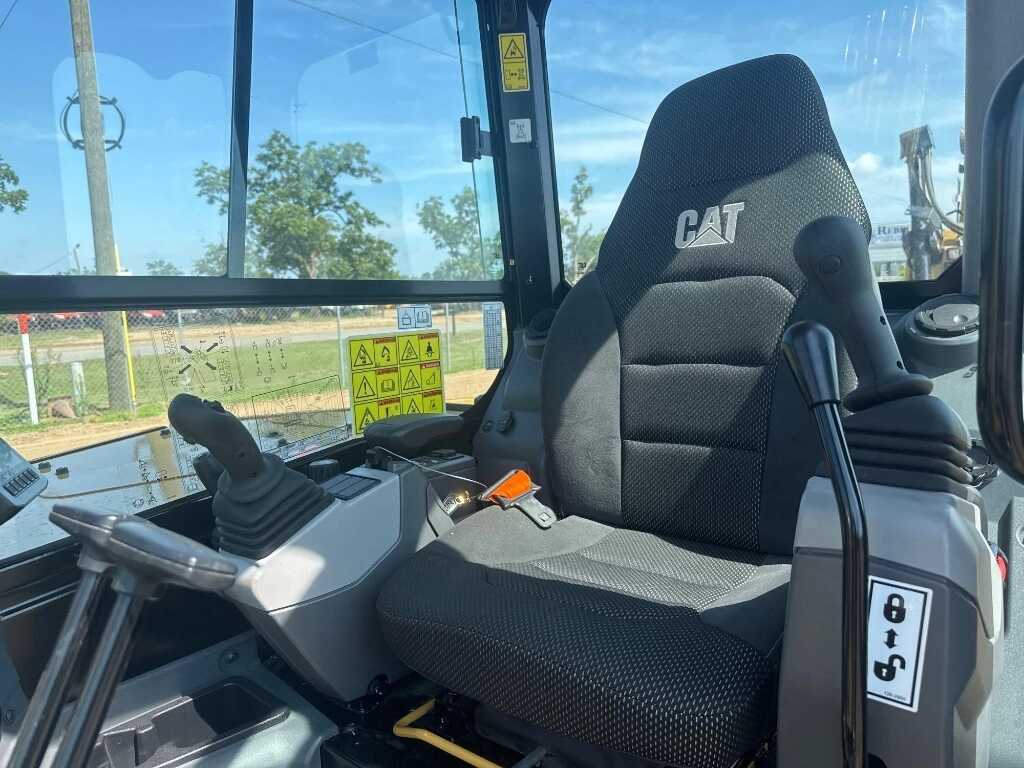

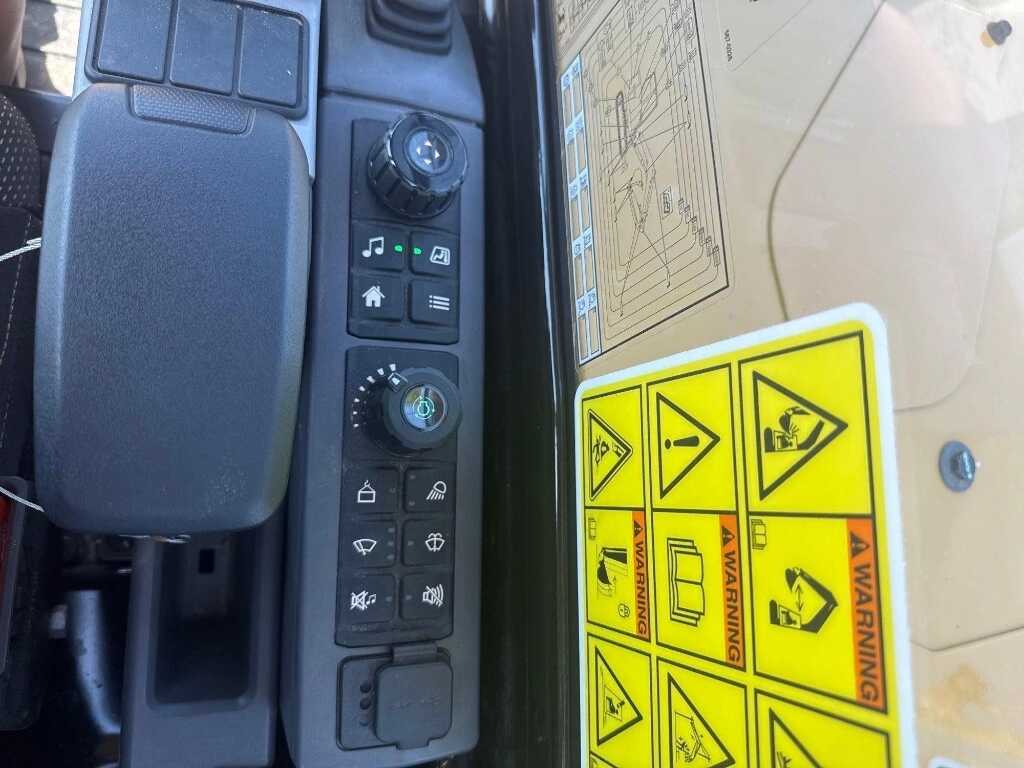

– Heat/AC/Radio
– 2 Speed
– 18″, 24″ & 36″ Tooth Buckets
– Just Fully Serviced
– 45 HP
– 12,700 Lbs

MACHINE IS READY TO WORK

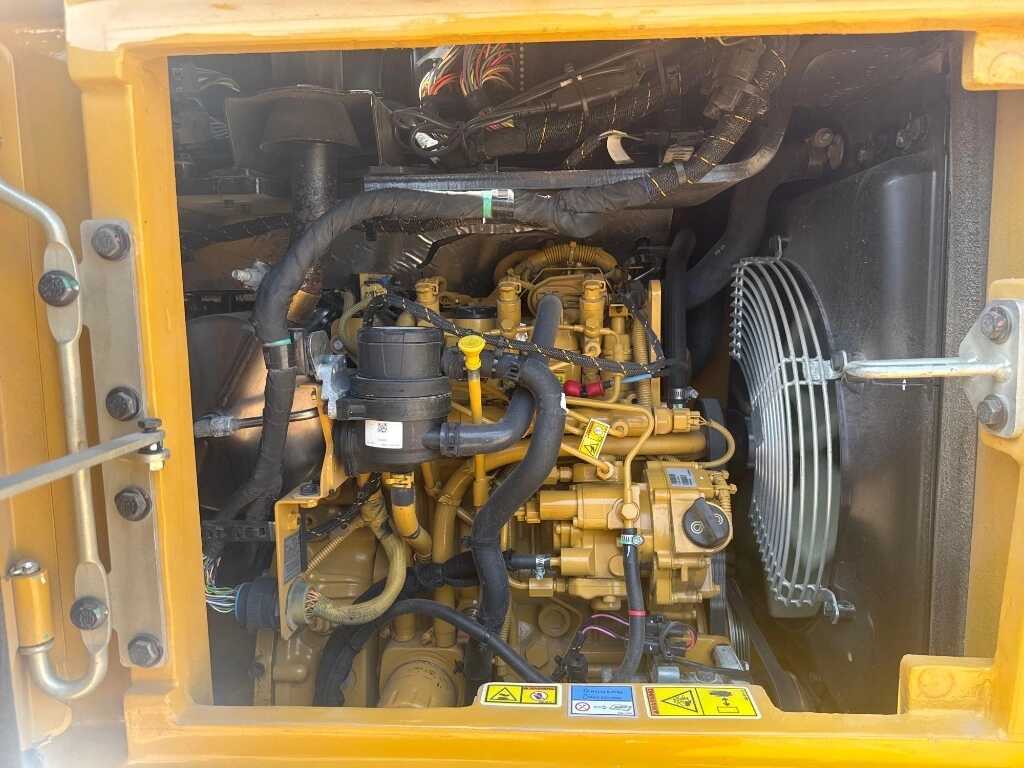

Engine & Power
Engine Model: Cat® C1.7 Turbo
Net Power: 45 hp @ 2,400 rpm (ISO 9249 / 80/1269/EEC)
Gross Power: 48.4 hp @ 2,400 rpm (SAE J1995:2014)
Displacement: 101 in³ (1.7 L)
Bore × Stroke: 3.3 × 3.9 in
Emissions: Tier 4 Final / EU Stage V compliant

Weights
Minimum Operating Weight with Canopy: 11,016 lb
Minimum Operating Weight with Cab: 11,234 lb
Maximum Operating Weight with Canopy: 12,469 lb
Maximum Operating Weight with Cab: 12,688 lb
Standard Operating Weight: 12,688 lb

Dimensions
Dig Depth: 144.5 in
Stick Length: 63 in
Maximum Dig Height: 210.8 in
Maximum Dump Clearance: 151.4 in
Maximum Reach: 235.8 in (Ground Level: 229.7 in)
Vertical Wall: 100.8 in
Track Width: 78 in
Shipping Length: 210.2 in
Shipping Height: 100.4 in
Ground Clearance: 13.2 in
Tail Swing: 43.1 in (no counterweight) / 47.2 in (with counterweight)

Hydraulics
System: Load-sensing hydraulics with variable displacement piston pump
Main Pump Flow @ 2,400 rpm: 35 gpm
Operating Pressure (Equipment/Travel): 3,843 psi
Operating Pressure (Swing): 2,901 psi
Auxiliary Circuit (Primary): 21 gpm @ 3,843 psi
Auxiliary Circuit (Secondary): 7 gpm @ 3,843 psi
Bucket Digging Force: 11,061 lbf
Stick Digging Force (Standard): 6,362 lbf
Stick Digging Force (Long): 5,665 lbf

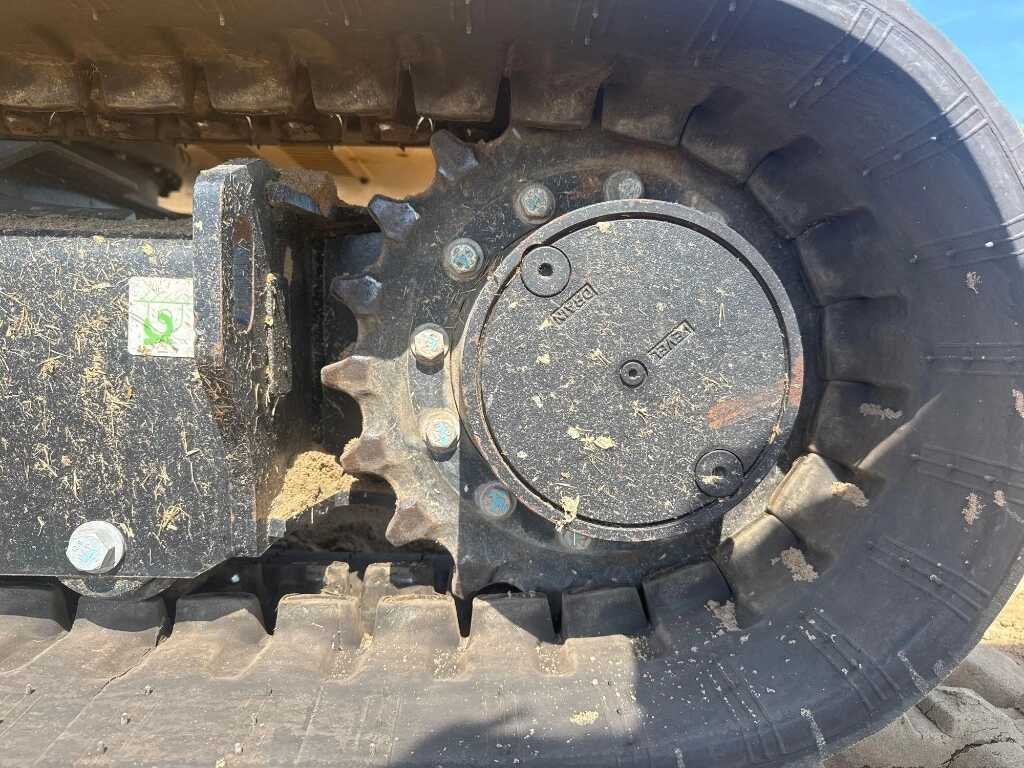

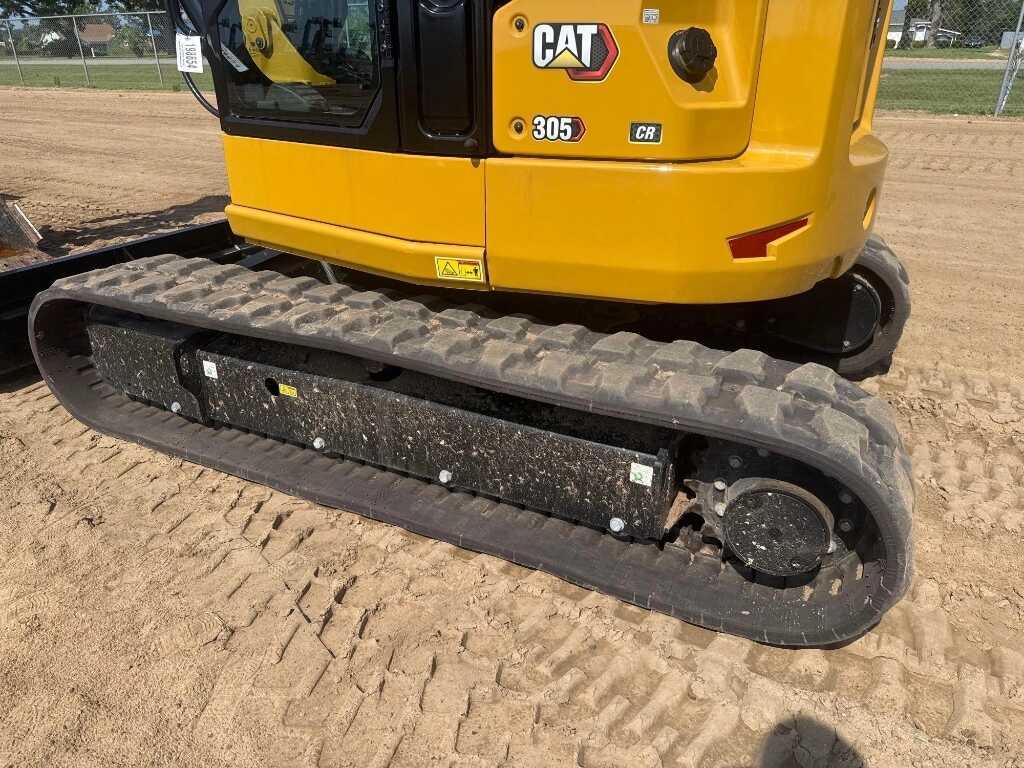

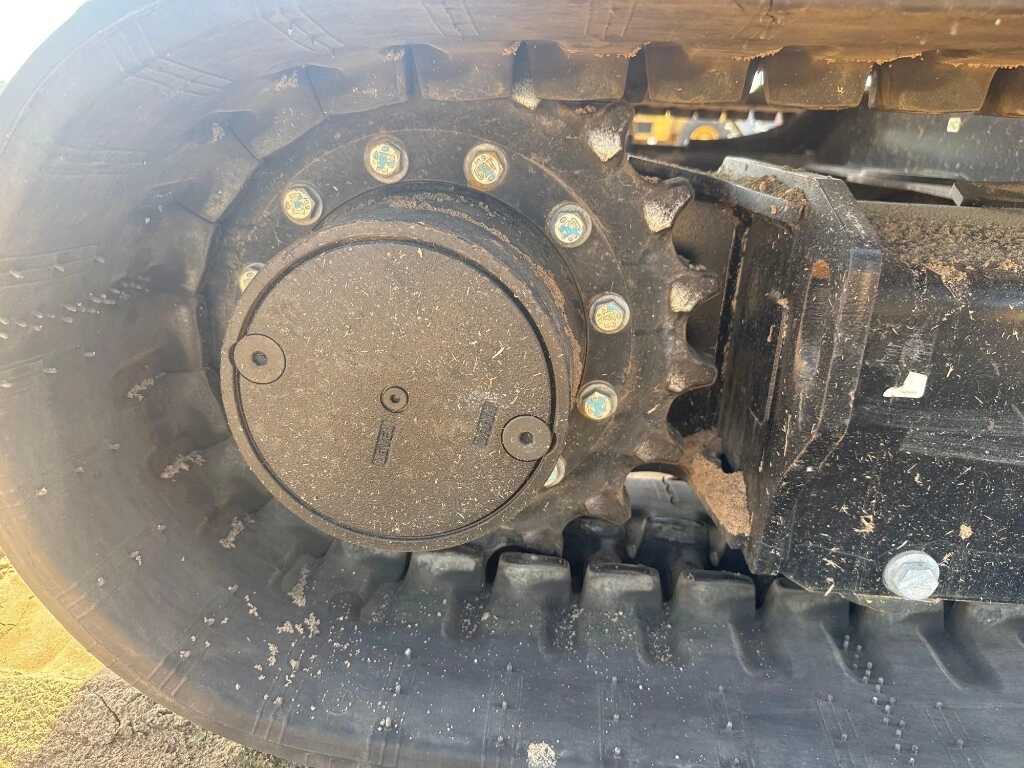

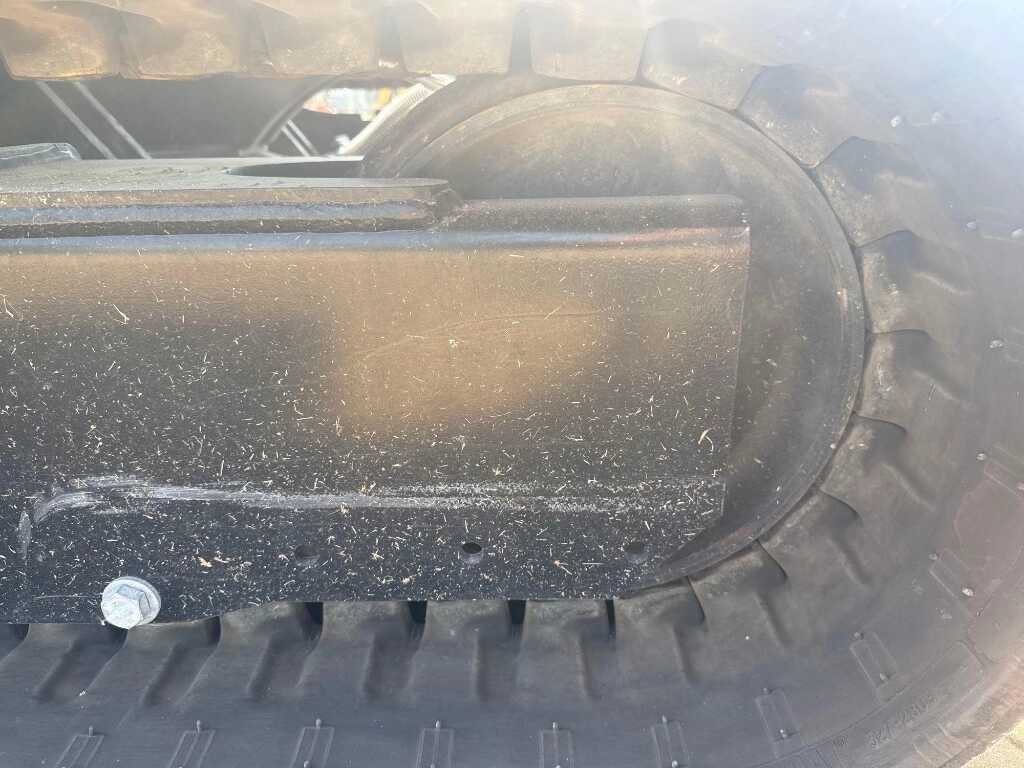

Travel System
Travel Speed (Low/High): 1.7 / 3.1 mph
Maximum Traction Force (Low/High): 11,353 / 5,553 lbf
Ground Pressure: 4.0 psi (minimum) / 4.7 psi (maximum)
Gradeability: 30°

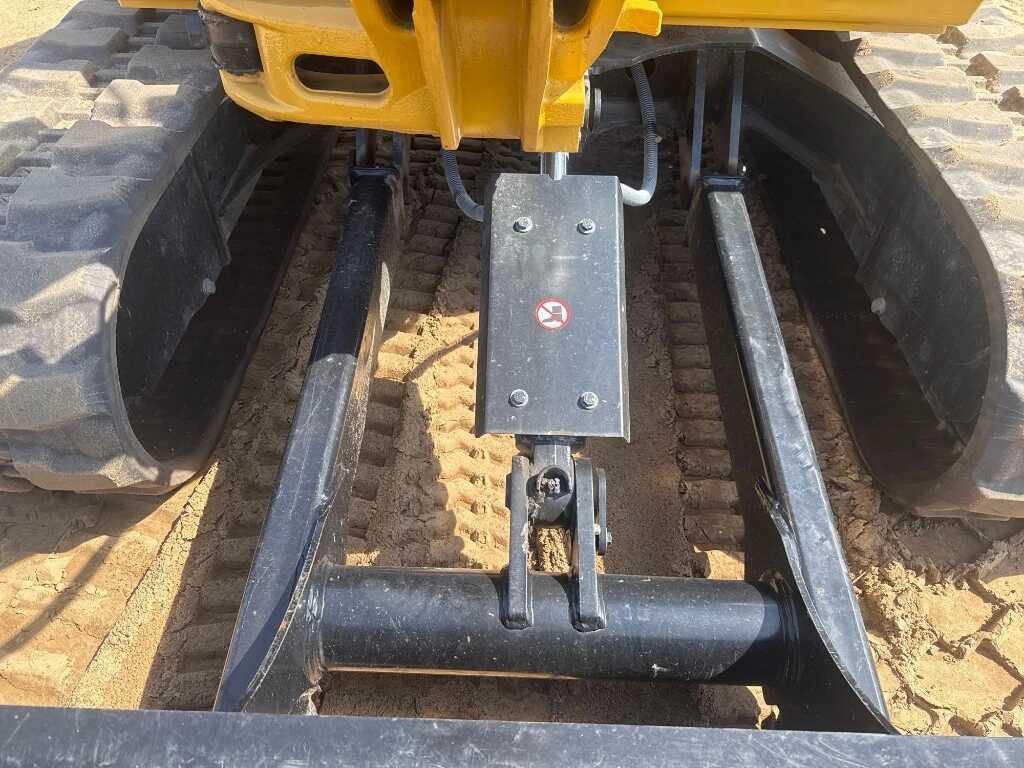

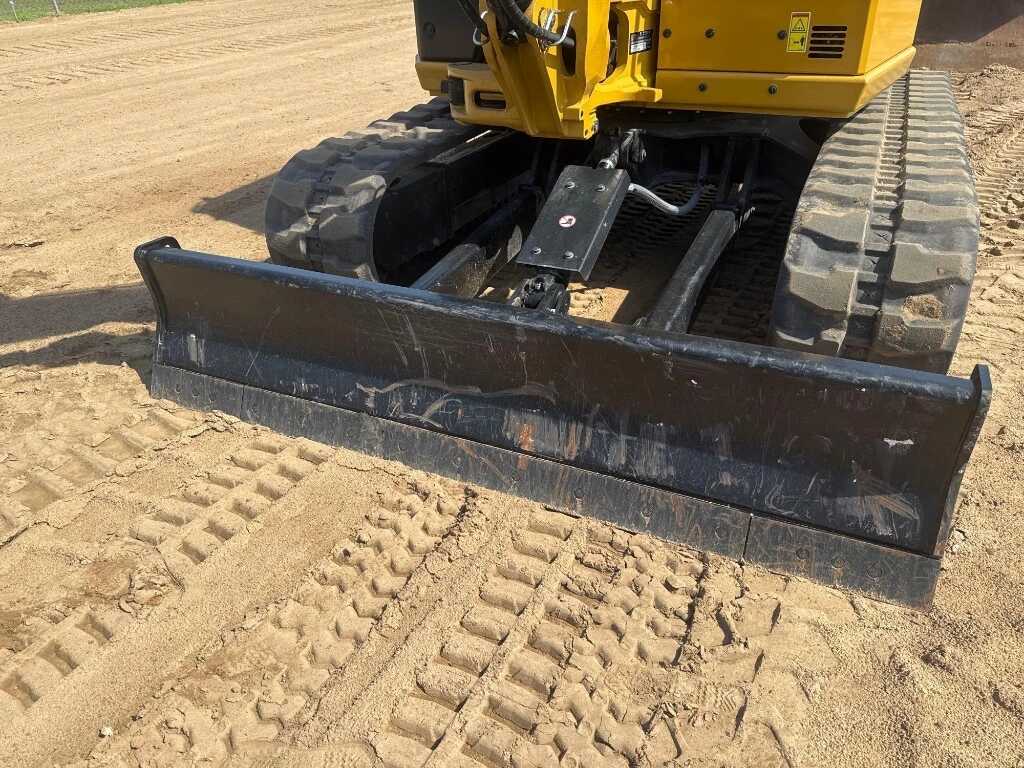

Blade
Straight Blade: 78 in (width) × 15.4 in (height)
Angle Blade: 78 in (width) × 15.7 in (height), ±25°

Capacities
Fuel Tank: 17 gal
Hydraulic Tank: 16 gal
Hydraulic System (Total): 20 gal
Engine Oil: 1.6 gal

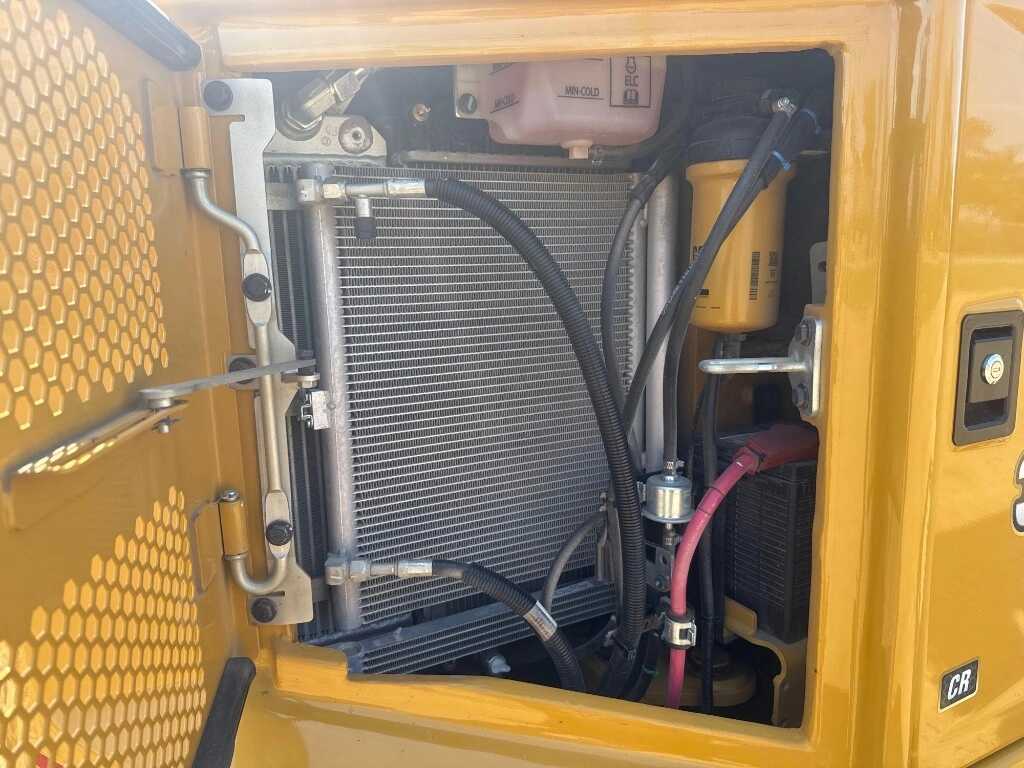

Cooling System: 2.9 gal

Swing System
Swing Speed: 9 rpm
Boom Swing: 72° left / 50° right

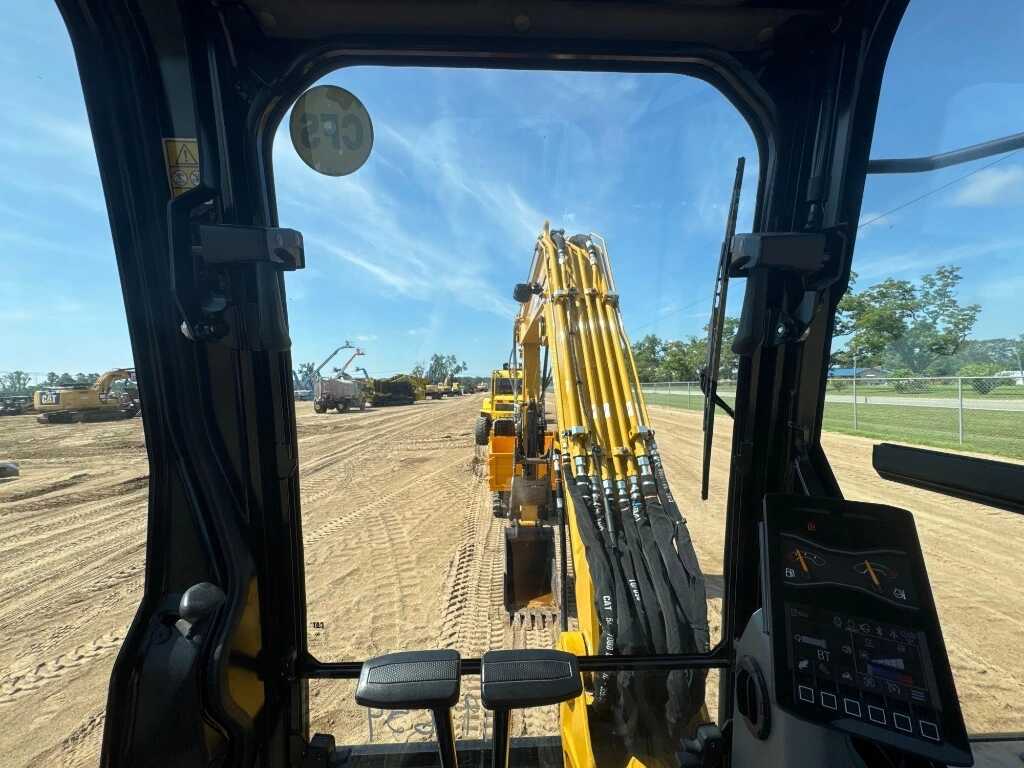

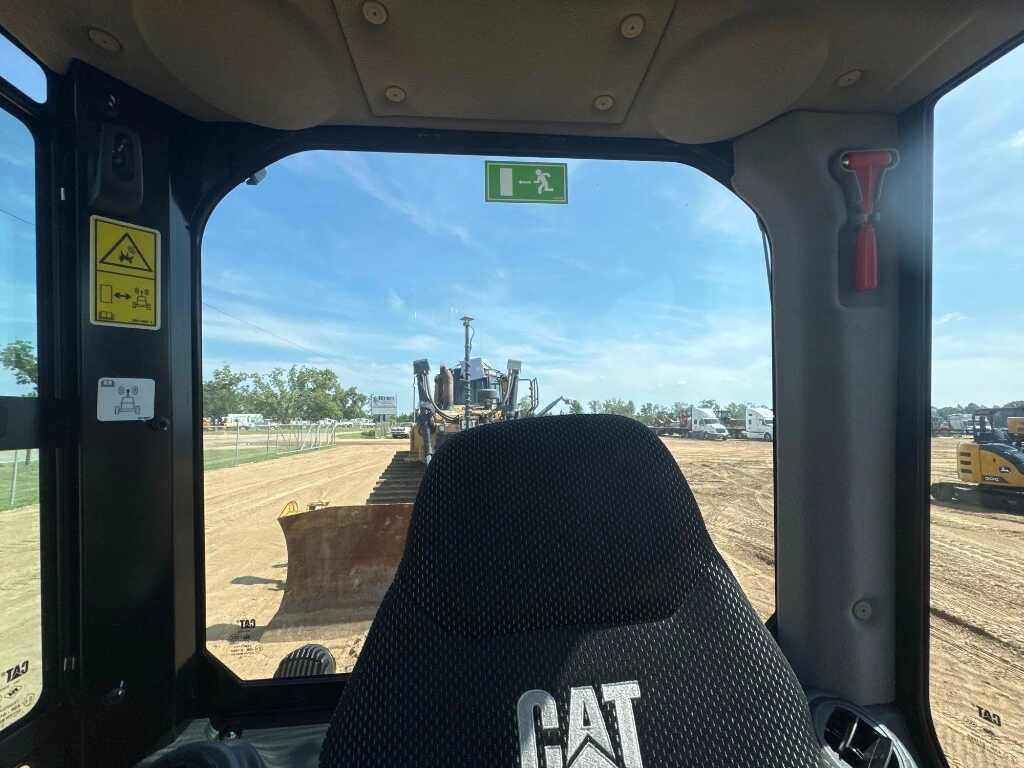

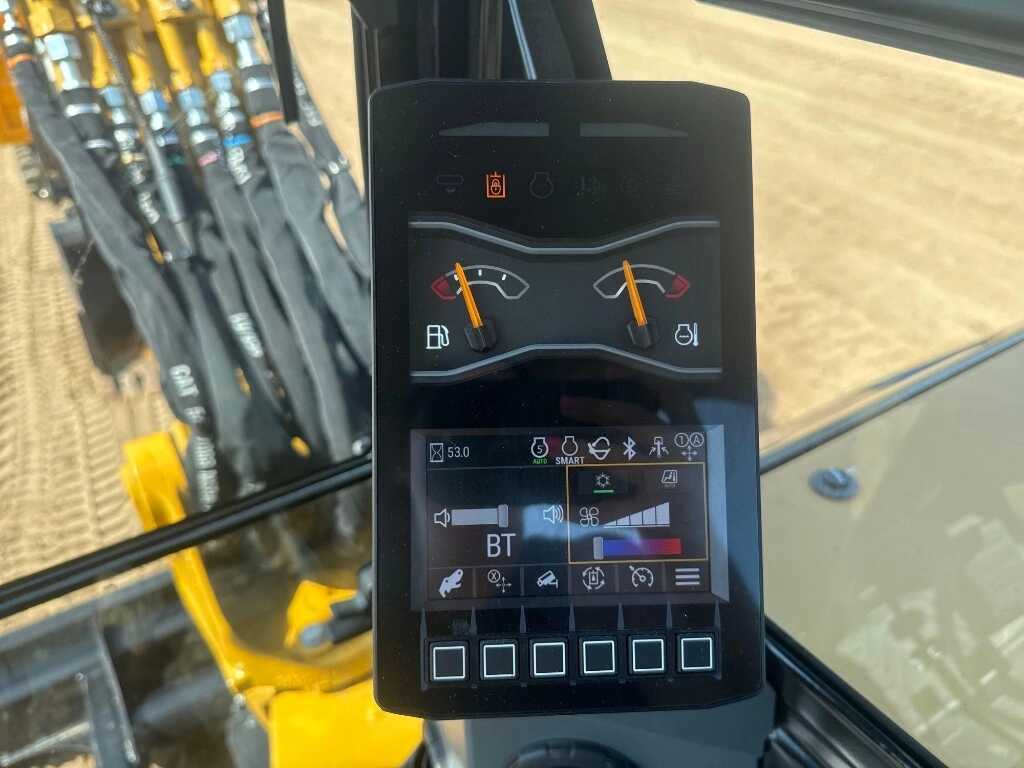

Operator Environment
Cab: ROPS, TOPS, ISO-certified protective structures
Operator Sound Level: 76 dB(A)
Exterior Sound Level: 97 dB(A)

Additional Notes
Recyclability: 96%
Optional Configurations: Long stick, steel tracks with pads, counterweight, and angle blade
