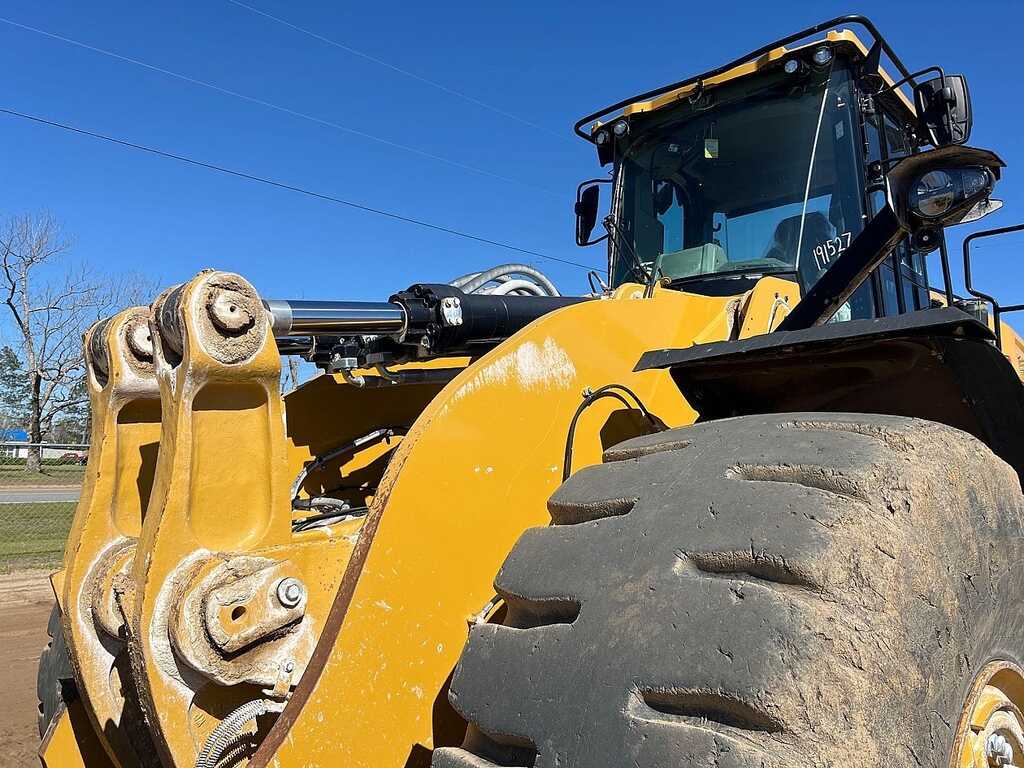

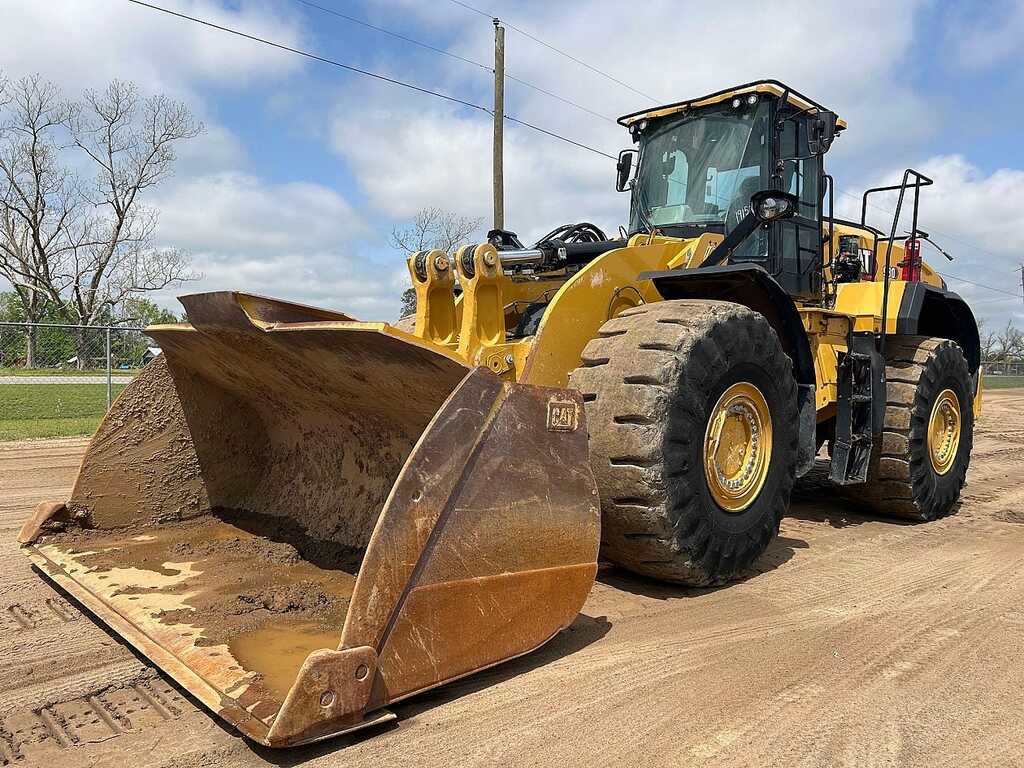

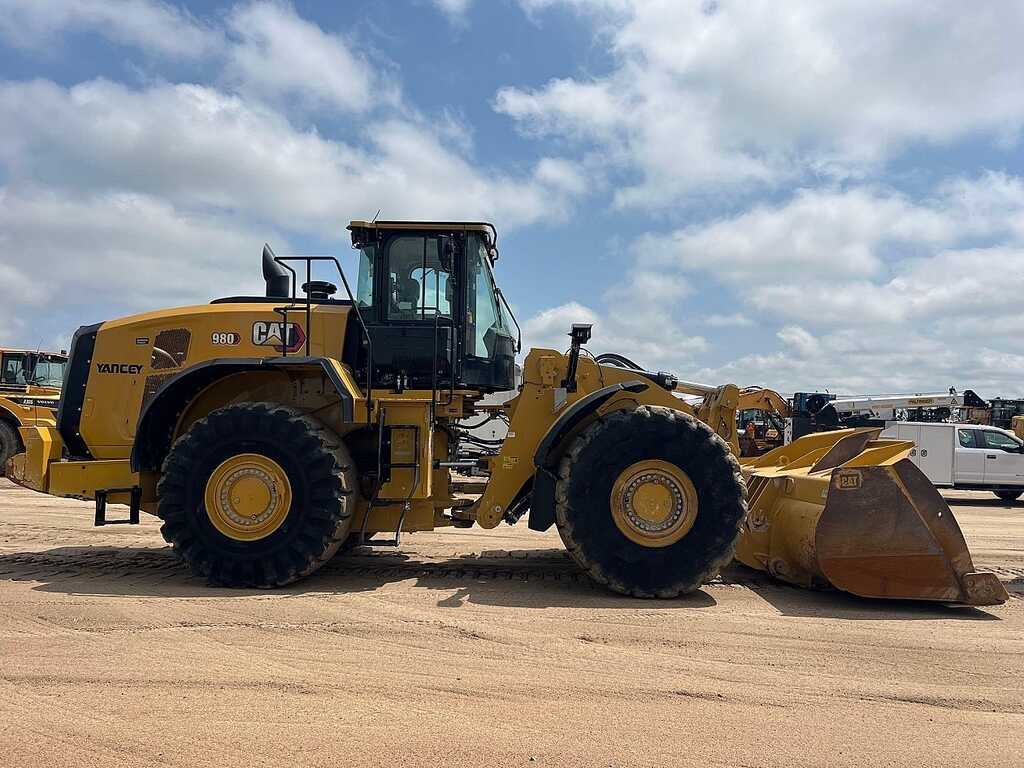

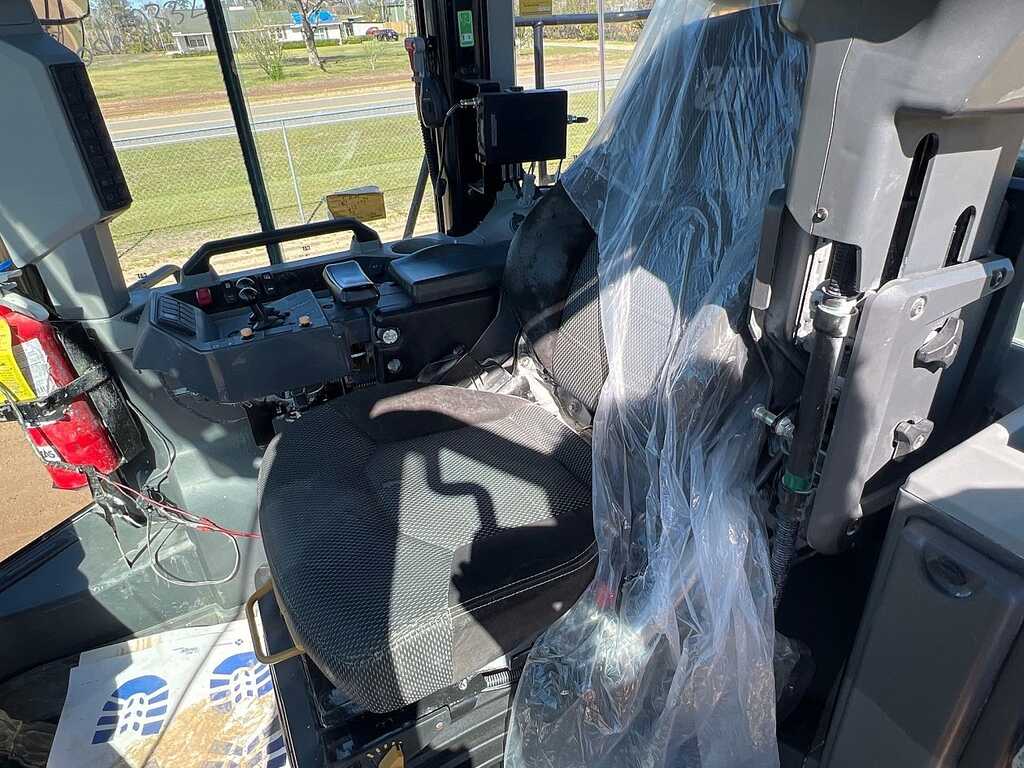

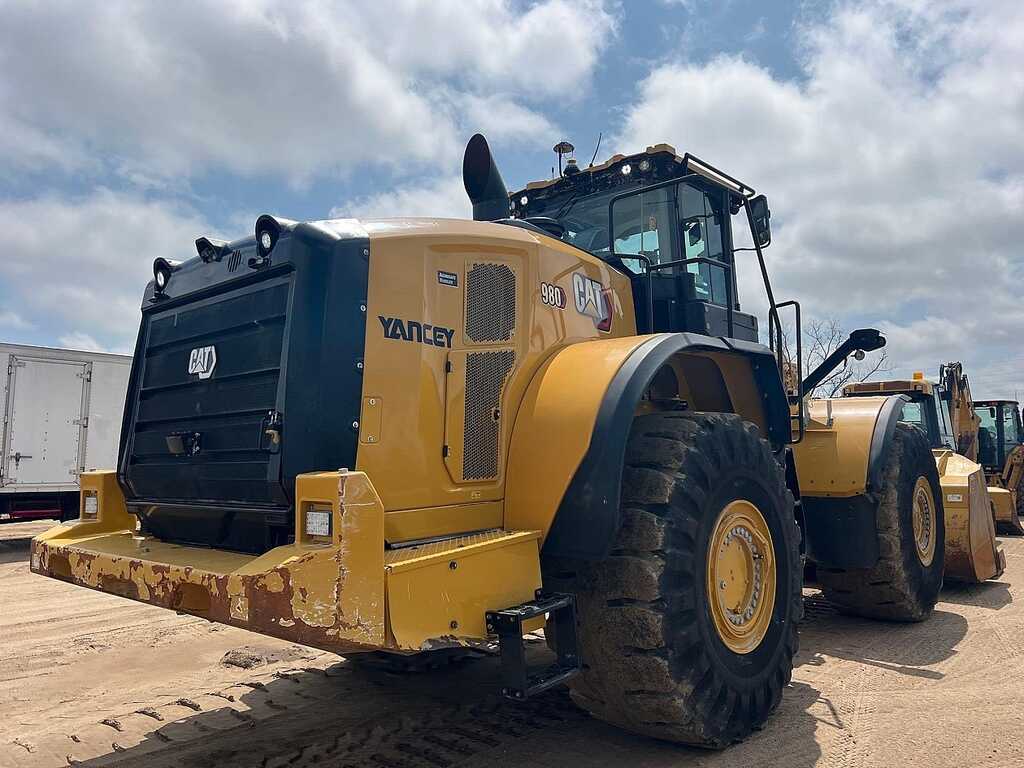

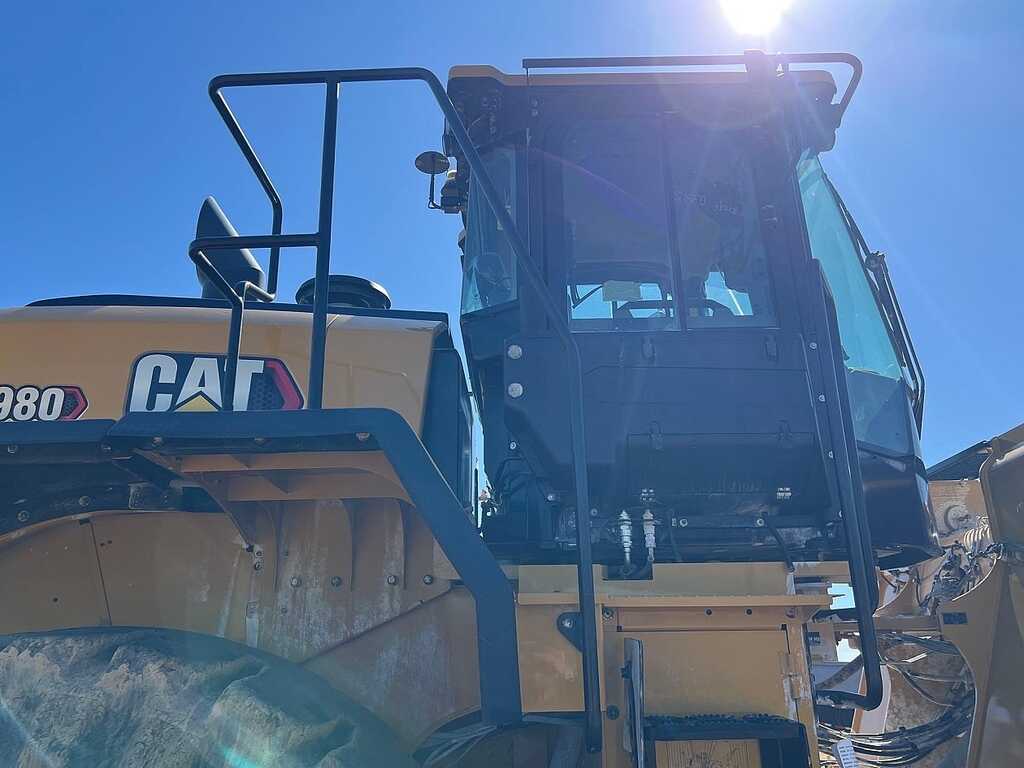

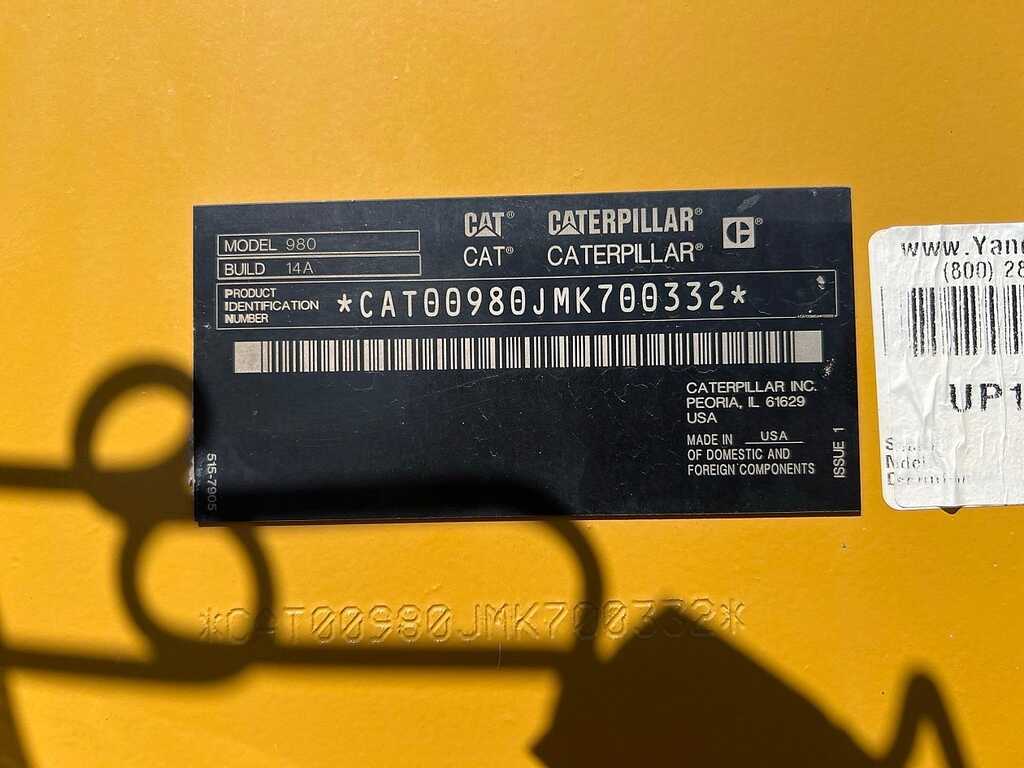

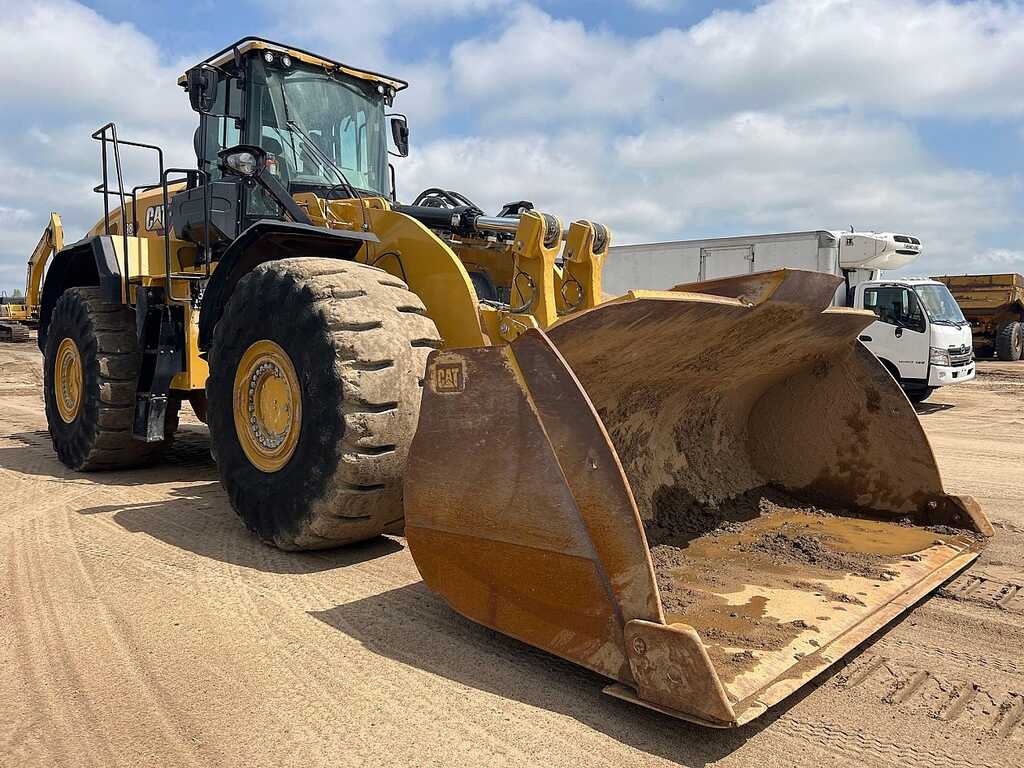

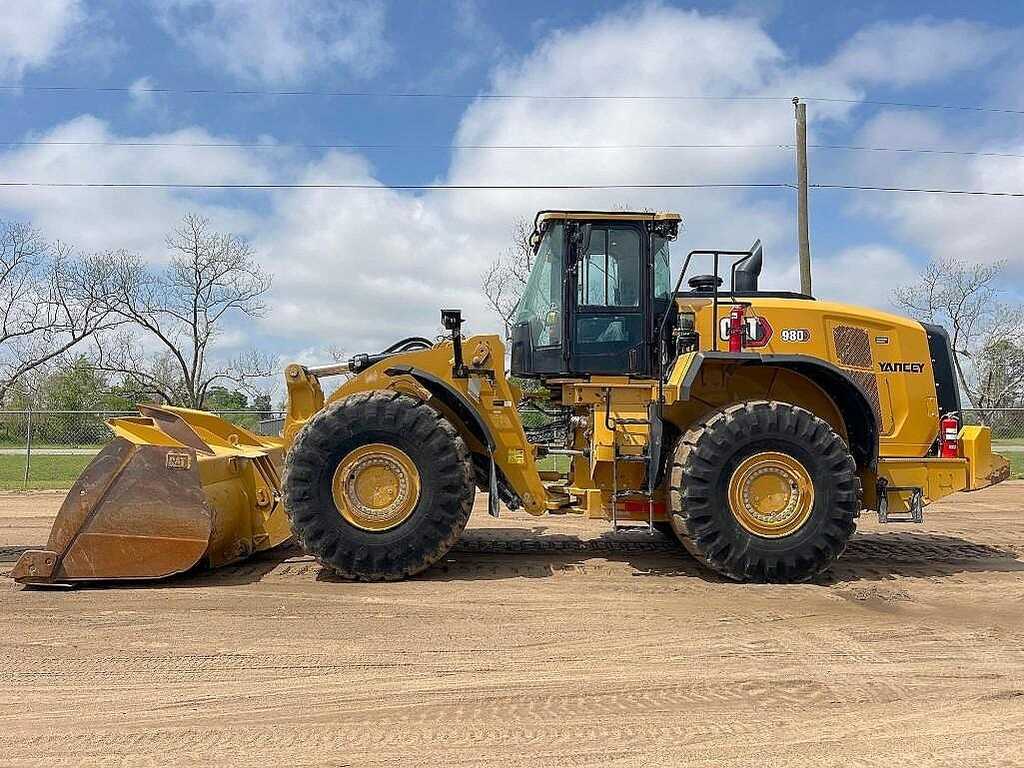

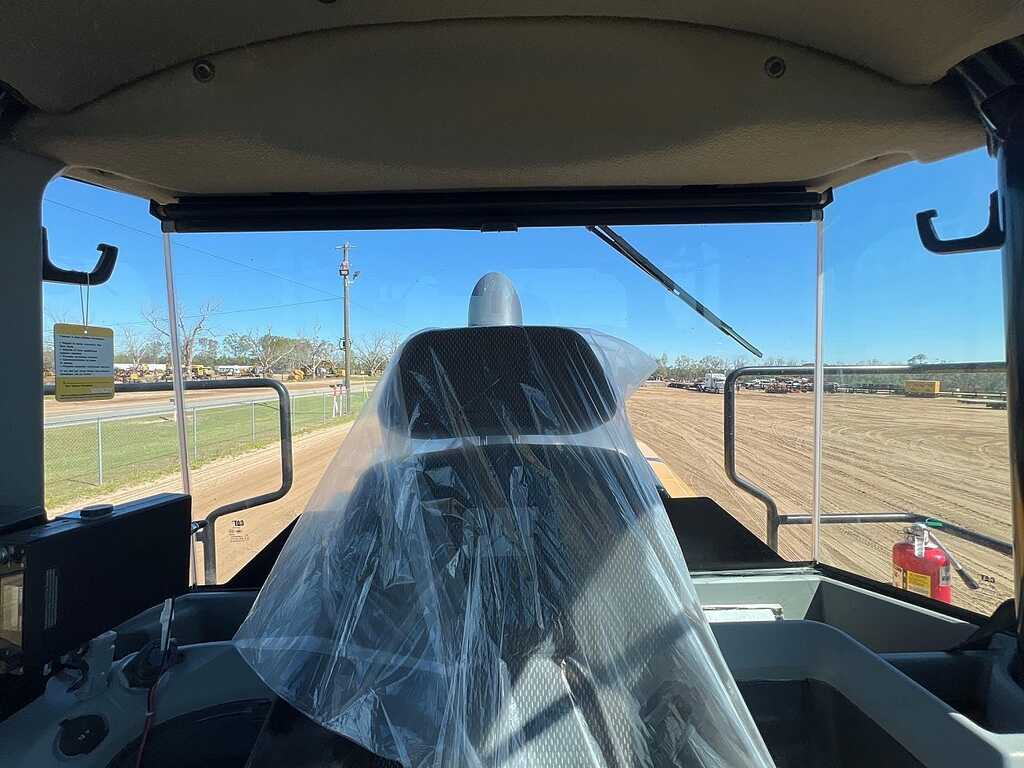

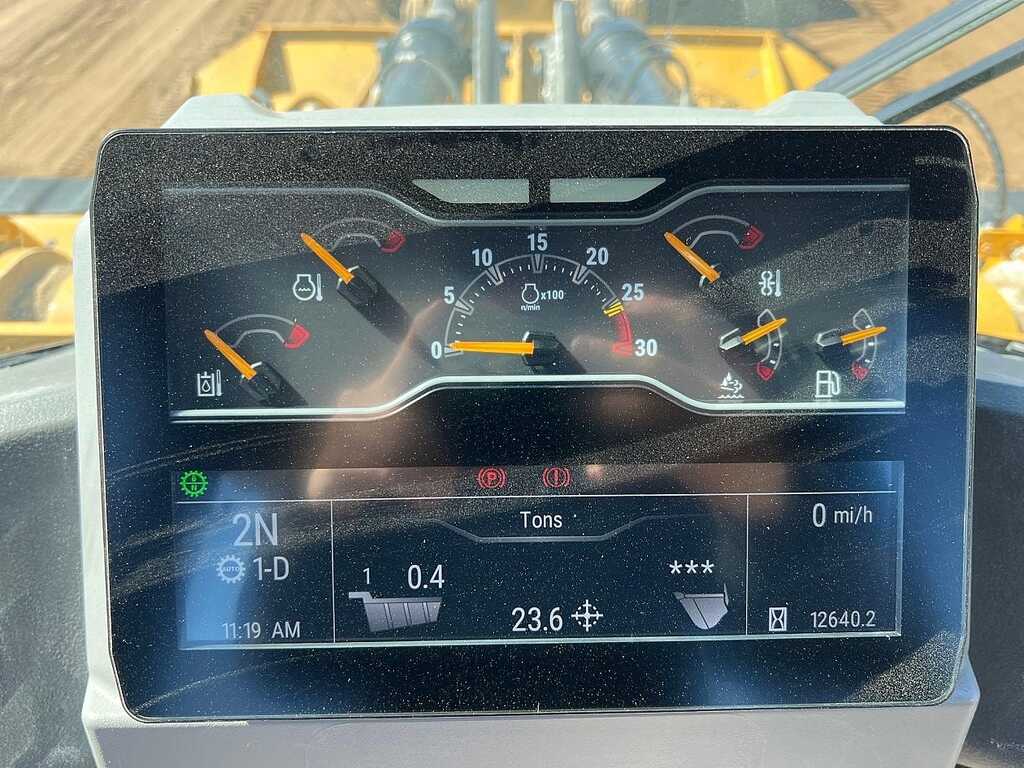

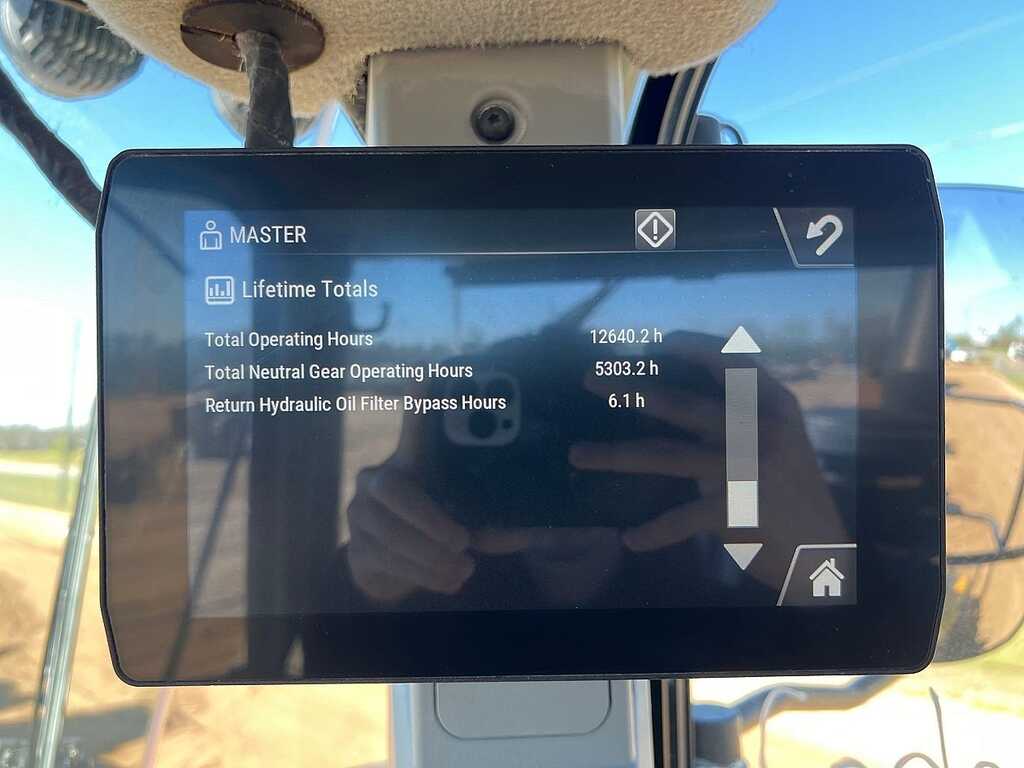

EROPS, AGGREGATE HANDLER, W/ BUCKET, 29.5-25 TIRES, PULLBAR, (SHOWS 12640 HRS) S/N CAT00980JMK700332 **LEASE RETURN**

Engine & Powertrain
Engine Model: Cat C15 ACERT
Cylinders: 6
Displacement: 928 cu in (15.2 L)
Rated Speed: 1,800 rpm
Net Power: 318 hp (ISO 9249/SAE J1349: 349 hp; 80/1269/EEC: 353 hp)
Gross Power: 355 hp (SAE J1995: 393 hp)
Max Torque: 1,191–1,244 lb-ft @ 1,200 rpm
Bore × Stroke: 5.4 in × 6.8 in

Operating Weights & Capacities
Operating Weight: ~66,490–67,294 lb
Static Tipping Weight: 50,201 lb
Static Tipping Load – Full Turn: 42,989 lb
Fuel Tank Capacity: 127 gal
Hydraulic System Fluid: 66 gal
Engine Oil: 10–17 gal (depending on configuration)
Cooling System: 22 gal
Transmission Fluid: 16 gal
Front Axle/Differential: 23 gal
Rear Axle/Differential: 23 gal
Alternator: 24V, 80-amp
Rear Axle Oscillation: 26°

Transmission
Type: Cat powershift
Speeds: 4 forward / 4 reverse
Forward Speeds: 4.1, 7.3, 12.9, 22.6 mph
Reverse Speeds: 4.7, 8.4, 14.7, 25.8 mph
Max Travel Speed (Forward): 22.6 mph
Max Travel Speed (Reverse): 25.8 mph

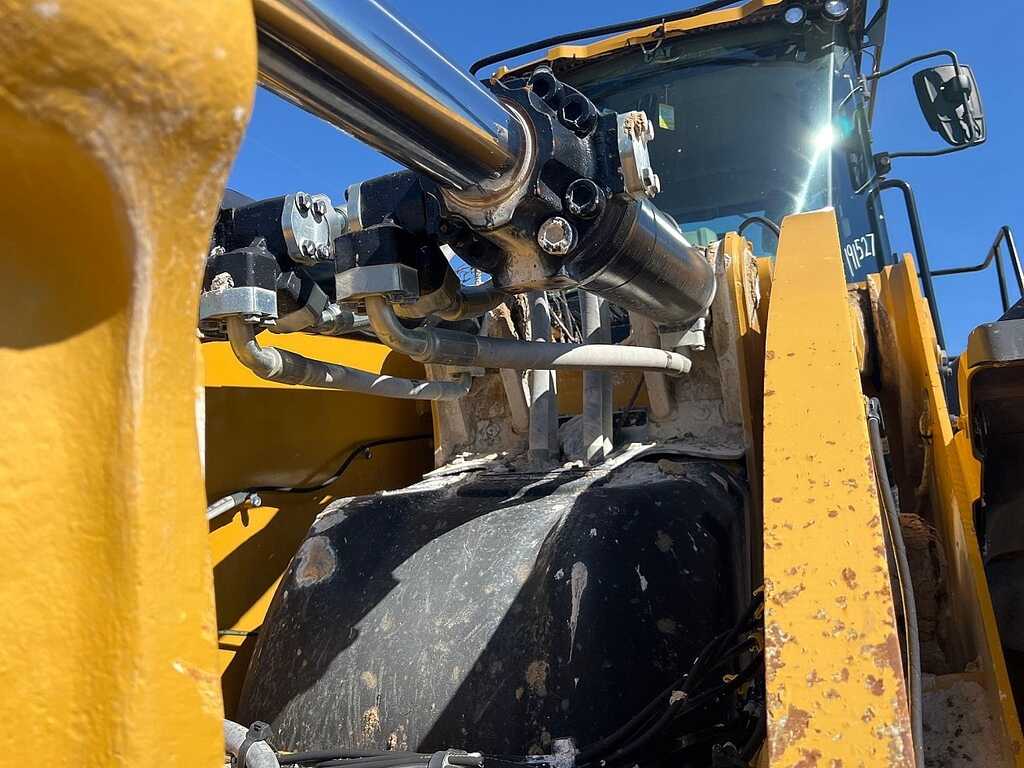

Hydraulic System
Pump Type: Gear
Relief Valve Setting: 3,000 psi
Pump Flow Capacity: ~123 gpm
Cycle Times: Raise 6.0 s, Dump 2.1 s, Lower 3.4 s, Total 11.5 s
Pilot System Pump Output: ~122.6 gpm
Bucket/Work Tool Pump Output: 123 gpm

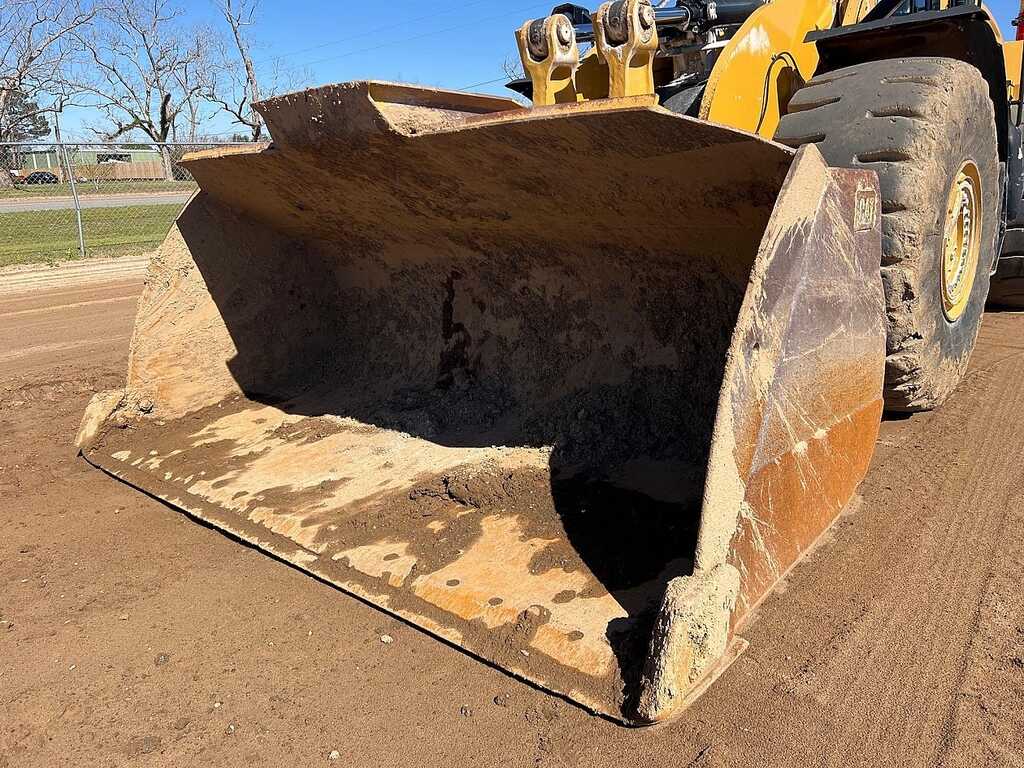

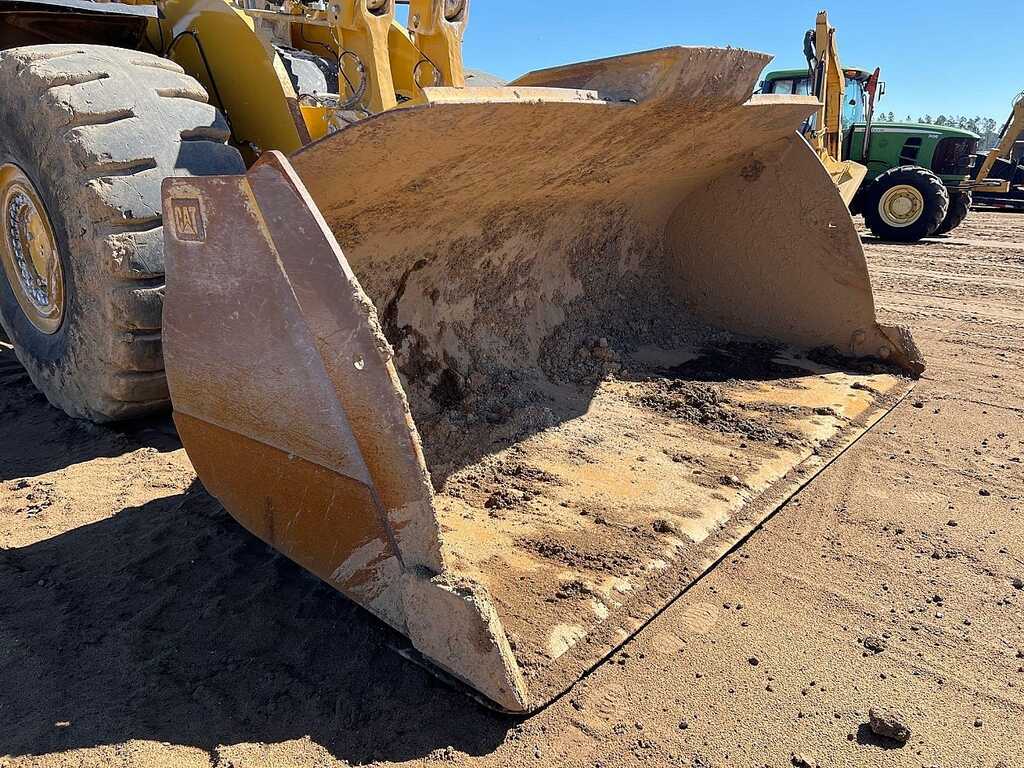

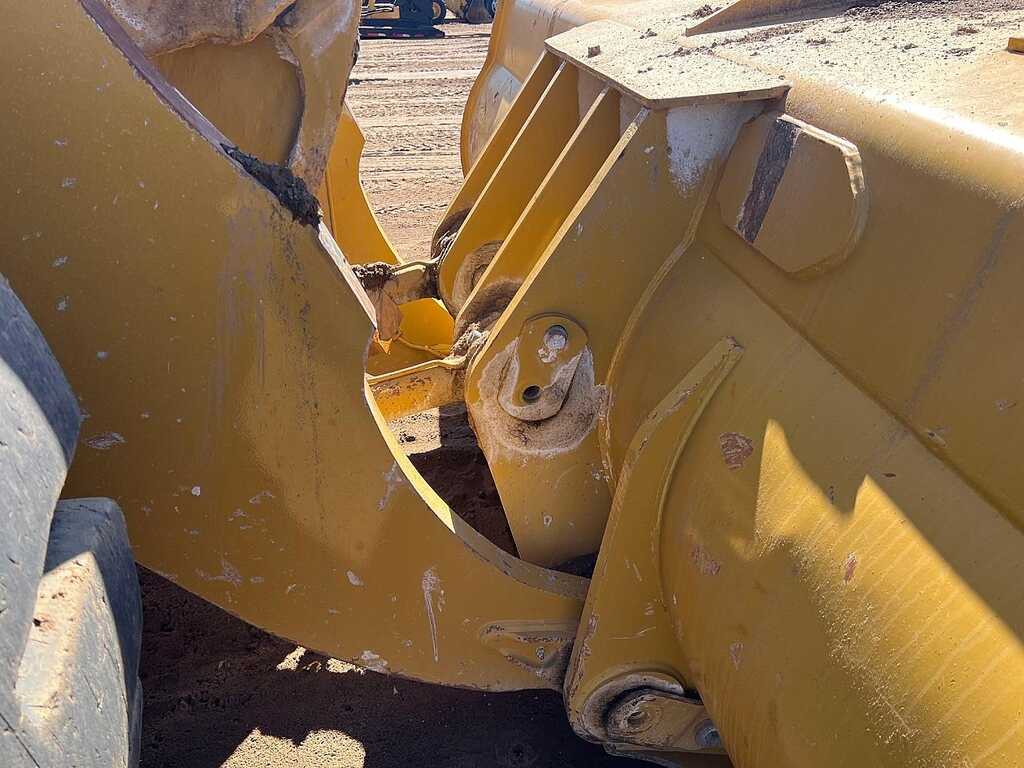

Buckets
Maximum Bucket Capacity: 8 yd³
Bucket Range: 5.0–8.0 yd³ (3.8–6.1 m³)
Reference Bucket: 5.5 yd³ GP with teeth
Breakout Force (Reference Bucket): 61,373 lb
Bucket Width: 11.6 ft

Axles & Tires
Front Axle: Fixed
Rear Axle: Oscillating ±13°
Max Single-Wheel Rise and Fall: 21.7 in

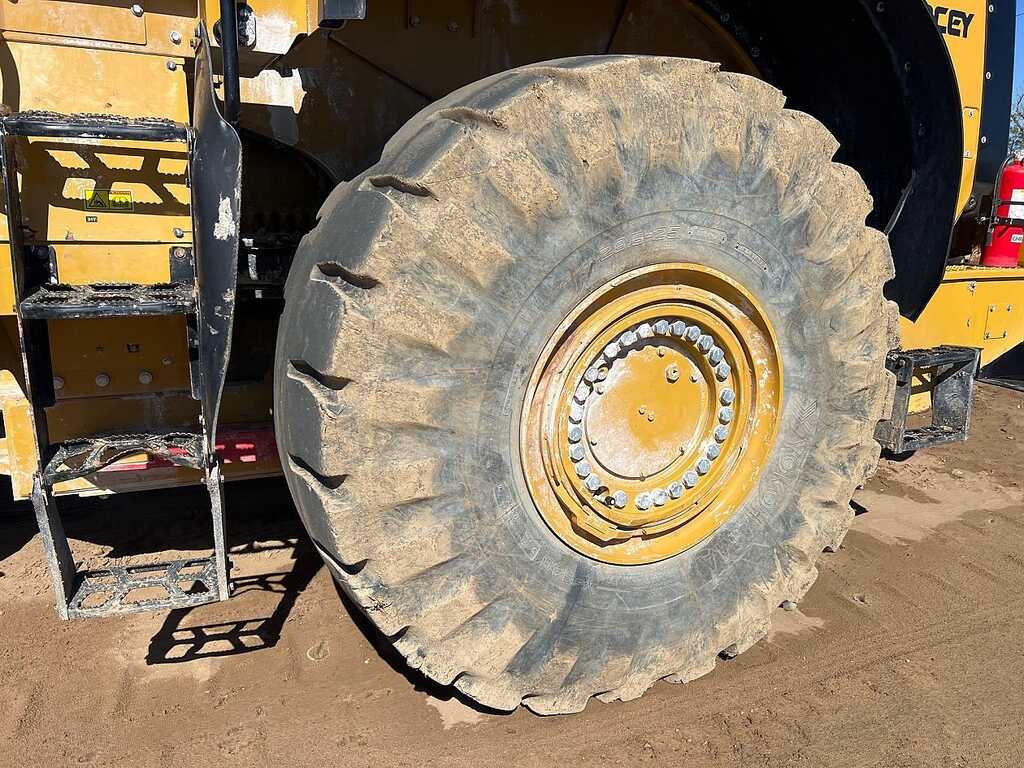

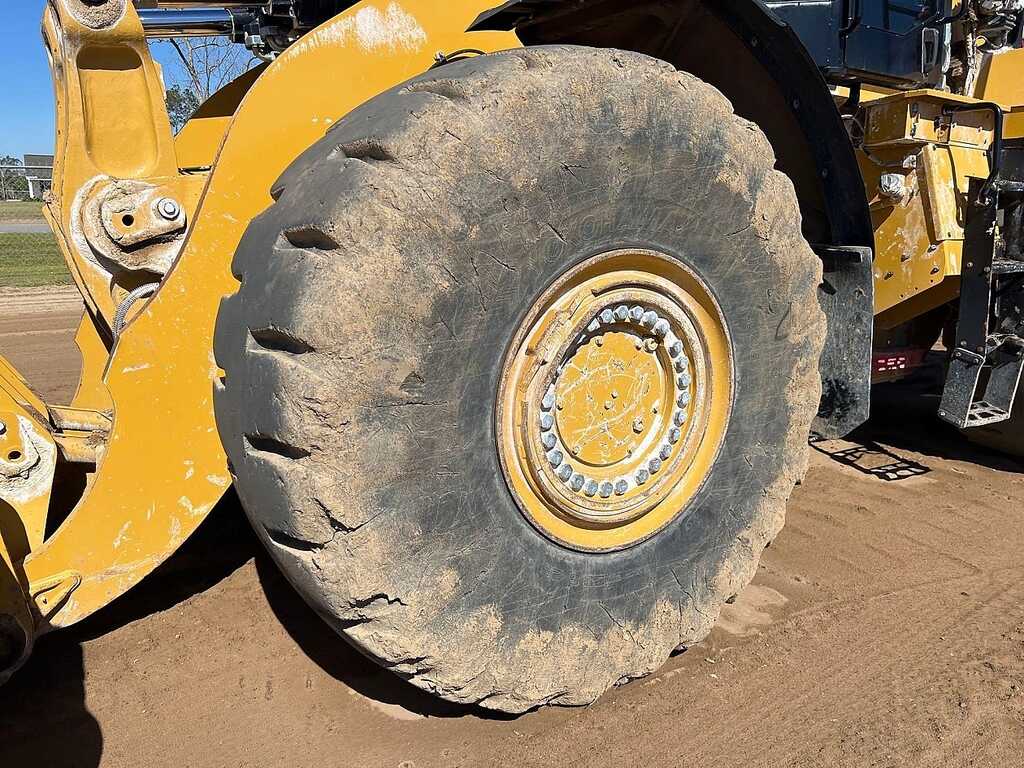

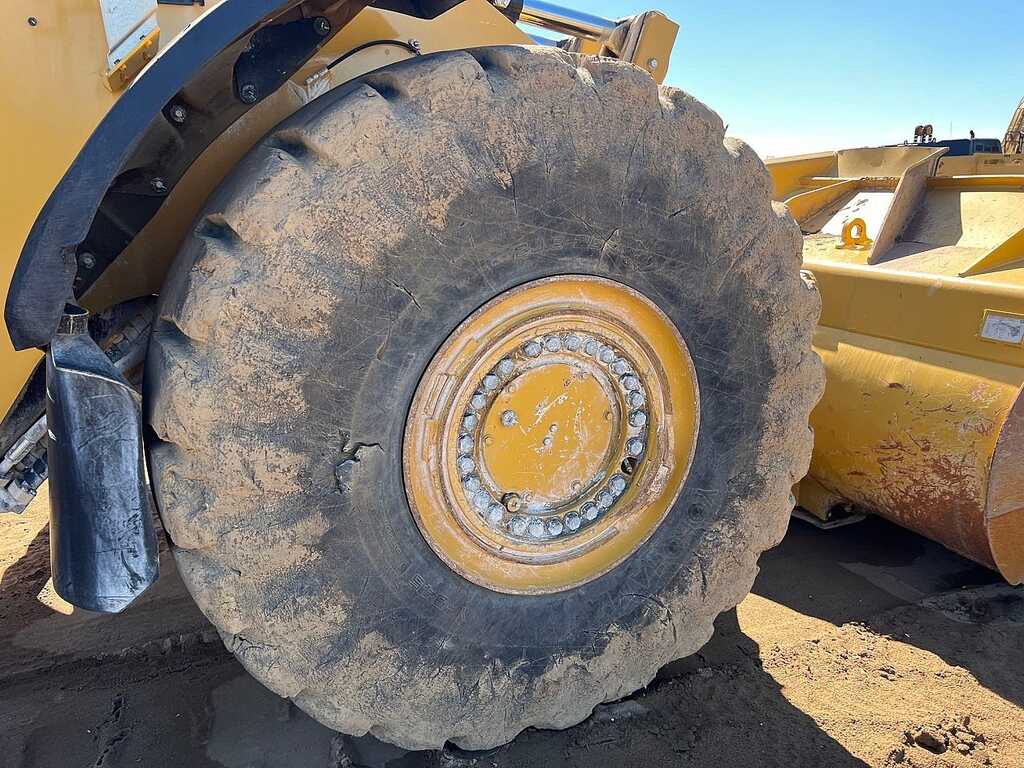

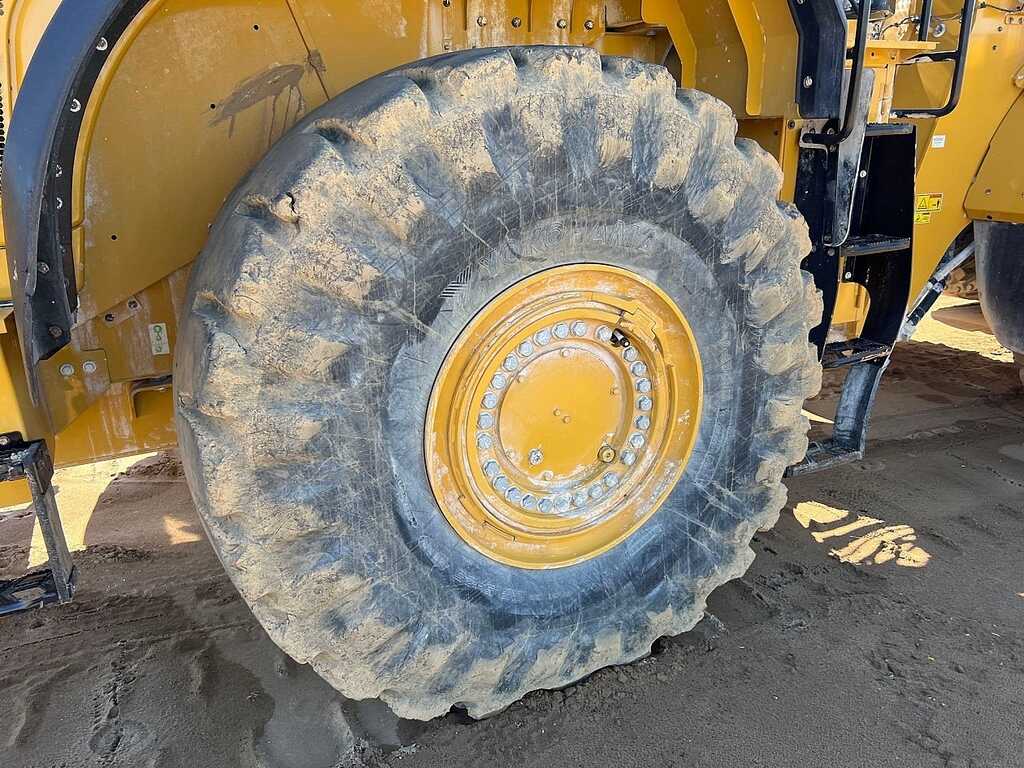

Tires: 29.5-25; multiple tread options available

Brakes & Safety
Brakes: Meet ISO standards
ROPS/FOPS: Certified

Performance
Breakout Force: 44,775 lb
Dump Clearance: ~10.8 ft
Turning Radius (over bucket): 26.1 ft
