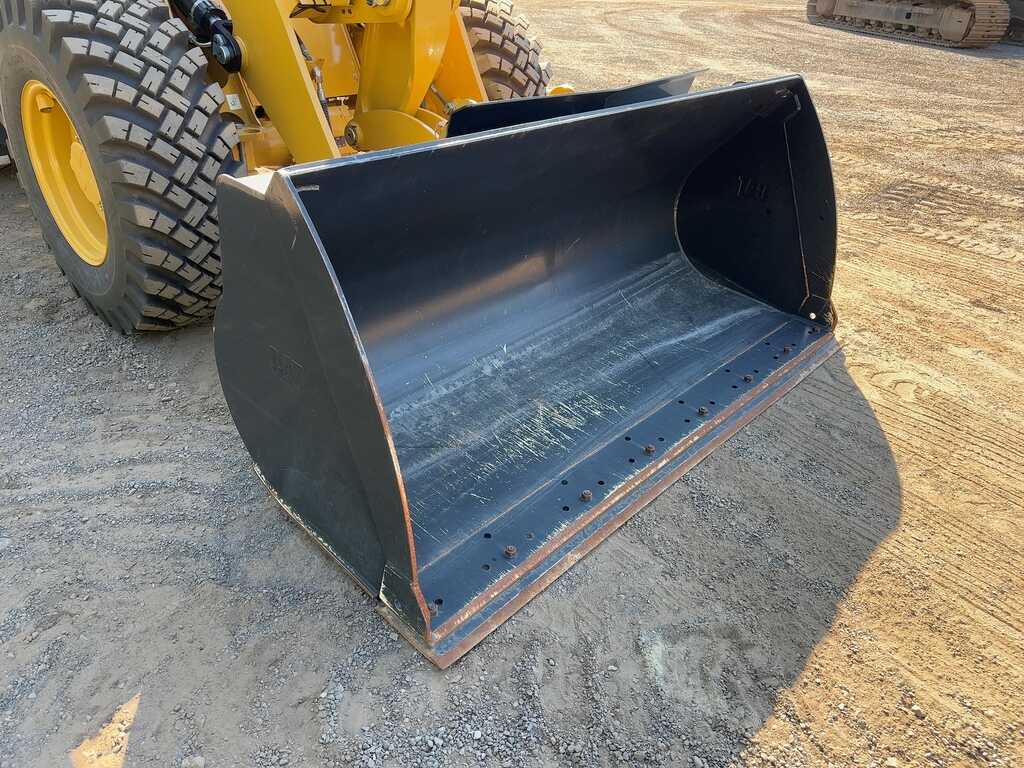

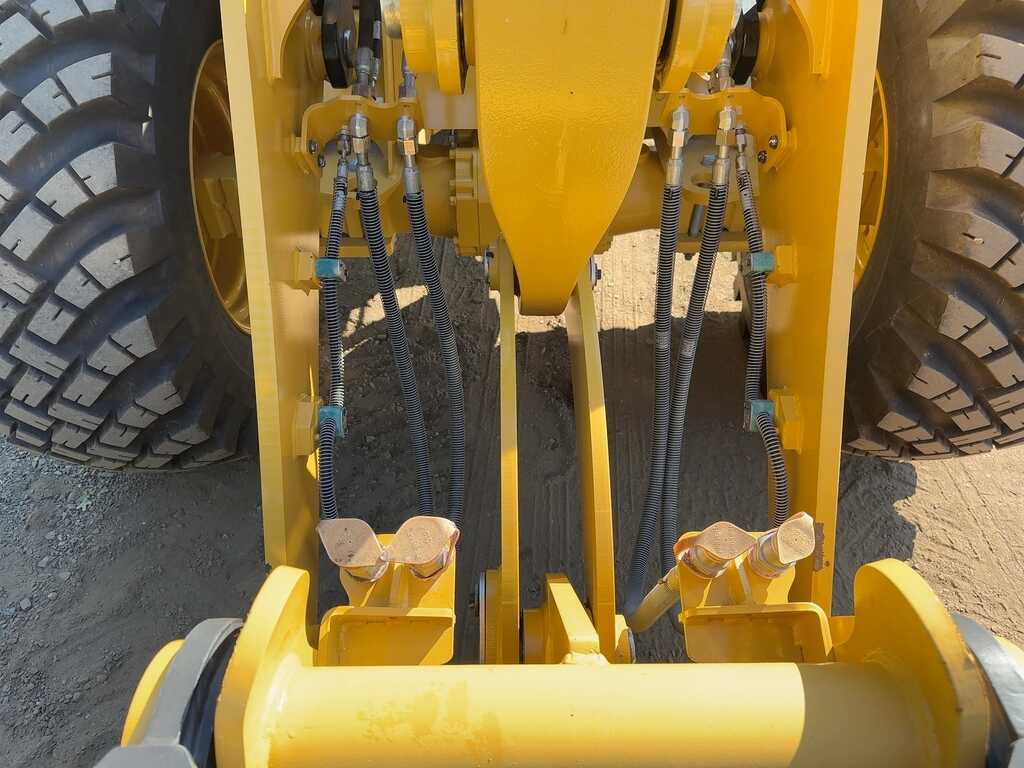

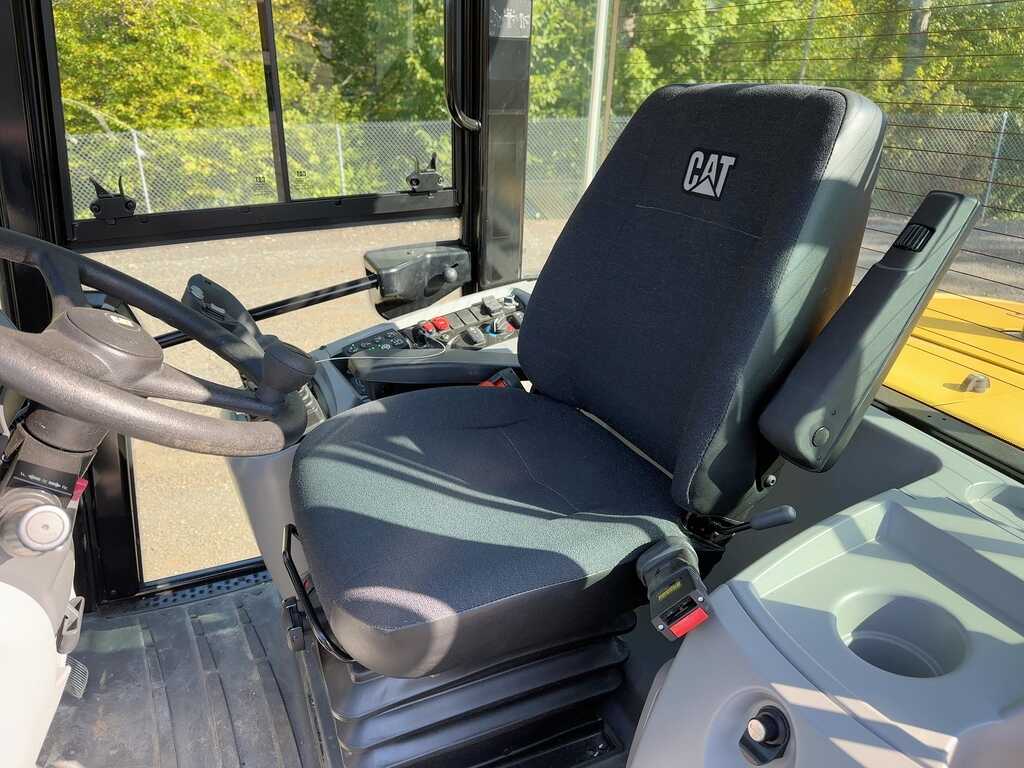

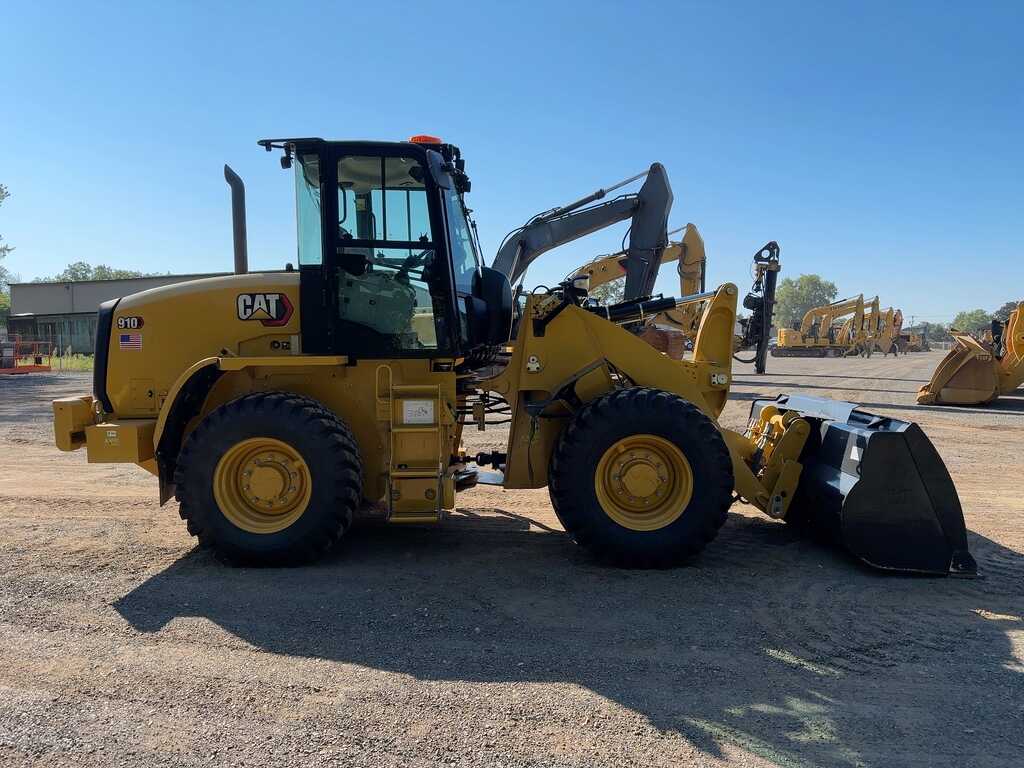

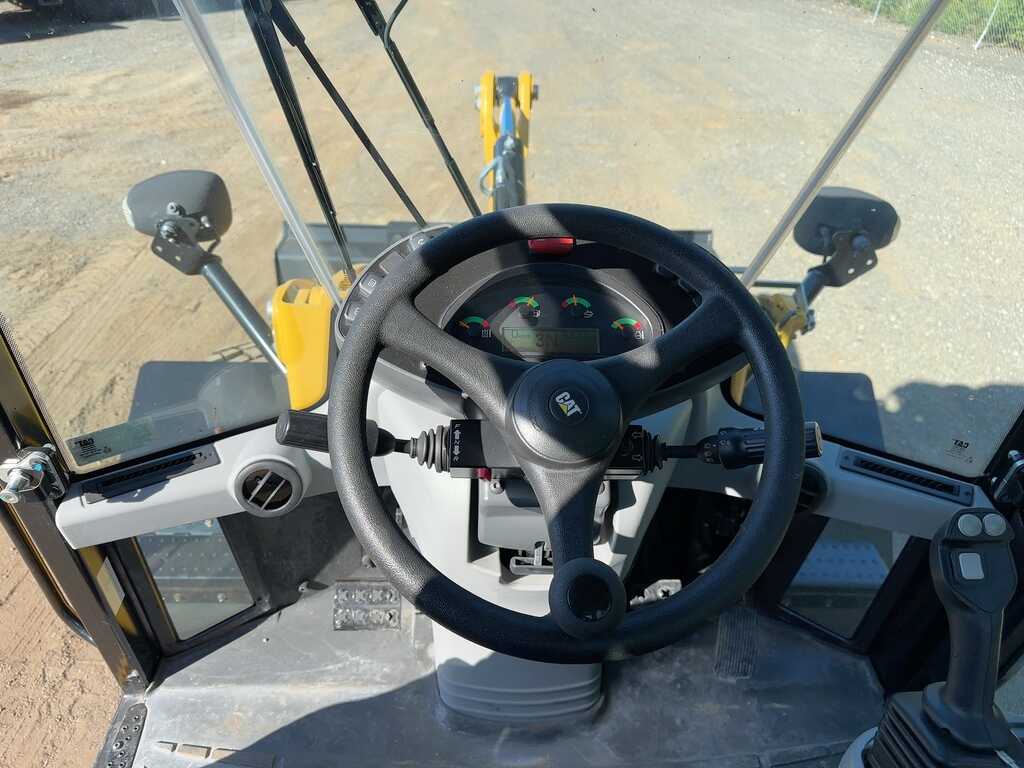

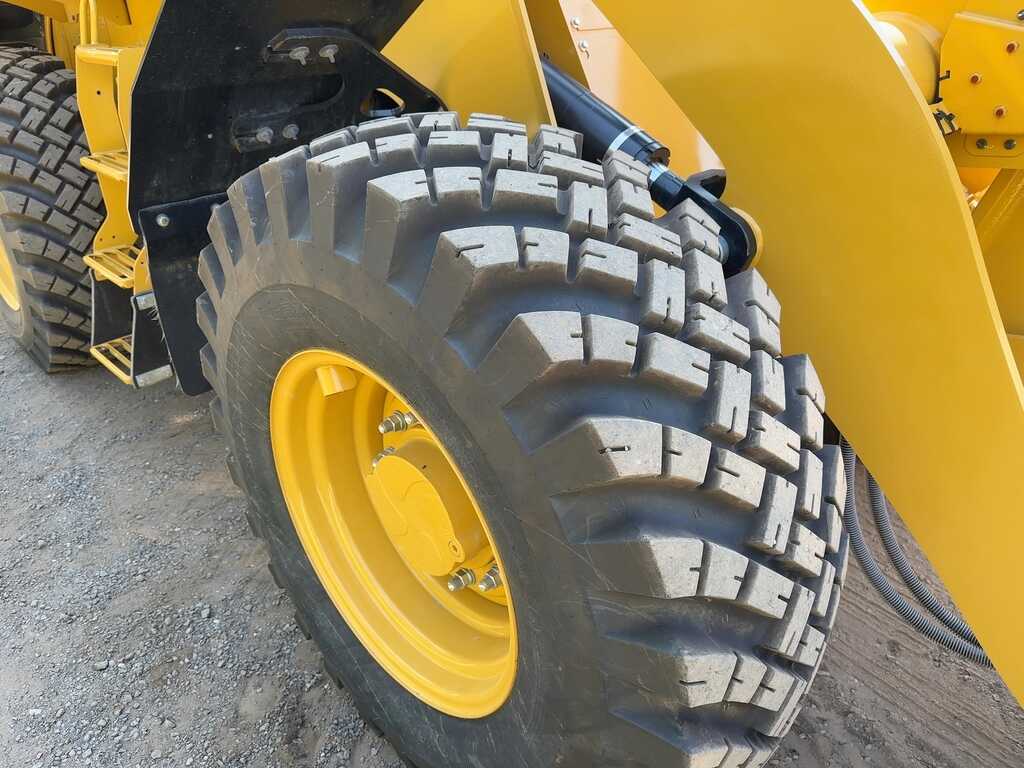

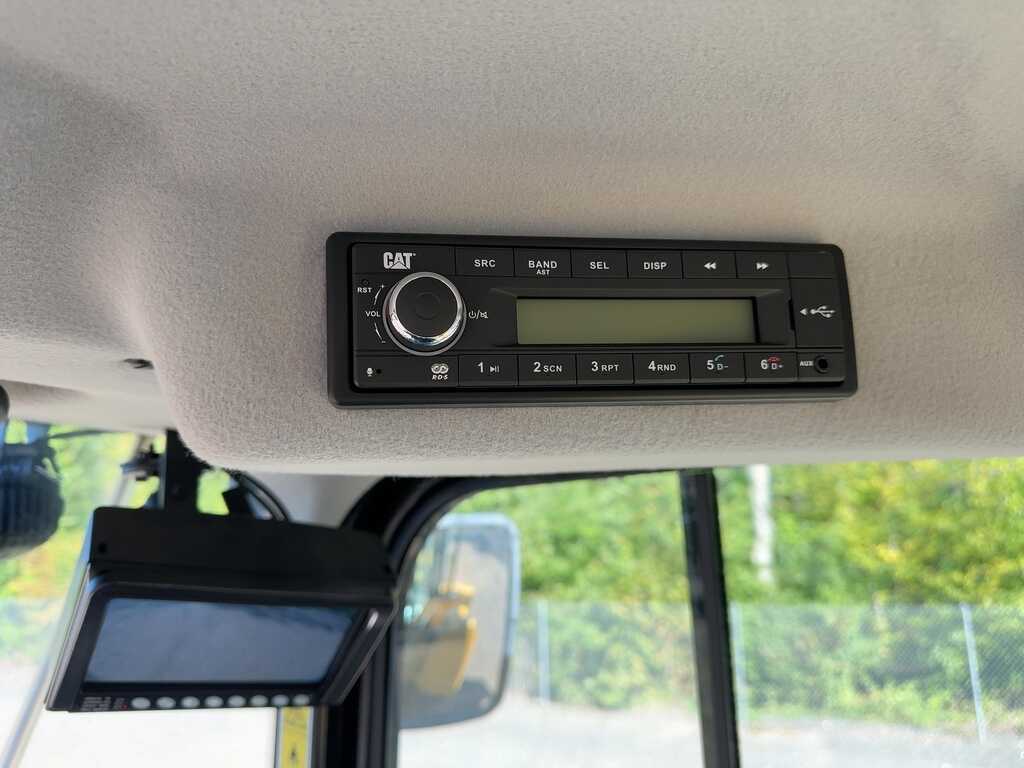

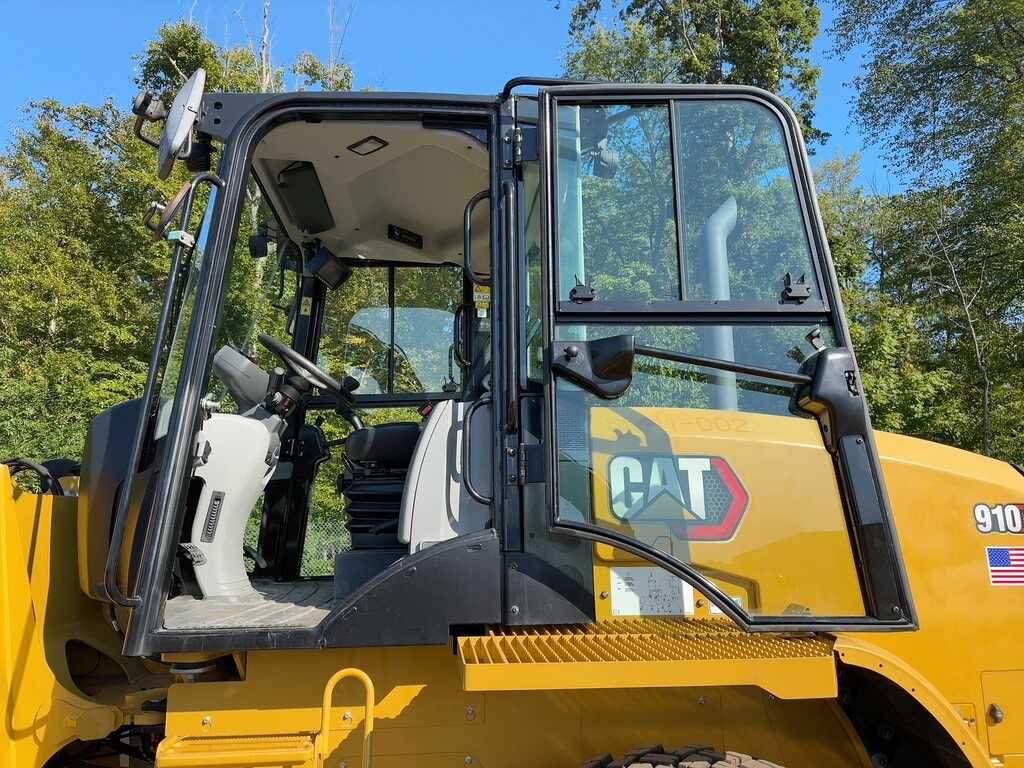

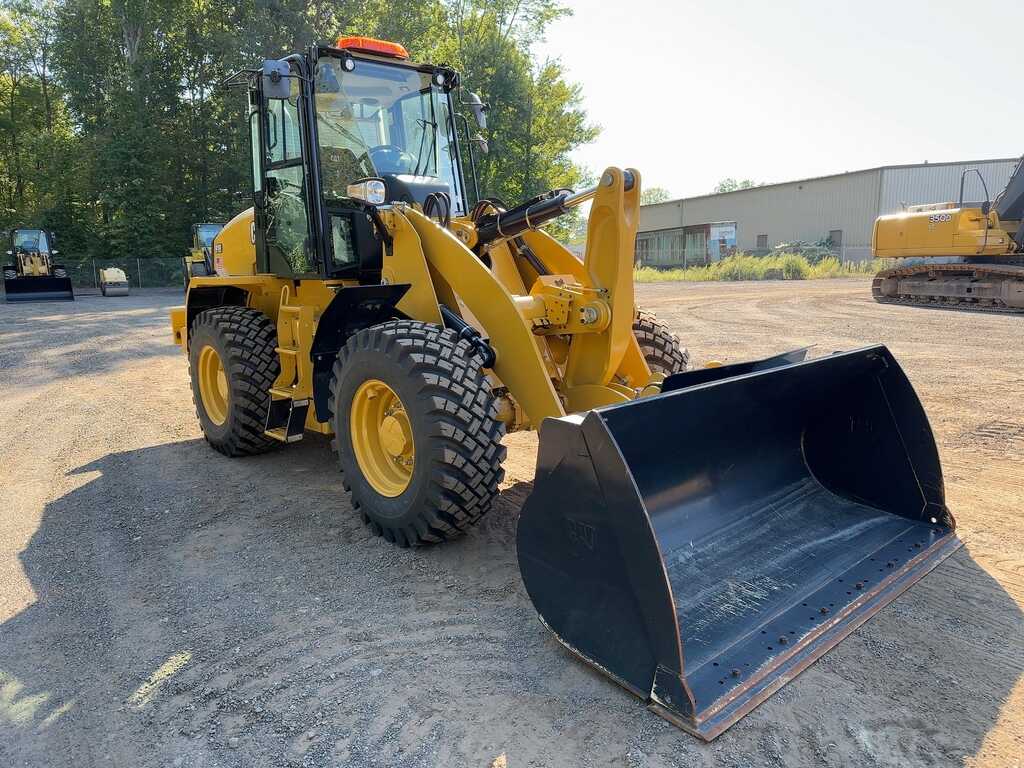

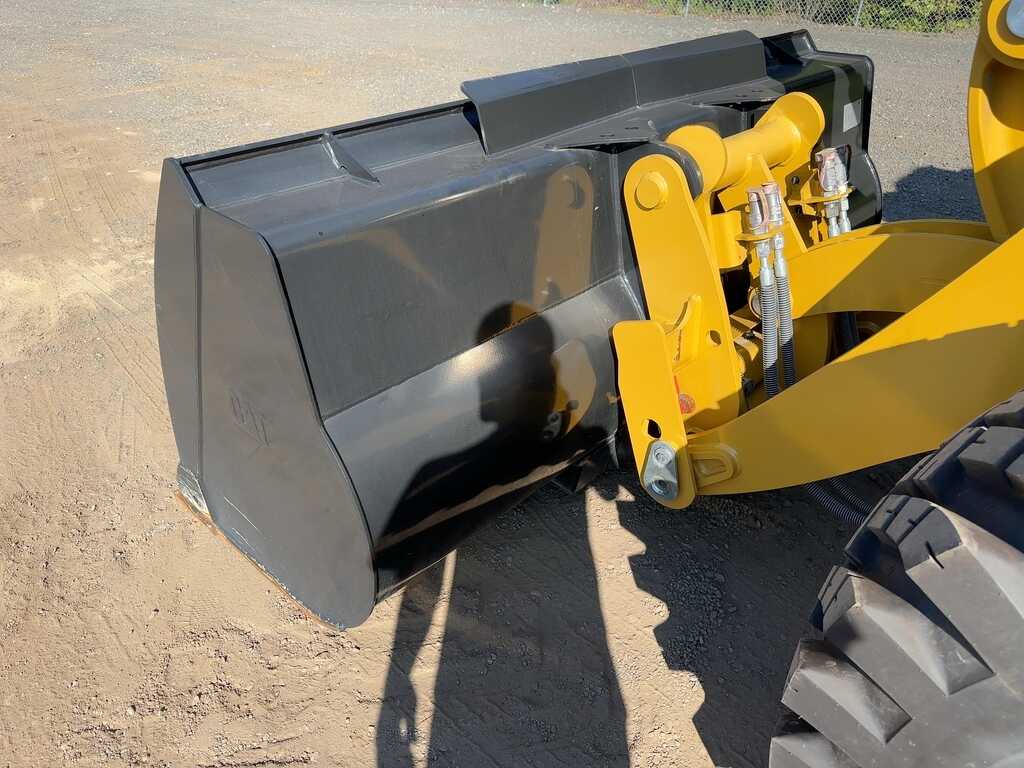

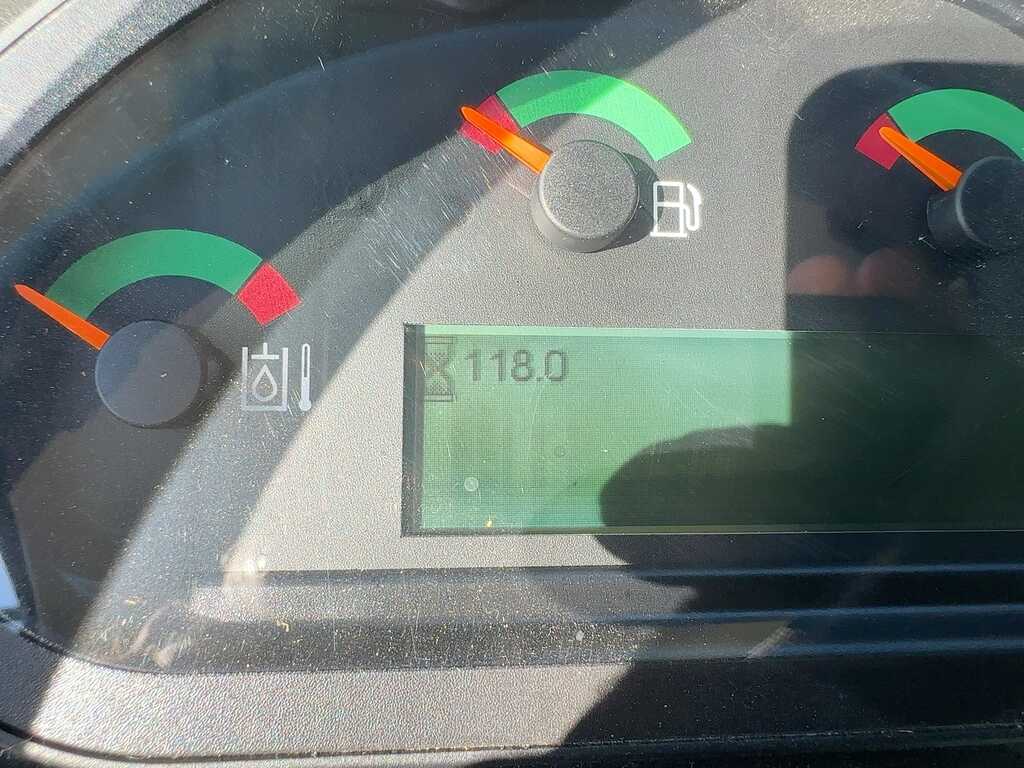

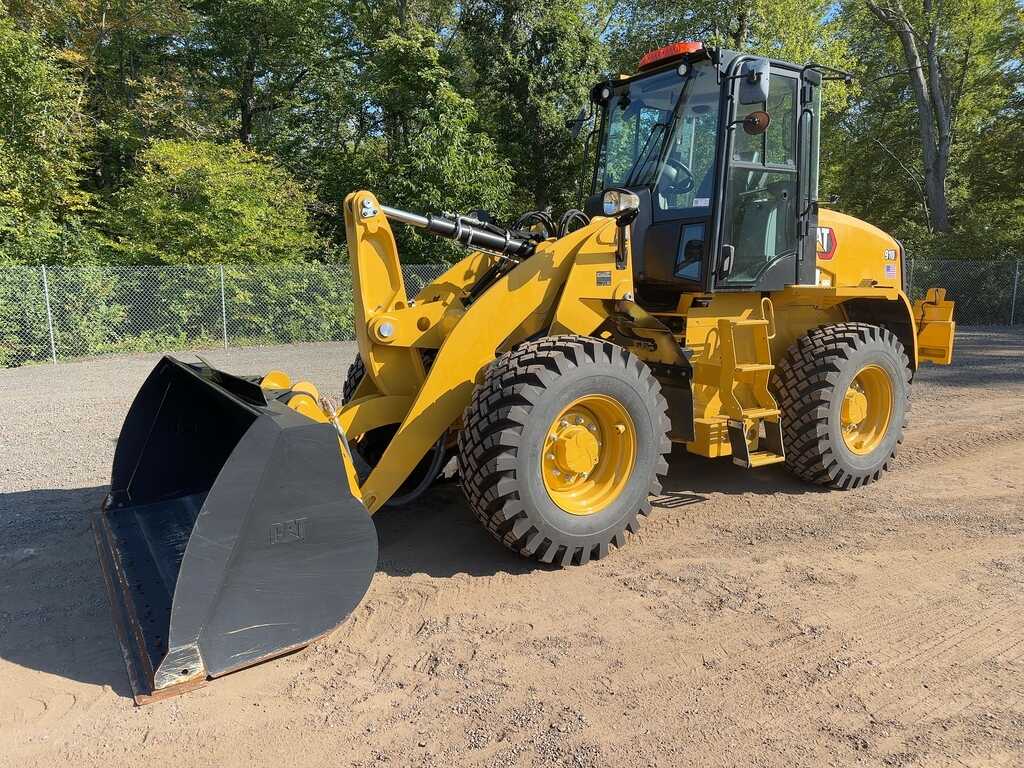

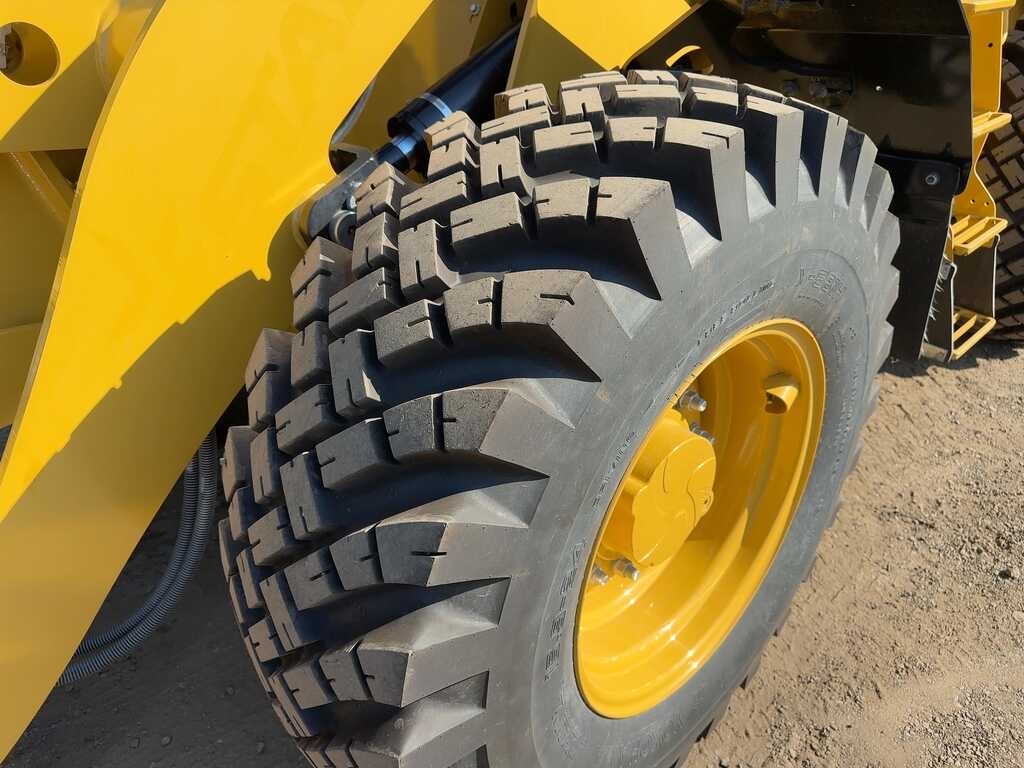

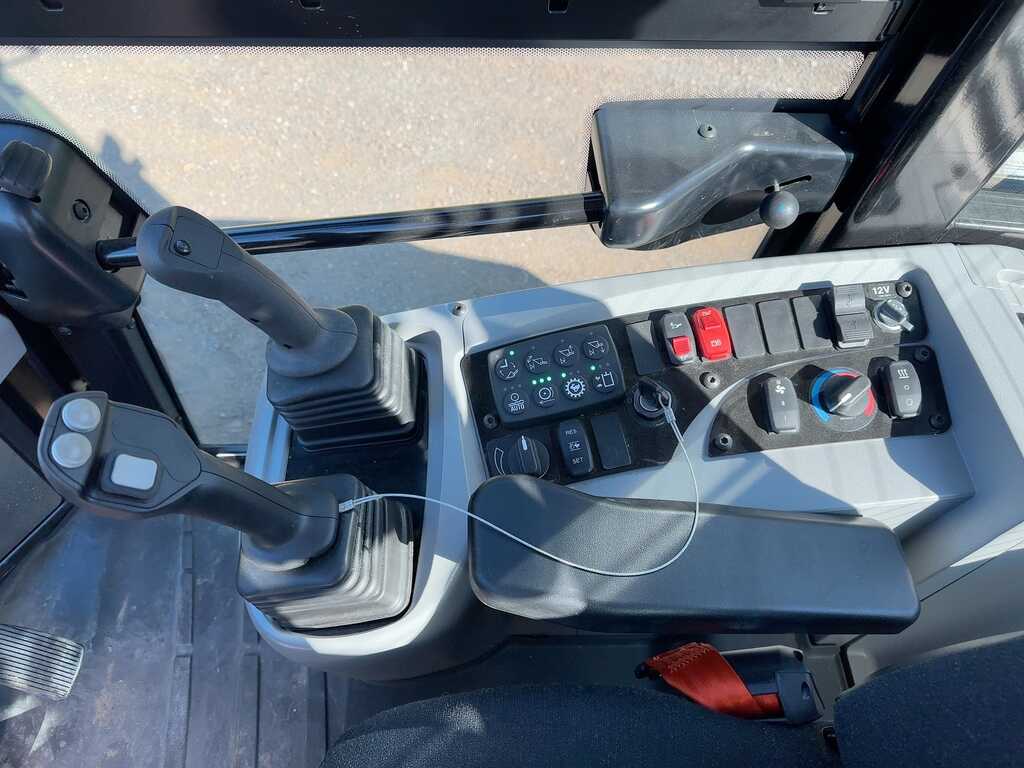

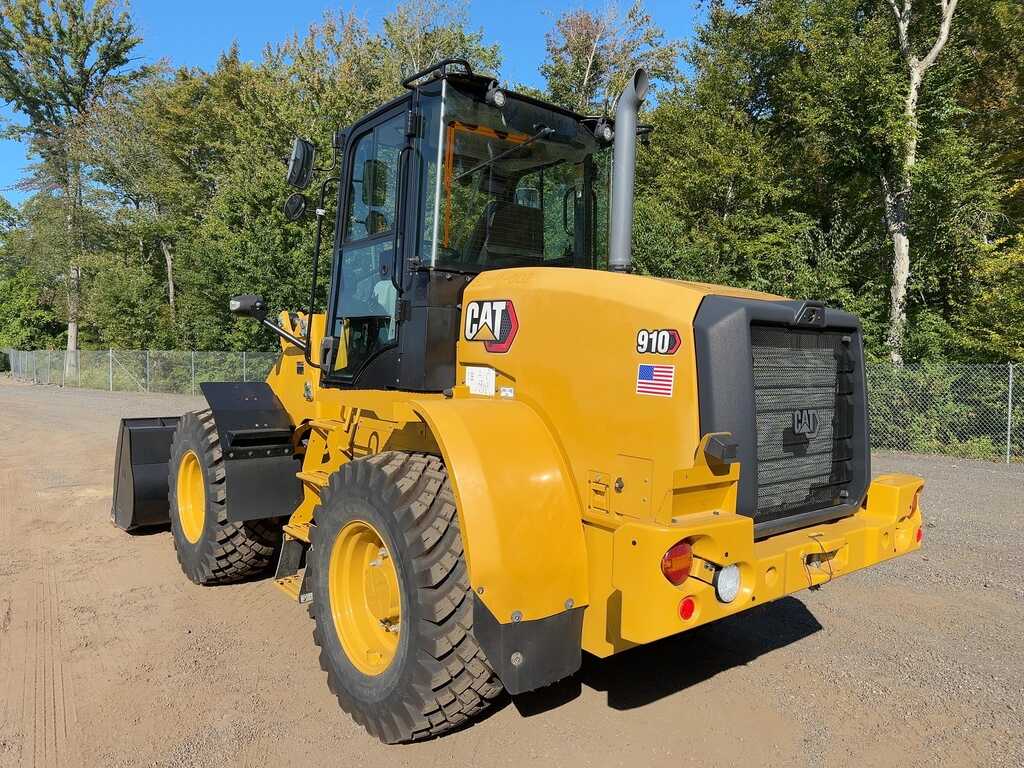

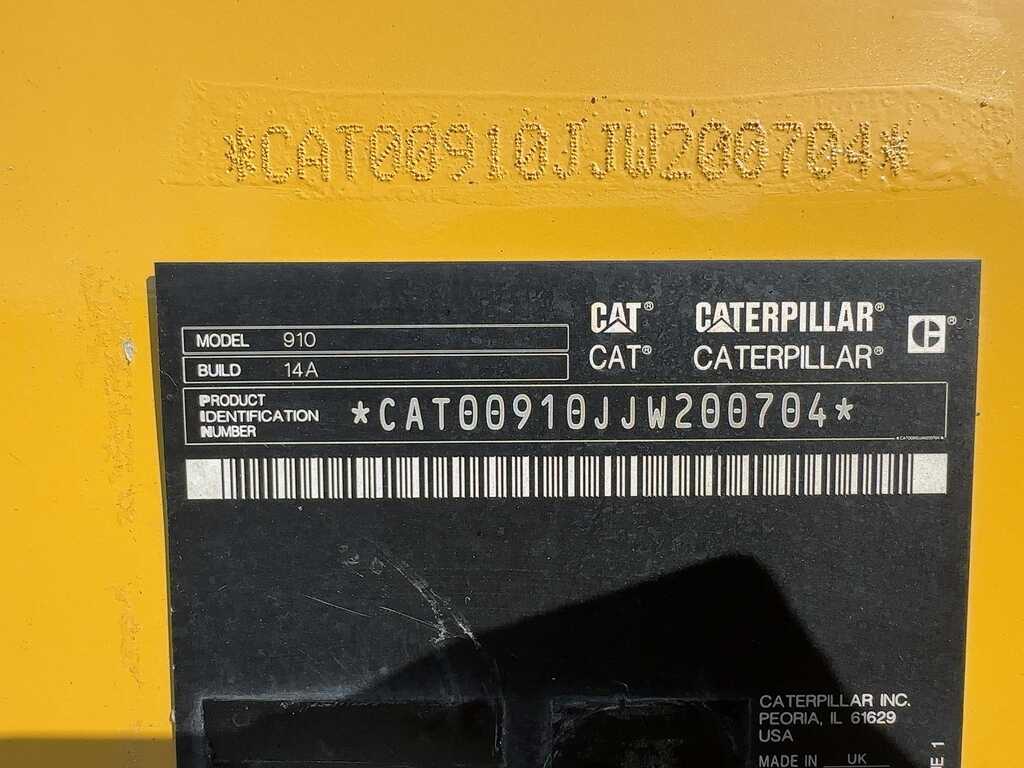

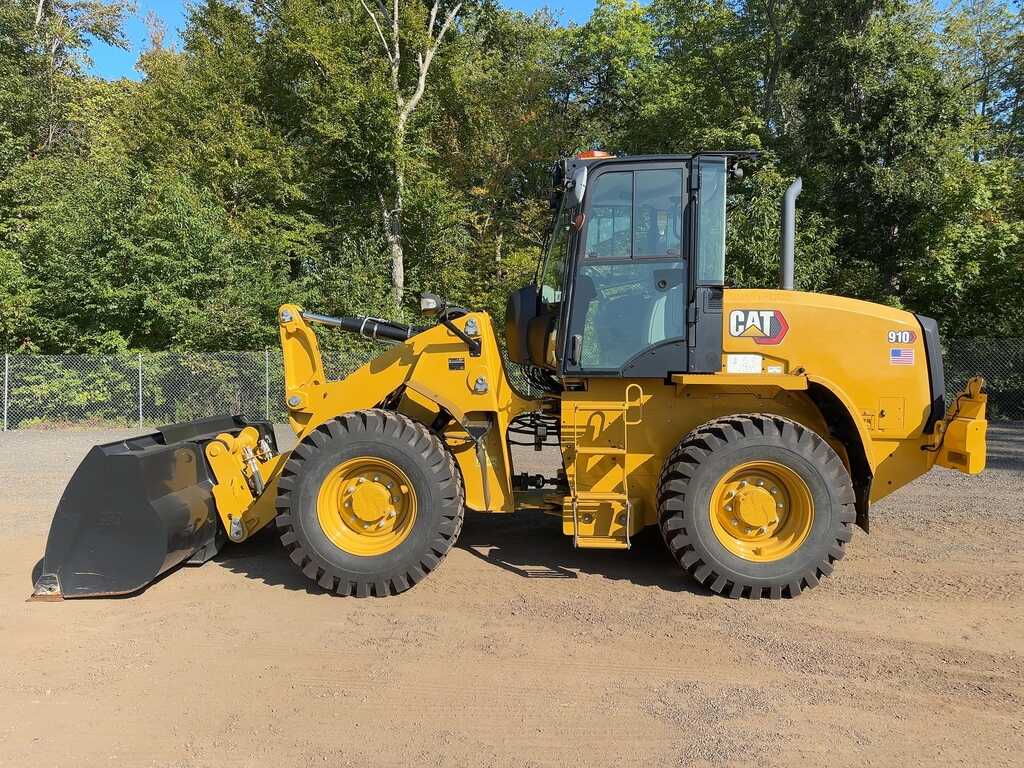

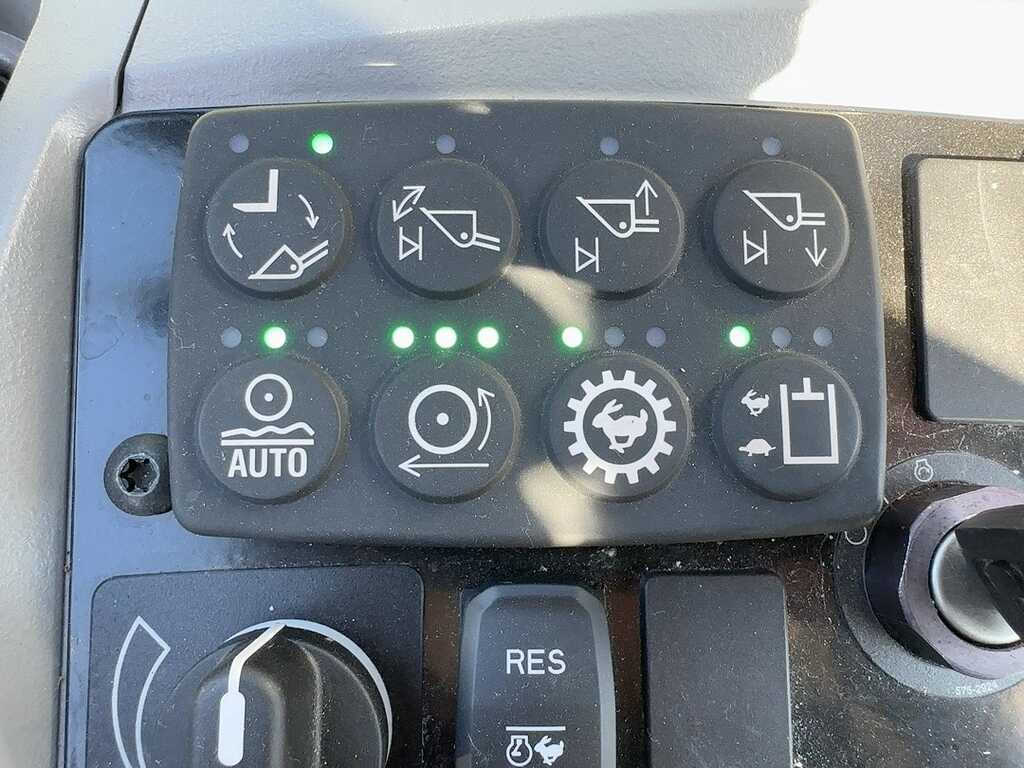

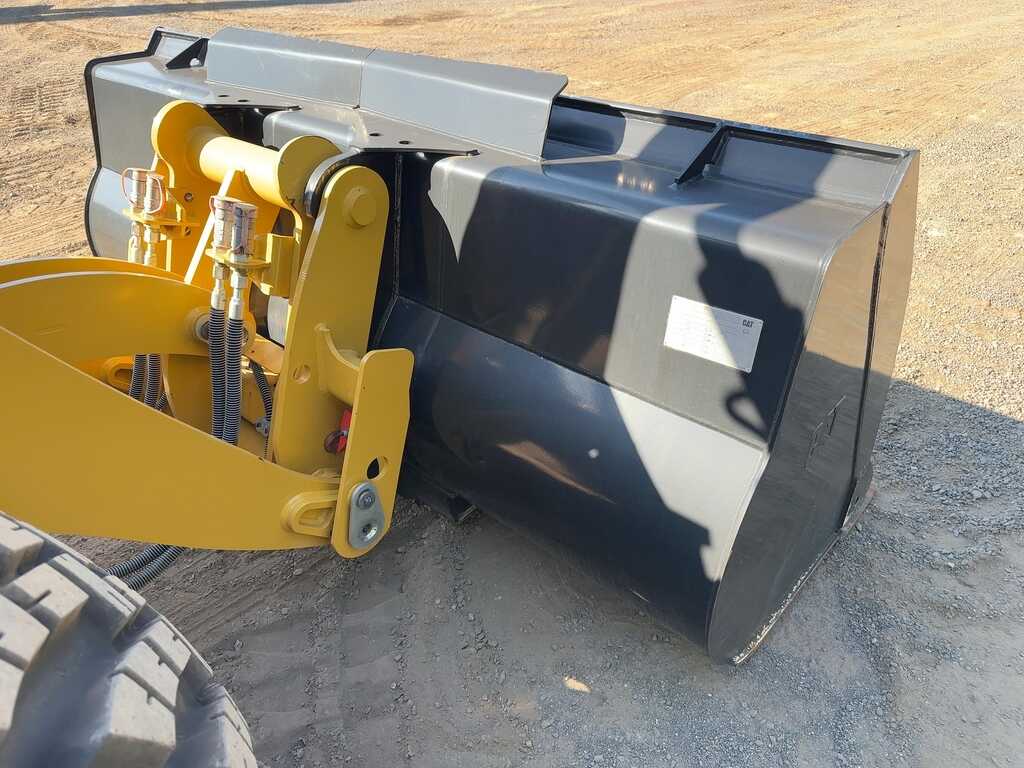

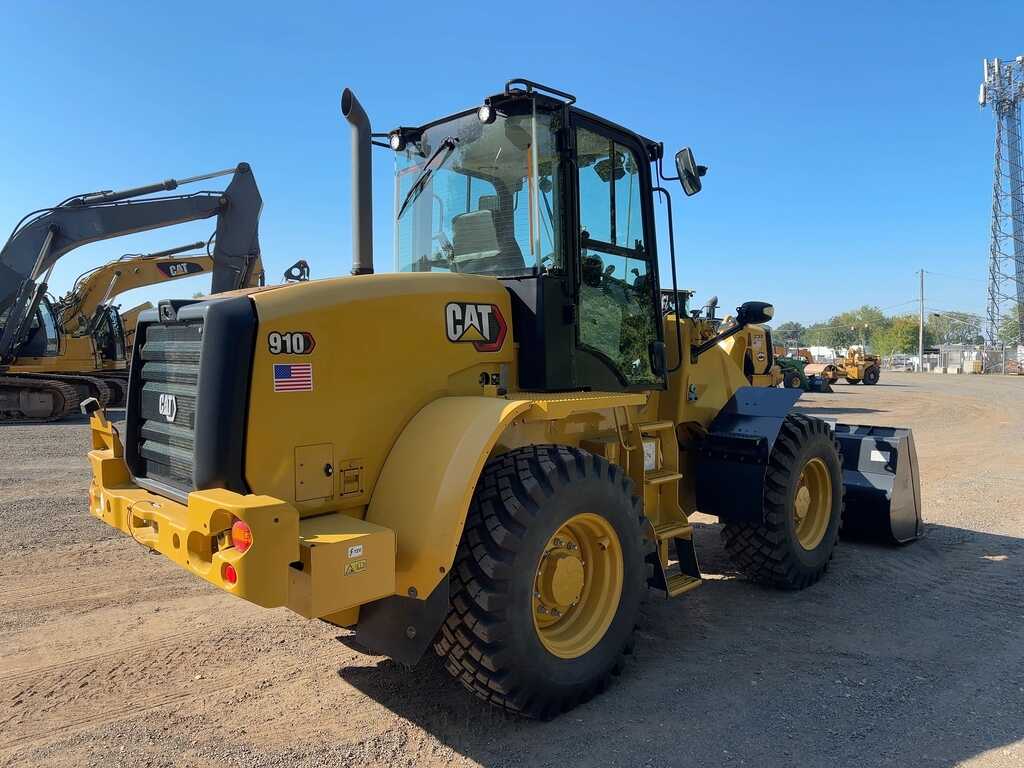

CATERPILLAR C3.6 4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, RIDE CONTROL, 3 SPEED TRAVEL, REARVIEW CAMERA, 16.9-24 RUBBER, AUX HYD, HYD COUPLER, GP BUCKET WITH BOCE, METER READS 117 HOURS, S/N CAT00910JJW200704

Engine & Powertrain

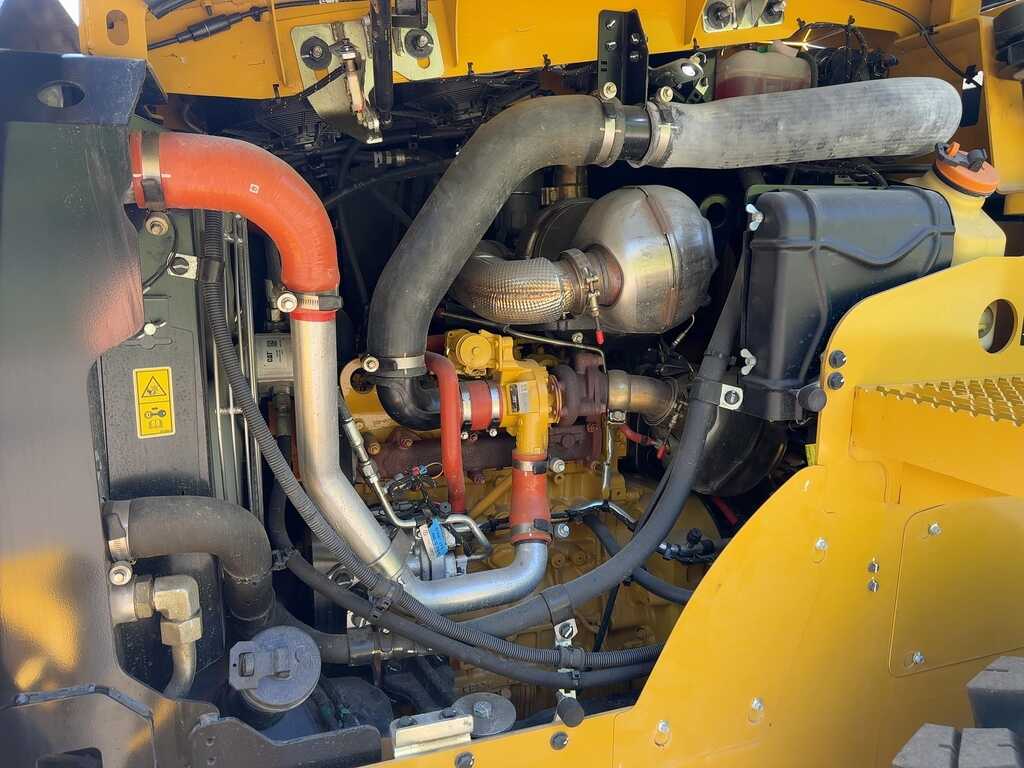

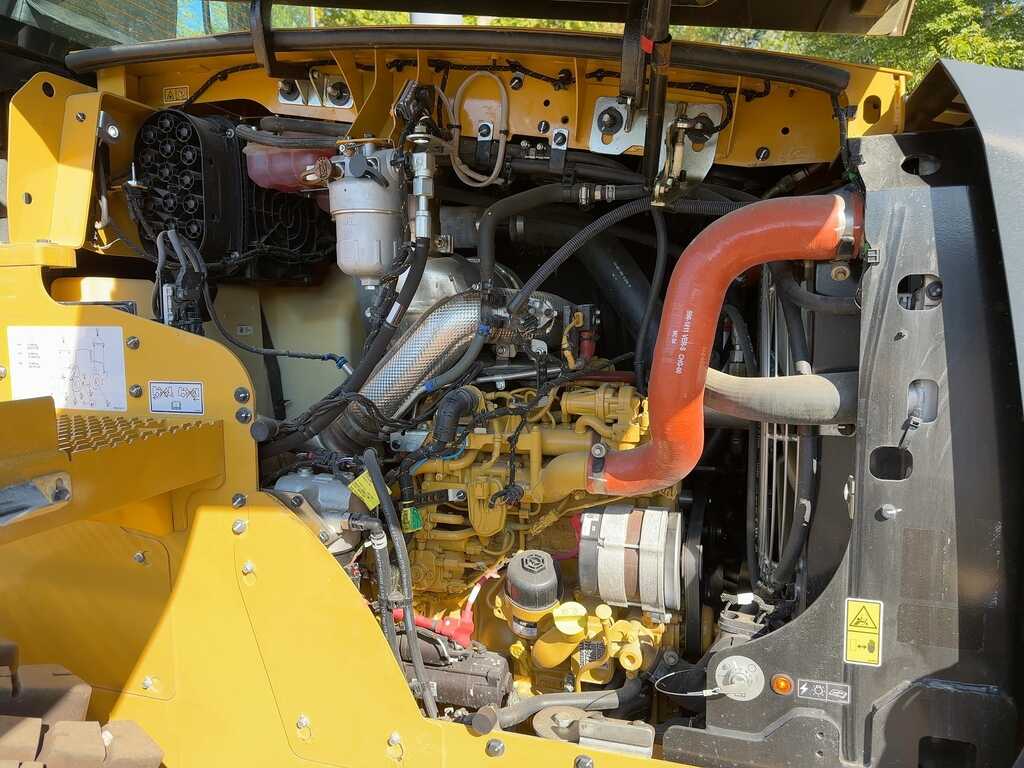

Engine Model: Cat C3.6
Displacement: 3.6 L (220 in³)
Gross Power (SAE J1995): 110 hp (82 kW)
Net Power (SAE J1349): ~99 hp (74 kW)
Maximum Torque: ~335 ft-lb (454 N·m)
Emissions: Meets U.S. EPA Tier 4 Final / EU Stage IV standards

Operating Weights & Capacities
Operating Weight: ~18,102 lb (8,109 kg)

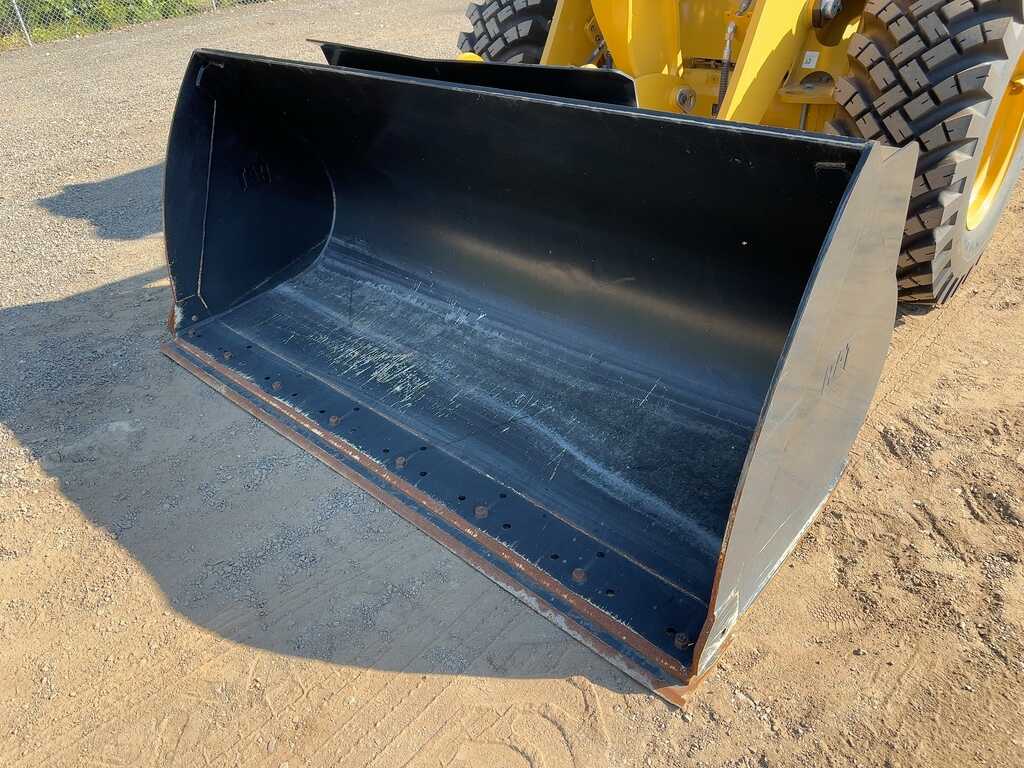

Bucket Capacity Range: 1.3–3.5 m³ (1.7–4.6 yd³)
– General Purpose: 1.3–1.9 m³
– Light Material: 2.5–3.5 m³

Hydraulics
System Capacity (incl. tank): ~98 L (25.9 gal)

Transmission & Travel
Transmission: 3 forward ranges
Top Speed: ~40 km/h (25 mph)

Axles
Front: Fixed with locking differential
Rear: Oscillating ±11° with locking differential (standard)

Undercarriage & Tires
Wheelbase: 2,600 mm (8′6″)

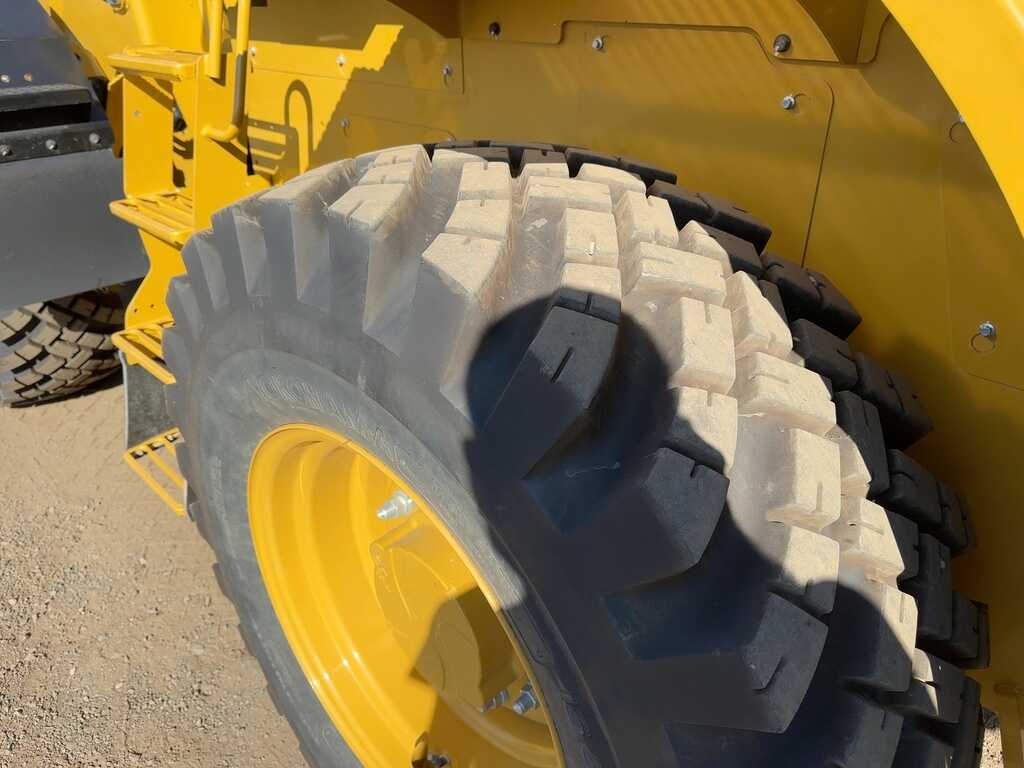

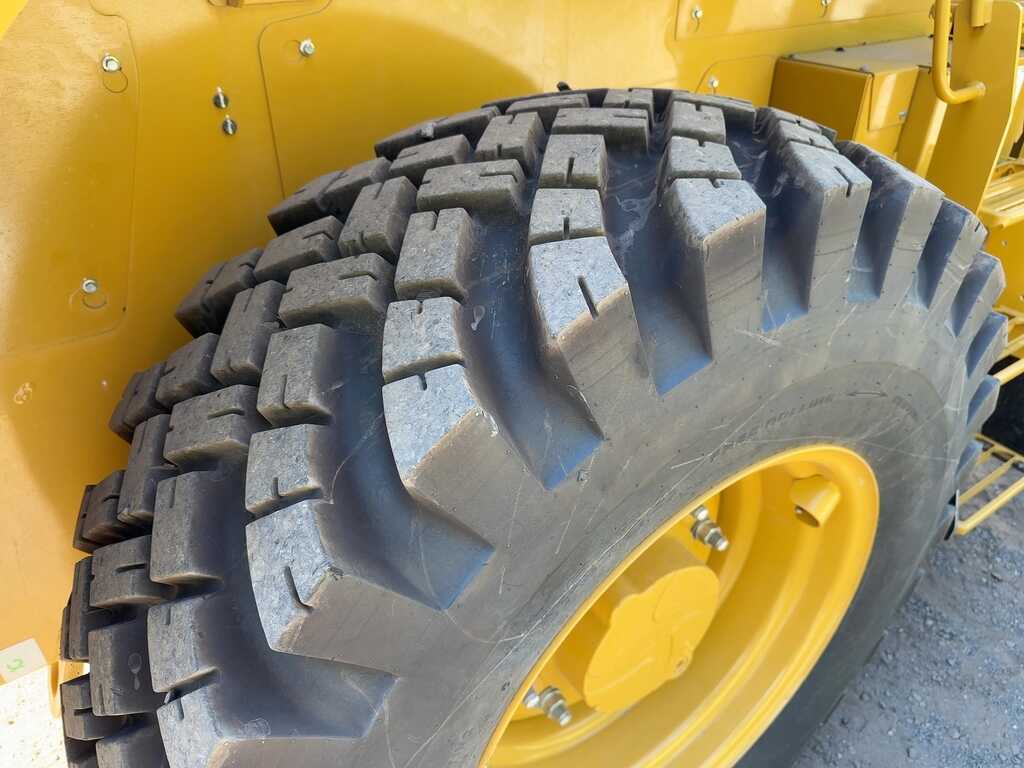

Standard Tires: 15.5-R25 L2 XTLA
Options: Heavy-duty or high-traction tires available

Dimensions
Height to Cab Roof: ~3,020 mm (9′10″)
Ground Clearance: ~348 mm (1′1″)
Overall Width (over tires): ~2,259 mm (7′4″)
