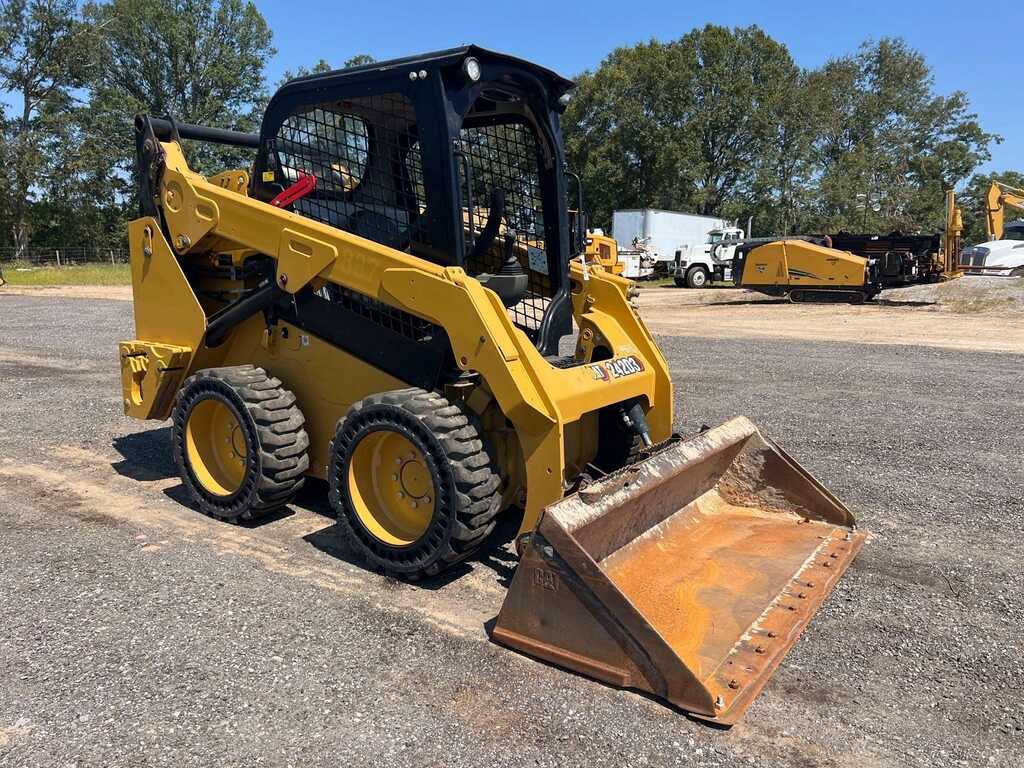

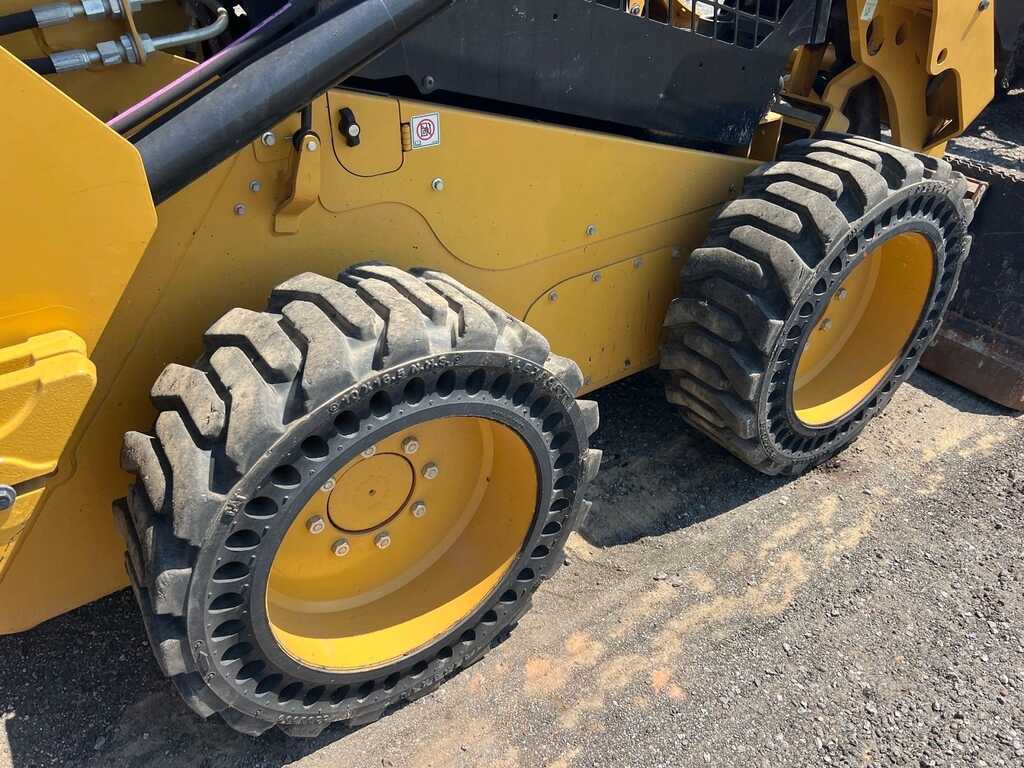

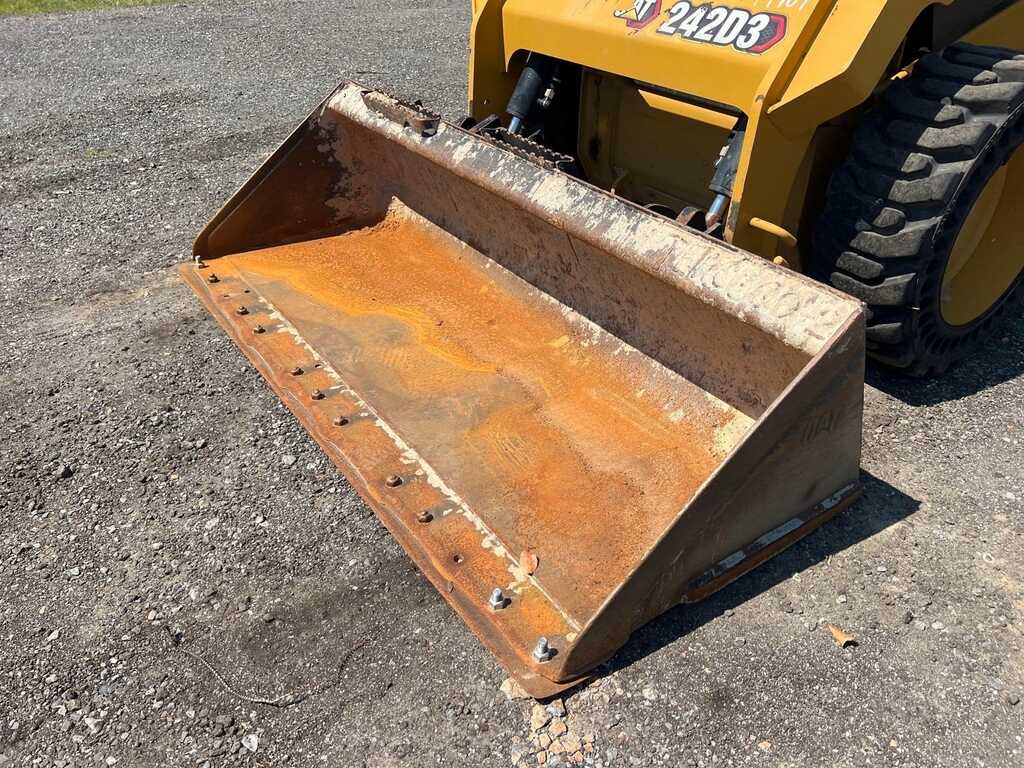

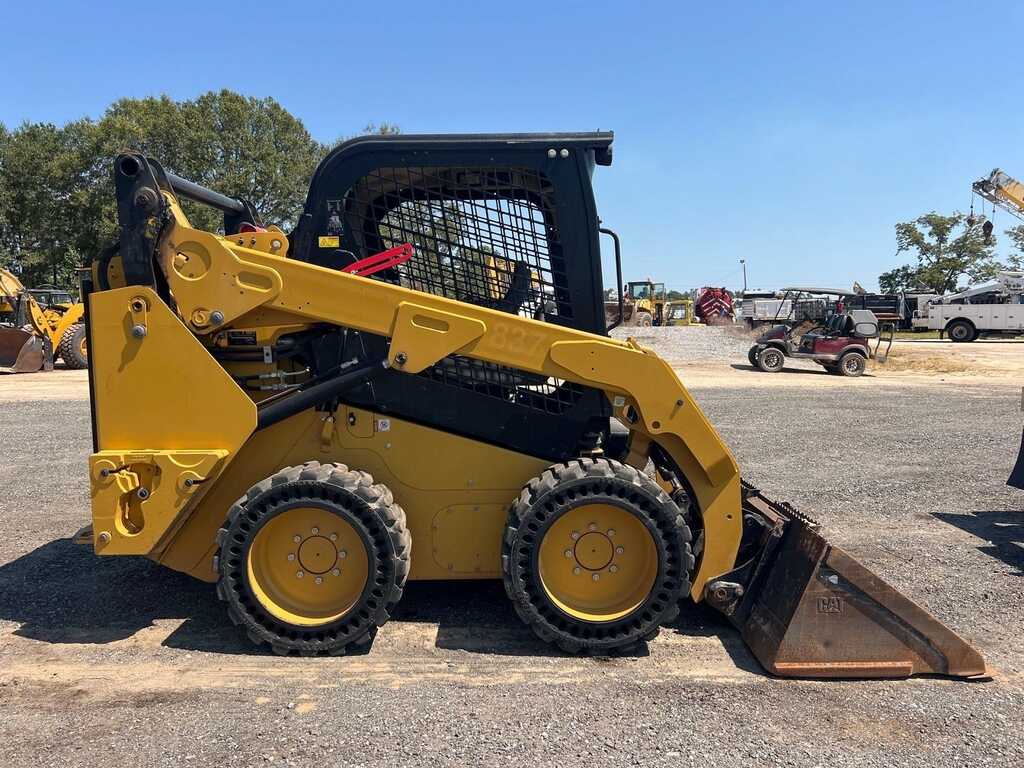

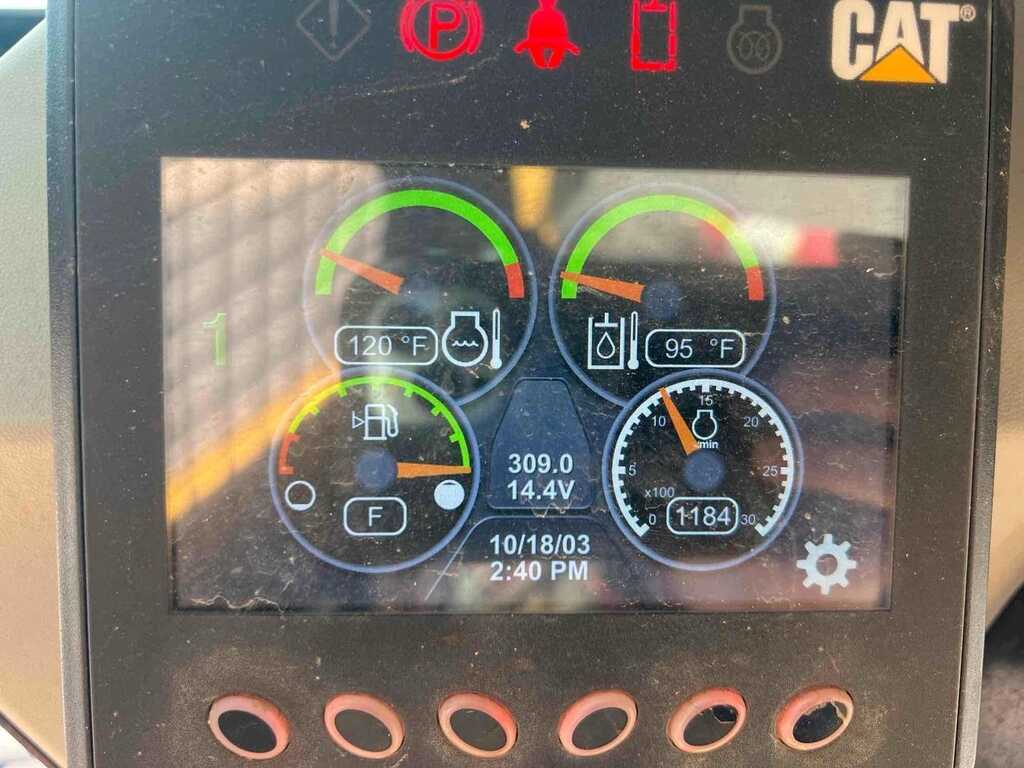

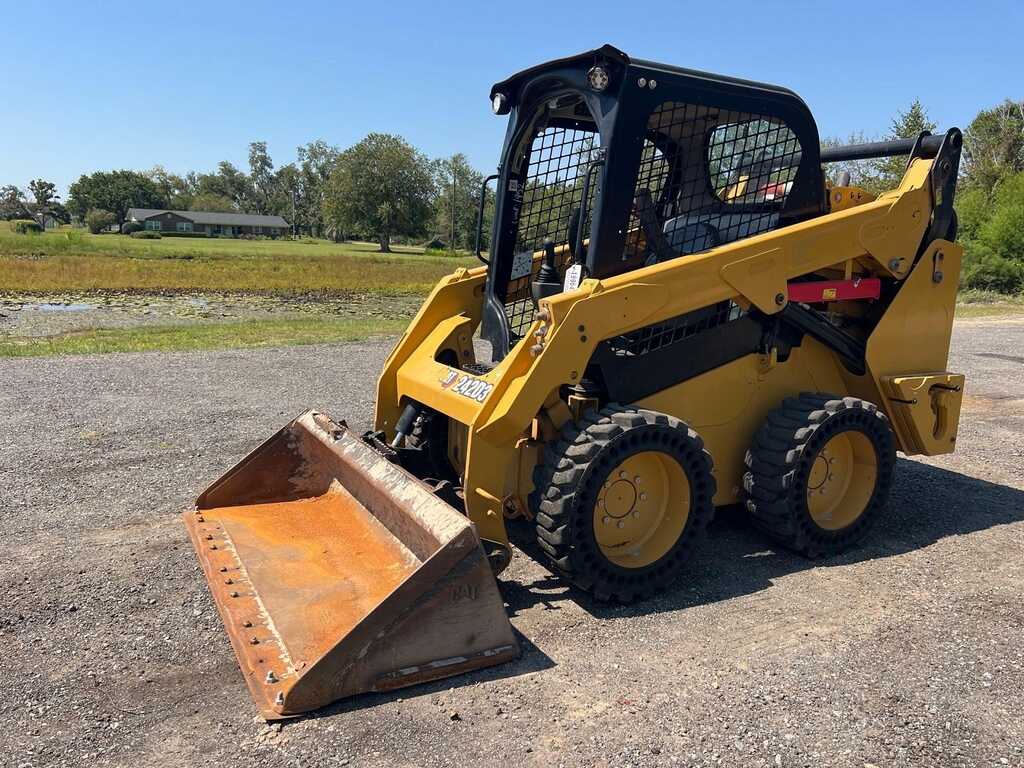

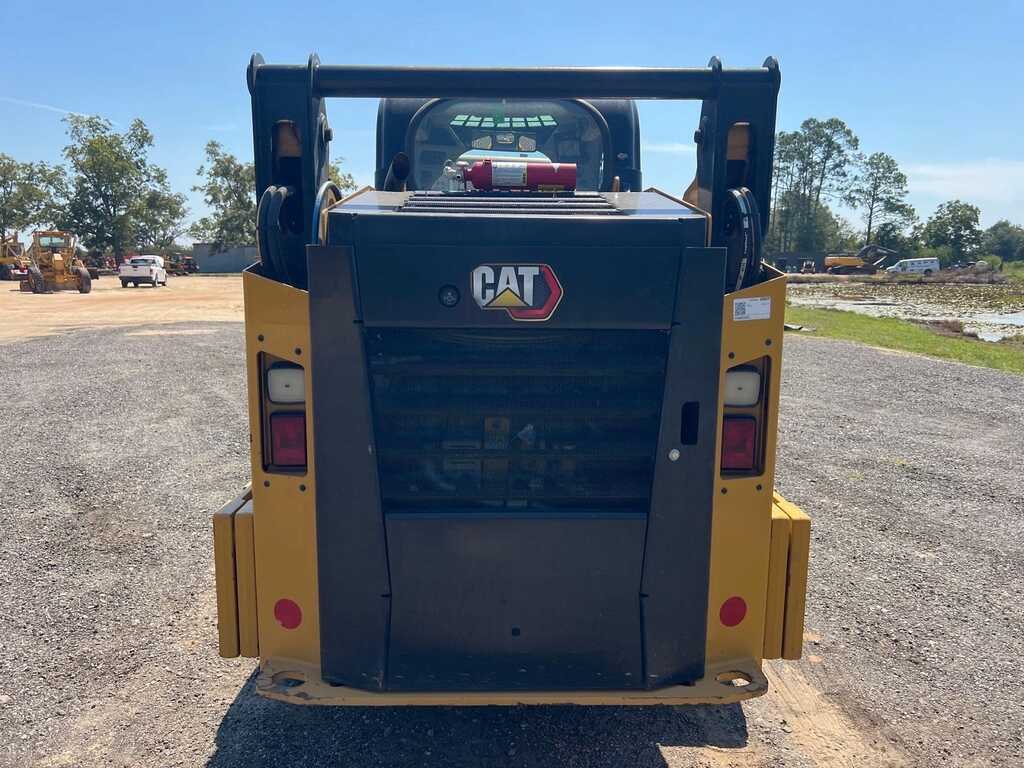

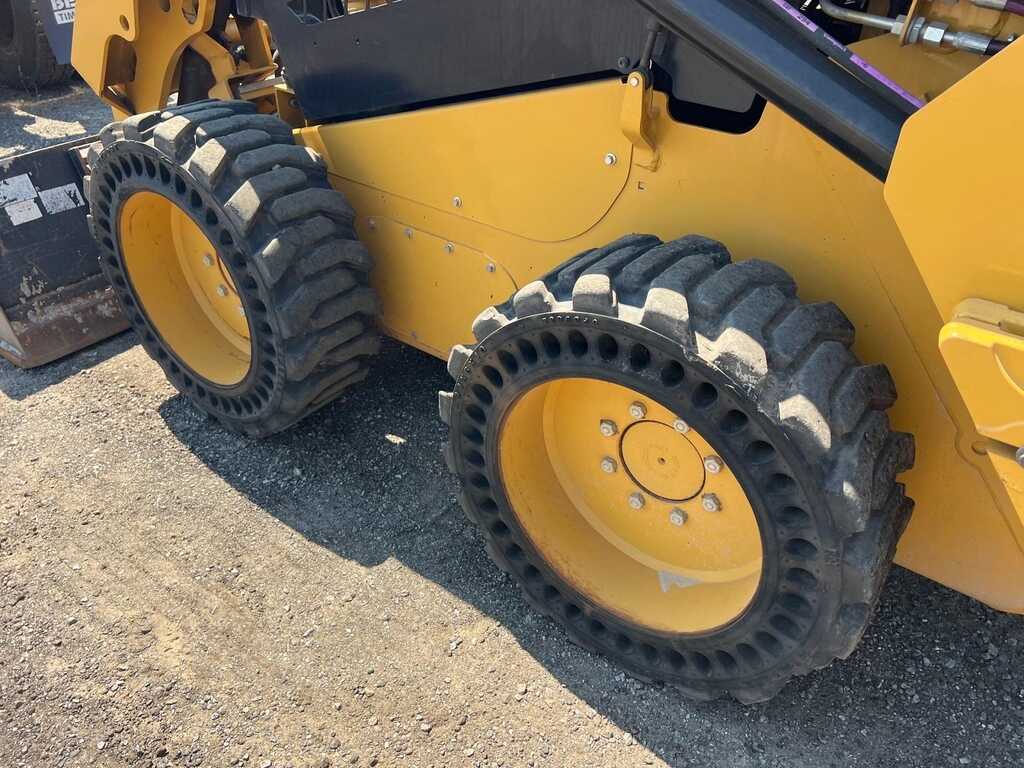

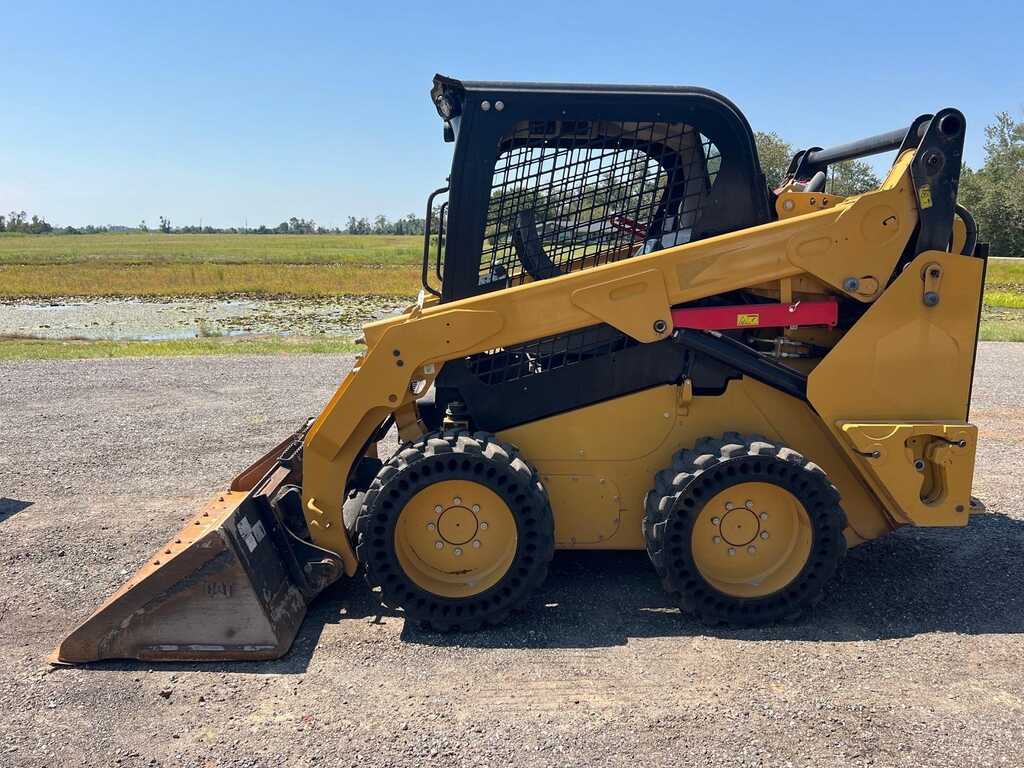

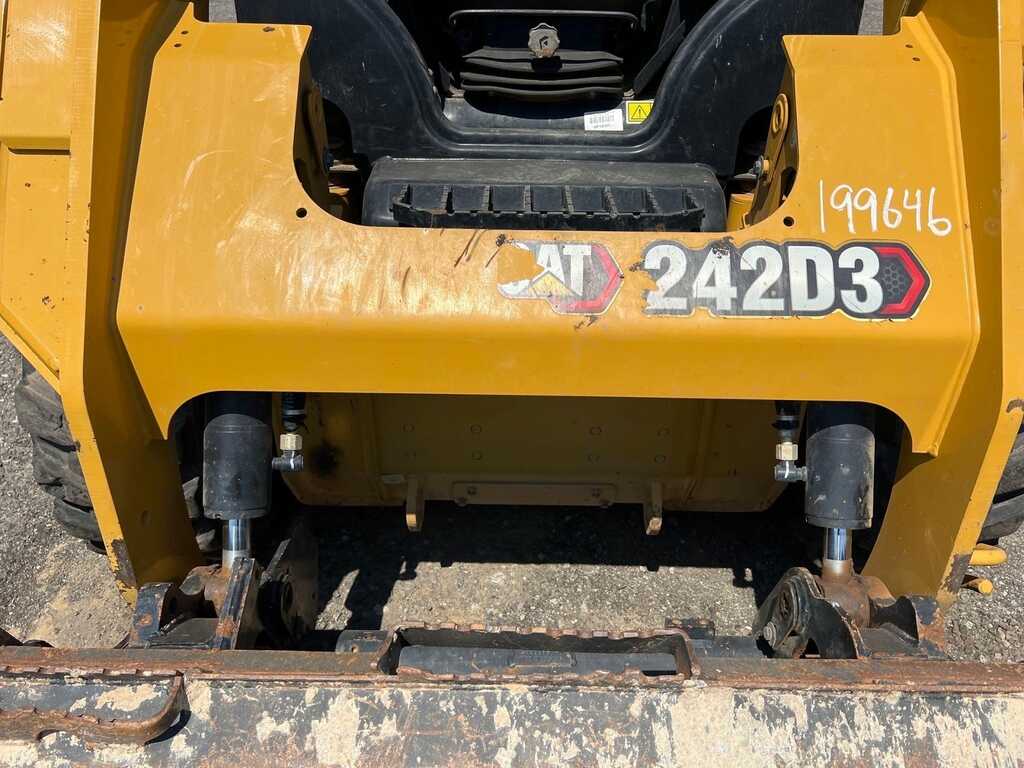

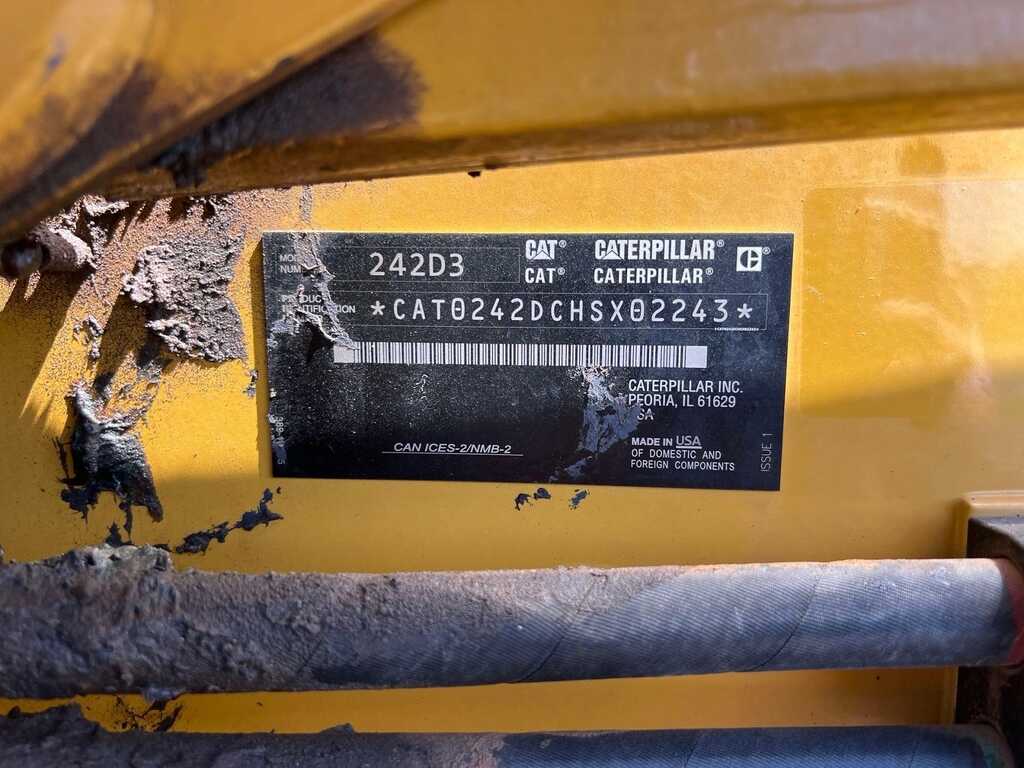

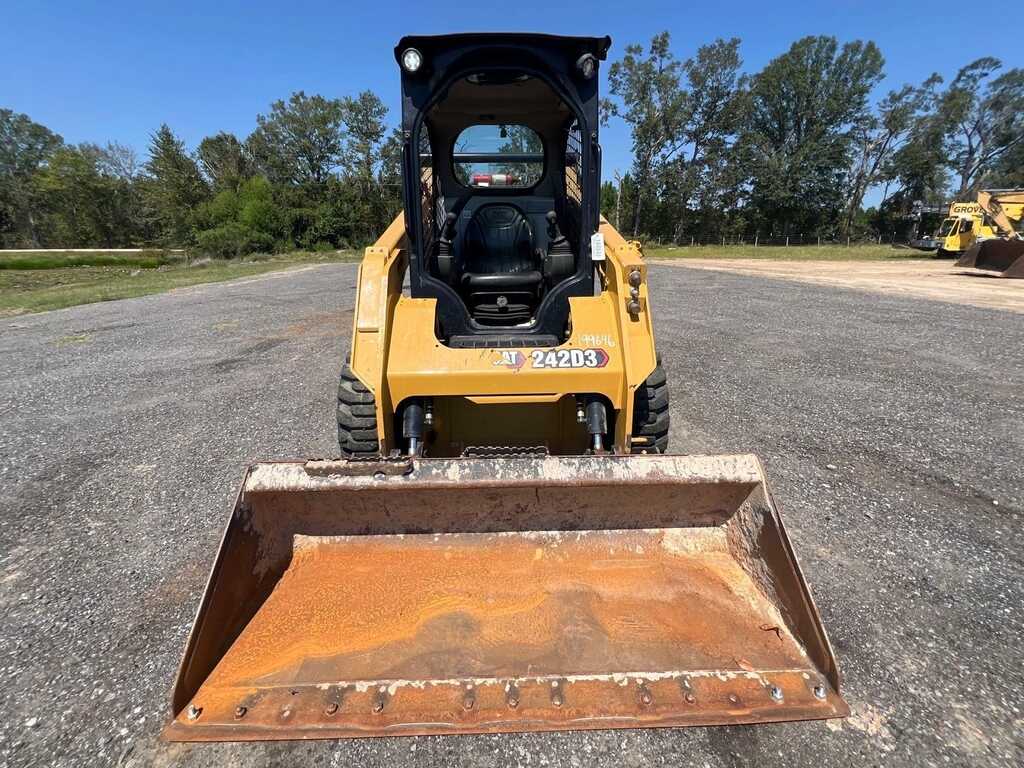

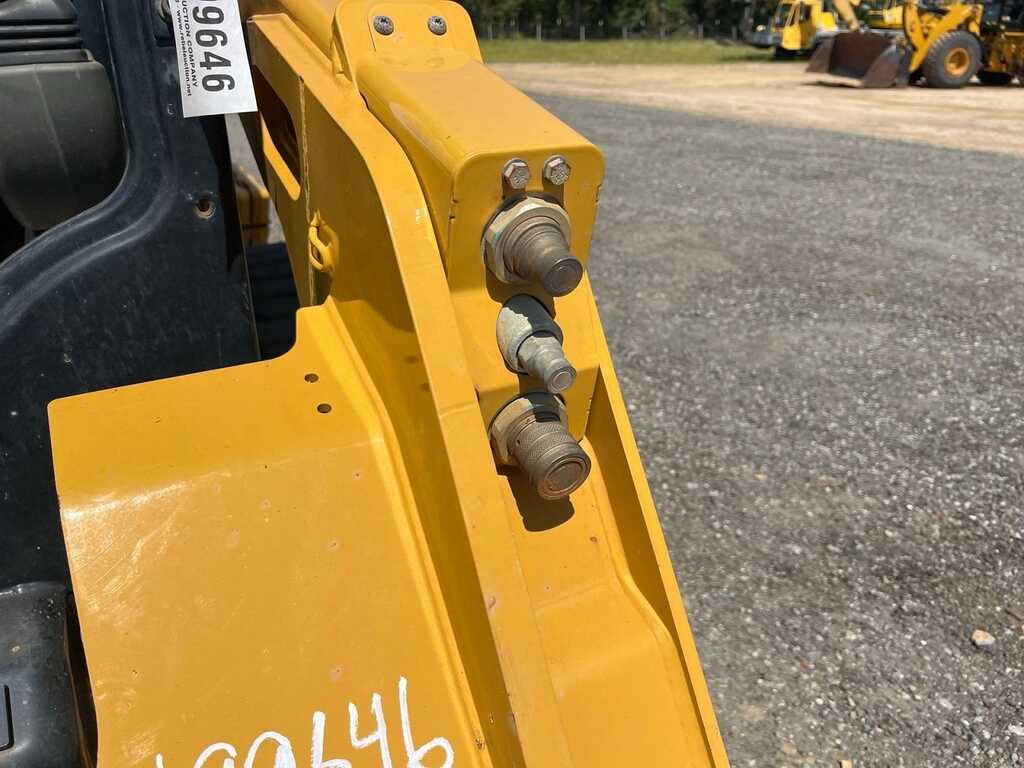

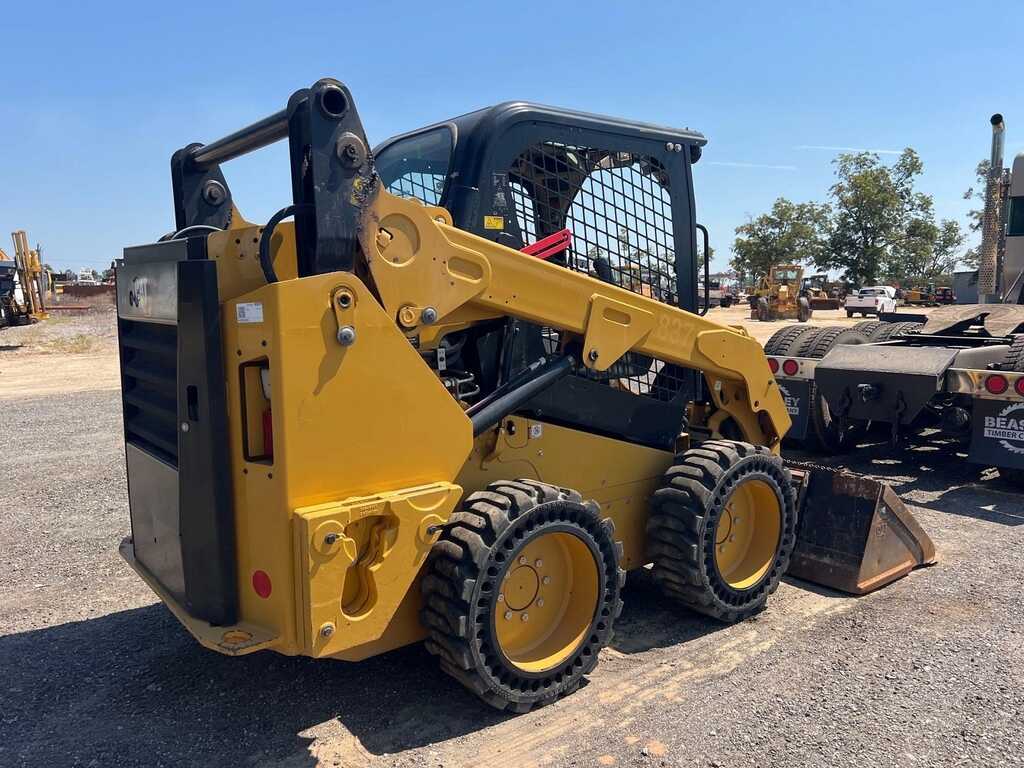

(HRS SHOW 306) OROPS, QUICK ATTACH, BUCKET, AUX VALVES, 10 X 16.5 SOLID TIRES, S/N CAT0242DCHSC02243

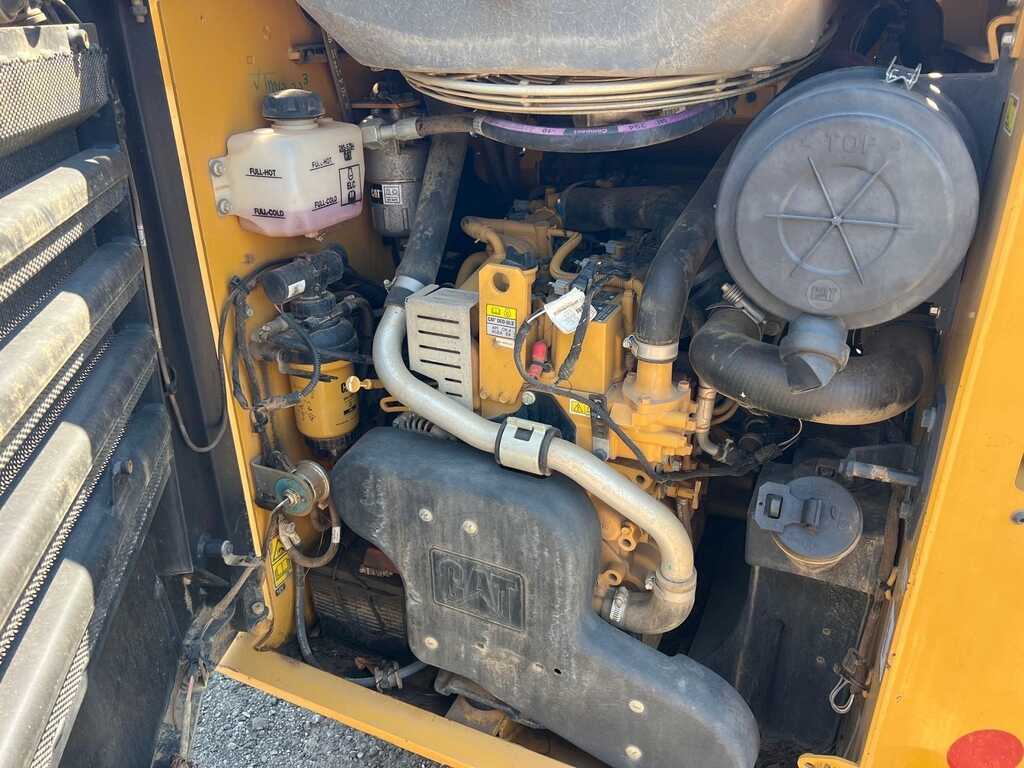

Engine & Powertrain
Engine Model: Cat C3.3B DIT (turbo)
Gross Power (SAE J1995): 74.3 hp (55.4 kW)
Net Power (SAE 1349 / ISO 9249): ~73.2–73.9 hp (≈55 kW)
Peak Torque: 195 ft·lbf (265 N·m) @ 1,500 rpm
Displacement: 203 in³ (3.3 L)
Bore × Stroke: 3.7 in × 4.7 in (94 × 120 mm)

Operating Weights & Capacities
Operating Weight: 7,138 lb (3,238 kg)
Rated Operating Capacity: 2,200 lb (1,000 kg)
Rated Operating Capacity (with optional counterweight): 2,410 lb (1,095 kg)
Tipping Load: 4,400 lb (2,000 kg)
Breakout Force (Tilt Cylinder): 4,963 lb (2,251 kg)

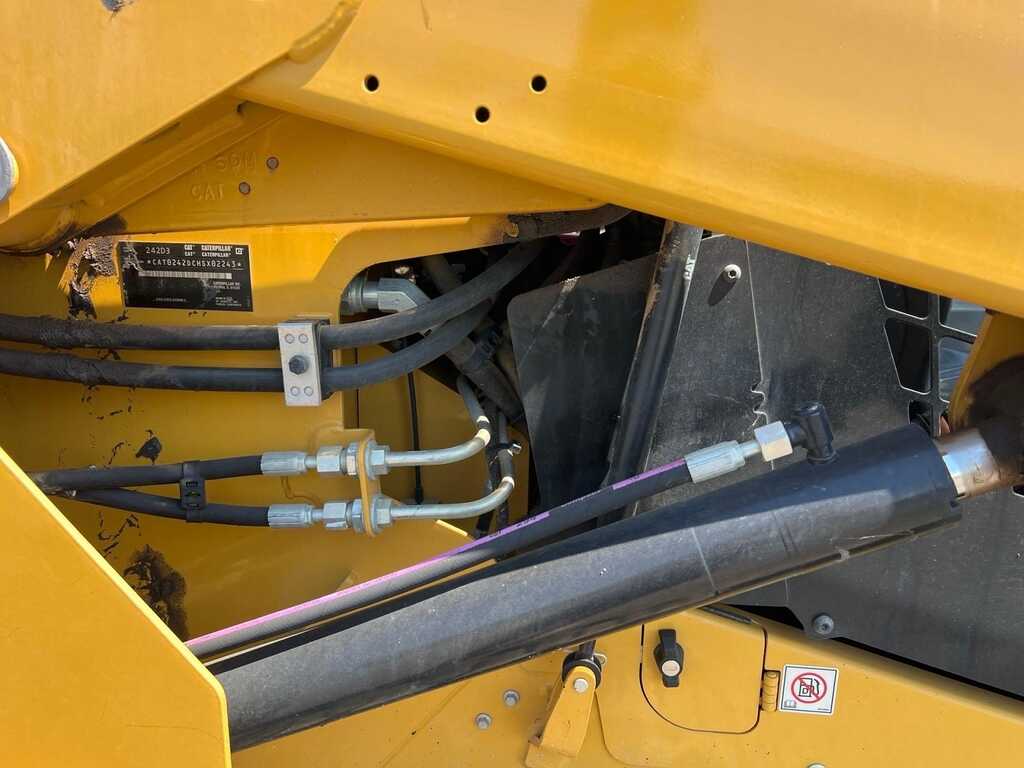

Hydraulic System
Standard Flow: 20 gpm @ 3,335 psi (76 L/min @ 23,000 kPa) – 39 hp (29 kW)
High Flow: 30 gpm @ 3,335 psi (112 L/min @ 23,000 kPa) – 58 hp (43 kW)
Hydraulic System Capacity: 13.2 gal (50 L)
Hydraulic Tank Capacity: 10.3 gal (39 L)

Dimensions
Length (without bucket): 108.9 in (2,767 mm)
Length (with bucket on ground): 137.3 in (3,487 mm)
Height to Top of Cab: 83.1 in (2,111 mm)
Maximum Overall Height: 154.2 in (3,917 mm)
Bucket Pin Height – Max Lift: 121.1 in (3,076 mm)
Clearance at Max Lift & Dump: 90 in (2,285 mm)
Reach at Max Lift/Dump: 21.7 in (552 mm)
Reach with Arms Parallel to Ground: 49.2 in (1,249 mm)
Ground Clearance: 8.7 in (222 mm)
Wheelbase: 43.5 in (1,105 mm)
Width over Tires: 66 in (1,676 mm)
Departure Angle: 27°
Turning Radius (Bucket/Coupler/Rear): 83 / 51.8 / 64.5 in
Bumper Overhang (rear): 40.2 in

Travel Speed
Standard (1-speed): 7.5 mph (12.1 km/h)
Two-Speed Option: 11.5 mph (18.5 km/h)

Fluids & Service Refill Capacities
Fuel Tank: 24.8 gal (94 L)
Engine Crankcase: 3 gal (11 L)
Cooling System: 3.7 gal (14 L)
Chain Box (each side): 2.3 gal (8.8 L)
Hydraulic System: 13.2 gal (50 L)

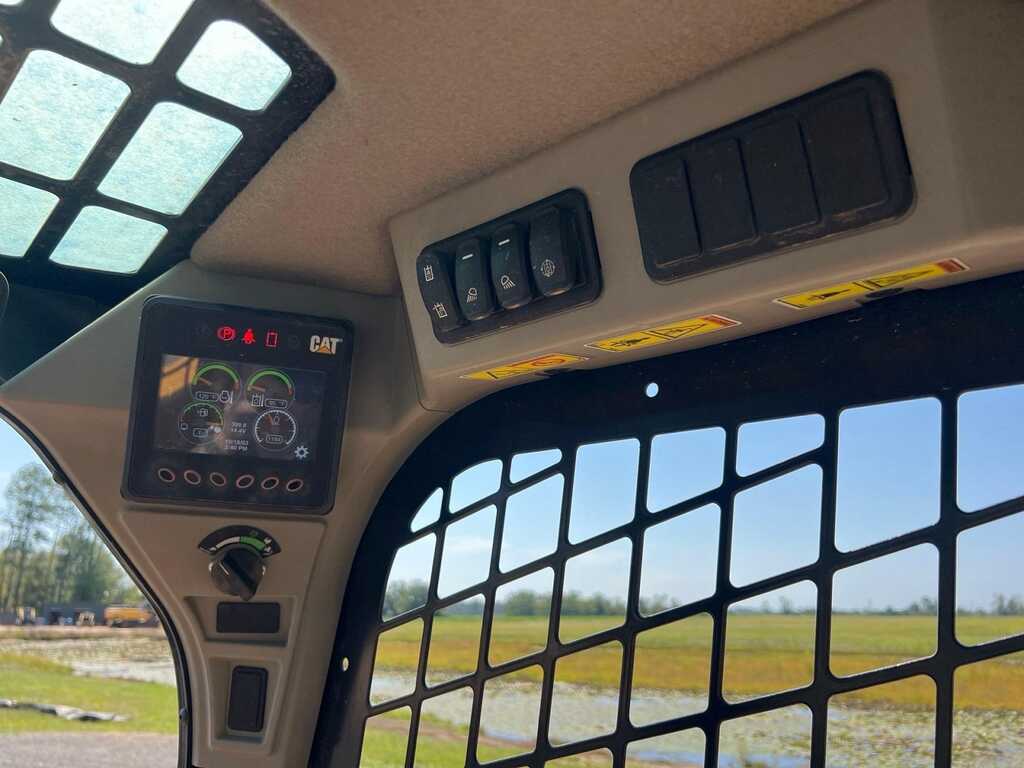

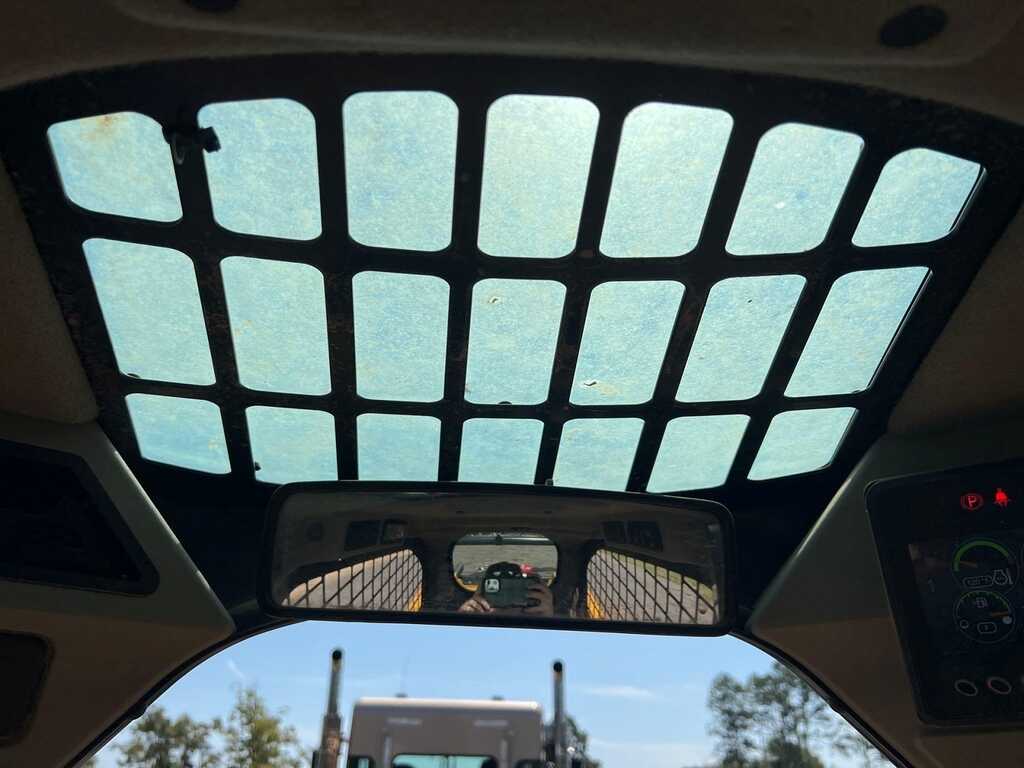

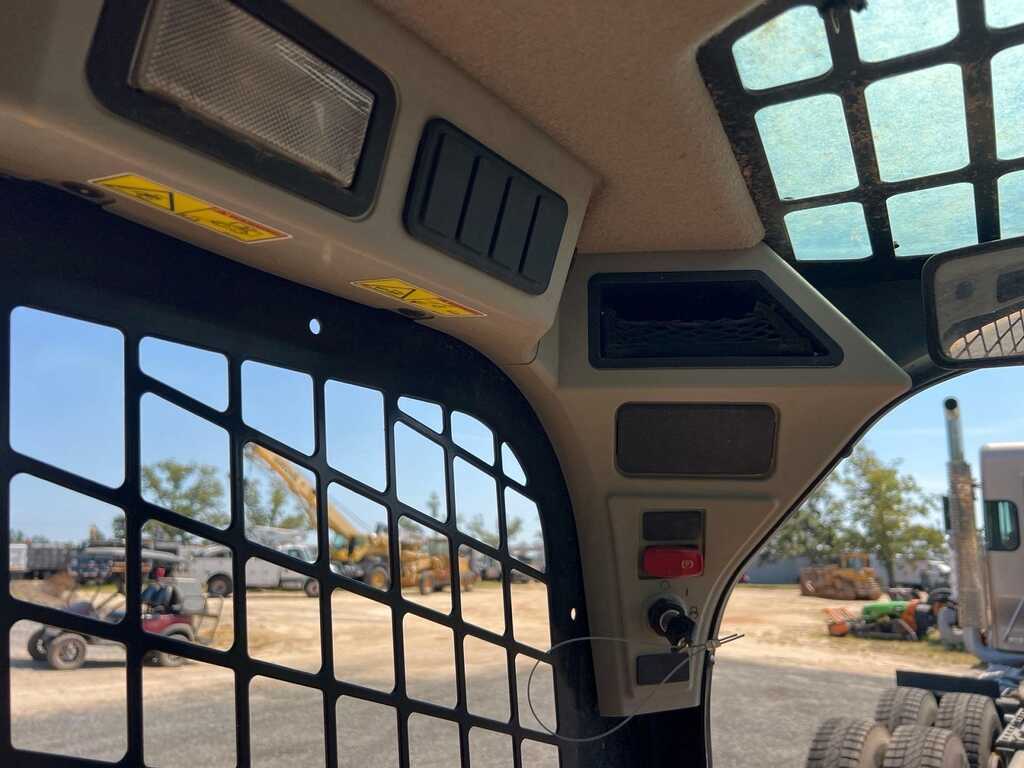

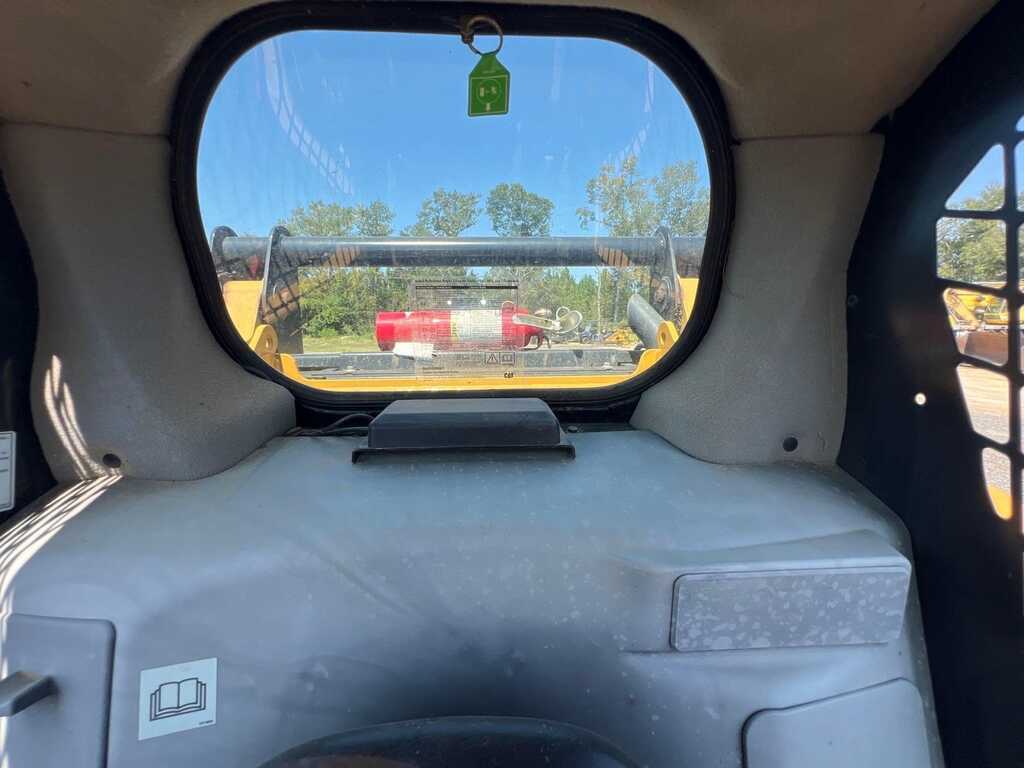

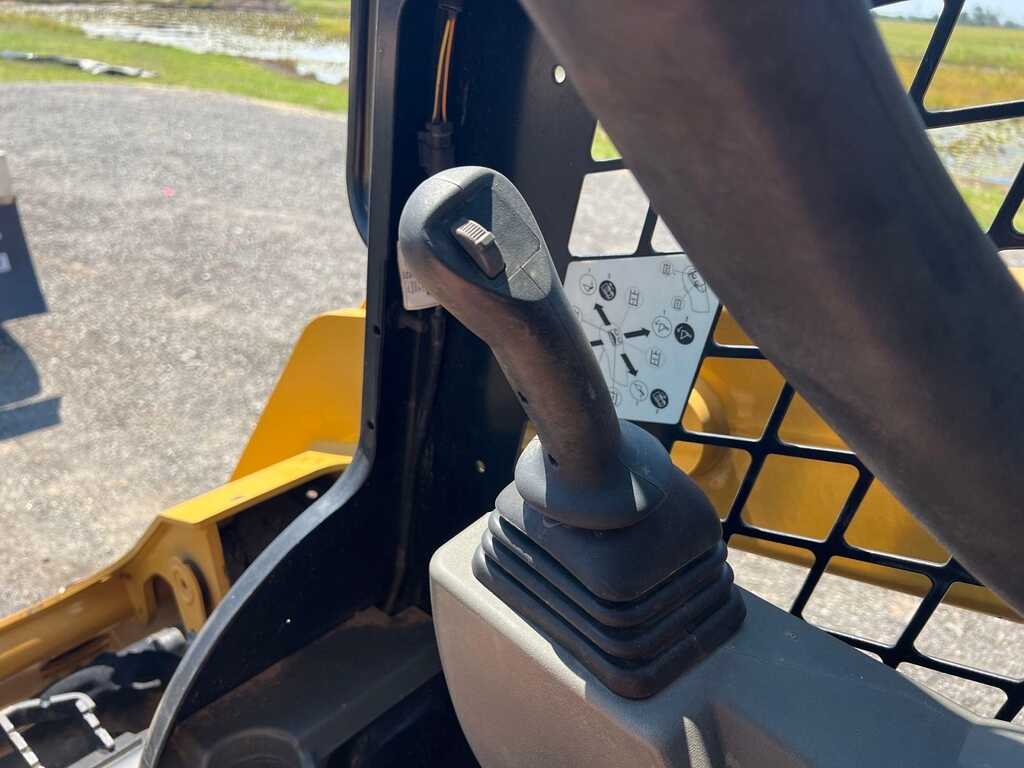

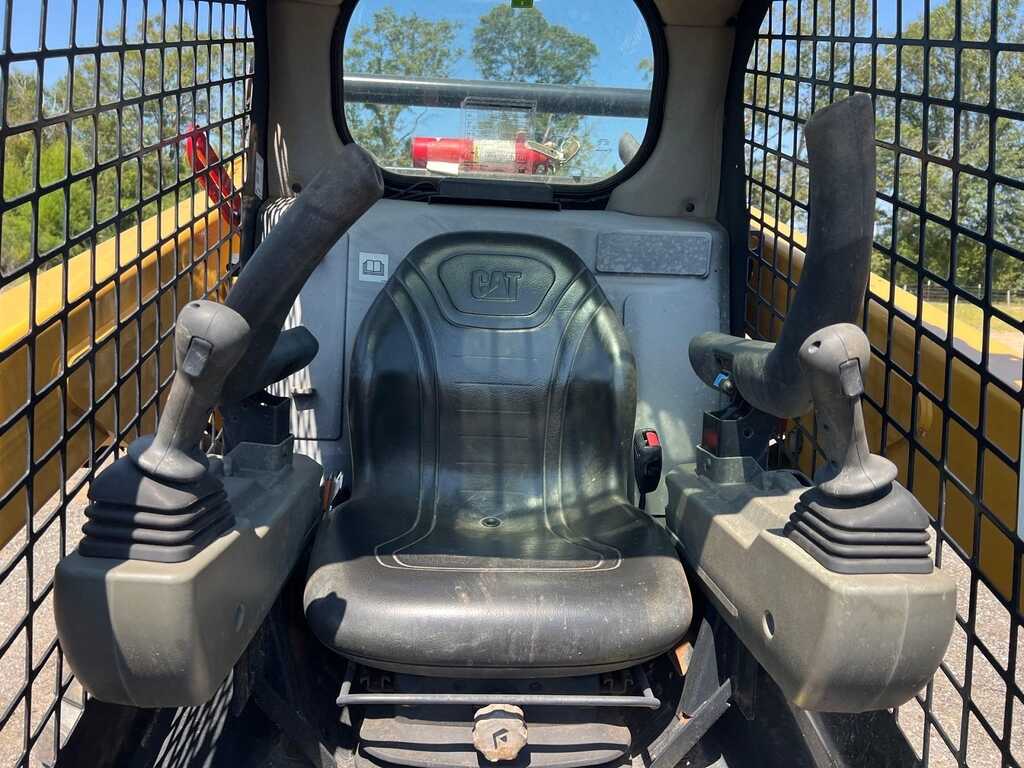

Cab & Operator Station
ROPS: ISO 3471:2008
FOPS: ISO 3449:2005 Level I
Noise Level Inside Cab: 83 dB(A)
Noise Level Outside Cab: 101 dB(A)

Air Conditioning
Refrigerant Type: R134a
Refrigerant Charge: 0.81 kg
CO₂ Equivalent: 1.158 metric tonnes
