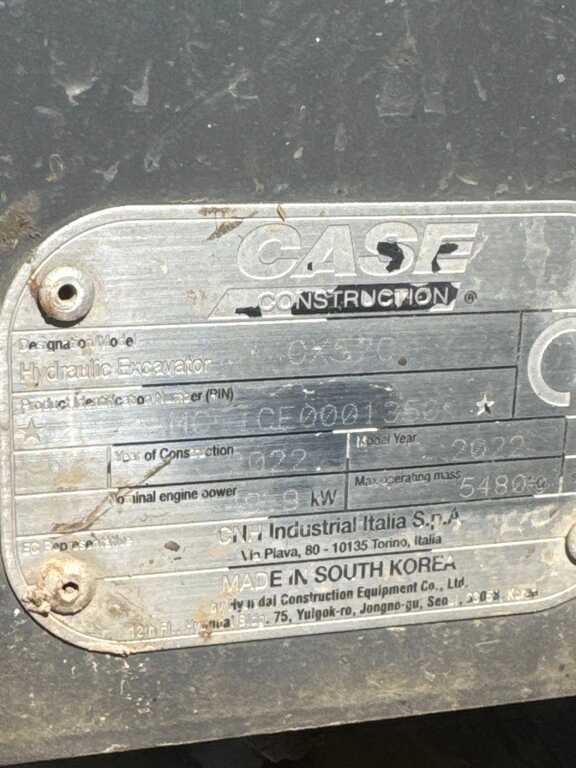

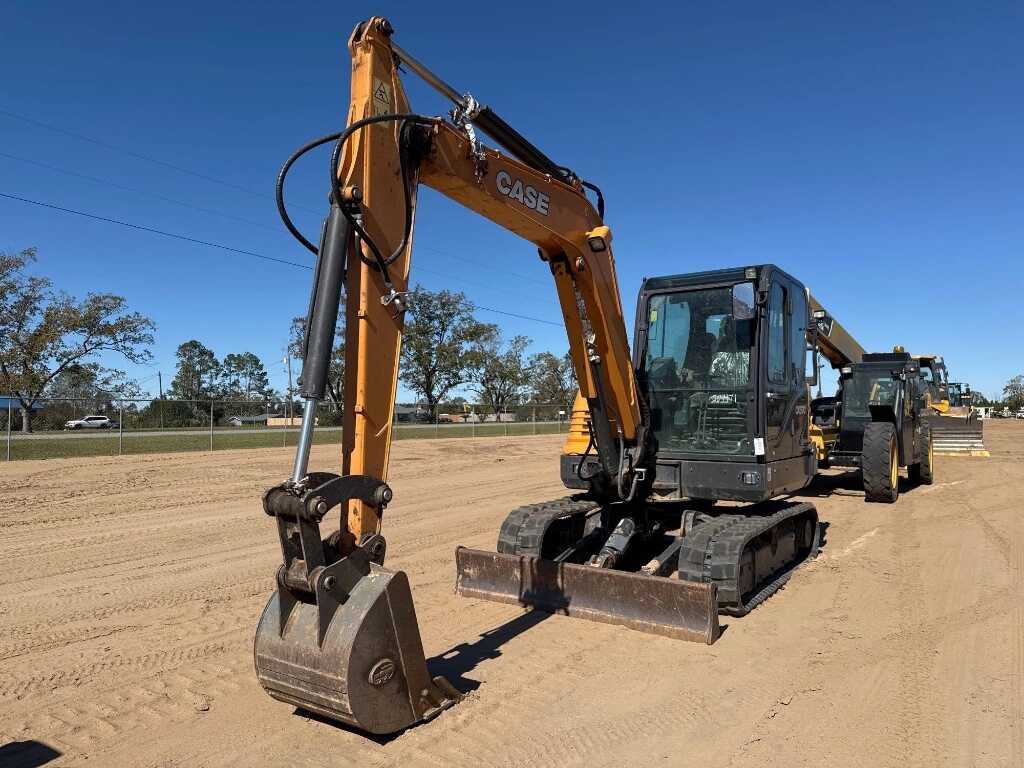

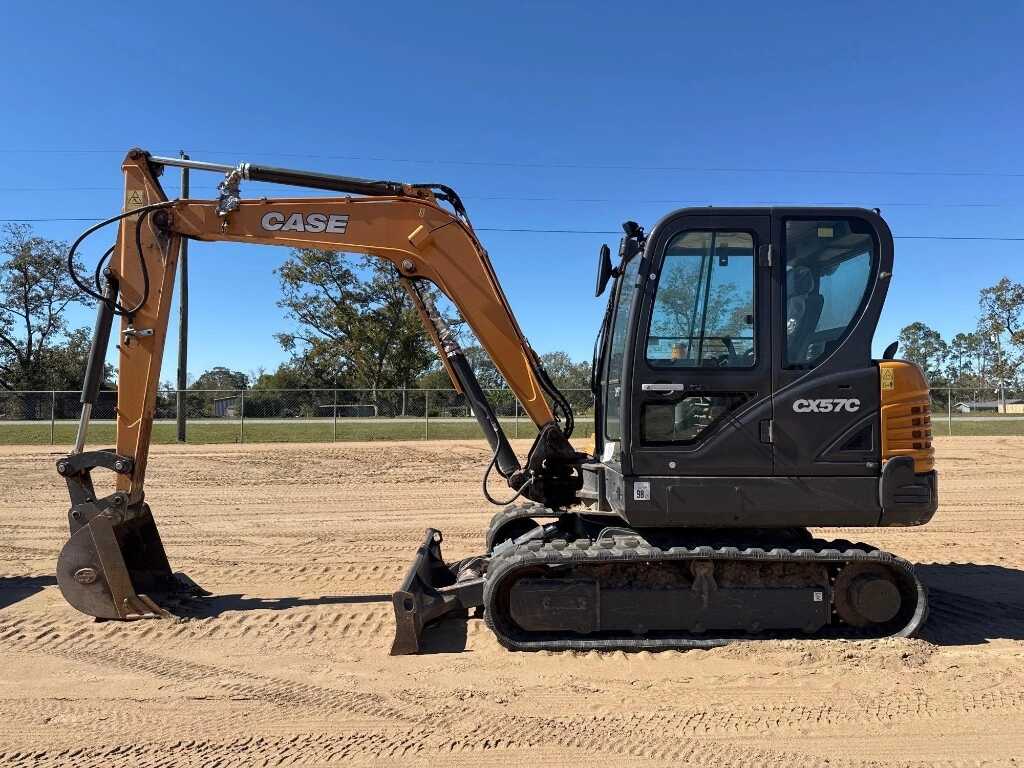

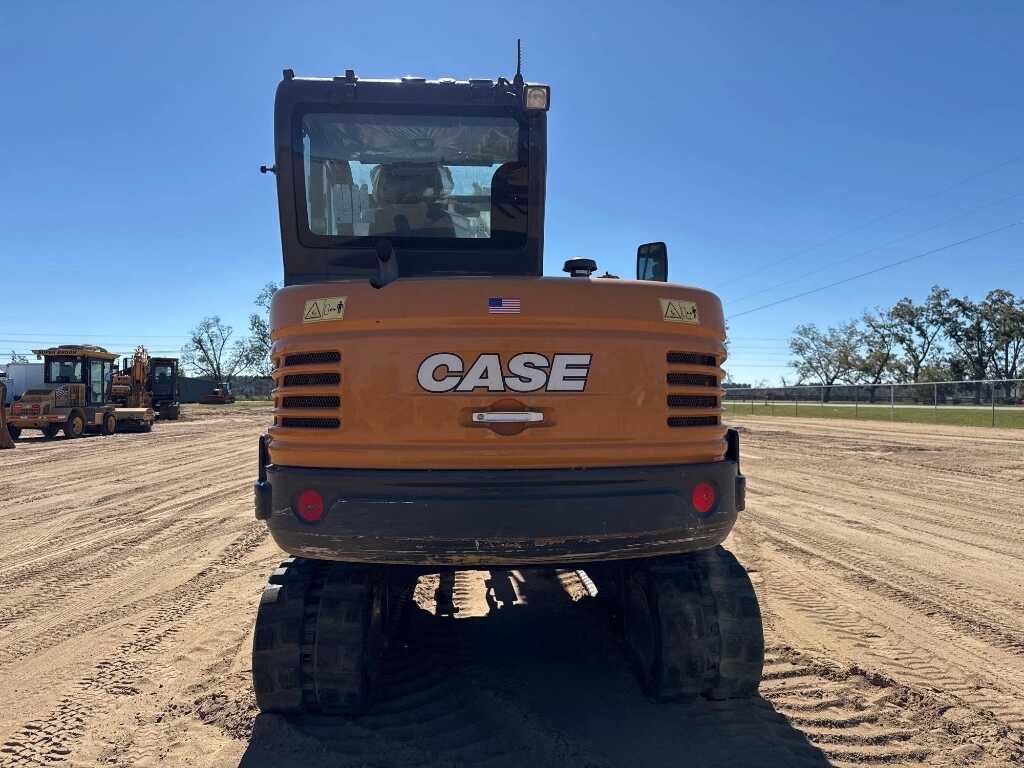

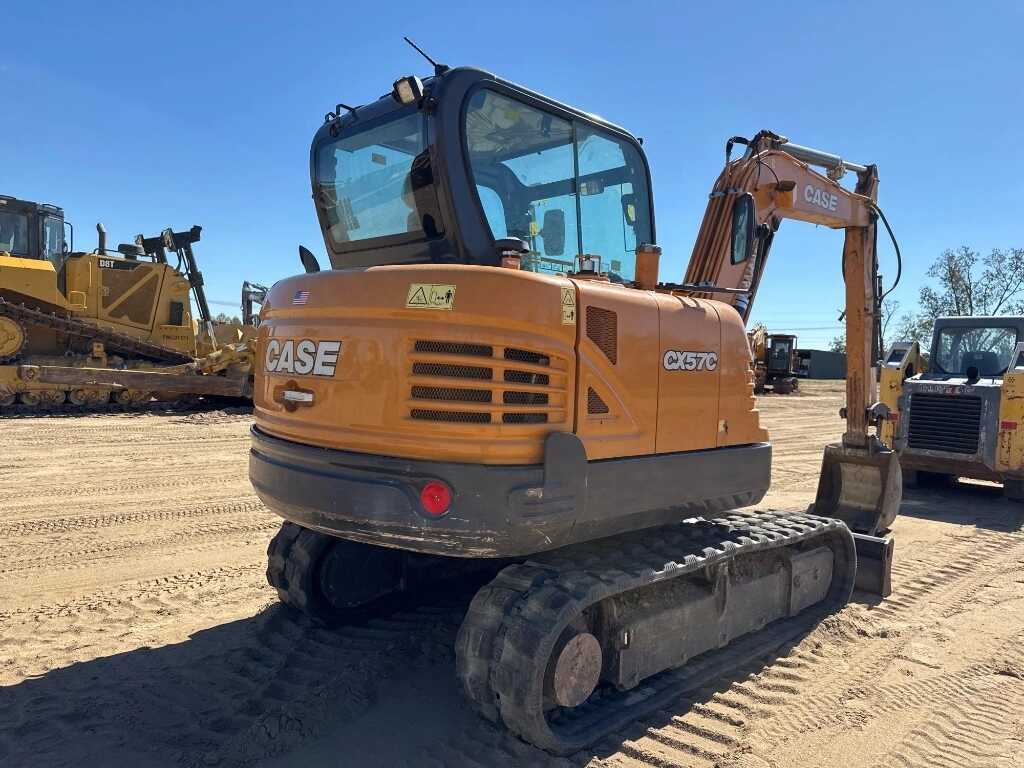

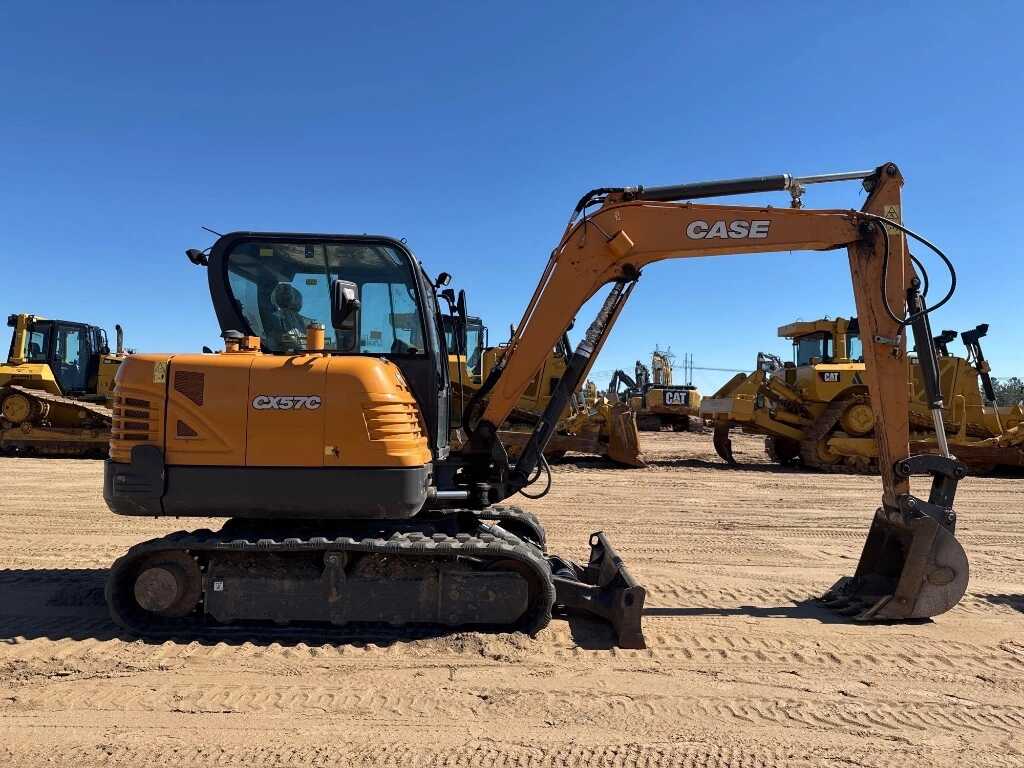

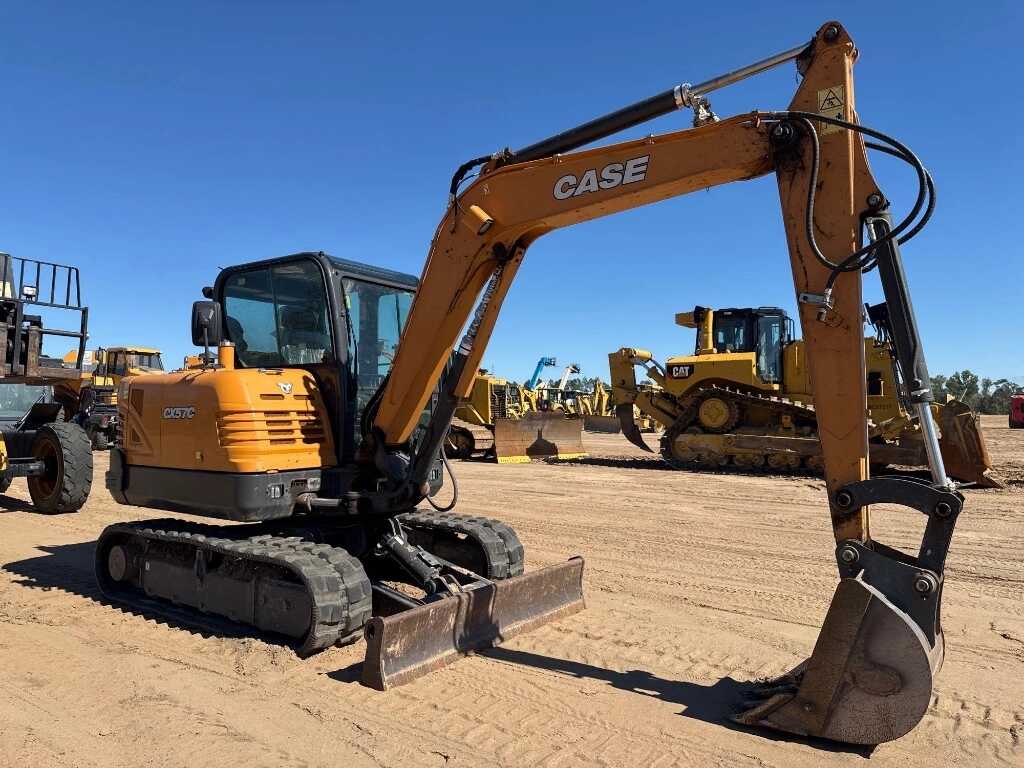

(HRS SHOW-662), EROPS, AUX HYD, BUCKET, PUSH BLADE, RUBBER TRACK, S/N-HHKHMC11CE0001350

Engine and Performance
Engine: Yanmar 4TNV98C, 4-cylinder, Tier 4 Final diesel
Gross Power: 67 hp (50 kW)
Net Power: 65 hp (49 kW) @ 2400 rpm
Maximum Torque: 174 lb-ft (236 Nm) @ 1550 rpm
Maximum Travel Speed: 2.5 mph (4.1 kph)
Bucket Breakout Force: 9,550 lbf
Gradeability: 70% (35°)
Ground Pressure: 4.8 psi

Capacities and Reach
Operating Weight: 12,270 lb (5,565 kg)

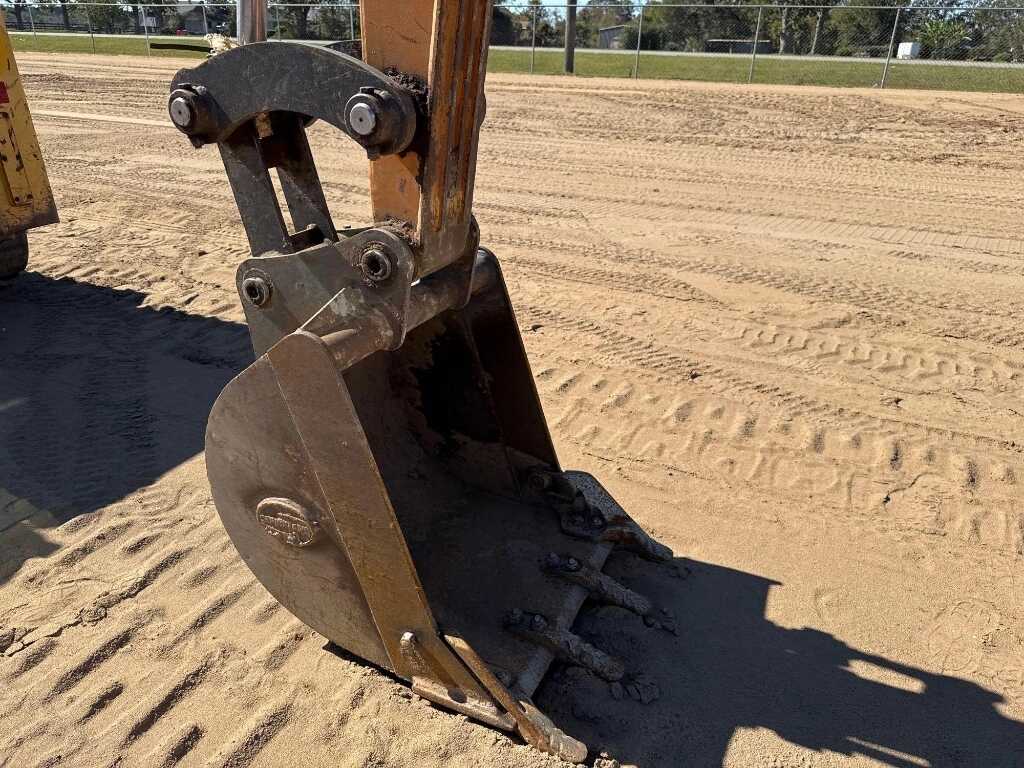

Bucket Capacity: Minimum 0.25 m³
Maximum Digging Depth: 3.82 m
Maximum Horizontal Reach: 6.01 m
Lift Capacity: Over 9,200 lb
Fuel Tank Capacity: 31.8 gal

Dimensions and Features
Operating Height: 8 ft 4 in (2.55 m)
Transport Length: 19 ft 4 in (5.9 m)
Overall Width: 6 ft 4 in (1.92 m)

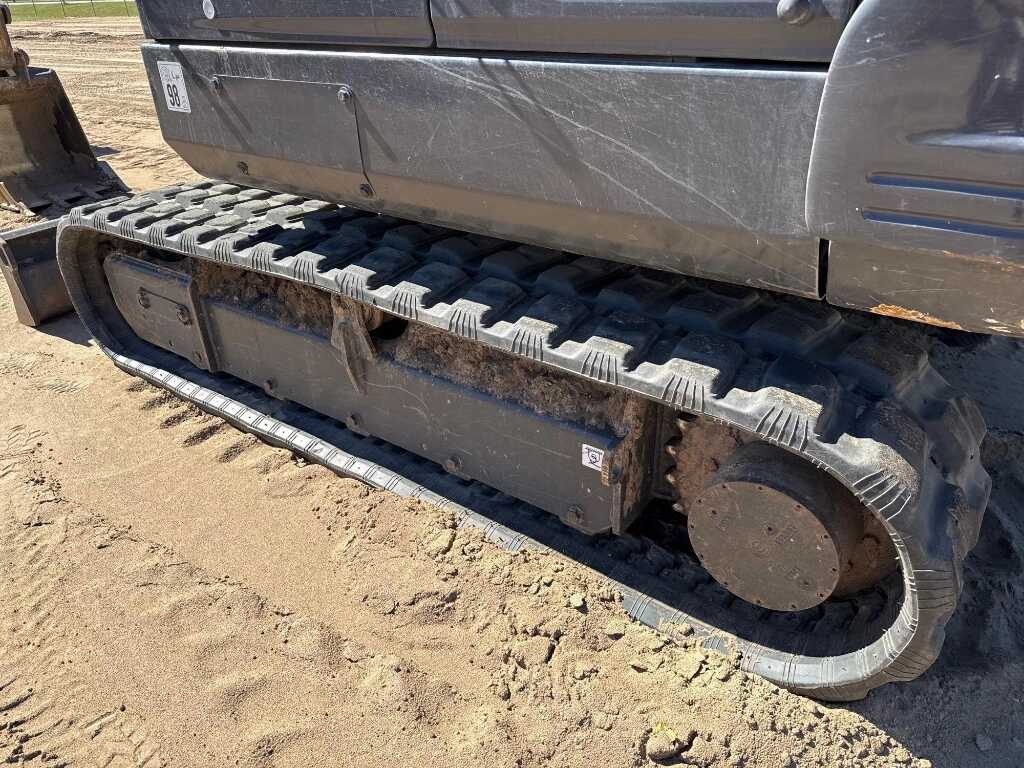

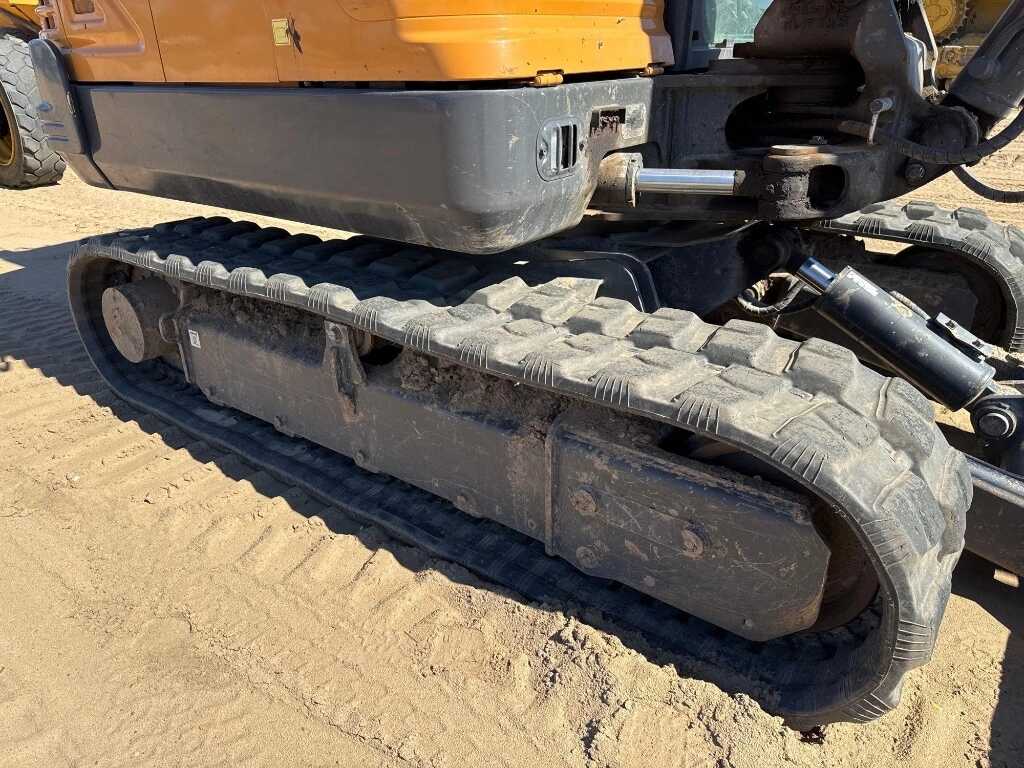

Track Shoe Width: 15 in (380 mm)
Track Gauge: 4 ft 11 in (1.5 m)

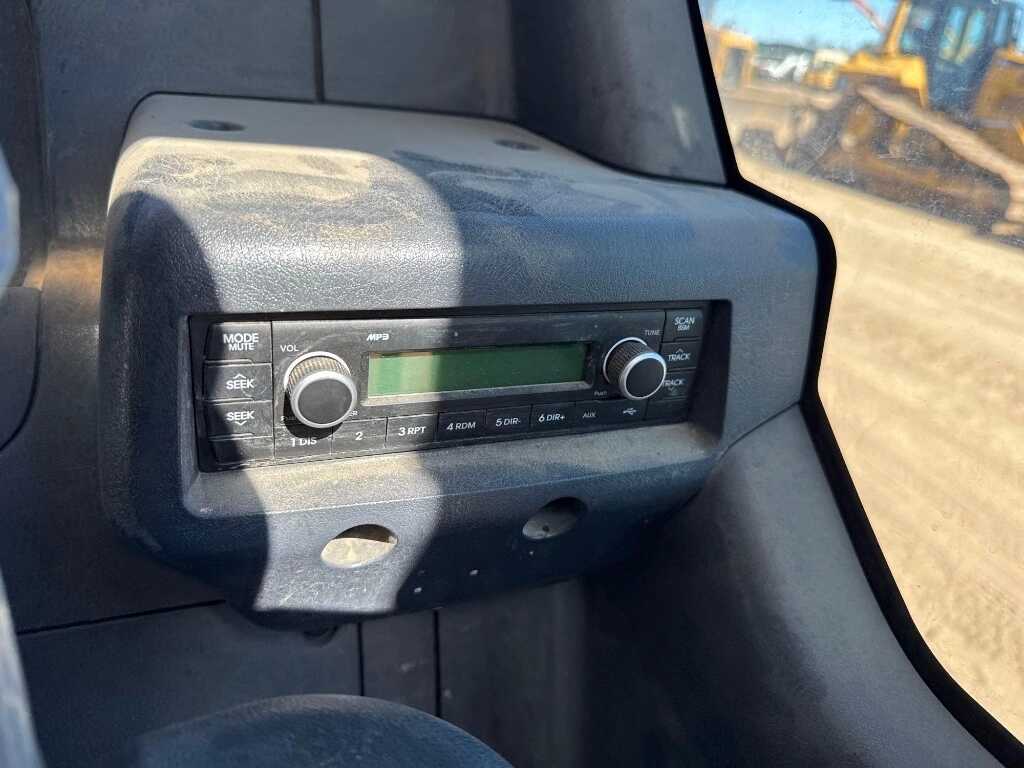

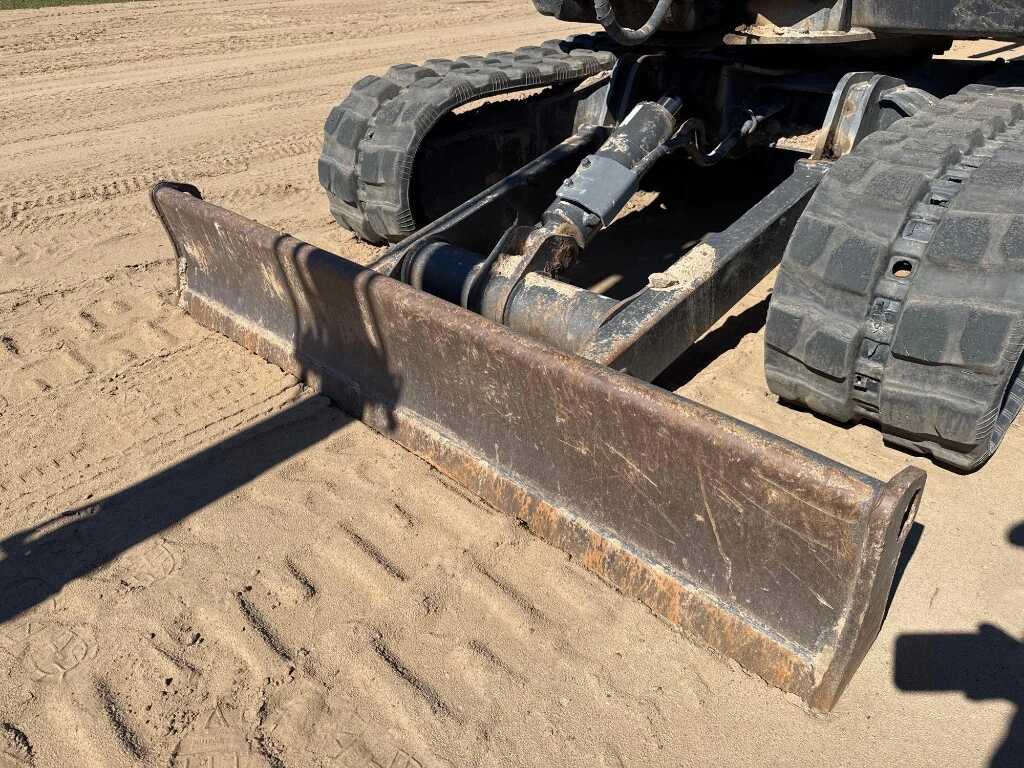

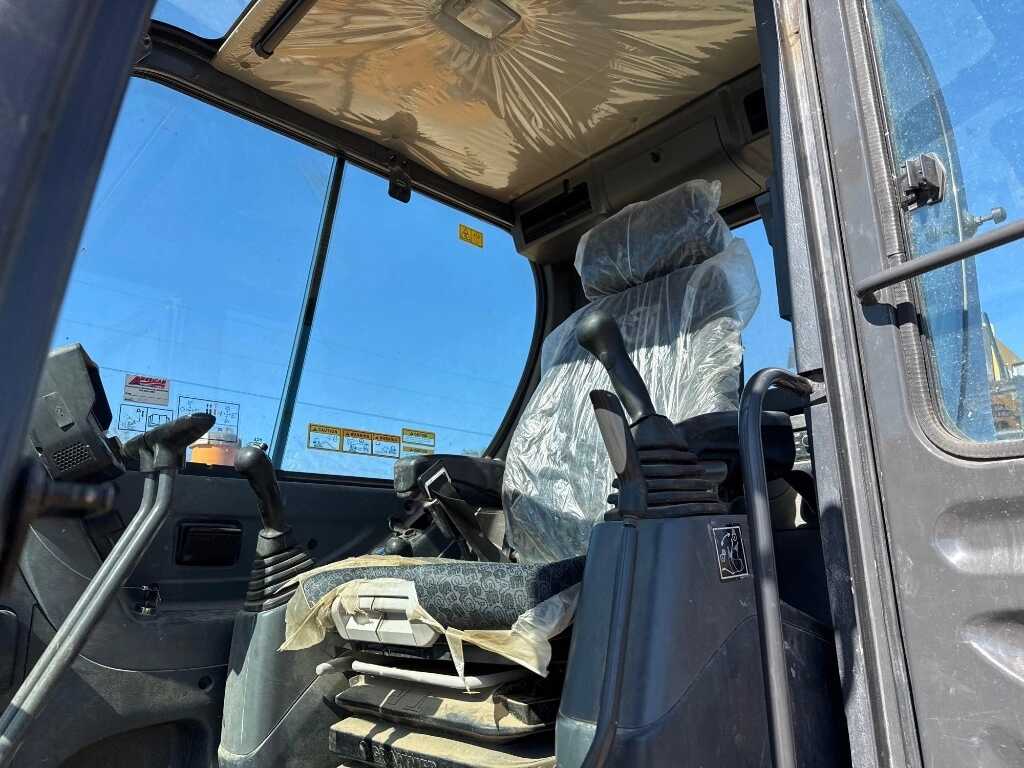

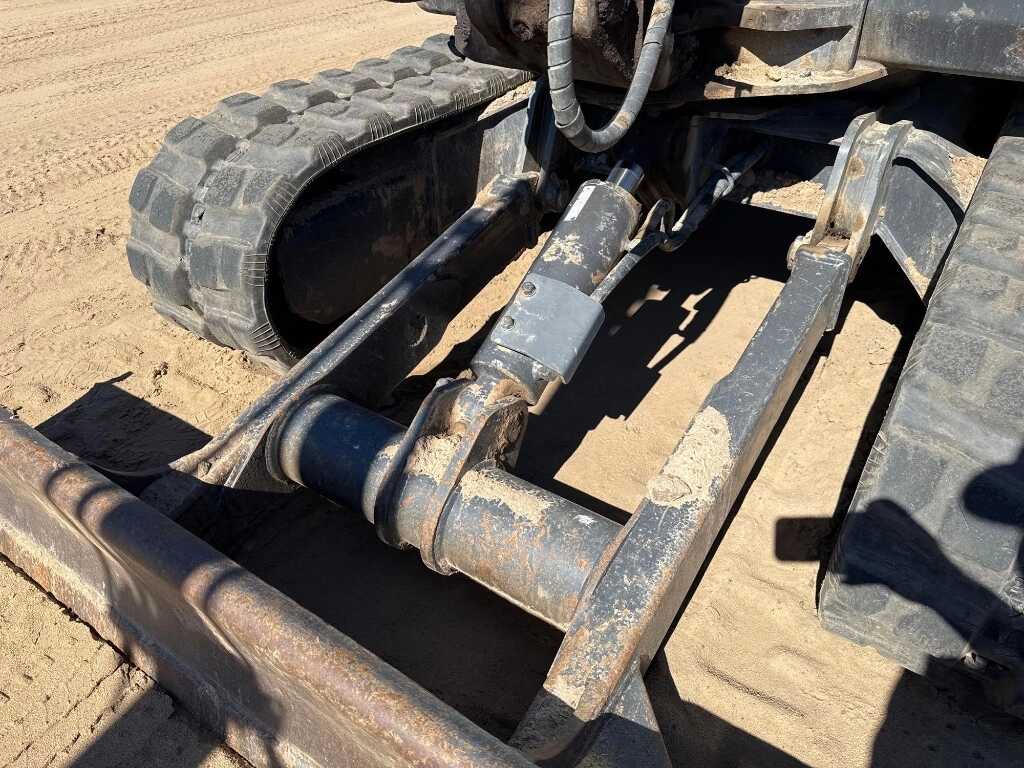

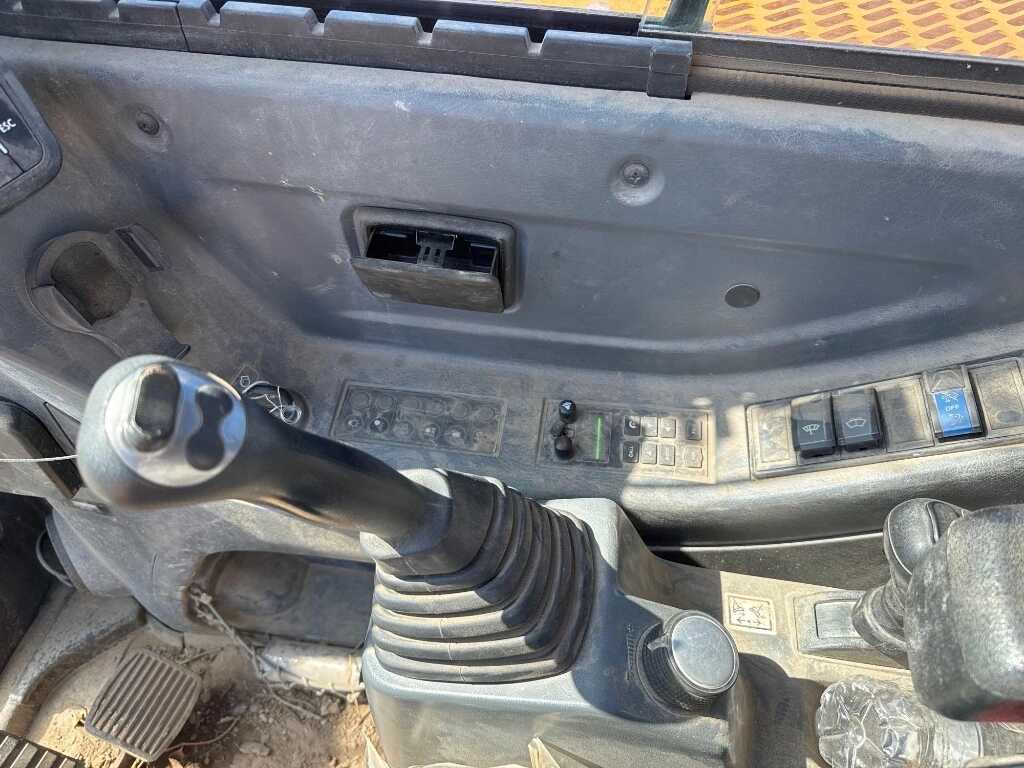

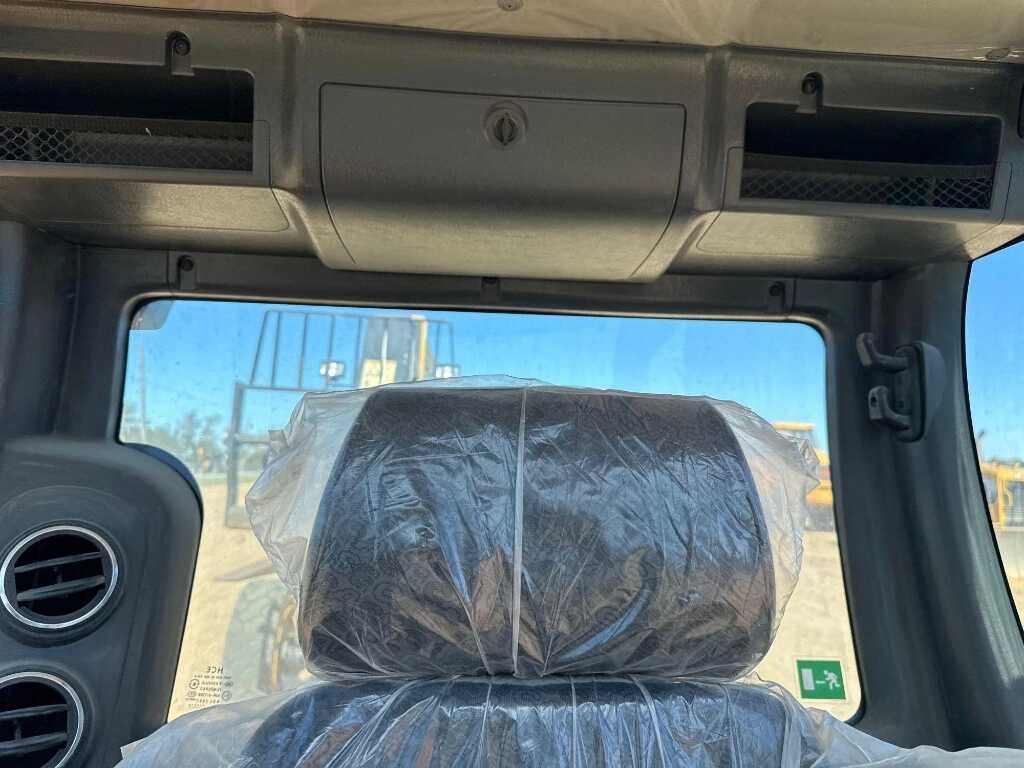

Standard Features: Enclosed cab with A/C, heat, and radio; hydraulic push blade; automatic 2-speed travel
