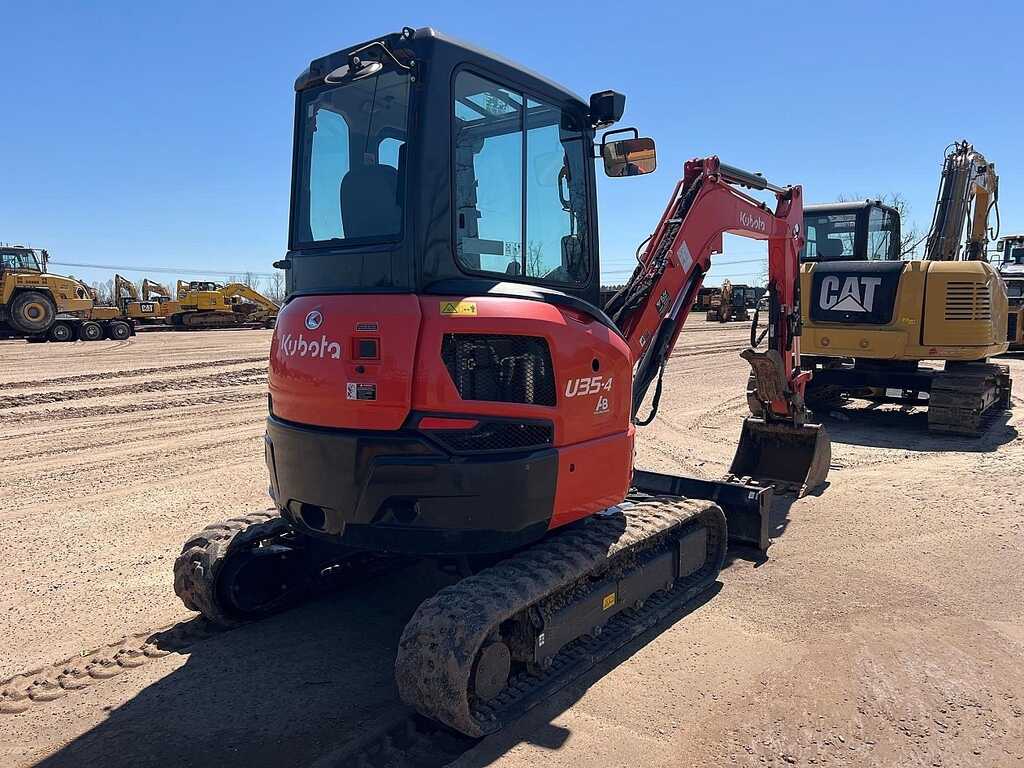

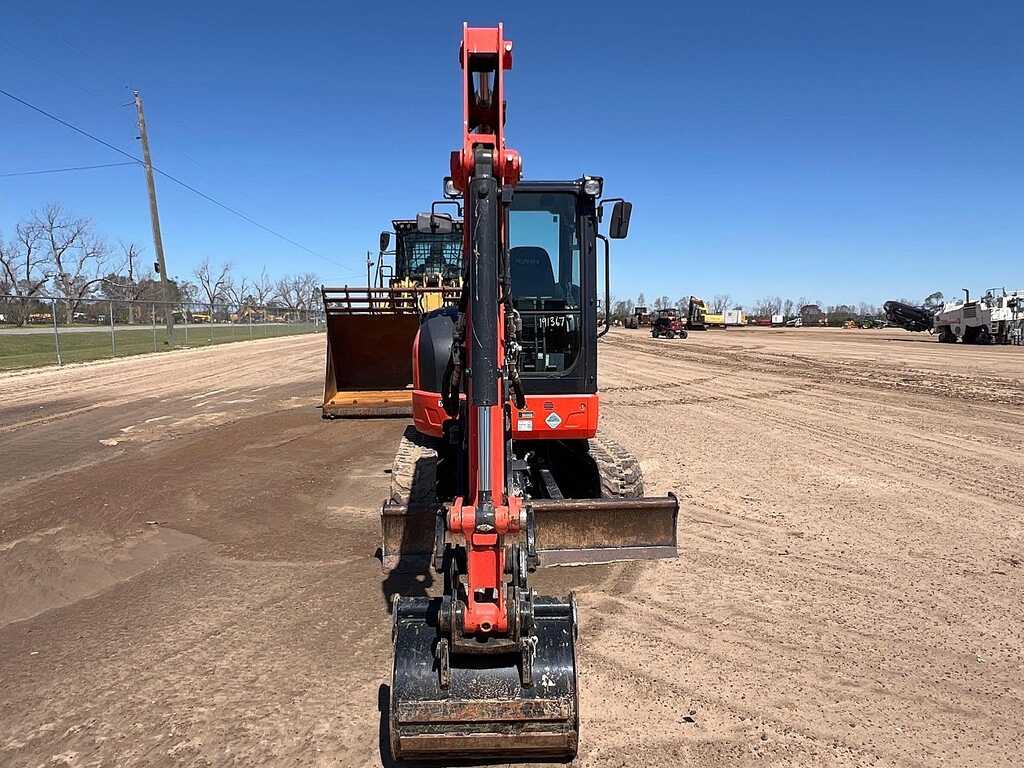

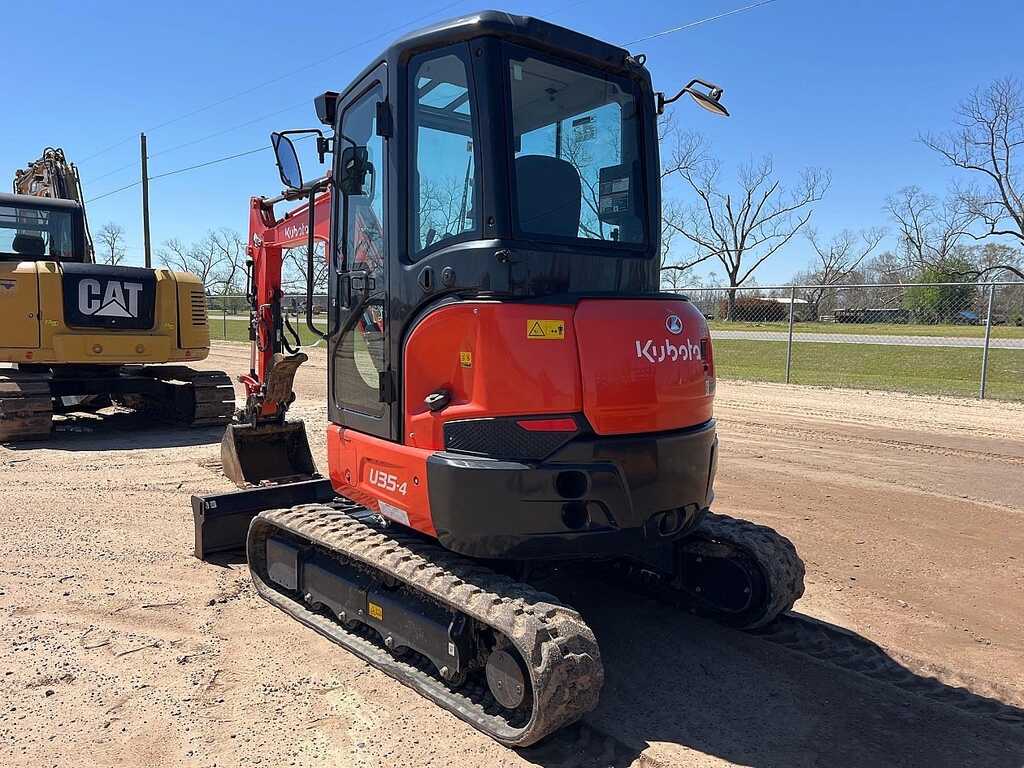

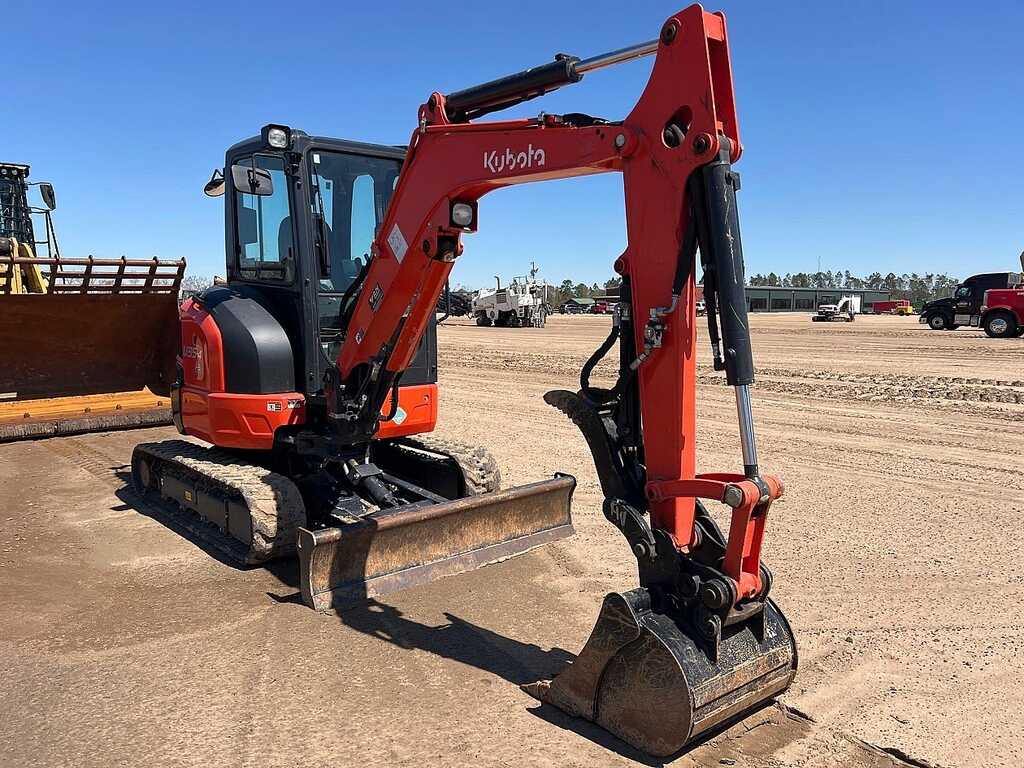

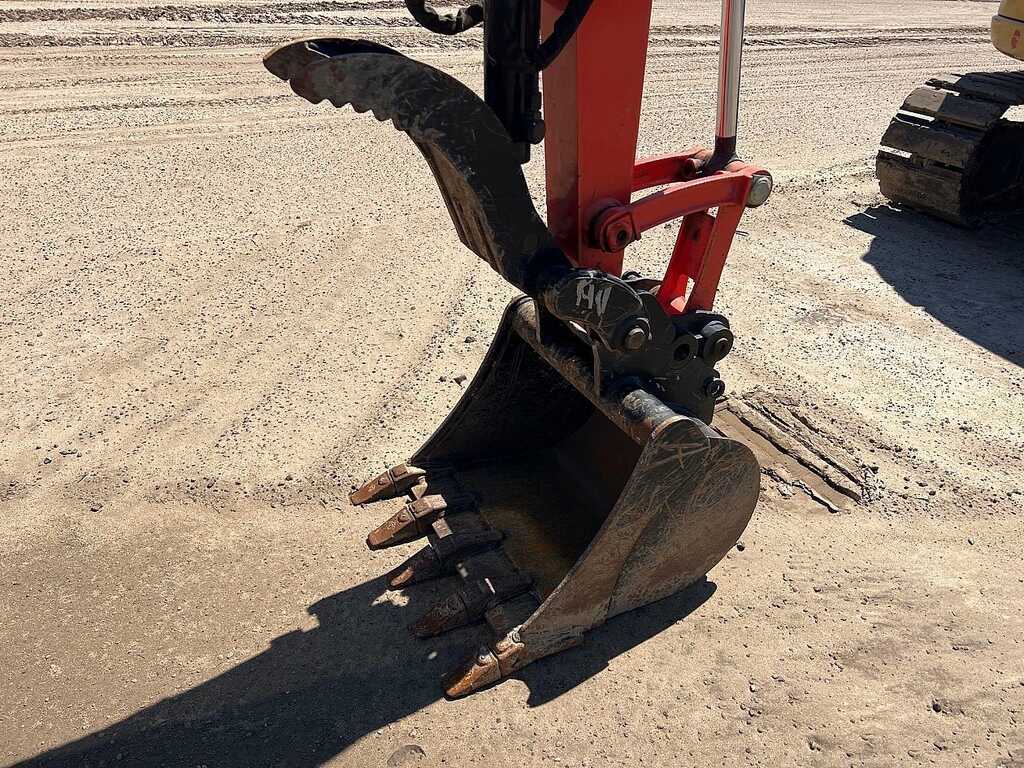

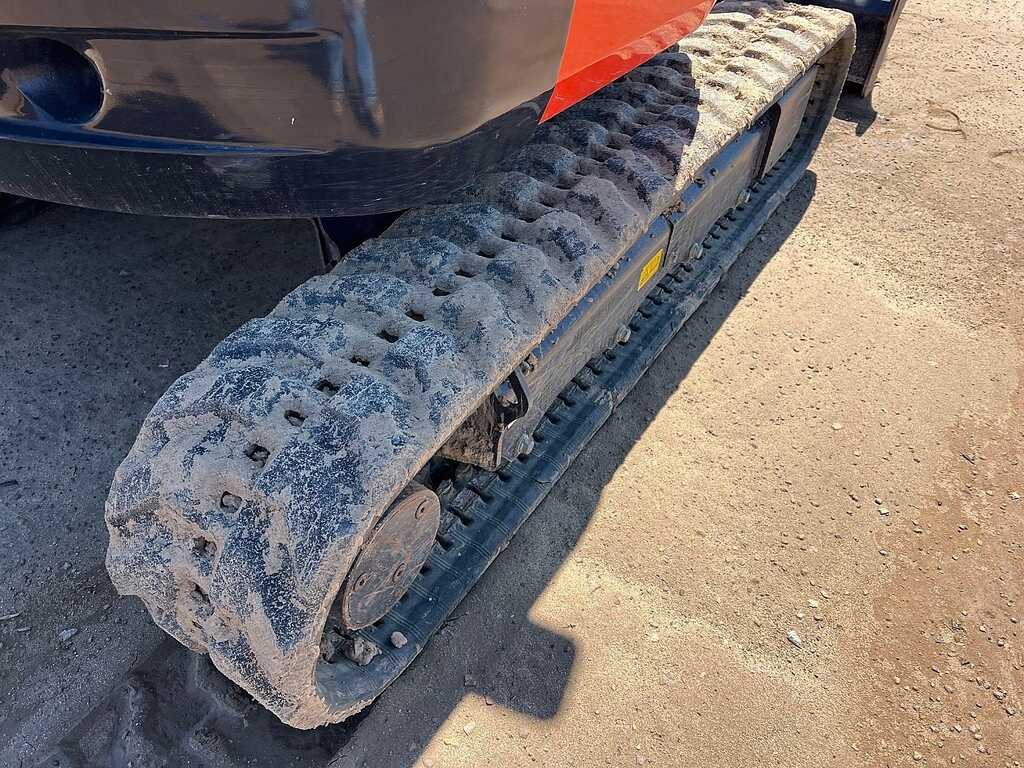

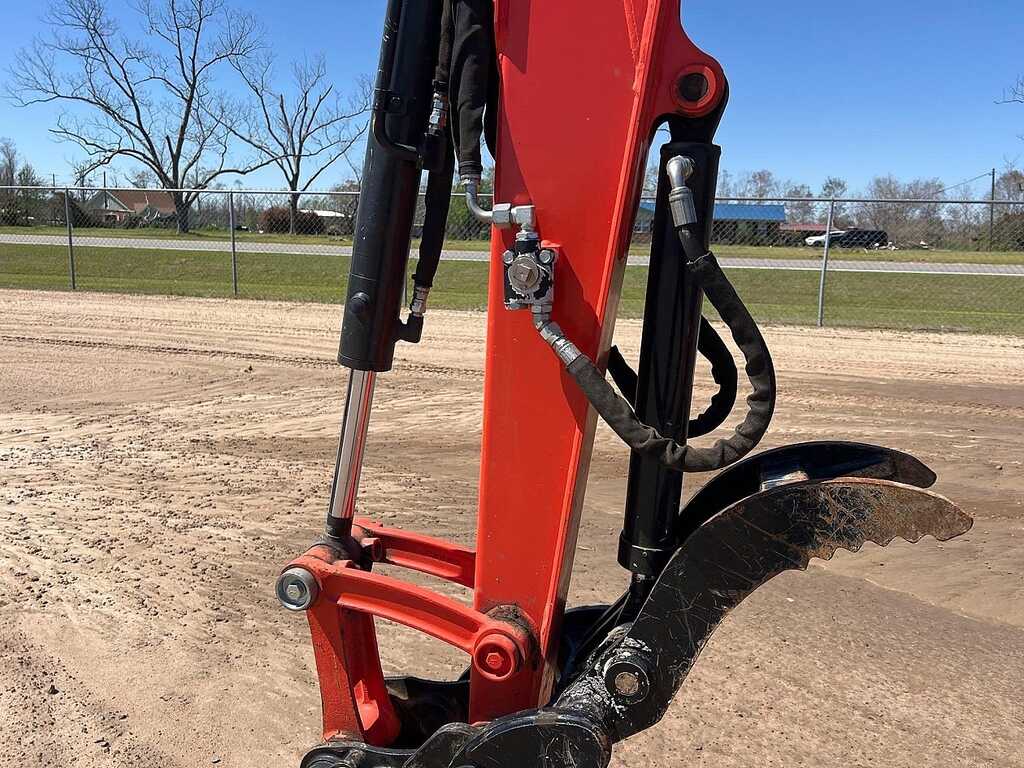

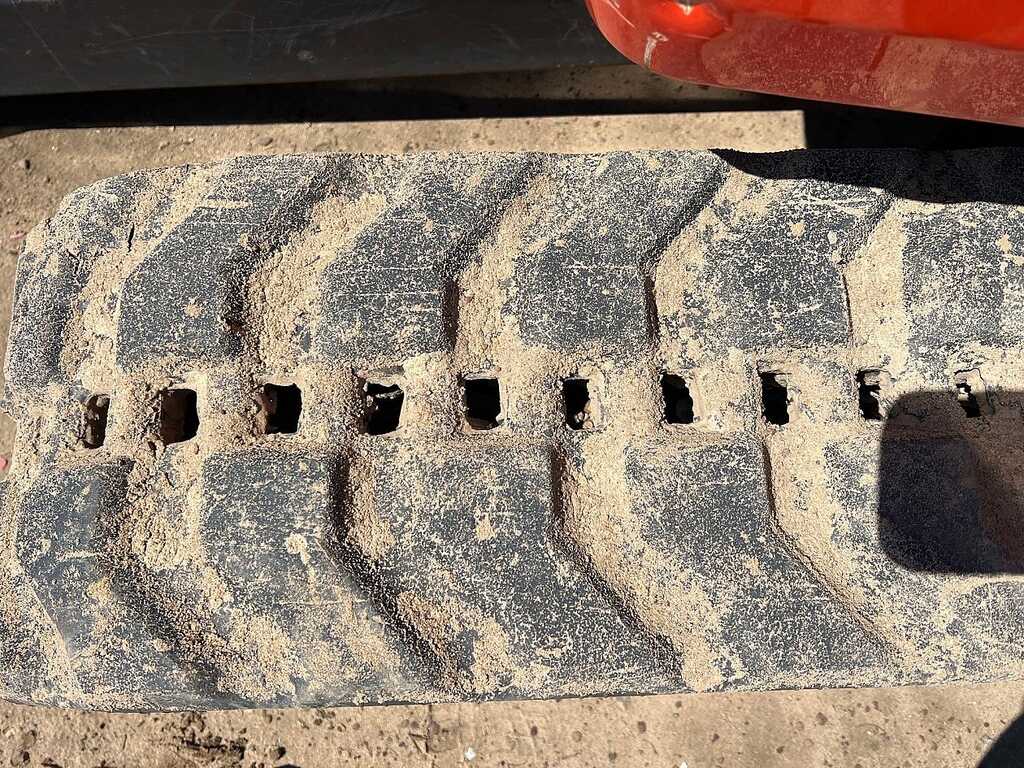

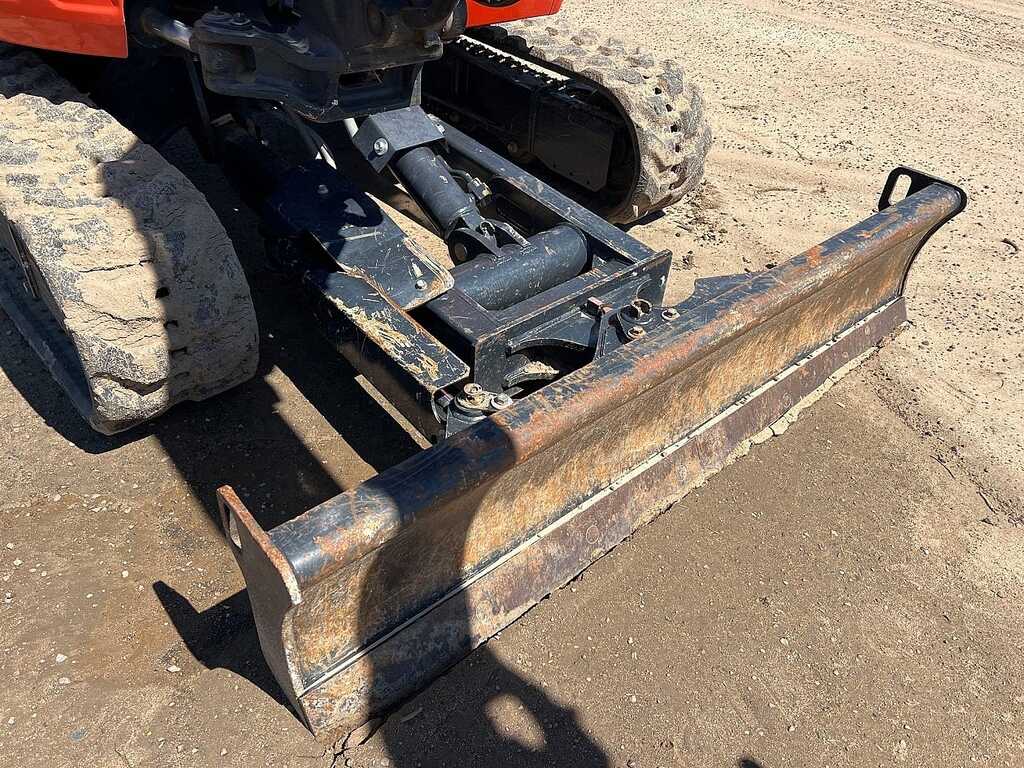

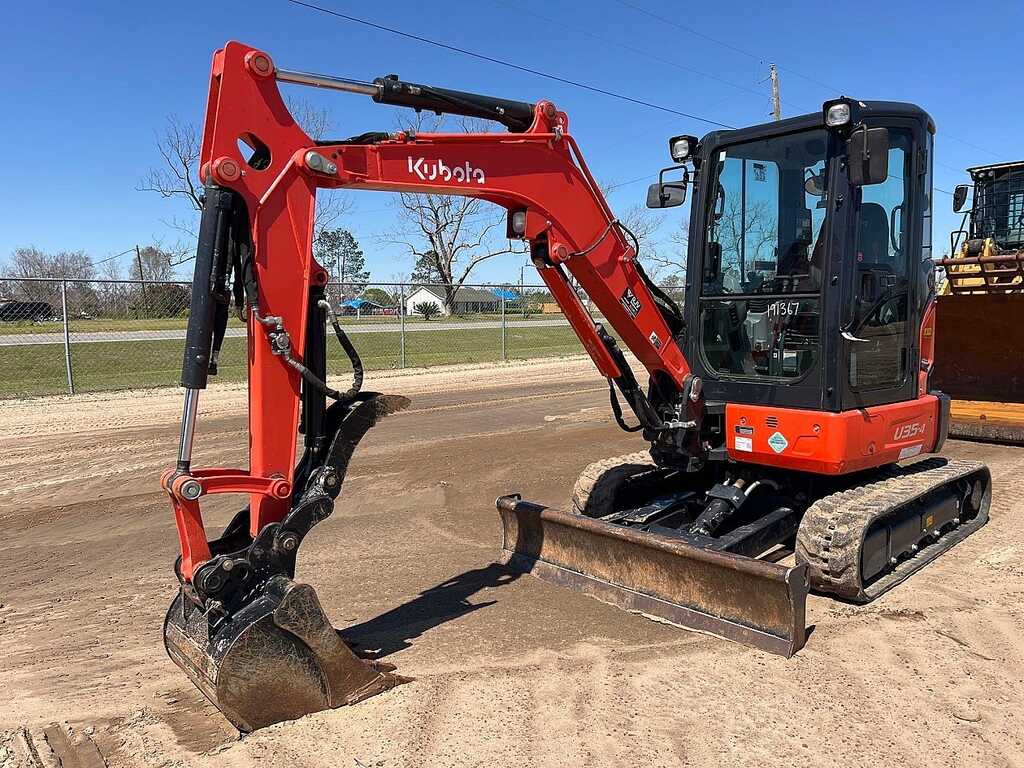

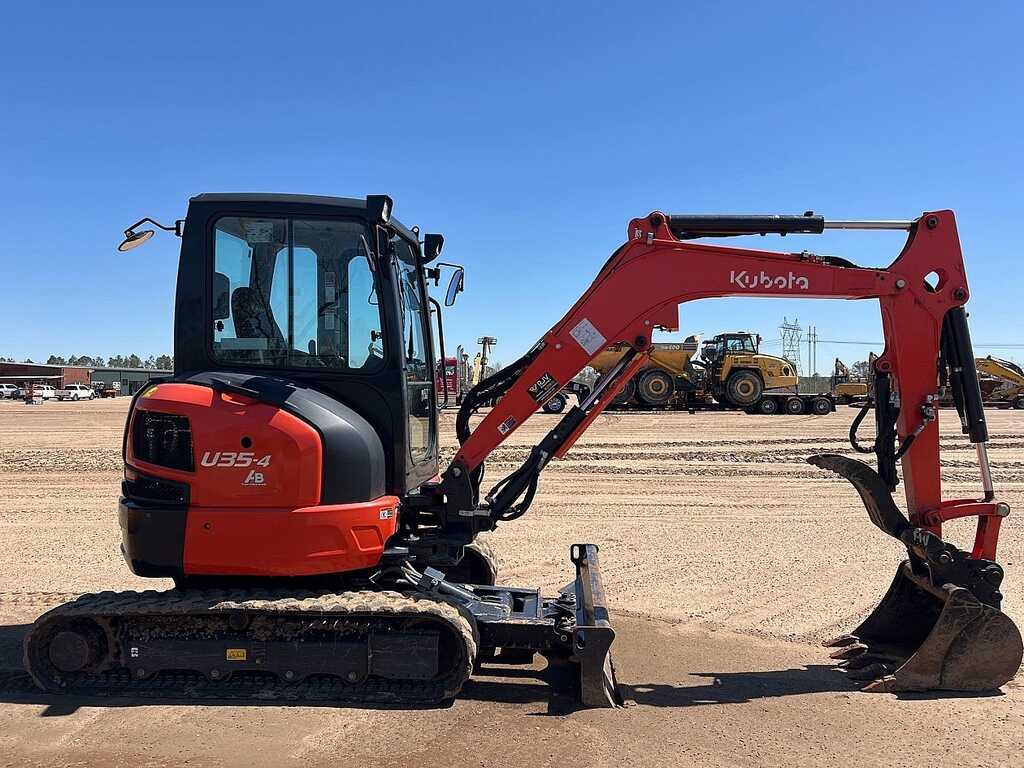

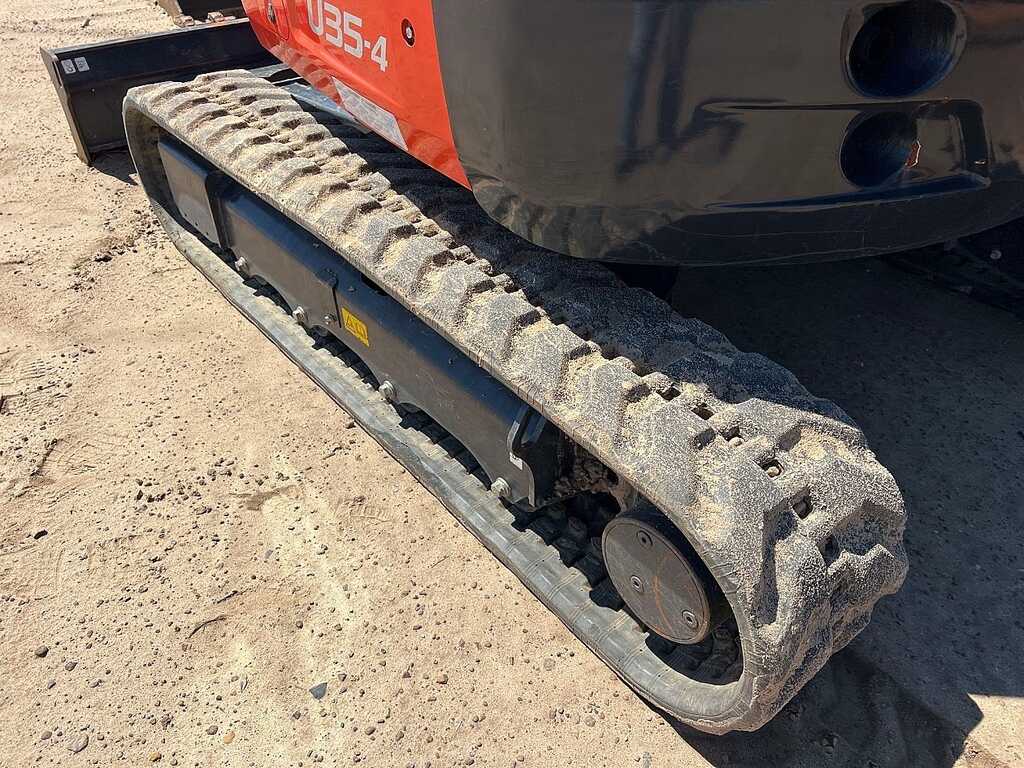

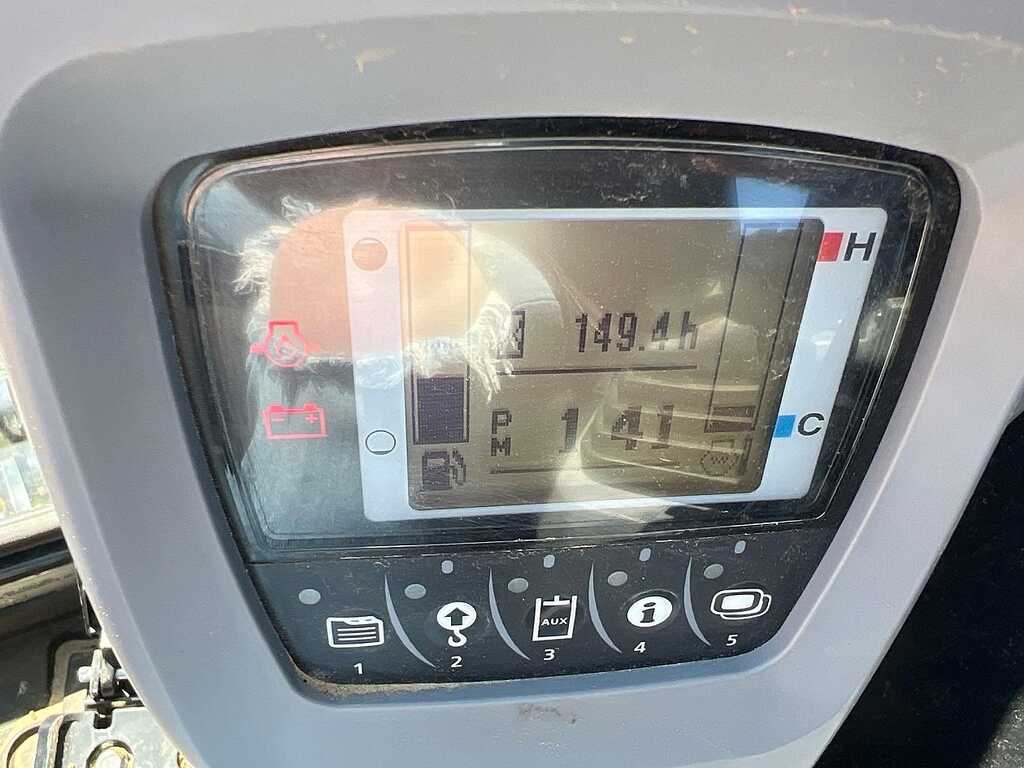

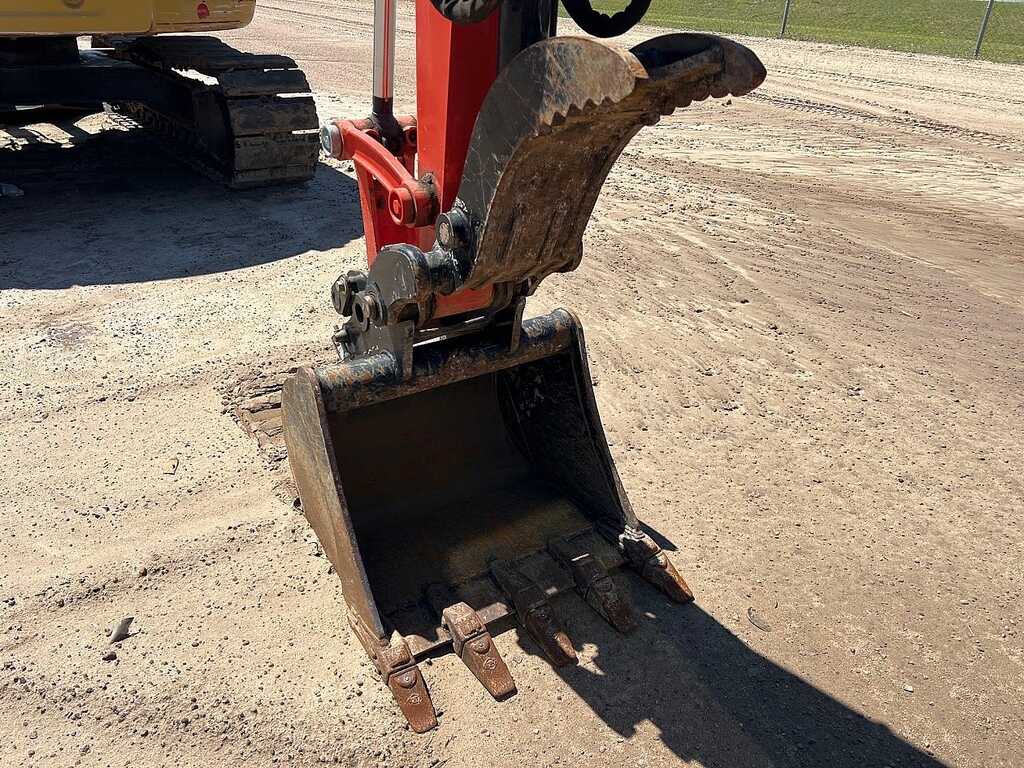

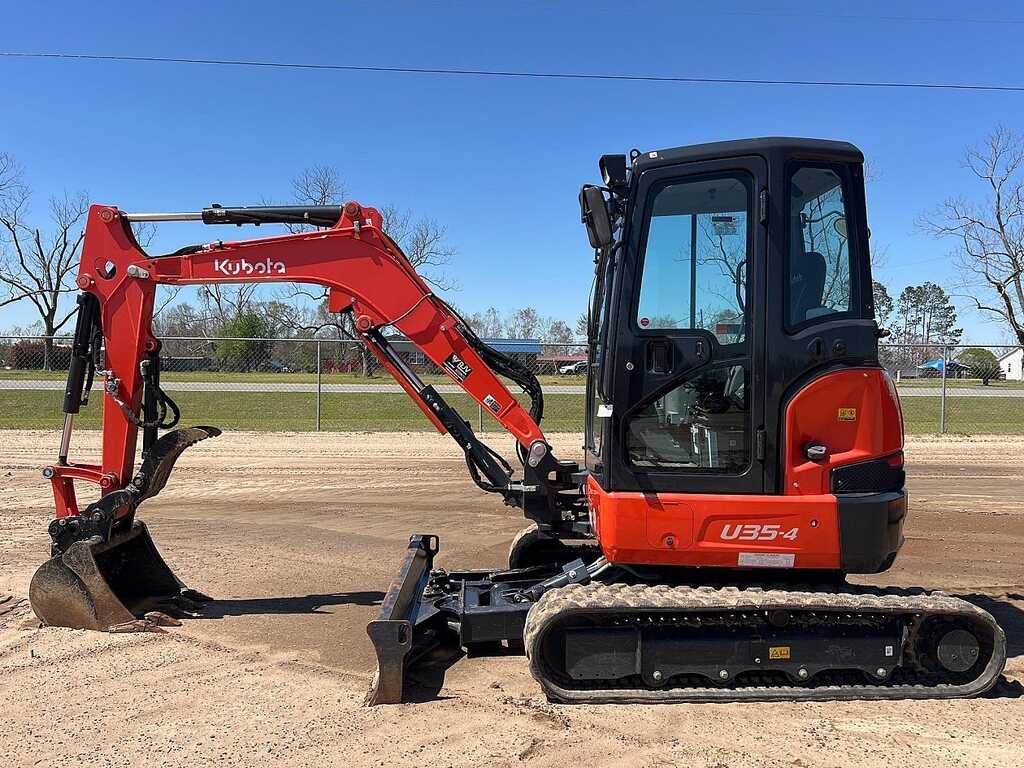

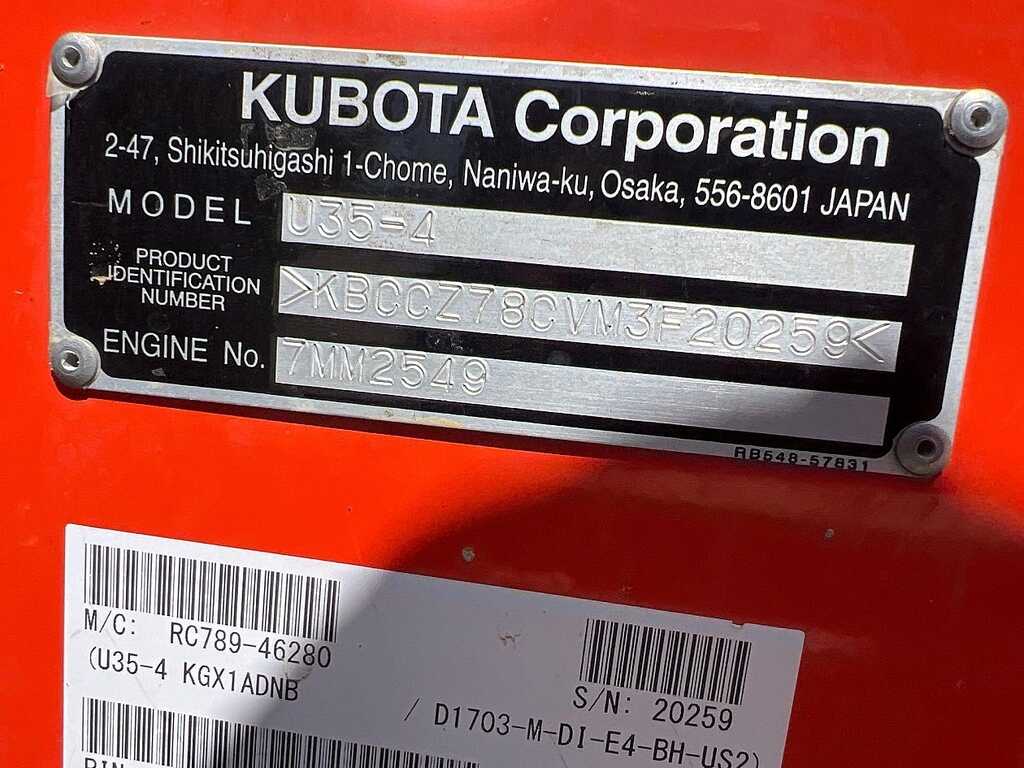

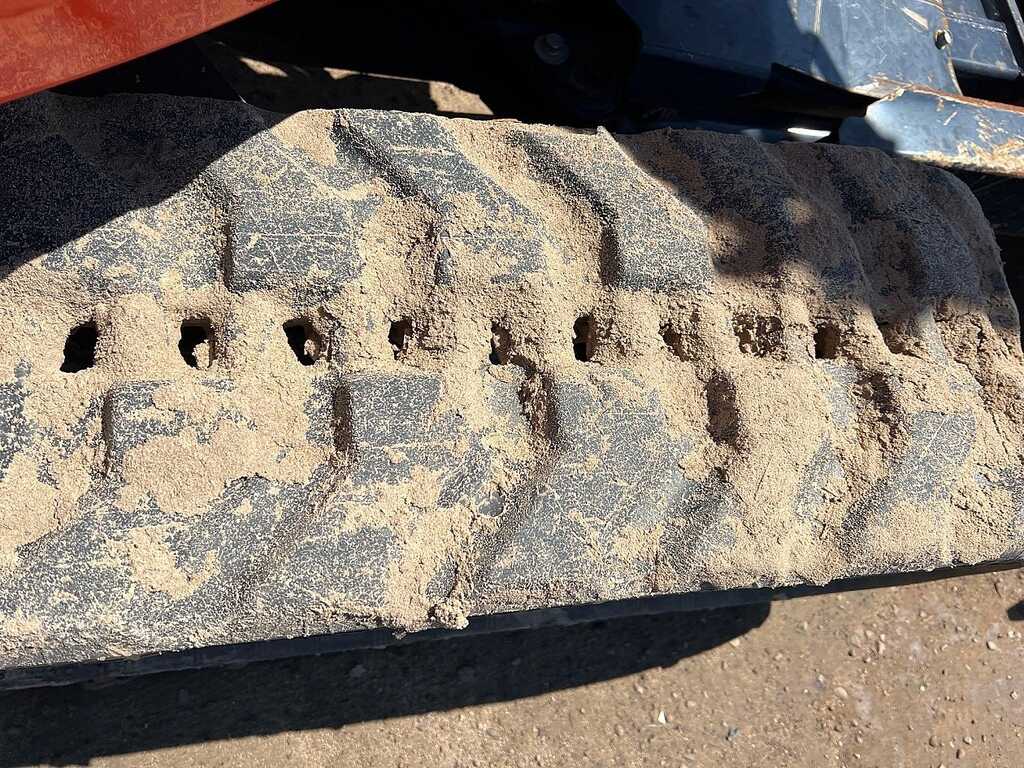

EROPS, RUBBER TRACK, FLOAT ANGLE BLADE, AUX HYD, QUICK COUPLER, 24″ BUCKET W/ HYD THUMB, PUSH BLADE, SN- KBCCZ78CVM3F20259 (HRS SHOW – 149)

Engine
Model: Kubota D1703M-DI-E4
Type: Diesel, water-cooled, 3-cylinder
Displacement: 100.5 cu in (1,647 cc)
Gross Power: 24.8 HP (18.5 kW)
Net Power: 23.9 HP (17.8 kW)
Rated RPM: 2,200

Dimensions
Overall Length: 15 ft 7 in (4,750 mm)
Overall Width: 5 ft 7 in (1,700 mm)
Overall Height: 8 ft 1 in (2,470 mm)
Ground Clearance: 11.3 in (288 mm)
Tail Swing Radius: 3 ft 1 in (950 mm)

Operating Weight
With Canopy: 8,129 lbs (3,687 kg)
With Cab: 8,499 lbs (3,856 kg)

Performance
Max Digging Depth: 9 ft 8.9 in (2,970 mm)
Max Dumping Height: 11 ft 1.3 in (3,385 mm)
Max Digging Radius at Ground: 16 ft 11.2 in (5,160 mm)
Boom Swing Angle (Left/Right): 75° / 55°
Travel Speed (Low/High): 1.9 mph (3.0 km/h) / 2.9 mph (4.6 km/h)
Arm Breakout Force: 4,451 lbs (2,019 kg)
Bucket Breakout Force: 7,924 lbs (3,594 kg)

Hydraulic System
Pump Capacity: 20.6 GPM (78.0 L/min)
Auxiliary Hydraulic Flow: 15.8 GPM (60.0 L/min)
System Pressure: 3,134 psi (21.6 MPa)
Fuel and Fluid Capacities
Fuel Tank: 12.4 gal (47.0 L)
Hydraulic Reservoir: 11.8 gal (44.6 L)
Hydraulic System: 16.1 gal (61.0 L)
Engine Oil: 1.4 gal (5.3 L)
Cooling System: 1.5 gal (5.7 L)

Features
Zero Tail Swing: Yes
Auto Idle: Standard
Adjustable Auxiliary Flow: Standard
Angle Blade Option: Available
Cab with HVAC: Available
