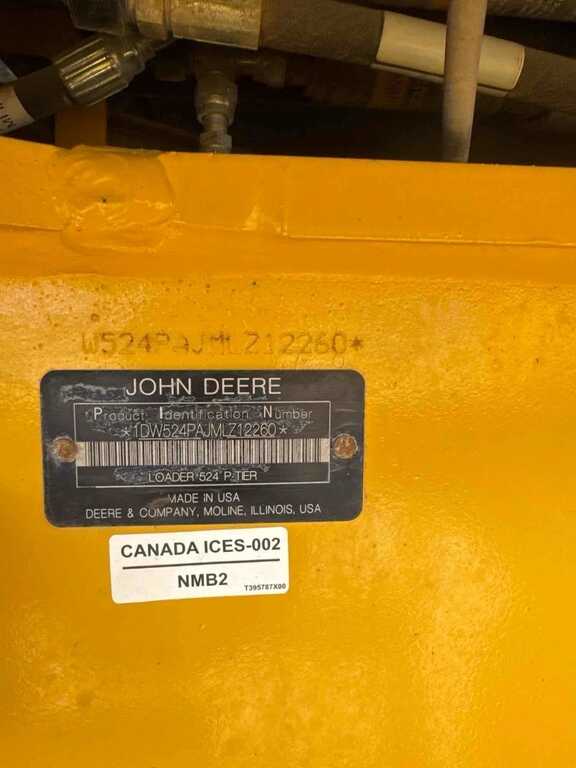

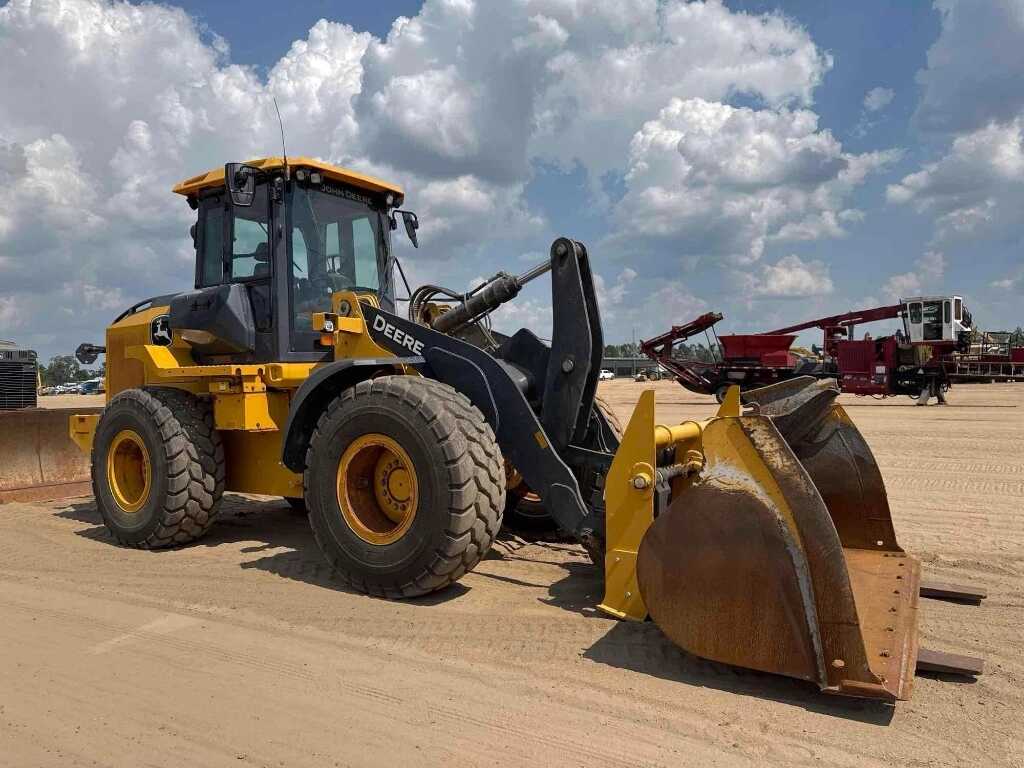

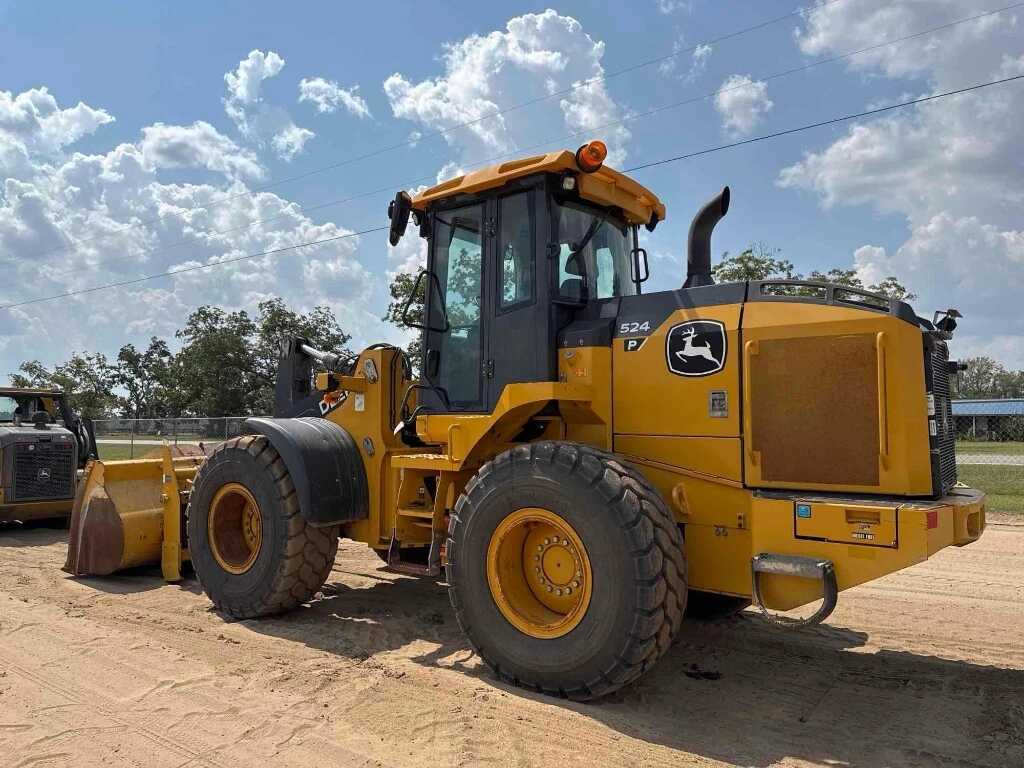

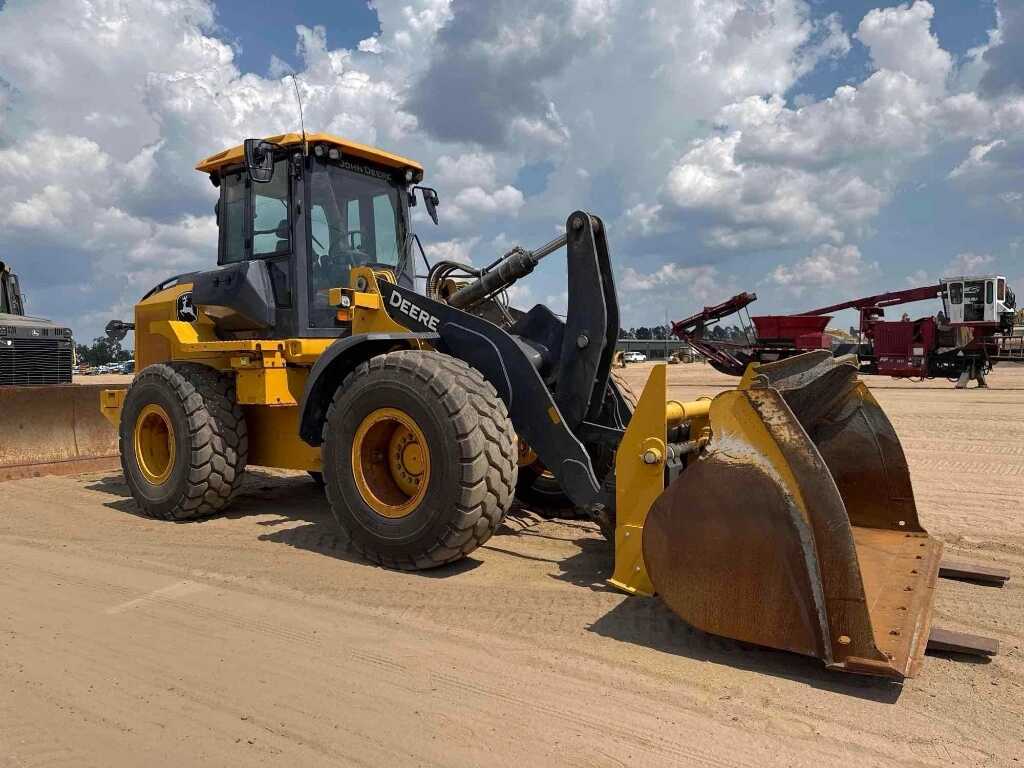

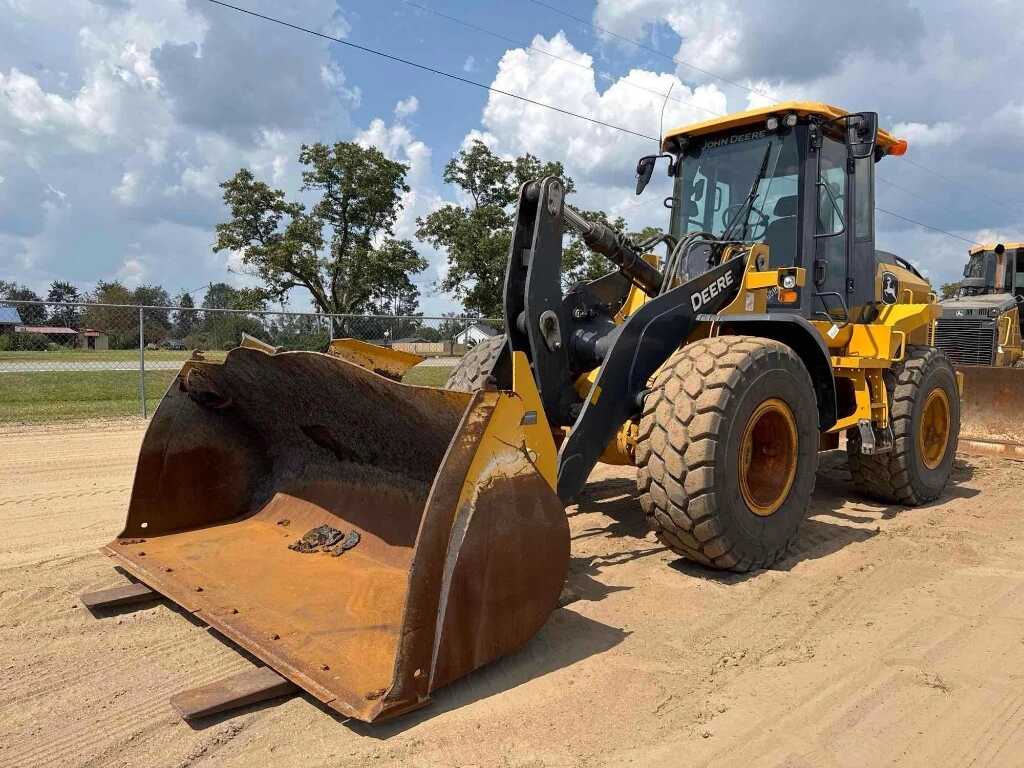

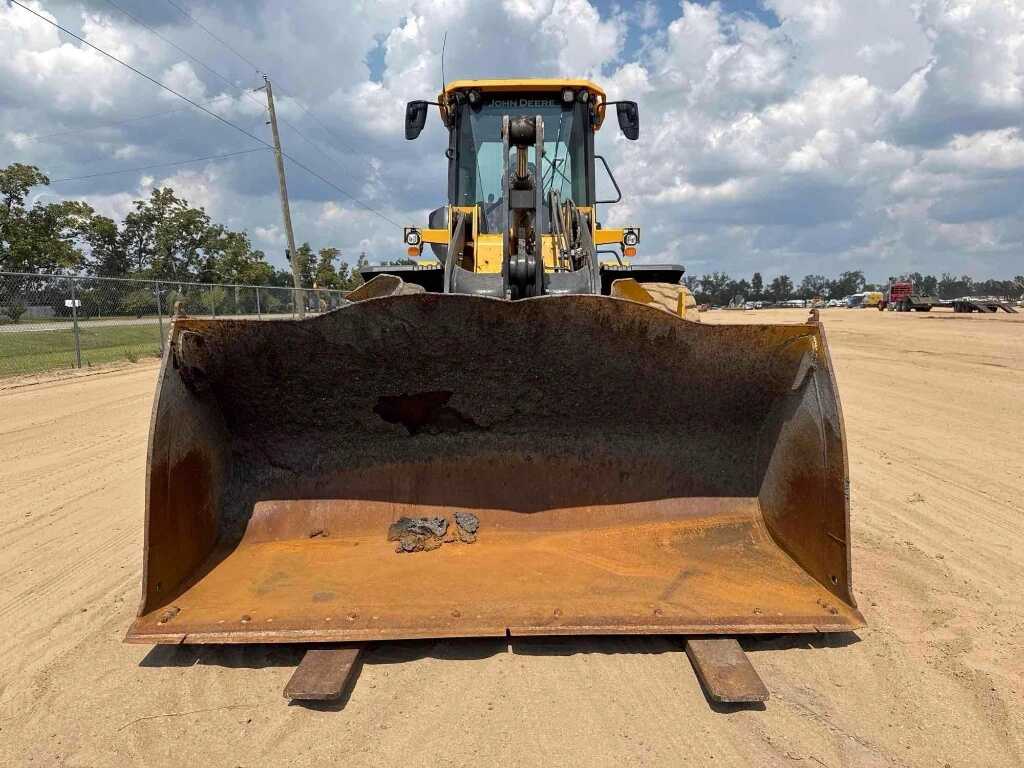

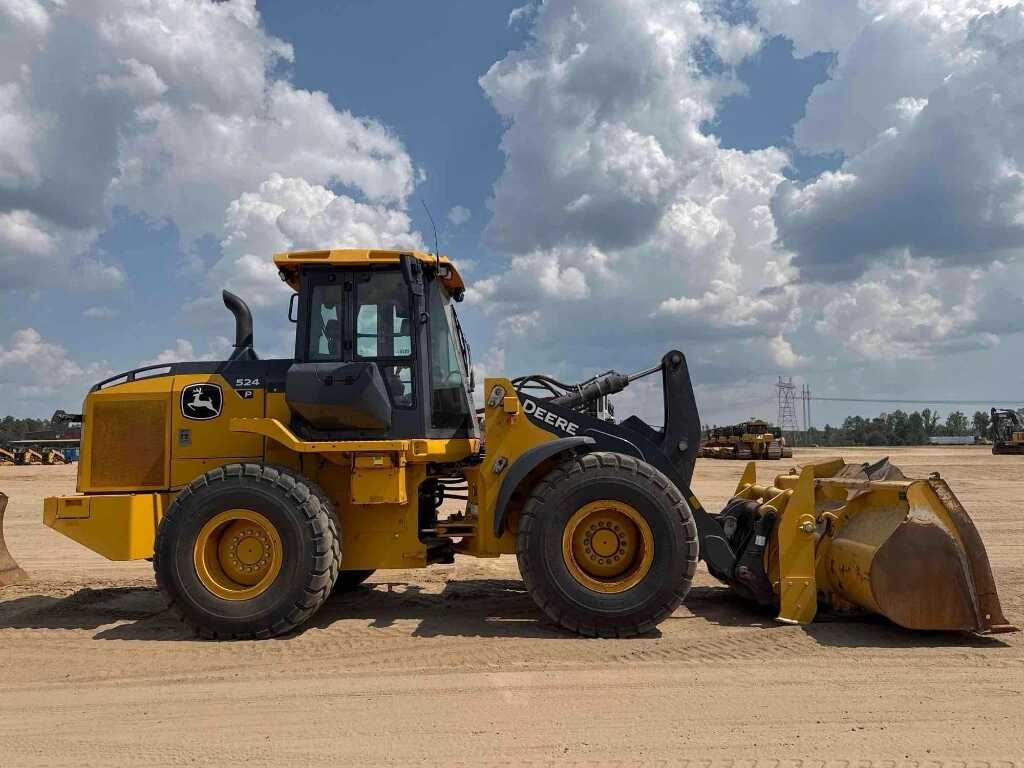

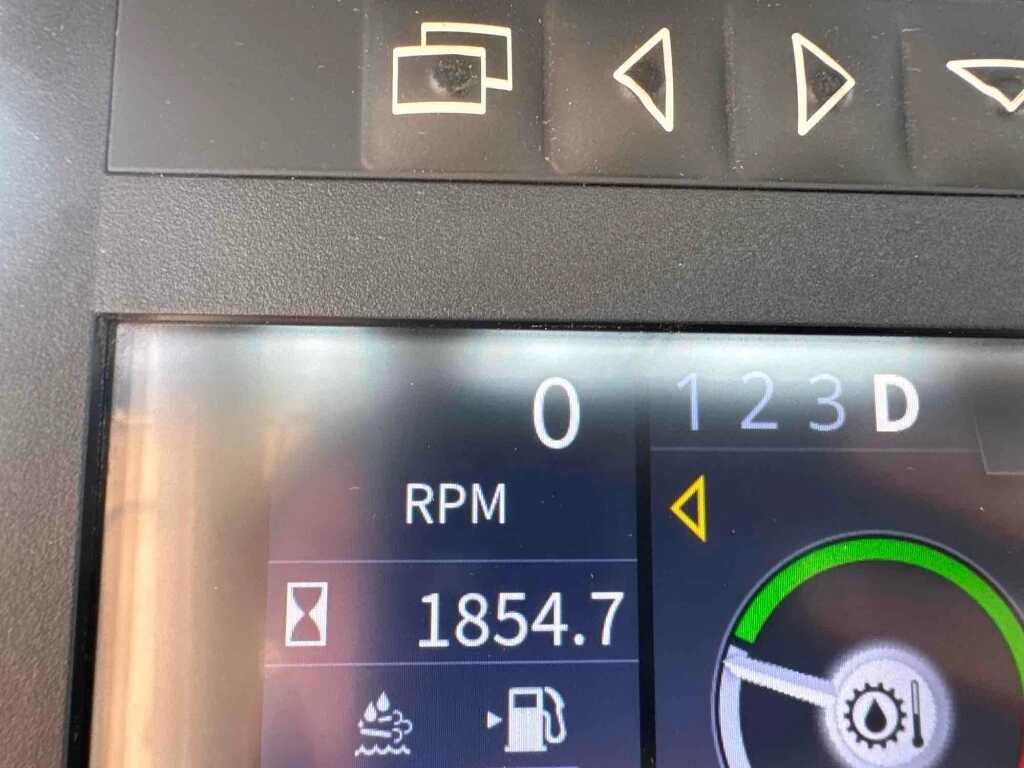

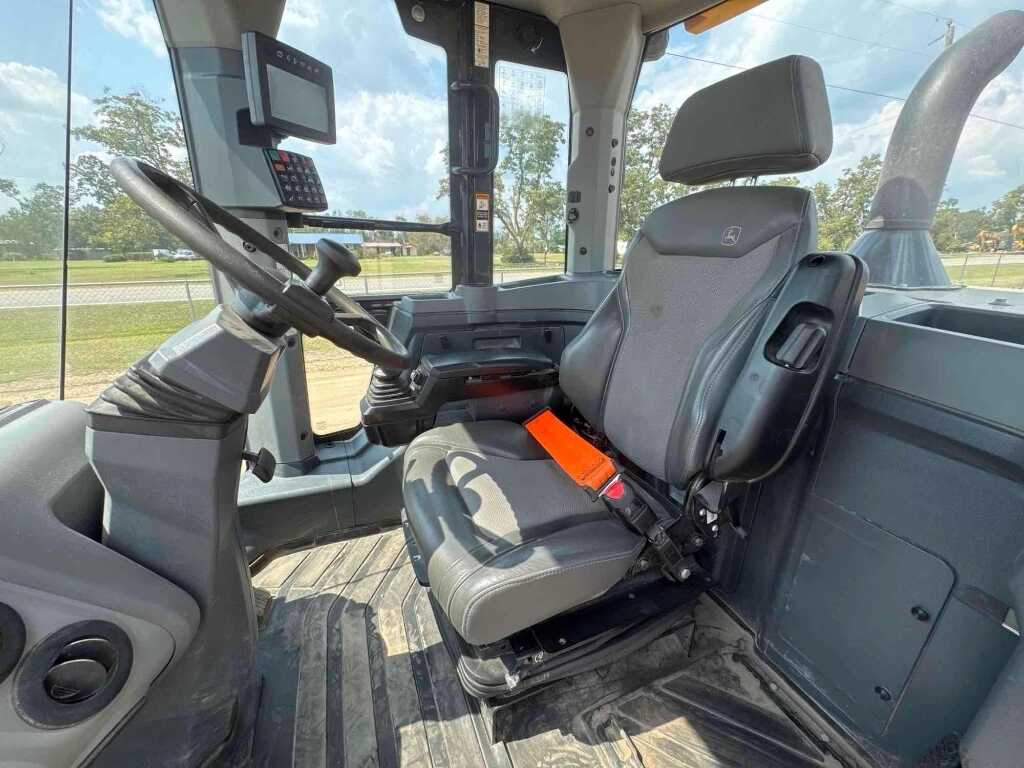

(HRS SHOW – 1854) EROPS, HYD QUICK COUPLER, 104″ BUCKET, 20.5R25 TIRES, PULL BAR, S/N 1DW524PAJMLZ12260

Engine & Powertrain

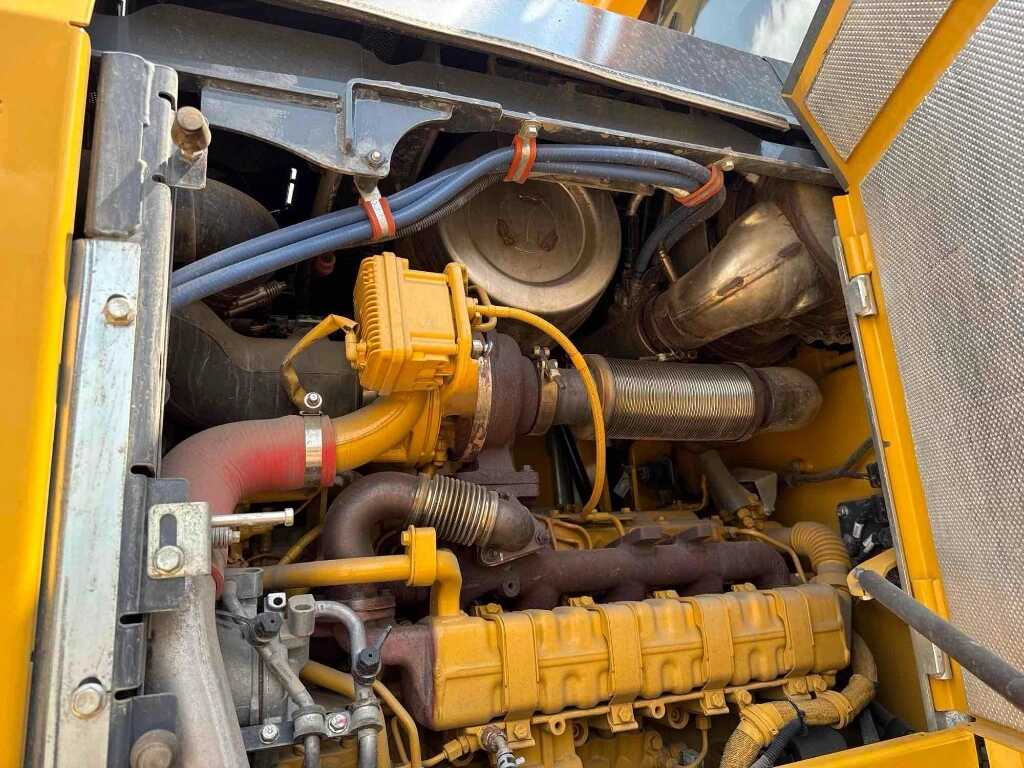

Engine Manufacturer: John Deere
Engine Model: PowerTech PSS 4045
Displacement: 4.5 L (276 in³)
Rated Speed: 1800 rpm
Net Power: 113 kW (152 hp)
Torque: 713 Nm (526 lb-ft)
Transmission: Powershift
Front Differential: Locking
Rear Differential: Open

Brakes & Tires
Service Brake: Wet disc, hydraulic actuation
Parking Brake: Wet multi-disc

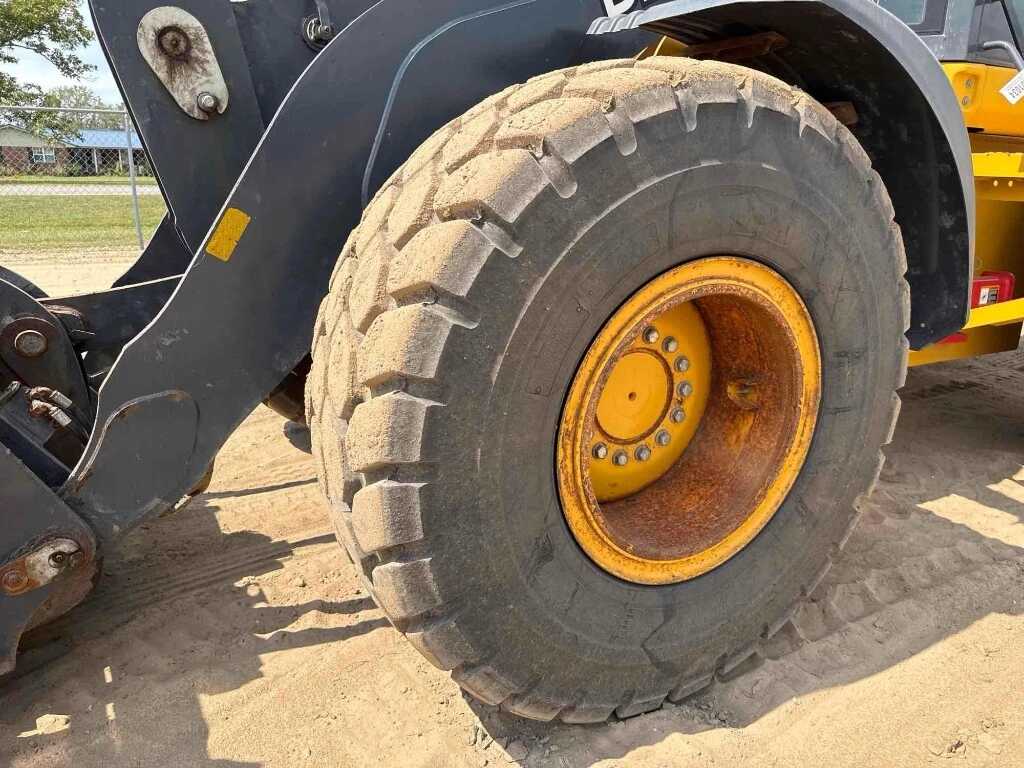

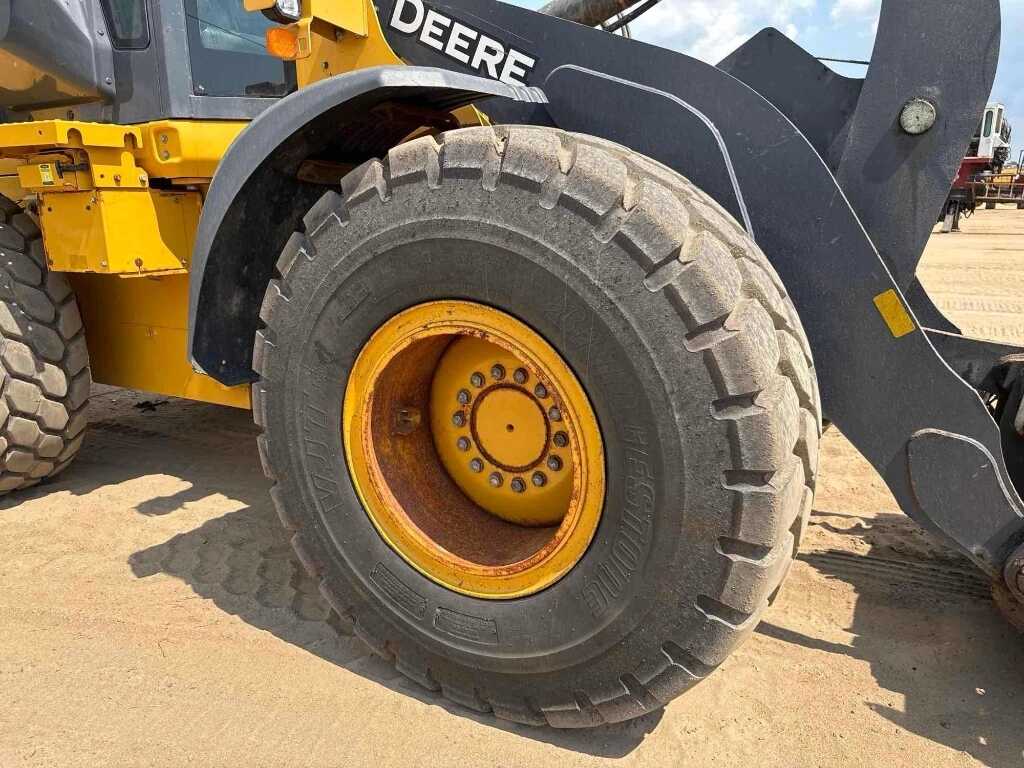

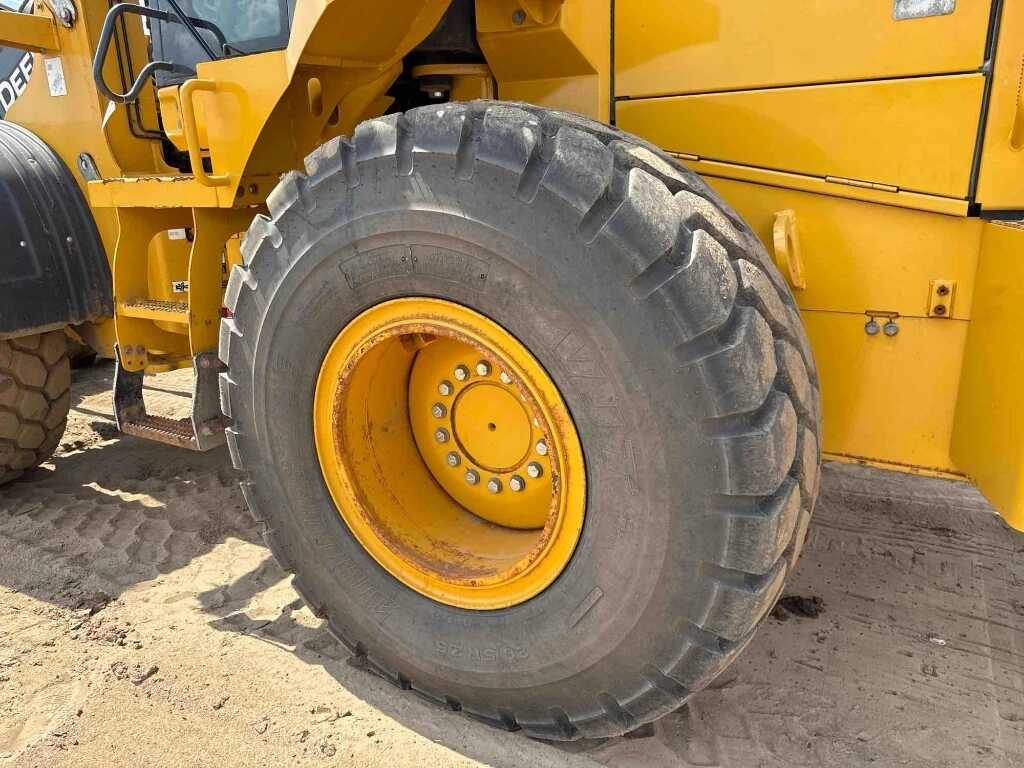

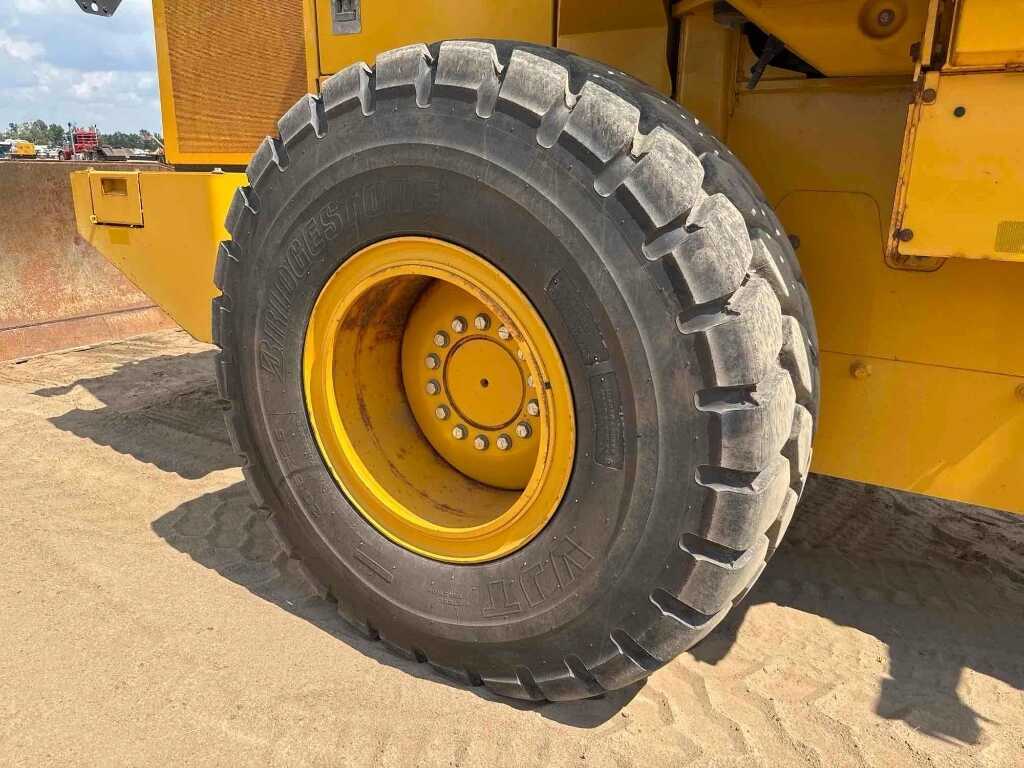

Standard Tire Size: 20.5 R25

Dimensions
Wheelbase: 2930 mm (9 ft 7 in)
Height to Top of Cab: 3320 mm (10 ft 11 in)
Ground Clearance: 450 mm (17.7 in)
Width Over Tires: 2546 mm (8 ft 4 in)
Pivot Pin Height: 3810 mm (12 ft 6 in)
Reach at 2130 mm, 45° Dump: 1460 mm (4 ft 9 in)

Capacities
Fuel Tank: 187 L (49.4 gal)
Hydraulic Tank: 90.5 L (23.9 gal)

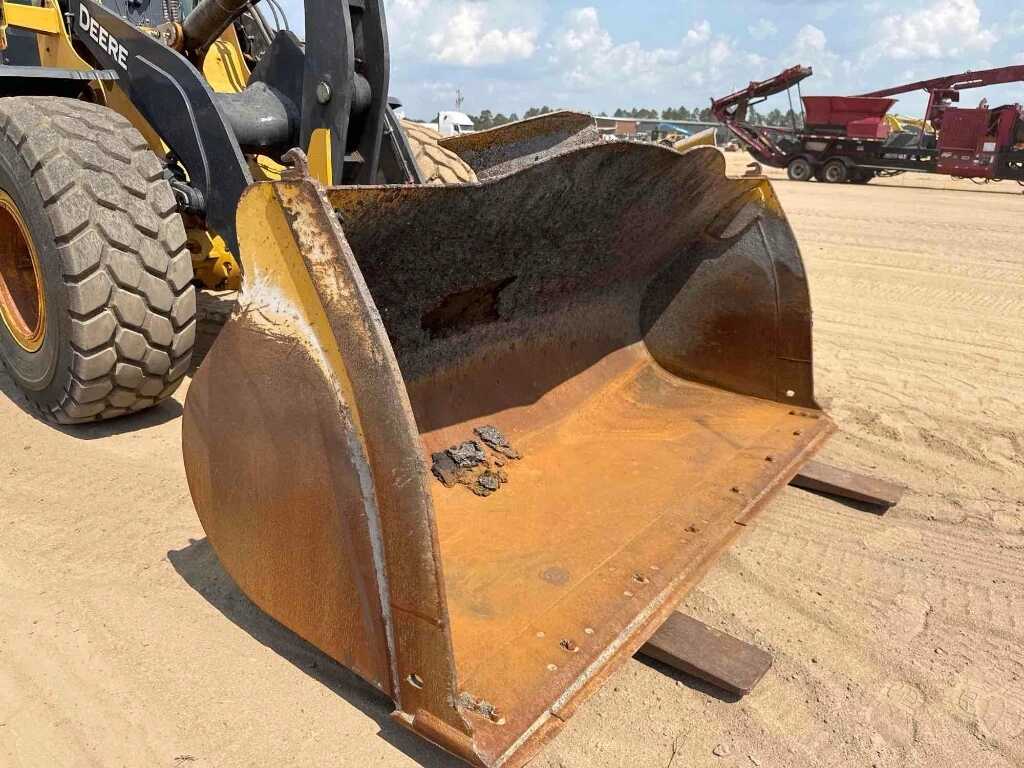

Smallest Bucket: 2.1 m³ (2.75 yd³)
Largest Bucket: 2.3 m³ (3 yd³)
Heaped Capacity: 2.1 m³ (2.75 yd³)

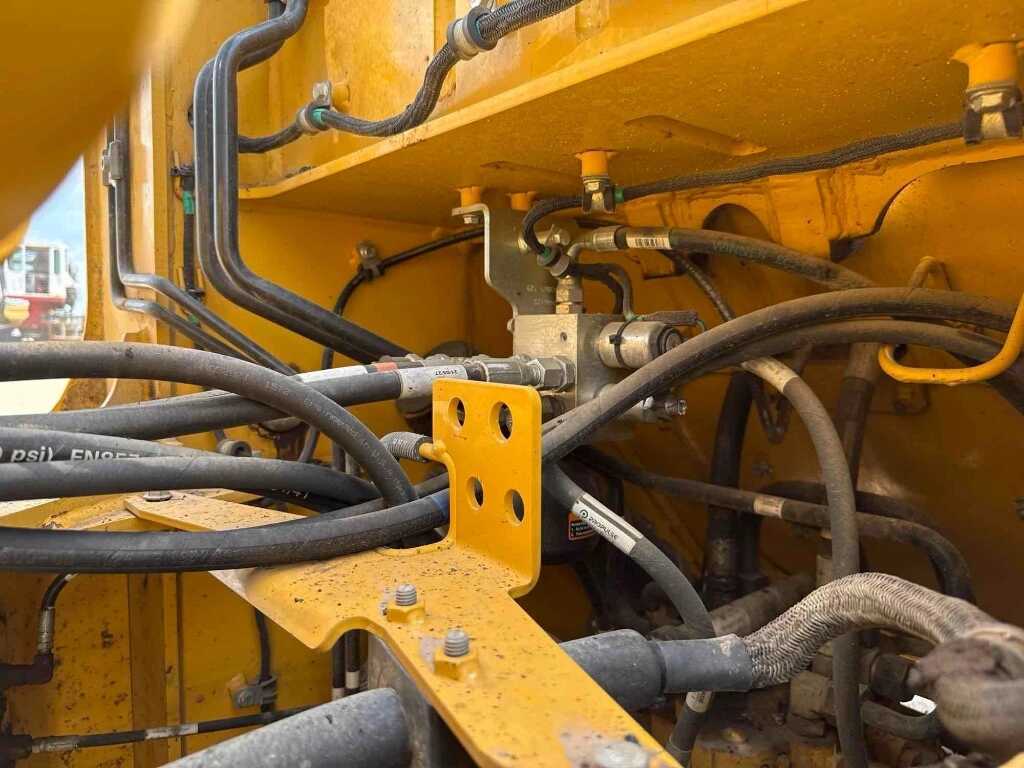

Hydraulic Pump Type: Variable displacement axial piston pump
Pump Flow: 170 L/min (45 gpm)
System Pressure: 250 bar (3625 psi)
Ride Control System: Optional

Weights
Operating Weight: 12,903 kg (28,446 lb)
