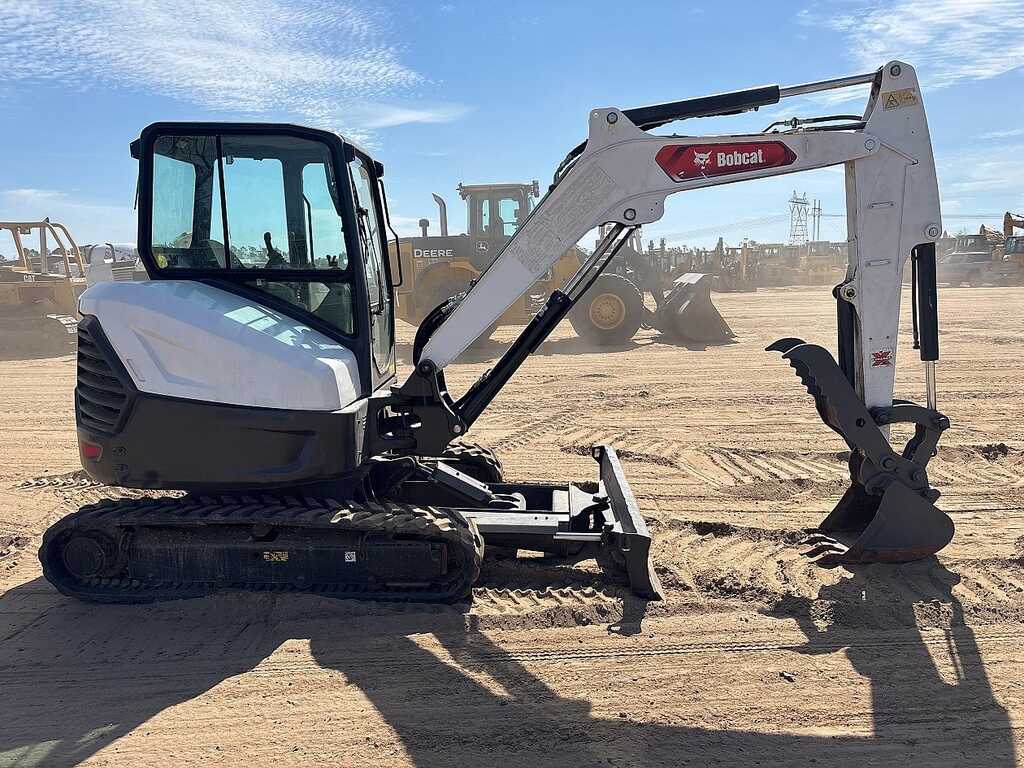

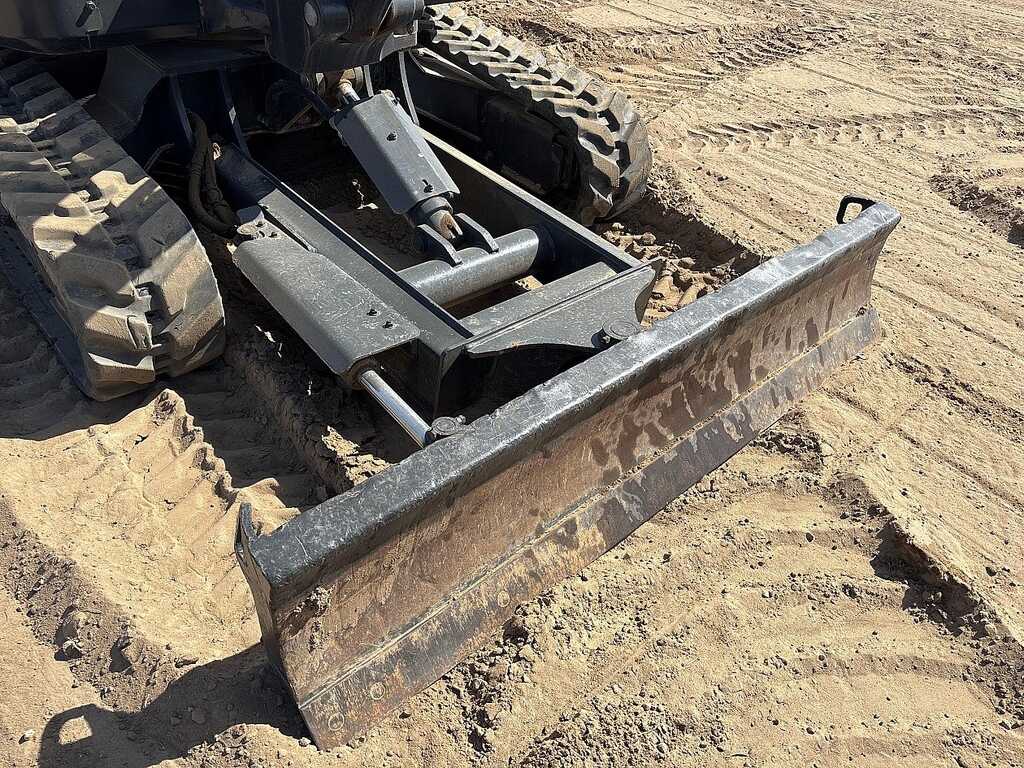

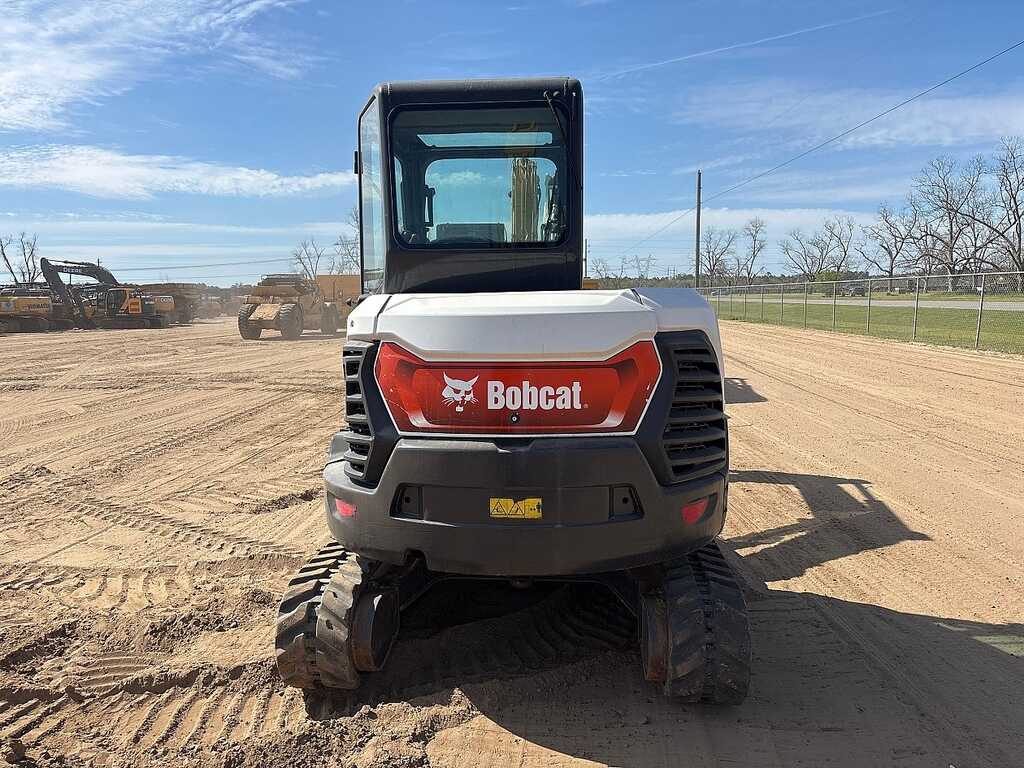

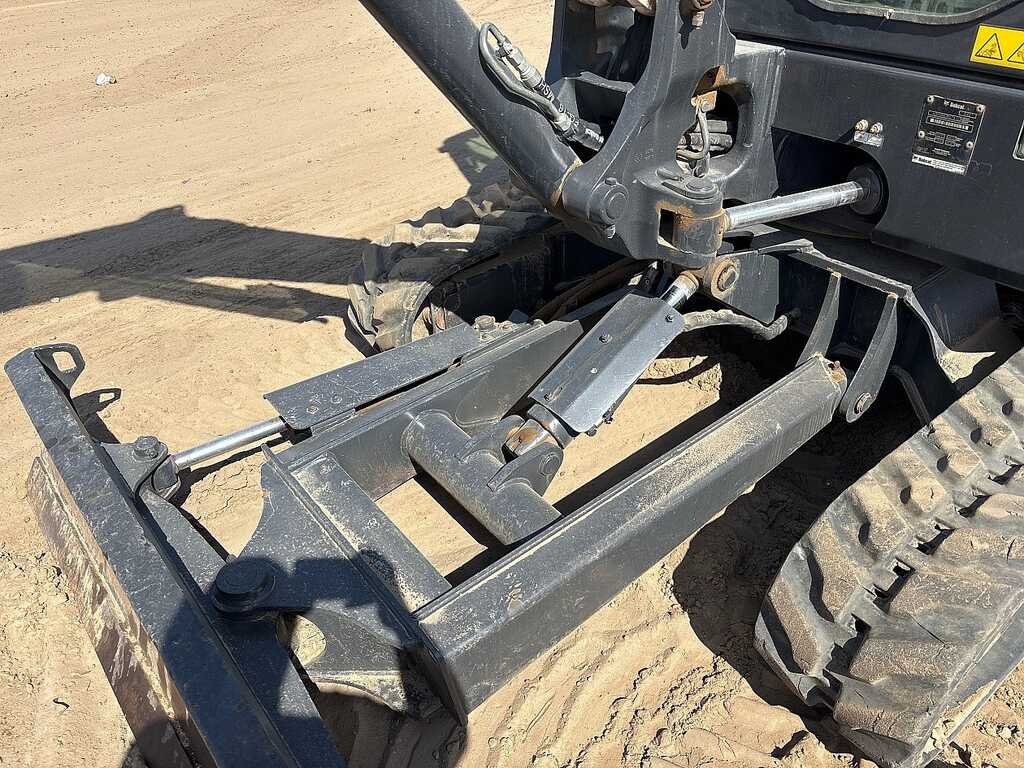

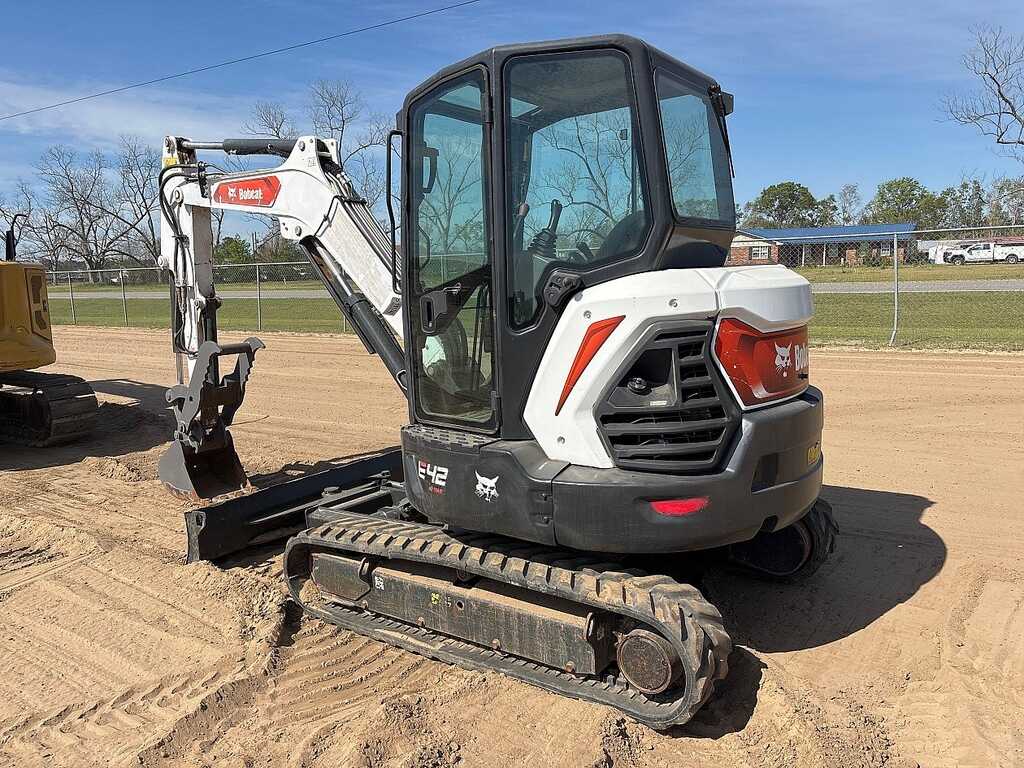

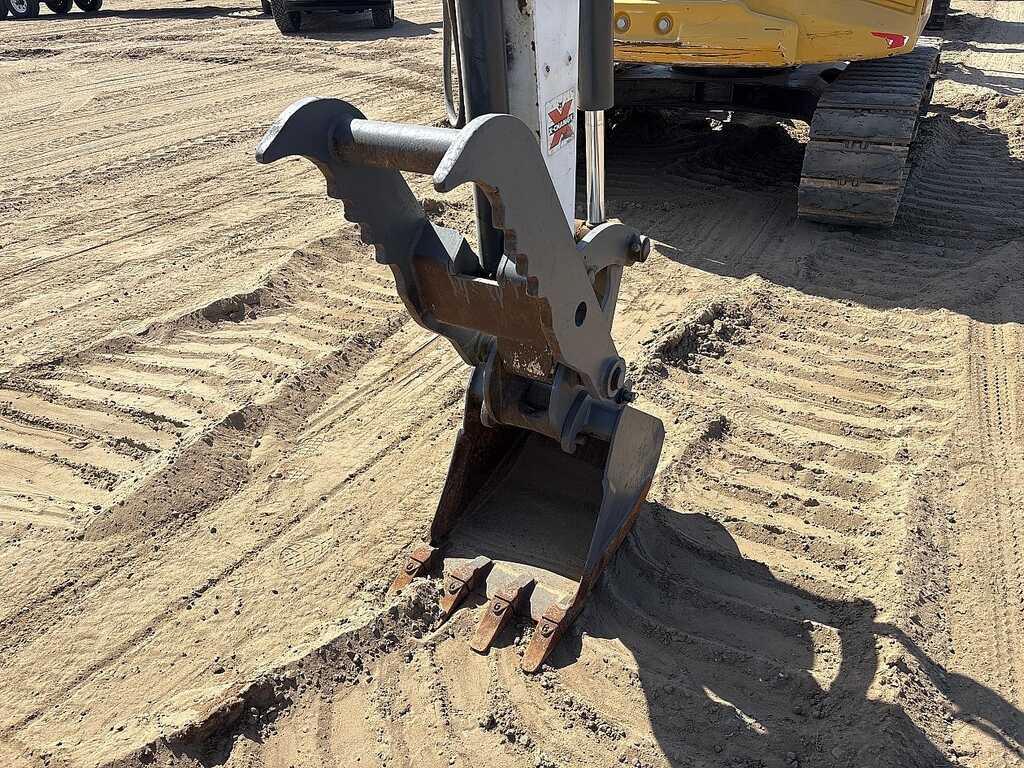

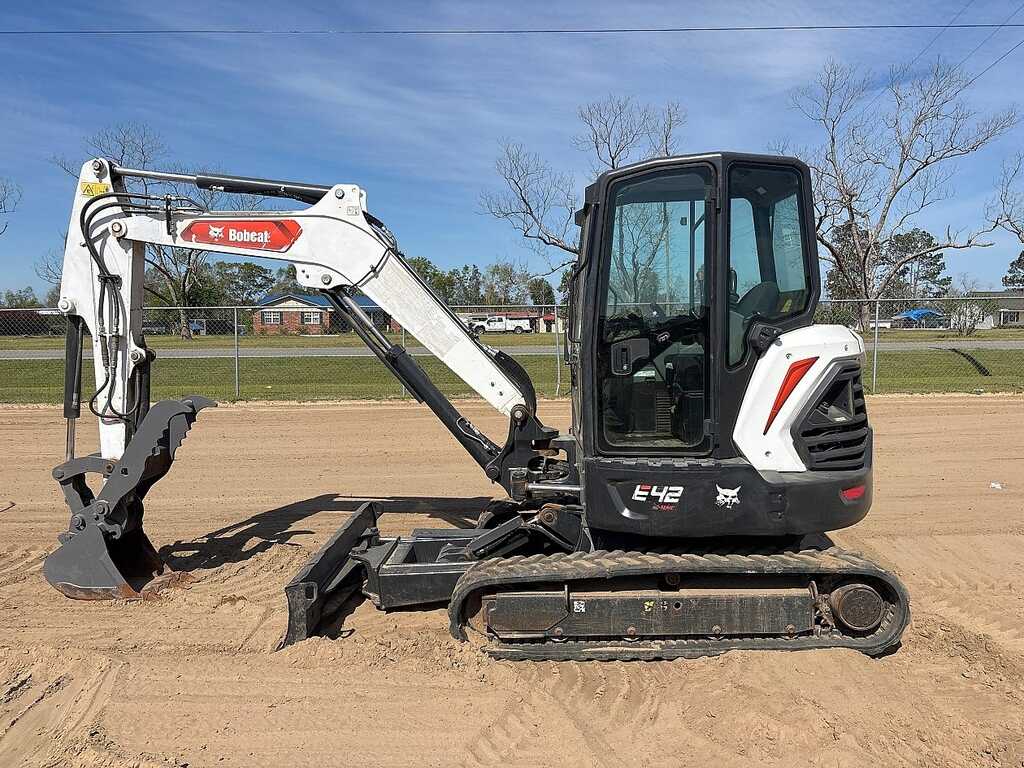

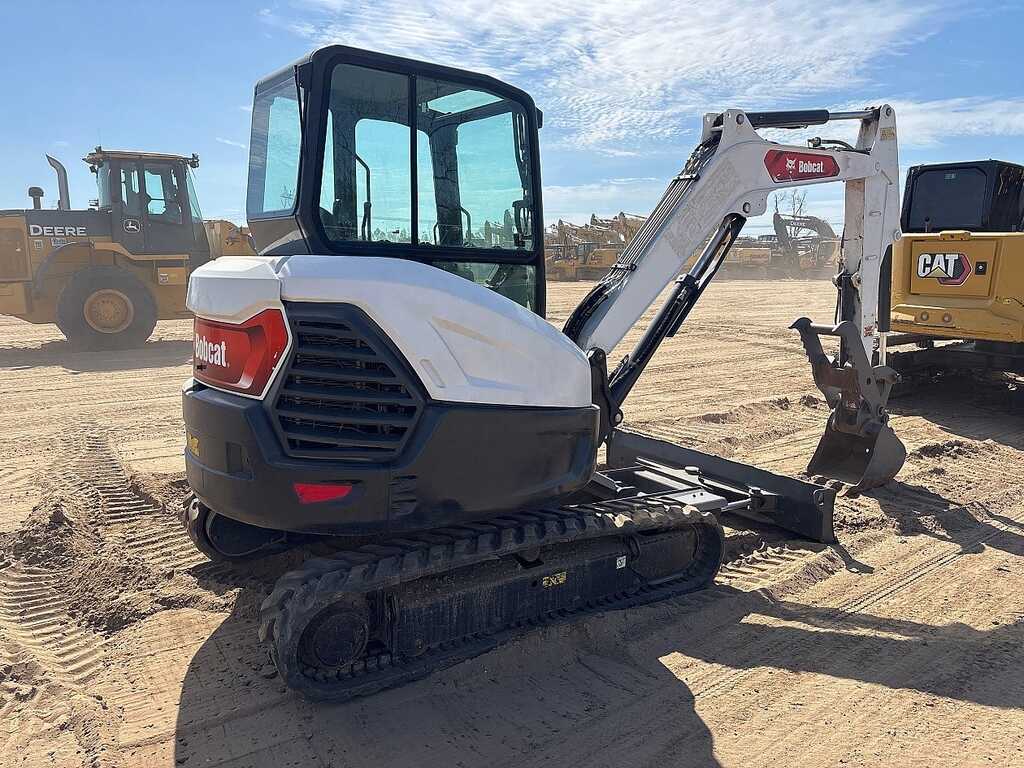

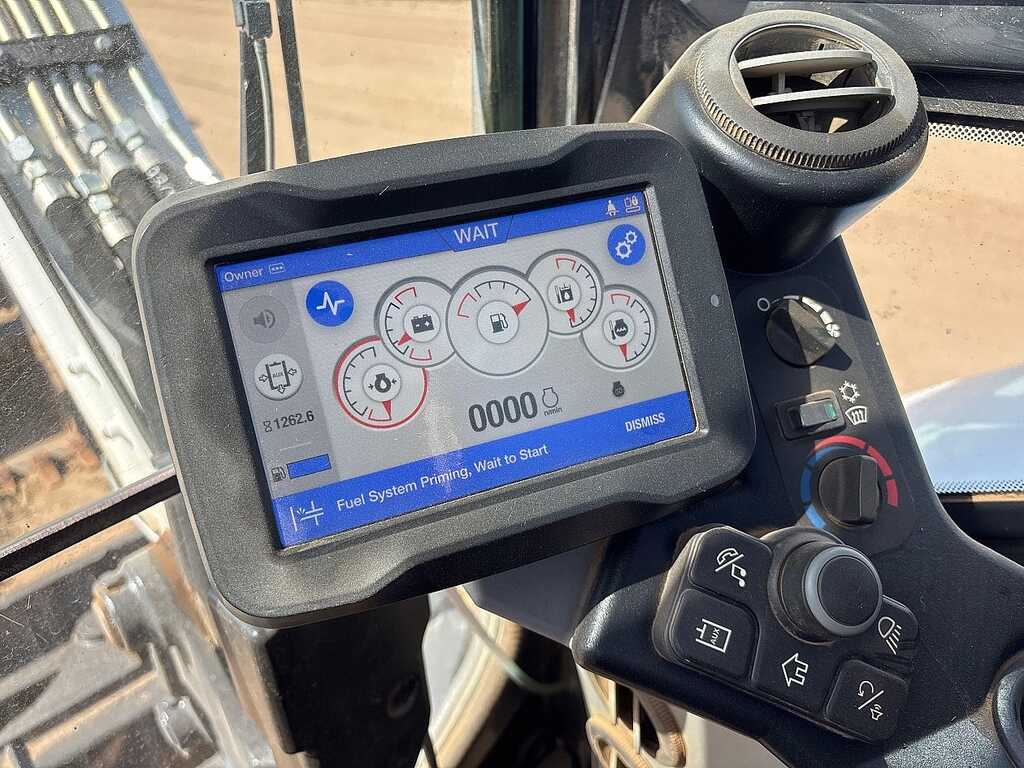

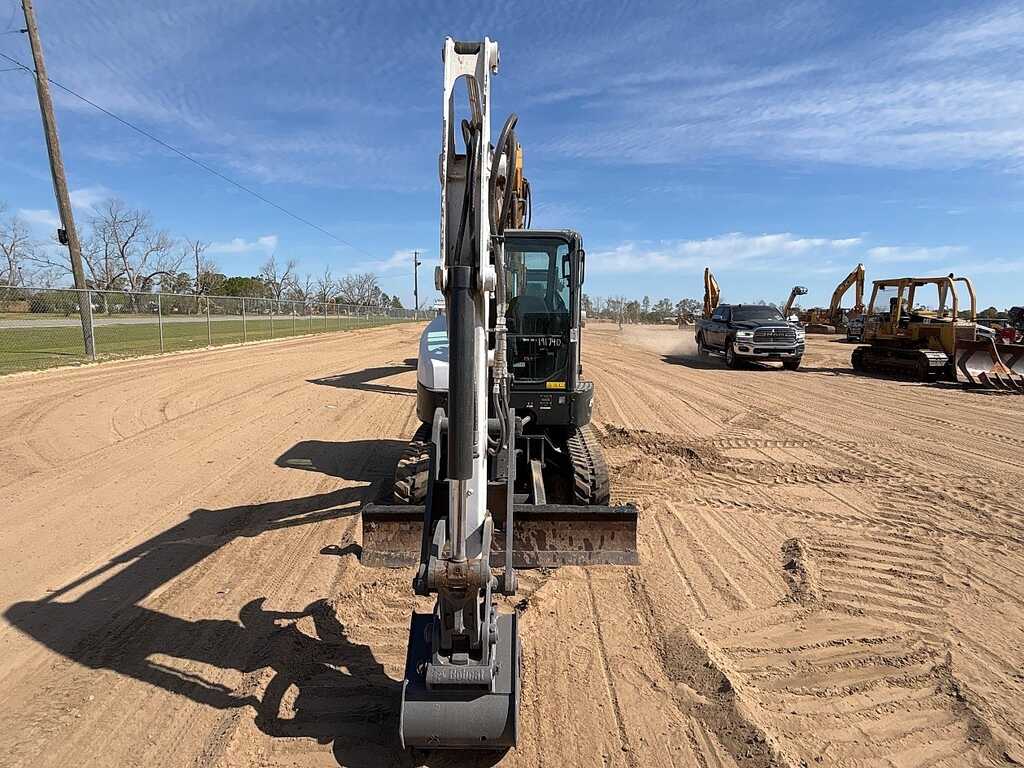

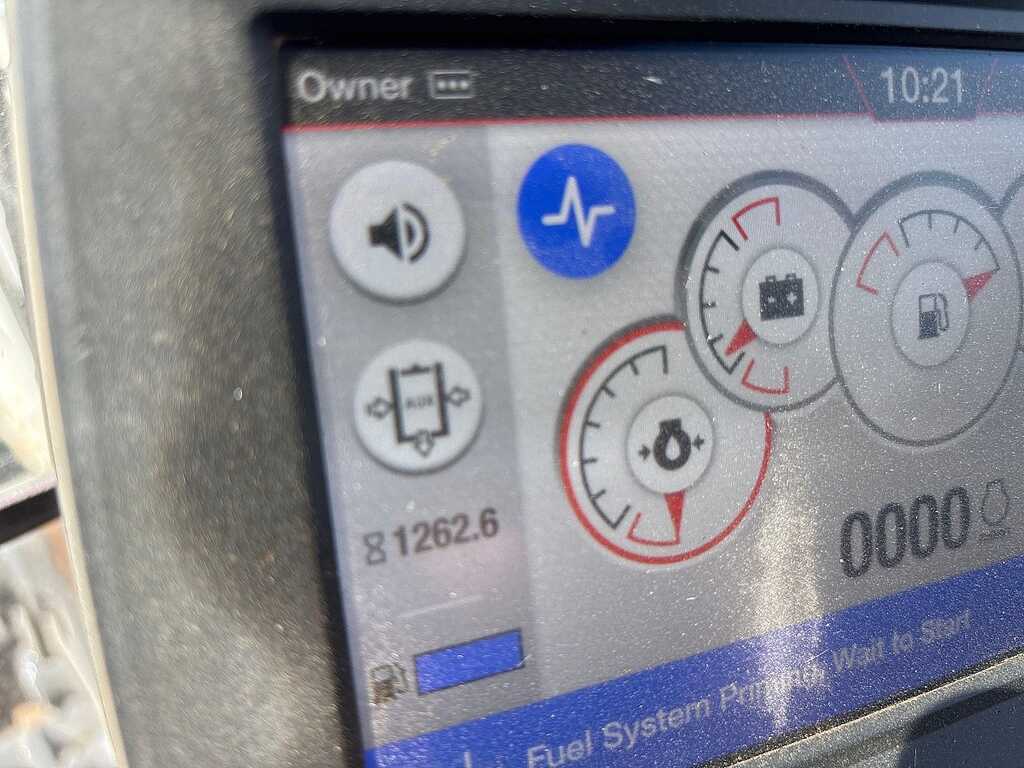

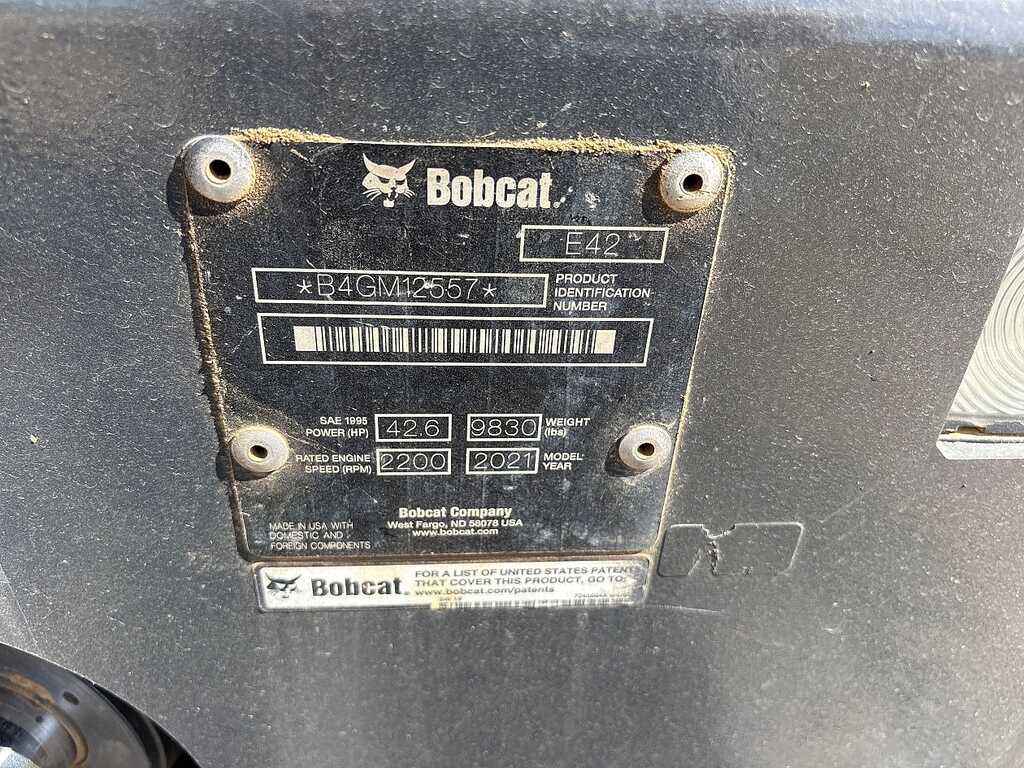

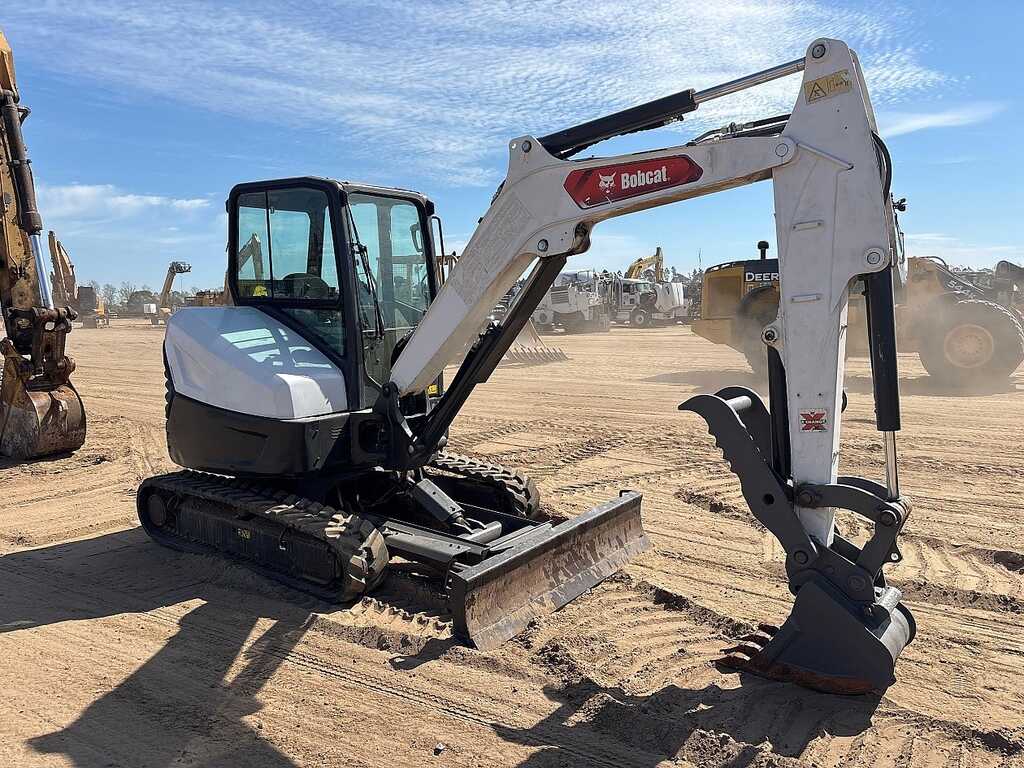

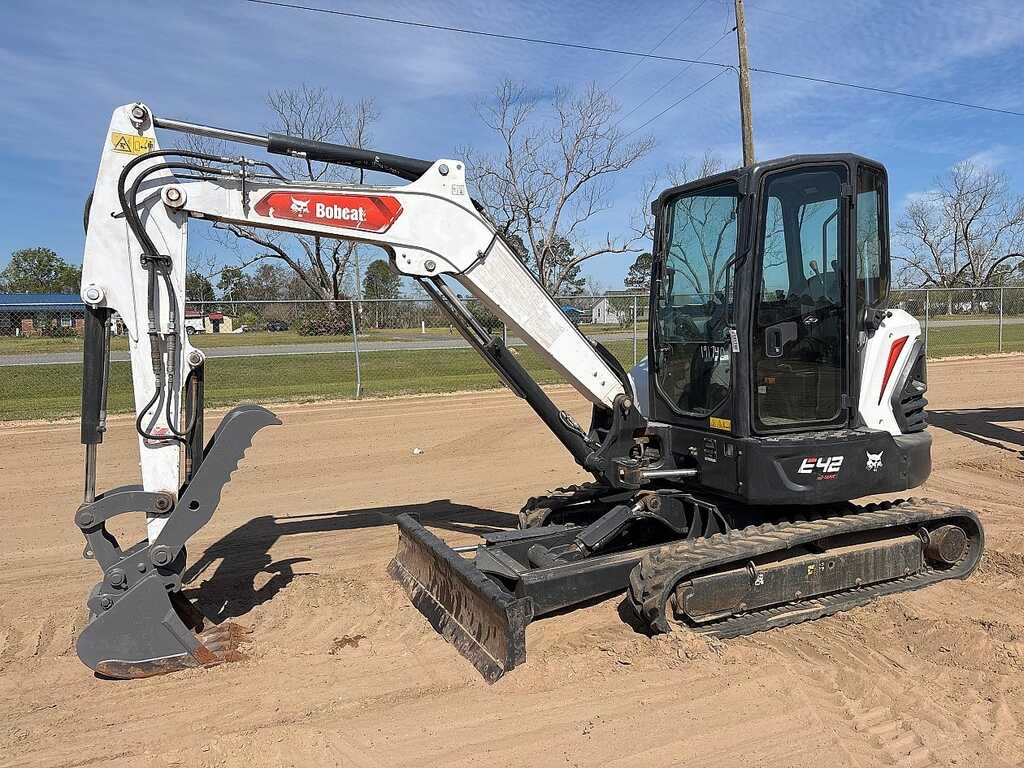

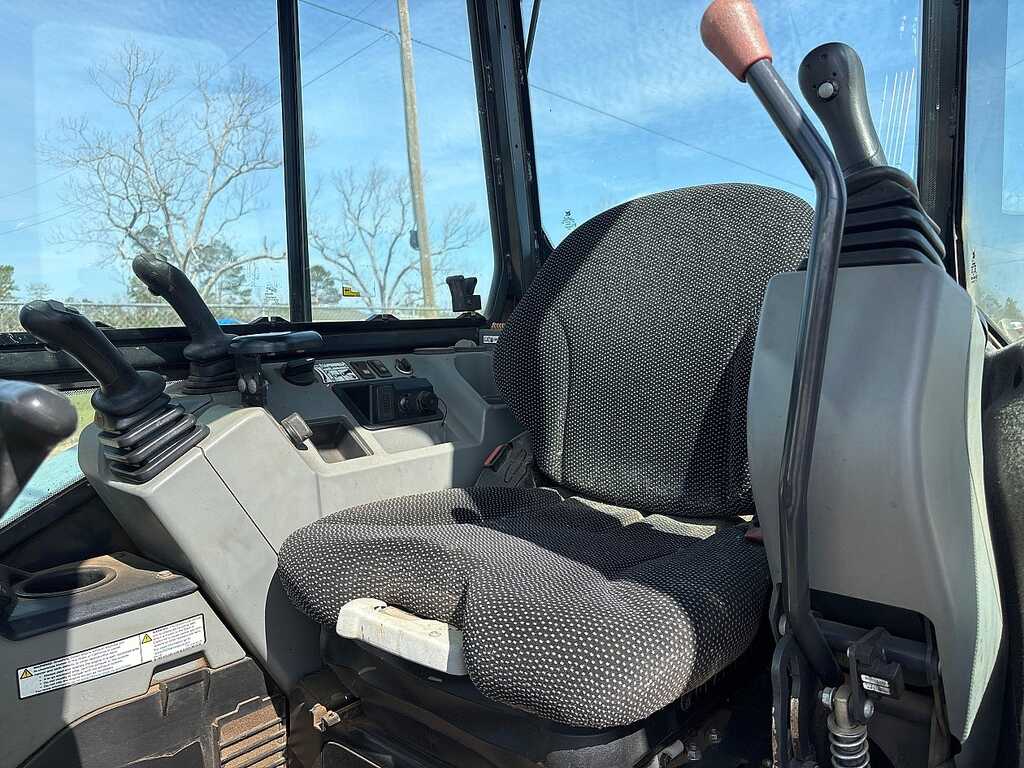

EROPS, RUBBER TRACK, AUX HYD, QUICK COUPLER, 18″ BUCKET W/ HYD THUMB, ARTICULATING PUSH BLADE, SN- B4GM12557 (HRS SHOW – 1262)

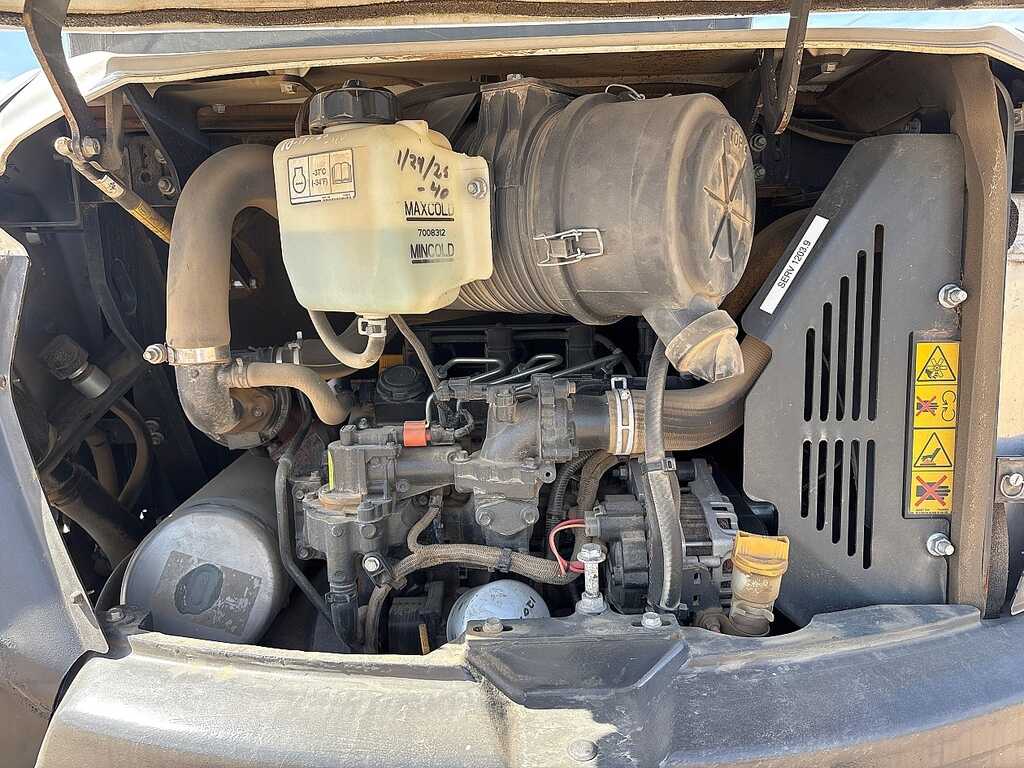

Engine
Model: Bobcat D18 (Tier 4)
Net Power: 42.7 hp (31.8 kW)
Displacement: 110 in³ (1.8 L)
Fuel Capacity: 21.1 gal (80 L)

Weights
Operating Weight: 9,246 lbs (4,194 kg)

Performance
Dig Depth: 10.5 ft (3.2 m)
Max Dump Height: 12.2 ft (3.7 m)
Max Reach at Ground Level: 17.3 ft (5.3 m)
Maximum Travel Speed: 2.9 mph (4.7 km/h)
Swing Speed: 9.0 RPM
Bucket Breakout Force: 9,183 lbf (40.9 kN)
Arm Digging Force: 5,762 lbf (25.6 kN)

Hydraulics
Main System – Maximum Flow: 20 gal/min (76 L/min)
Hydraulic System Pressure (Standard): 3,045 psi (21.0 MPa)

Dimensions
Overall Length: 200 in (5.08 m)
Overall Width: 68.9 in (1.75 m)
Height to Top of Cab: 98.7 in (2.51 m)
Tail Swing Radius: 12.5 in (0.32 m)
Ground Clearance: 12.8 in (0.33 m)

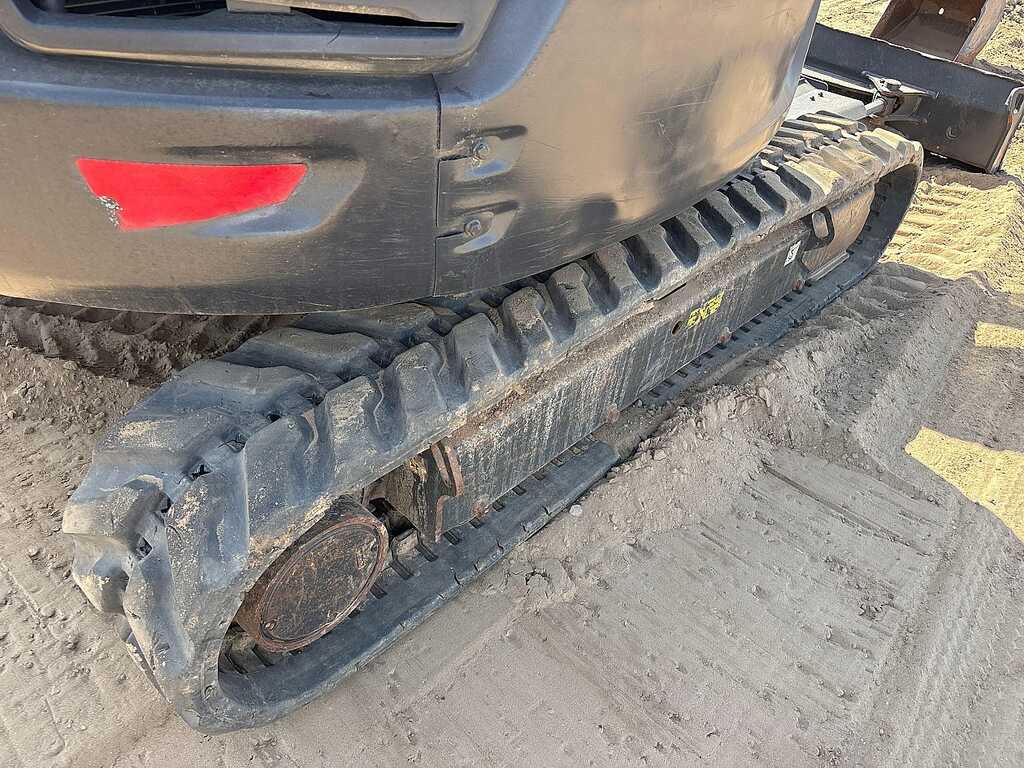

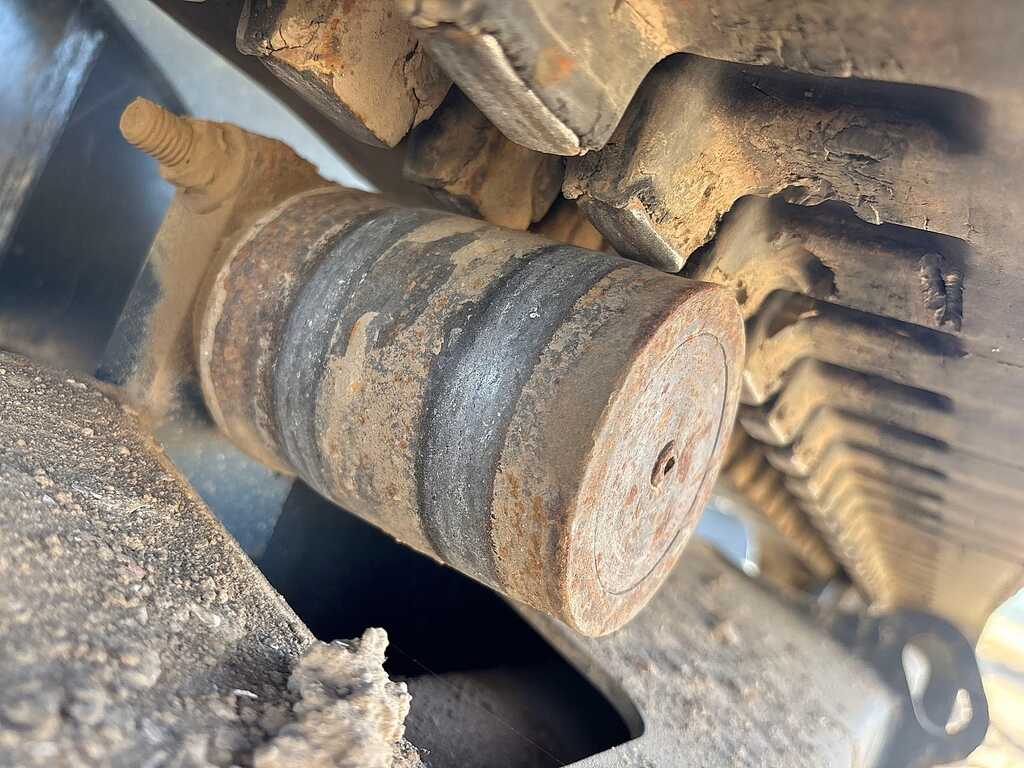

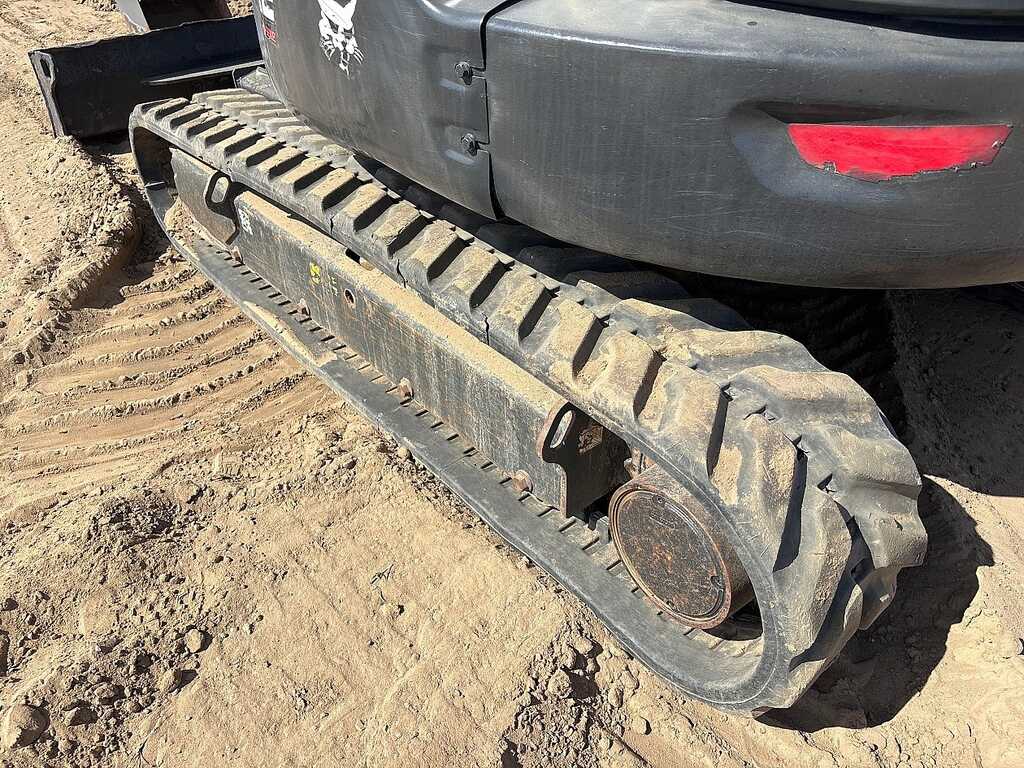

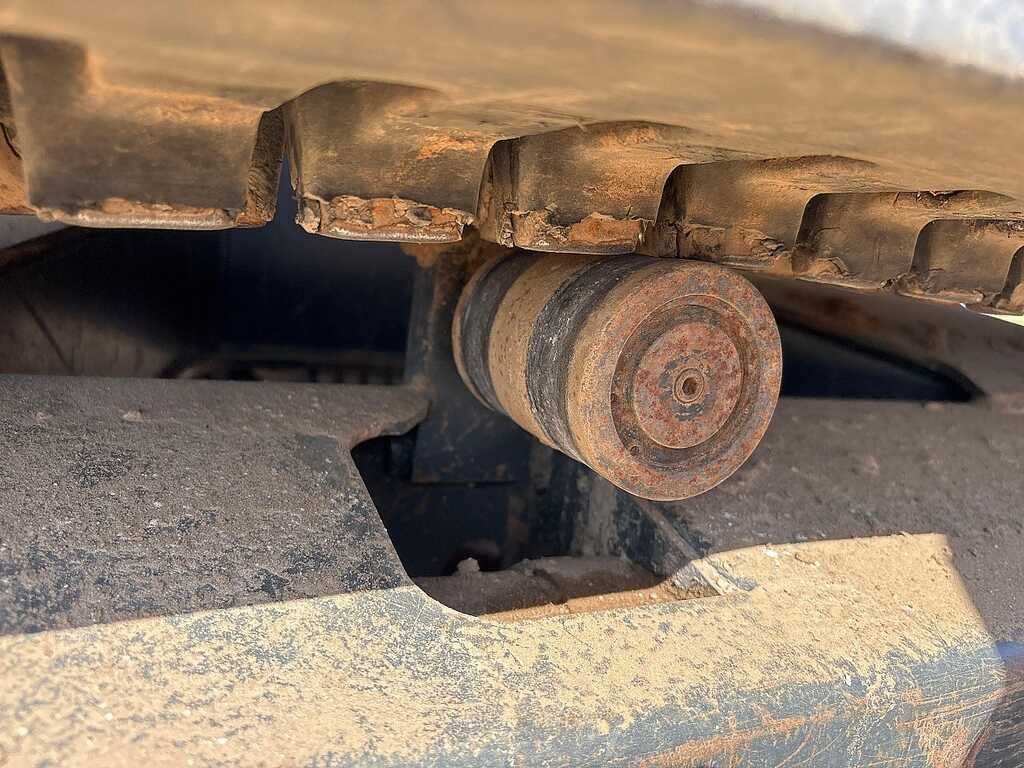

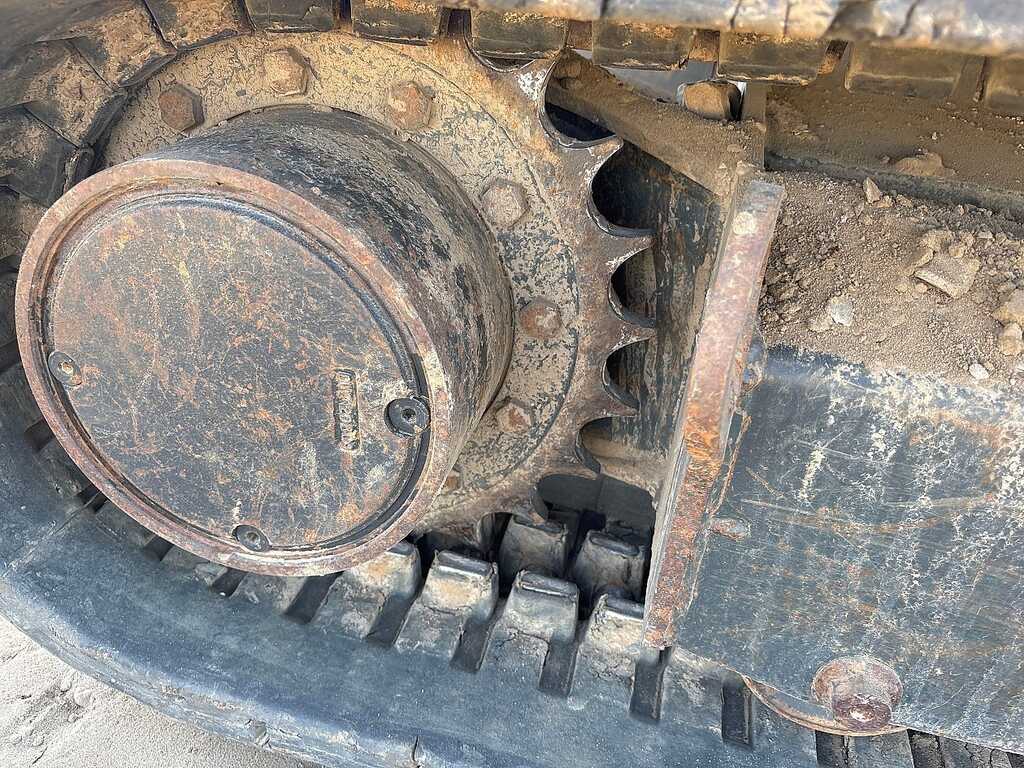

Track System
Track Width: 12.6 in (320 mm)
Track Length: 9.1 ft (2.77 m)
