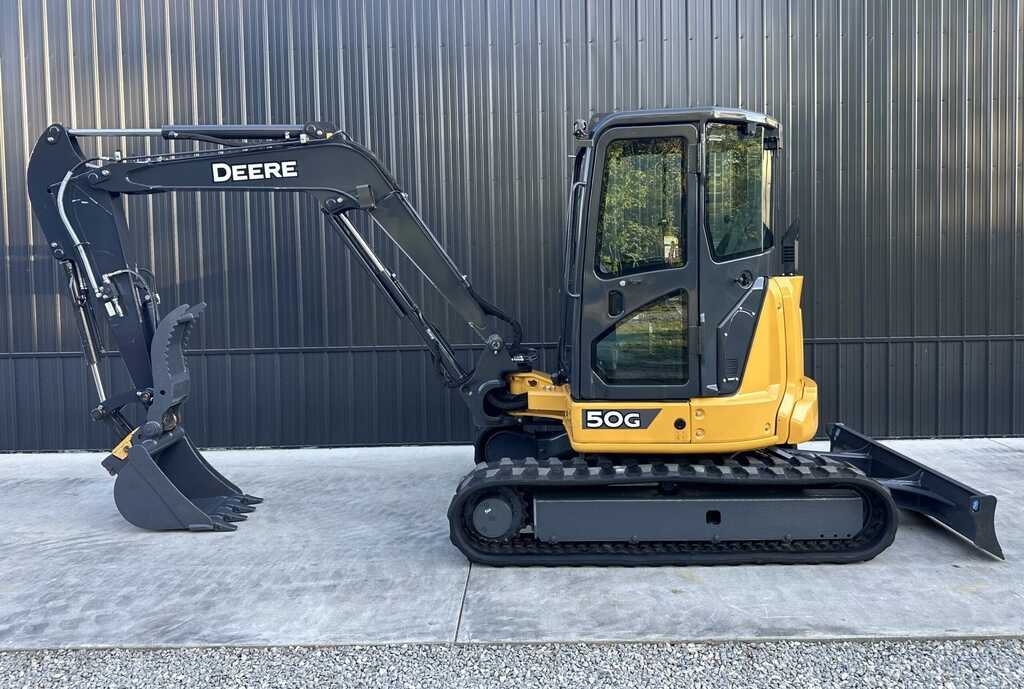

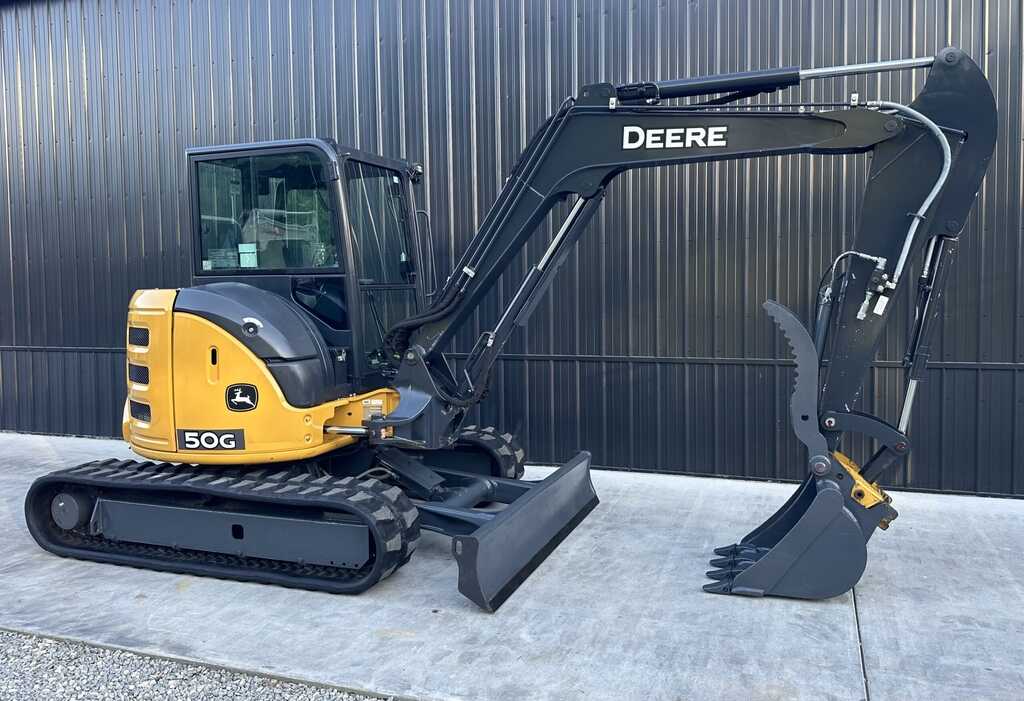

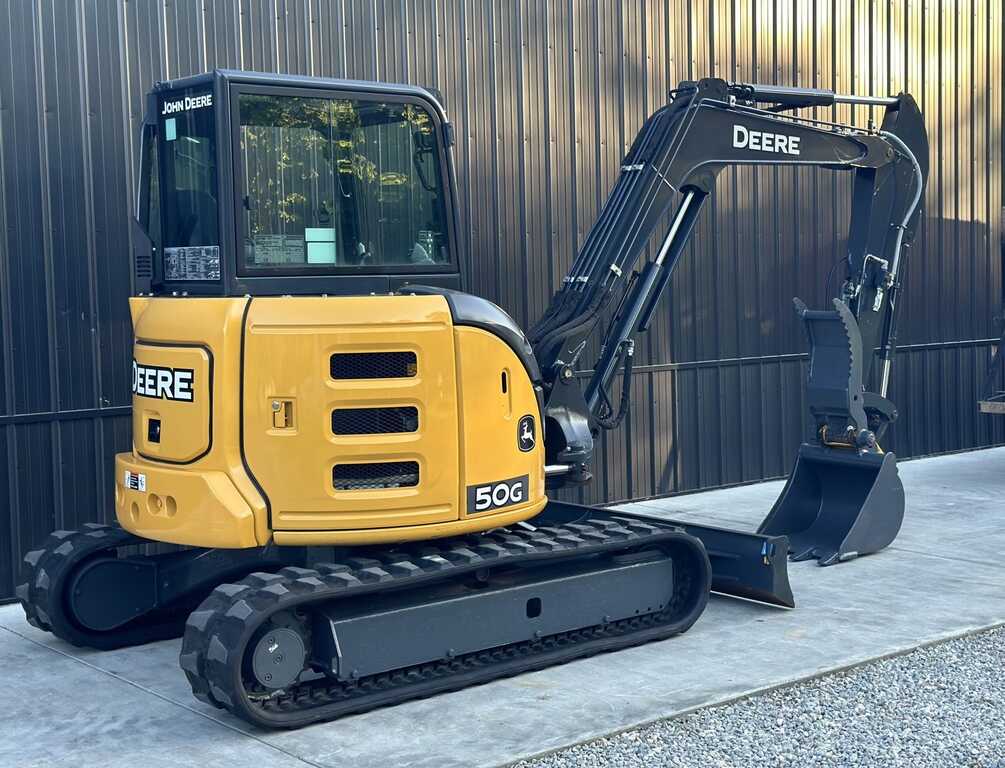

Machine was just Fully serviced, cleaned, greased & looked over. Photos Just taken. Delivery Available! $1.00/mile economy delivery.

This is a 1 owner 1 operator machine.

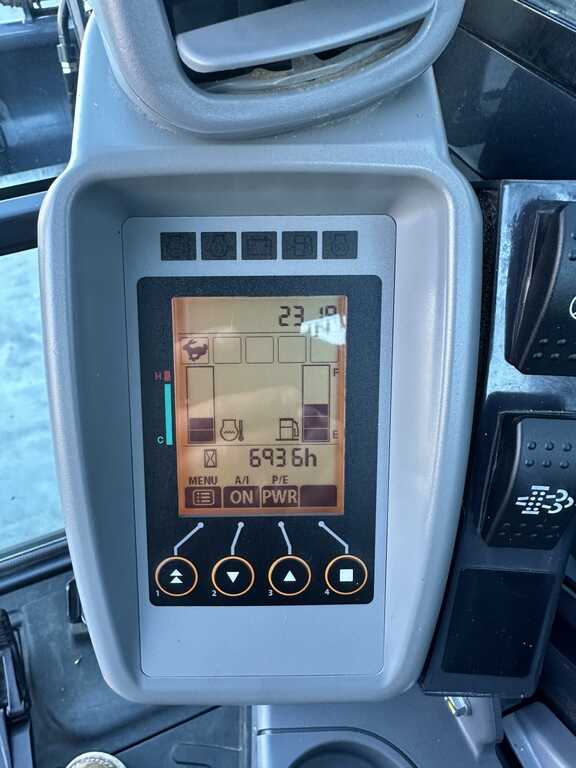

– Only 693 Light hours

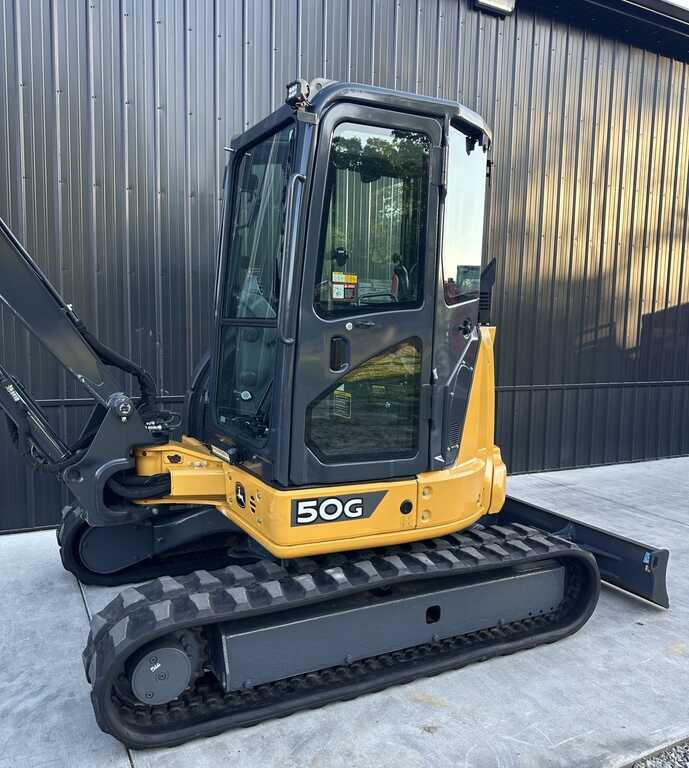

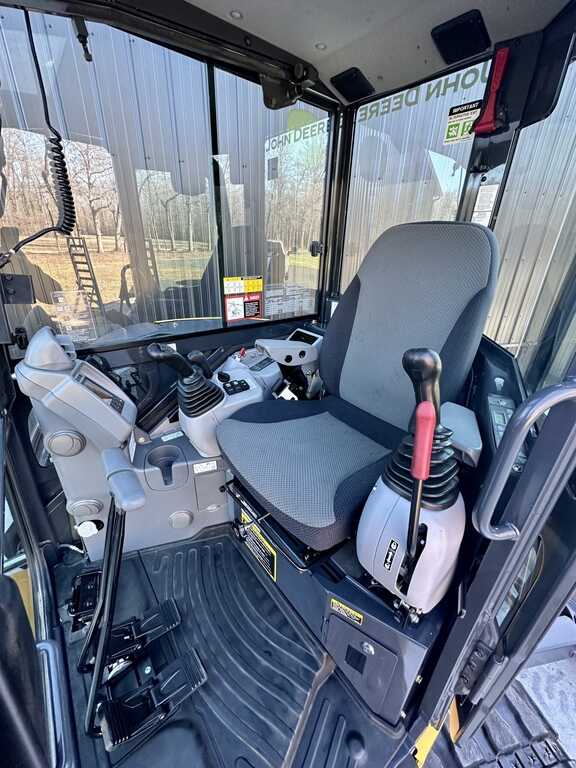

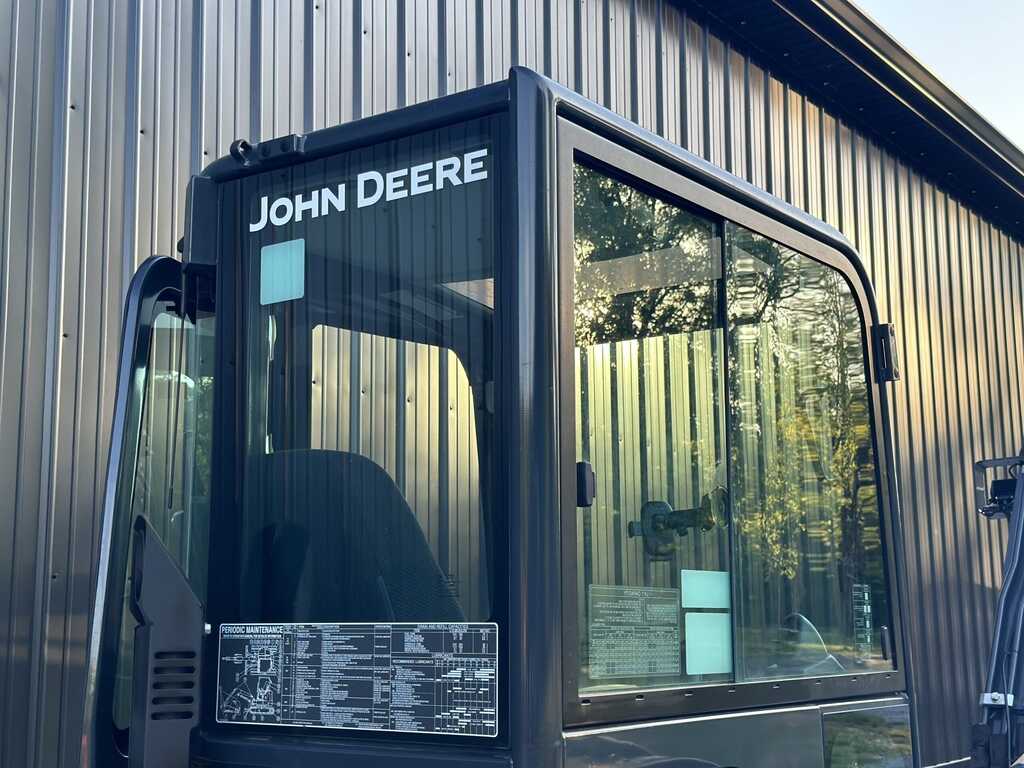

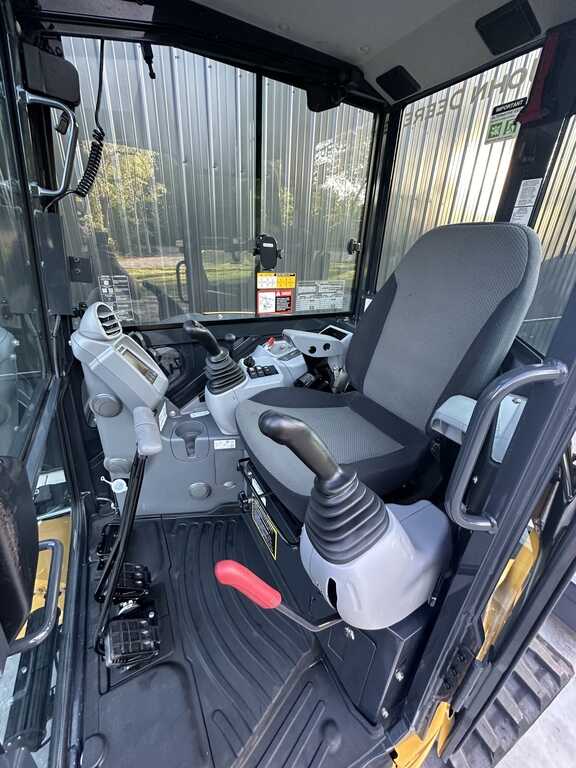

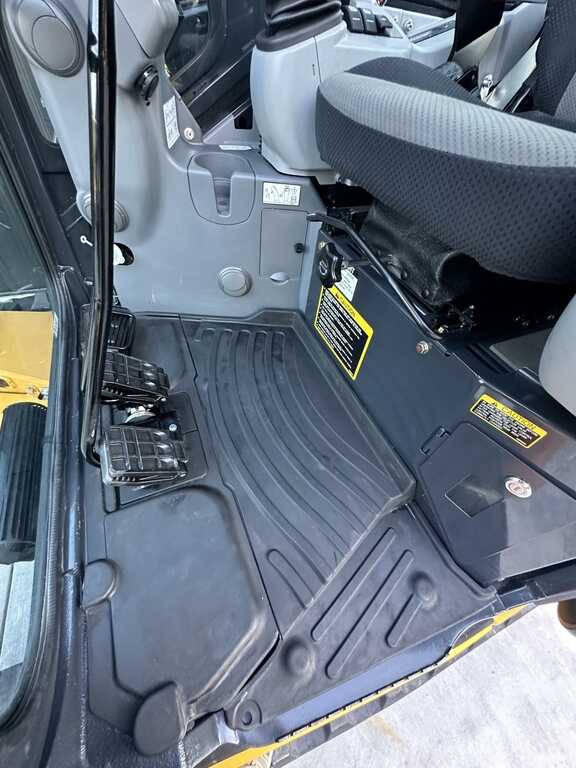

– Enclosed HEAT/AC/RADIO

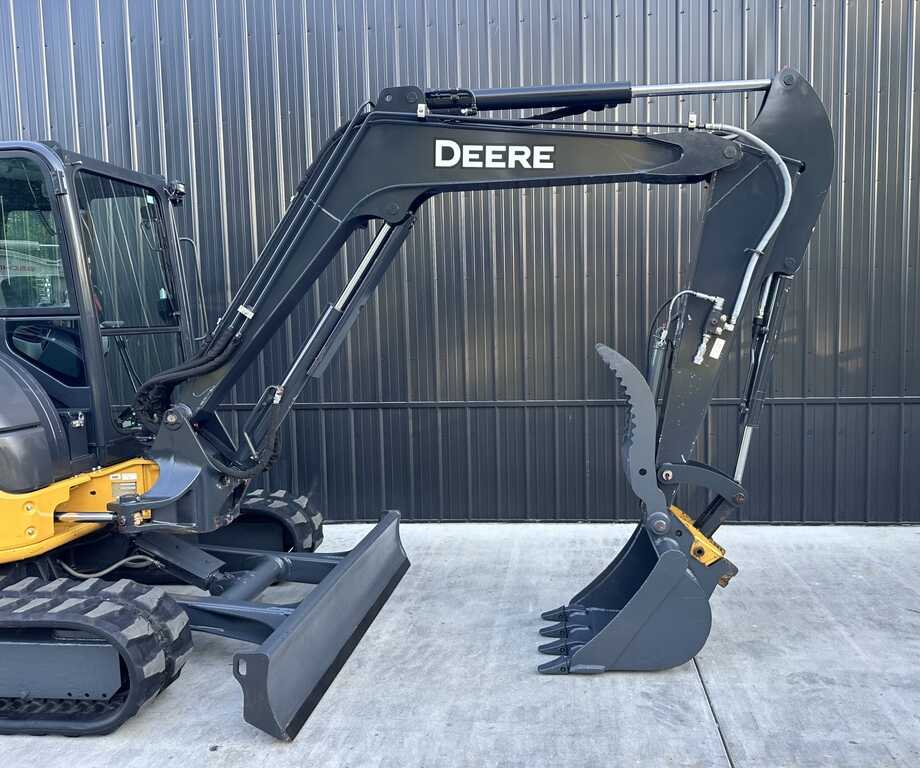

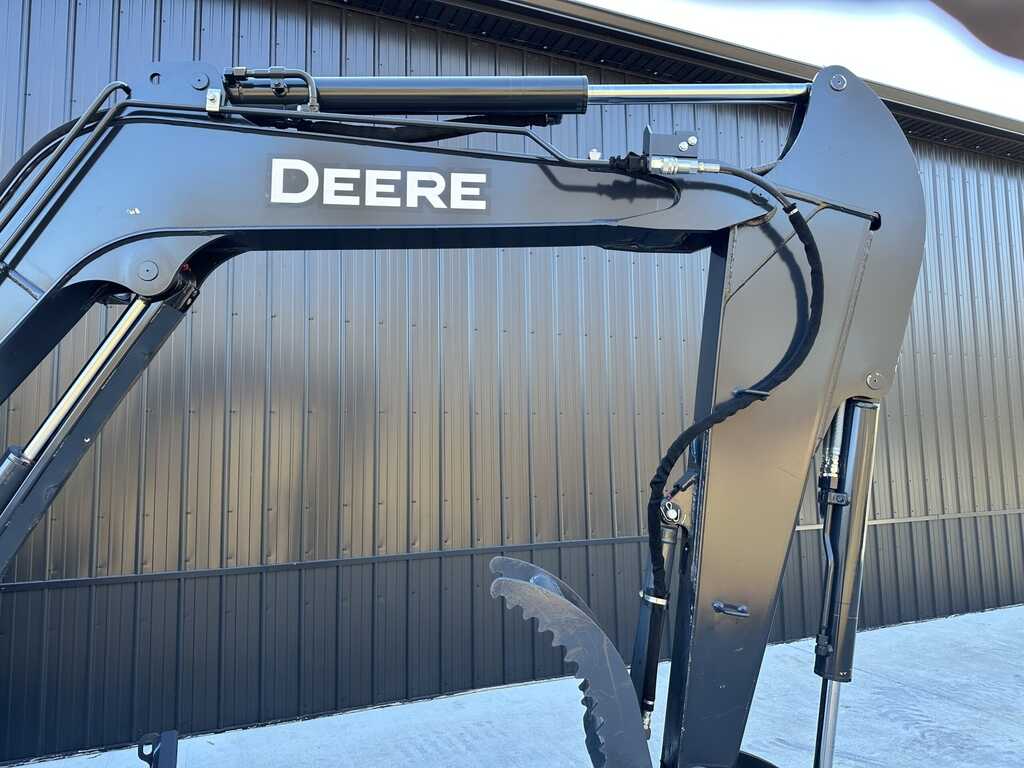

– LONG ARM

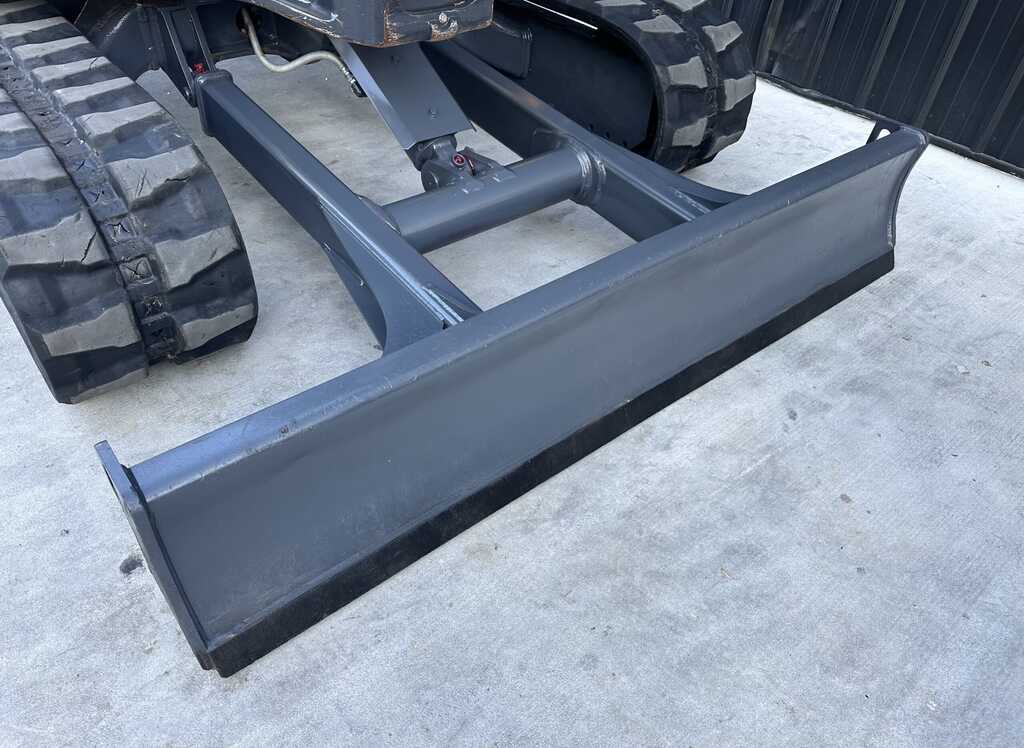

– Hydraulic angle blade

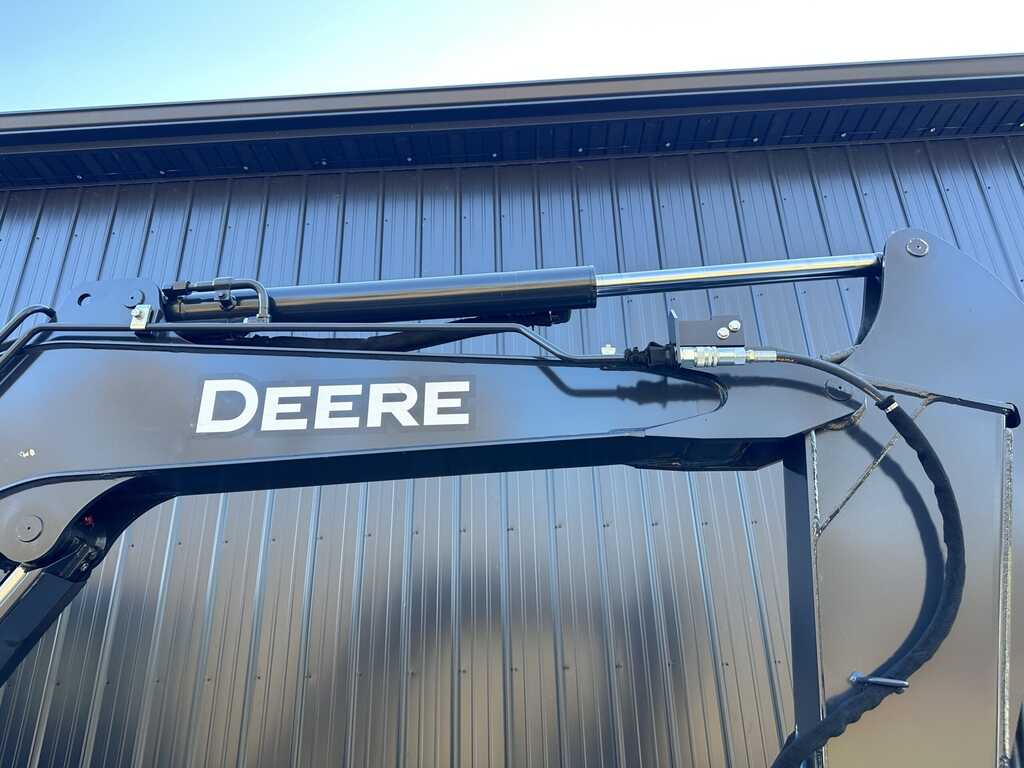

– Hydraulic thumb
– Manual Quick coupler
– 2 Speed

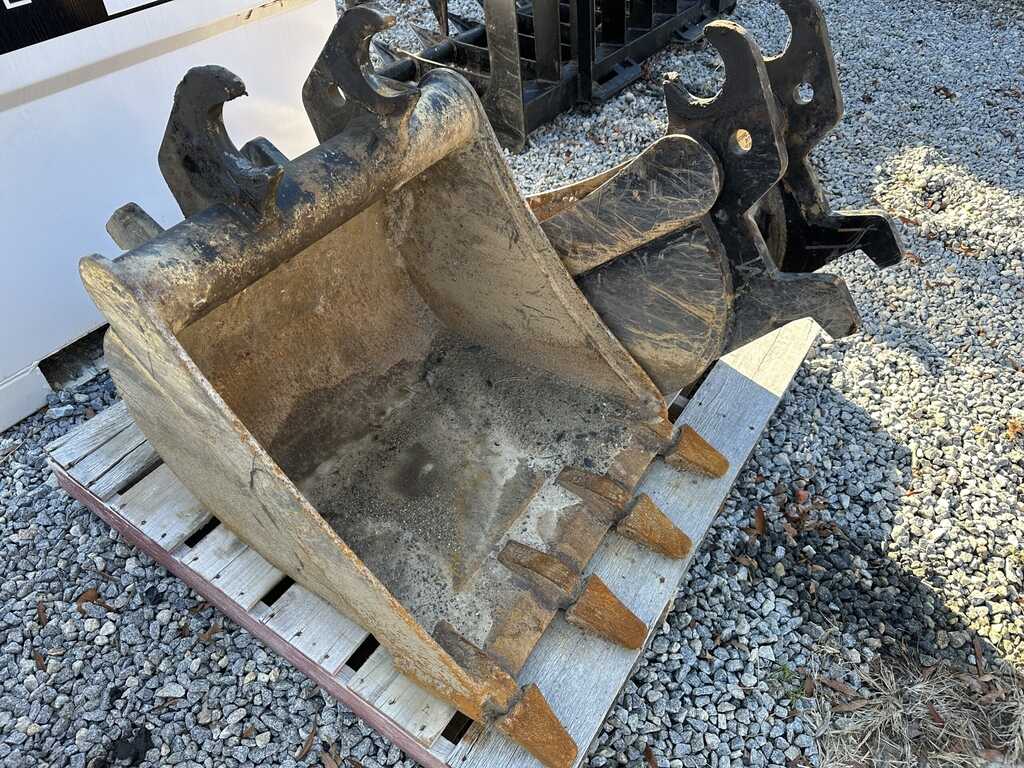

– 12”, 24” & 30” buckets
– 11,300 Lbs
Machine is TIGHT & READY TO WORK

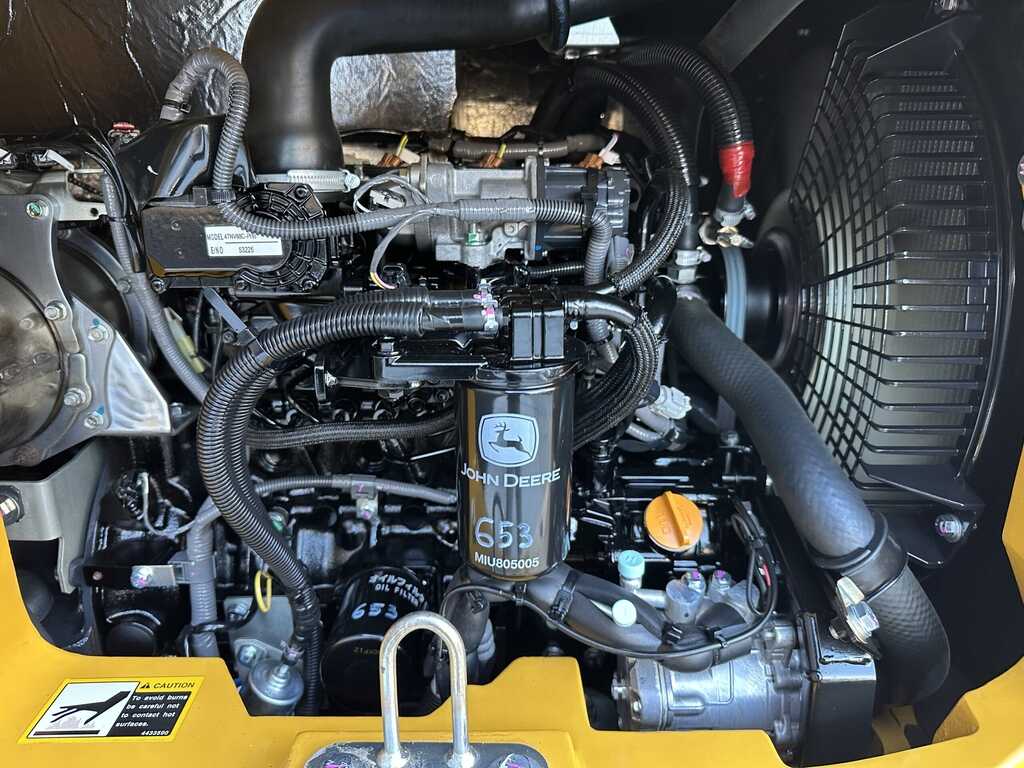

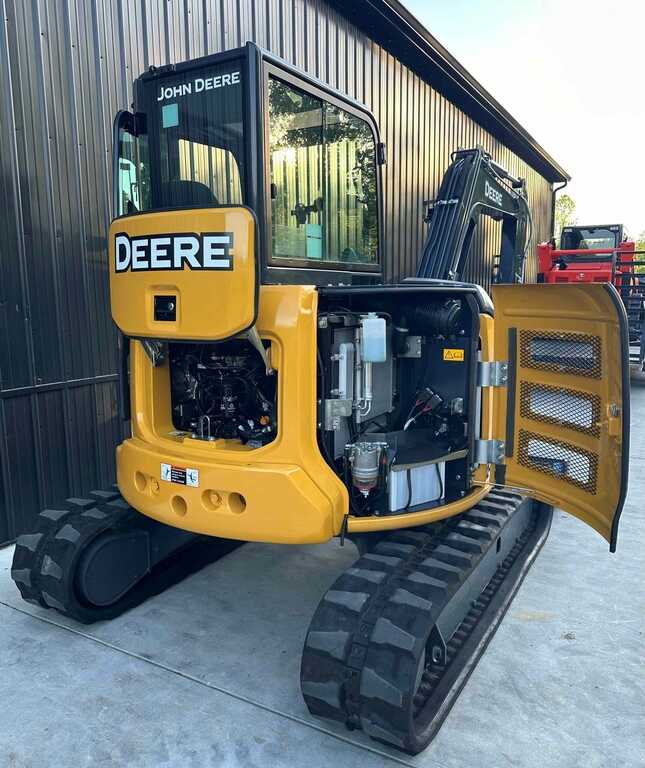

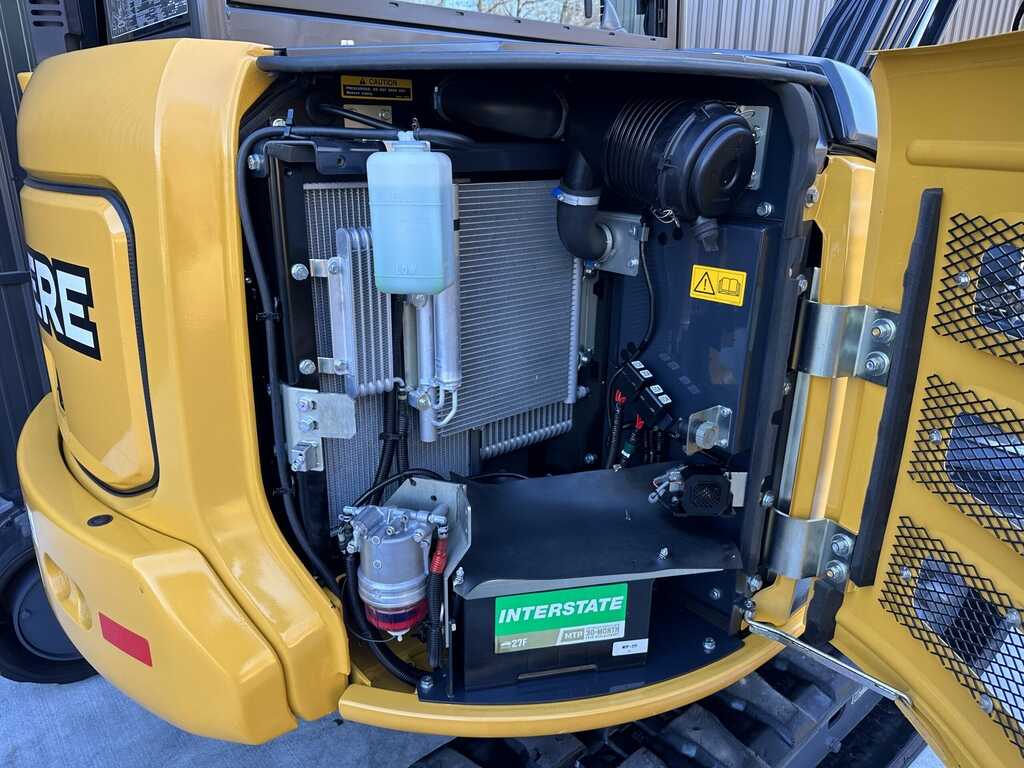

Engine
Make / Model: Yanmar 4TNV88
Type: 4-cylinder, liquid-cooled, diesel
Displacement: 2.19 L (2,190 cc)
Net Power: 35.9 hp (26.8 kW) @ 2,400 rpm
Gross Power: 39.6 hp (29.5 kW)

Operating Weight
With long arm, cab, and extra counterweight: 11,349 lbs (5,148 kg)

Dimensions
Maximum Digging Depth: 12 ft 7 in (3.83 m)
Maximum Digging Reach: 20 ft 6 in (6.26 m)
Maximum Cutting Height: 19 ft 8 in (6.00 m)
Maximum Dumping Height: 14 ft 2 in (4.31 m)
Tailswing Radius: 3 ft 7 in (1.10 m)
Transport Length: 17 ft 11 in (5.47 m)
Transport Height: 8 ft 4 in (2.53 m)
Overall Width: 6 ft 7 in (2.0 m)
Ground Clearance: 13 in (340 mm)

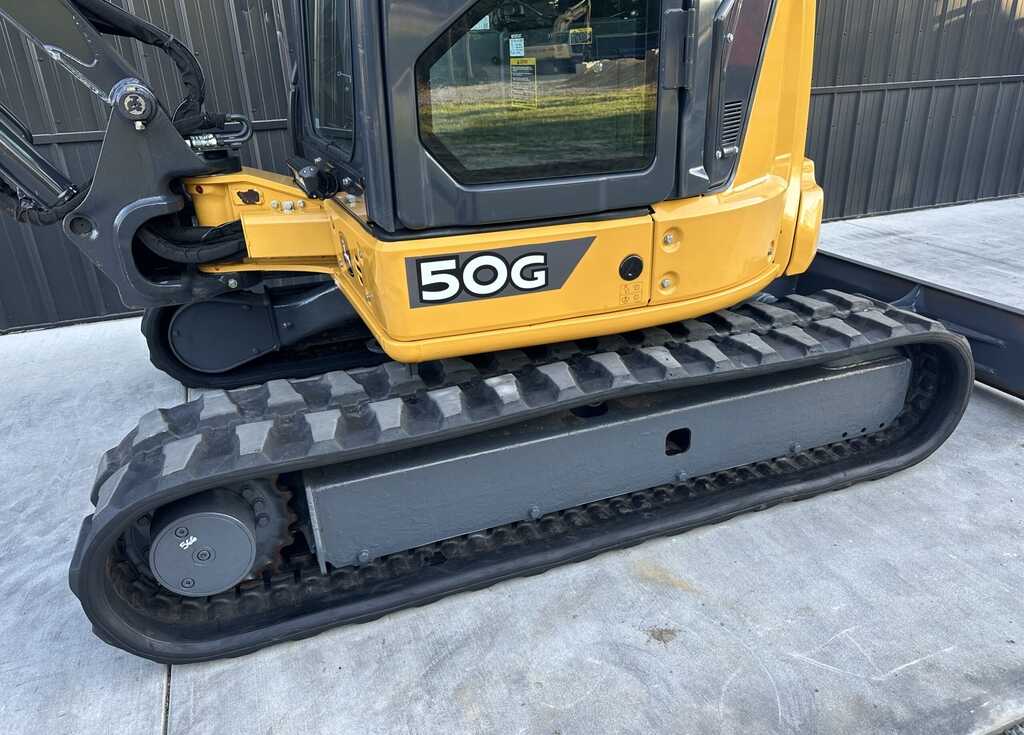

Undercarriage
Track Width: 16 in (400 mm) rubber tracks
Track Length on Ground: 6 ft 6 in (1.98 m)
Blade Width: 6 ft 7 in (2.0 m)
Blade Height: 15.7 in (400 mm)

Performance
Bucket Breakout Force: 8,267 lbf (36.8 kN)
Arm Tearout Force (Long Arm): 5,401 lbf (24.0 kN)
Swing Speed (Slew): 9 rpm
Travel Speed – Low: 1.6 mph (2.6 km/h)
Travel Speed – High: 2.8 mph (4.5 km/h)

Capacities

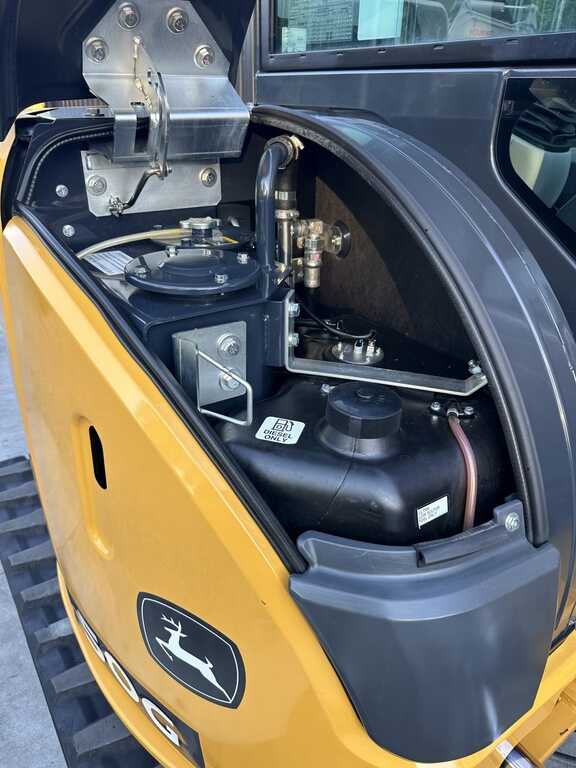

Fuel Tank: 18.5 US gallons (70 L)
Hydraulic Tank: 14.8 US gallons (56 L)
Cooling System: 1.8 gallons (7.0 L)
Engine Oil: 1.6 gallons (6.0 L)

Emissions
EPA Tier 4 Final compliant
