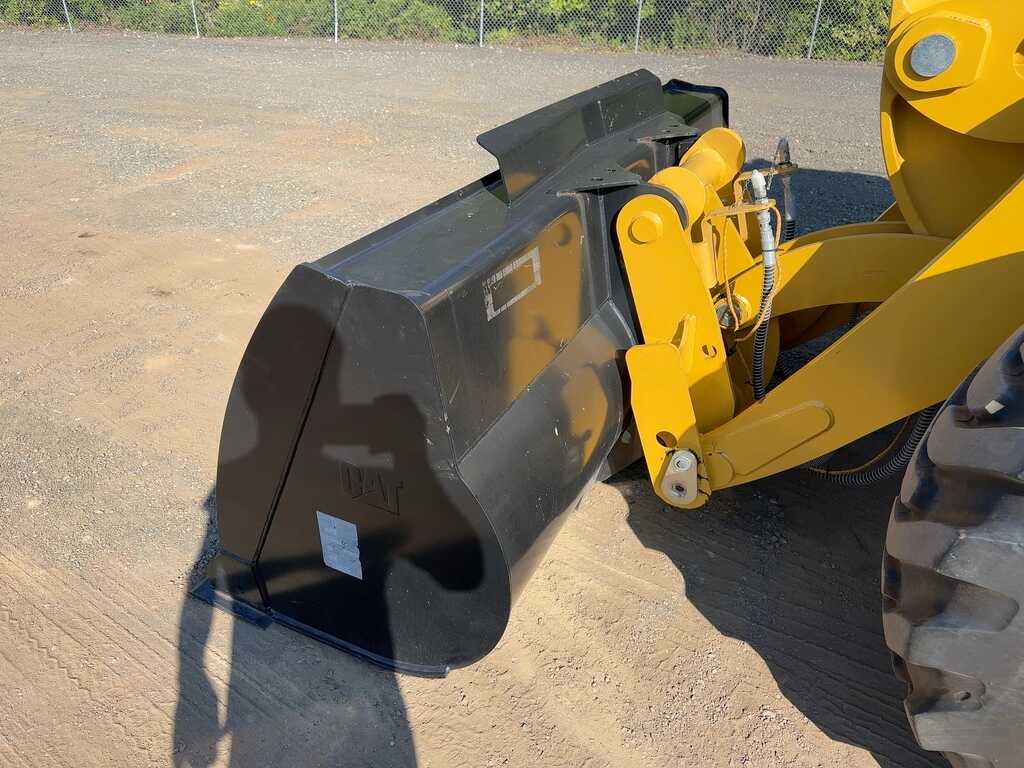

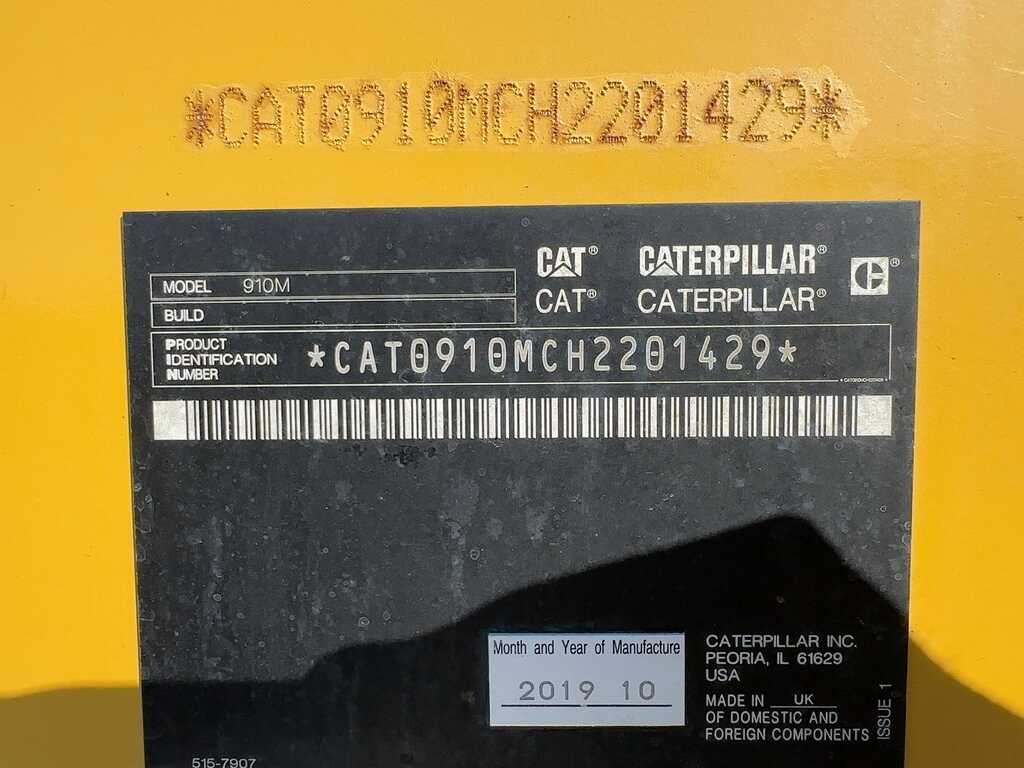

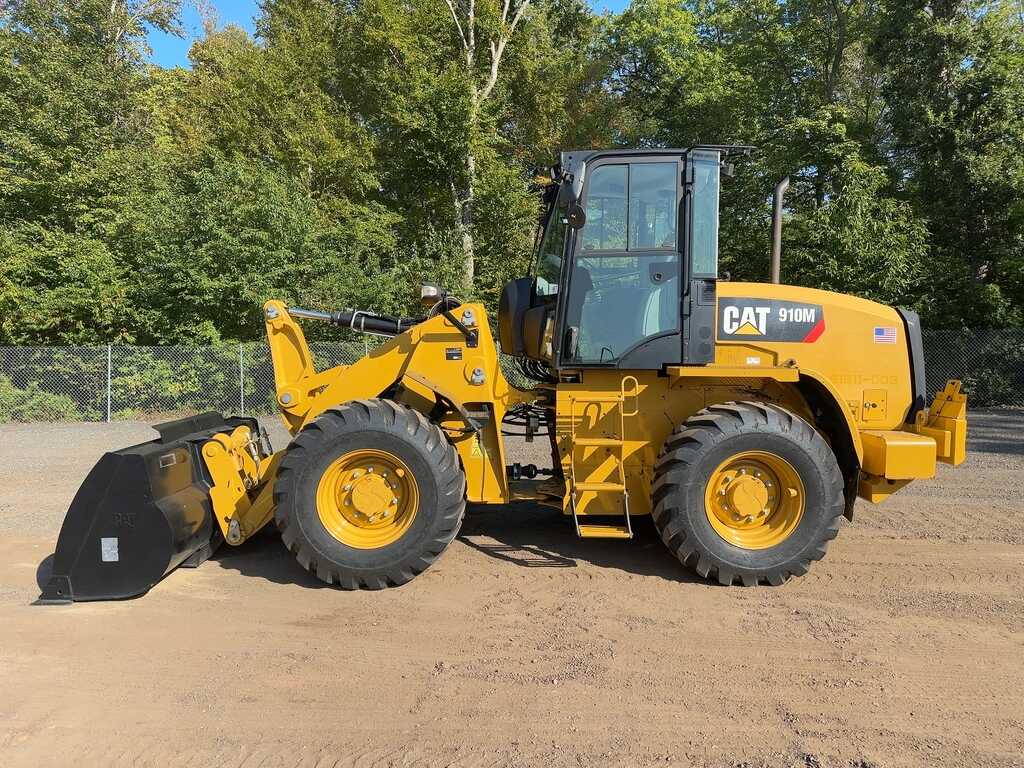

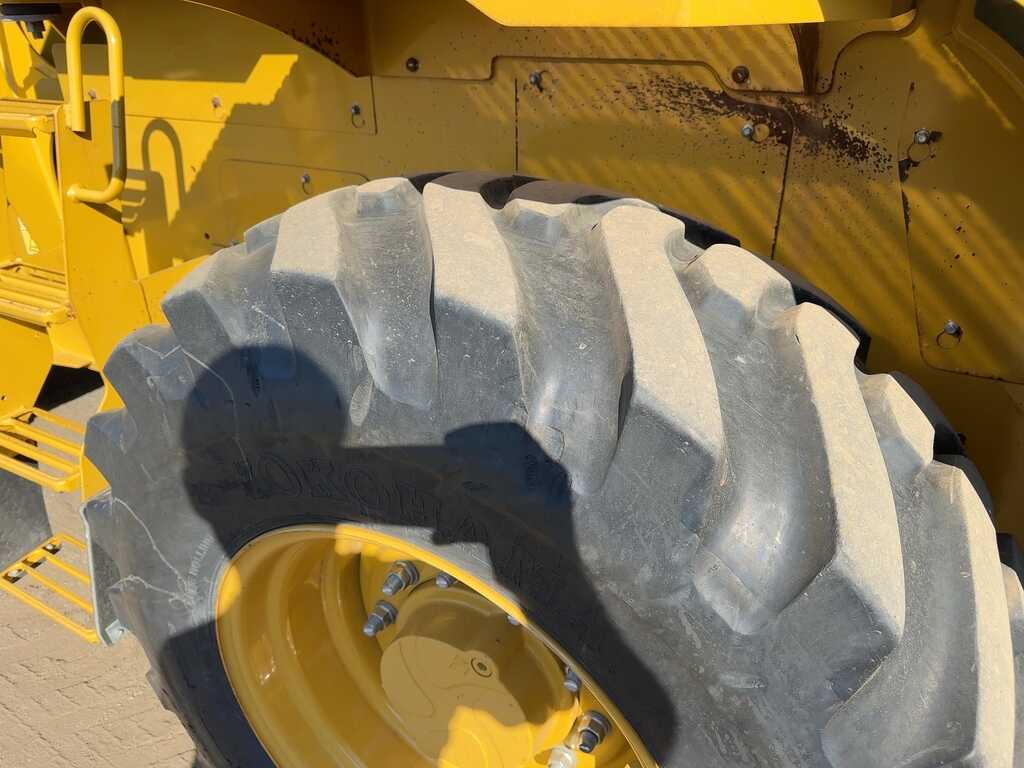

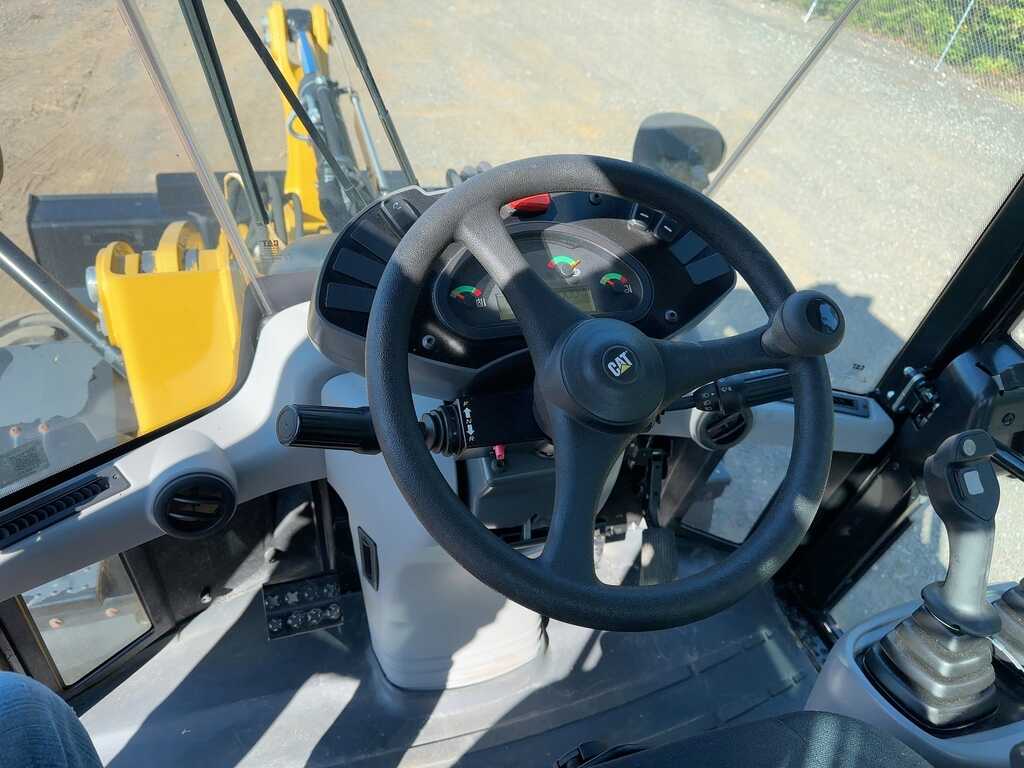

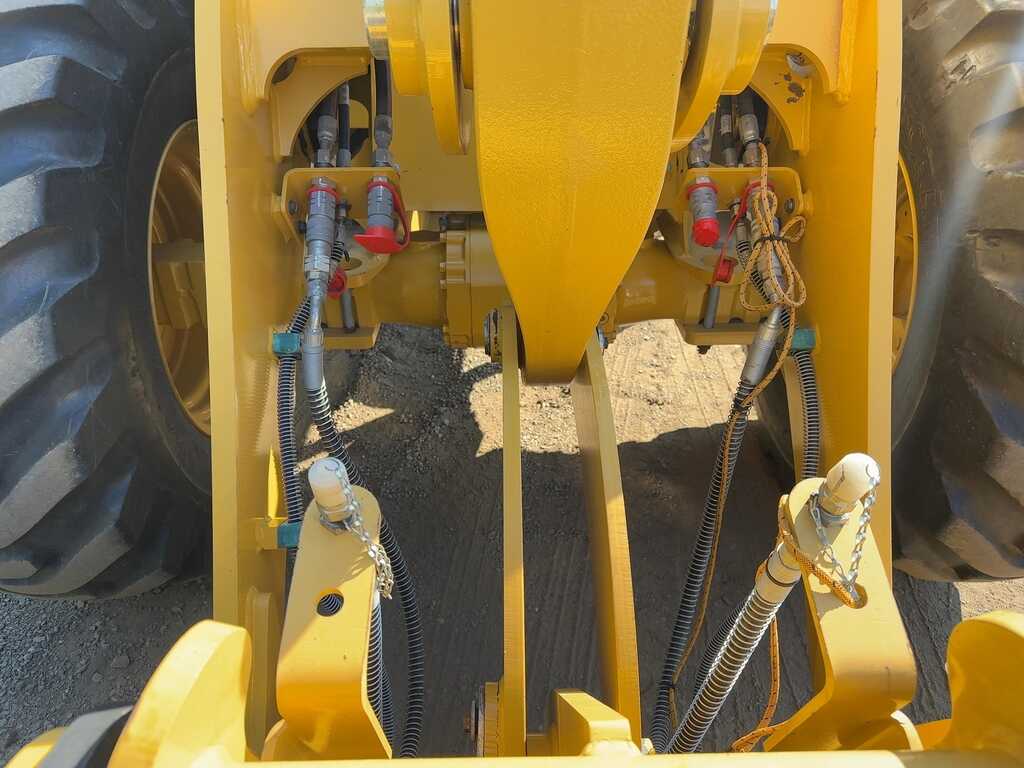

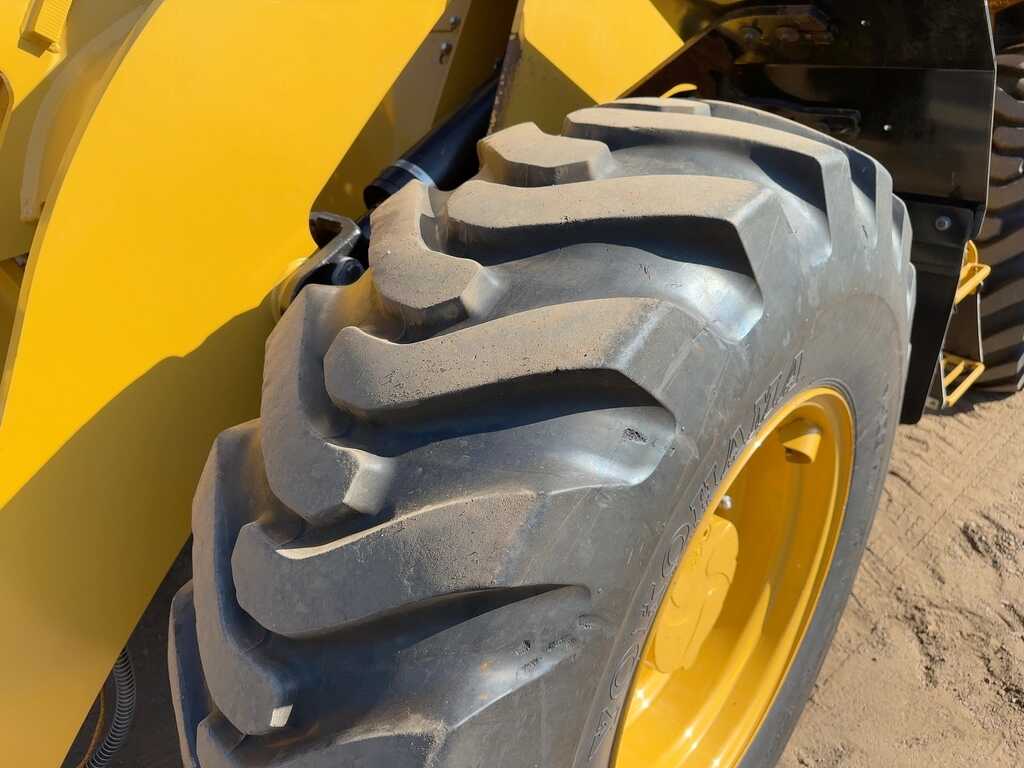

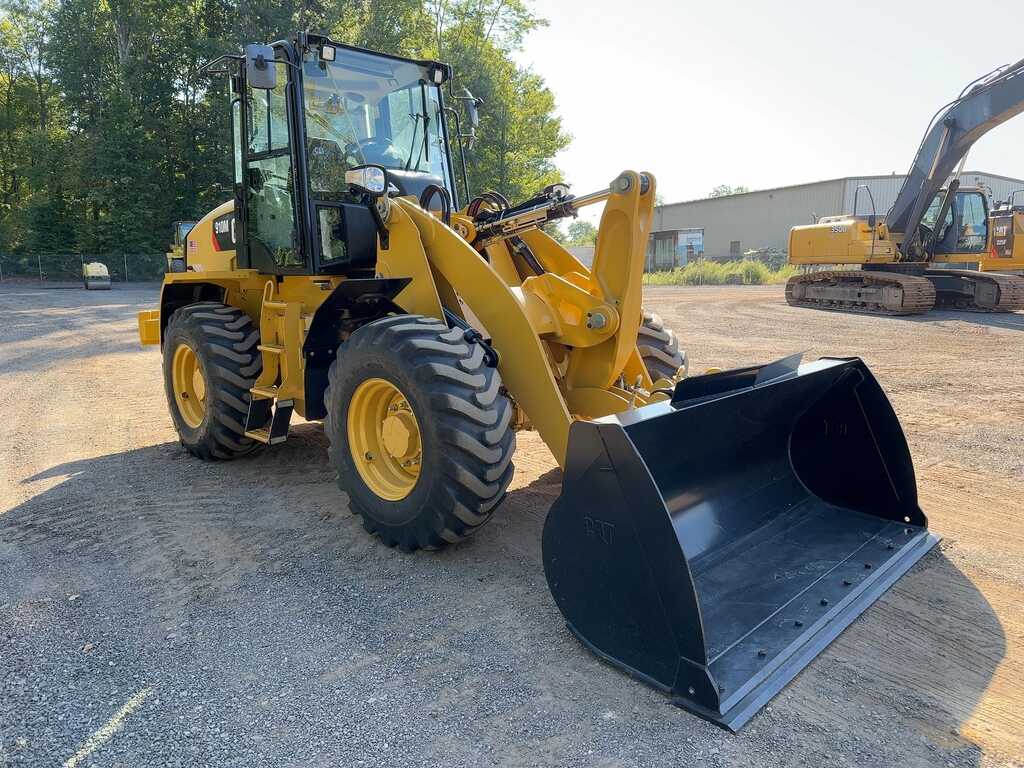

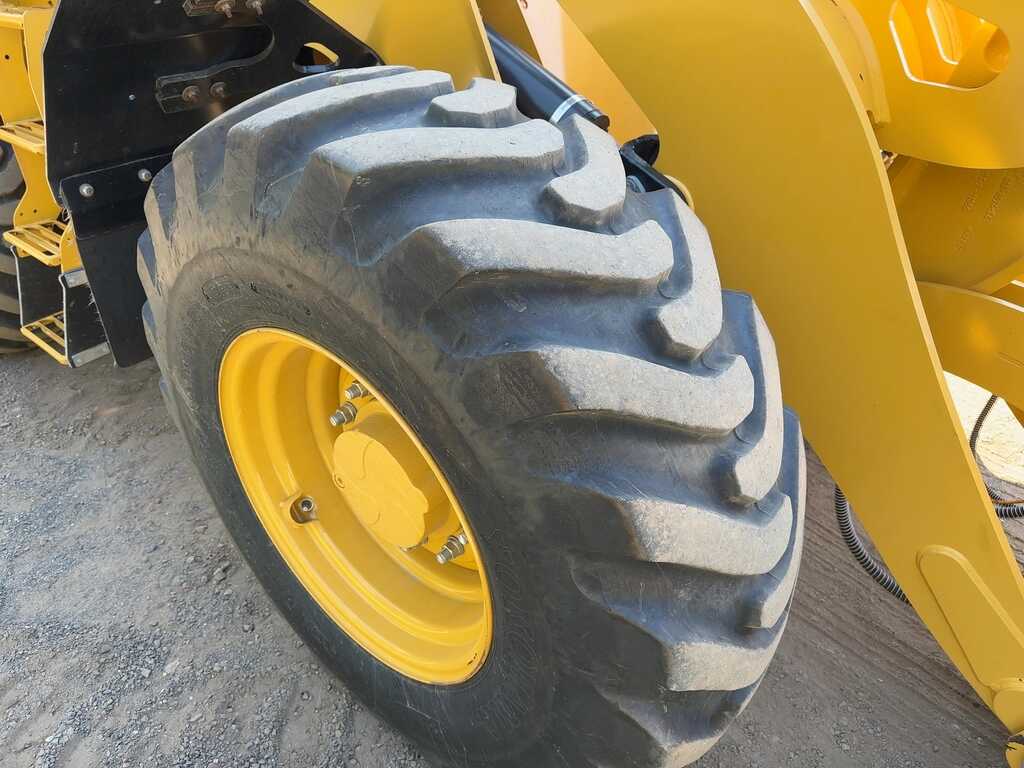

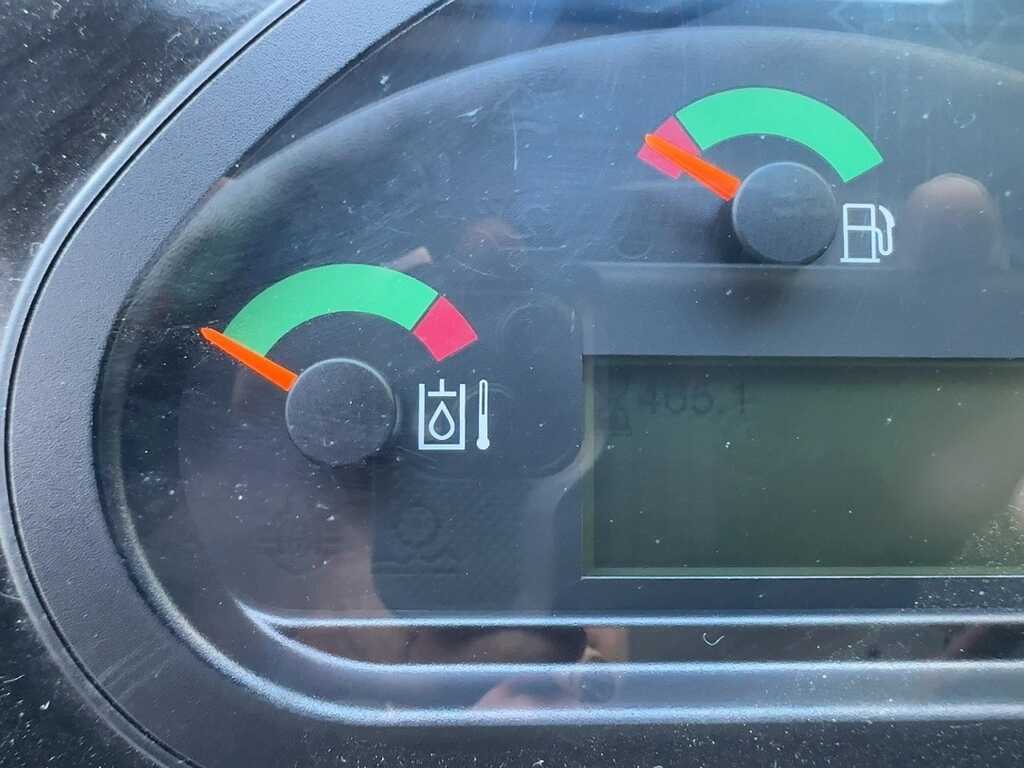

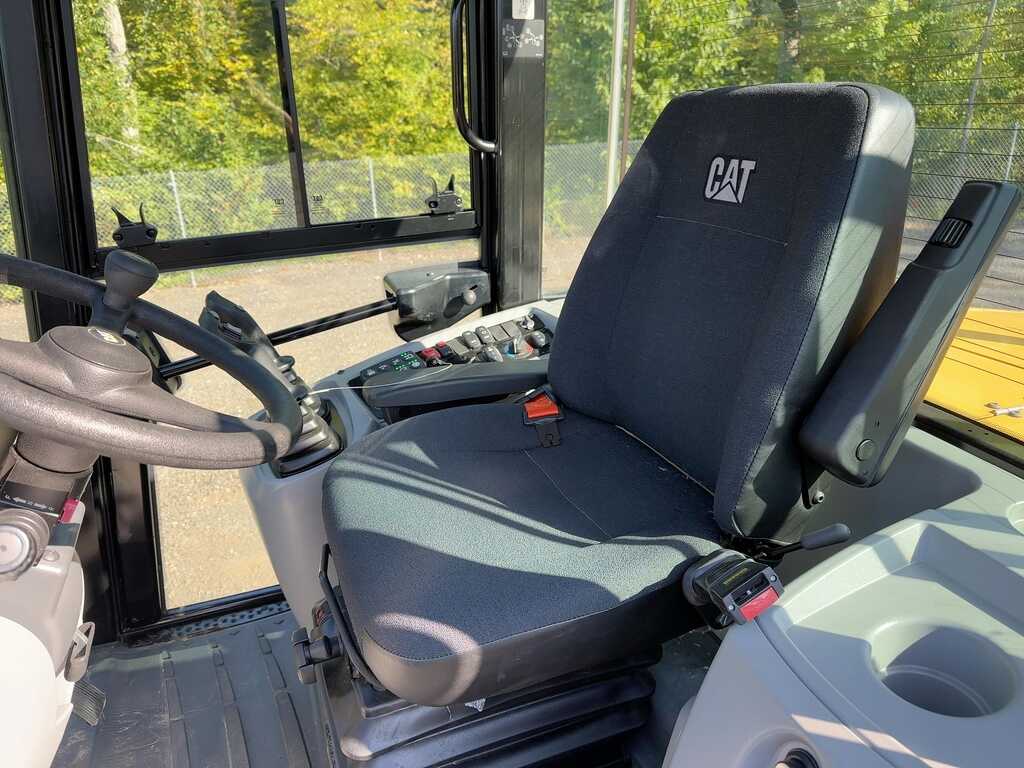

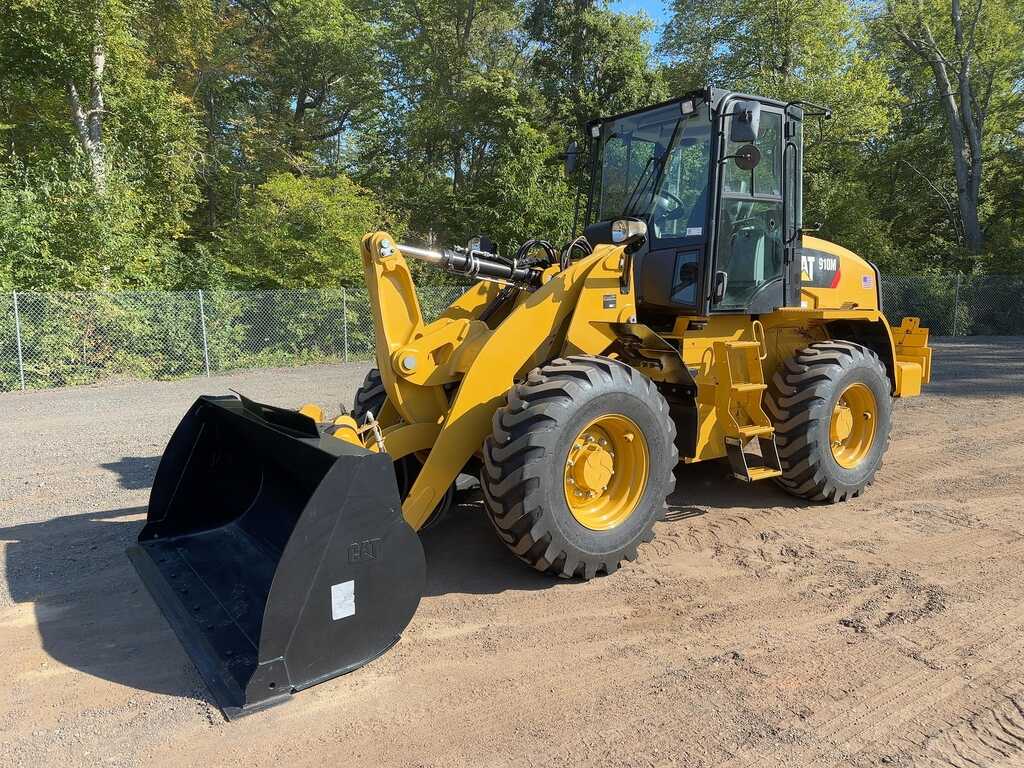

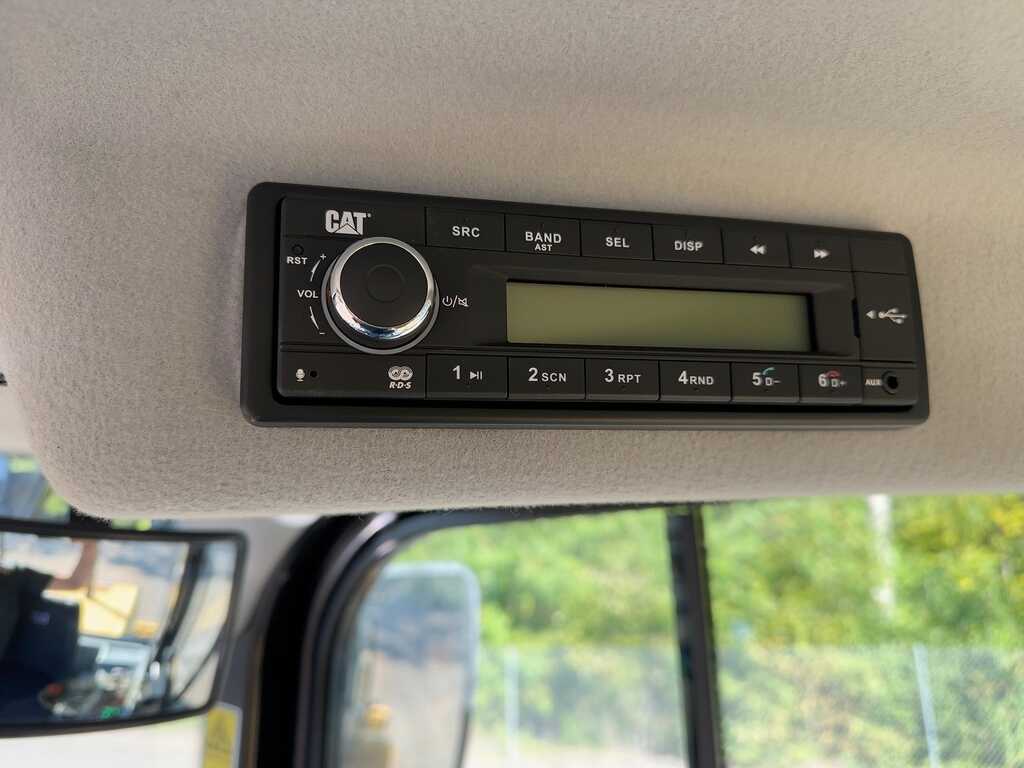

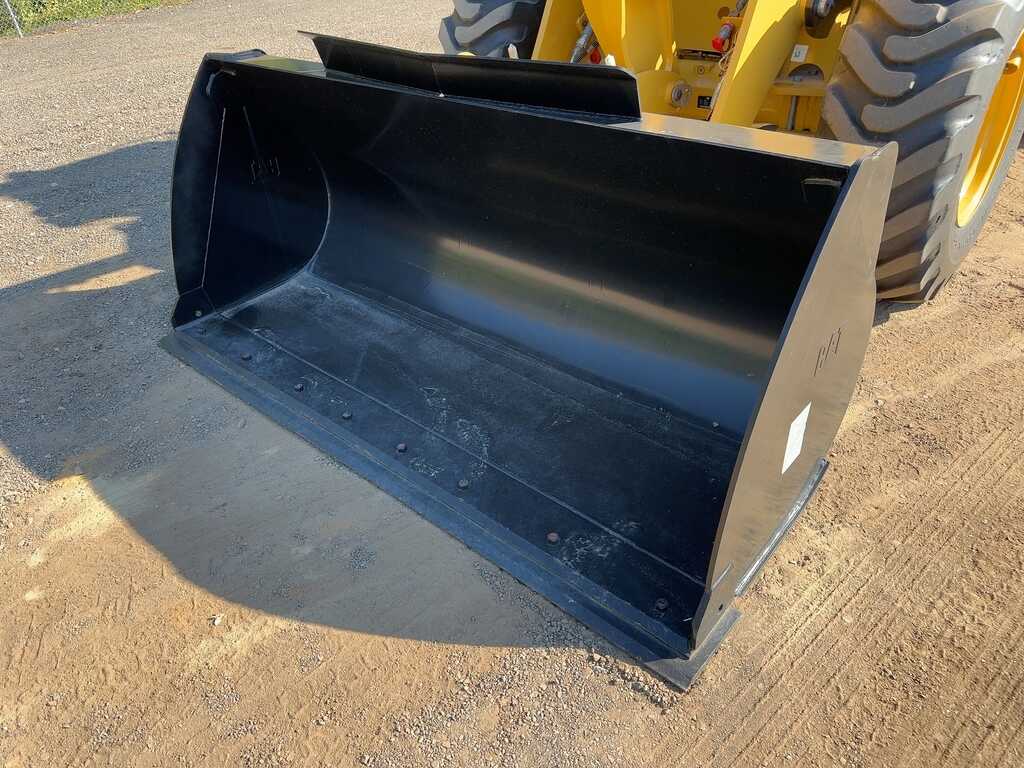

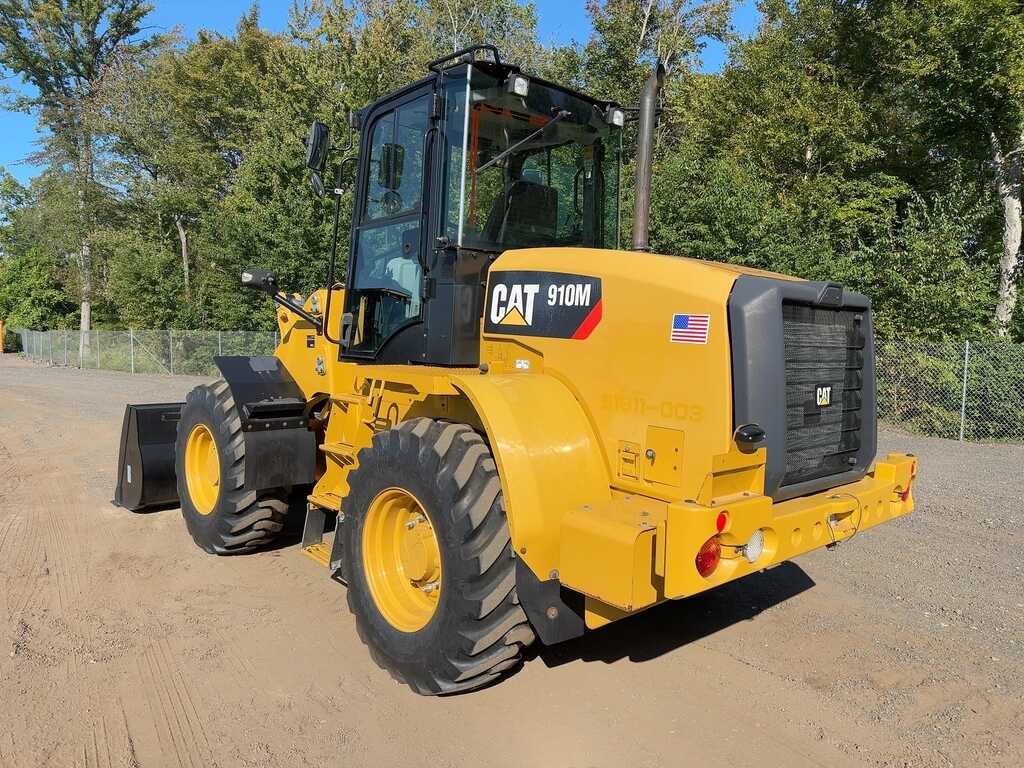

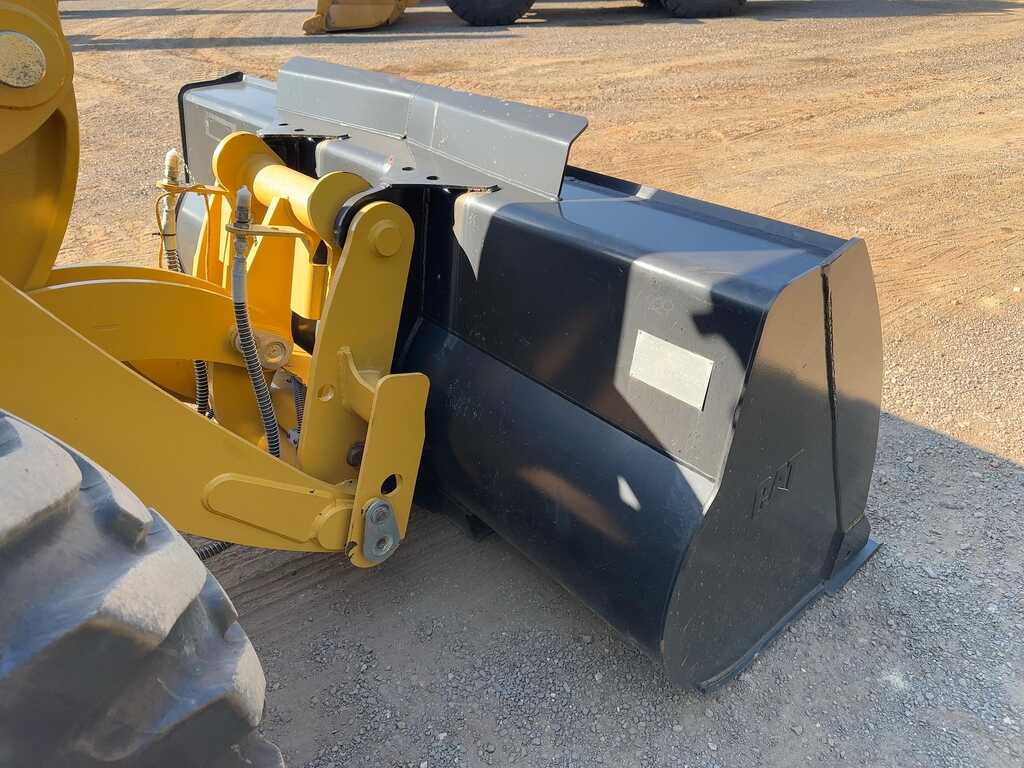

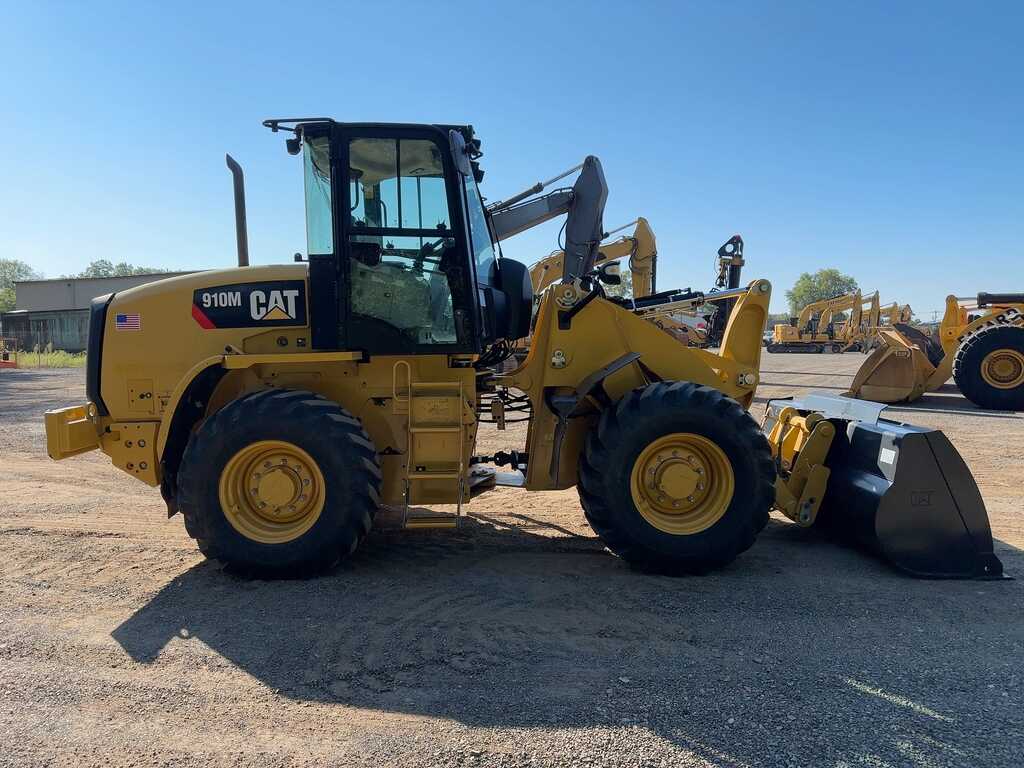

CATERPILLAR C4.4 ACERT 4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, STEREO, RIDE CONTROL, 2 SPEED TRAVEL, 16.9-24 RUBBER, AUX HYD, HYD COUPLER, GP BUCKET WITH BOCE, METER READS 465 HOURS, S/N CAT0910MCH2201429

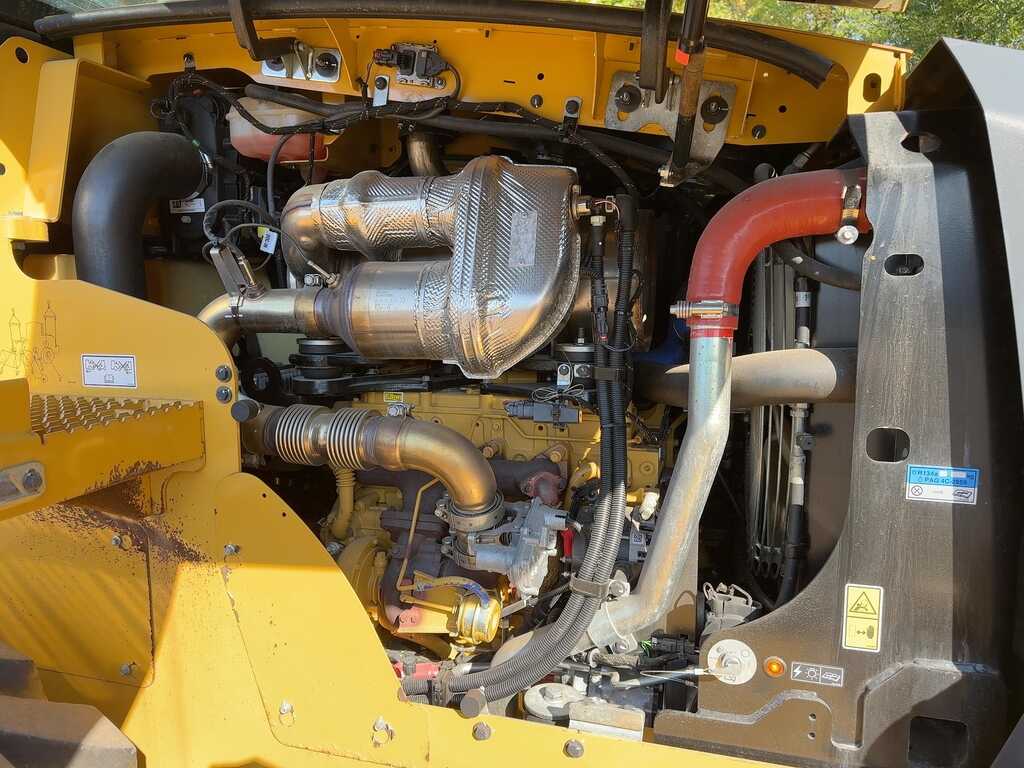

Engine & Powertrain

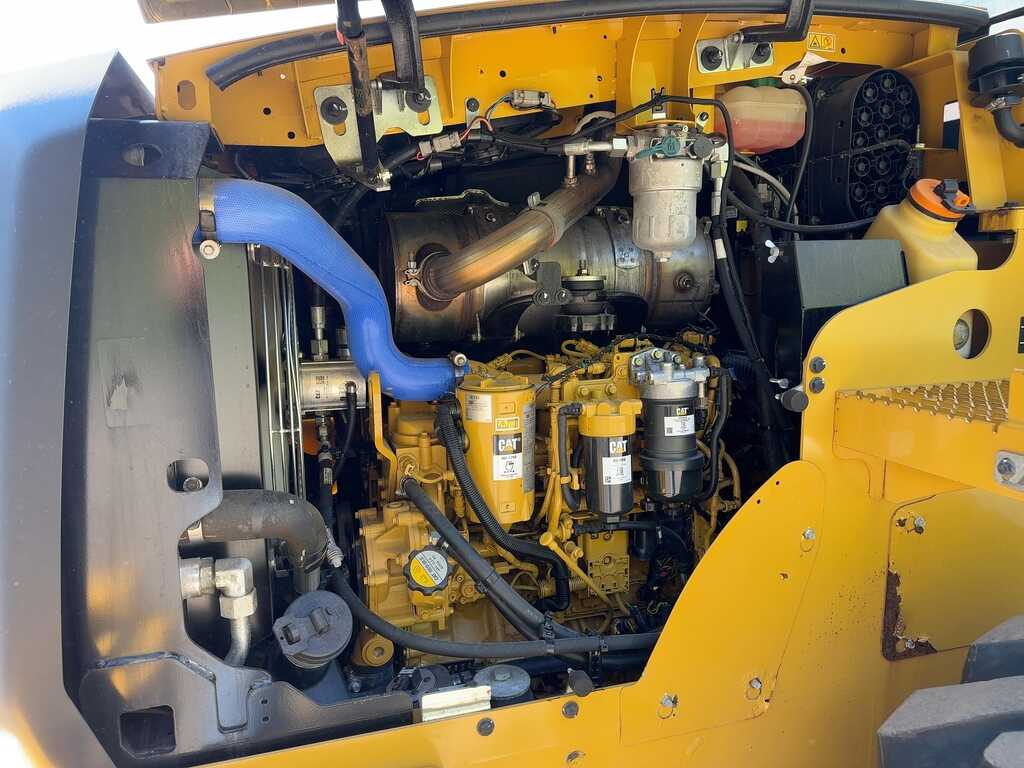

Engine Model: Cat C4.4 ACERT
Displacement: 268 in³ (4.4 L)
Gross Power (SAE J1995): 102 hp
Gross Power (ISO 14396): 100 hp (101 hp DIN)
Net Power (SAE J1349 / ISO 9249): ~96–98 hp (97 hp rated)
Maximum Engine Speed: 2,350 rpm
Rated Engine Speed: 2,200 rpm
Torque: 325–336 lb·ft (440–456 Nm) @ 1,400 rpm
Emissions: Tier 4 Final / EU Stage IV compliant

Operating Weights & Capacities
Operating Weight: 17,893 lb (8,115 kg)

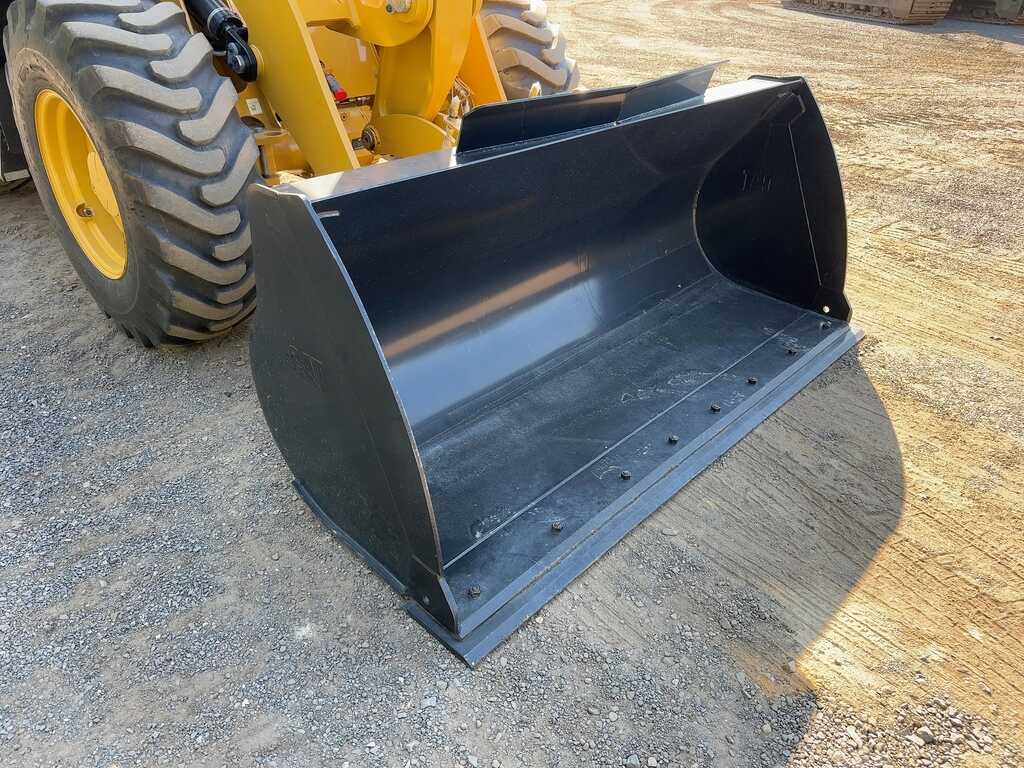

Bucket Capacity: 1.7–2.5 yd³ (1.3–1.9 m³)
Rated Bucket Capacity: 2.5 yd³
Tipping Load (Full Turn): 24,264–25,875 lb (depending on tires)

Transmission & Travel
Type: Hydrostatic with Creeper Control (Range 1, 0–6.3 mph)
Forward / Reverse Low Range (1–2): 6.3 mph, 12.5 mph
Forward / Reverse High Range: 25 mph
Speeds: 4 forward / 3 reverse
Note: Creeper Control allows precise speed adjustment up to 6.3 mph in Range 1

Hydraulics
Implement Pump Output: 32 gpm
Maximum Pressure (Implement Pump): 3,408 psi
Auxiliary Circuits (3rd/4th Function): 24 gpm @ 3,046 psi
Tilt Cylinder Relief Pressure: 4,931 psi
Cycle Times:
– Raise (ground to max lift): 5.2 s
– Dump (at max reach): 1.4 s
– Rackback: 2.2 s
– Float Down: 3.7 s
– Total Cycle Time: 12.5 s

Axles
Front: Fixed, locking differential (standard)
Rear: Oscillating ±11°, locking differential (standard)

Steering
Articulation Angle: ±40°
Pump Type: Steering piston pump
Max Flow: 17 gpm
Max Pressure: 2,683 psi
Full Cycle (lock to lock): 3.2 s

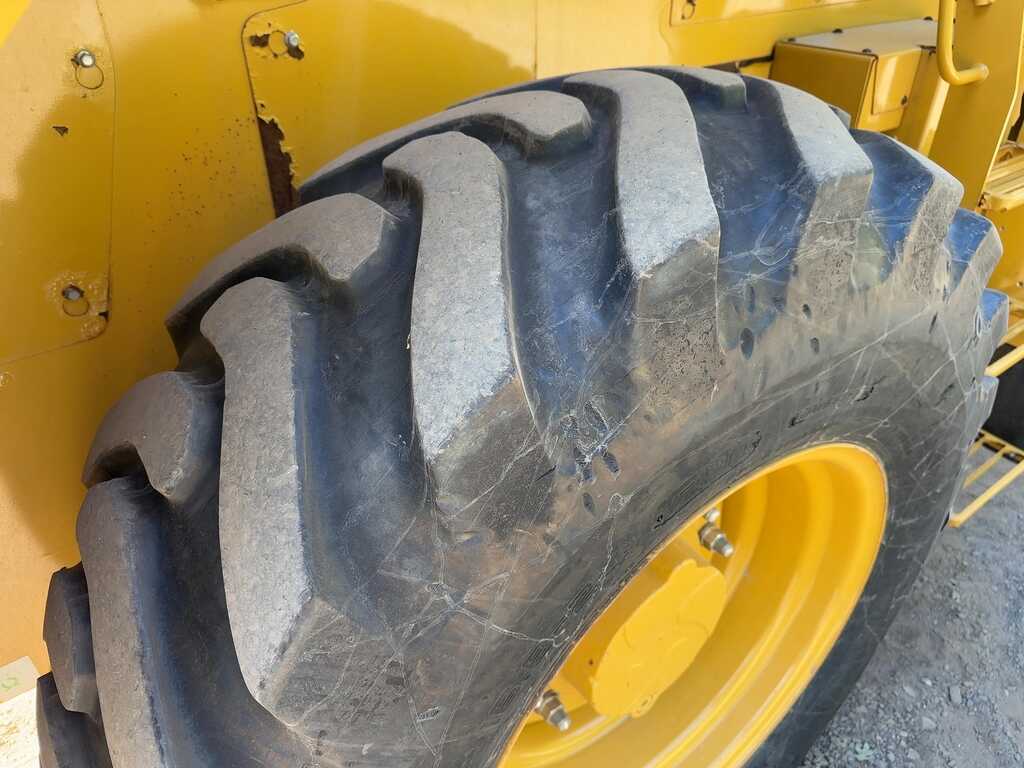

Undercarriage & Tires
Standard Tires: 15.5-25 12PR
Other Options: 15.5-R25, 17.5-25 (various tread and load ratings), snow tires, Flexport options

Capacities & Service Refill
Fuel Tank: 40.7 gal
DEF Tank: 5 gal
Cooling System: 5.7 gal
Engine Oil: 2.3 gal
Transmission: 0.9 gal
Hydraulic Tank: 14.5 gal (25.9 gal total system)
Front / Rear Axles: 2 gal each

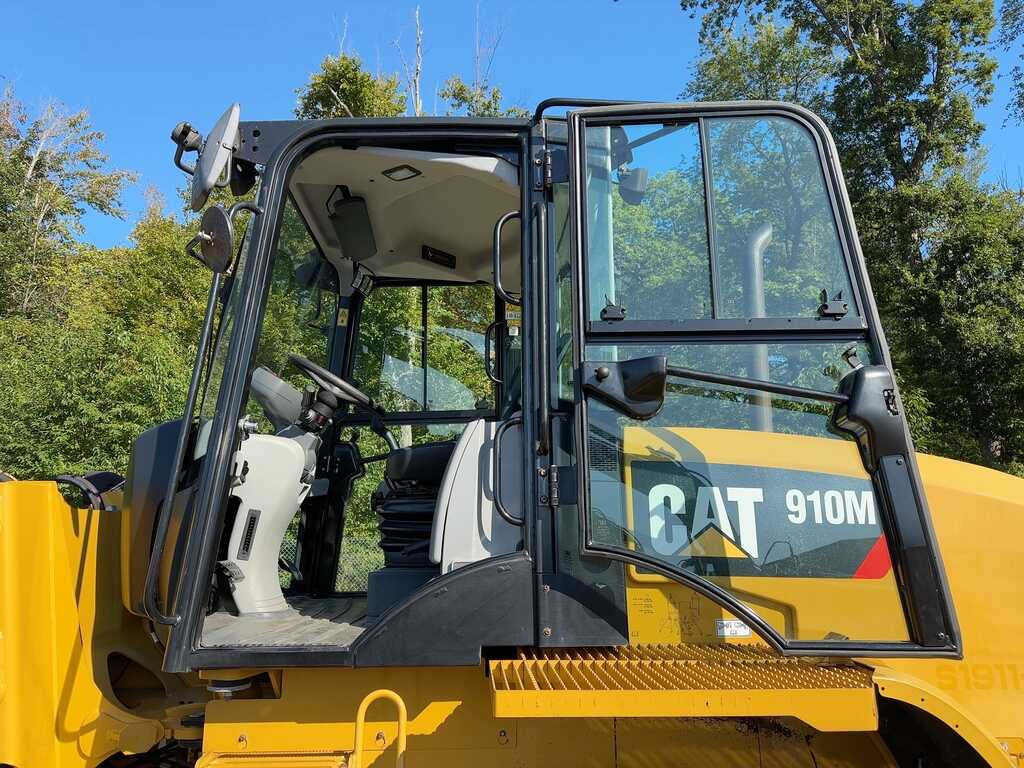

Cab & Safety
ROPS: ISO 3471:2008 certified
FOPS: ISO 3449:2005 Level II certified
Sound Levels:
– Operator (ISO 6396): 77 dB(A)
– Exterior (2000/14/EC): 103 dB(A)
Notes: Values measured with cab doors/windows closed
