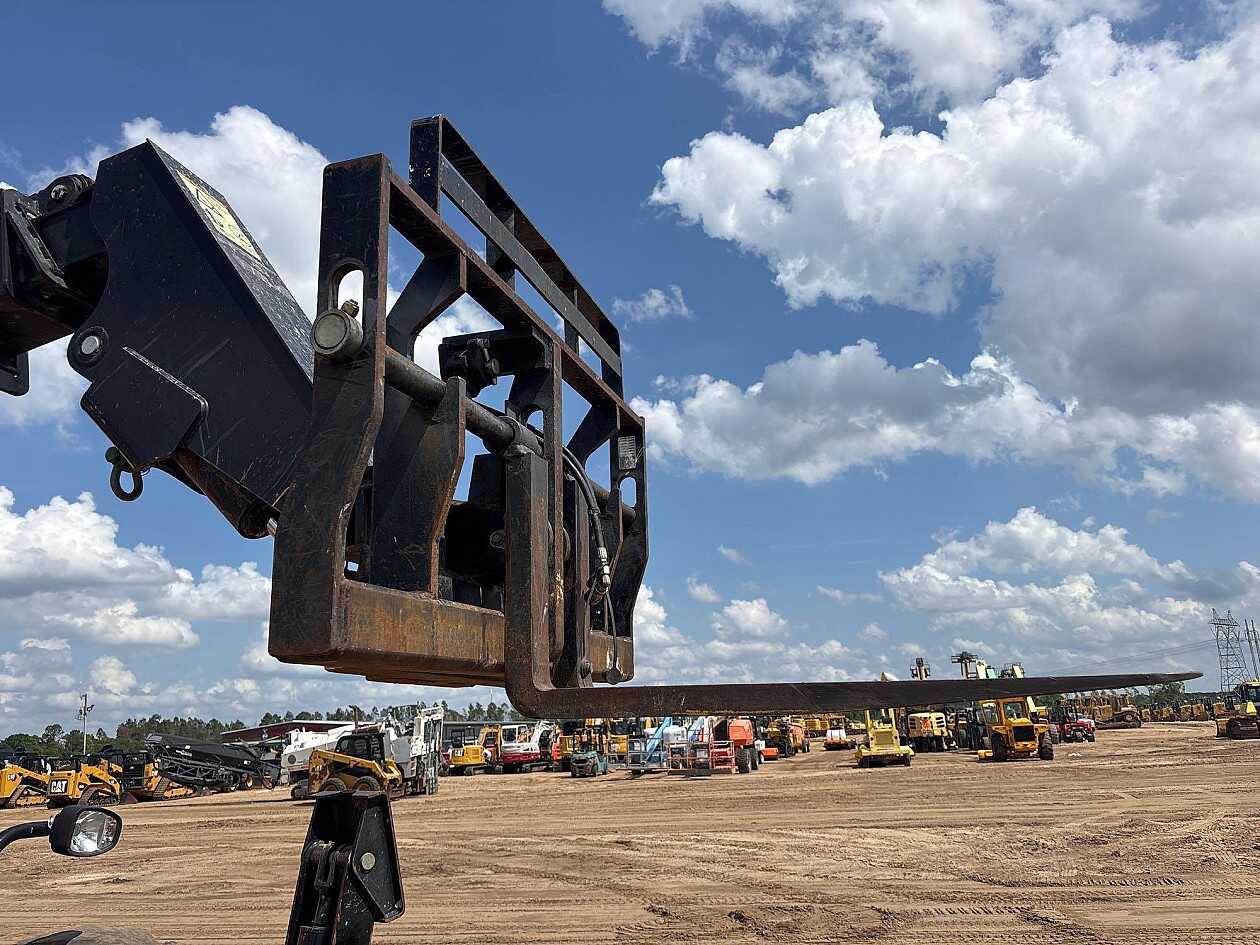

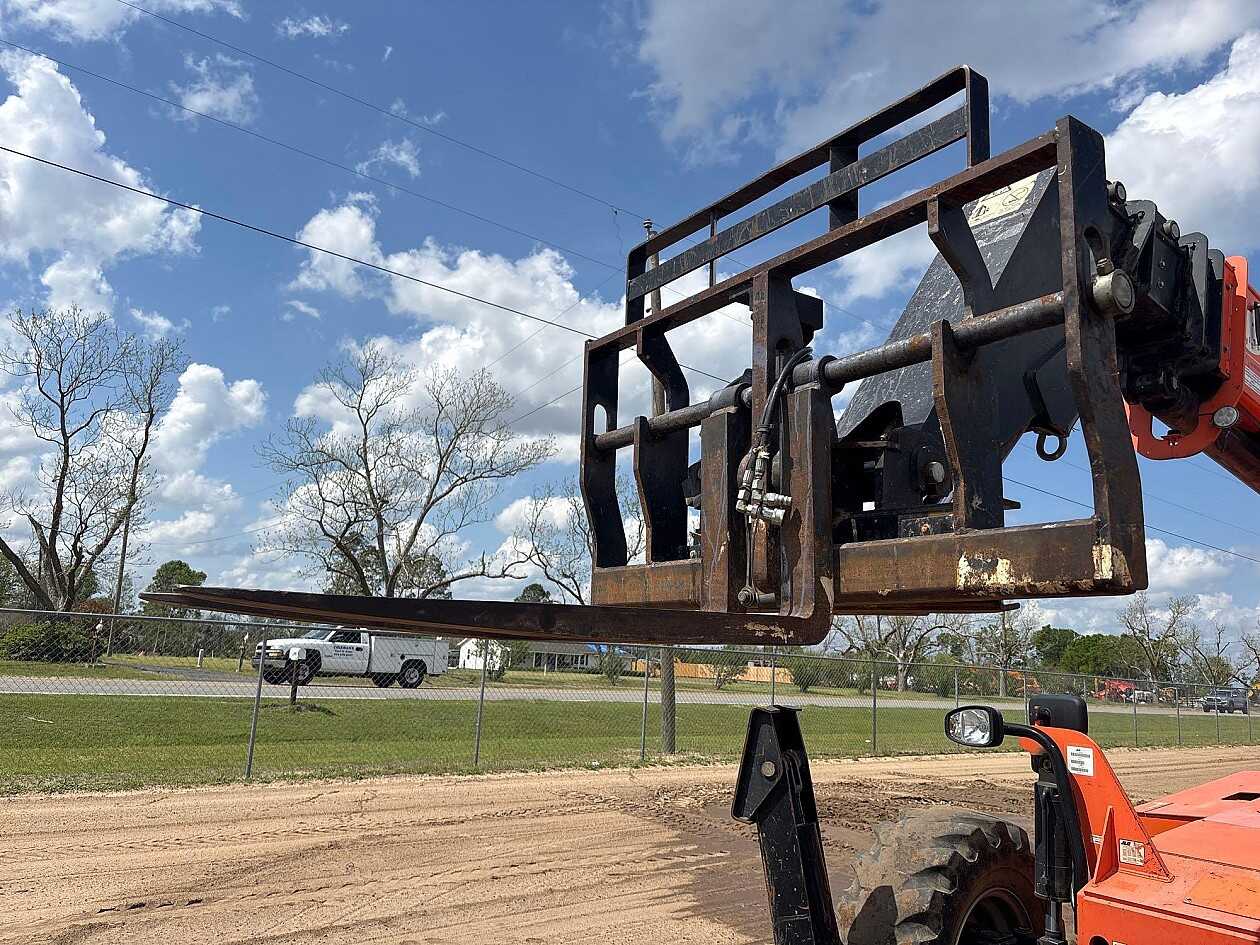

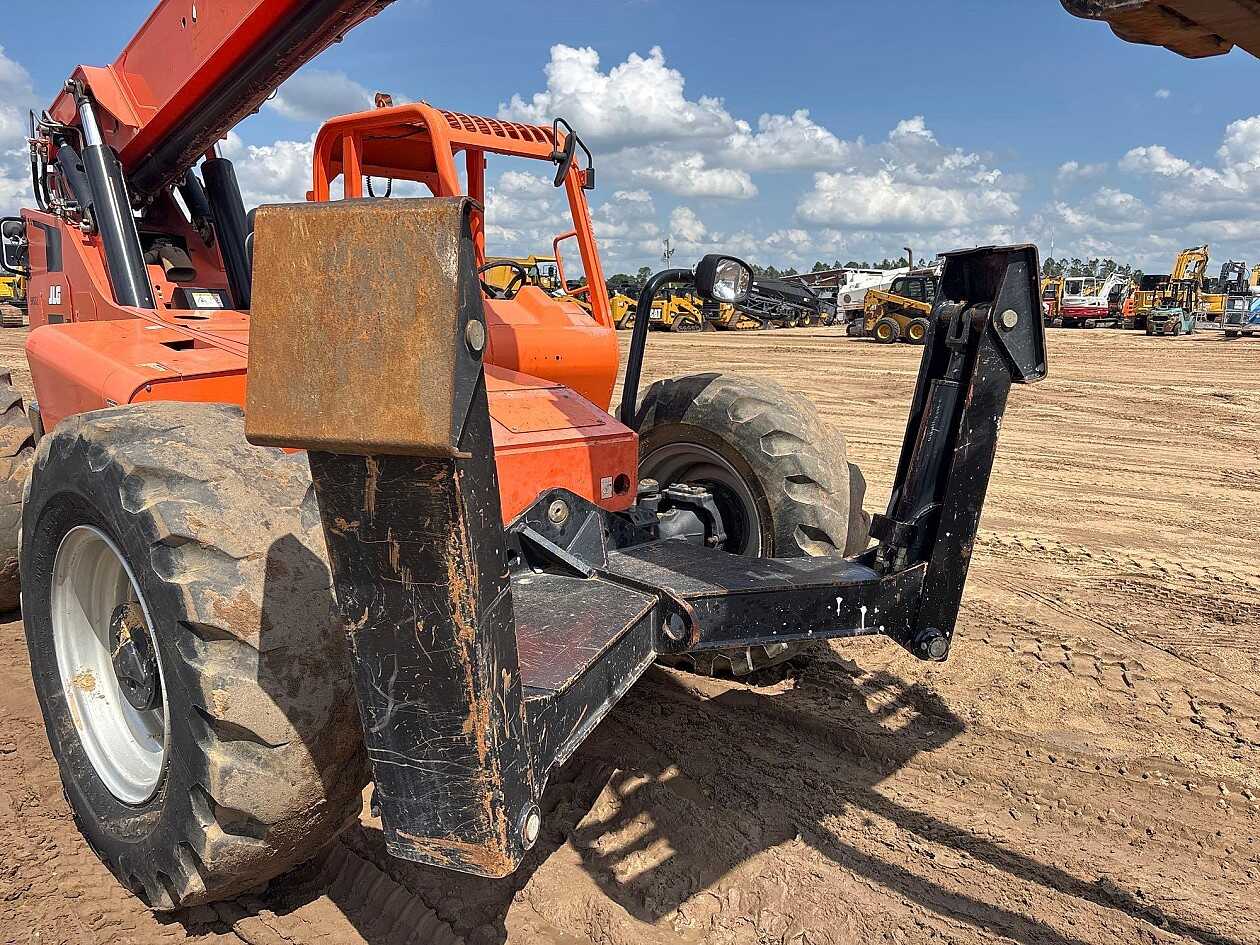

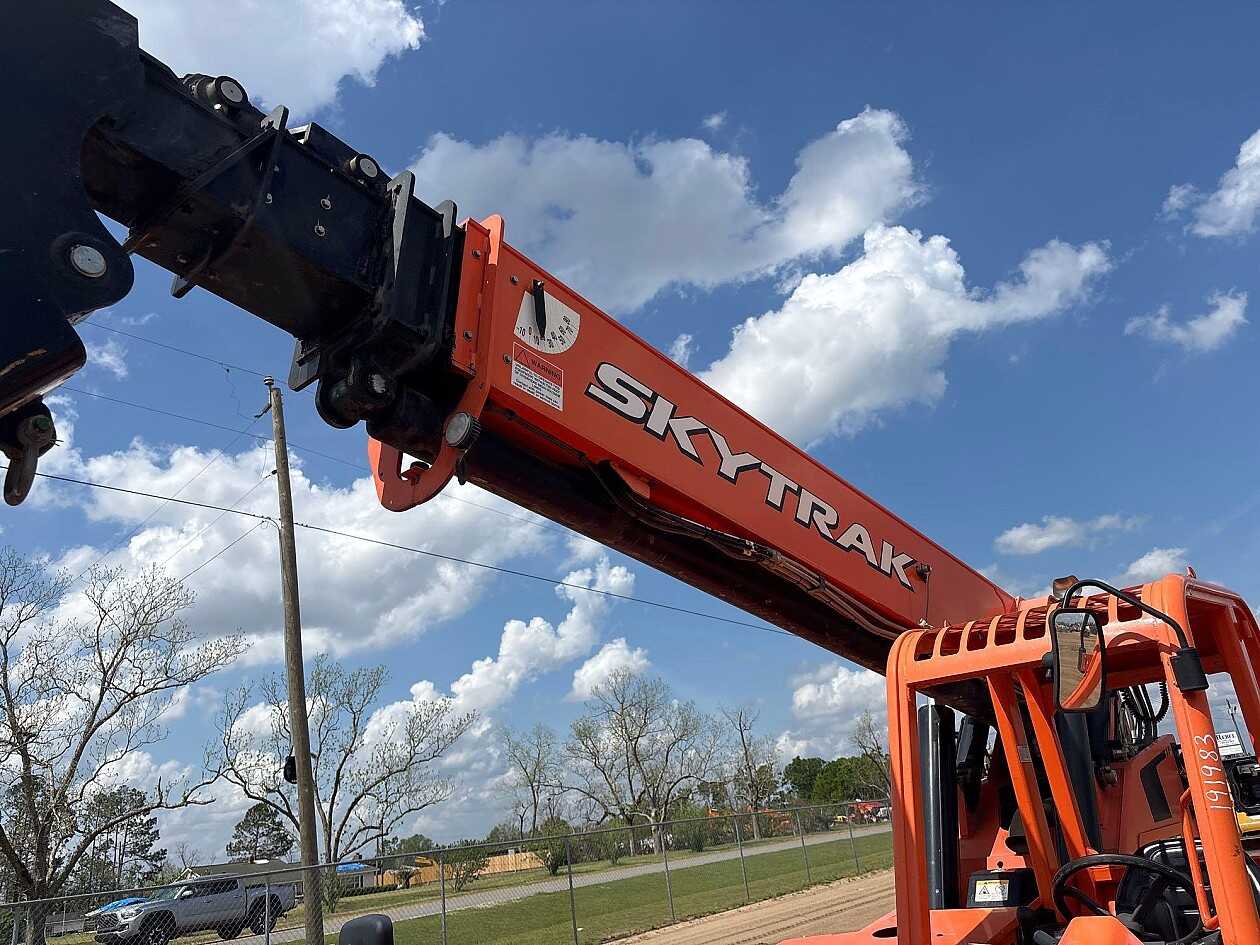

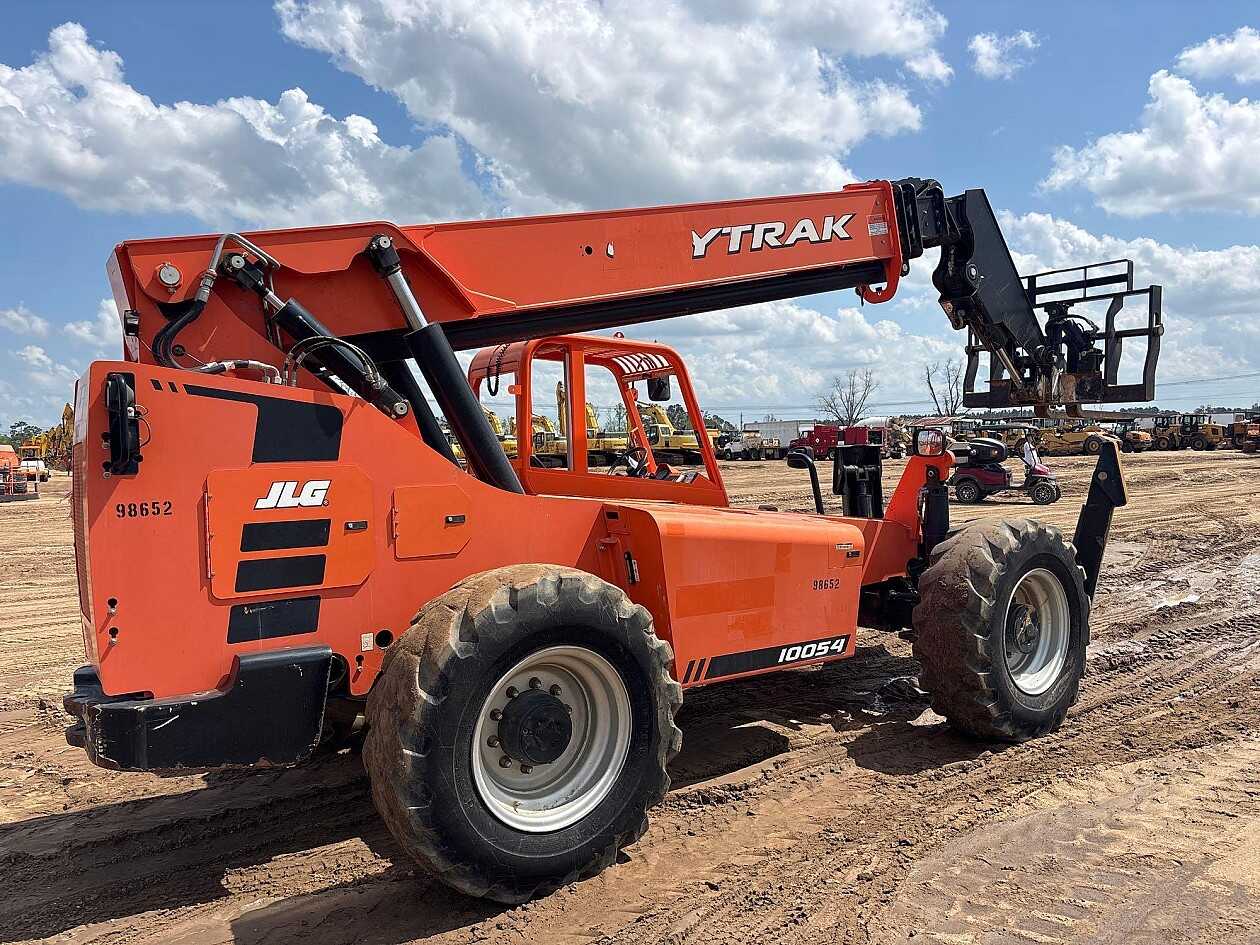

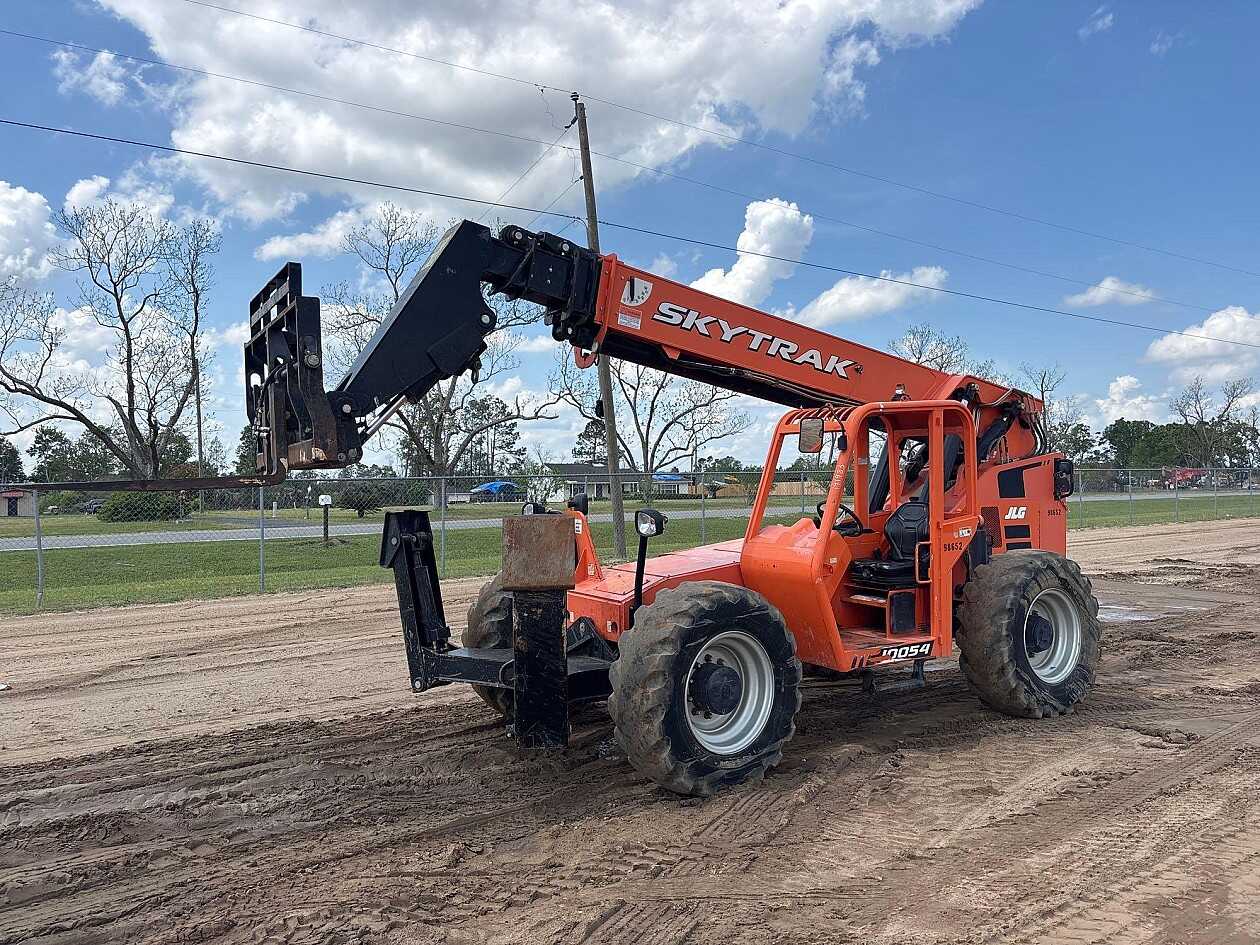

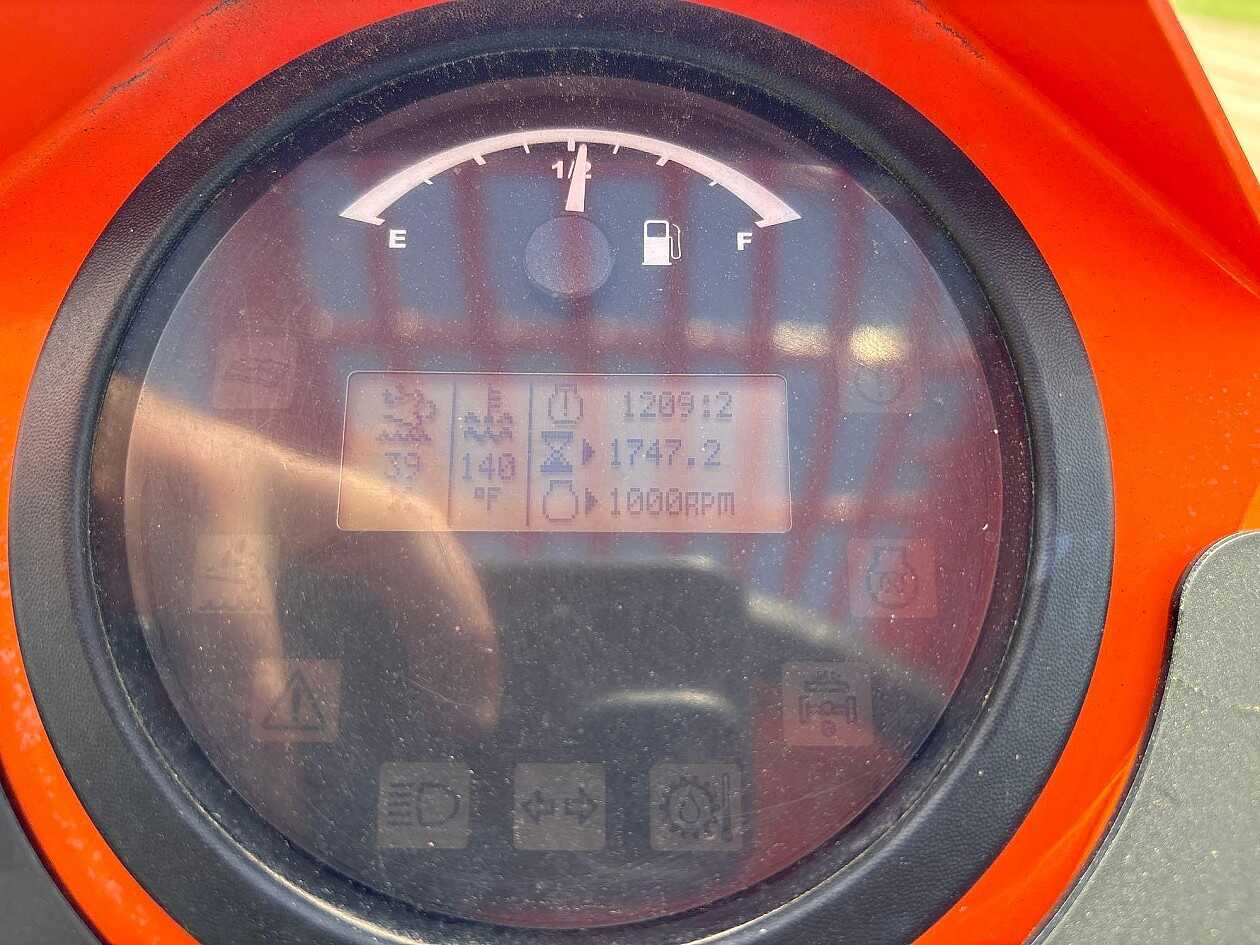

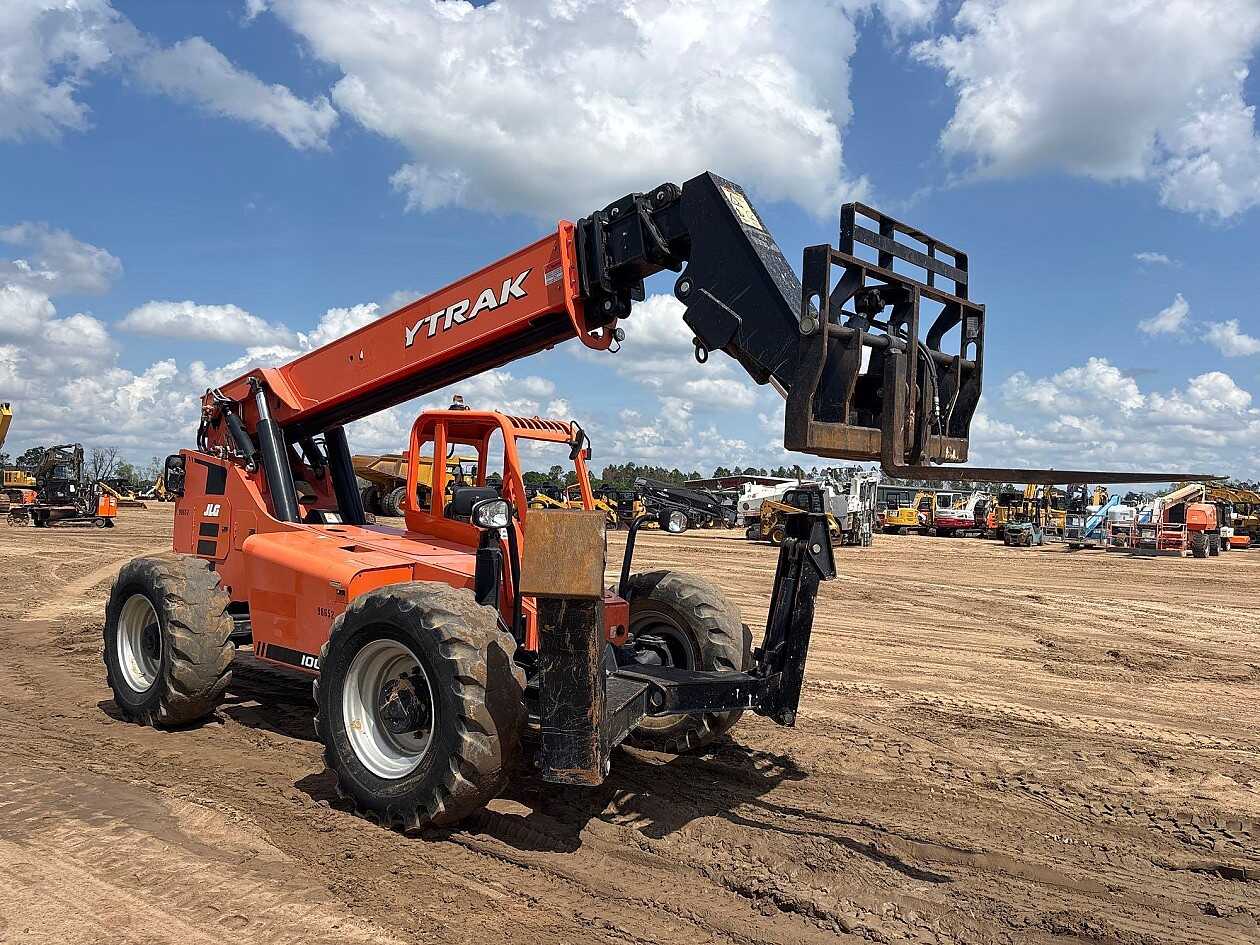

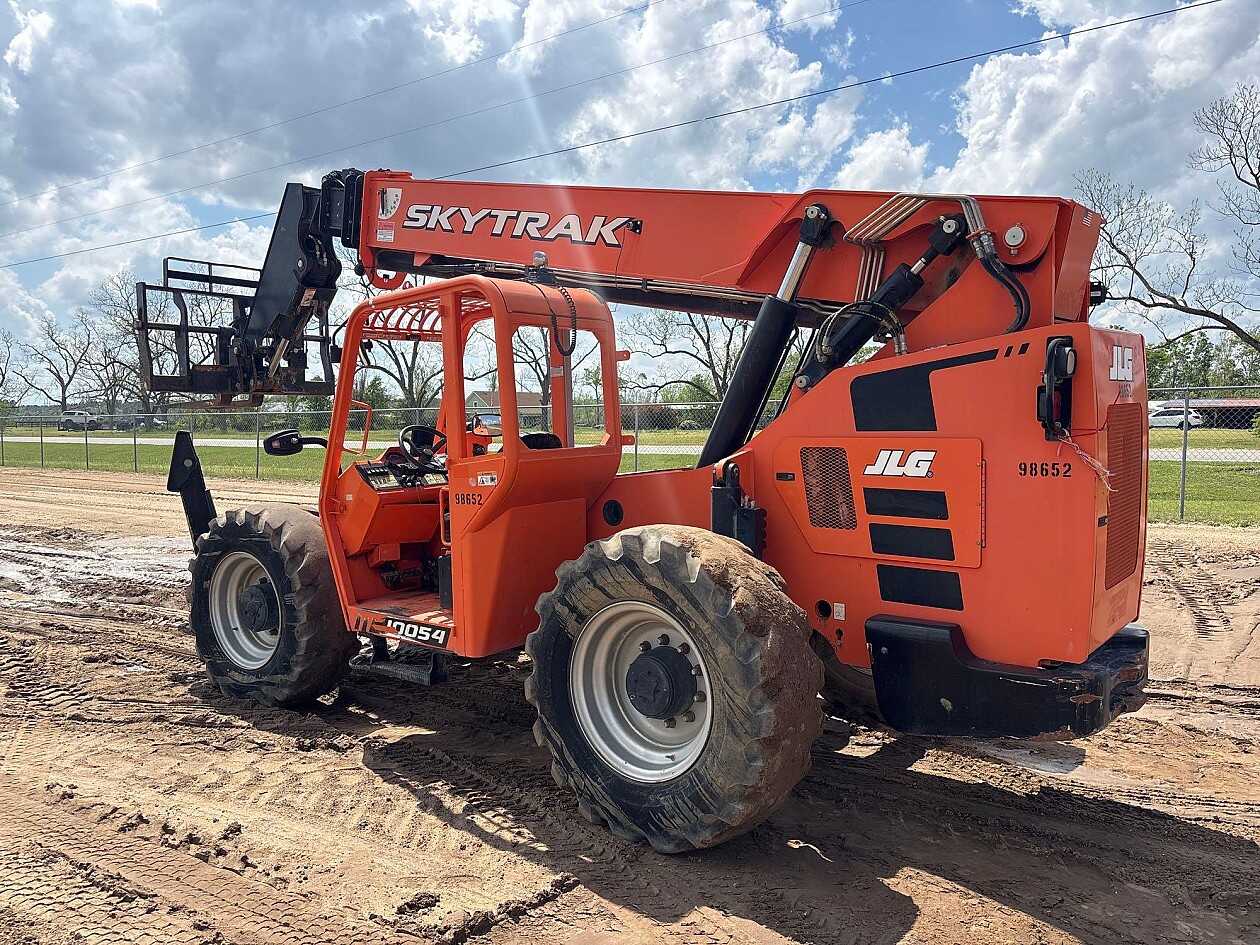

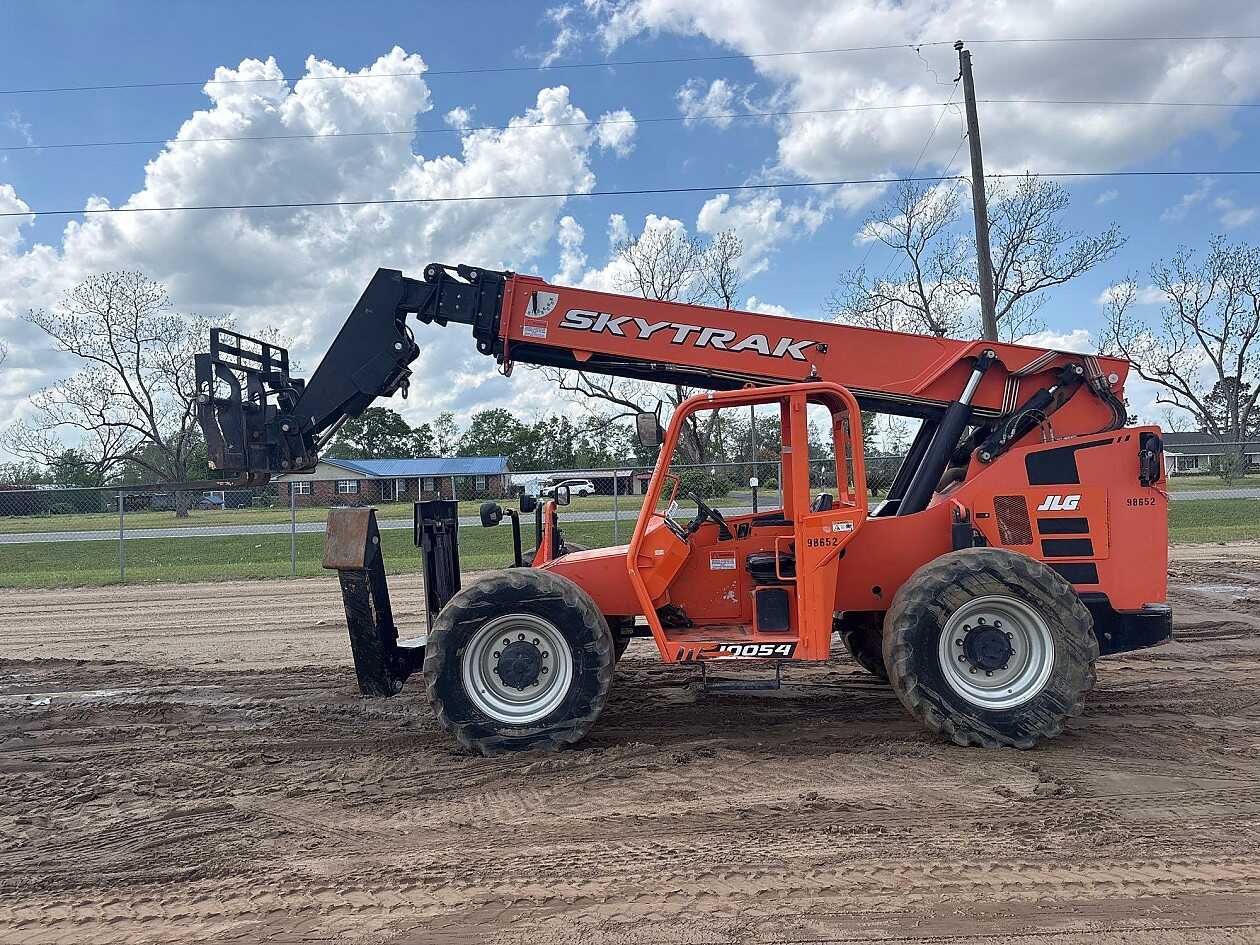

OROPS, TELESCOPIC BOOM W/ 48″ FORKS, OUTRIGGERS, SN- 0160098652 (HRS SHOW – 1747)
SPECIFICATIONS
Performance
• Maximum Lift Capacity: 10,000 lbs (4,536 kg)
• Maximum Lift Height: 53 ft 2 in (16.21 m)
• Maximum Forward Reach: 38 ft 9 in (11.81 m)
• Lift Capacity at Full Height: 4,000 lbs (1,814 kg)
• Lift Capacity at Maximum Reach: 1,400 lbs (635 kg)
• Frame Leveling: ±10°
• Drawbar Pull: 24,500 lbs (11,113 kg)
• Maximum Travel Speed: 20 mph (32.19 km/h)
Dimensions
• Overall Length (to Fork Face): 21 ft (6.4 m)
• Overall Width: 8 ft 6 in (2.59 m)
• Overall Height: 8 ft 4 in (2.54 m)
• Wheelbase: 10 ft (3.04 m)
• Ground Clearance: 1 ft 6 in (0.46 m)
• Outside Turning Radius: 13 ft 9 in (4.19 m)
Engine
• Manufacturer: Cummins
• Model: QSF3.8L (Tier 4 Final)
• Gross Power: 110 hp (82.06 kW)
• Maximum Engine RPM: 1,500 rpm
• Fuel Tank Capacity: 35 gal (132.49 L)
Hydraulic System
• System Type: Variable flow, load-sensing piston pump
• System Pressure: 3,100 psi (21,375 kPa)
• Hydraulic Reservoir Capacity: 60 gal (227 L)
Transmission
• Type: Powershift
• Forward Gears: 4
• Reverse Gears: 3
Axles
• Front Axle: High-bias limited slip
• Rear Axle: Oscillating
Brakes
• Service Brakes: Wet multi-disc
Tires

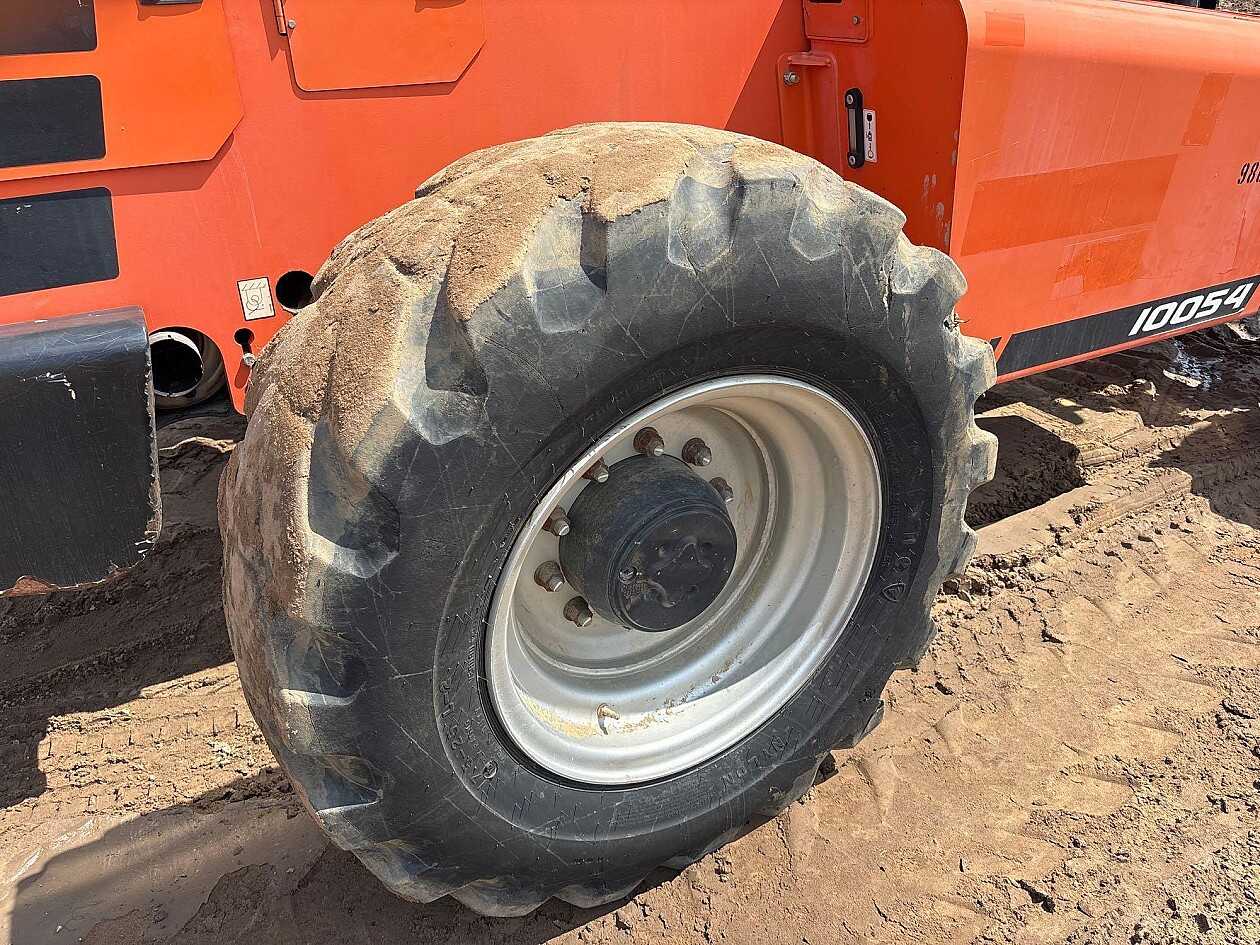

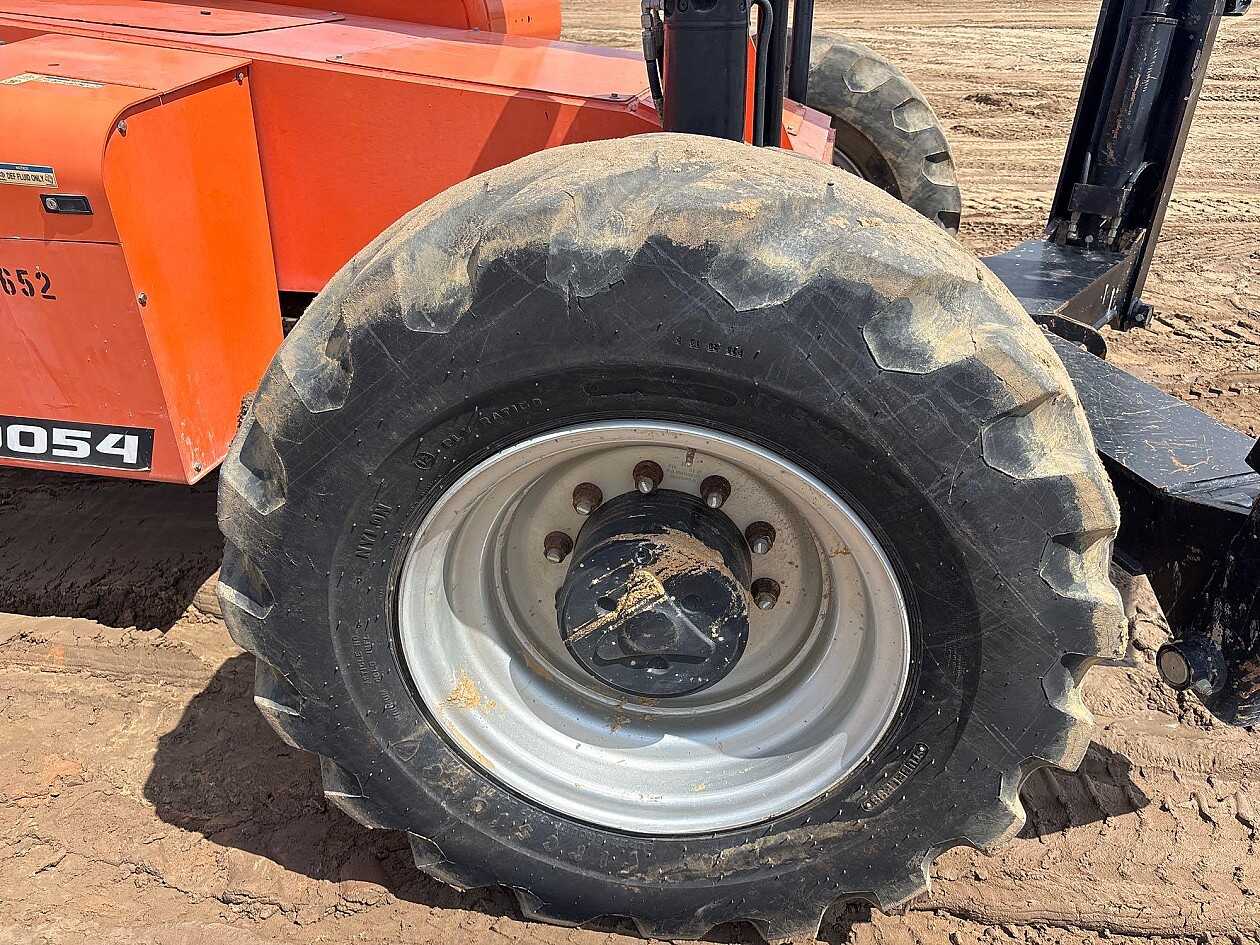

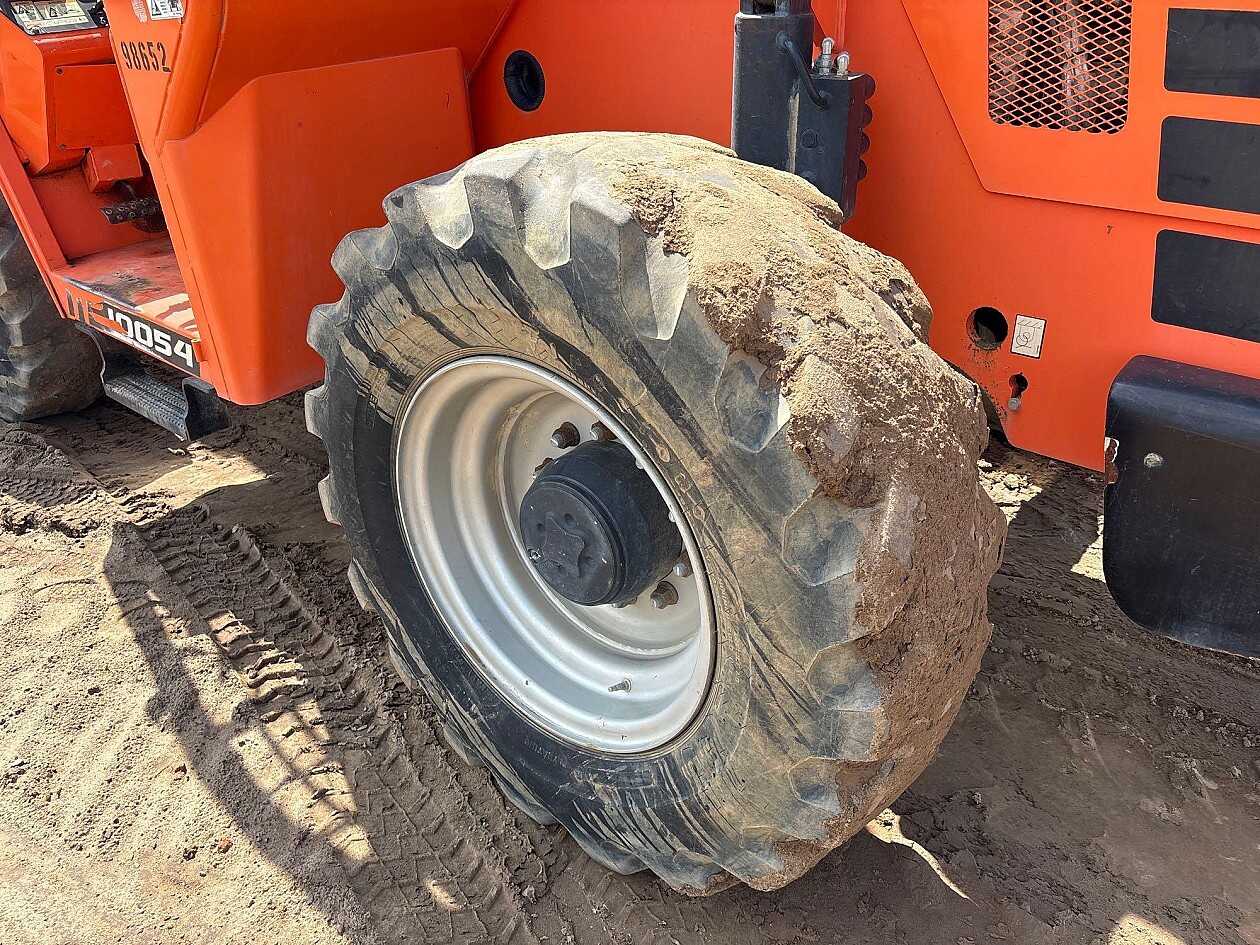

• Size: 400/75-28
Features

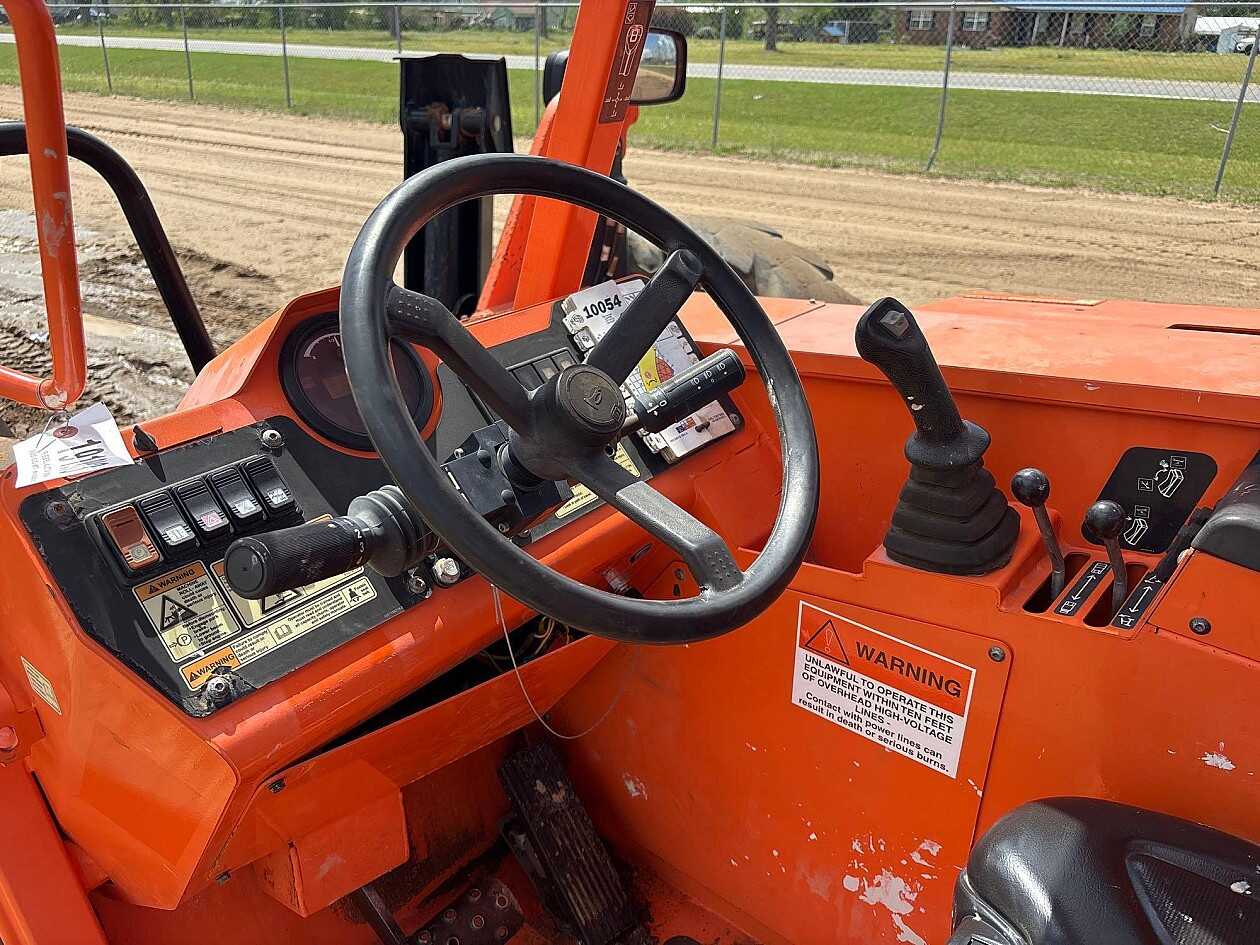

• Single Joystick & Integrated Armrest: Reduces operator fatigue
• Optional Air Conditioning: Enhances comfort in cab
• Stabil-Trak Rear Axle Stabilization: Improves load placement confidence
• Optional 74 hp Engine Variant: Tier 4 Final compliant, no DEF required
