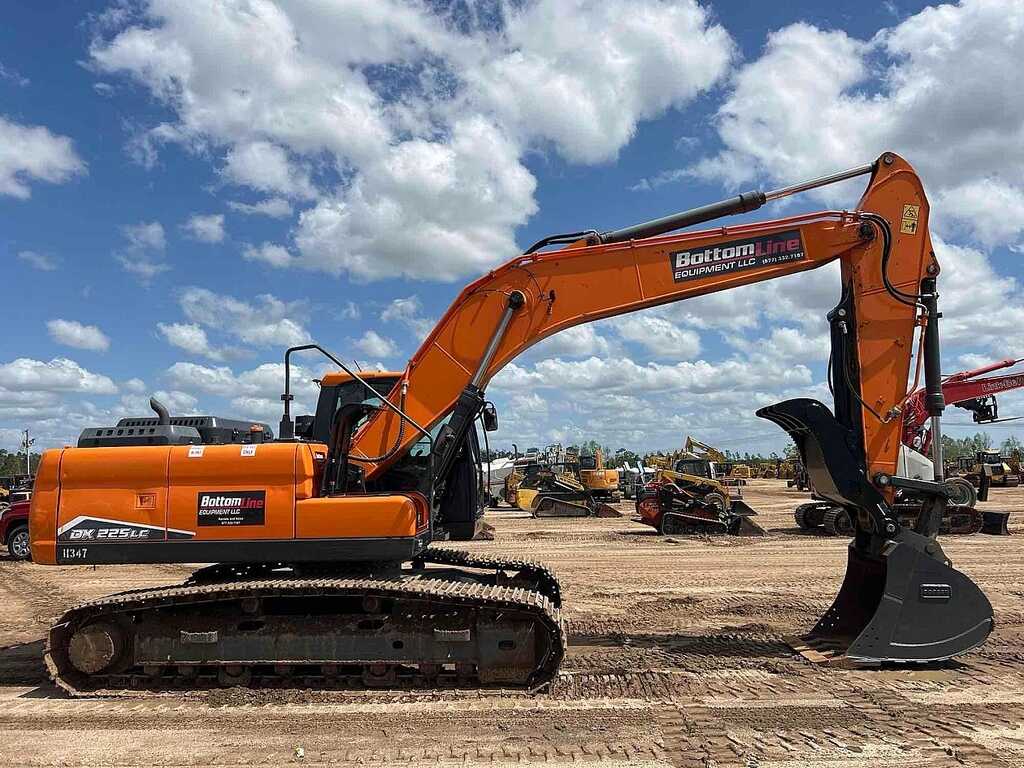

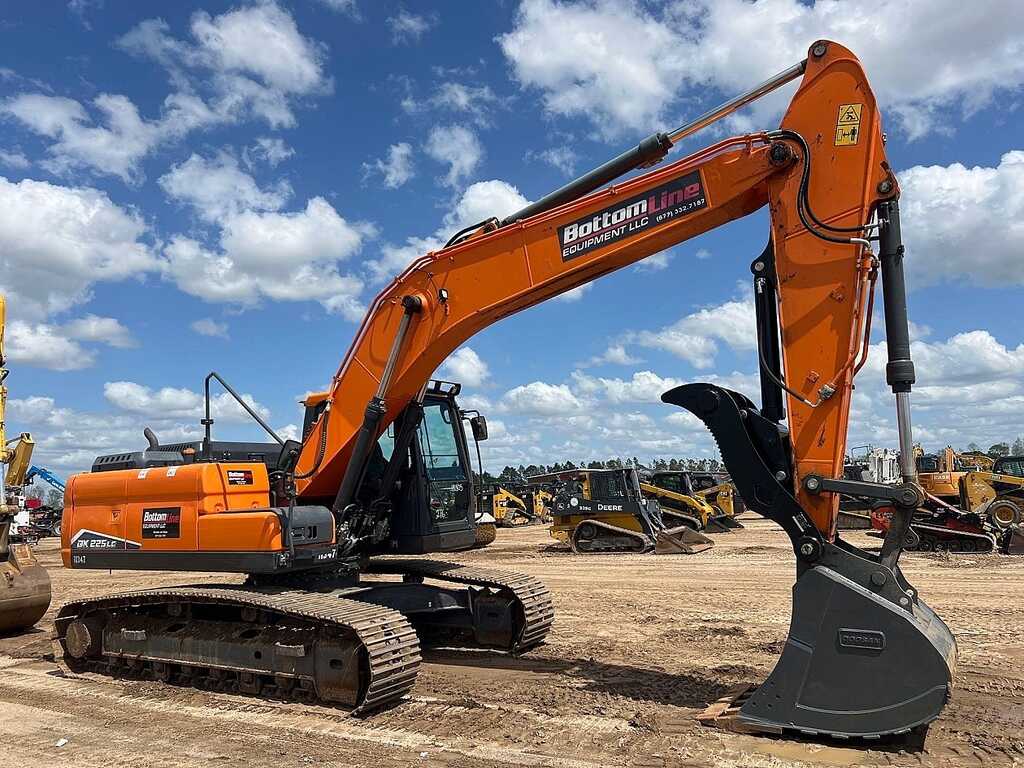

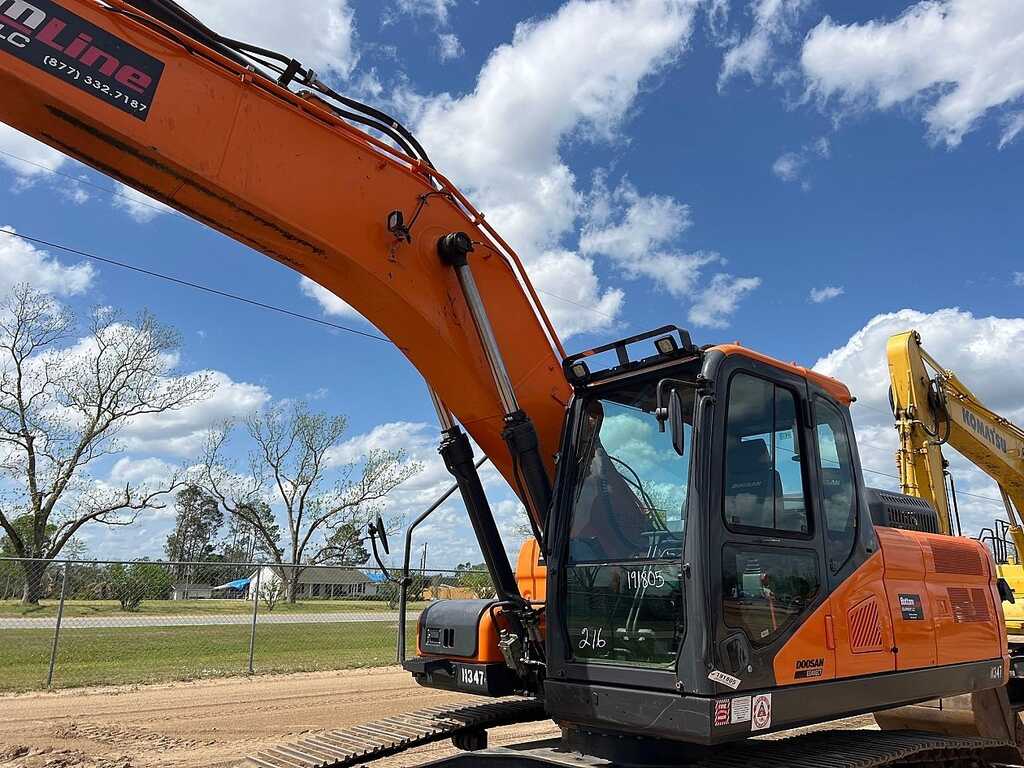

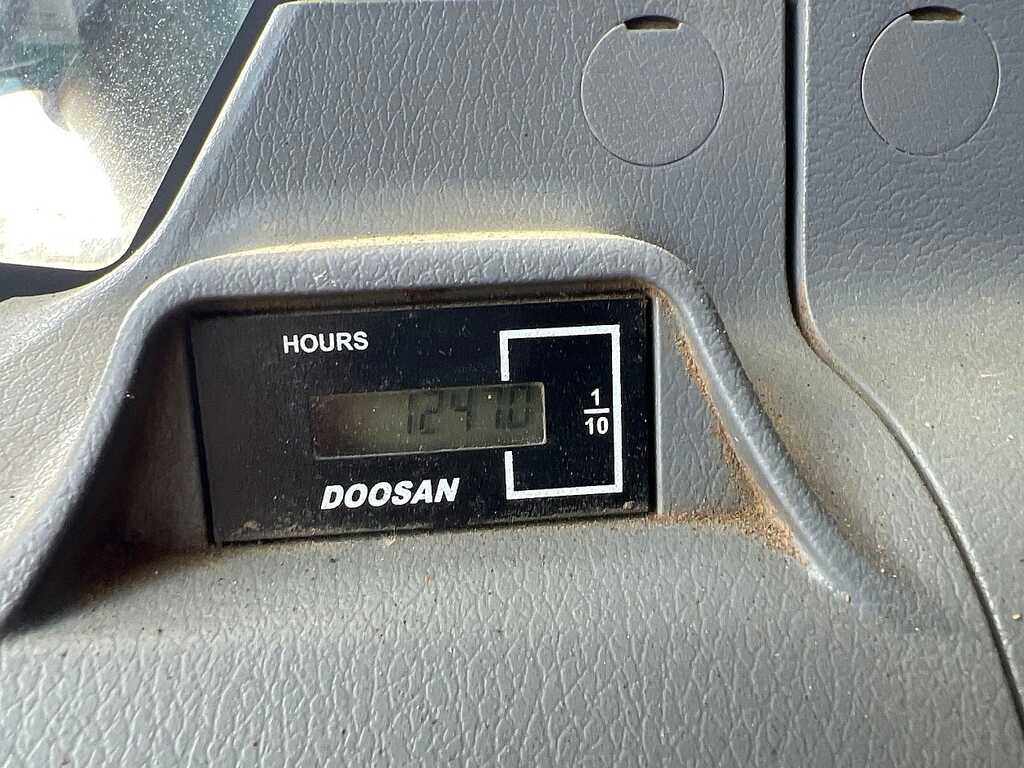

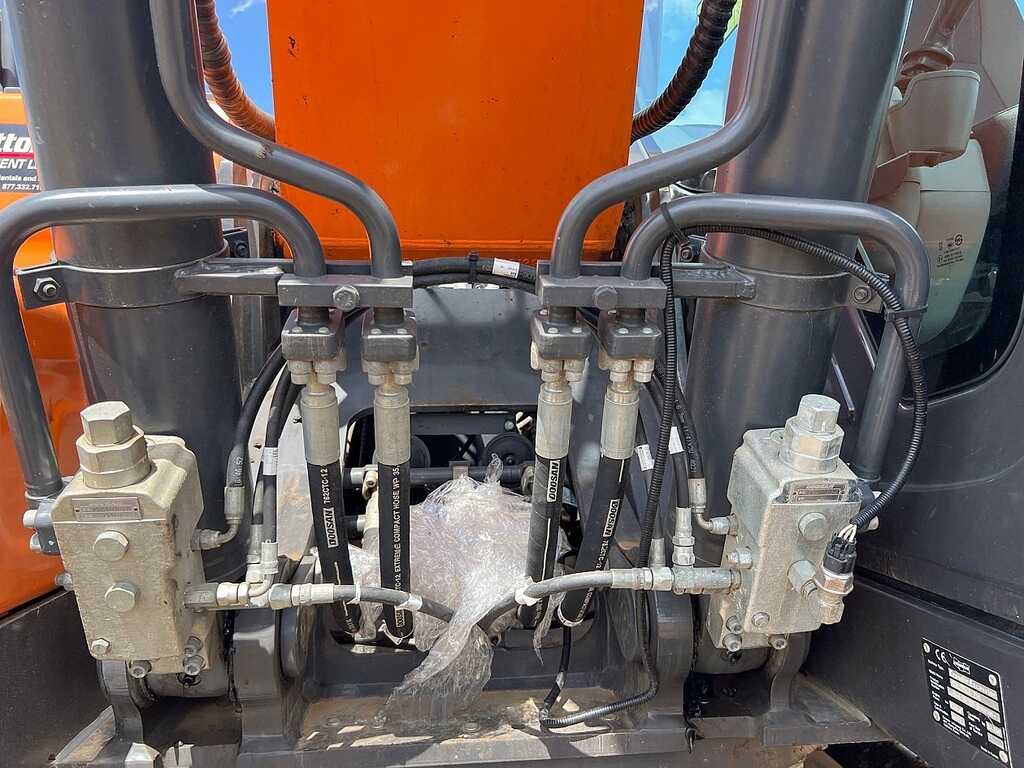

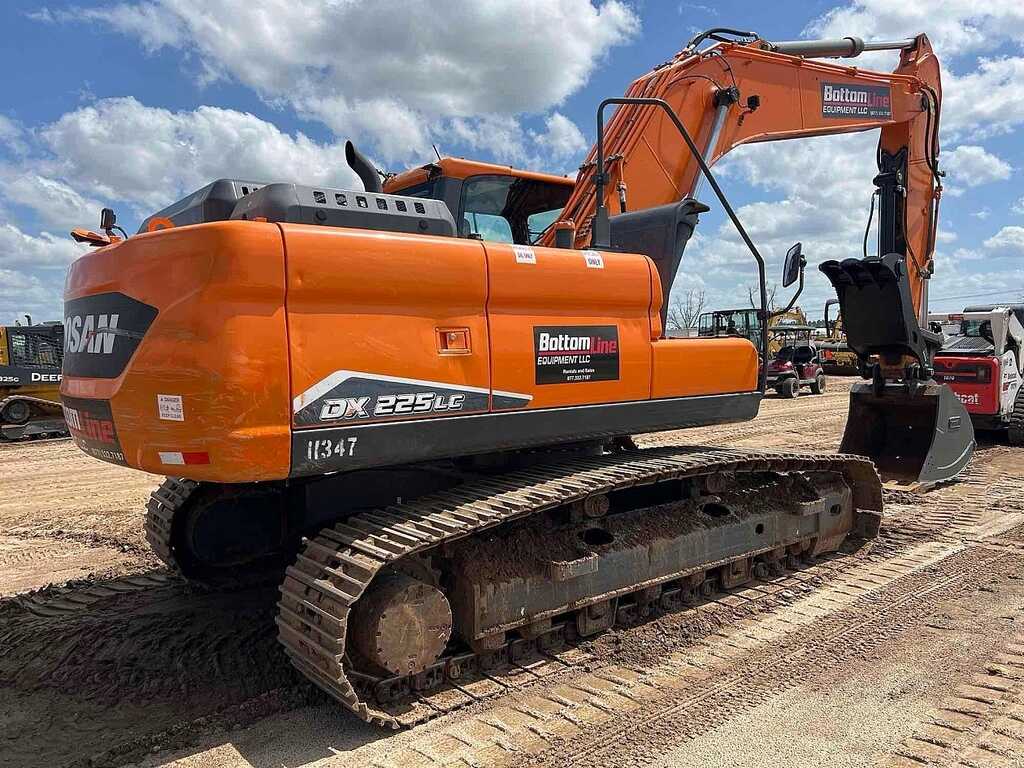

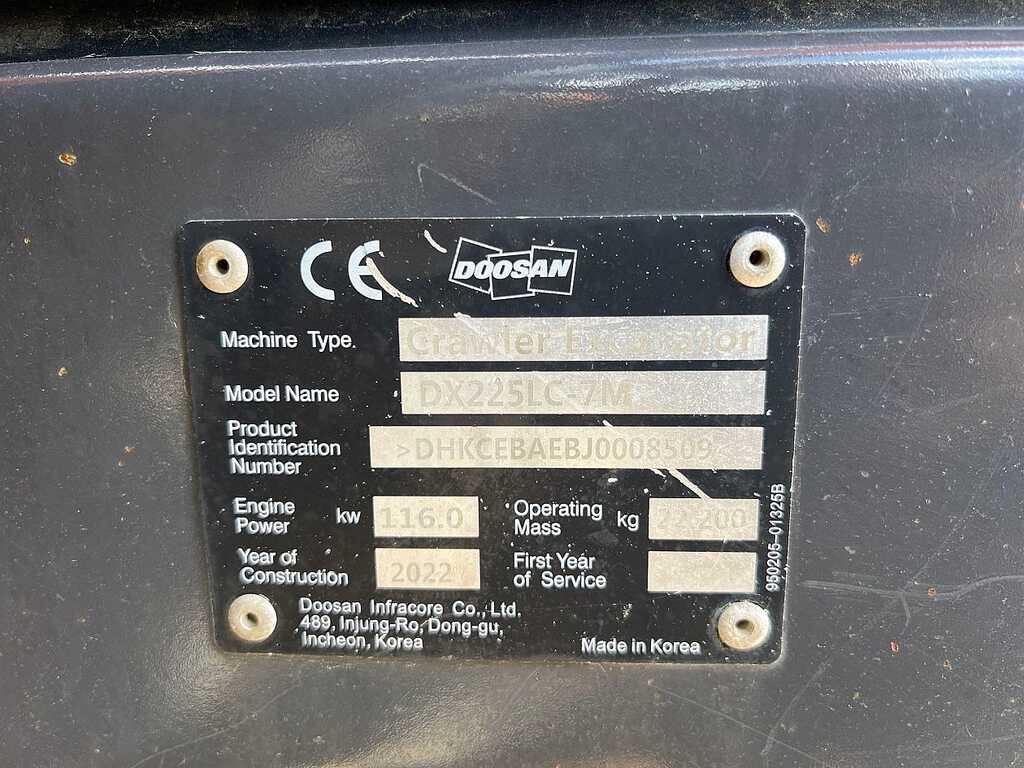

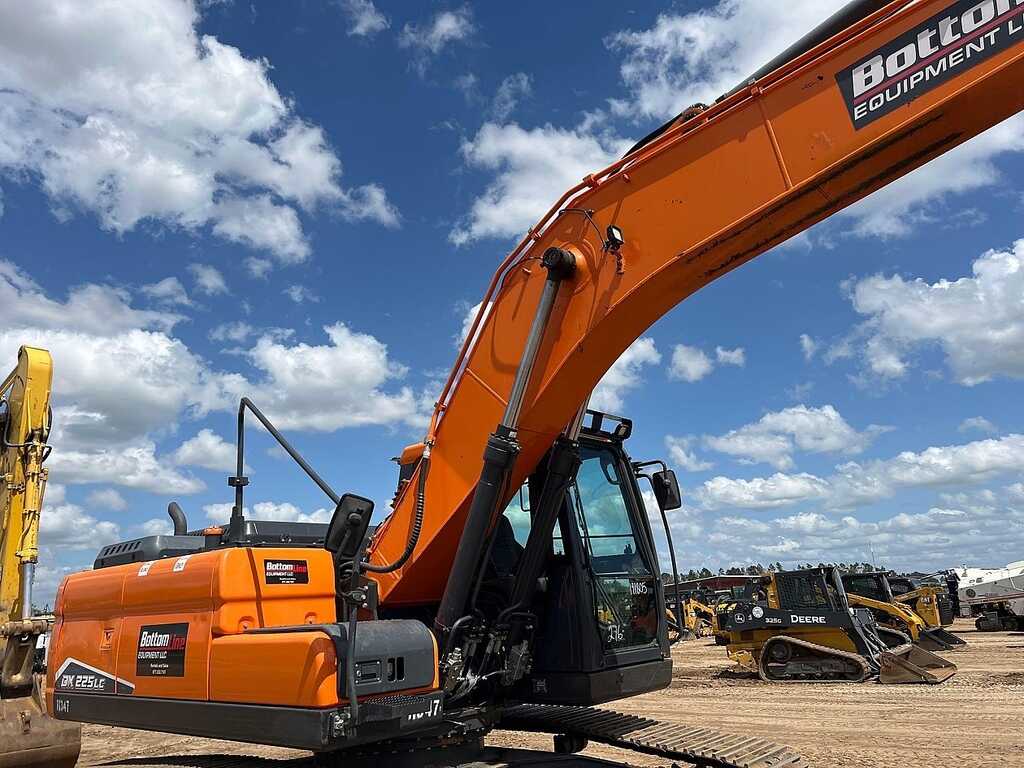

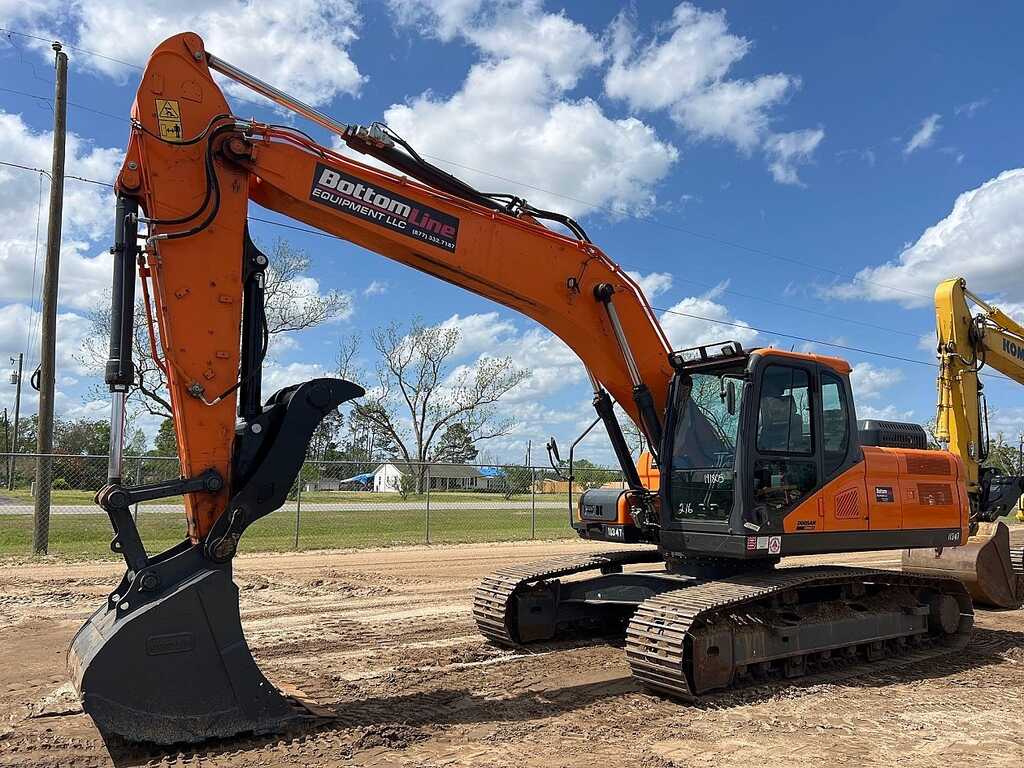

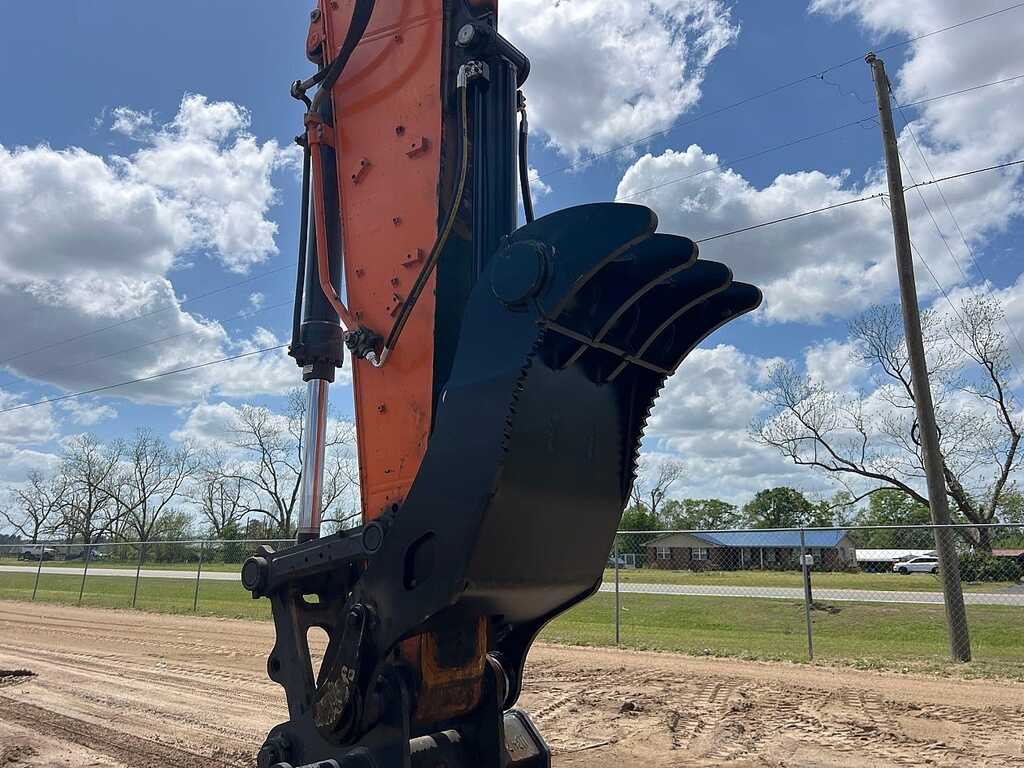

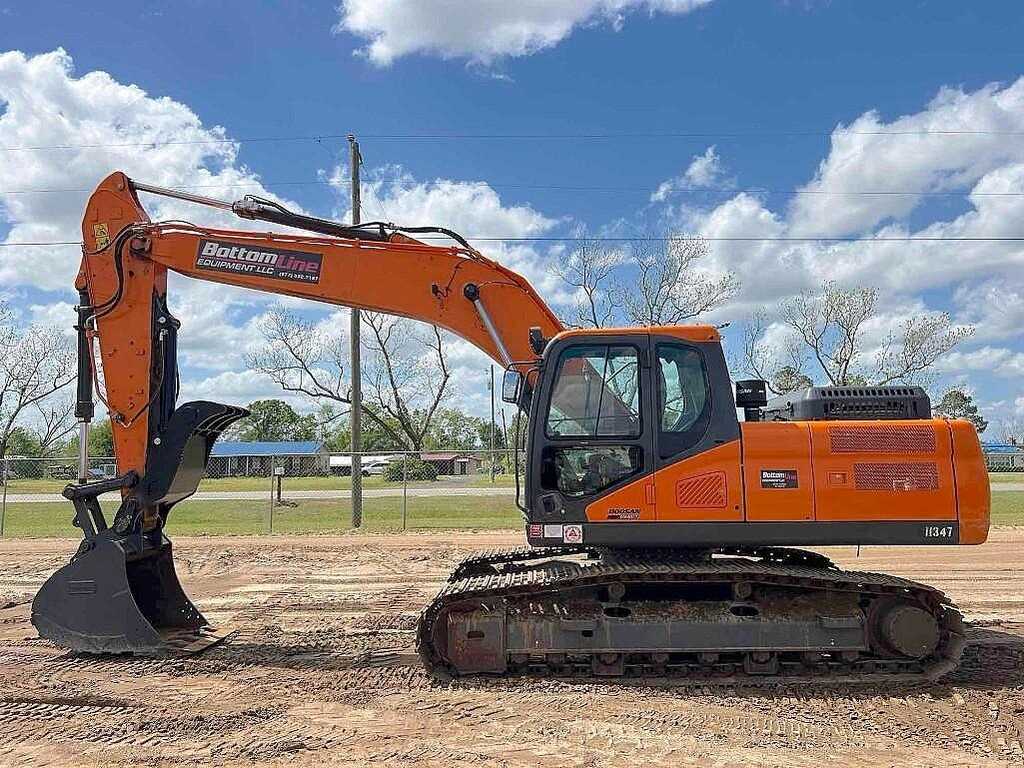

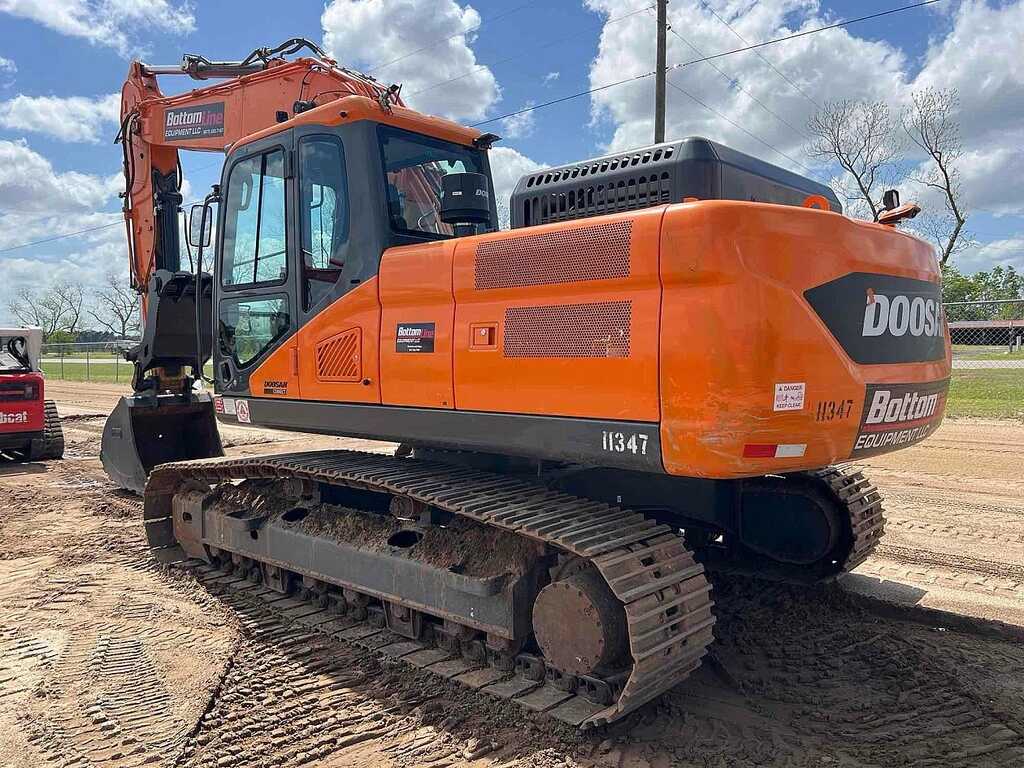

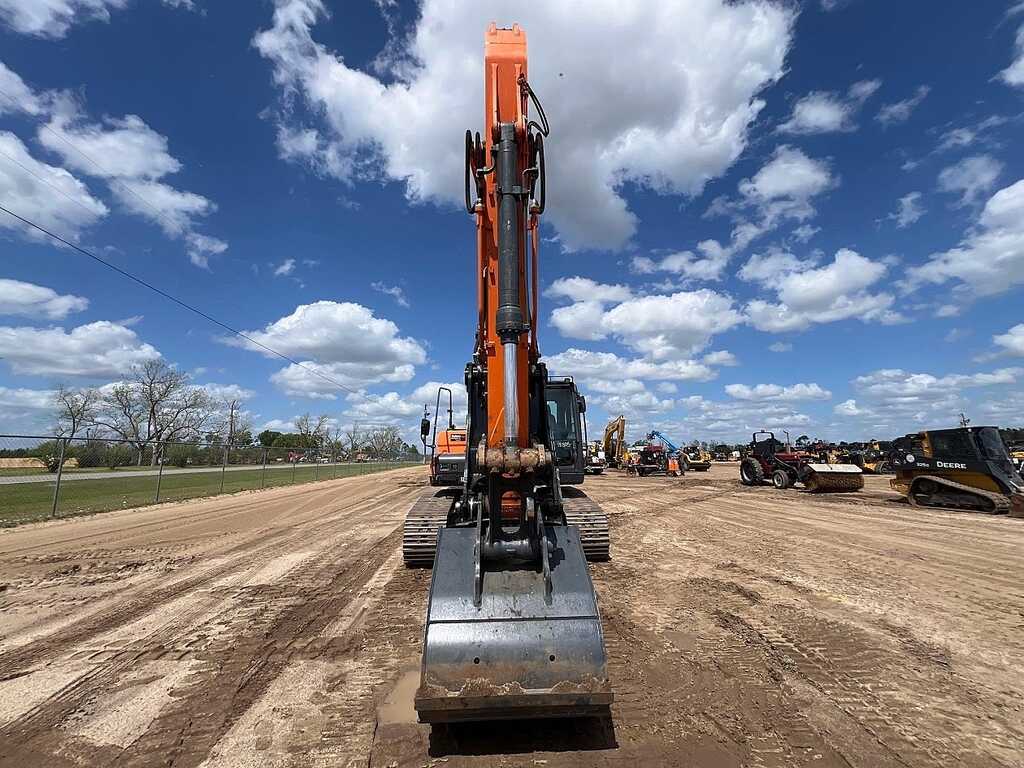

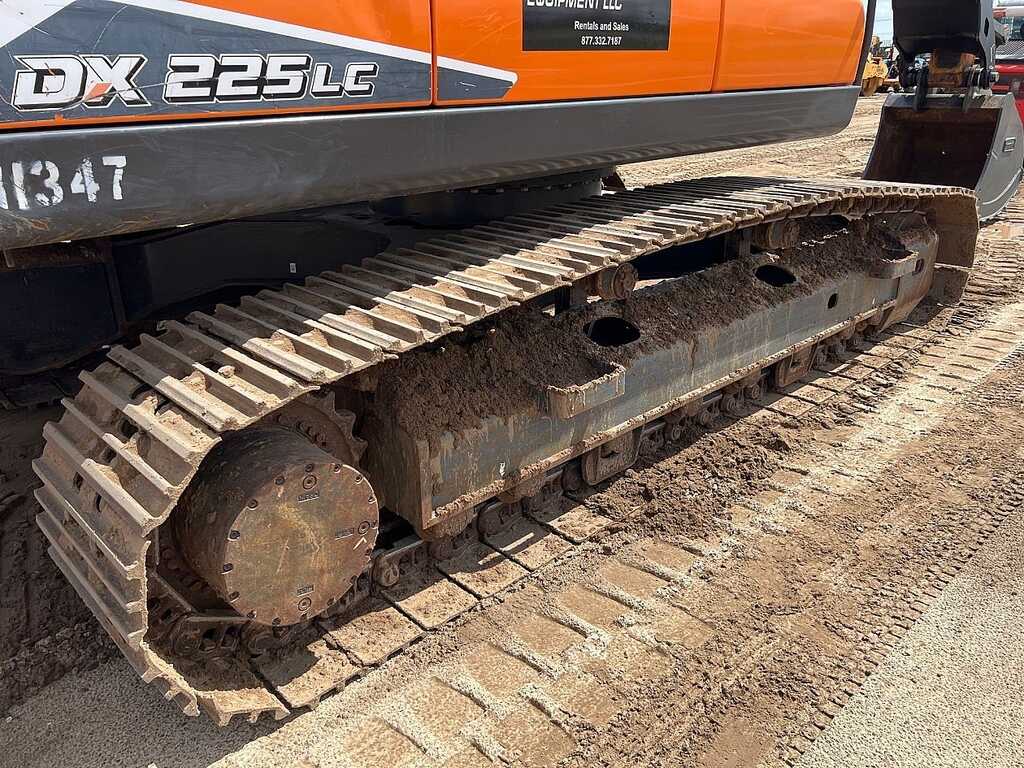

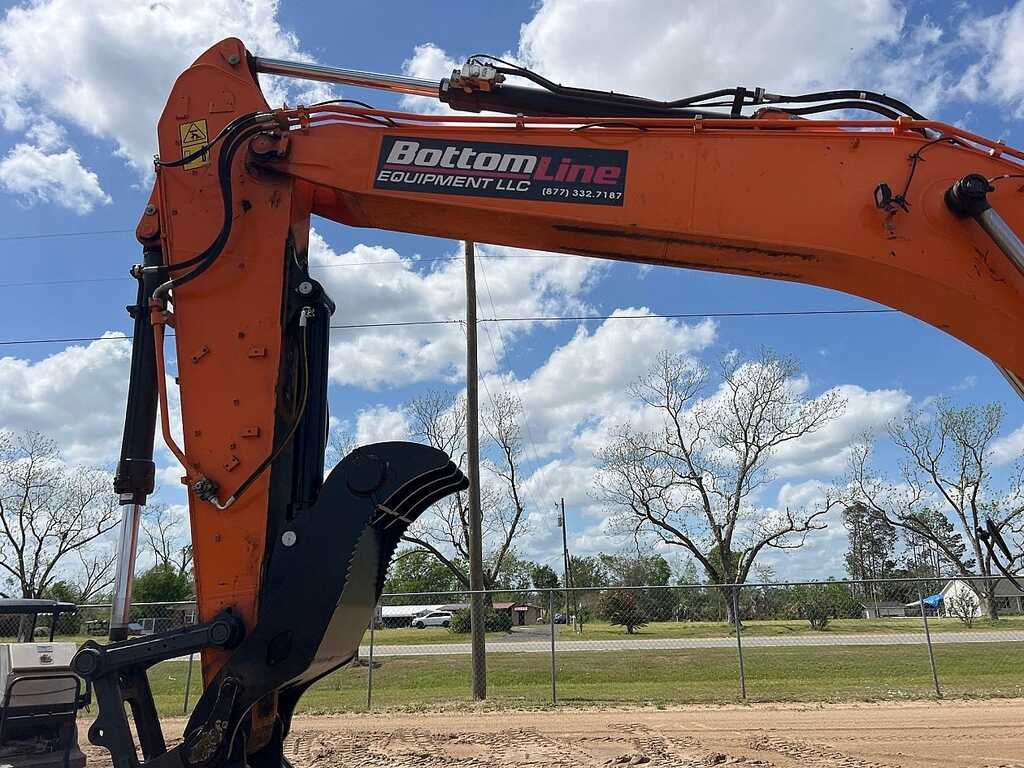

EROPS, AUX HYD, 39″ BUCKET W/ HYD THUMB, 24″ METAL TRACKS, SN- DHKCEBAEBJ0008509 (HRS SHOW – 1246)

Engine & Powertrain

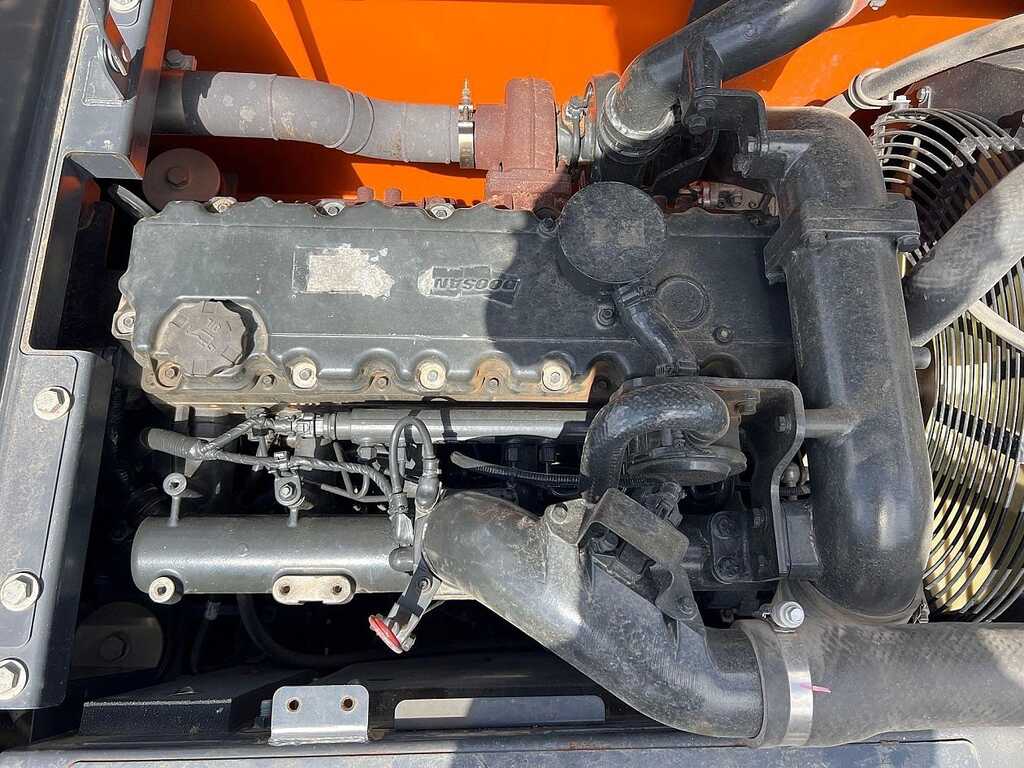

Engine Model: Doosan DL06
Cylinders: 6
Displacement: 359 cu in (5.9 L)
Gross Power: 155 hp
Net Power: 148 hp
Rated Speed: 1,900 rpm
Max Torque: 492 lb-ft @ 1,400 rpm
Aspiration: Turbocharged with air-to-air intercooler
Electrical System: 24V, 50-amp alternator

Operating Weights & Capacities
Operating Weight: ~47,399 lb (21,500 kg)
Fuel Tank Capacity: 105.7 gal

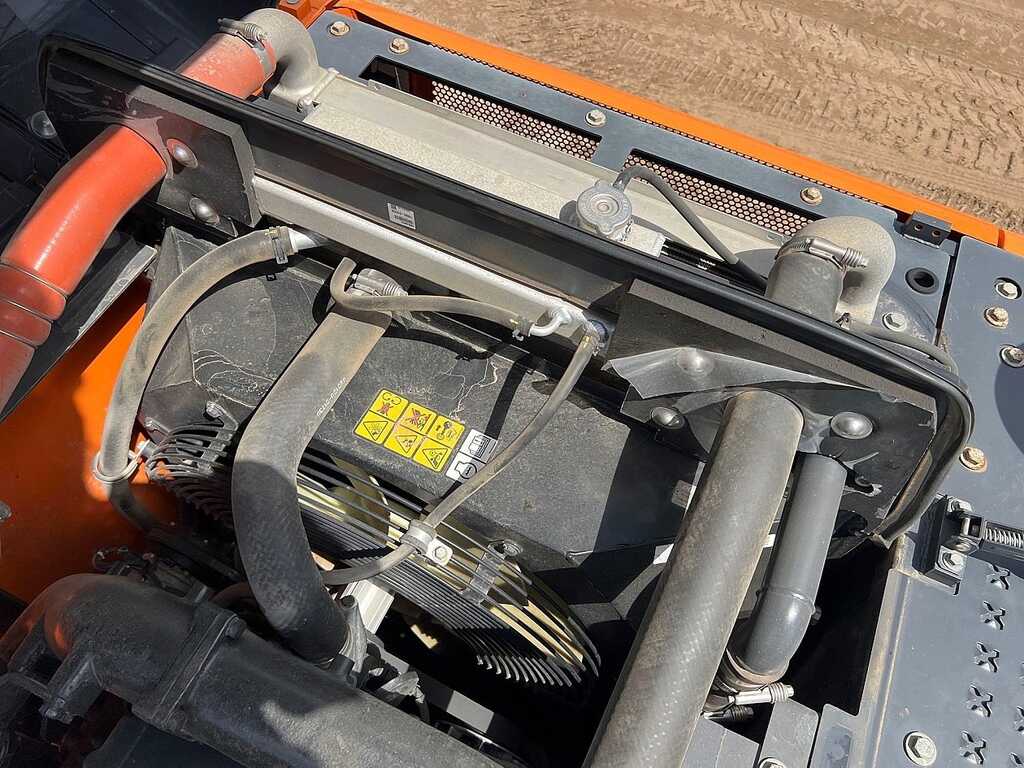

Cooling System Capacity: 6.4 gal
Hydraulic System Capacity: 87.2 gal
Engine Oil Capacity: 7.2 gal
Swing Drive Fluid Capacity: 1.4 gal

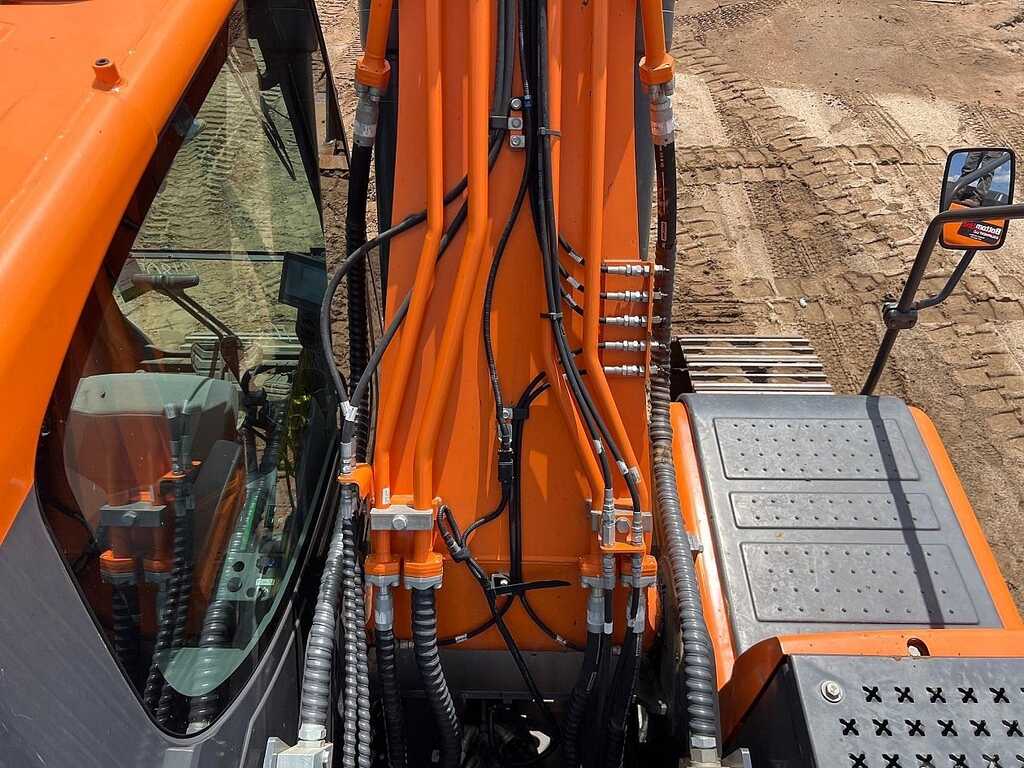

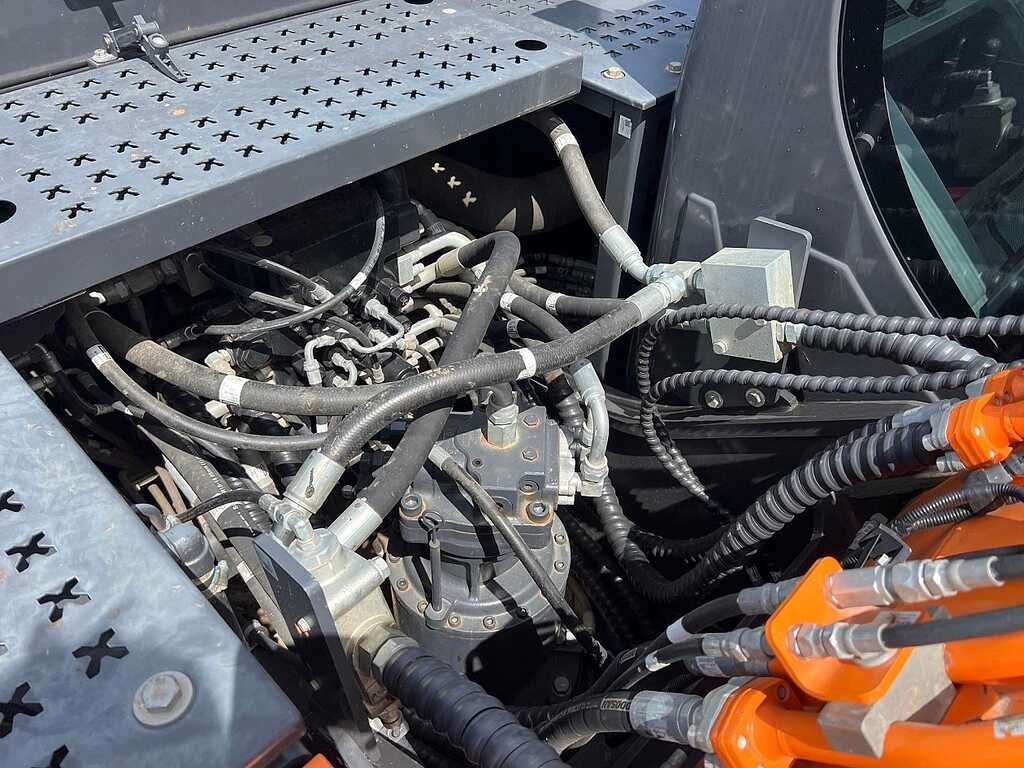

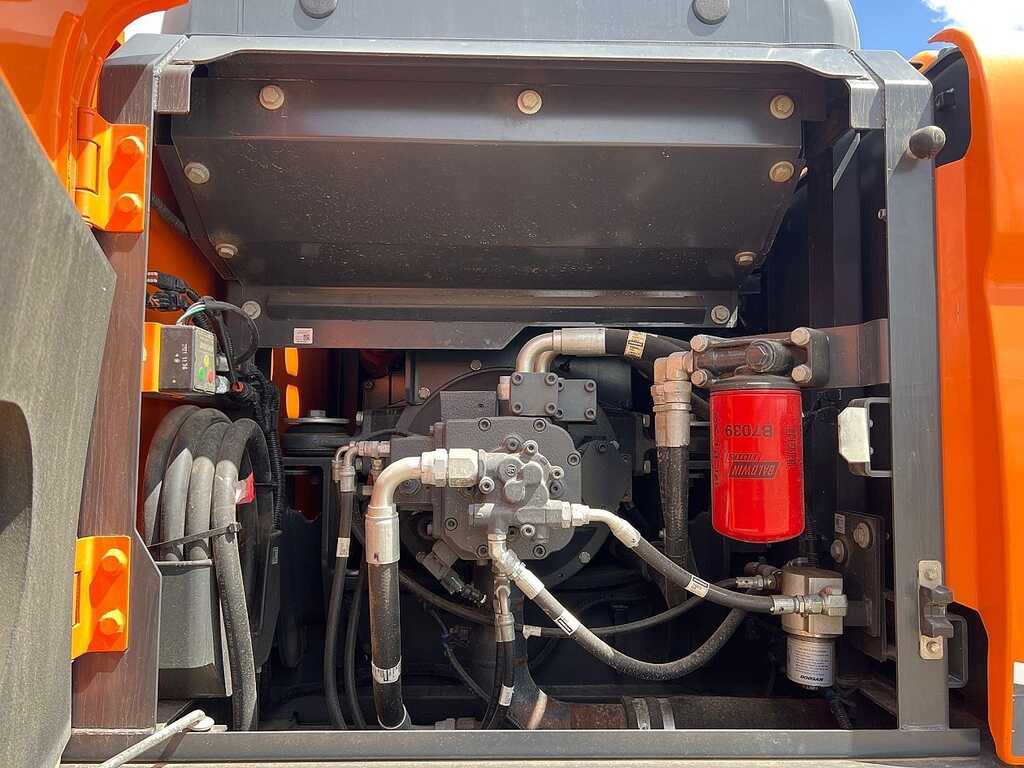

Hydraulic System
Relief Valve Pressure: 4,699 psi
Main Pump Flow: 109.2 gpm
System Type: Closed-center load-sensing system

Swing Mechanism
Swing Speed: 11 rpm

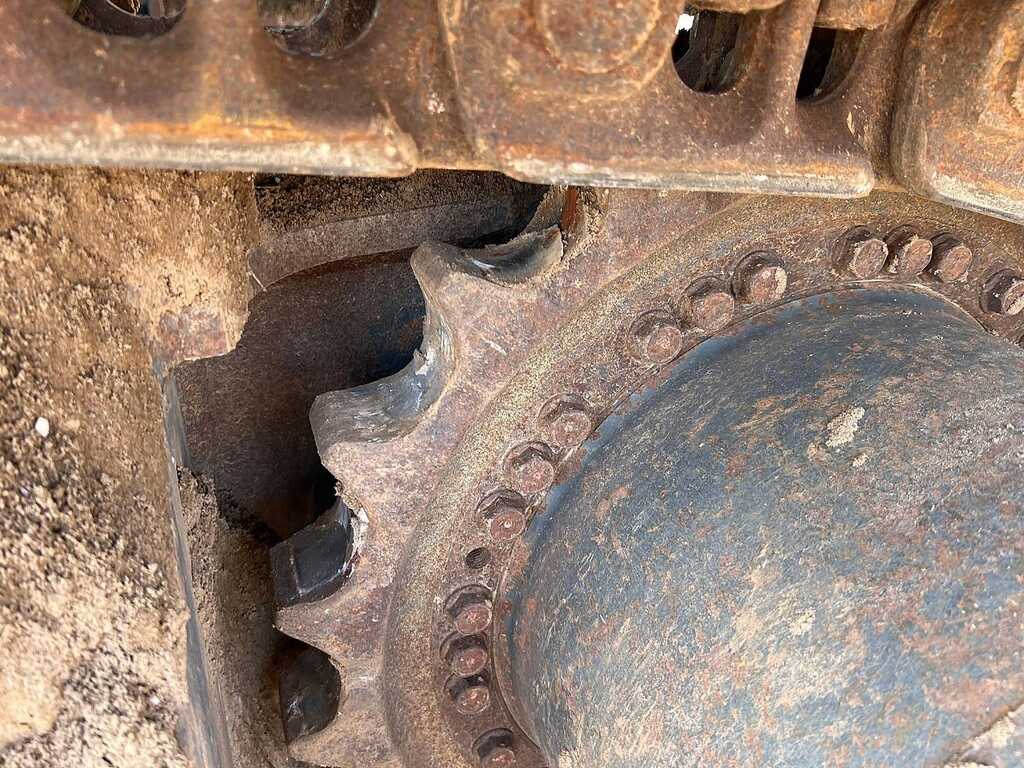

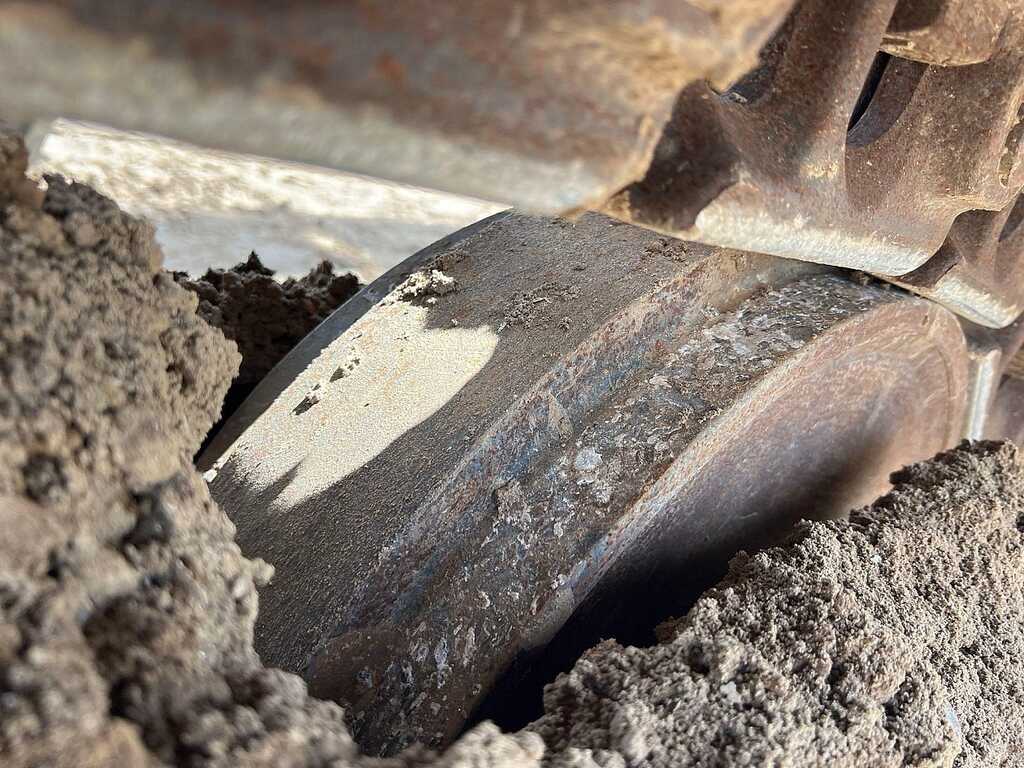

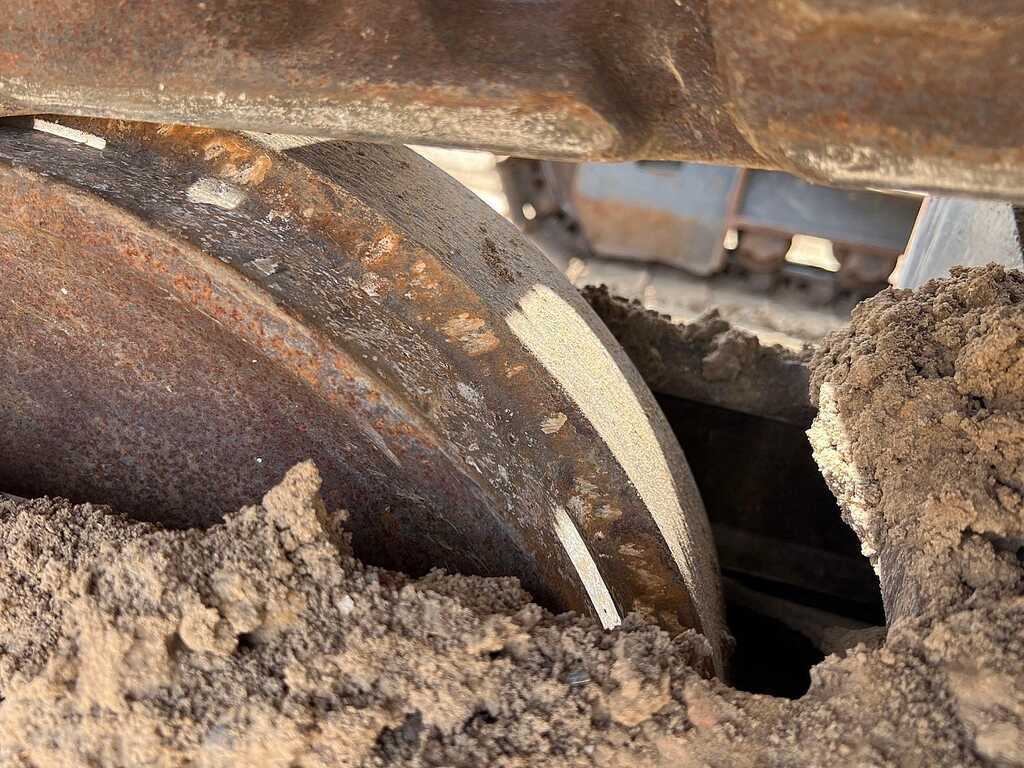

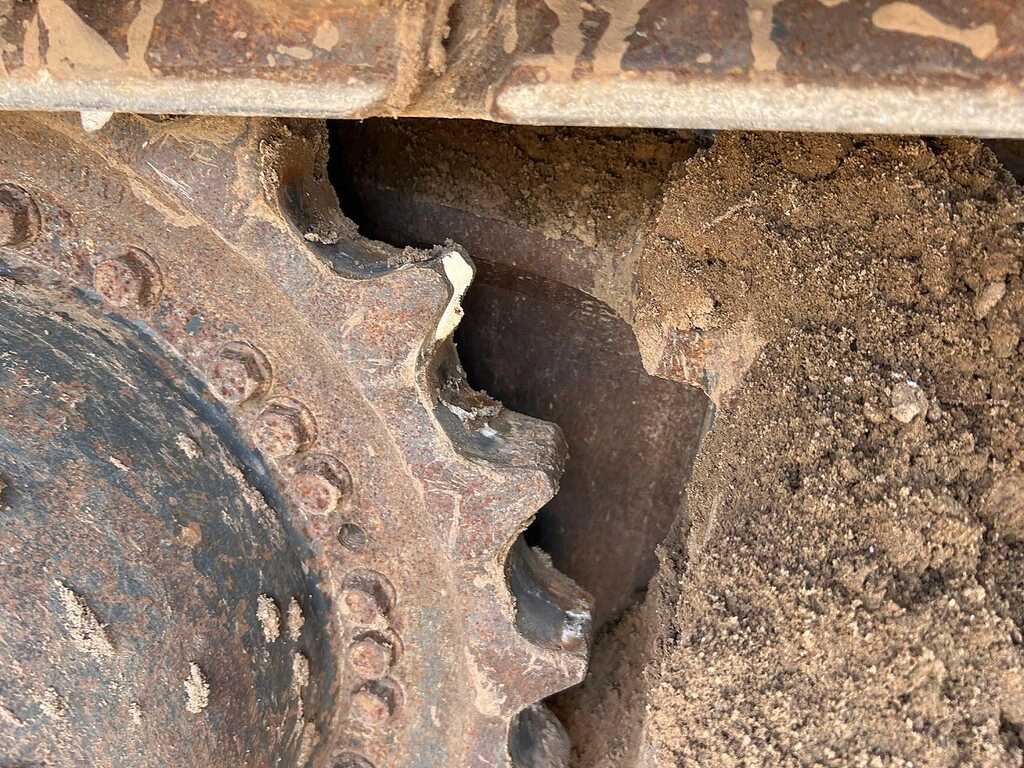

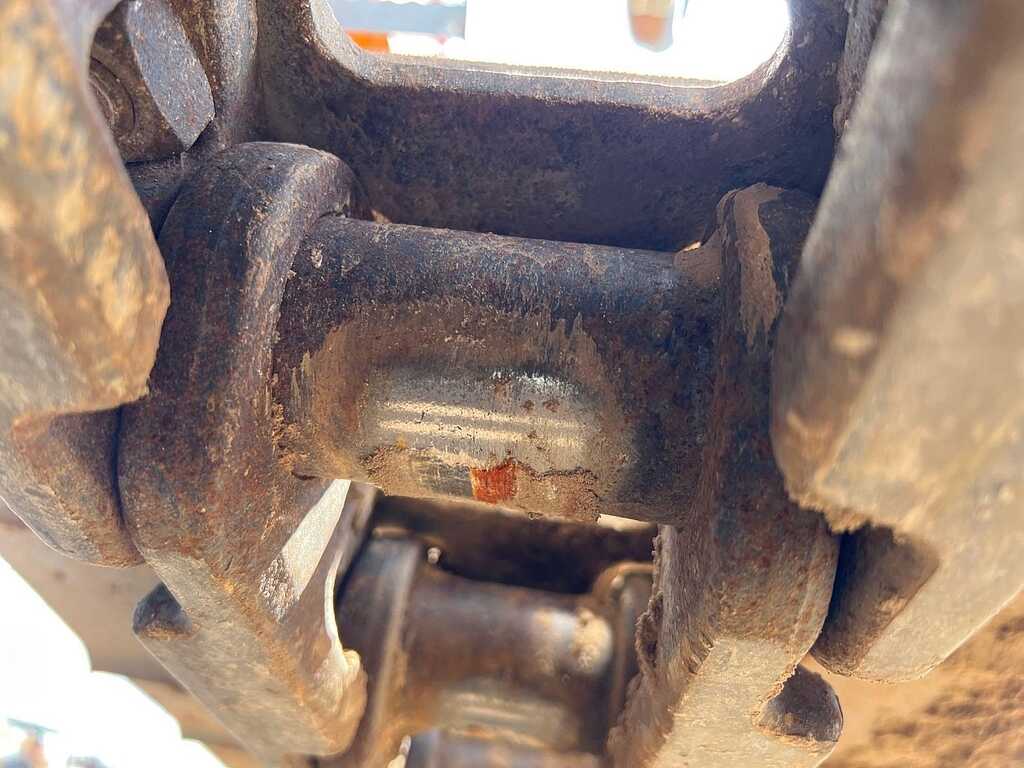

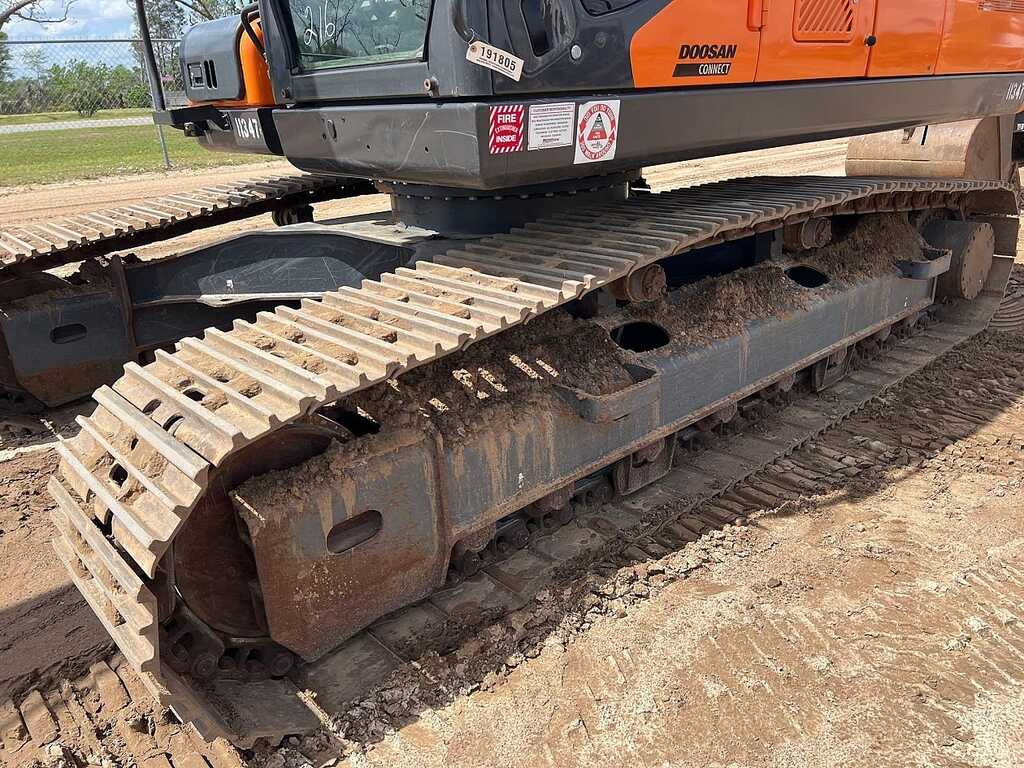

Undercarriage & Dimensions
Ground Clearance: 1.58 ft
Cab Height: 9.77 ft
Tail Swing Radius: 9.03 ft
Track Length on Ground: 11.98 ft
Track Shoe Width: 23.63 in
Track Gauge (Width): 9.81 ft

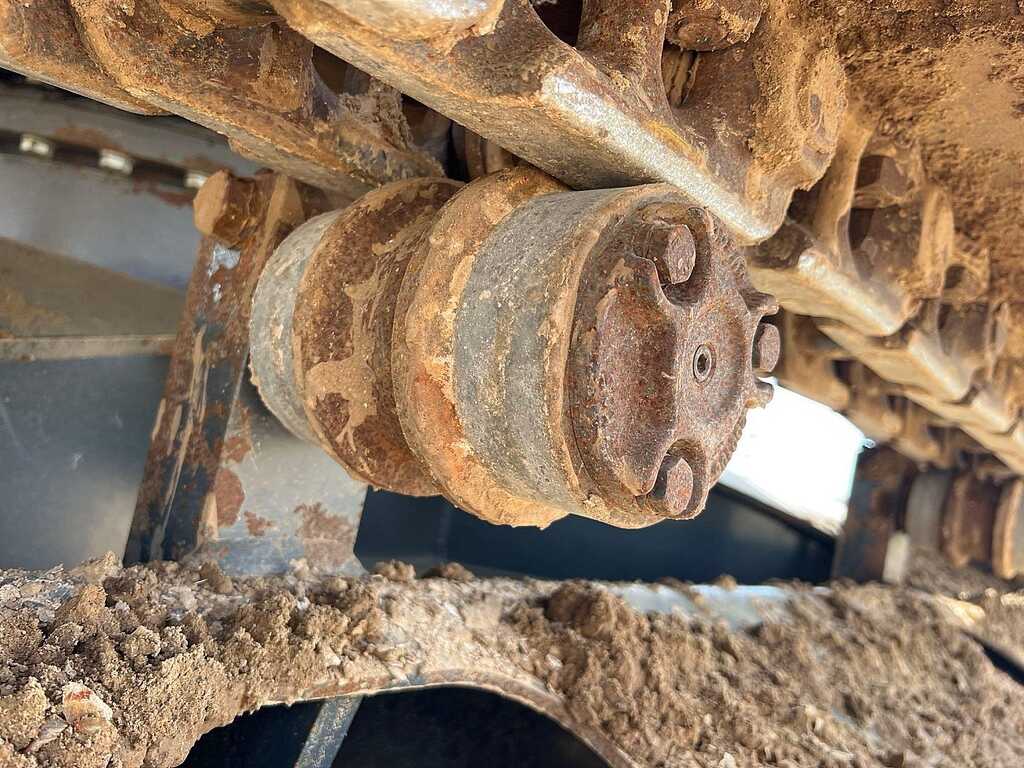

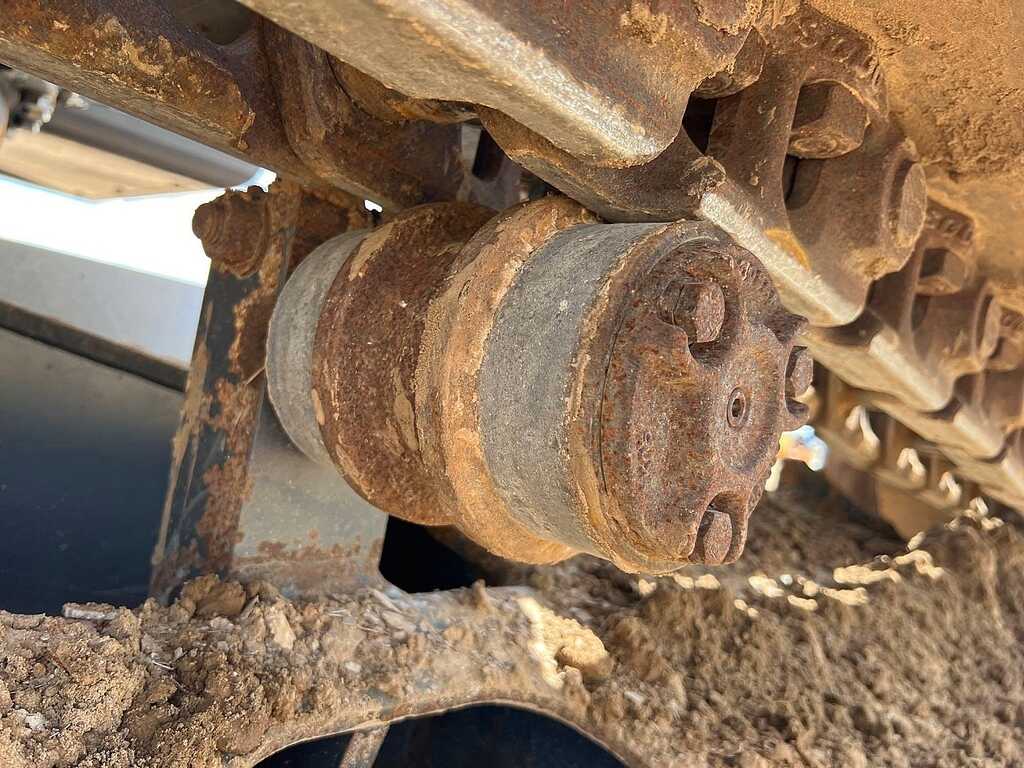

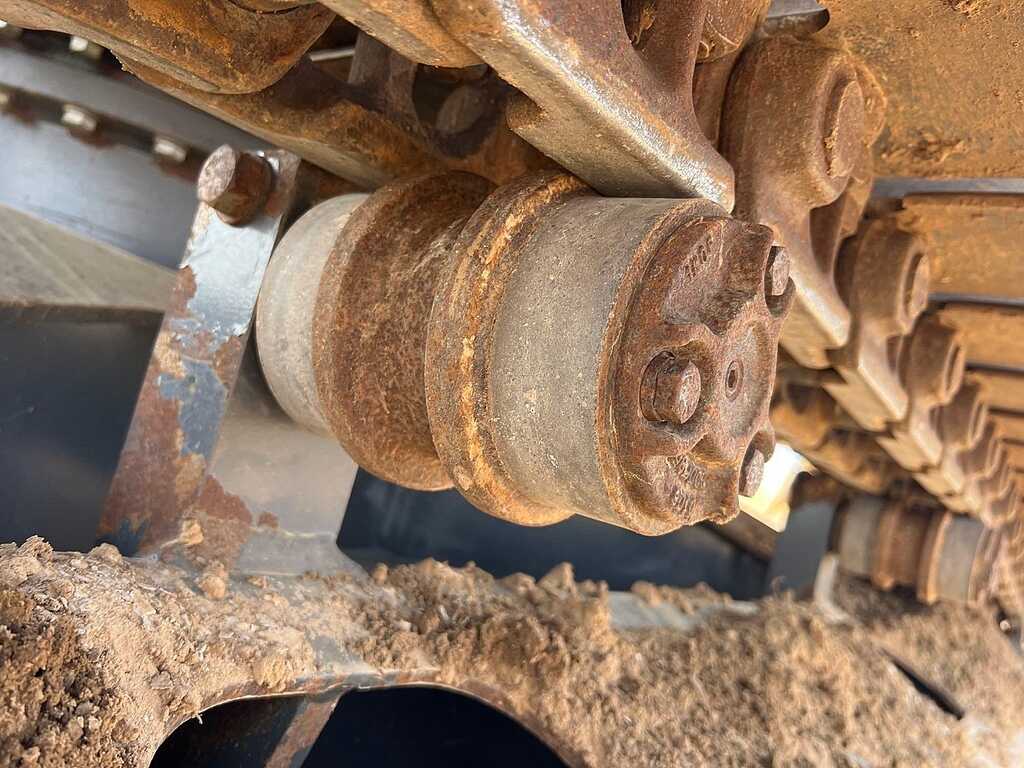

Number of Track Rollers (per side): 9
Number of Shoes (per side): 49
Carrier Rollers (per side): 2
Ground Pressure: 6.4 psi
Travel Speed: 3.4 mph

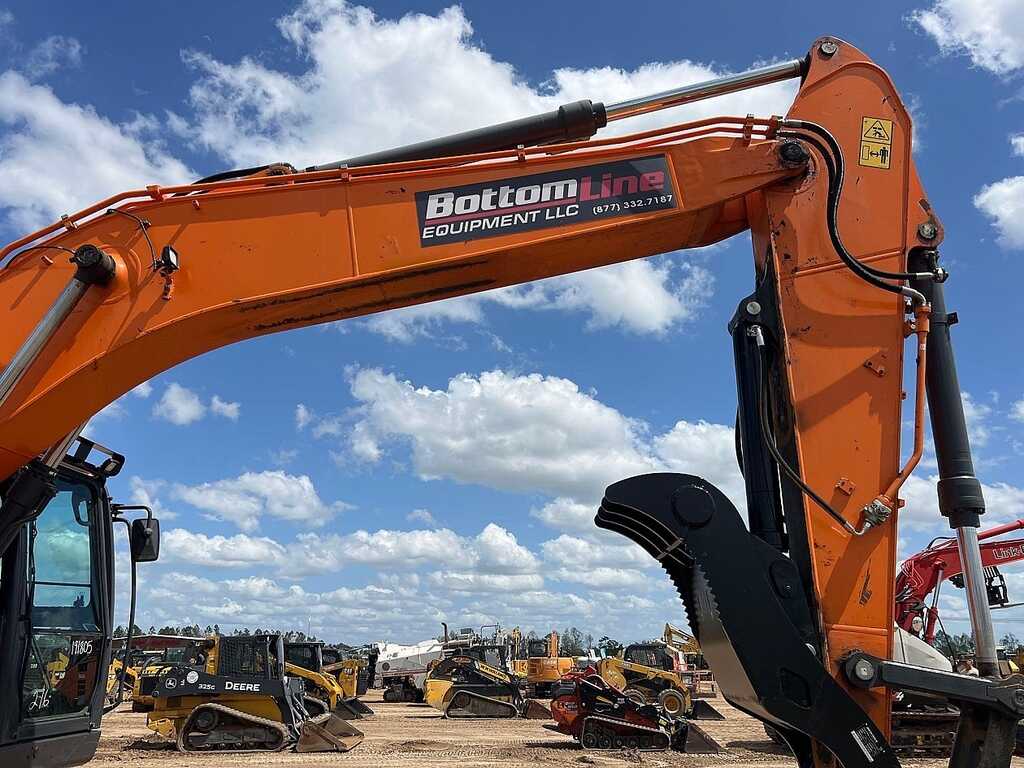

Boom & Stick Configurations
Boom 18’8″ (5700 mm) / Stick 7’10” (2400 mm)
– Max Dig Depth: 20.05 ft
– Max Reach at Ground: 30.52 ft
– Max Cutting Height: 31.6 ft
– Max Loading Height: 22.41 ft
– Max Vertical Wall Depth: 17.69 ft

Boom 18’8″ (5700 mm) / Stick 9’6″ (2900 mm)
– Max Dig Depth: 21.72 ft
– Max Reach at Ground: 31.93 ft
– Max Cutting Height: 31.99 ft
– Max Loading Height: 22.94 ft
– Max Vertical Wall Depth: 18.51 ft

Boom 18’8″ (5700 mm) / Stick 11’6″ (3500 mm)
– Max Dig Depth: 23.69 ft
– Max Reach at Ground: 33.57 ft
– Max Cutting Height: 32.39 ft
– Max Loading Height: 23.46 ft
– Max Vertical Wall Depth: 19.72 ft

Boom 17’1″ (5200 mm) / Stick 6’7″ (2000 mm)
– Max Dig Depth: 17.57 ft
– Max Reach at Ground: 27.5 ft
– Max Cutting Height: 29.02 ft
– Max Loading Height: 19.97 ft
– Max Vertical Wall Depth: 14.56 ft

Boom 17’1″ (5200 mm) / Stick 7’11” (2400 mm)
– Max Dig Depth: 18.89 ft
– Max Reach at Ground: 28.75 ft
– Max Cutting Height: 29.75 ft
– Max Loading Height: 20.67 ft
– Max Vertical Wall Depth: 16.02 ft

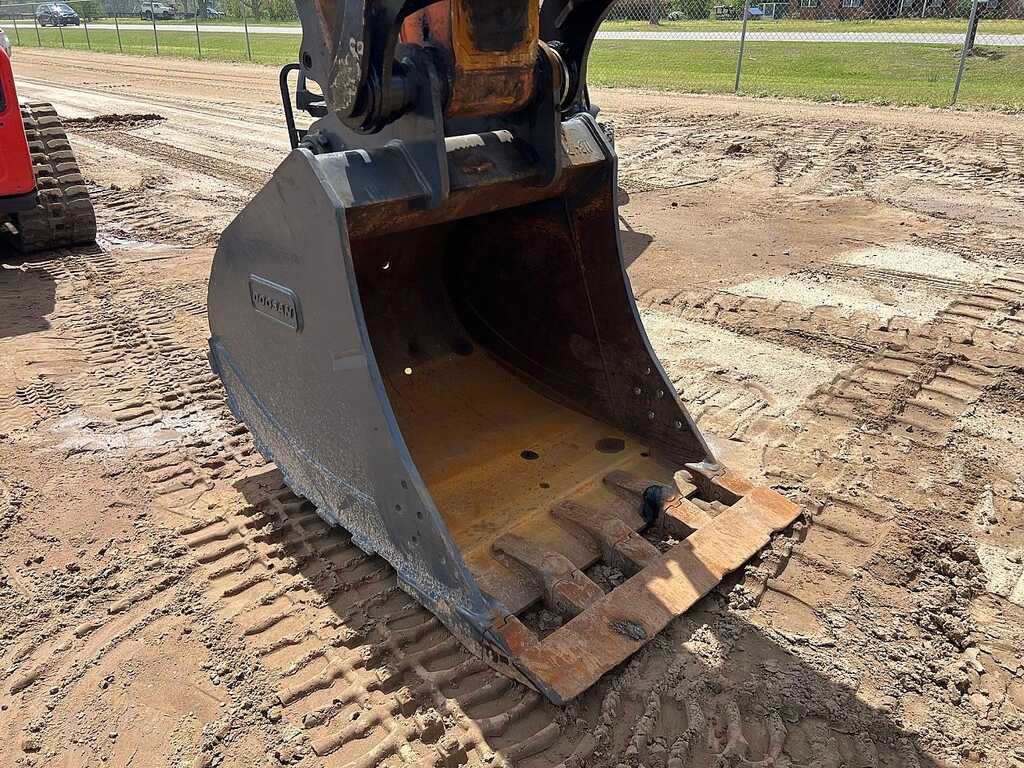

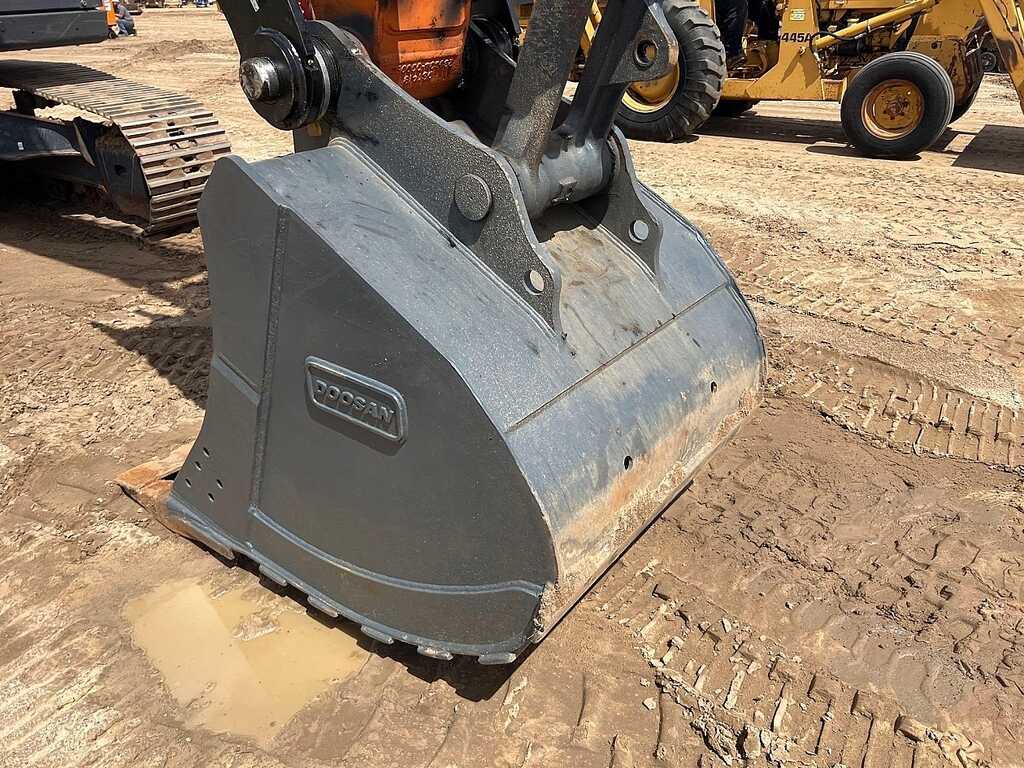

Buckets
Reference Bucket Capacity: 1.3 yd³
Bucket Capacity Range: 0.7–1.7 yd³
