PRICE FIRM NO TAX OR FEES

6MONTH / 1500HR FULL WARRANTY!

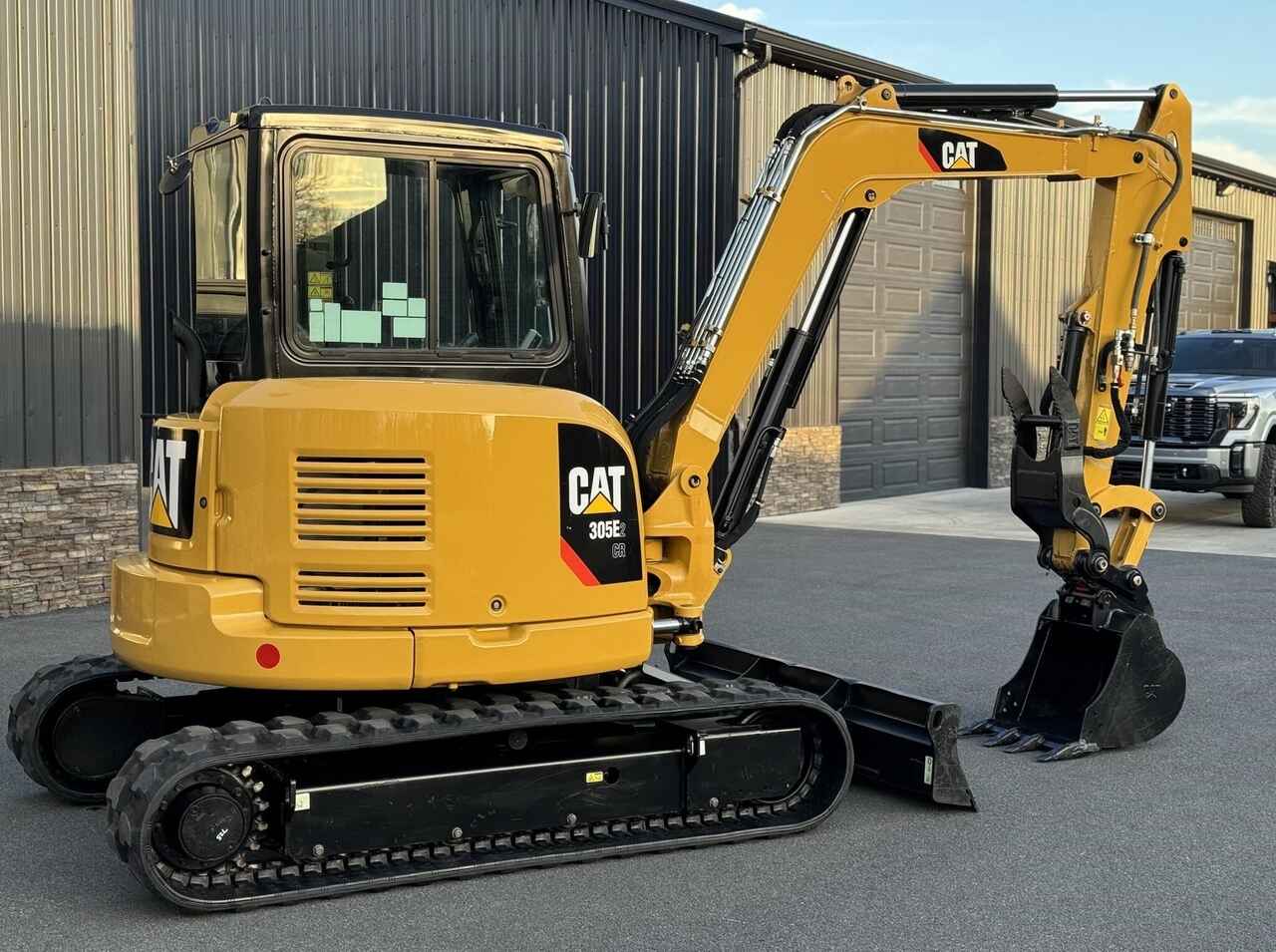

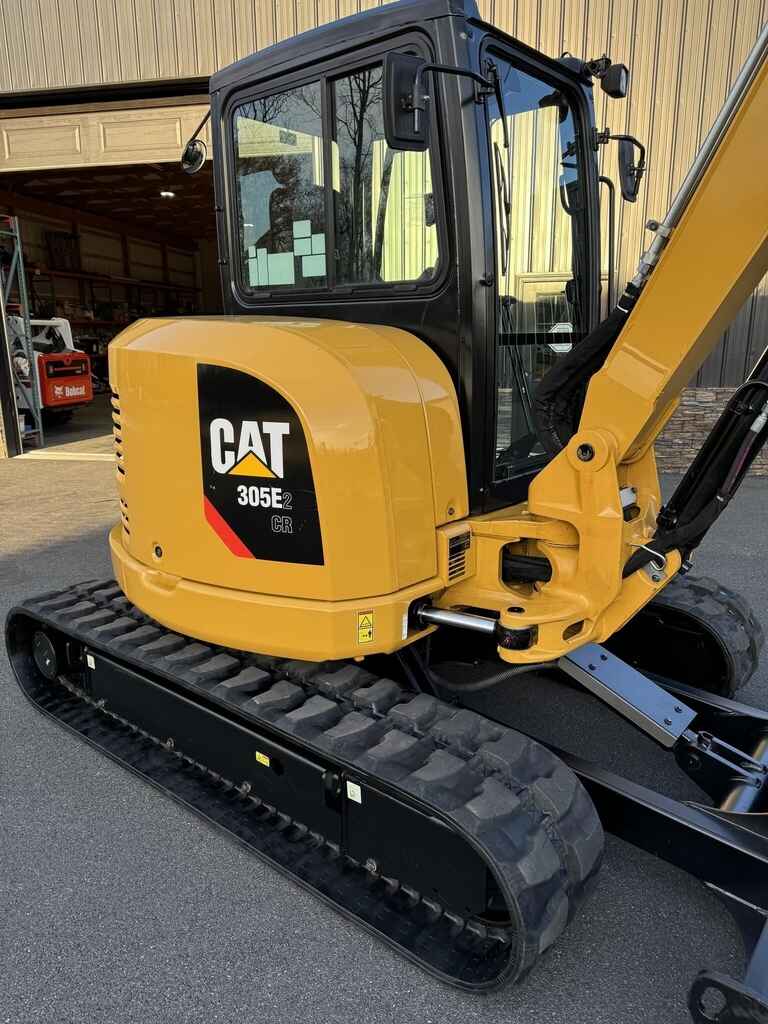

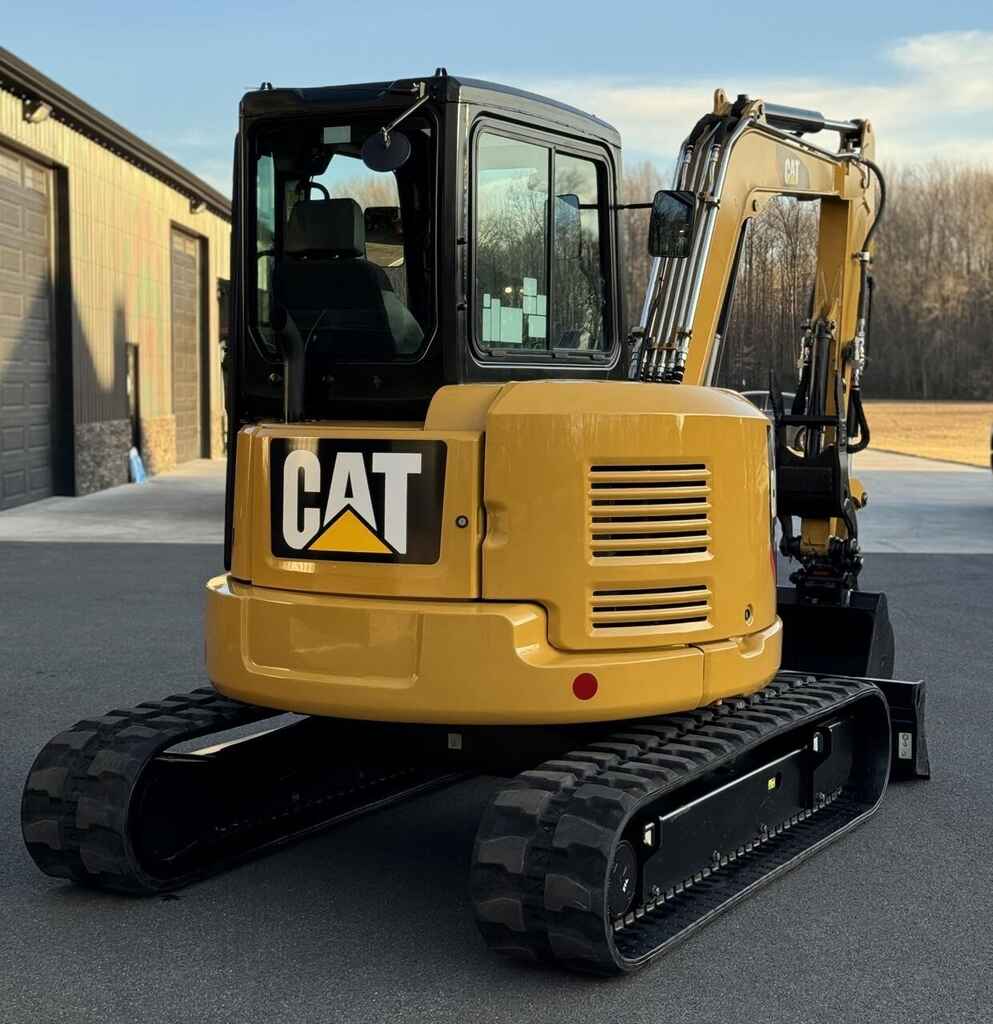

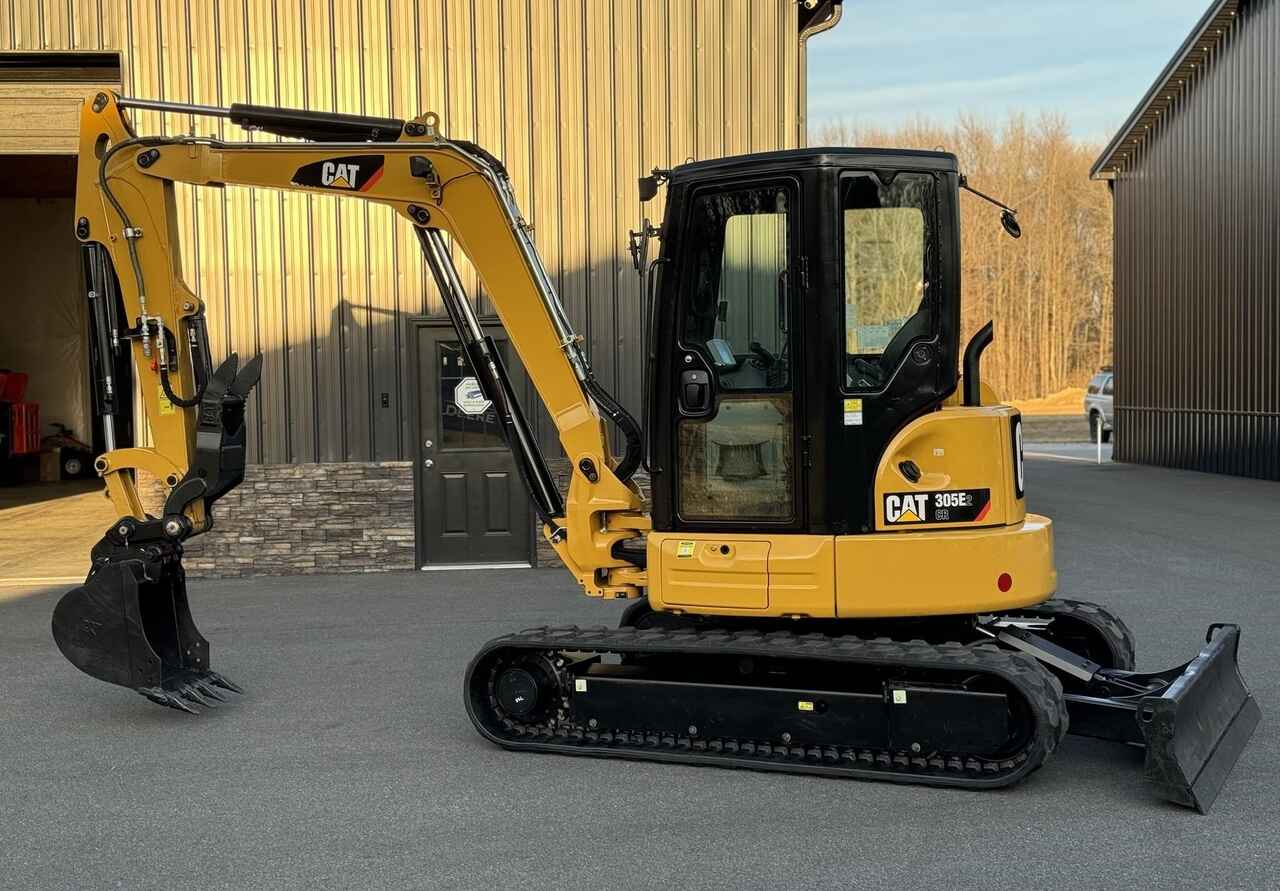

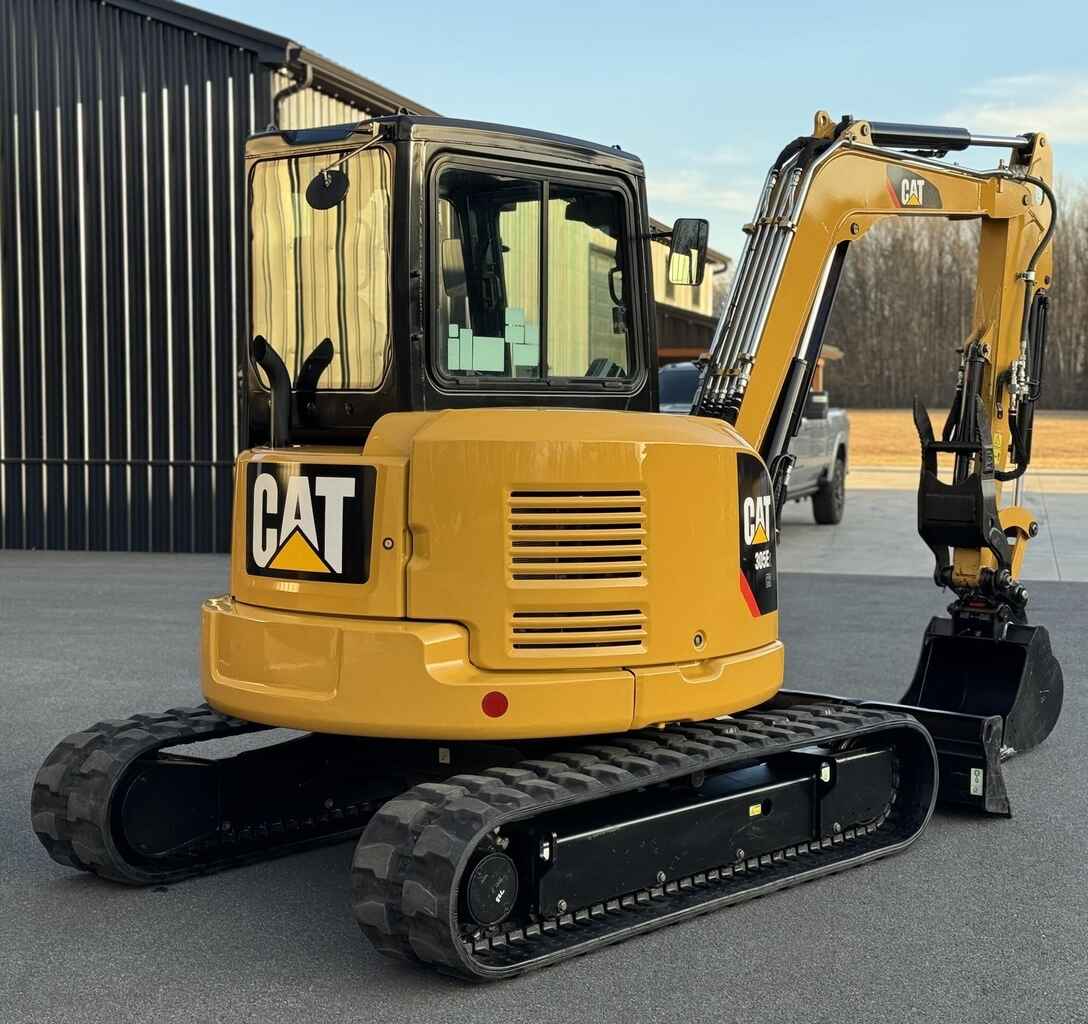

Machine was just fully cleaned, greased, serviced and looked over! Photos just taken! Delivery Available!

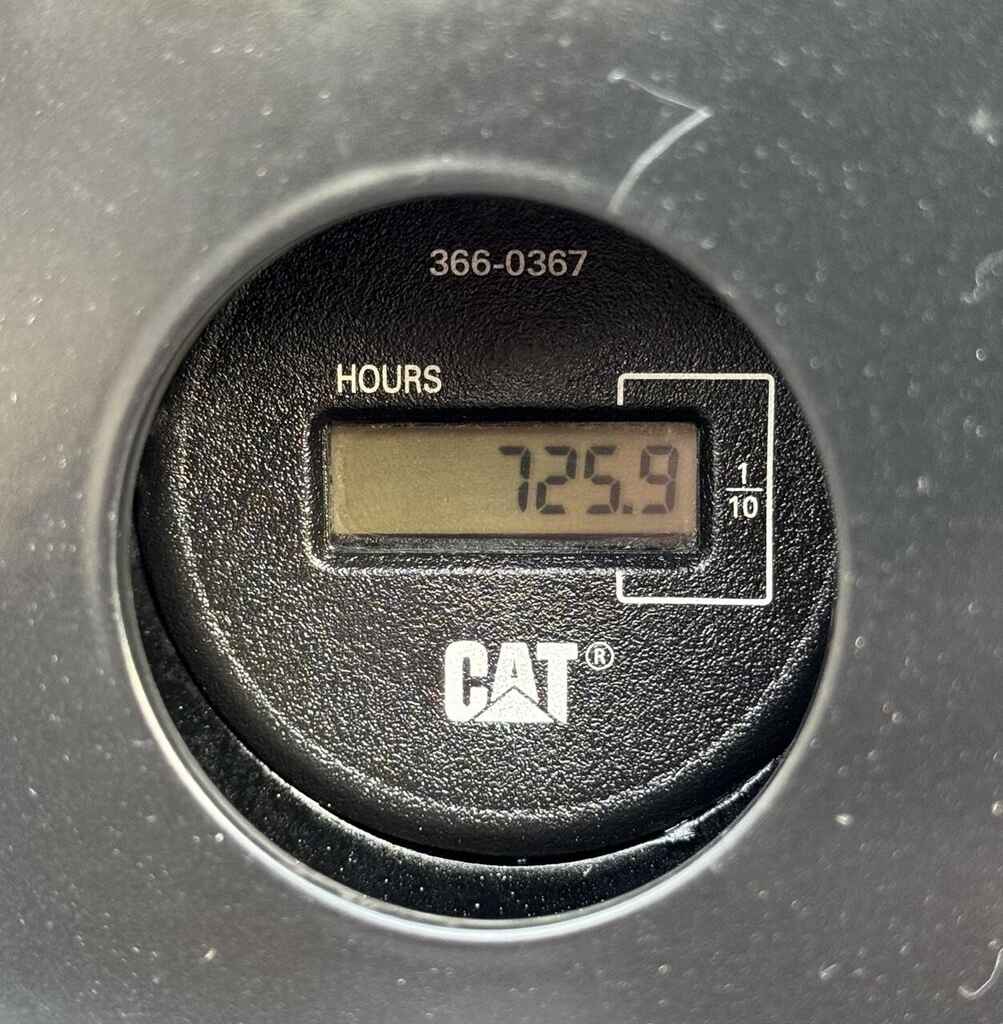

– ONLY WELL KEPT 725 Hrs
– 1 OWNER!
– All Original Yellow paint!

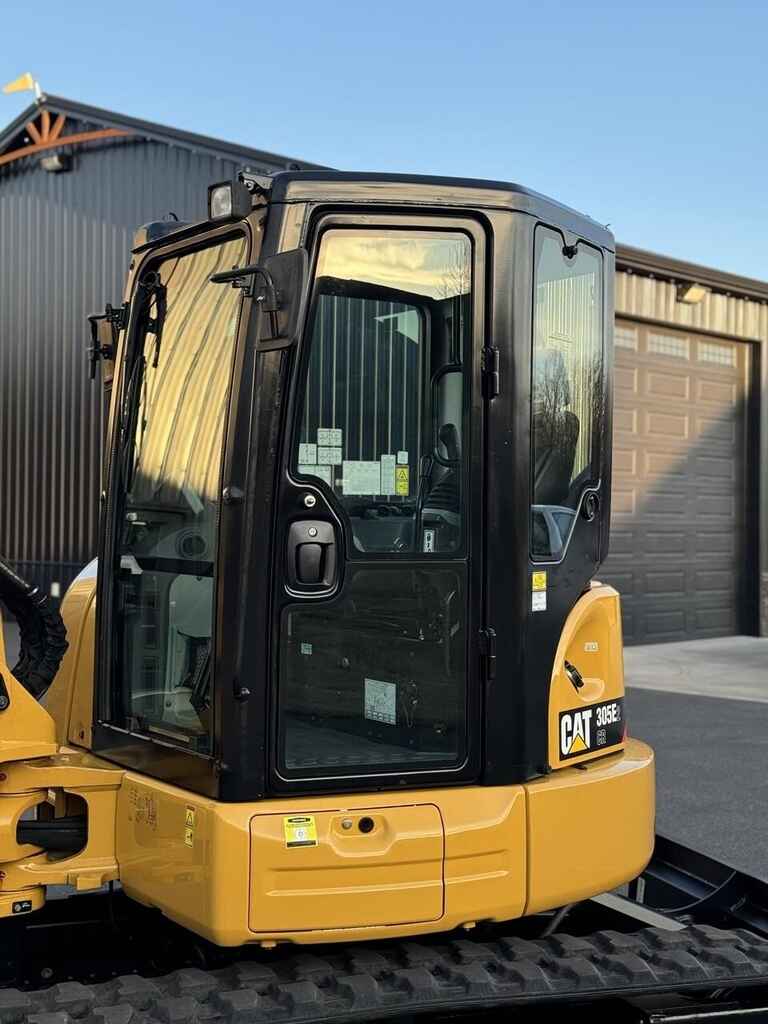

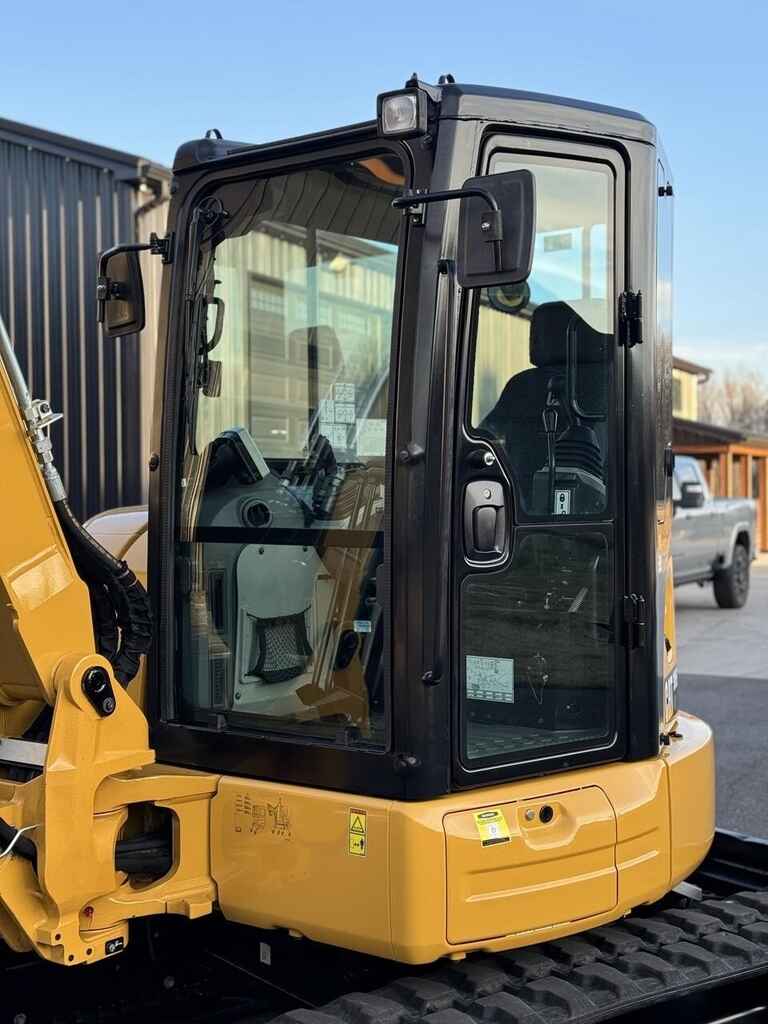

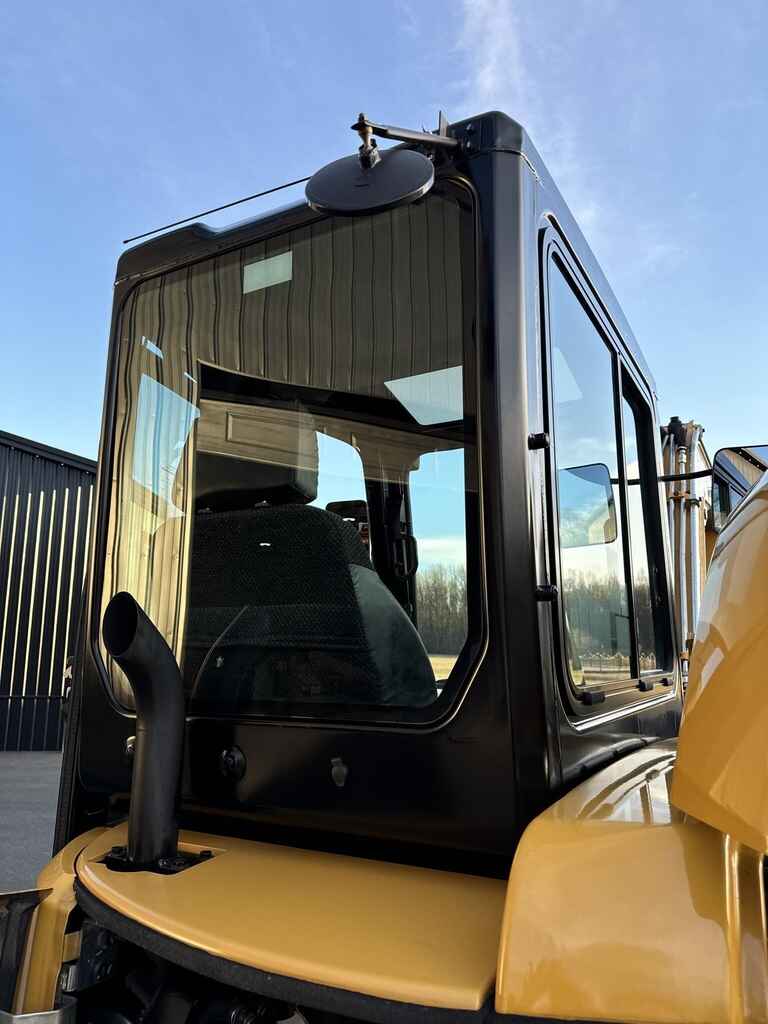

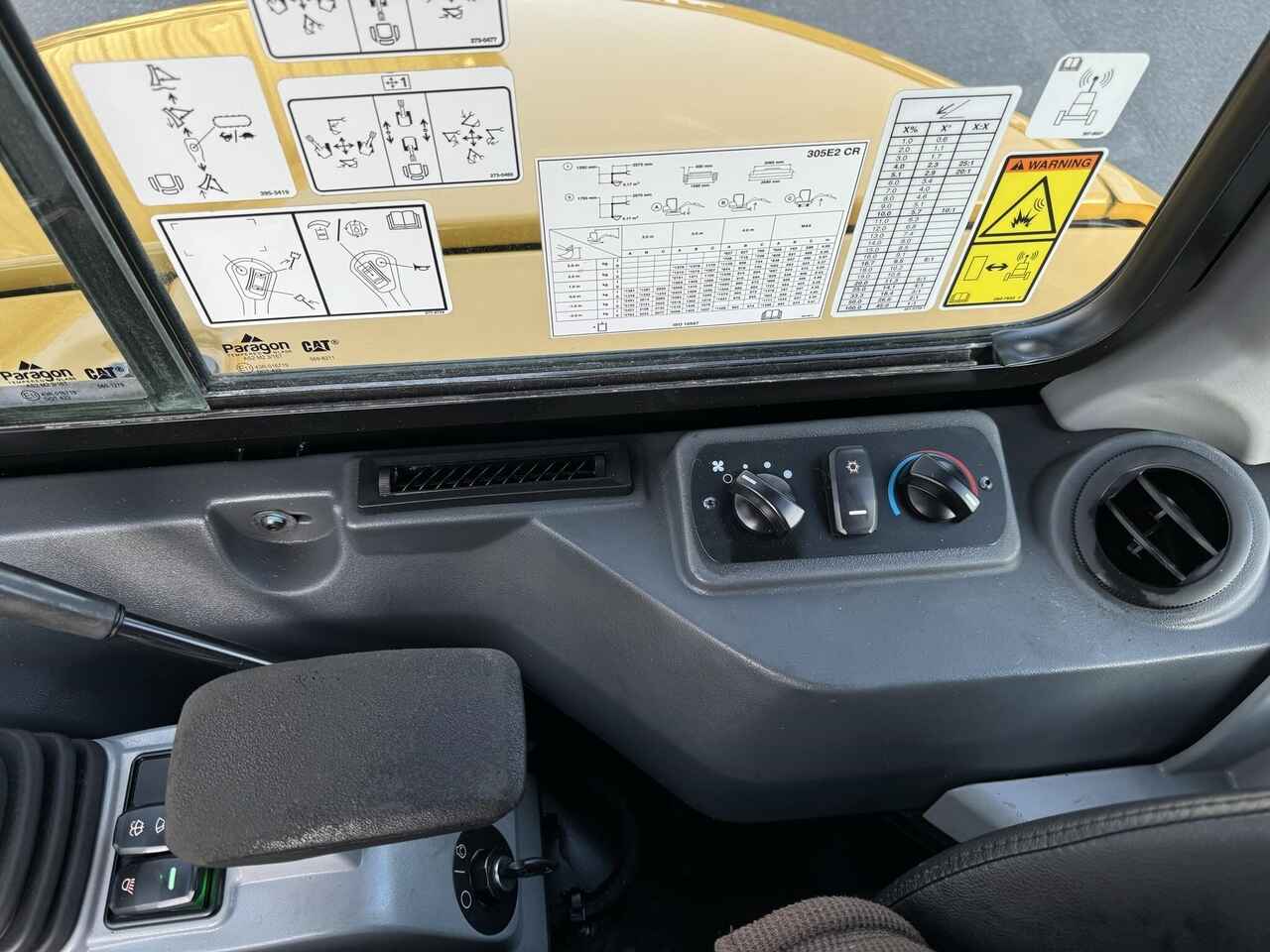

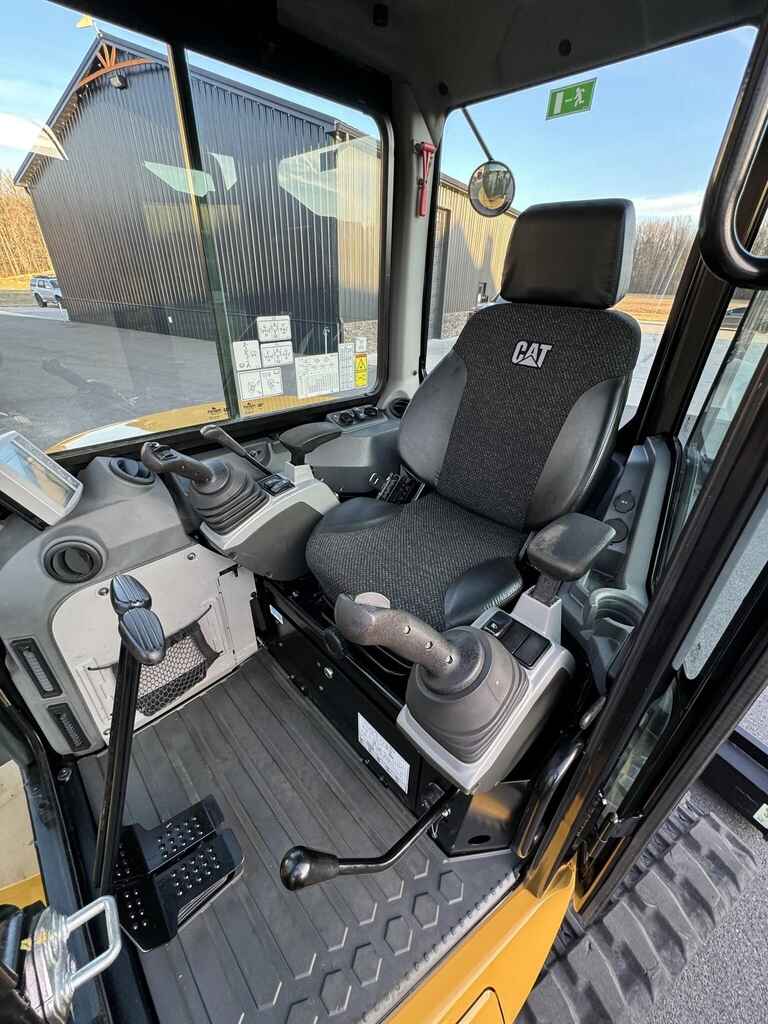

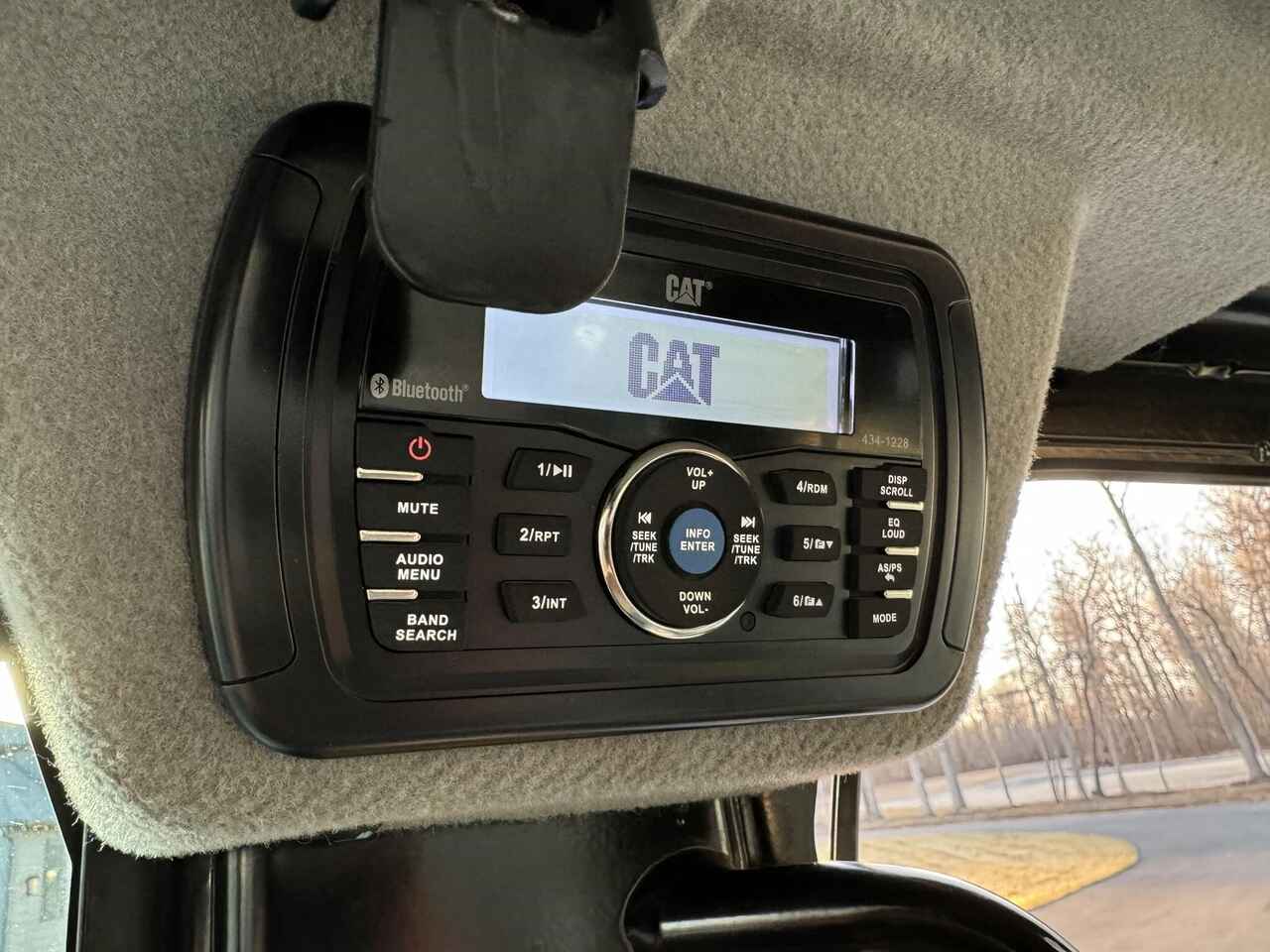

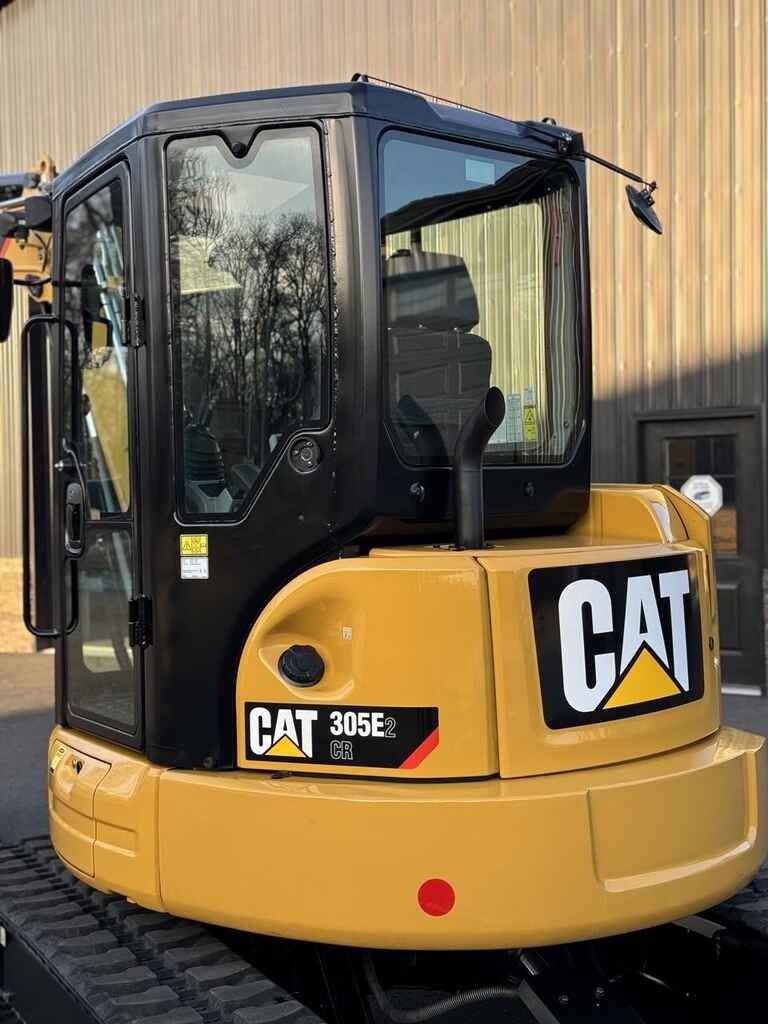

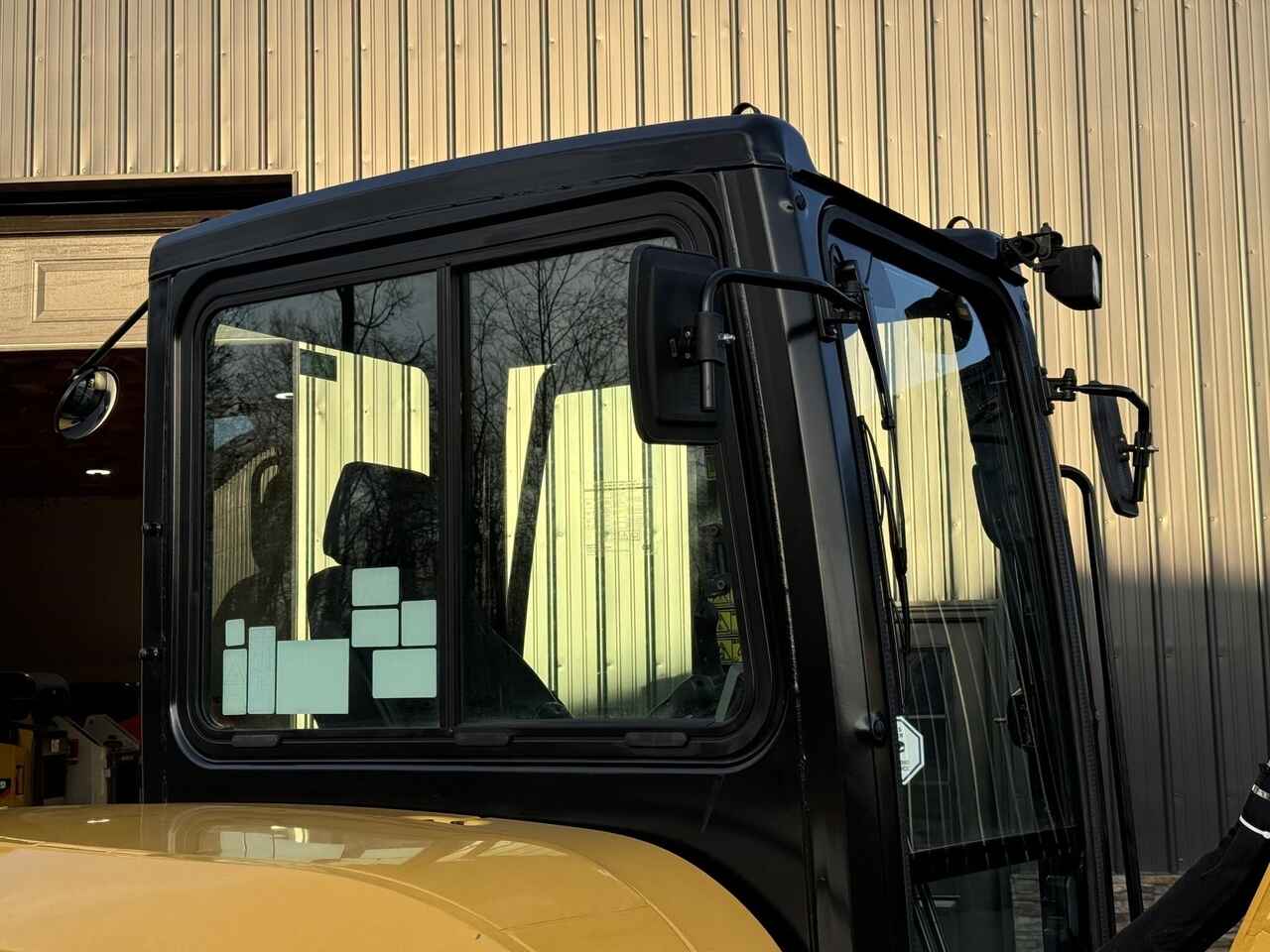

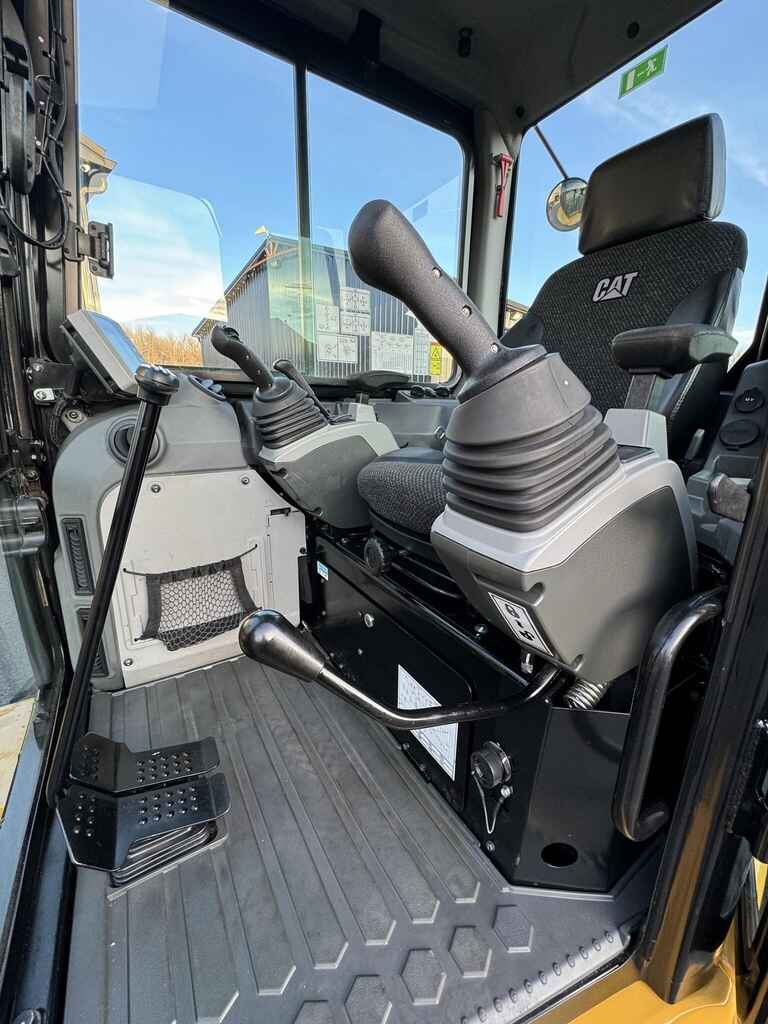

– Enclosed HEAT/AC/RADIO

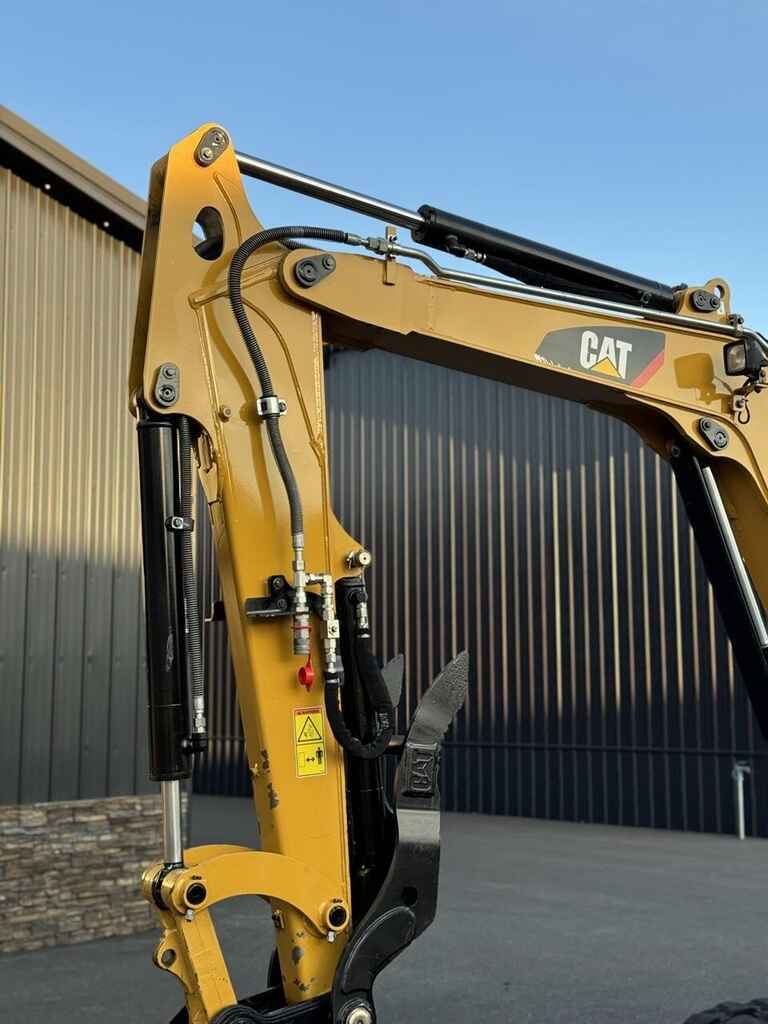

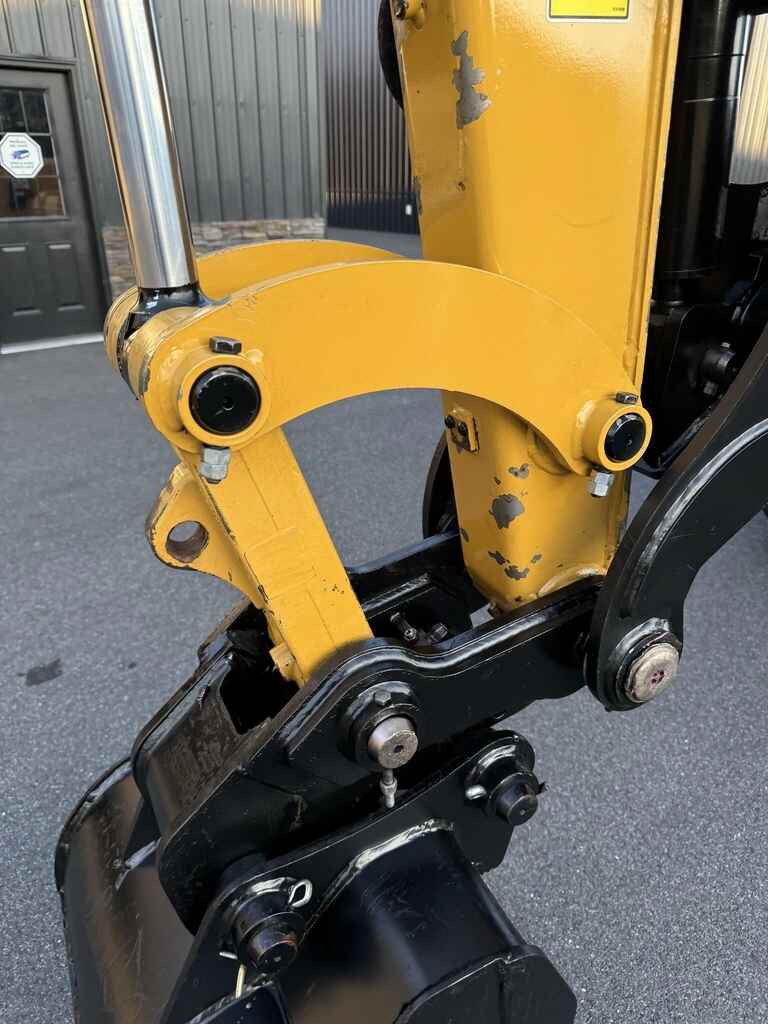

– Hydraulic Thumb
– Long Stick
– 2 speed
– 12″, 24” & 36″ tooth buckets
– 42 Hp
– 11,500 Lbs
Machine is READY TO WORK

Key Specifications
Operating Weight: 11,443 lbs (Cab, Long Stick)
Maximum Dig Depth: 144 in
Maximum Reach: 235 in
Maximum Dump Clearance: 154 in

O/A Shipping Dimensions
Height: 100 in
Length: 208 in
Track Width: 78 in

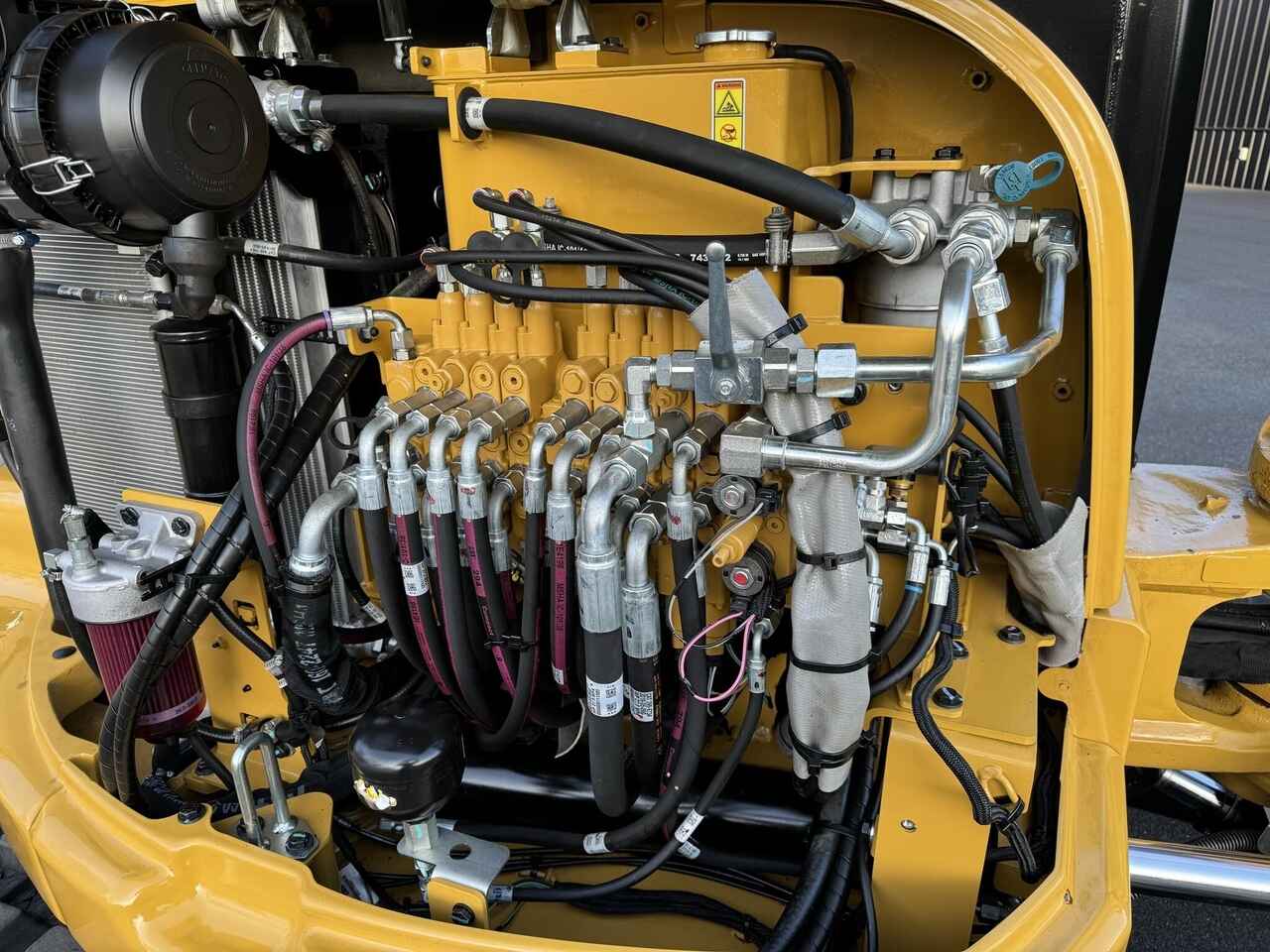

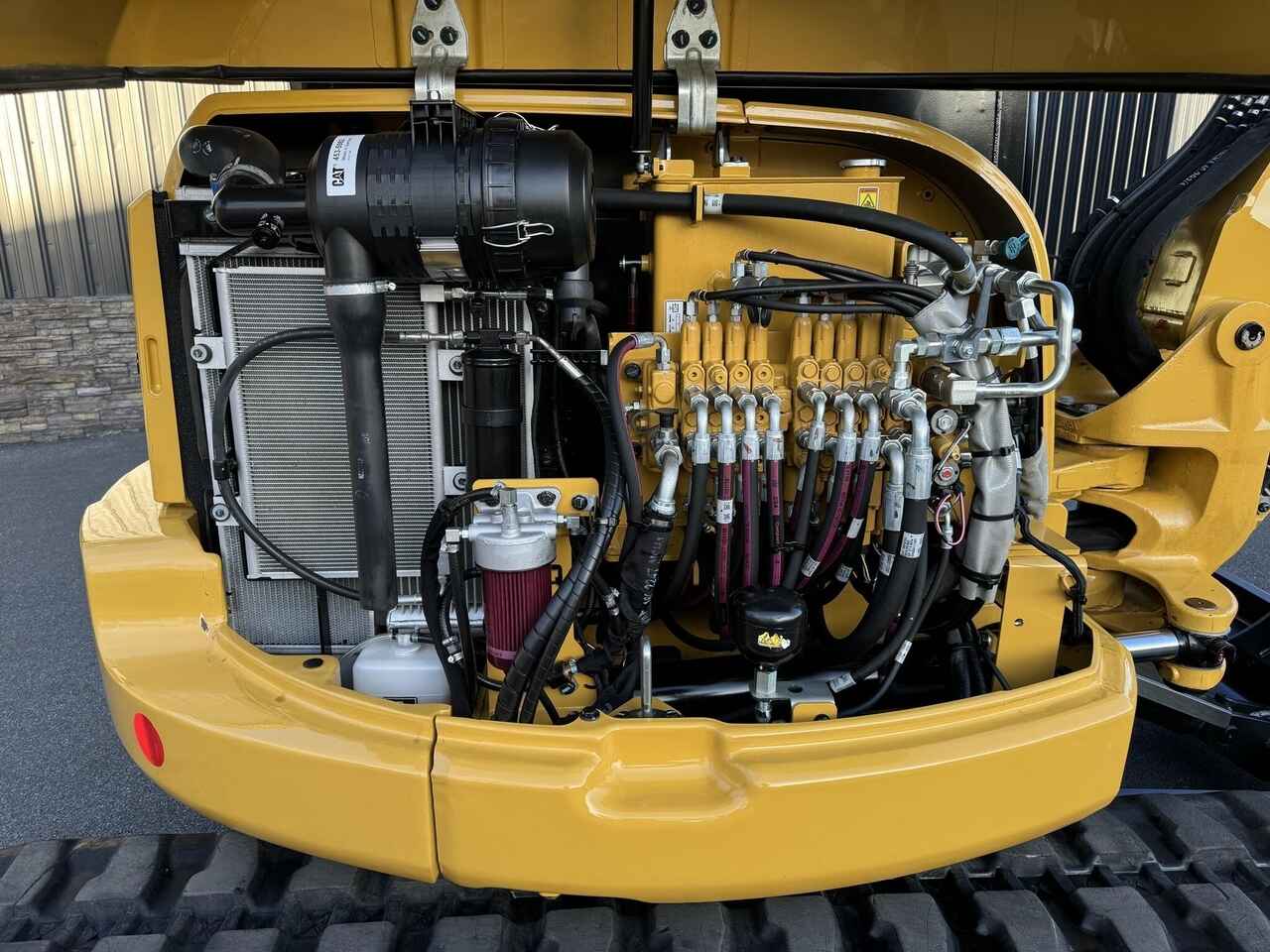

Performance & Hydraulics
Hydraulic System Type: Load Sensing Hydraulics with Variable Displacement Piston Pump
Pump Flow: 39.6 GPM at 2,400 RPM

Operating Pressures:
Swing: 3,132 PSI
Equipment and Travel: 3,553 PSI

Digging Forces:
Bucket: 10,050 lbs
Stick (Standard): 5,550 lbs
Stick (Long): 4,788 lbs

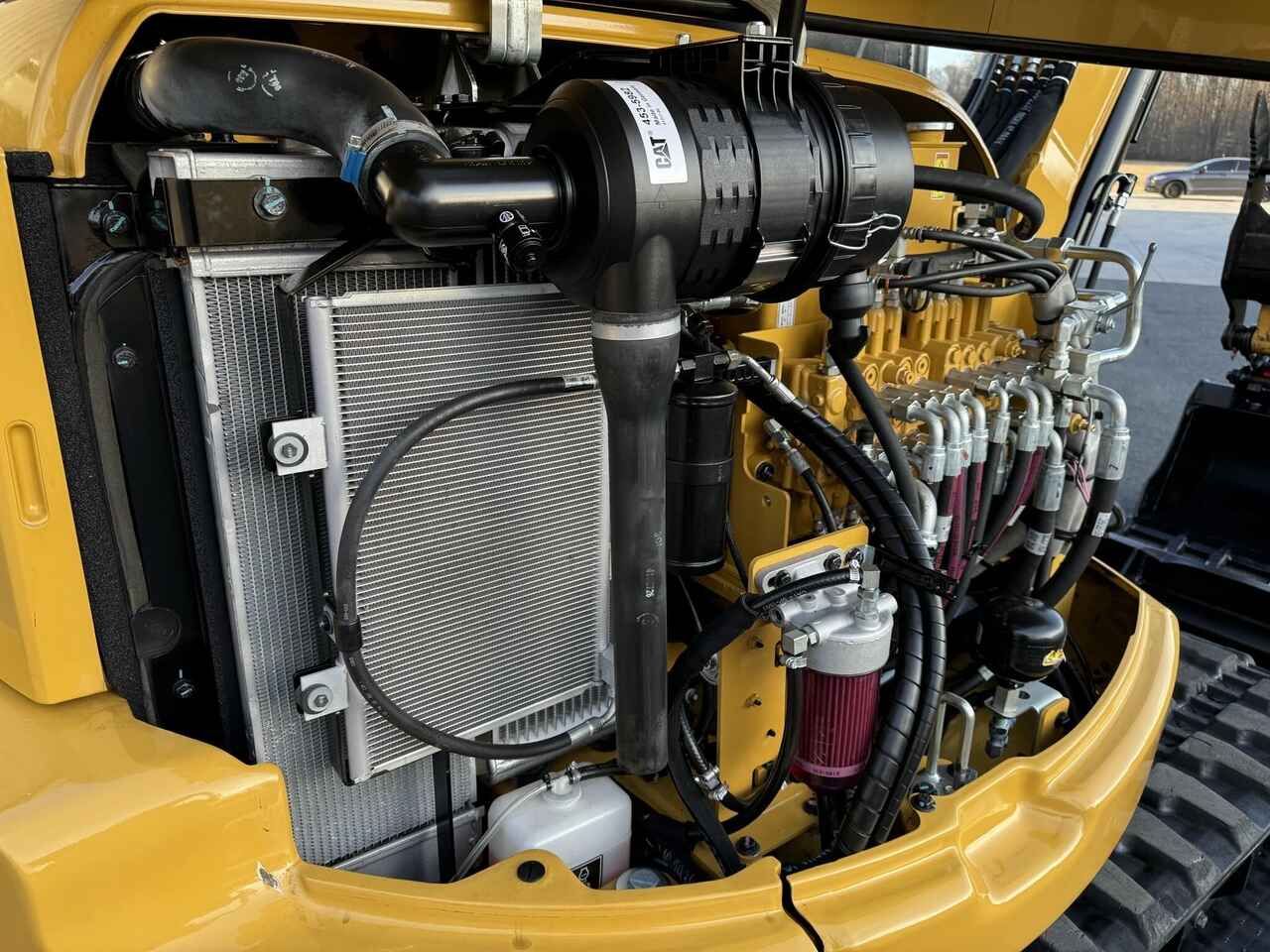

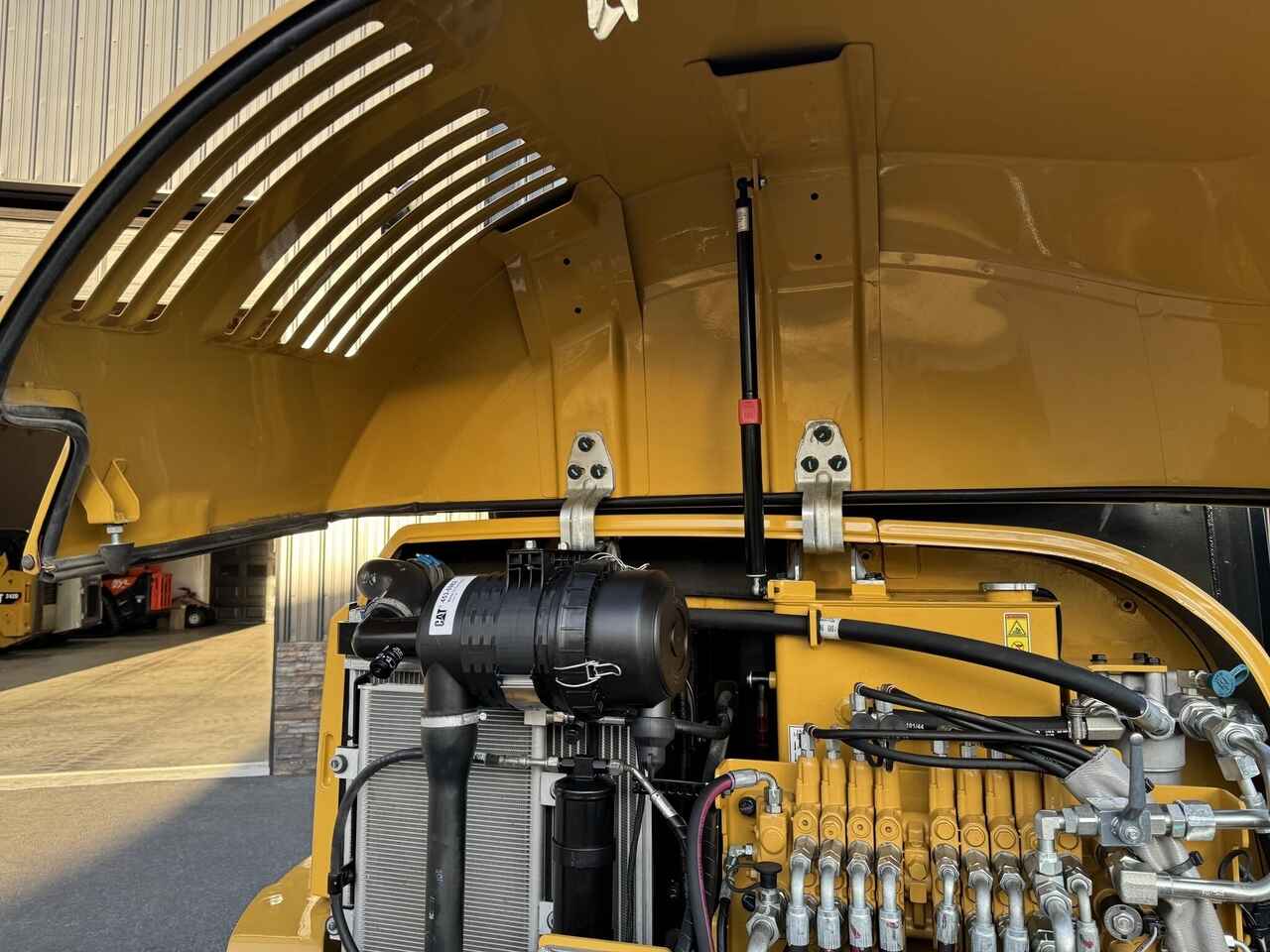

Engine & Powertrain

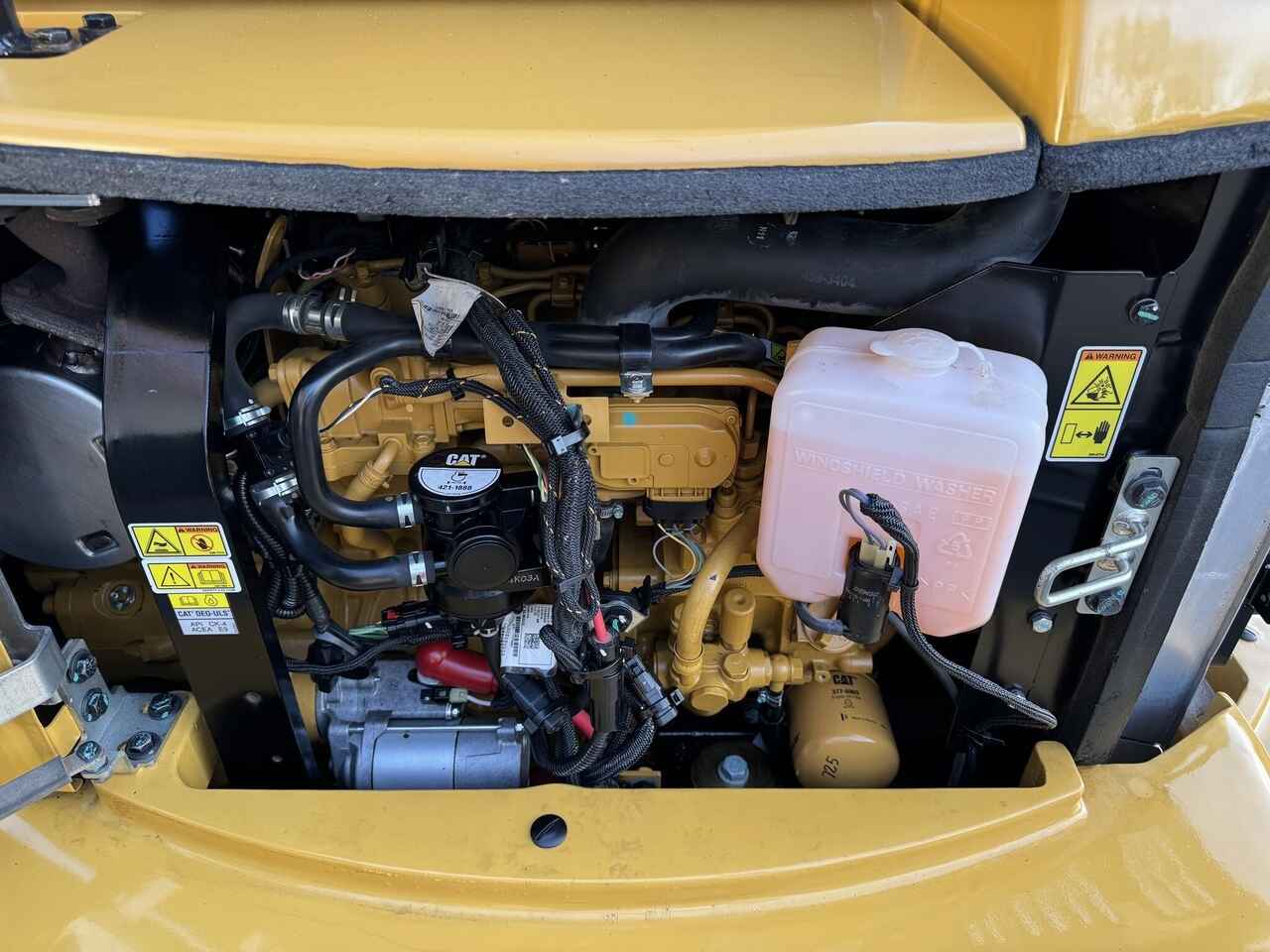

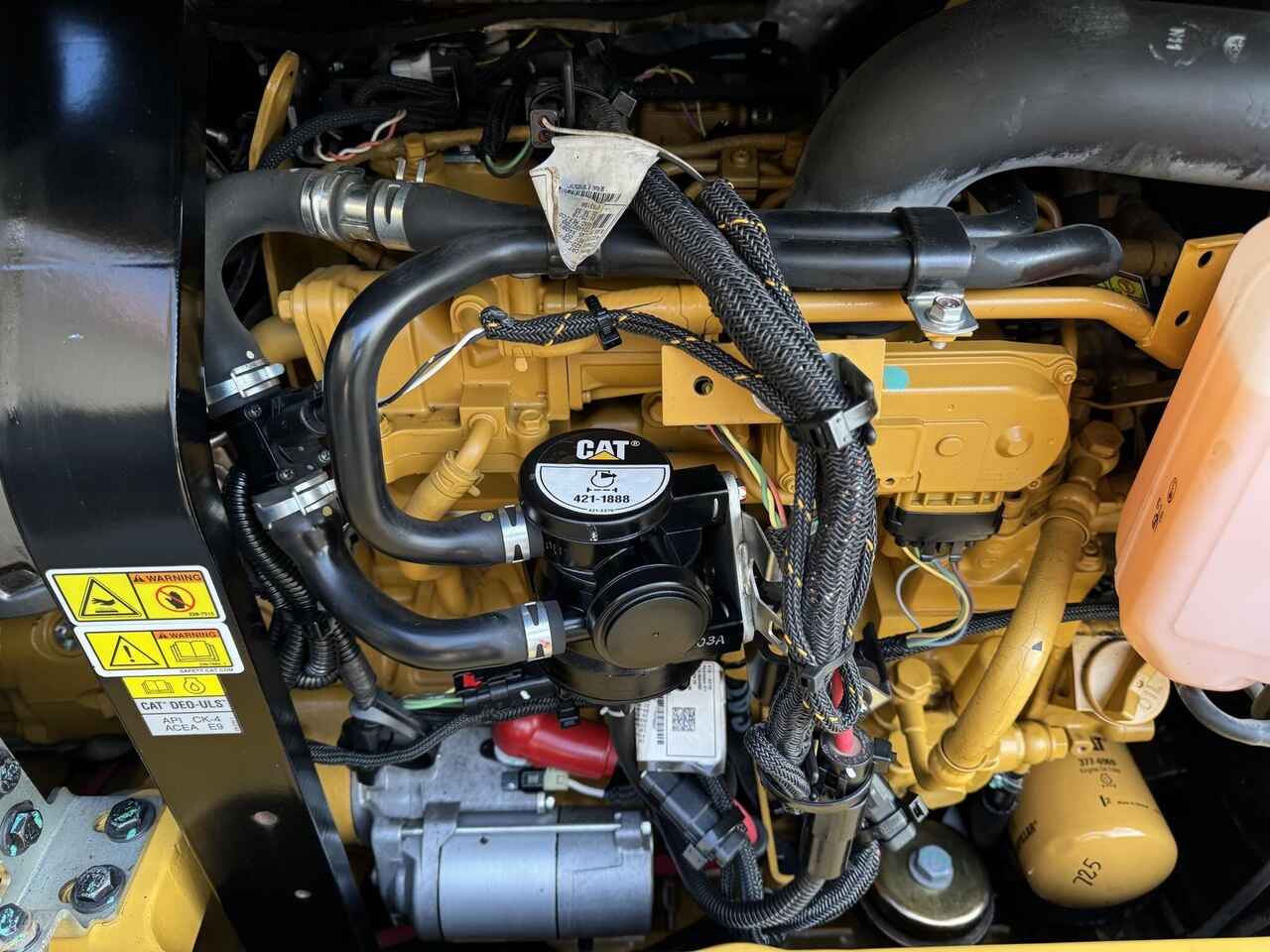

Engine Model: CAT C2.4
Net Power: 40.2 HP at 2,200 RPM
Displacement: 146 cu in
Fuel Tank Capacity: 16.6 gal

Travel Speeds:
High: 2.7 mph
Low: 1.7 mph

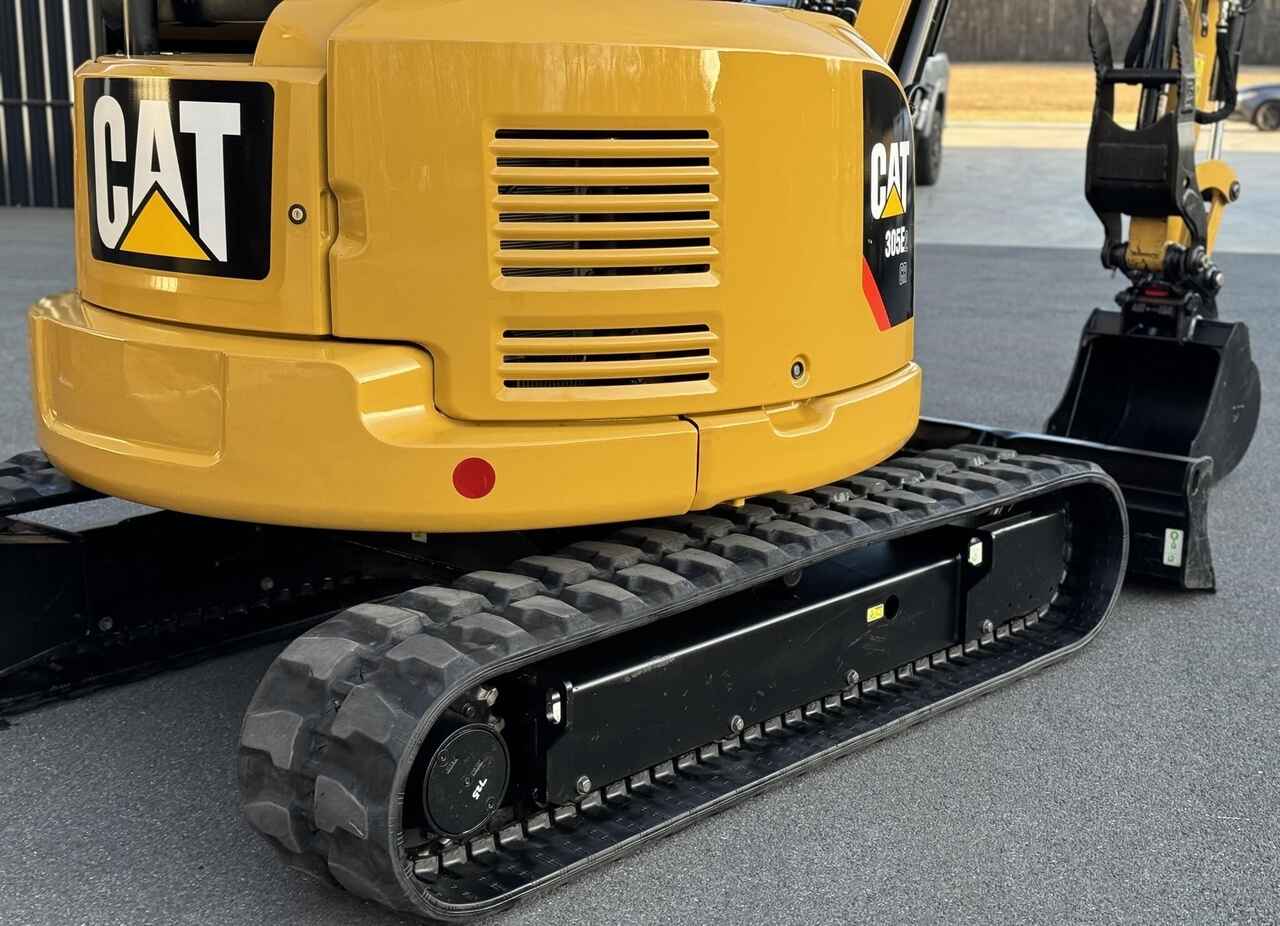

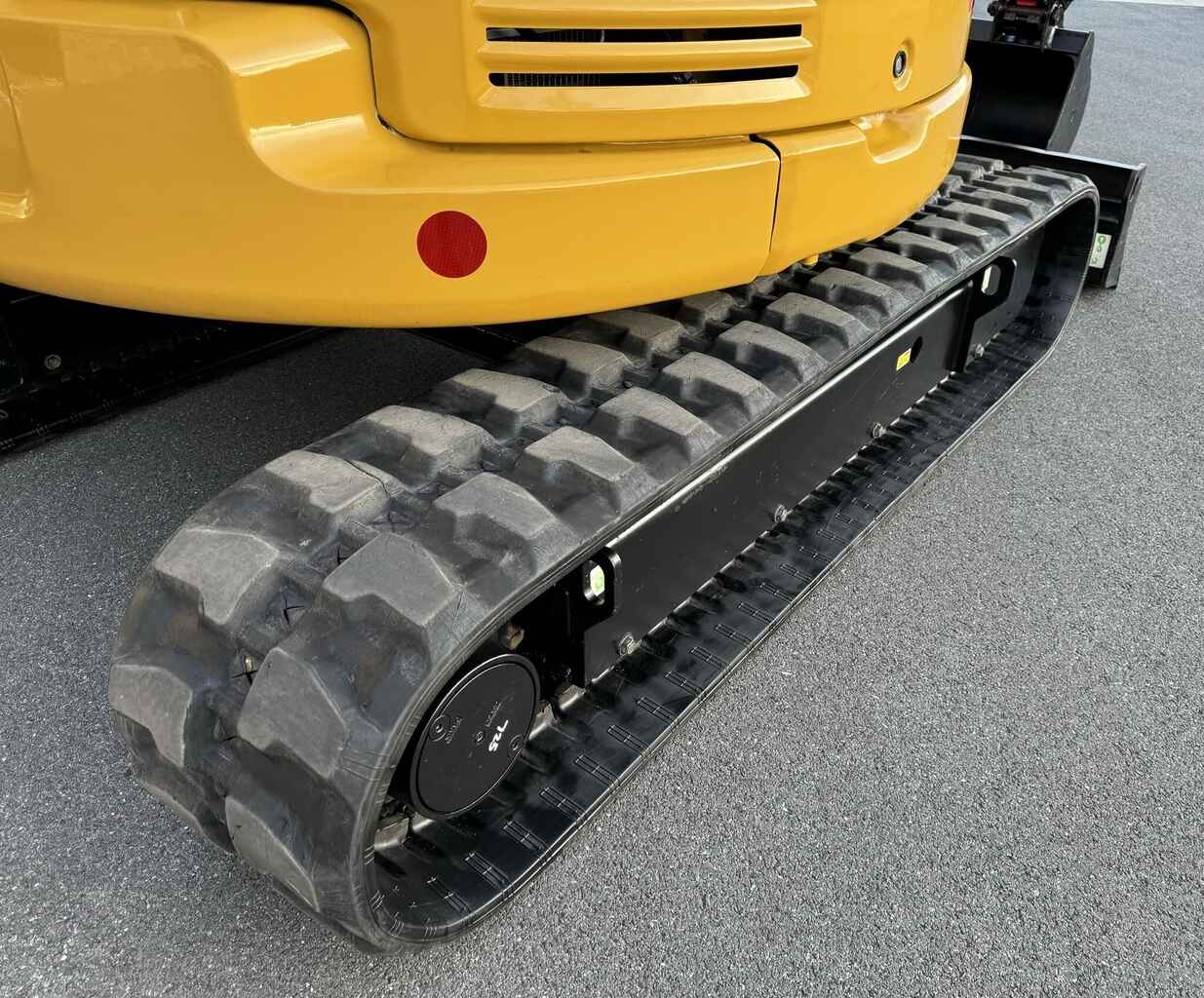

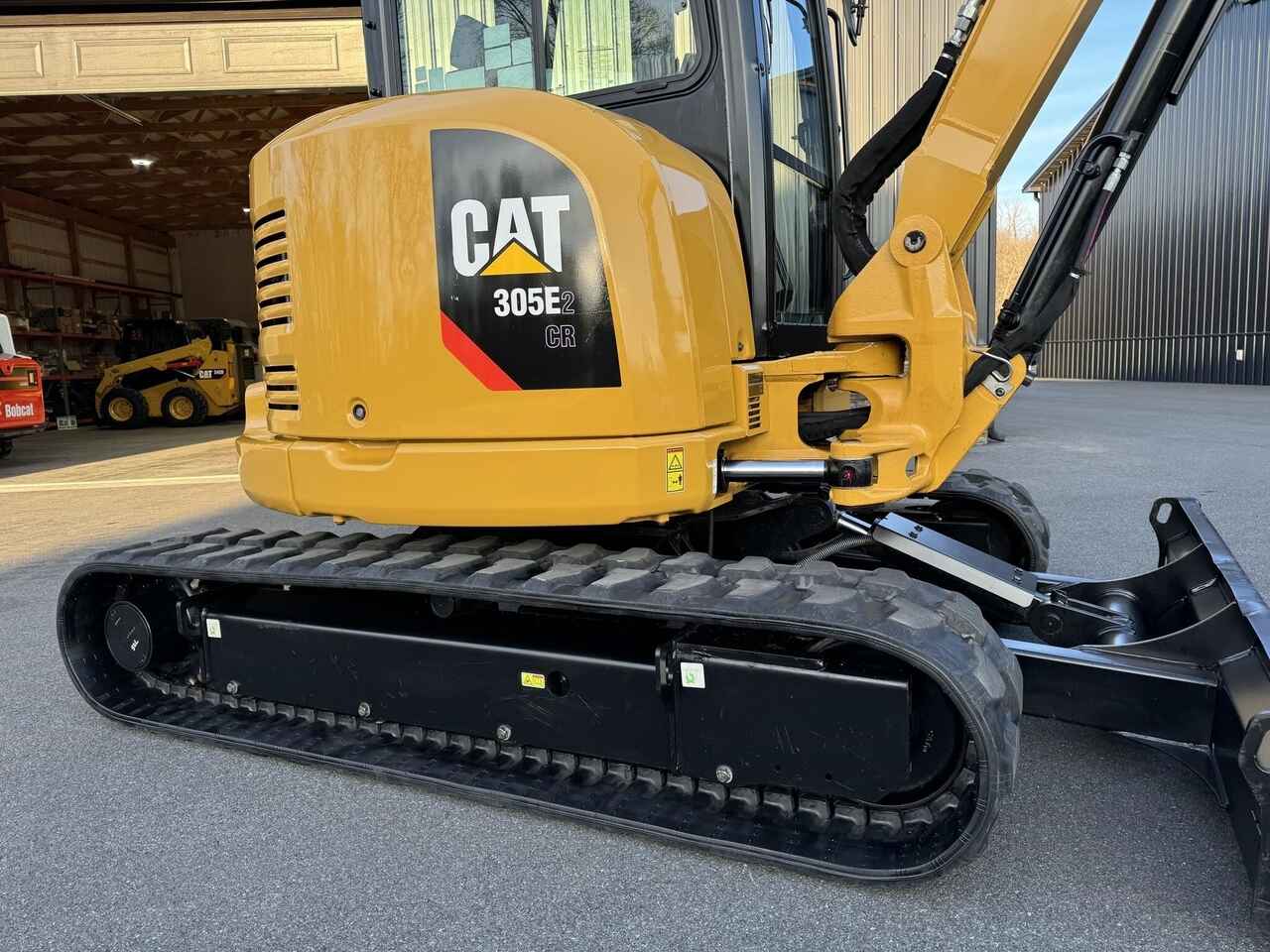

Undercarriage & Track System
Track Type: Center Flange
Track Shoe Width: 16 in
Carrier Rollers: 1
Track Rollers: 4

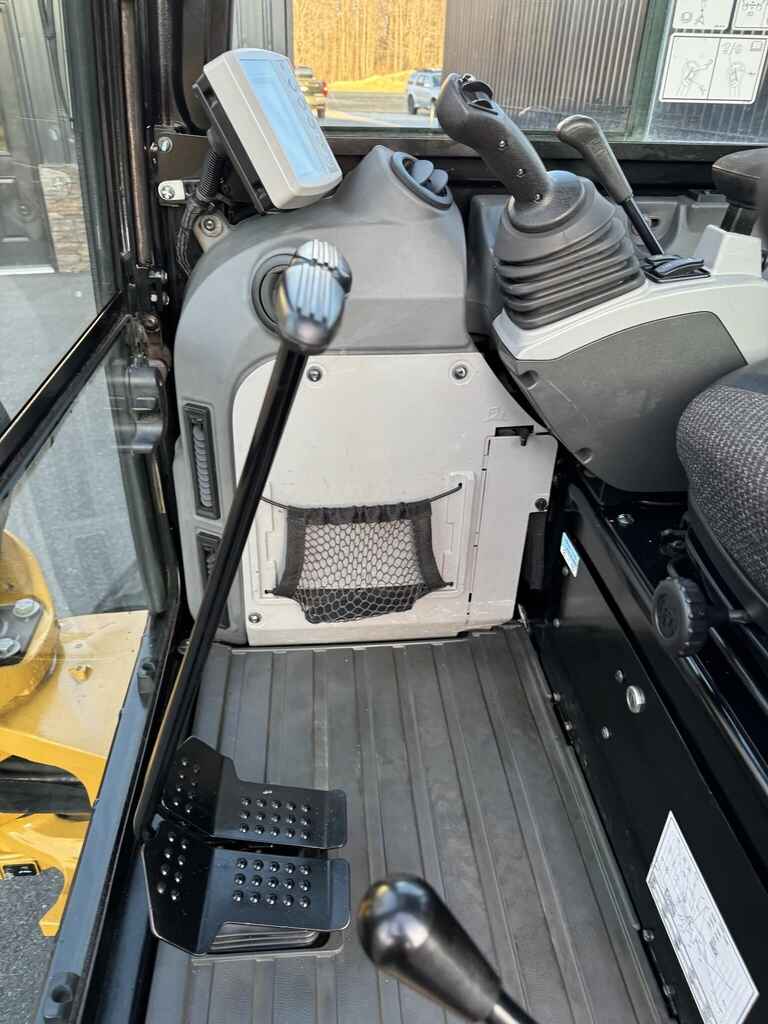

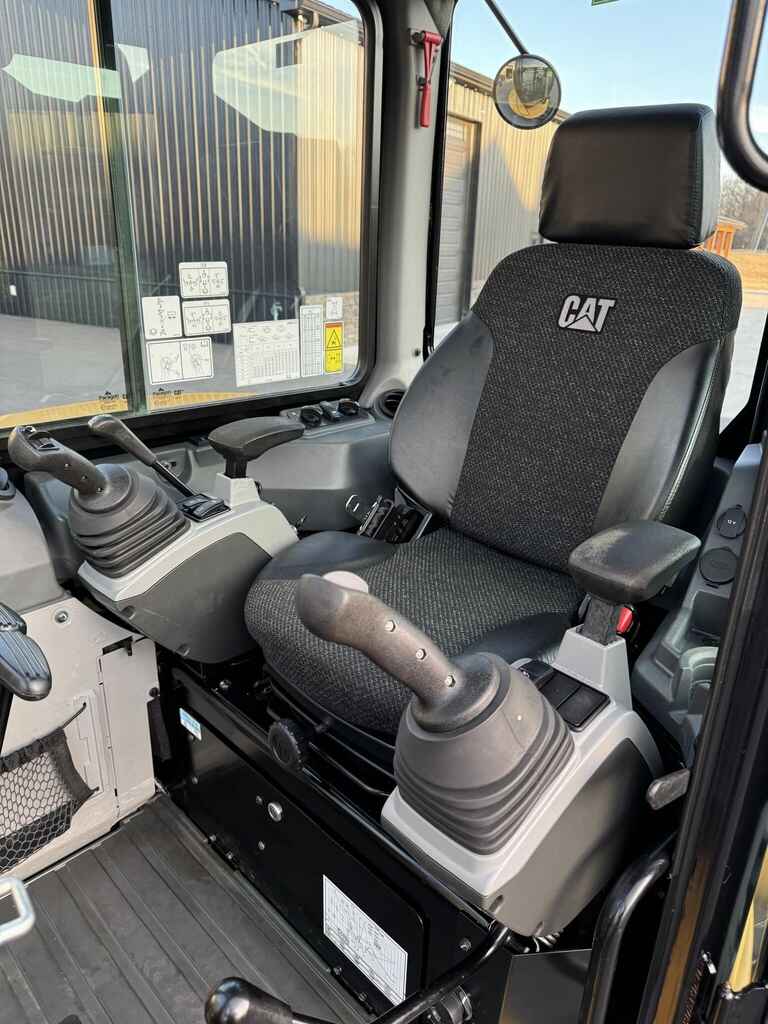

Operator & Safety Features
ROPS Certified (ISO 12117-2)
TOPS Certified (ISO 12117)
Cab with Air Conditioning
Automatic Swing Brake
Hydraulic Release System

Blade Dimensions & Capabilities
Blade Width: 6.5 ft
Blade Height: 14.8 in
Maximum Blade Lift Height: 15.9 in
Maximum Blade Dig Depth: 21.9 in

Lift Capacities (At Ground Level)
At Lift Point Radius 9 ft 8 in (3000 mm):
Blade Down – Front: 5,159 lbs
Blade Up – Front: 3,197 lbs
Blade Down – Side: 2,646 lbs
Blade Up – Side: 2,359 lbs

At Lift Point Radius 13 ft 1 in (4000 mm):
Blade Down – Front: 2,778 lbs
Blade Up – Front: 1,676 lbs
Blade Down – Side: 1,411 lbs
Blade Up – Side: 1,257 lbs
