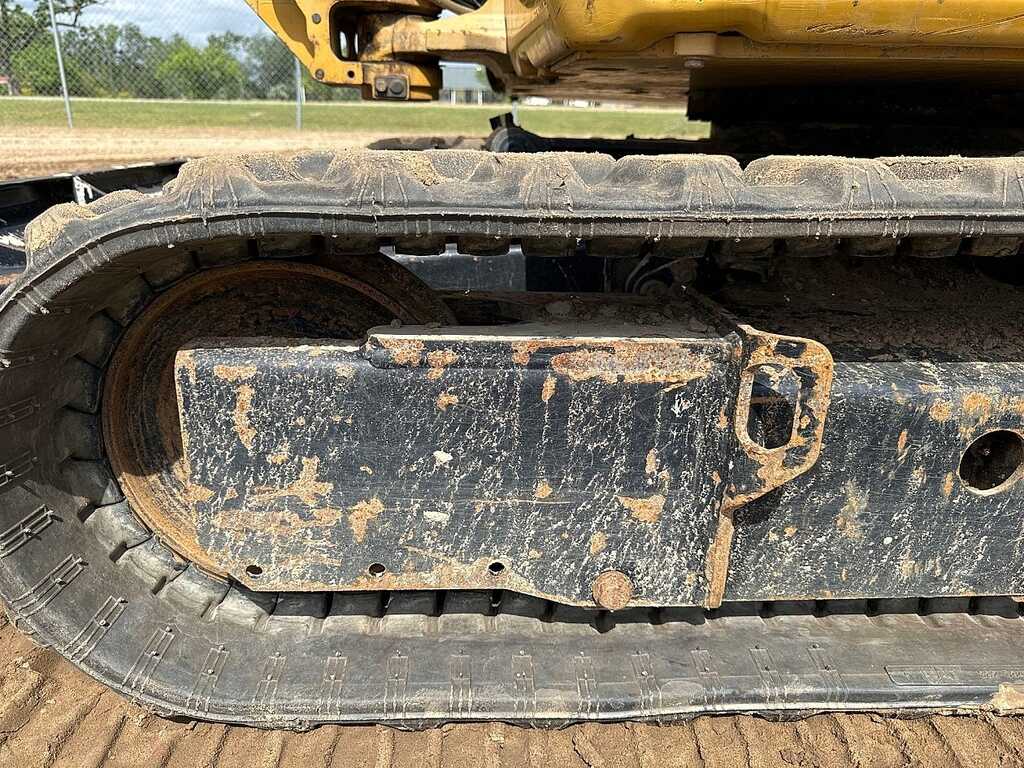

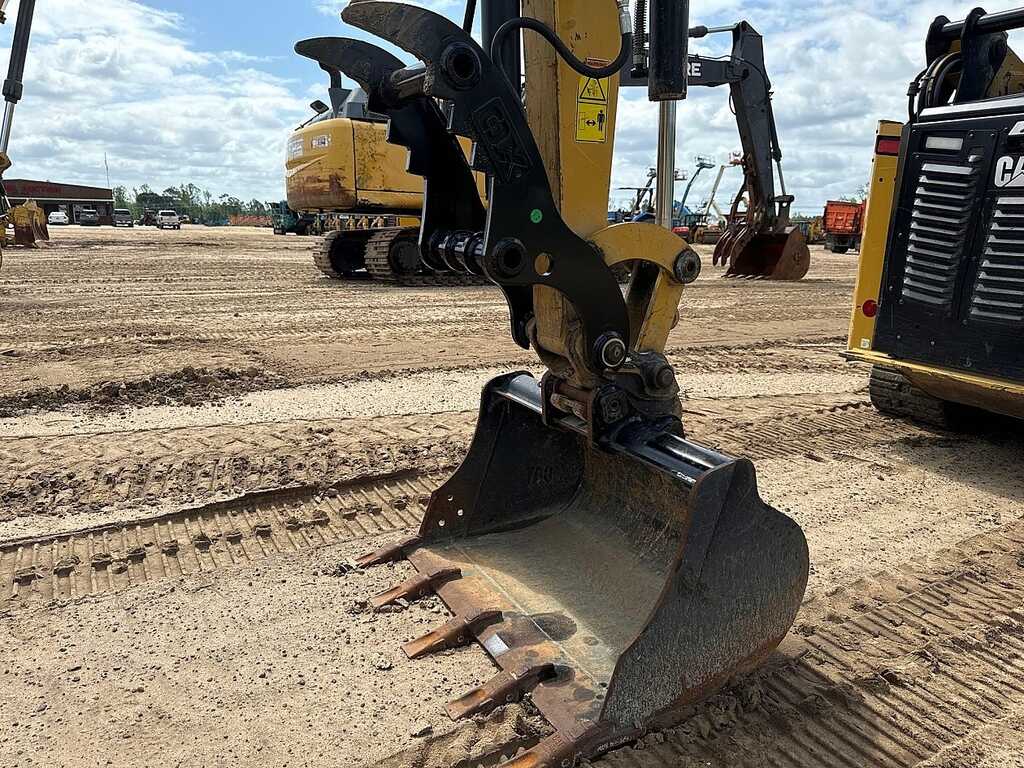

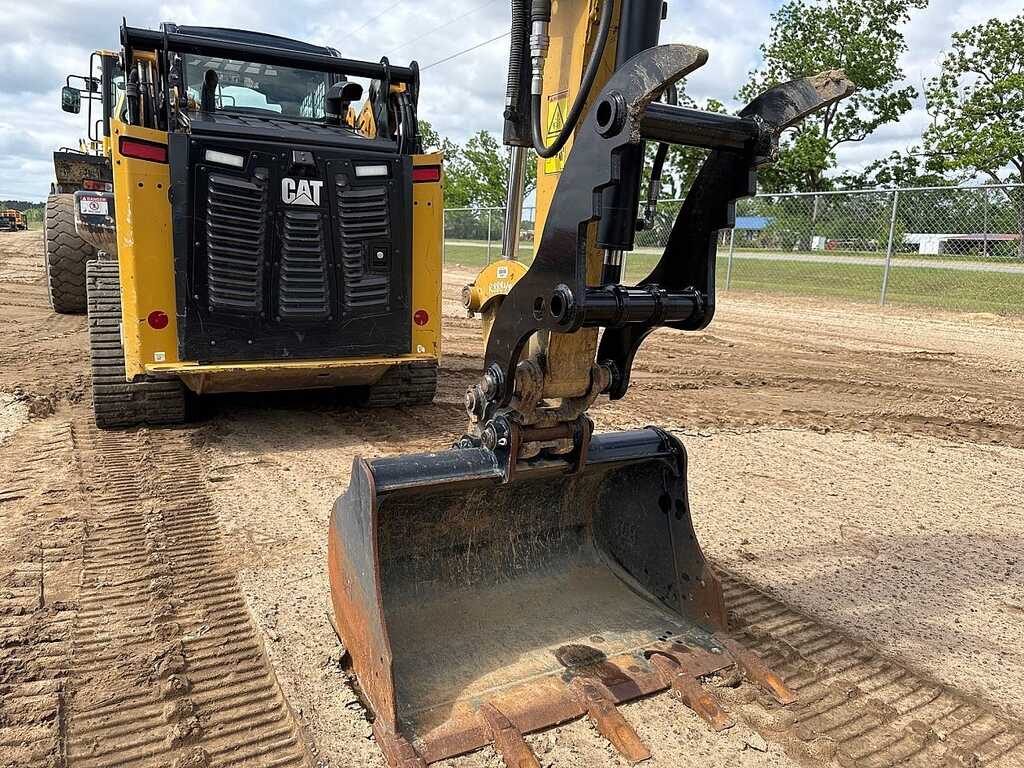

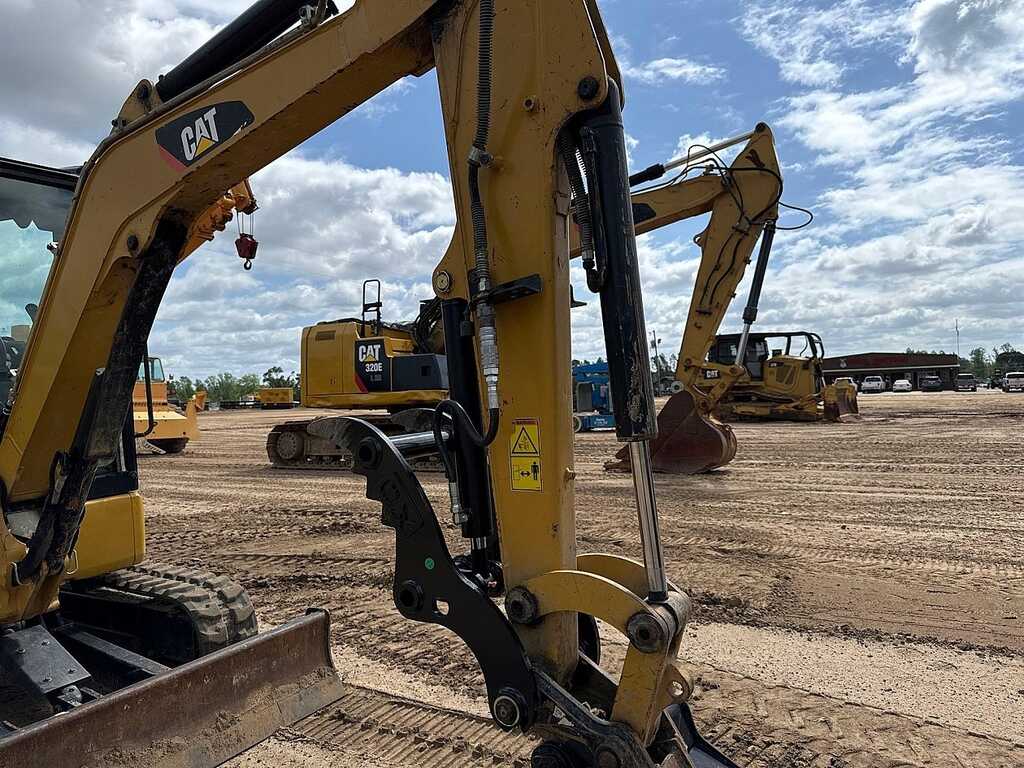

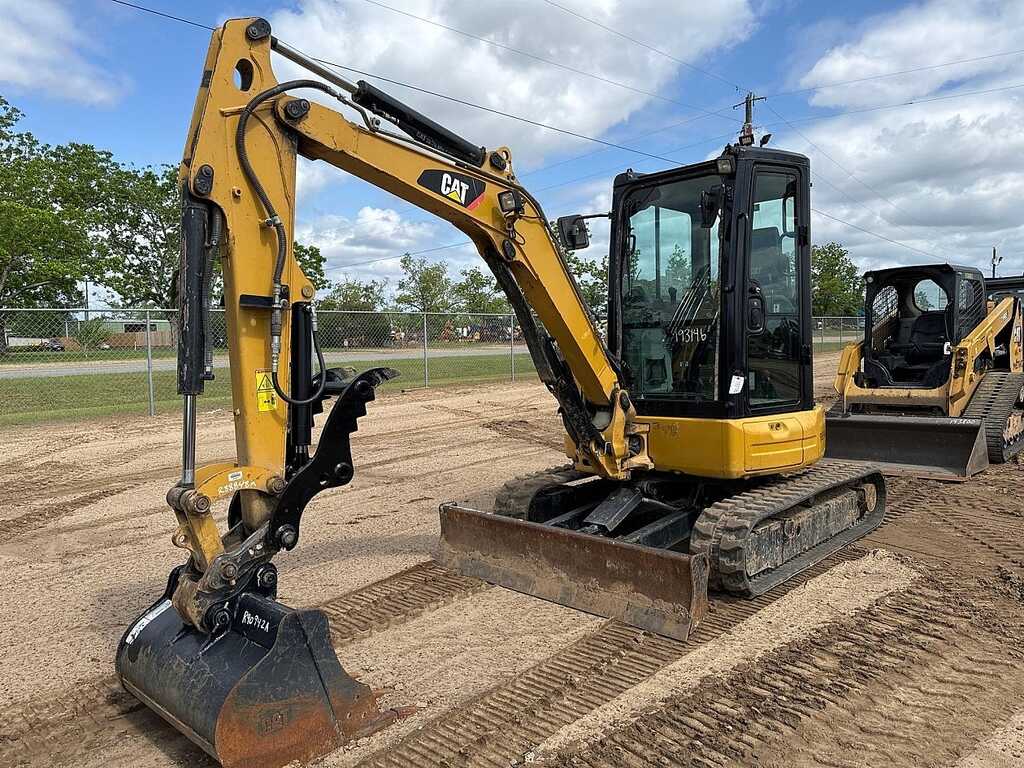

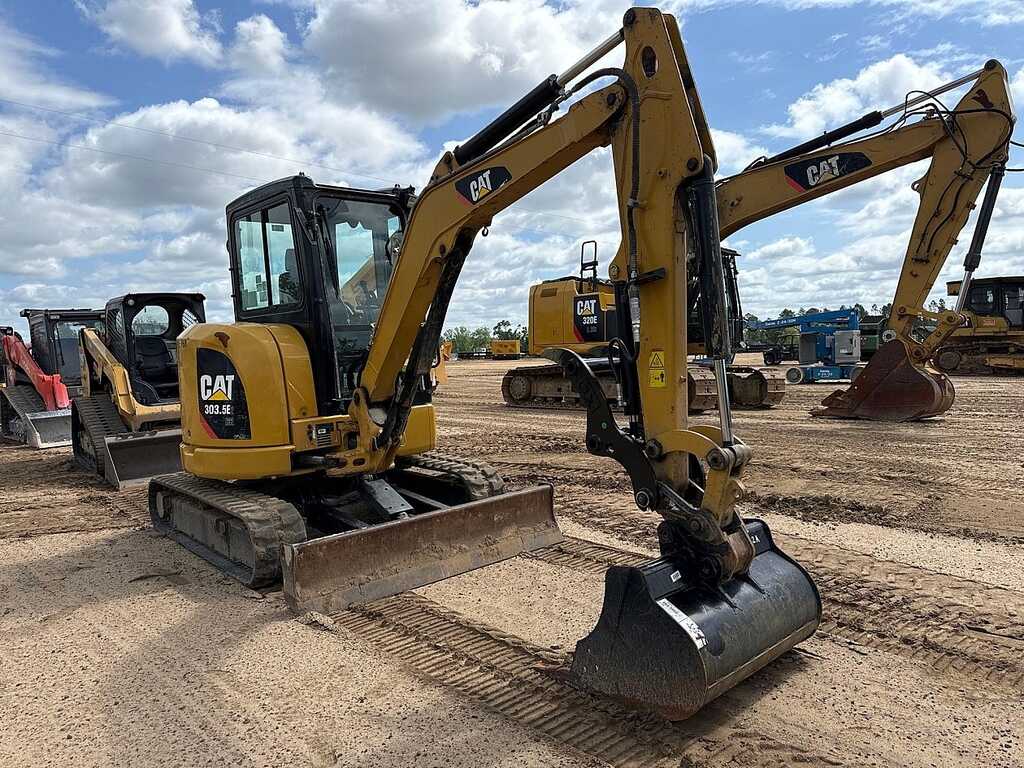

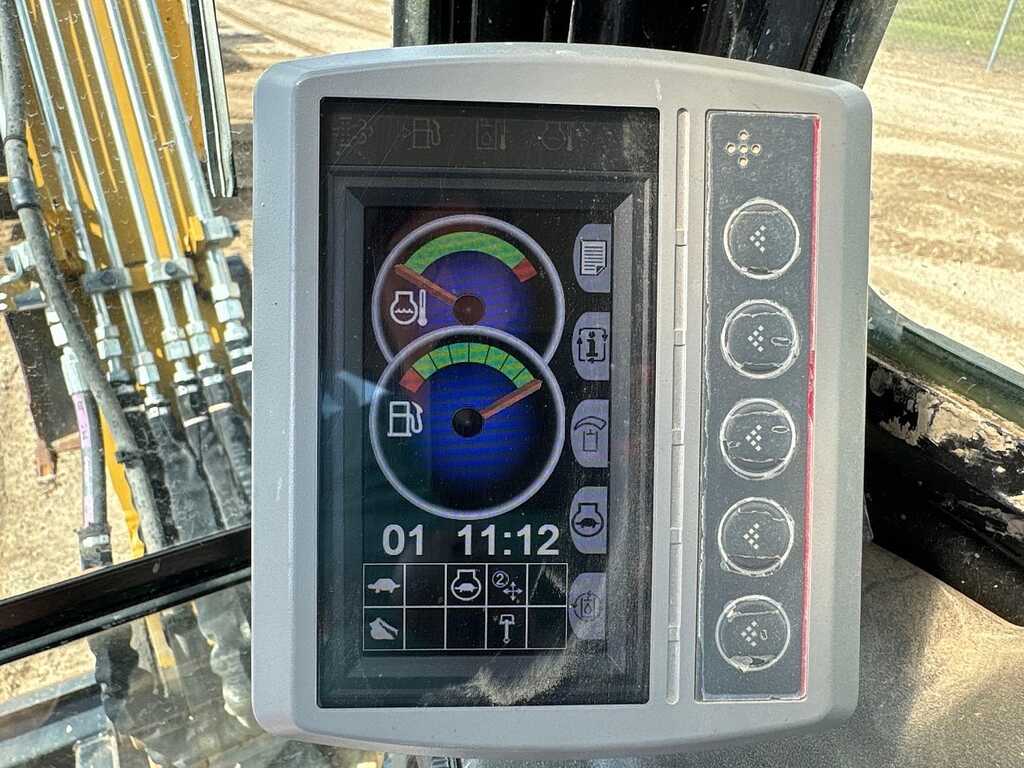

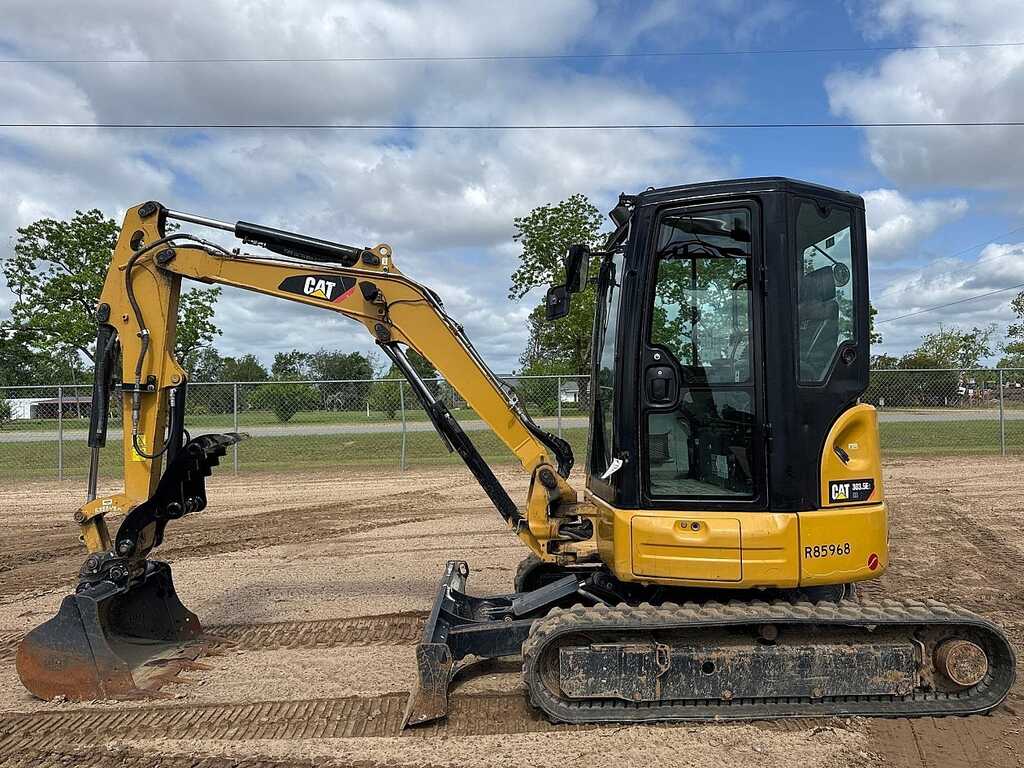

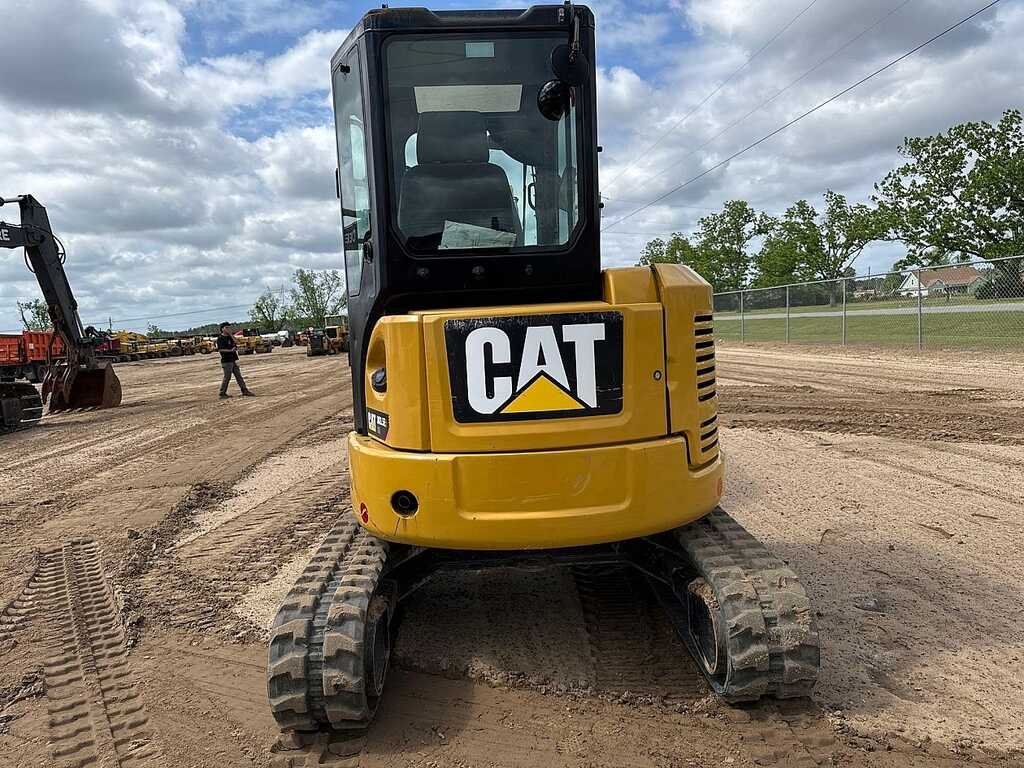

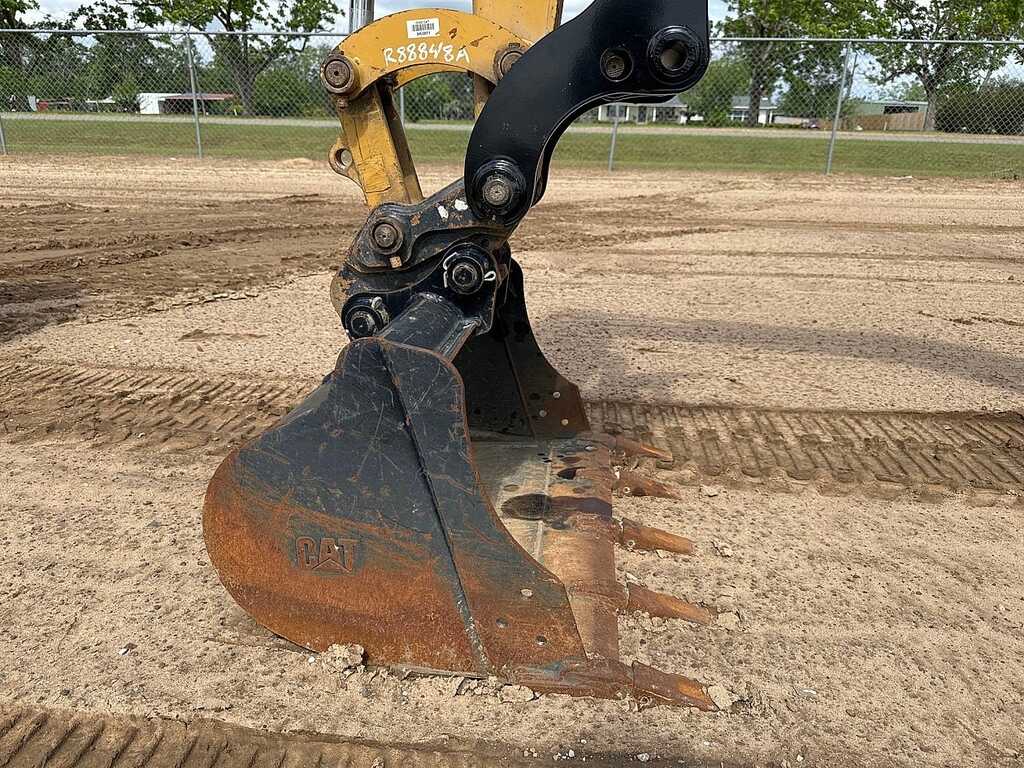

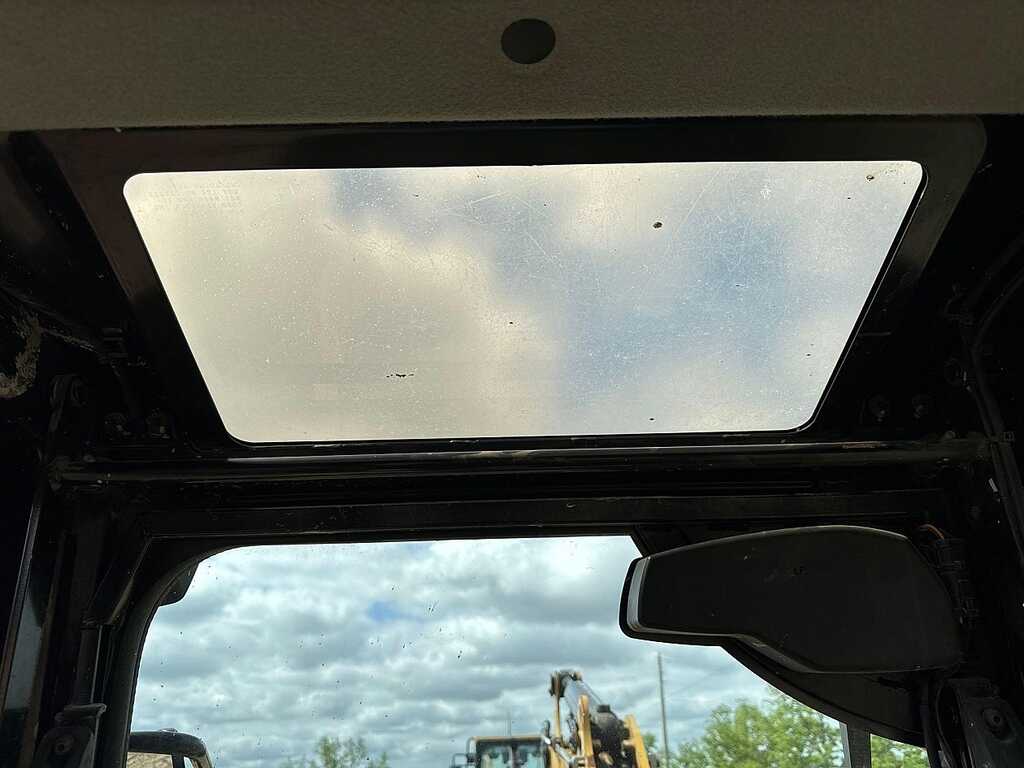

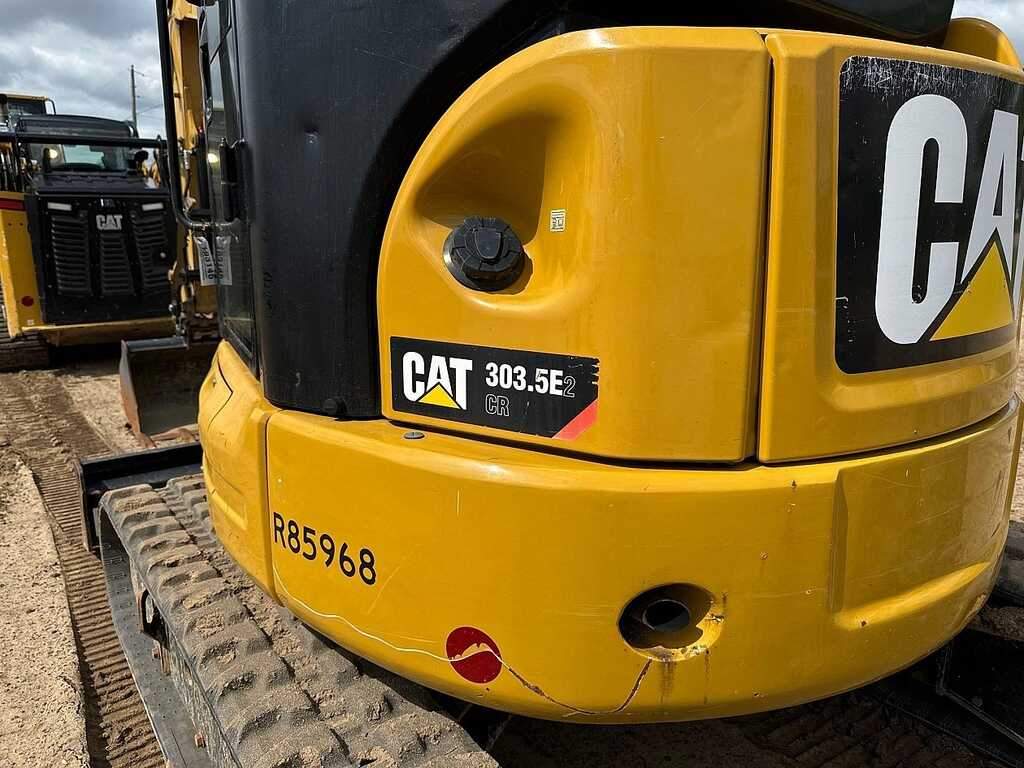

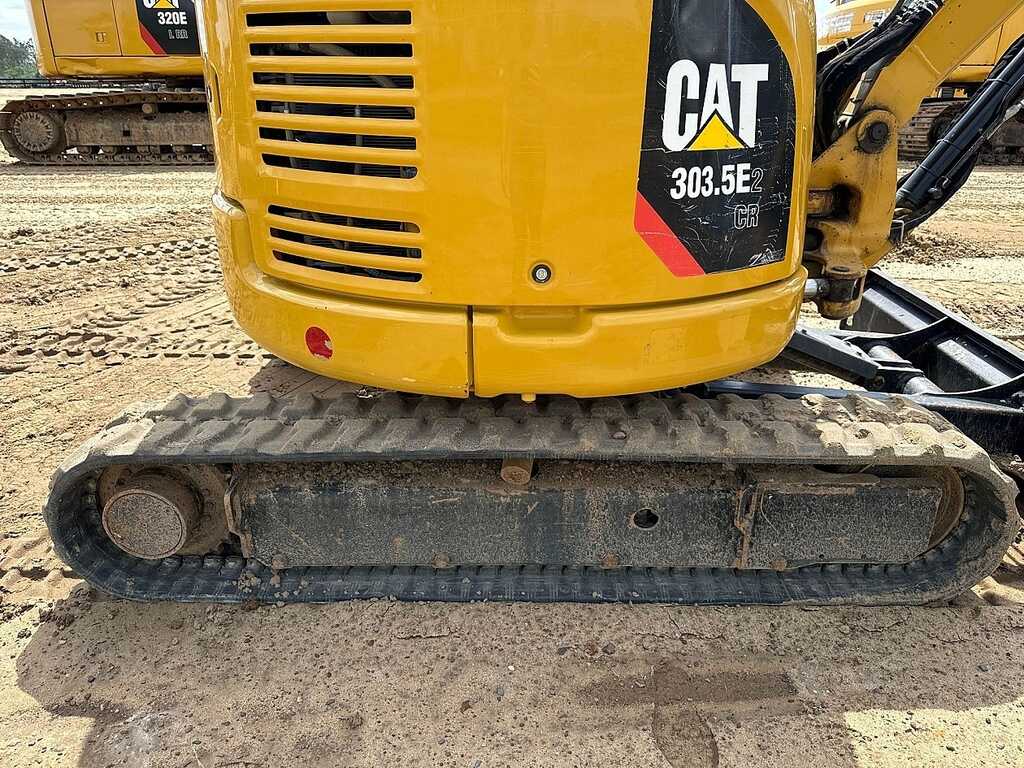

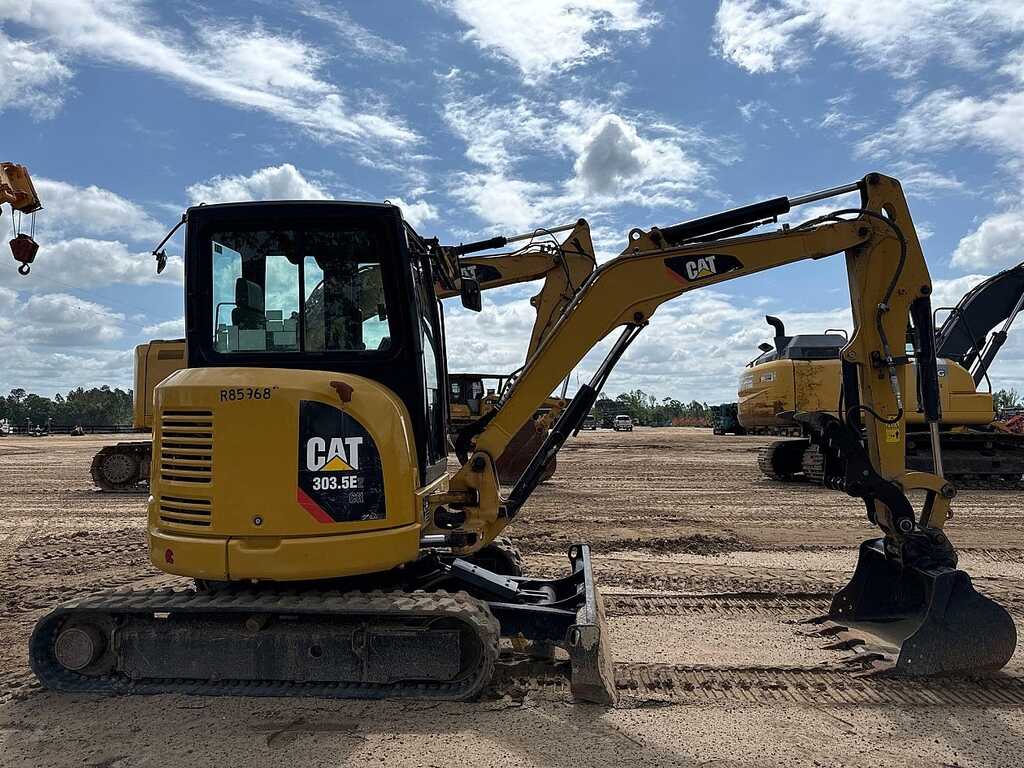

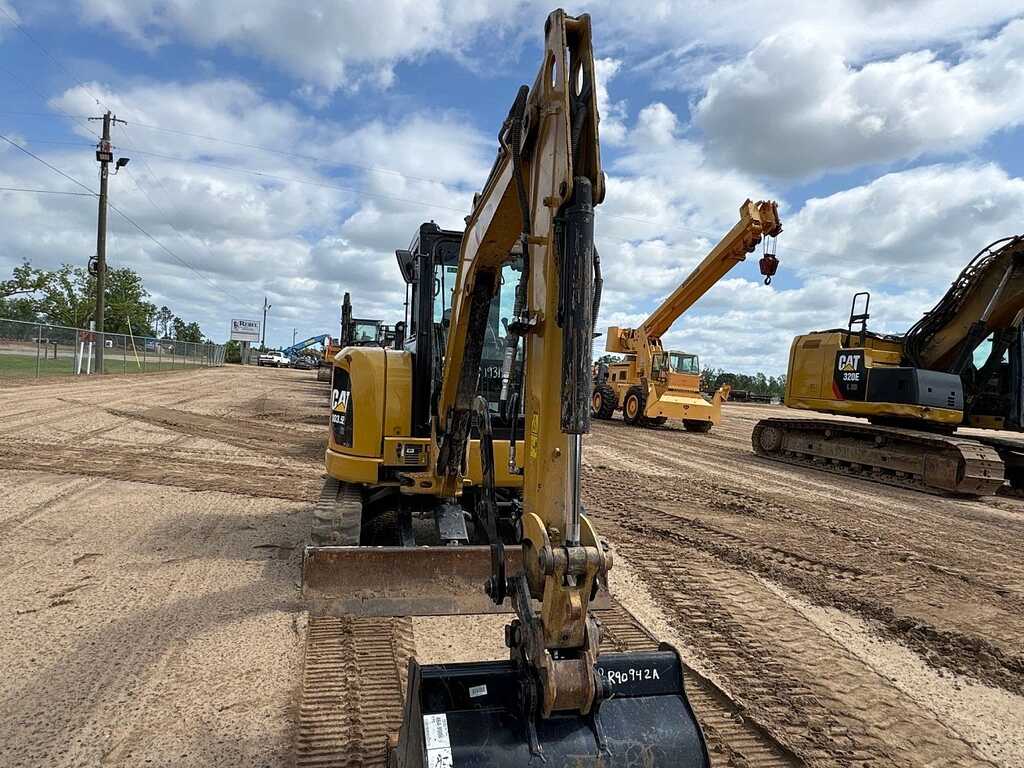

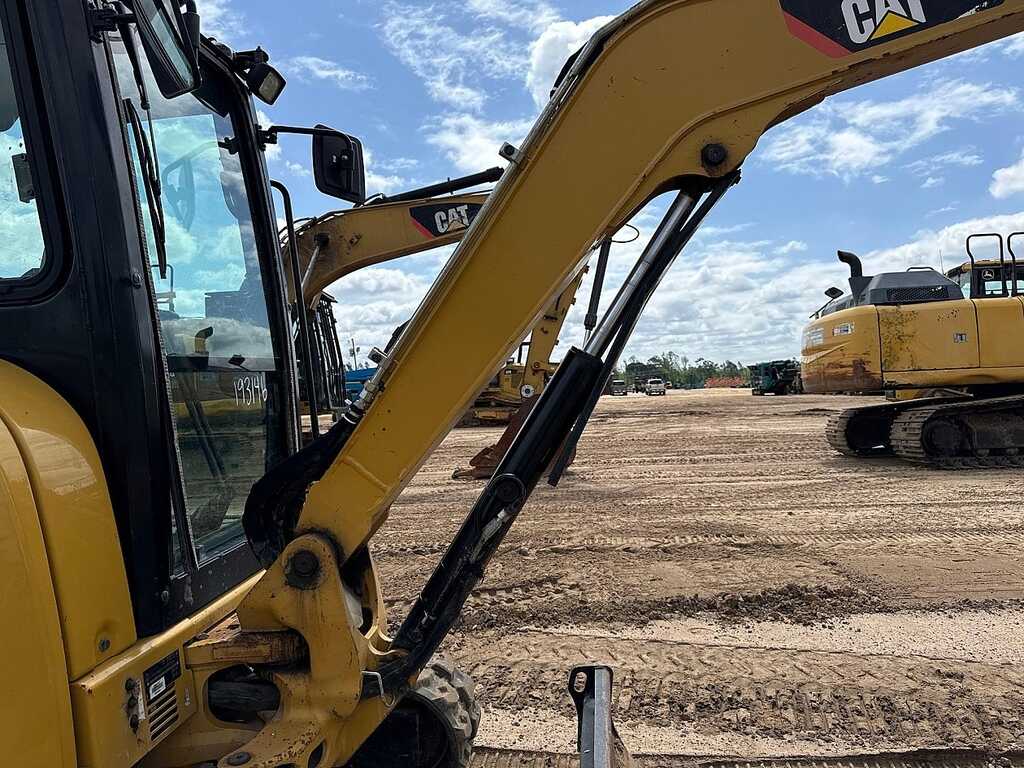

EROPS, RUBBER TRACK, AUX HYD, QUICK COUPLER, 34″ BUCKET W/ HYD THUMB, PUSH BLADE, SN- CAT3035ECJWY05243 (HRS SHOW – 1453)

Engine
Gross Power: 24.8 hp
Net Power: 23.5 hp
Displacement: 104 cu in
Bore: 3.4 in
Stroke: 3.6 in
Net Power – ISO 9249: 23.5 hp
Engine Model: Cat C1.7
Rated Net Power – ISO 9249: 23.5 hp
Note: Cat C1.7 engine meets U.S. EPA Tier 4 Final / EU Stage IIIB emission standards

Operational
Operating Weight: 8,209 lb
Note: Weight includes rubber tracks, bucket, operator, full fuel, and auxiliary lines
Operating Weight with Cab: 8,209 lb
Operating Weight with Canopy: 7,803 lb

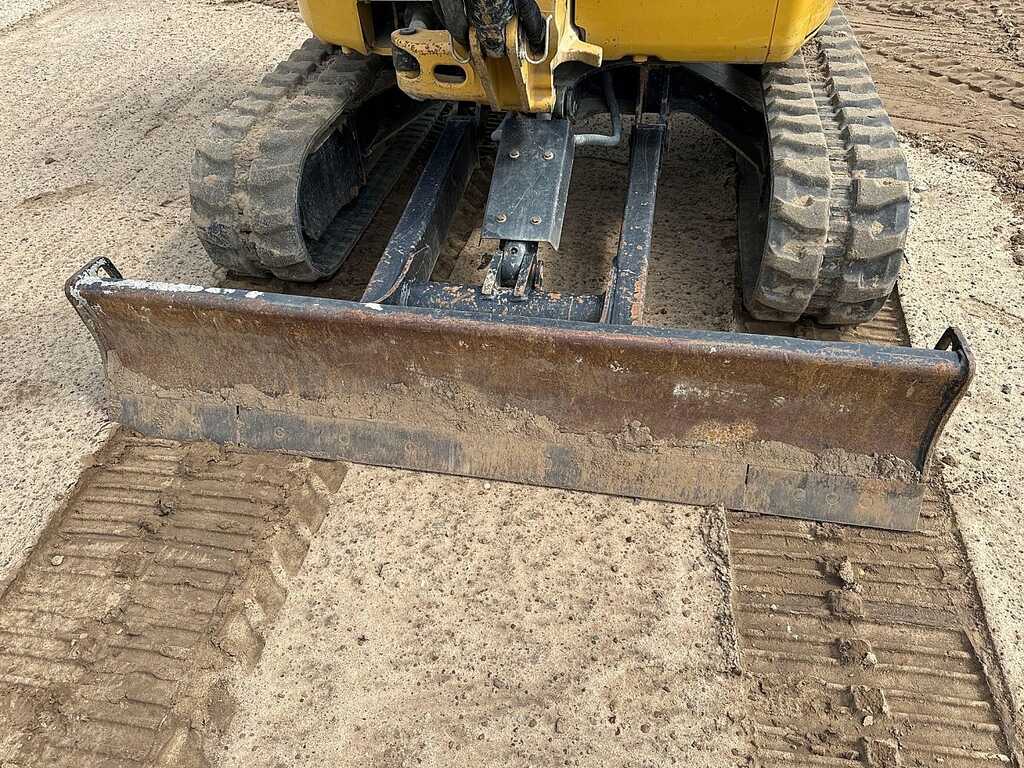

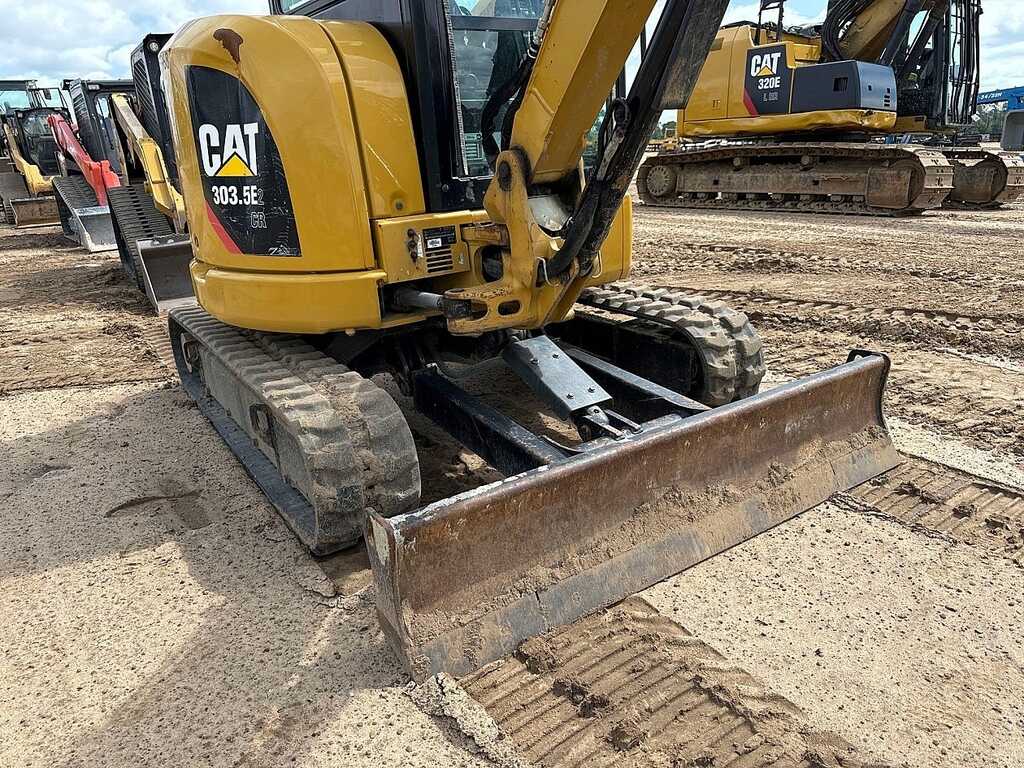

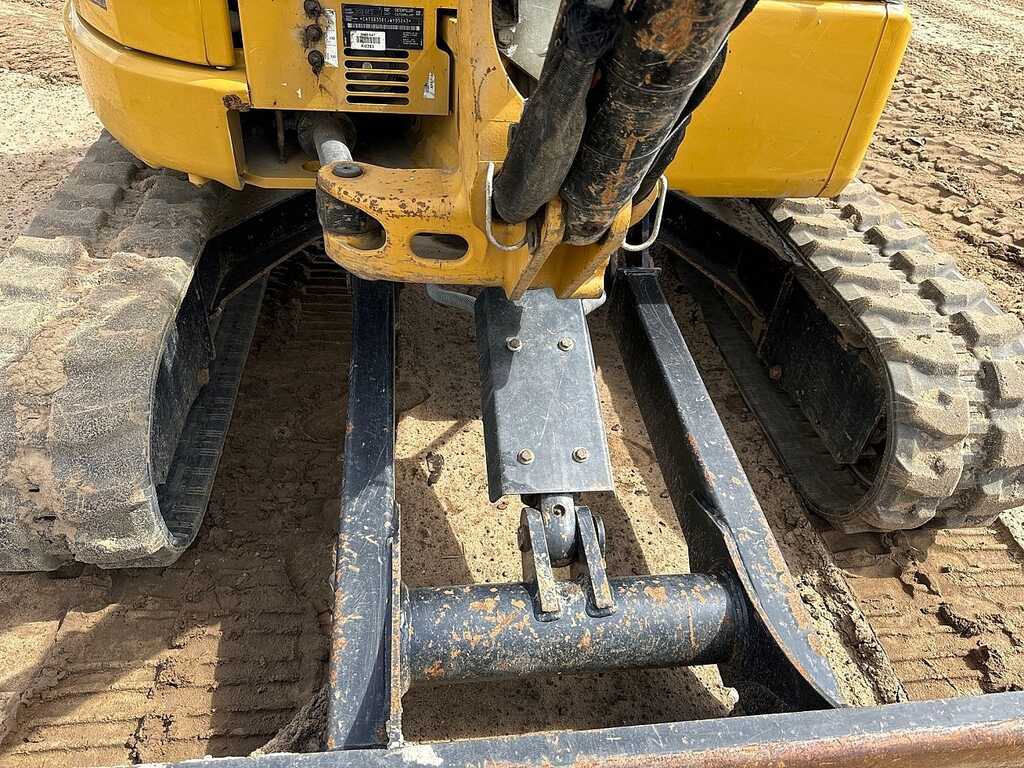

Blade
Height: 13 in
Width: 5.9 ft
Lift Height: 16 in

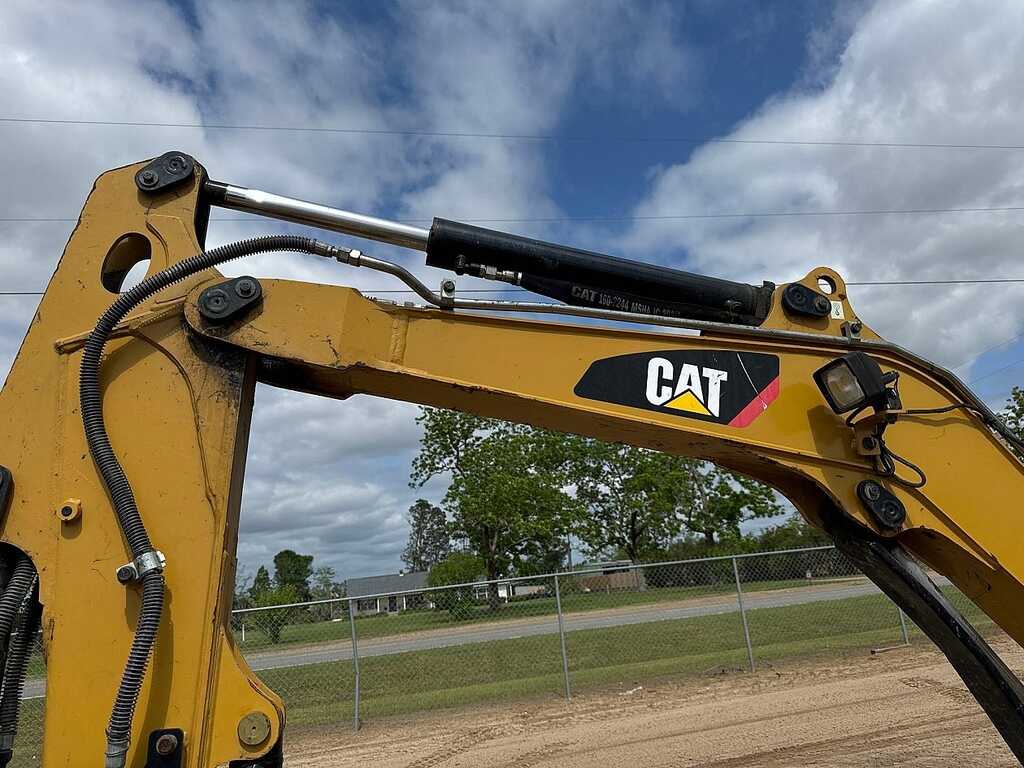

Hydraulic System
Pump Flow: 26.4 gal/min
Note: Load sensing hydraulics with variable displacement piston pump
Operating Pressure – Swing: 3,132 psi
Operating Pressure – Equipment: 3,553 psi
Operating Pressure – Travel: 3,553 psi
Auxiliary Circuit – Primary: 18.5 gal/min
Auxiliary Circuit – Secondary: 6.6 gal/min

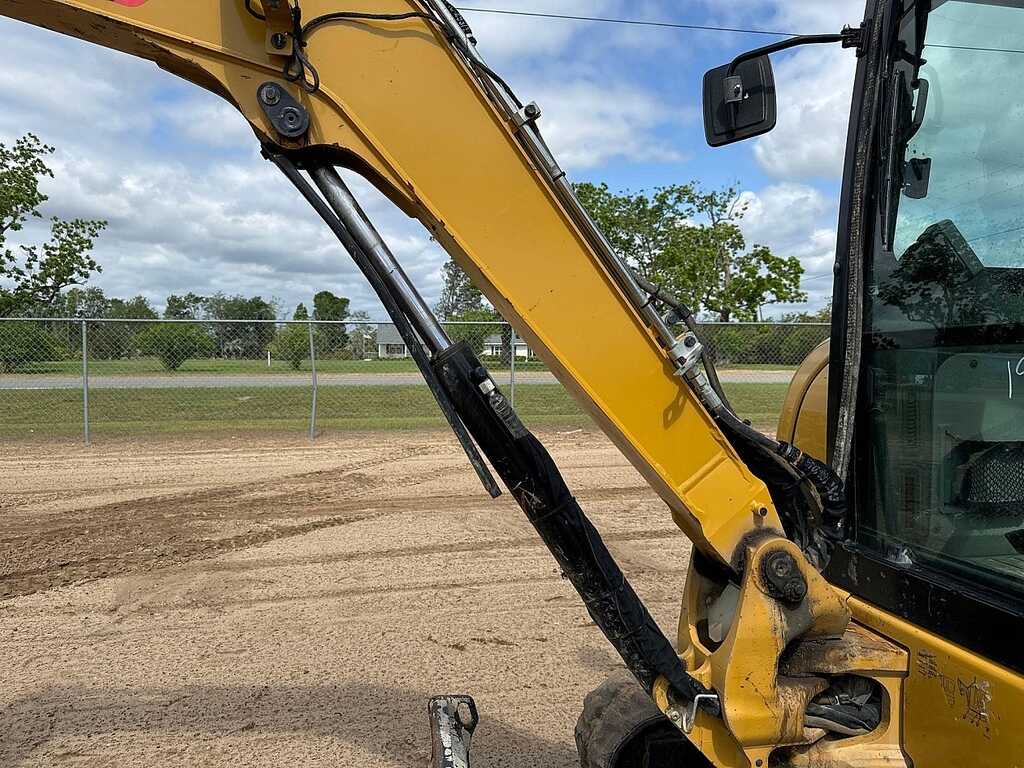

Digging Force
Stick – Standard: 4,249 lb
Stick – Long: 3,799 lb
Bucket: 7,419 lb

Operating Specifications
Maximum Dig Depth: 125 in

Service Refill Capacities
Cooling System: 1.5 gal
Fuel Tank: 12.2 gal
Hydraulic Tank: 11.2 gal
Hydraulic System: 17.2 gal
Engine Oil: 1.8 gal

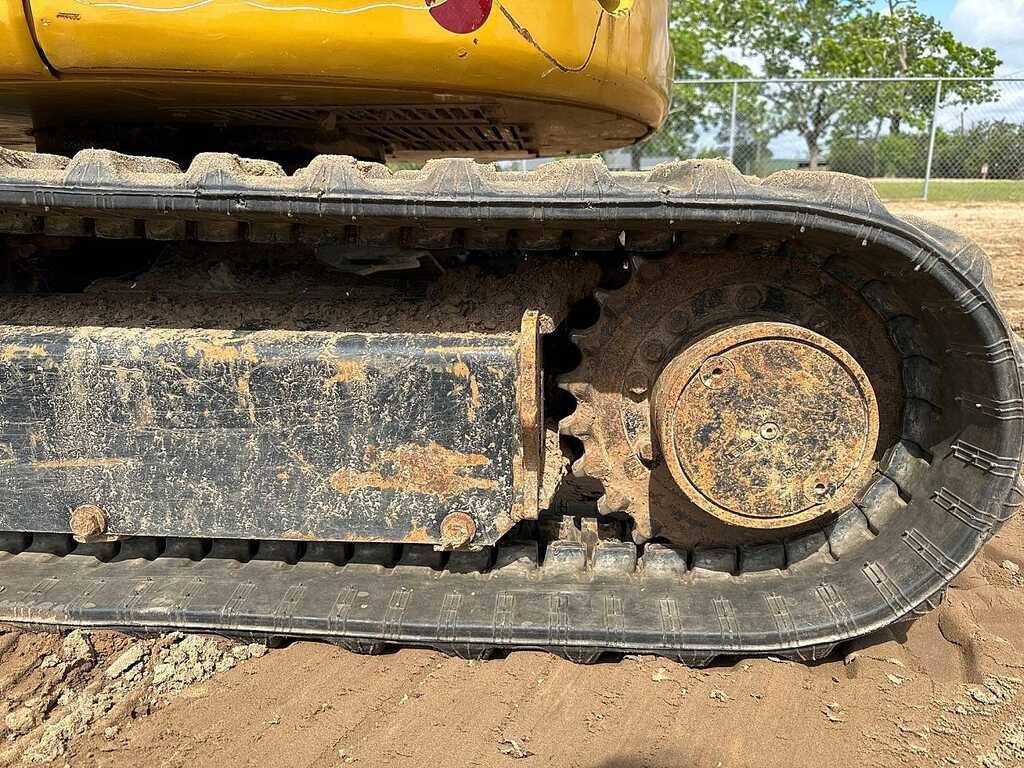

Travel System
Maximum Traction Force – High Speed: 3,822 lb
Maximum Traction Force – Low Speed: 6,992 lb
Travel Speed – High: 2.9 mph
Travel Speed – Low: 2 mph
Ground Pressure: 4.6 psi
