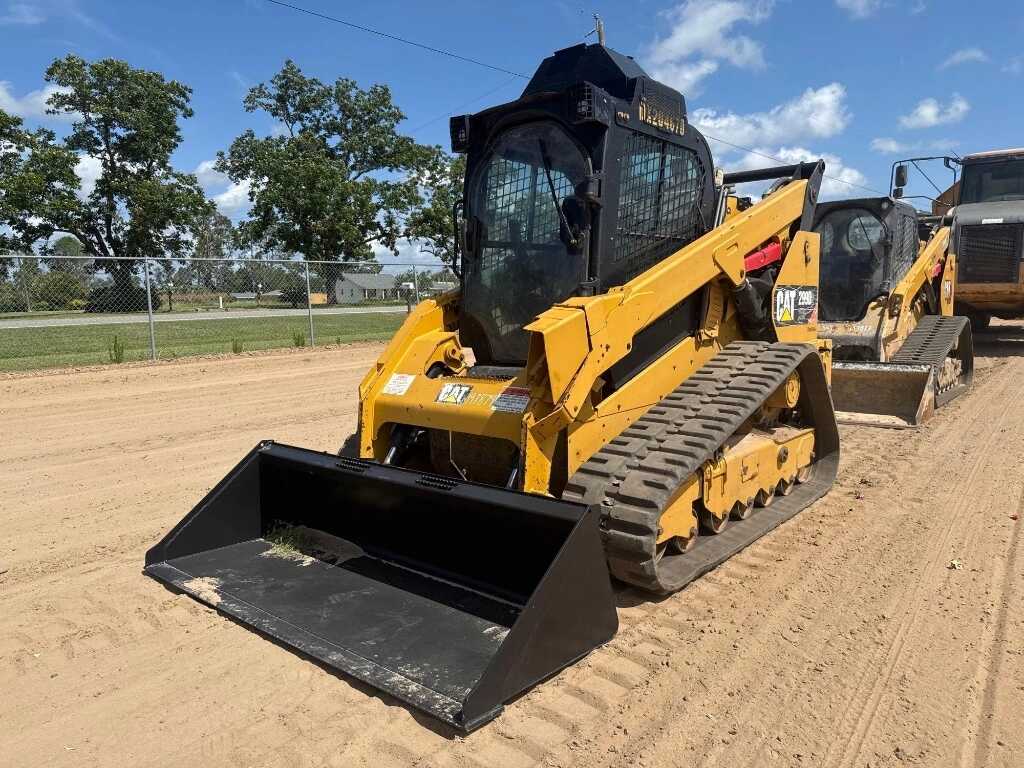

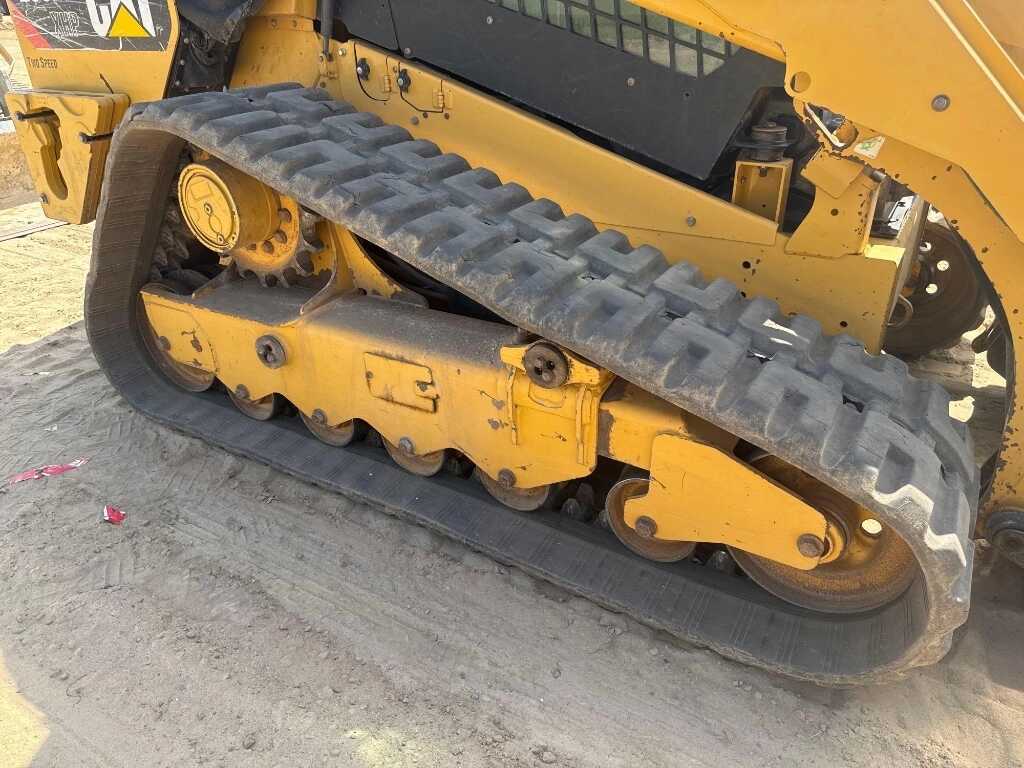

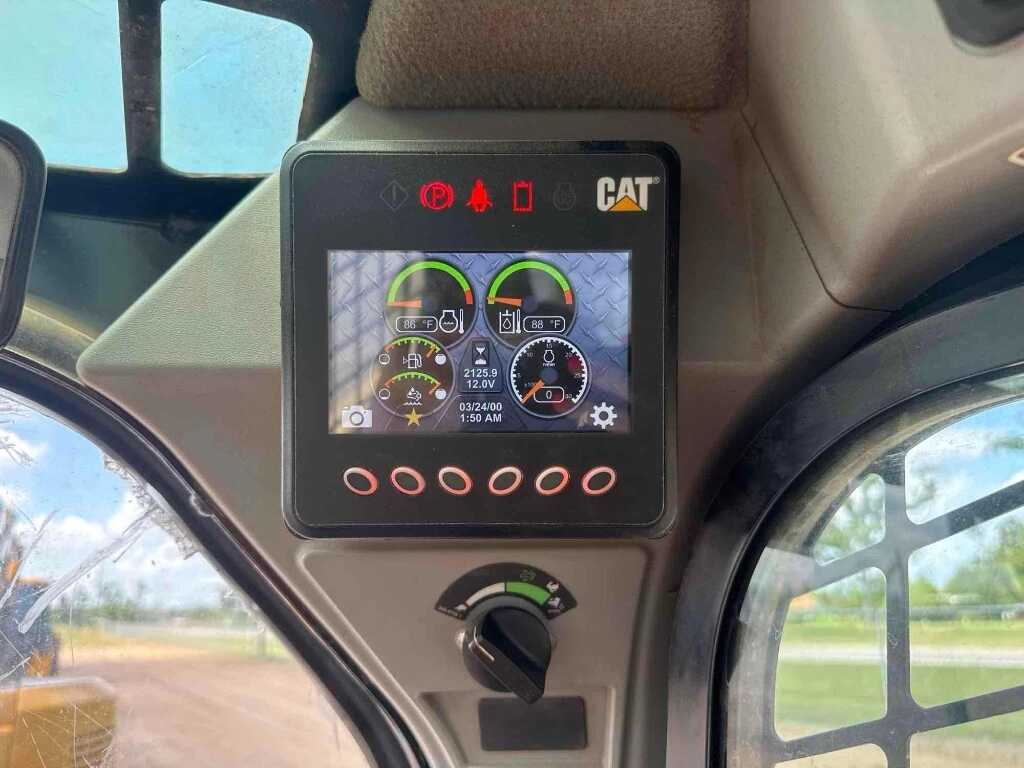

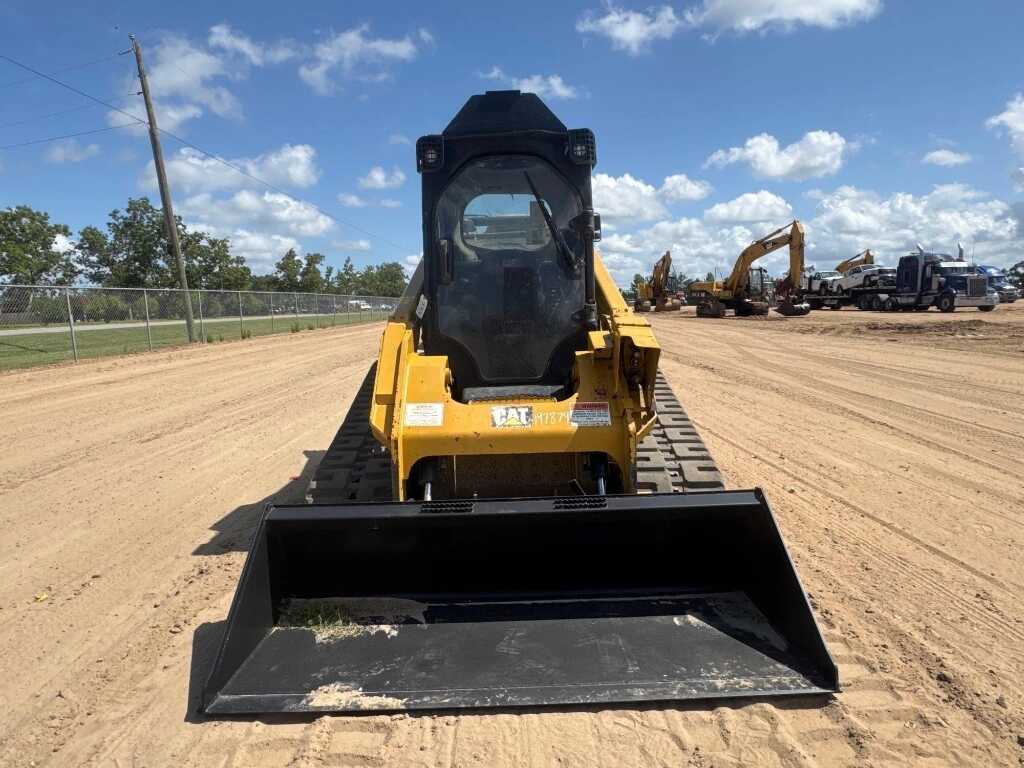

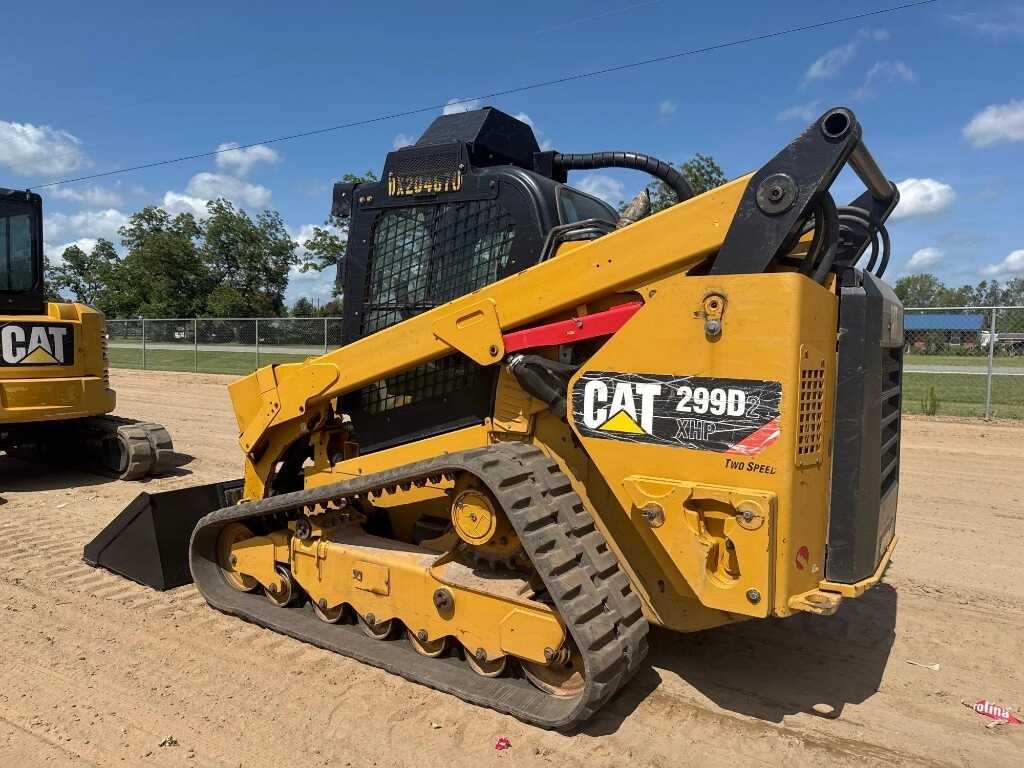

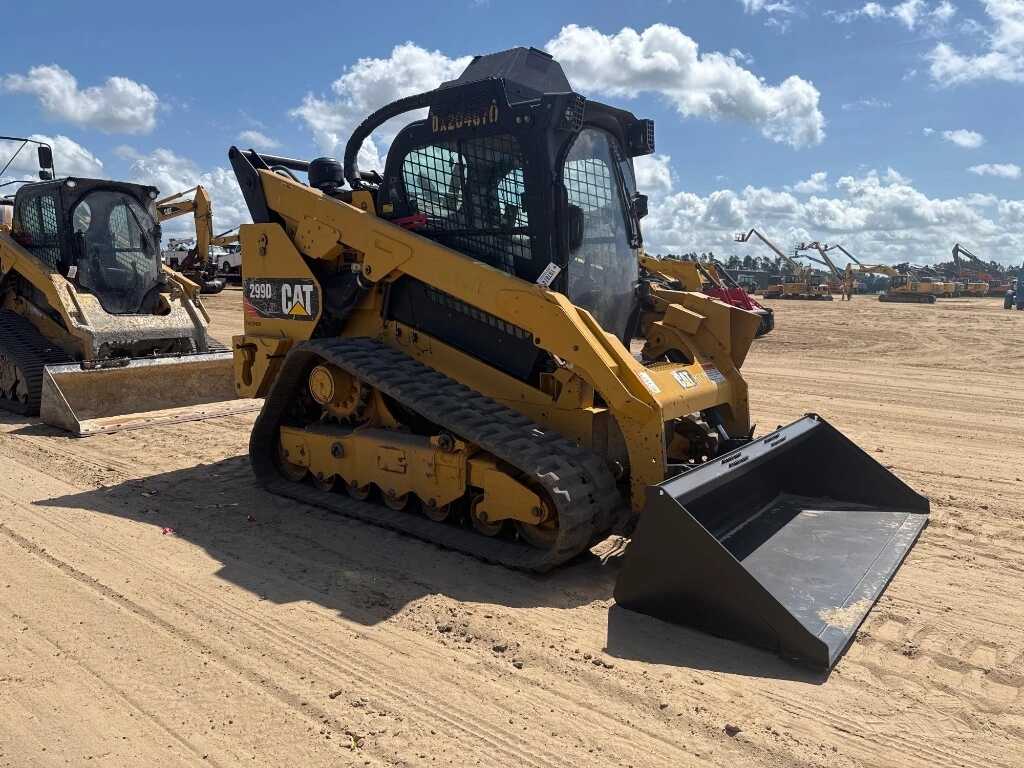

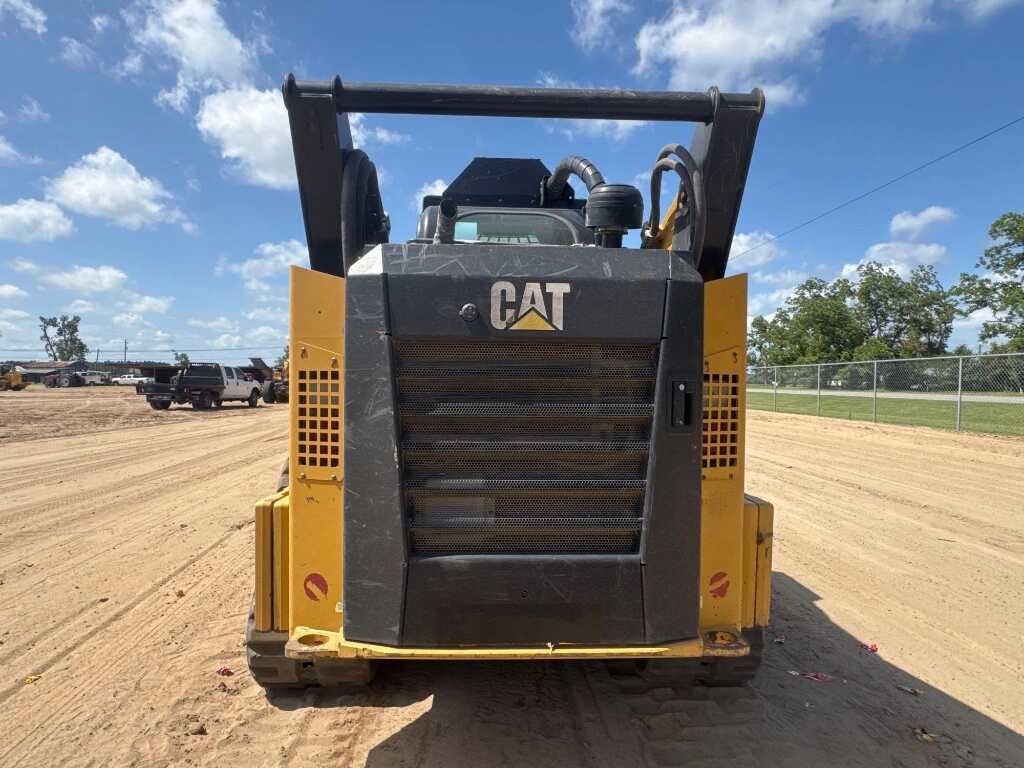

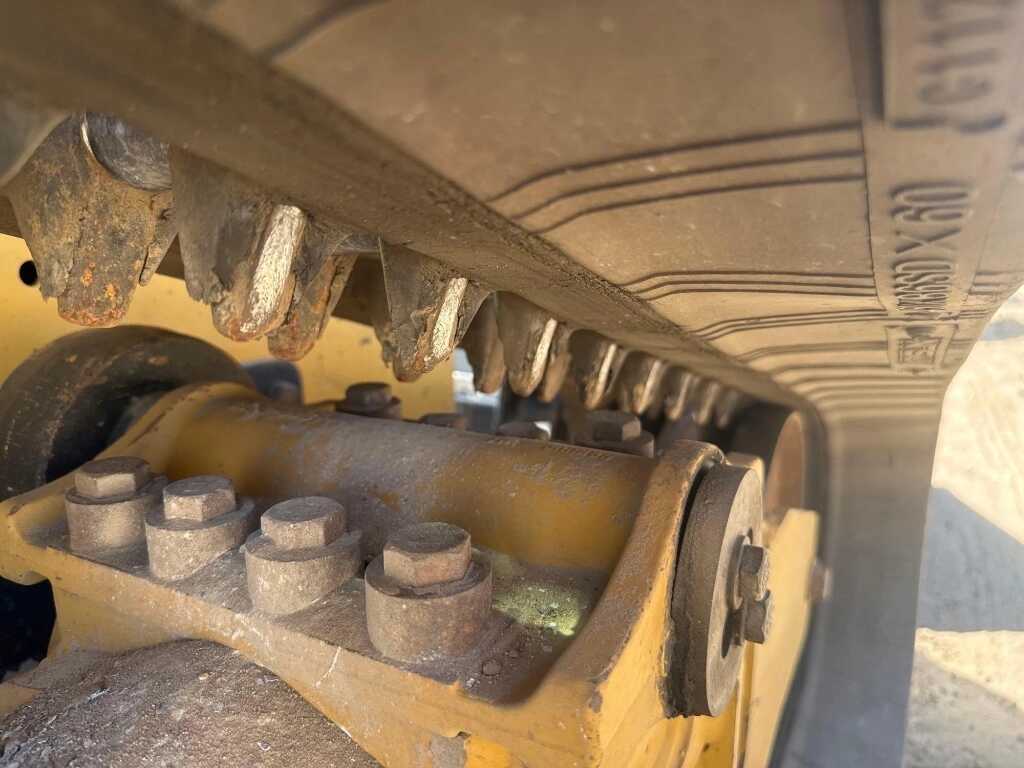

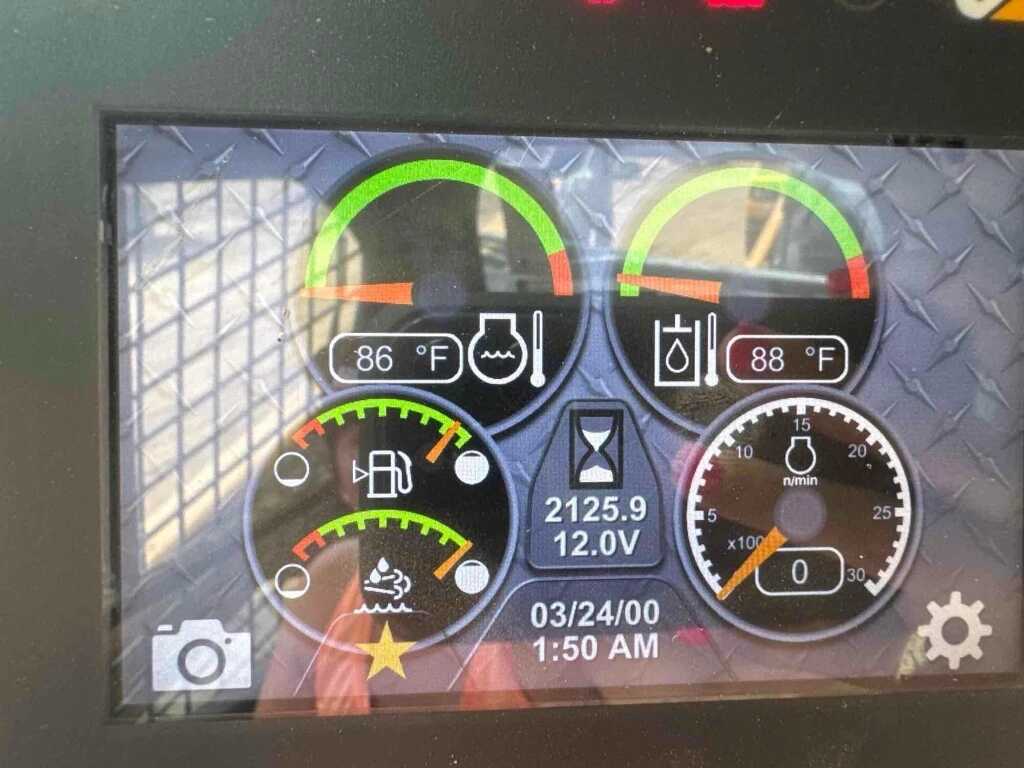

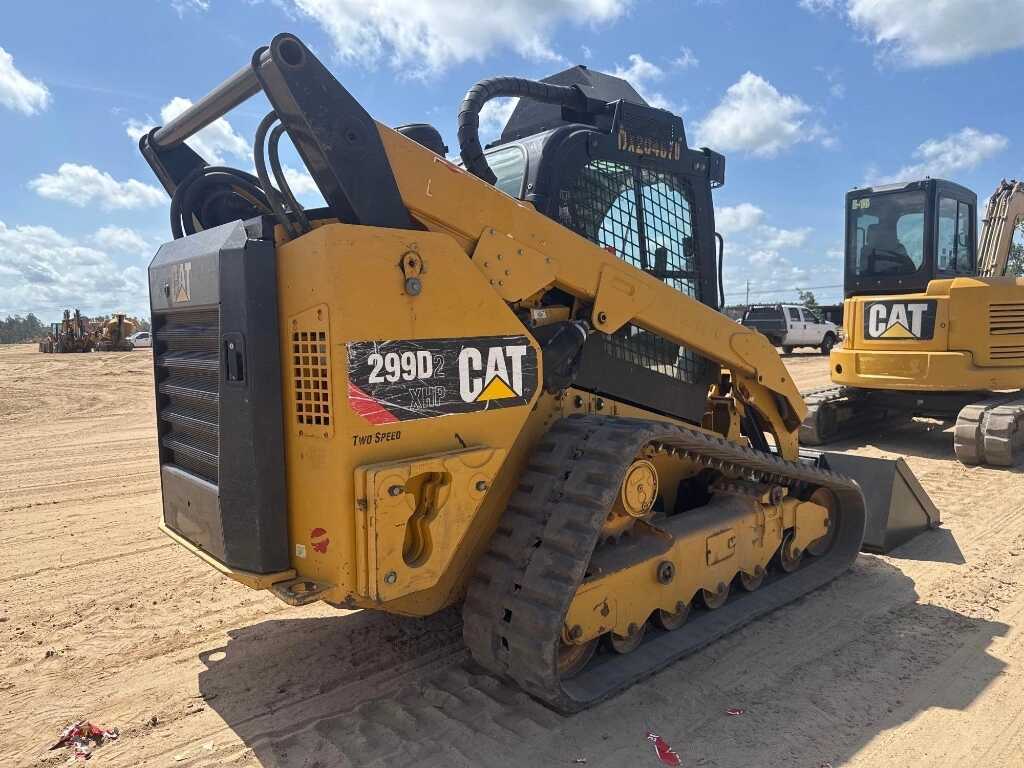

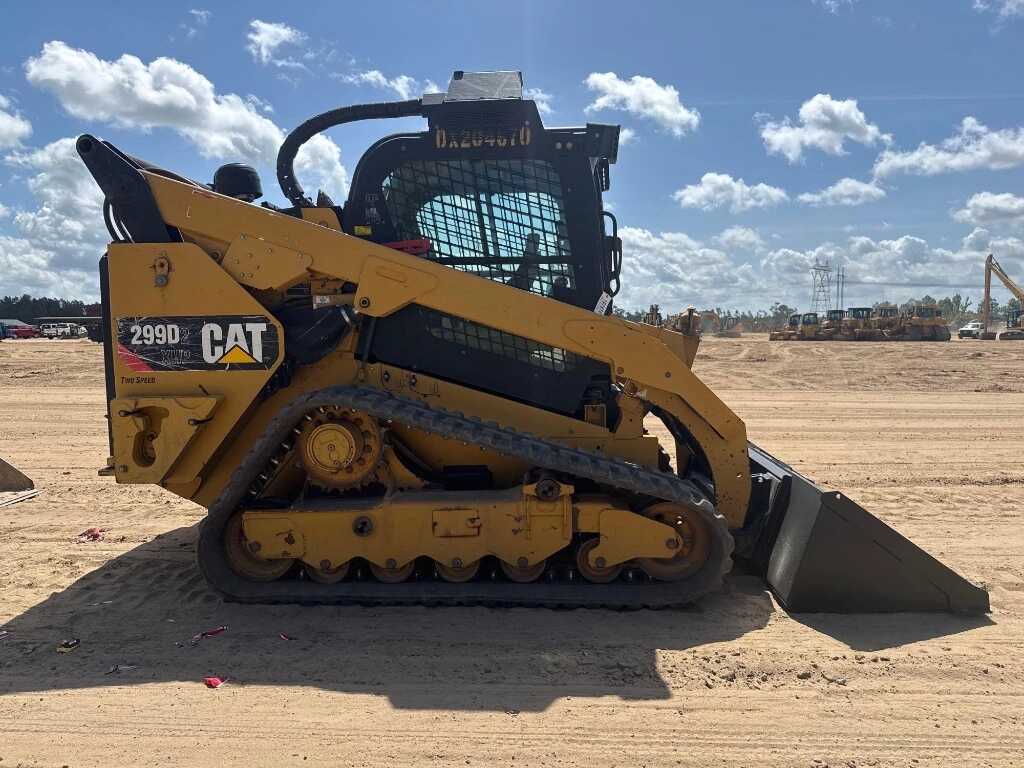

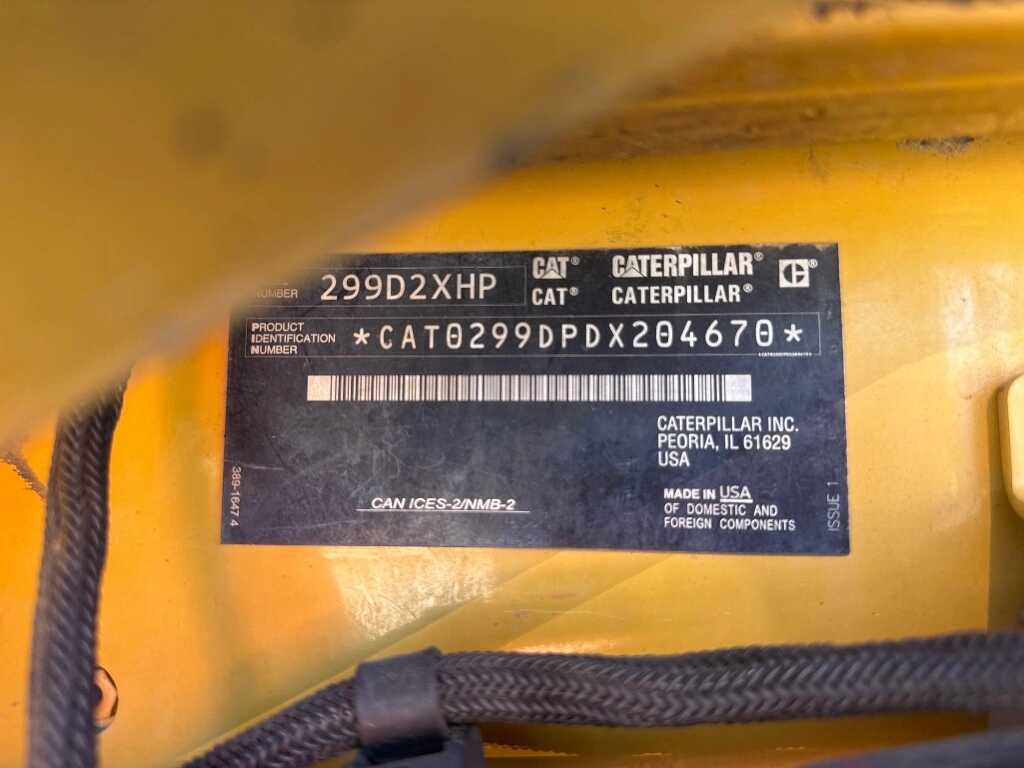

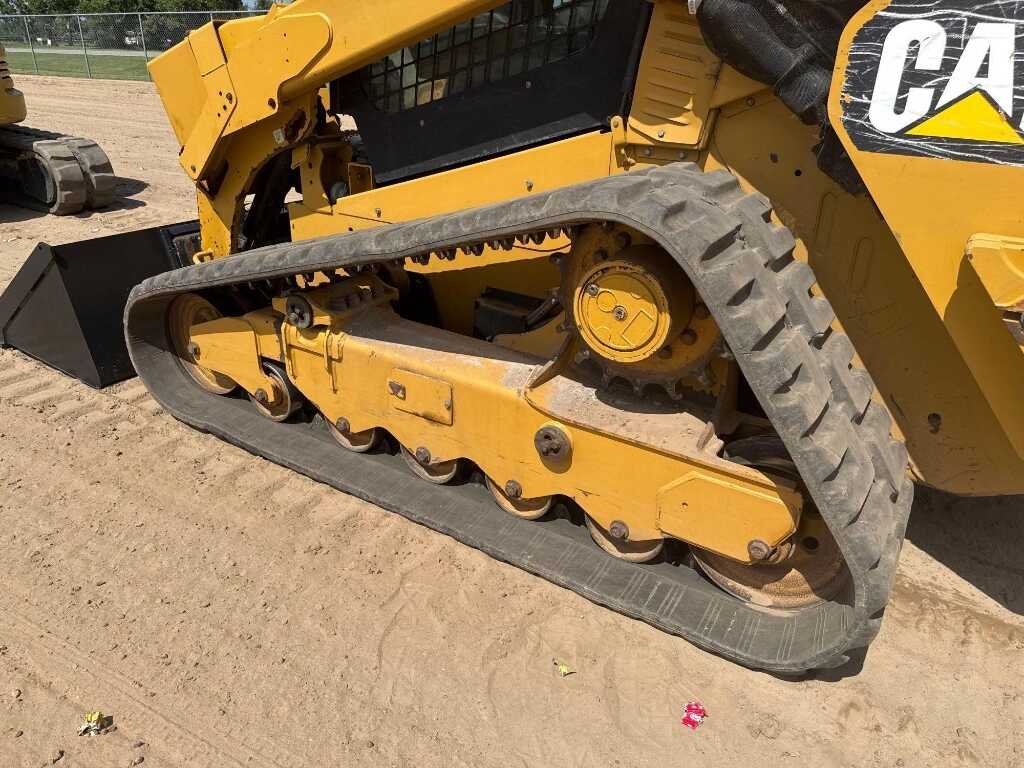

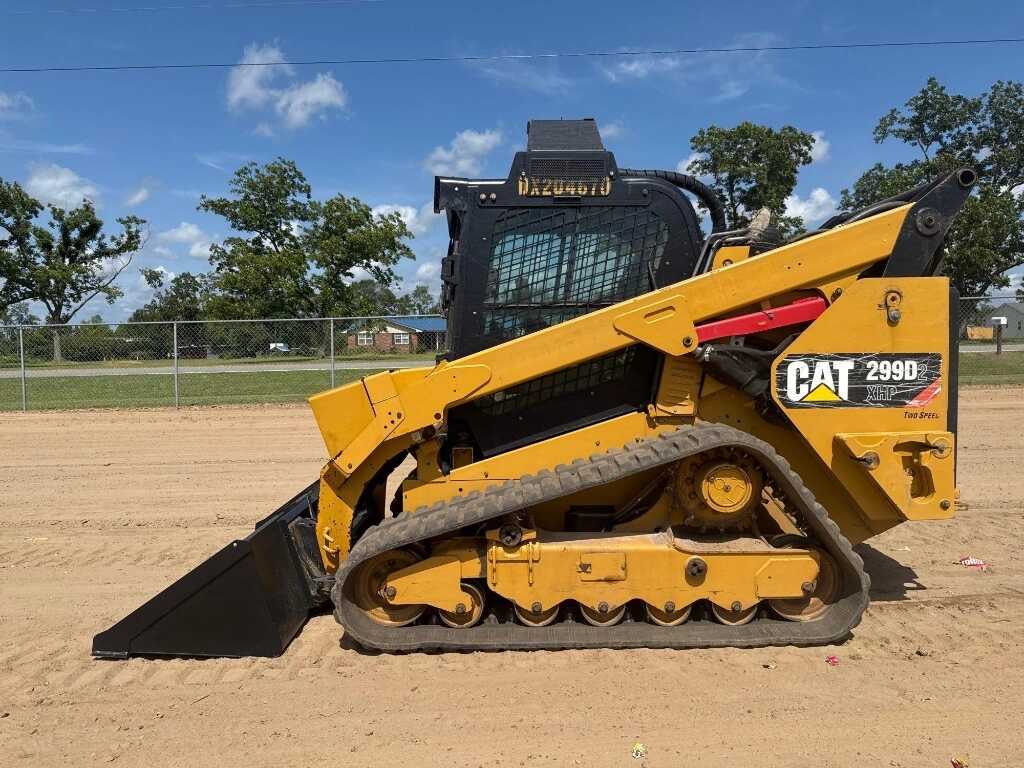

EROPS, RUBBER TRACK, 2SPD, QUICK ATTACH W/ BUCKET,AUX VALVES, SN- CAT0299DPDX204670 (HRS SHOW – 2125)

Engine & Performance

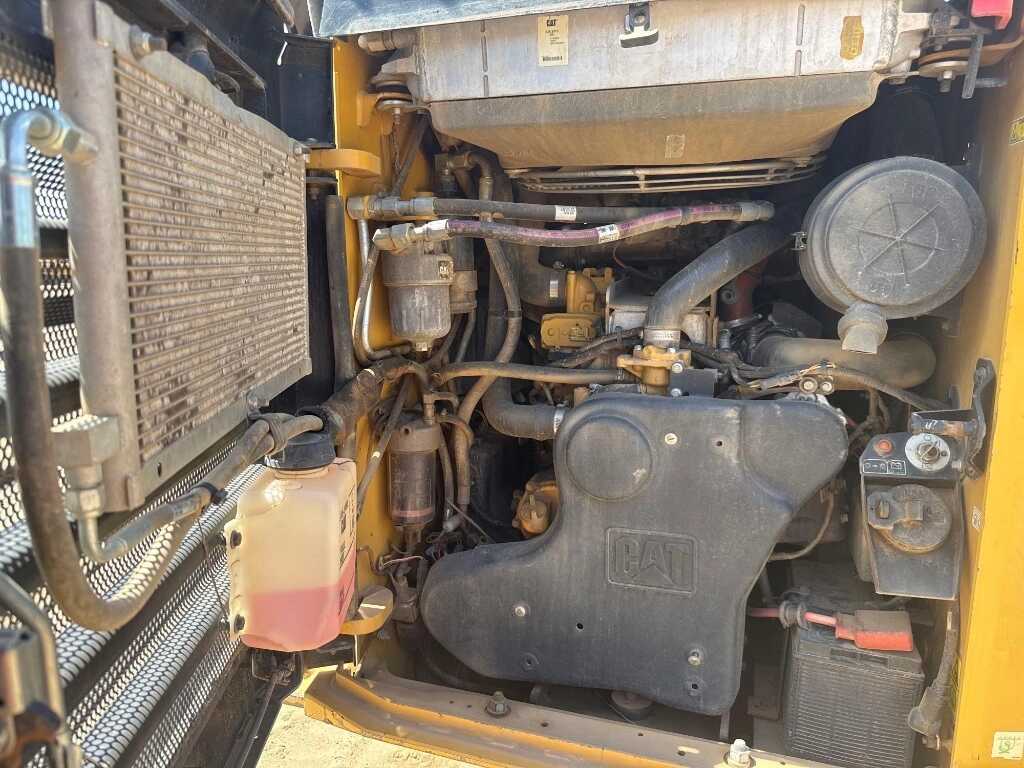

Engine Model: Cat C3.8 DIT (turbo)
Net Power: 106 hp (SAE 1349)
Net Power (ISO 9249): 107 hp
Gross Power (SAE J1995): 110 hp
Displacement: 232 cu in
Bore × Stroke: 3.9 × 4.7 in
Peak Torque @ 1,500 rpm: 276 lb·ft
Emissions: Tier 4 Final compliant

Operating Specifications
Operating Weight: 11,608 lb
Rated Operating Capacity (35% Tipping Load): 3,308 lb
Rated Operating Capacity (50% Tipping Load): 4,725 lb
Rated Operating Capacity with Counterweight: 4,975 lb
Tipping Load: 9,450 lb
Breakout Force (Tilt Cylinder): 7,270 lb
Breakout Force (Lift Cylinder): 6,162 lb
Ground Pressure: 5.3 psi
Ground Contact Area: 2,184 in²

Hydraulics
Standard Flow: 23 gpm @ 3,335 psi (44 hp)
High Flow XHP: 40 gpm @ 4,061 psi (94 hp)
Hydraulic Tank: 10.3 gal
Hydraulic System (Total): 14.5 gal

Power Train
Travel Speed (1-Speed): 5.2 mph
Travel Speed (2-Speed): 8.4 mph

Dimensions
Length with Bucket on Ground: 154.7 in
Length without Bucket: 125.5 in
Height to Top of Cab: 6.97 ft (83.6 in)
Maximum Overall Height: 158.7 in
Bucket Pin Height – Maximum Lift: 10.53 ft
Clearance at Maximum Lift & Dump: 94.5 in
Maximum Dump Angle: 54°
Rack Back Angle – Max Height: 81°
Reach at Maximum Lift/Dump: 33.6 in
Maximum Reach with Arms Parallel: 51.9 in
Turning Radius (Bucket): 91.1 in
Turning Radius (Coupler): 58.1 in
Turning Radius (Rear): 74 in
Track Length on Ground: 69.6 in
Overall Width (400 mm tracks): 76 in
Ground Clearance: 0.8 ft

Service Refill Capacities
Fuel Tank: 32.2 gal
Cooling System: 4.1 gal
Engine Oil: 3.5 gal
DEF Tank: 5 gal

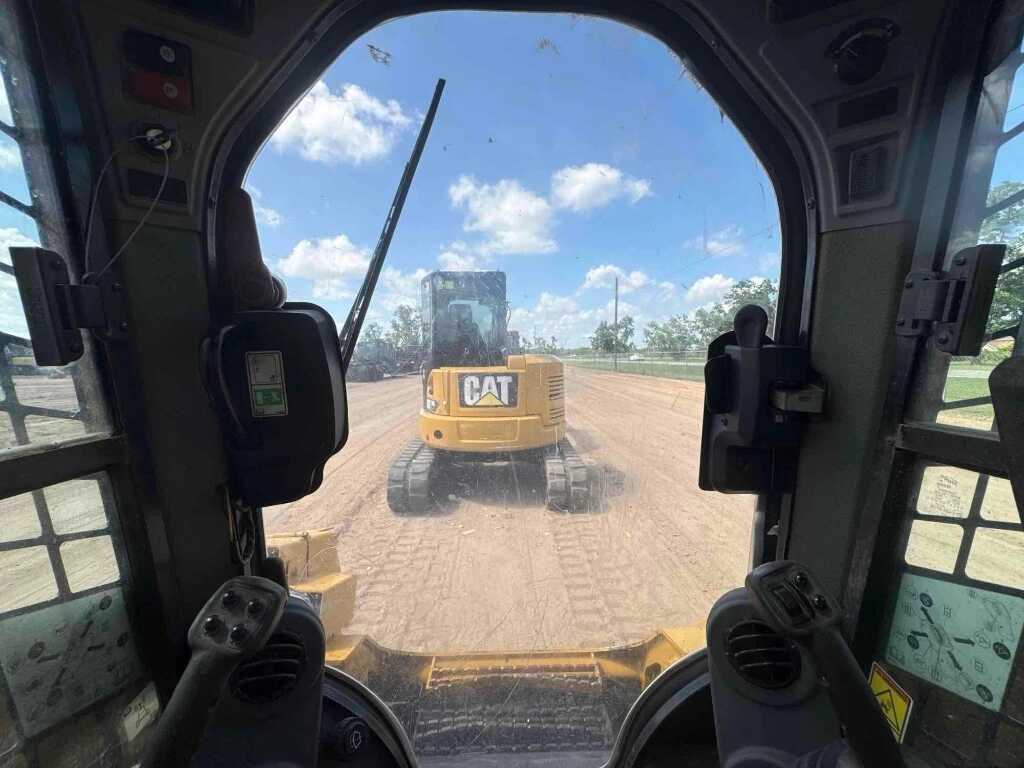

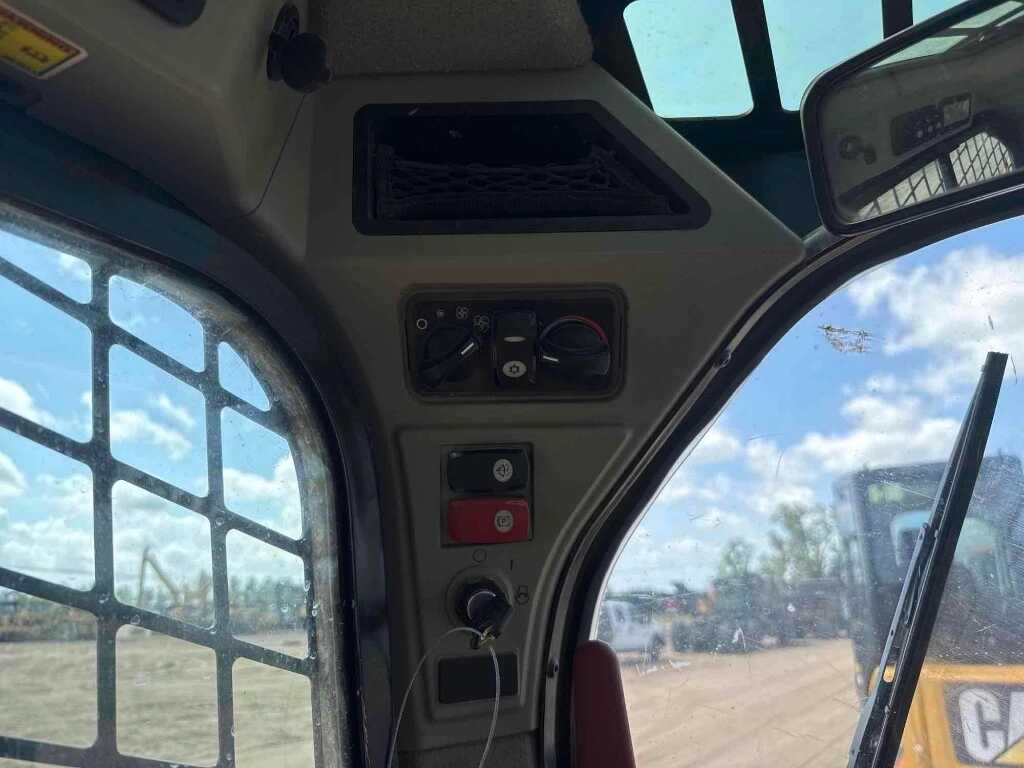

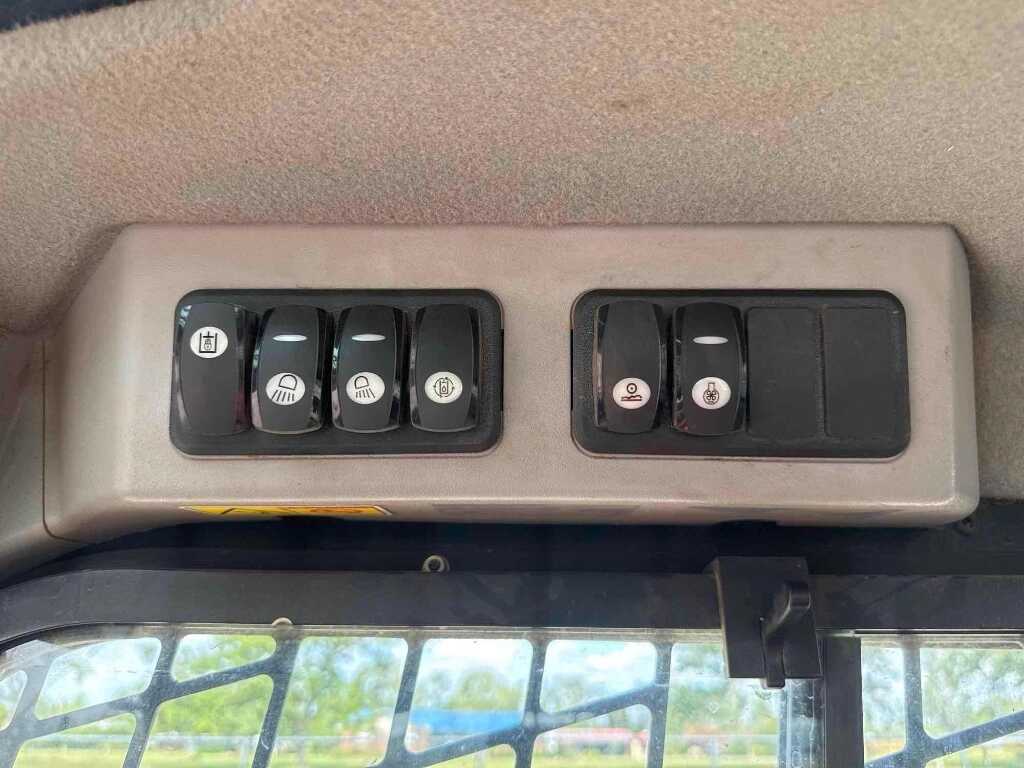

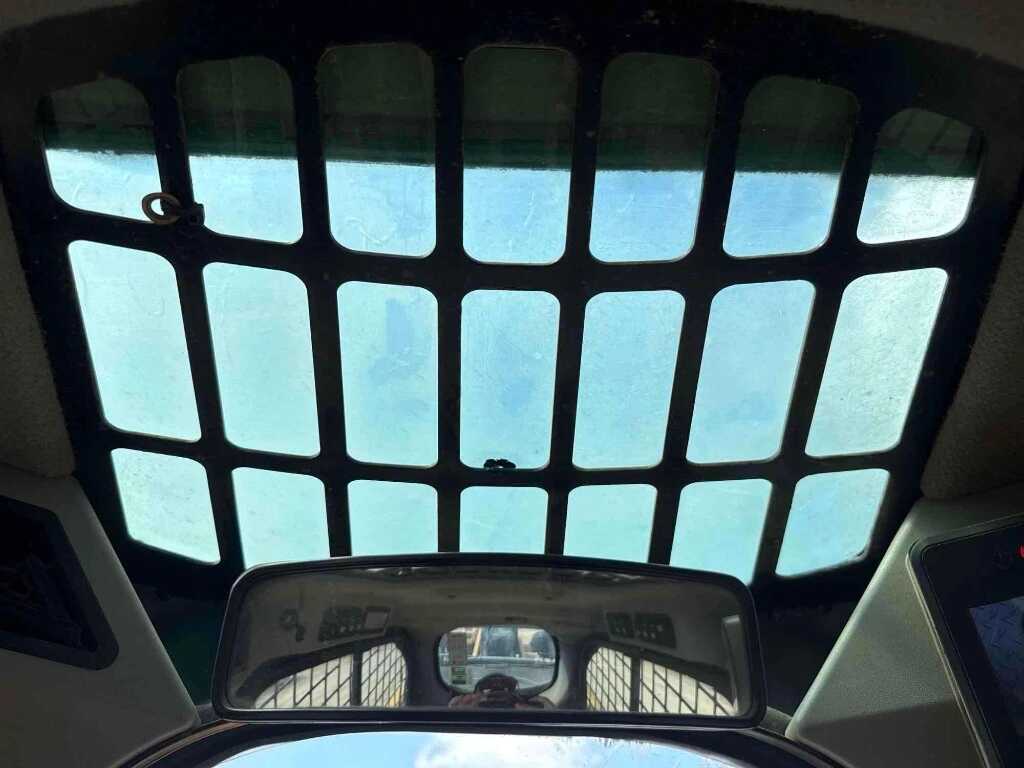

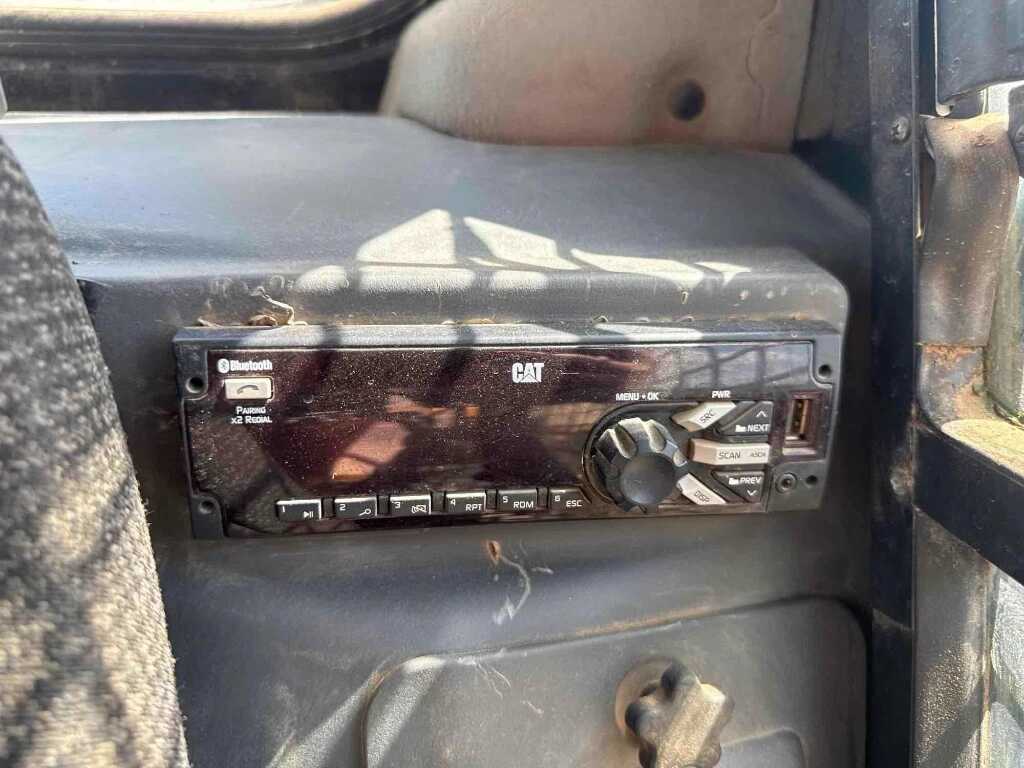

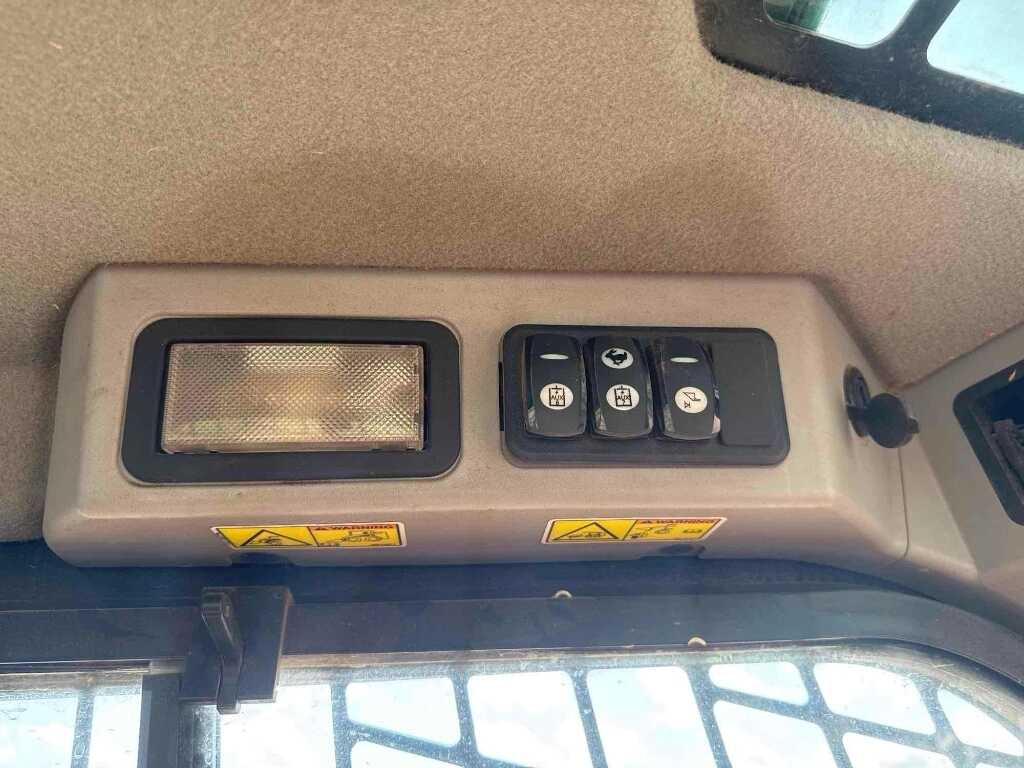

Cab & Operator Environment
Cab: ROPS/FOPS certified (ISO 3471:2008 & ISO 3449:2005 Level I/II)
Air Conditioning: R134a refrigerant (0.81 kg, CO₂ equivalent 1.158 metric tonnes)
Noise Levels: 83 dB(A) inside cab, 104 dB(A) outside
