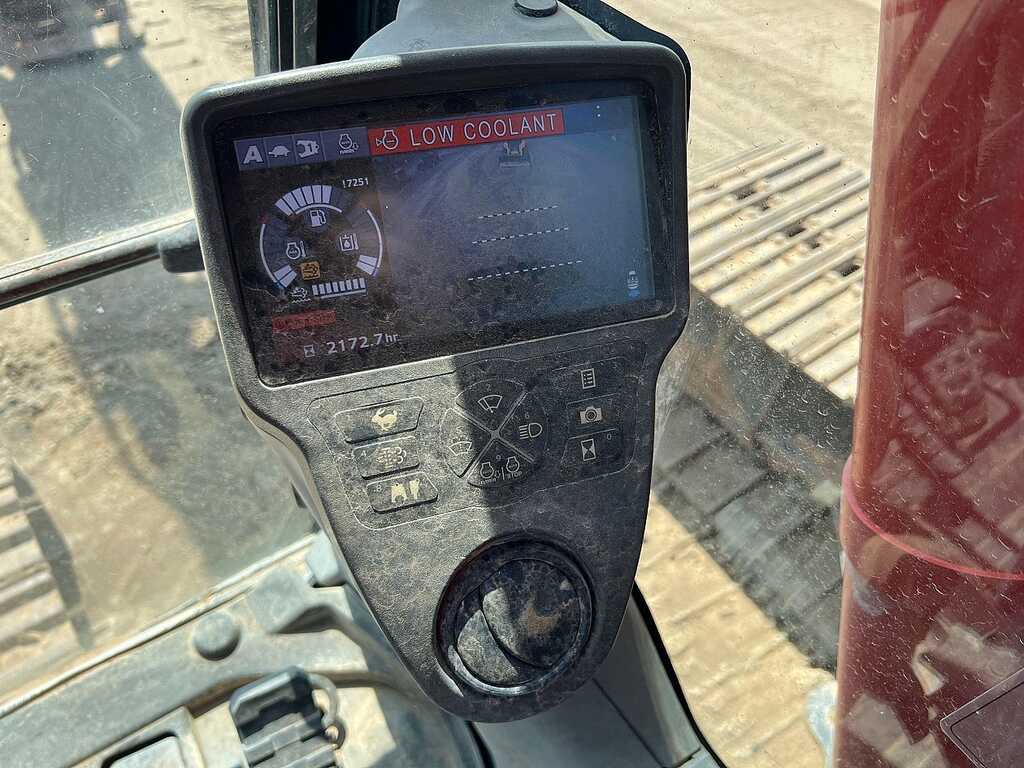

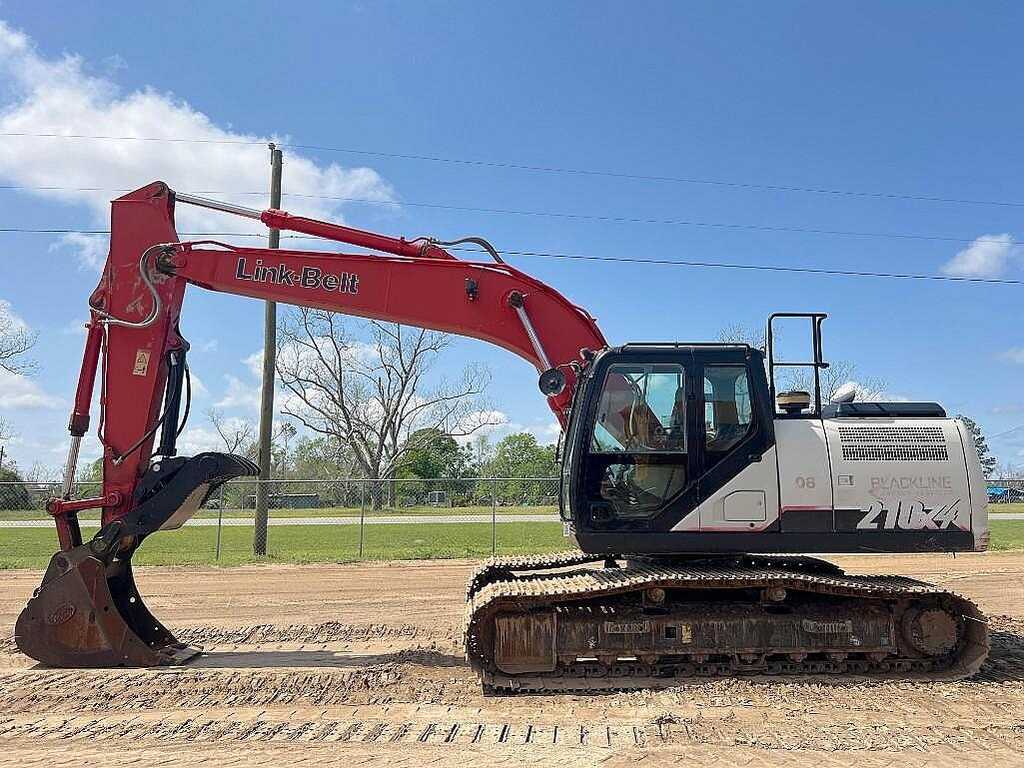

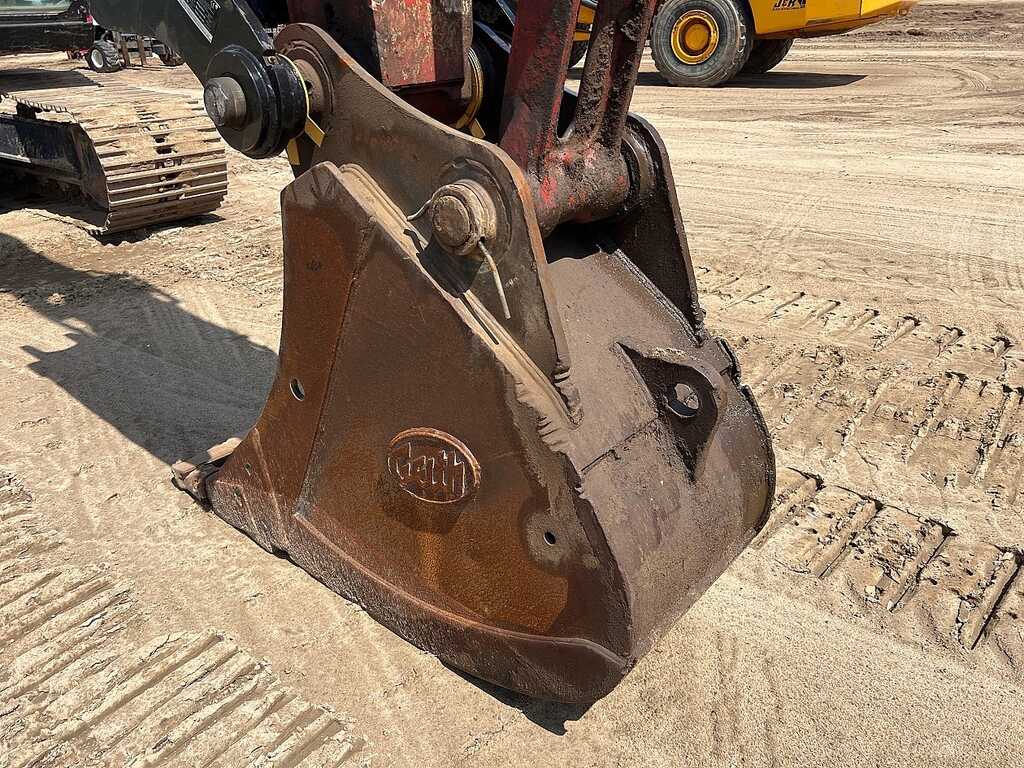

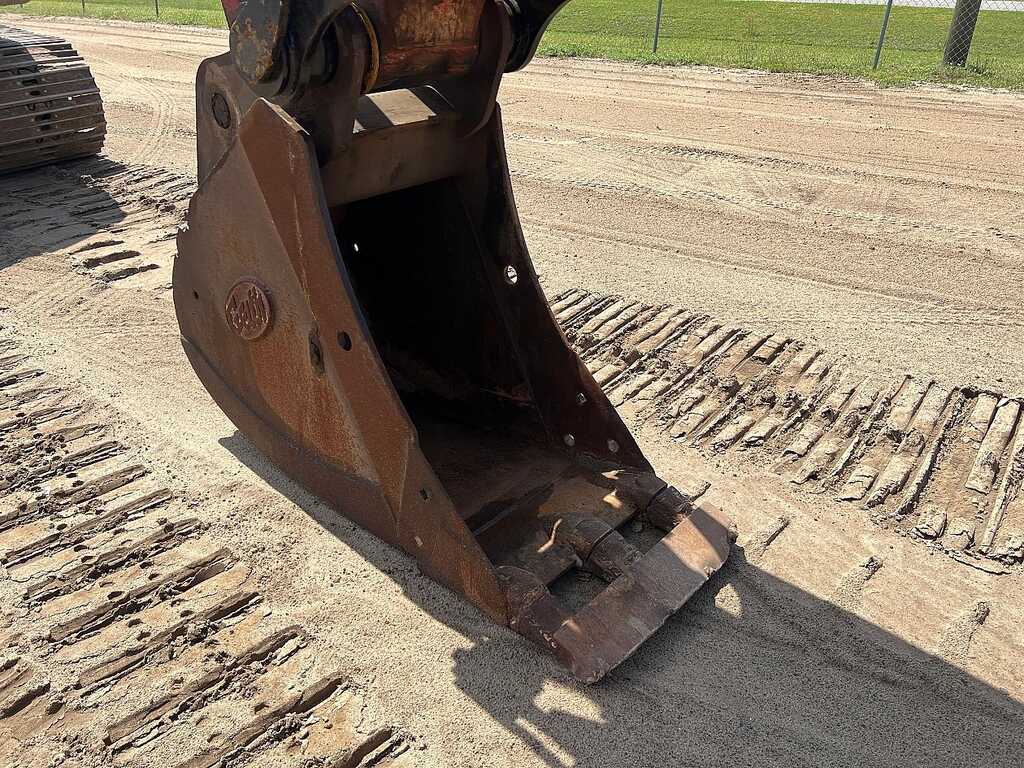

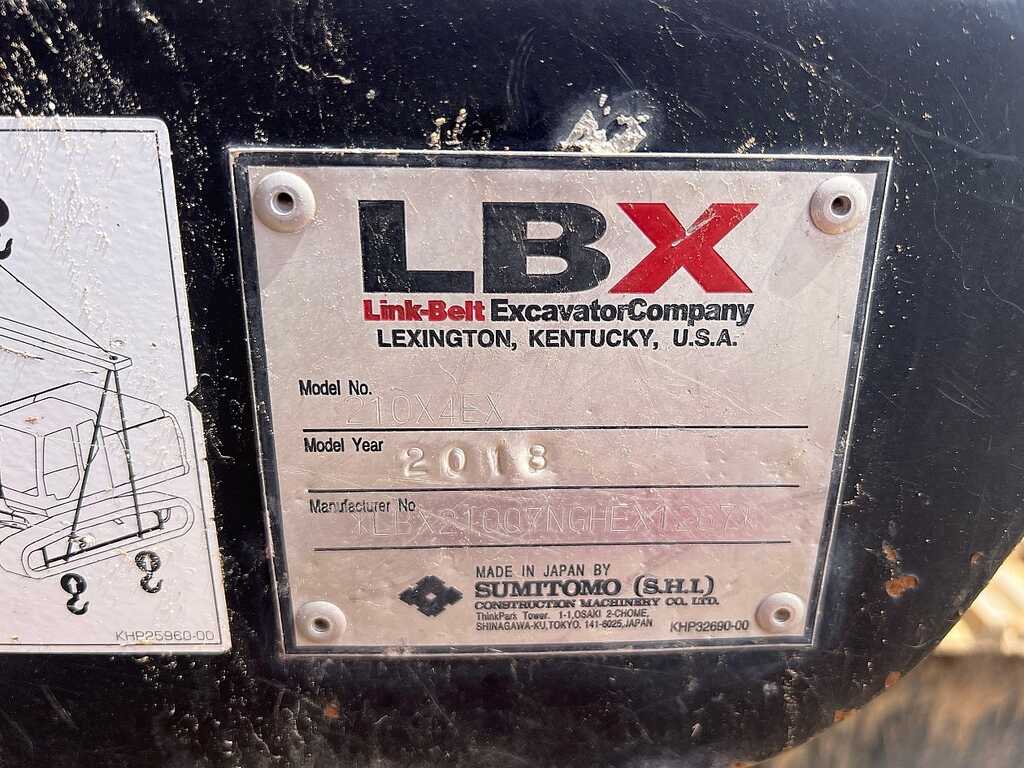

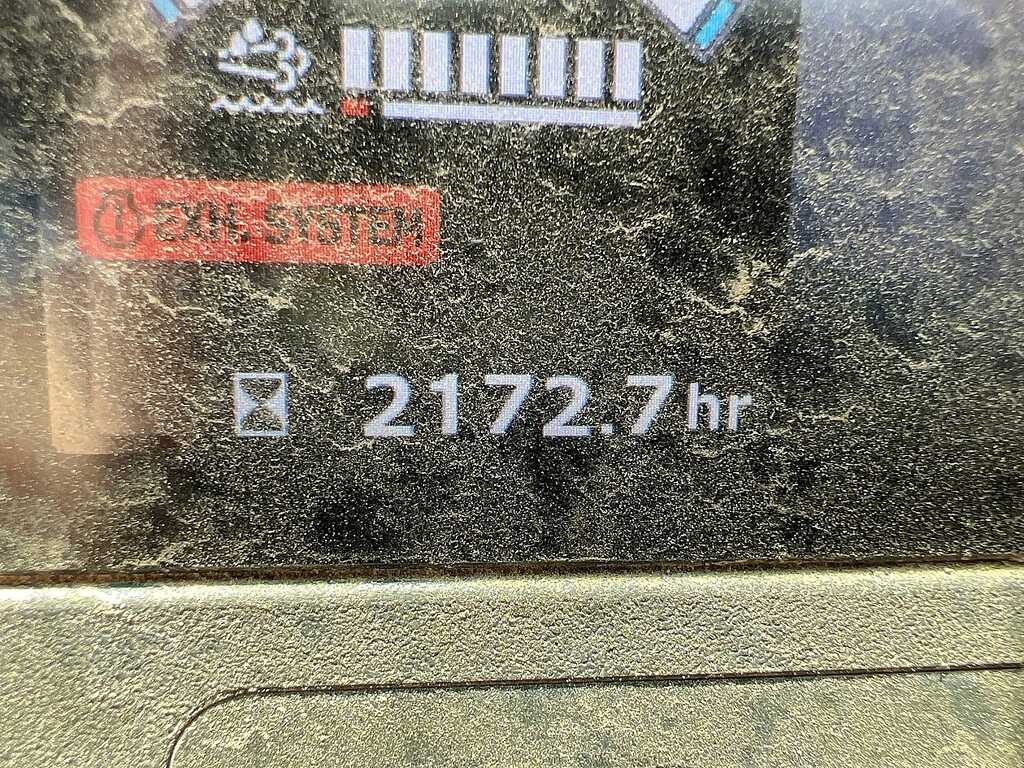

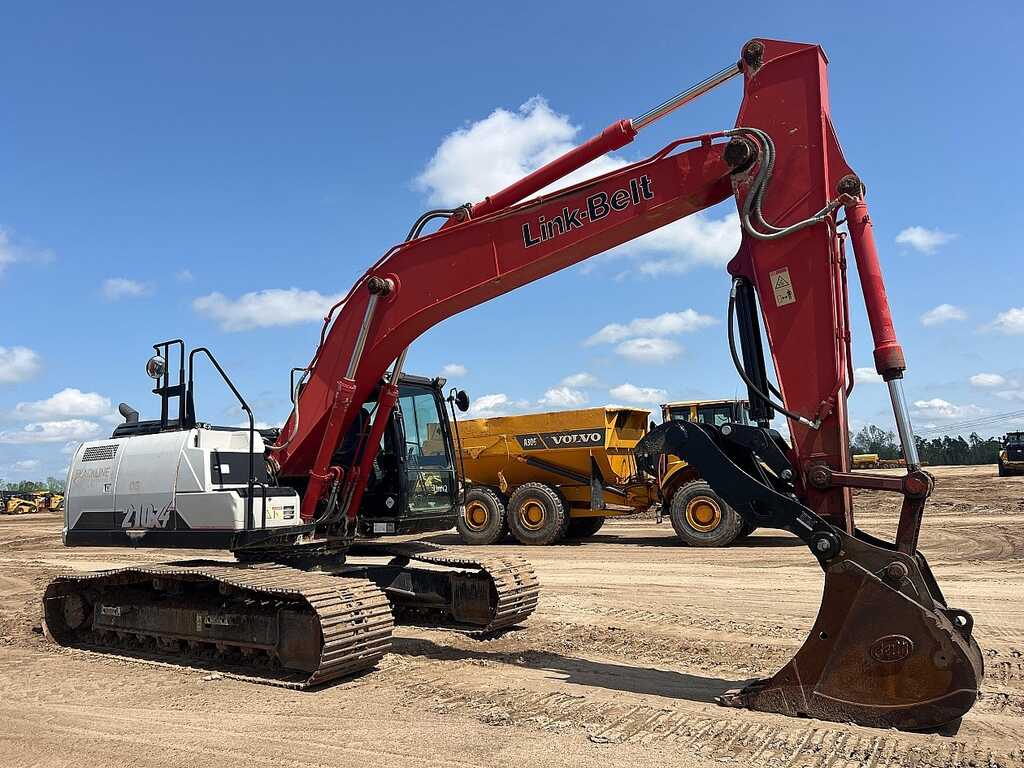

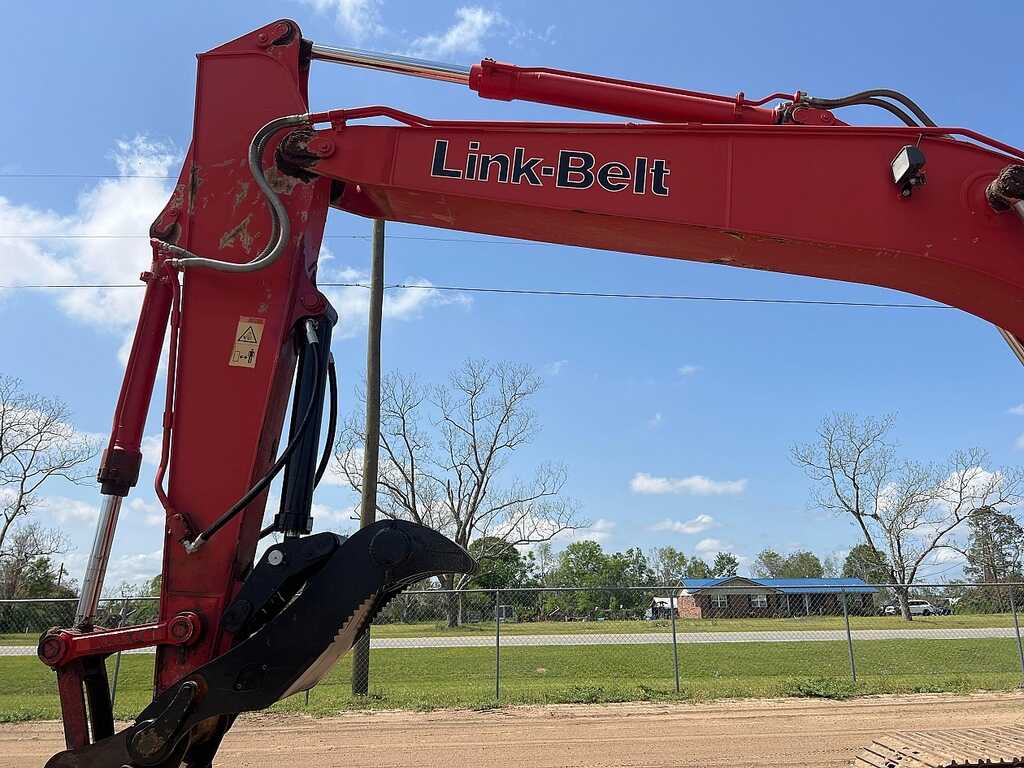

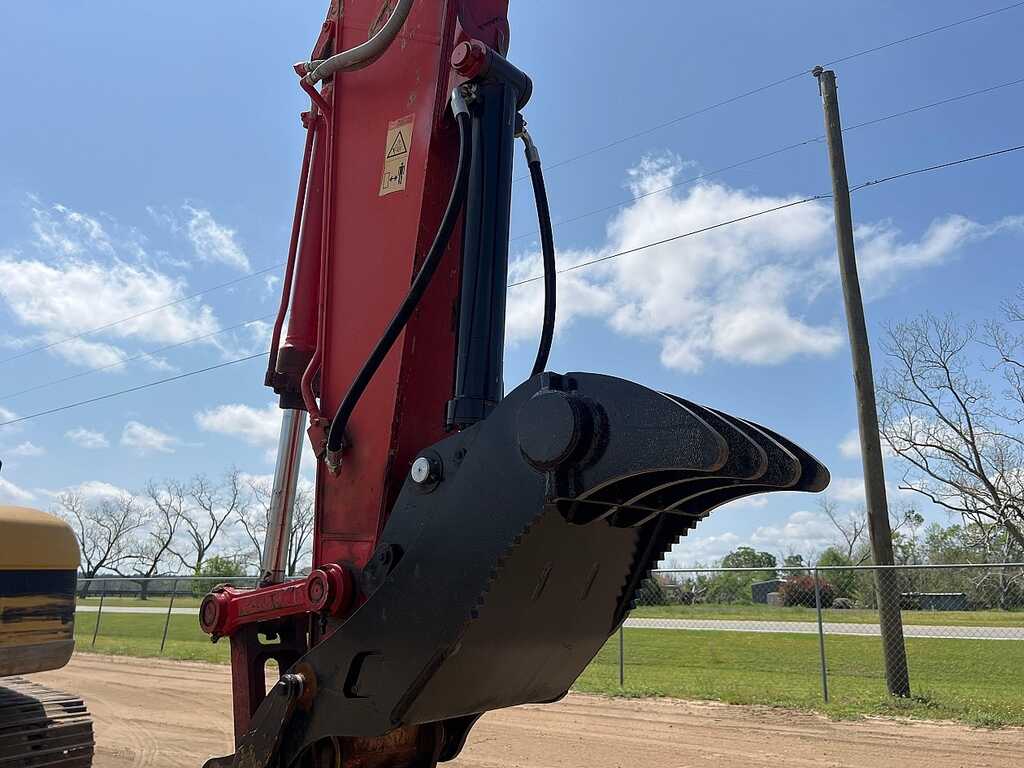

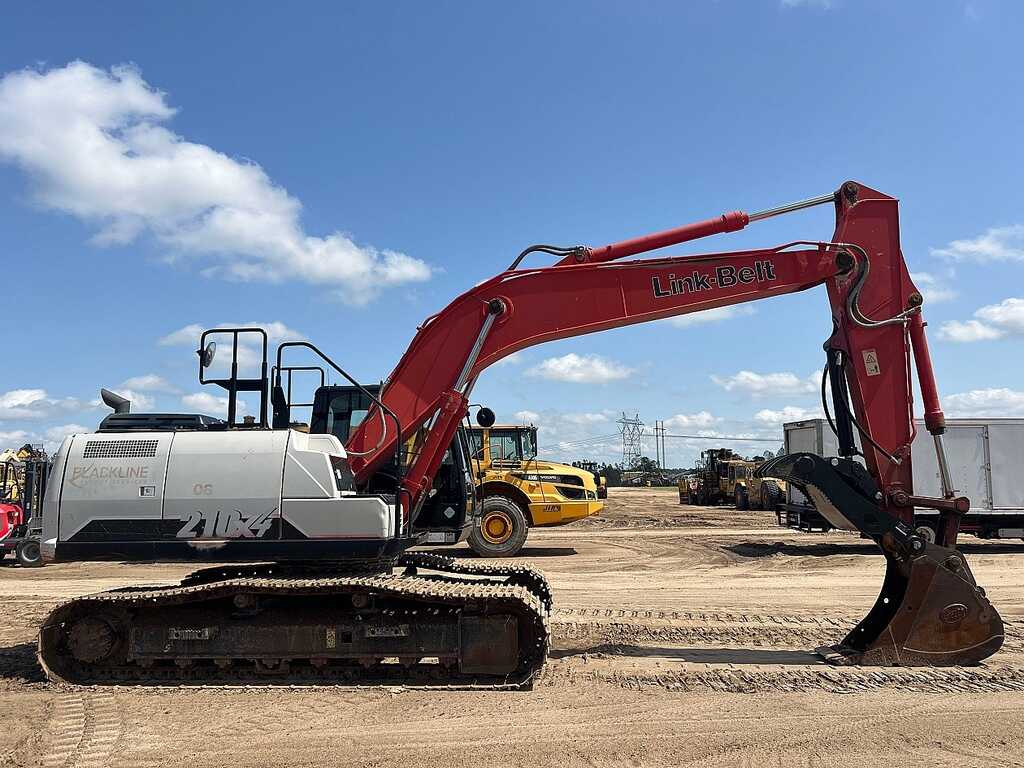

EROPS, 22 1/2″ BUCKET W/ HYD THUMB, 32″ WIDE TRACKS, AUX HYD, SN – LBX21007NGHEX1267 (HRS SHOW 2172)

Engine & Powertrain

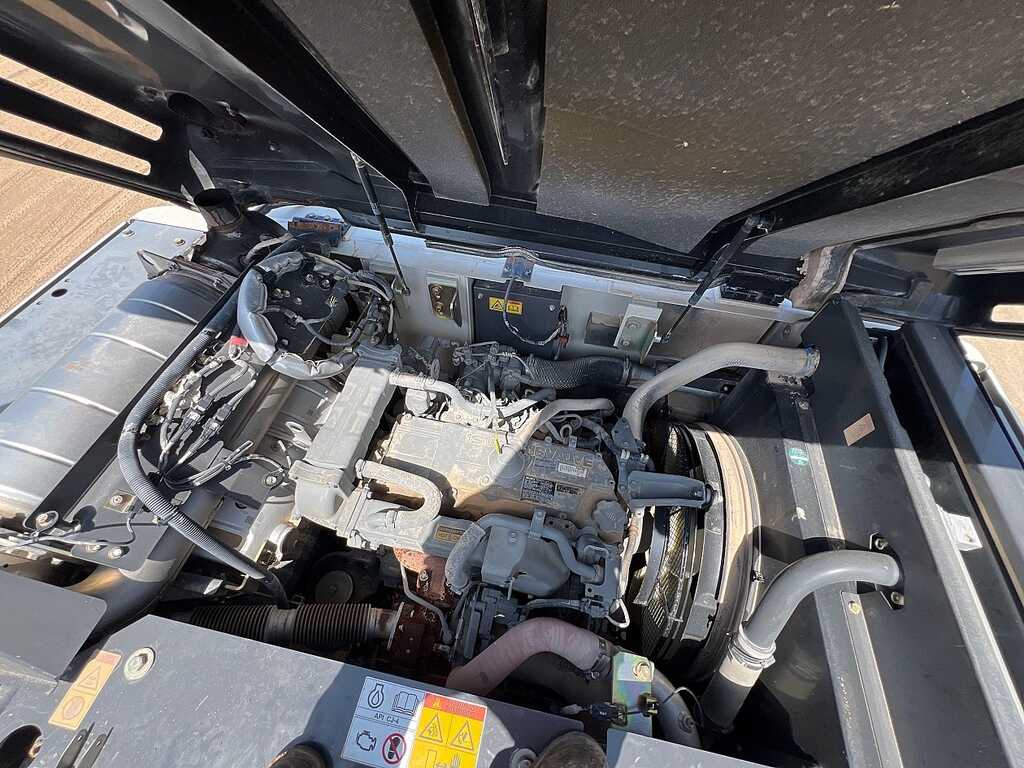

Engine Make / Model: Isuzu AR-4HK1X
Net Power (SAE): 160 hp (119 kW)
Emissions: Tier 4 Final / EU Stage IV compliant

Operating Weights & Capacities
Operating Weight: 48,900 lb (≈ 22,200 kg)
Fuel Tank Capacity: 108 gal
DEF Tank Capacity: 31.7 gal

Performance
Maximum Dig Depth: 21 ft 10 in (6.65 m) with 9′-8″ arm
Maximum Reach at Ground Level: 31 ft 11 in (9.73 m) with 9′-8″ arm
Bucket Digging Force: 34,600 lbf (≈ 154 kN)
Arm (Stick) Force: 25,100 lbf (≈ 112 kN)
Bucket Capacity (SAE Heaped): 0.61–1.75 yd³ (0.47–1.34 m³) depending on configuration

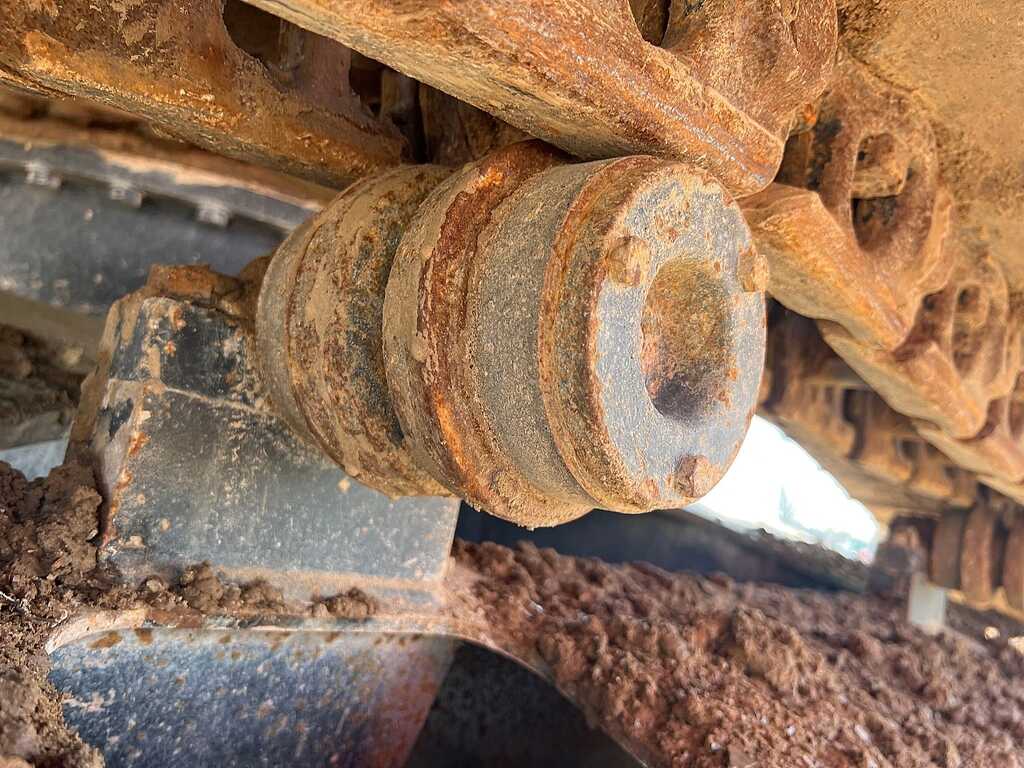

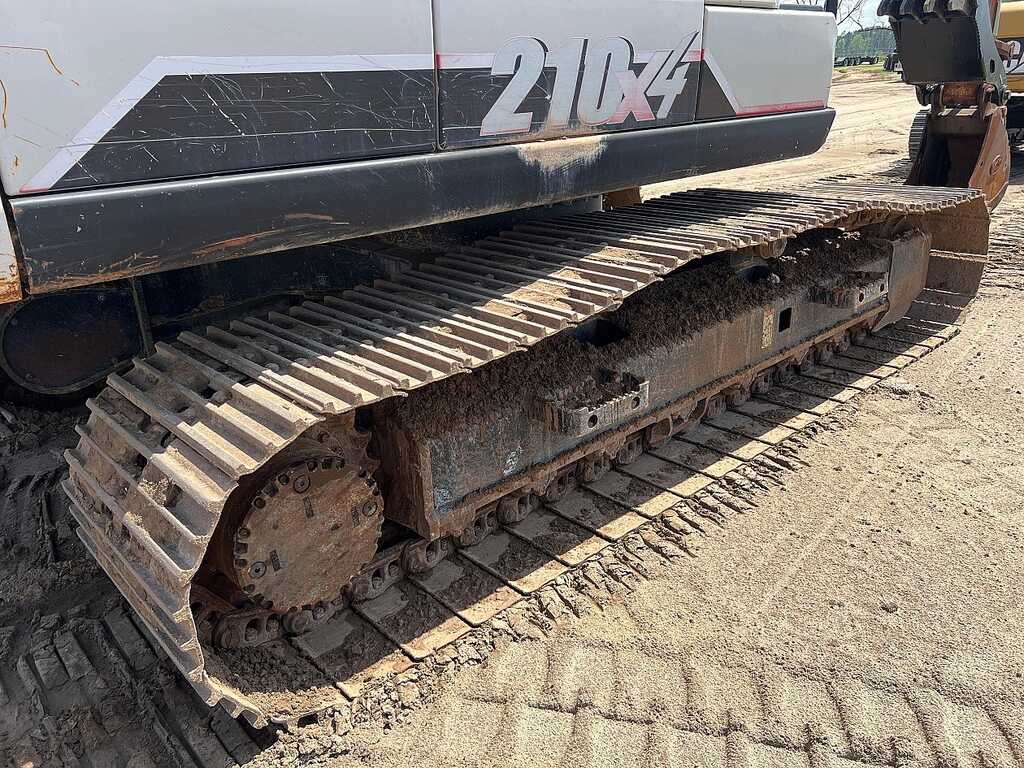

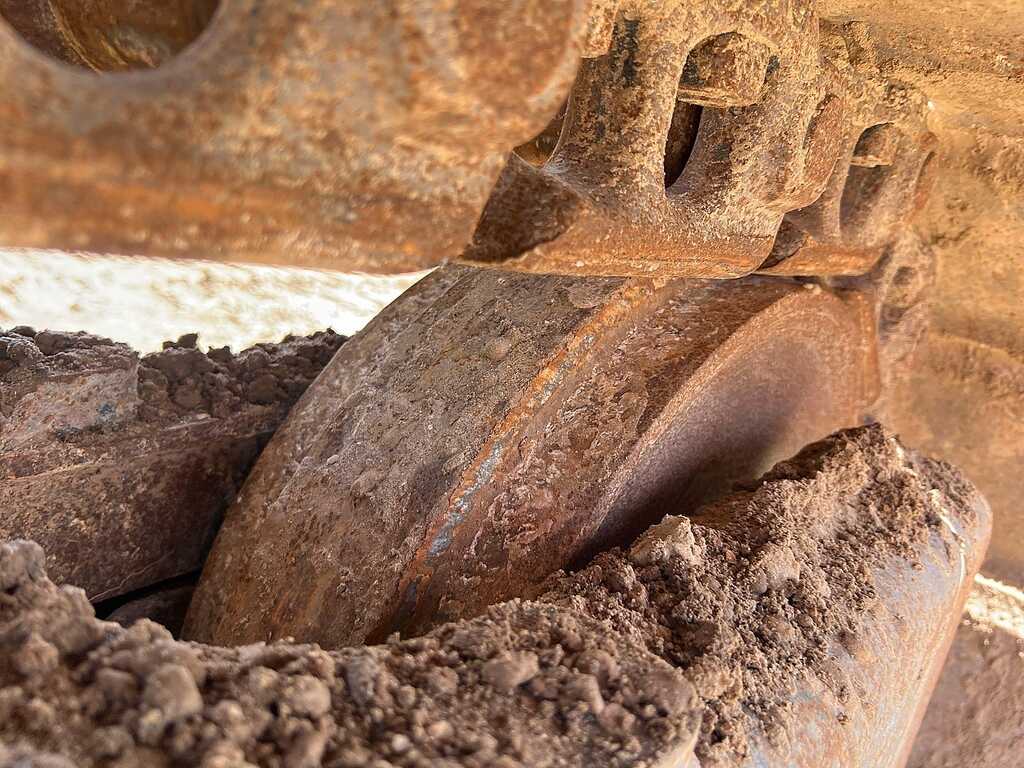

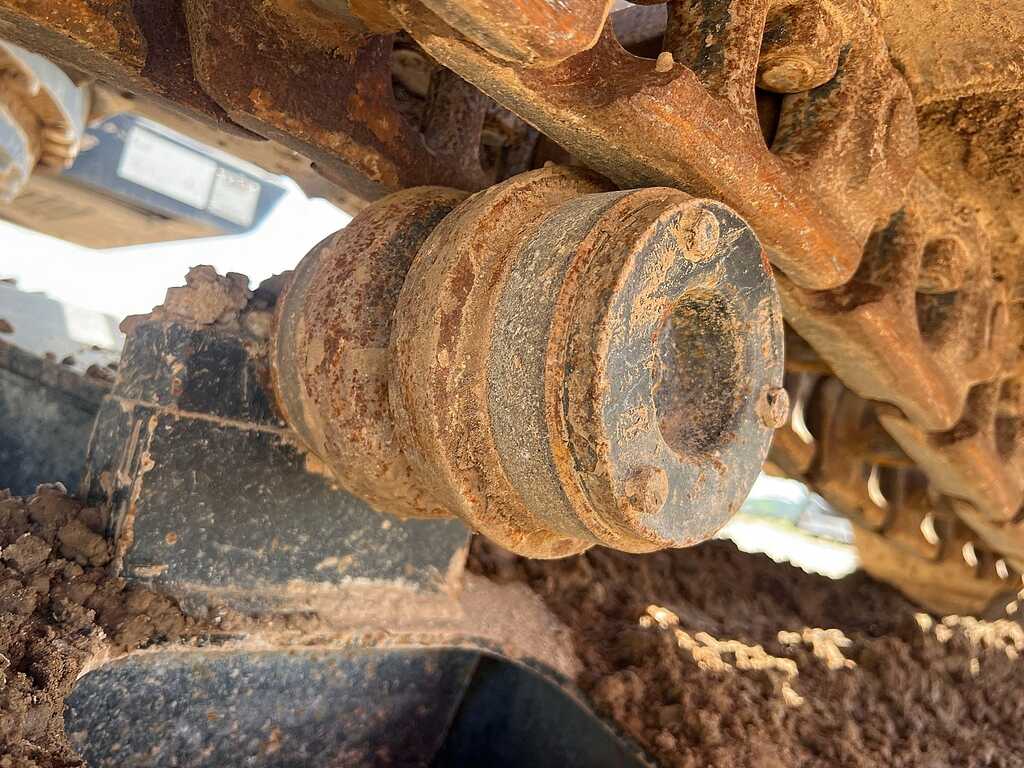

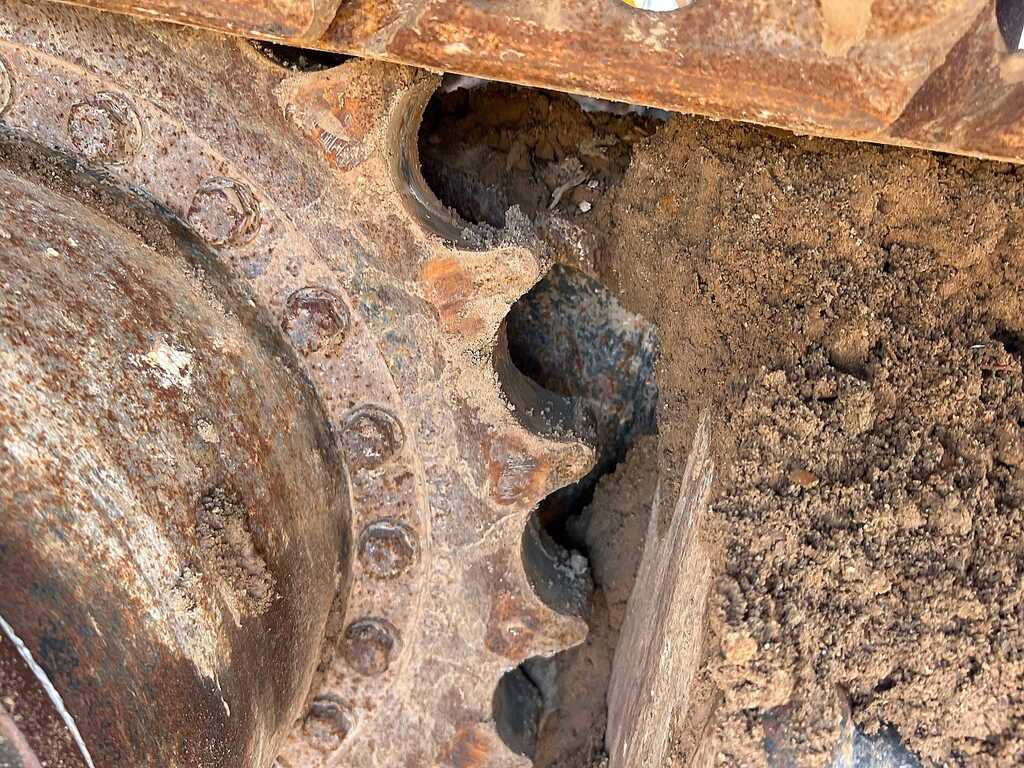

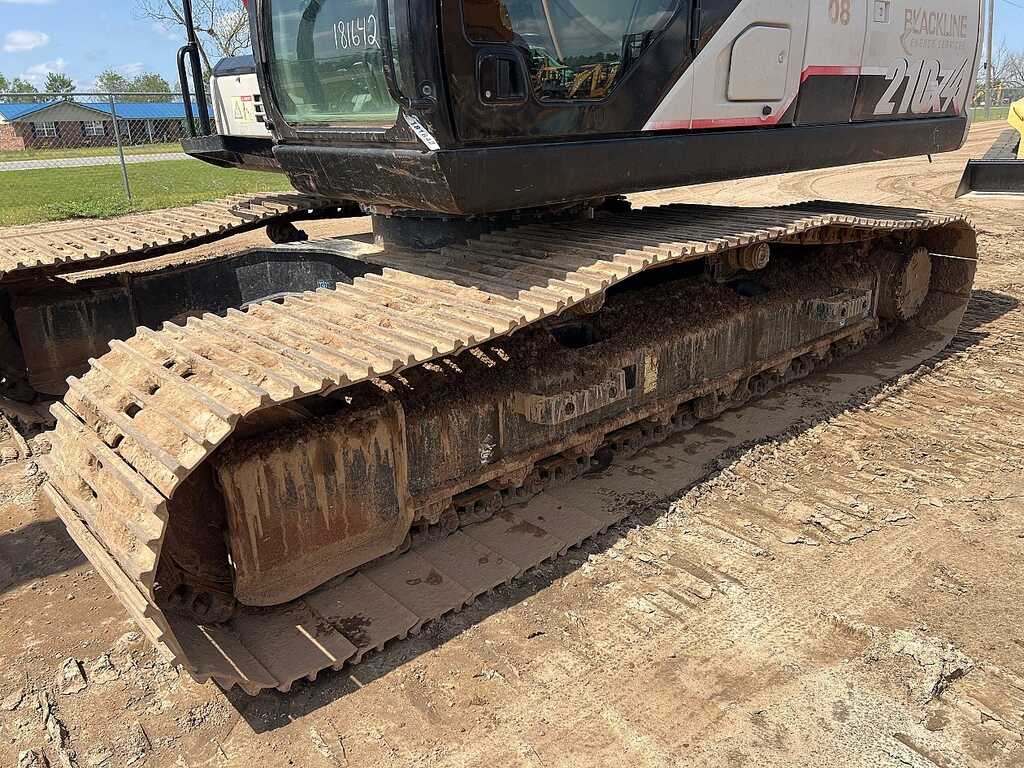

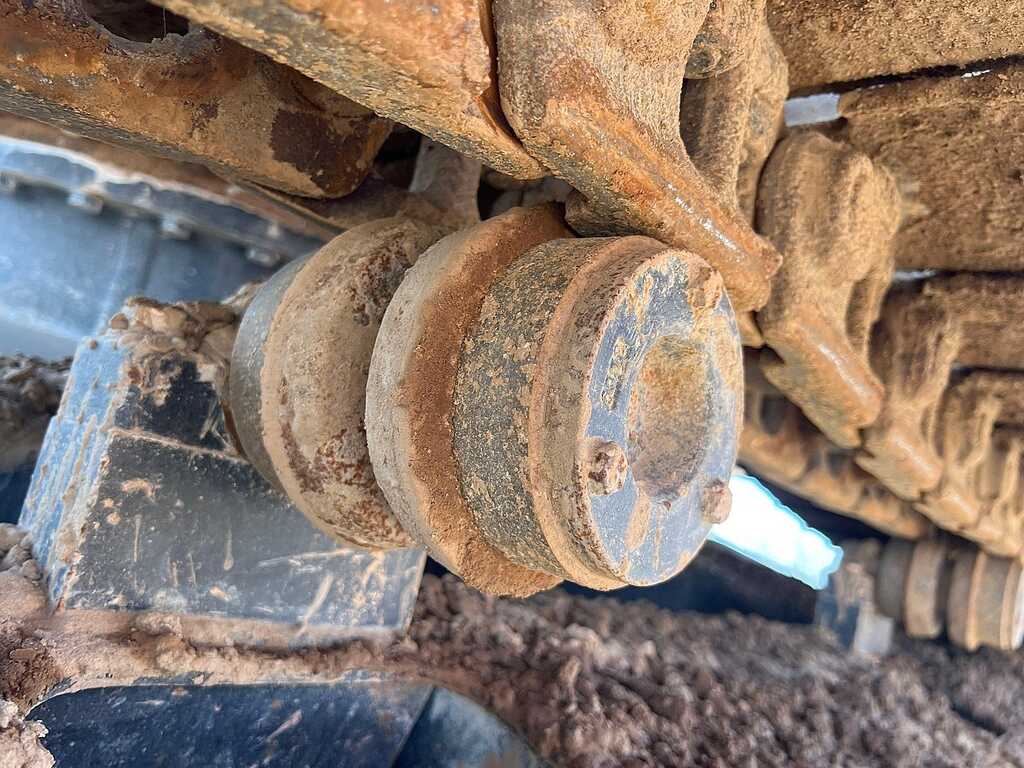

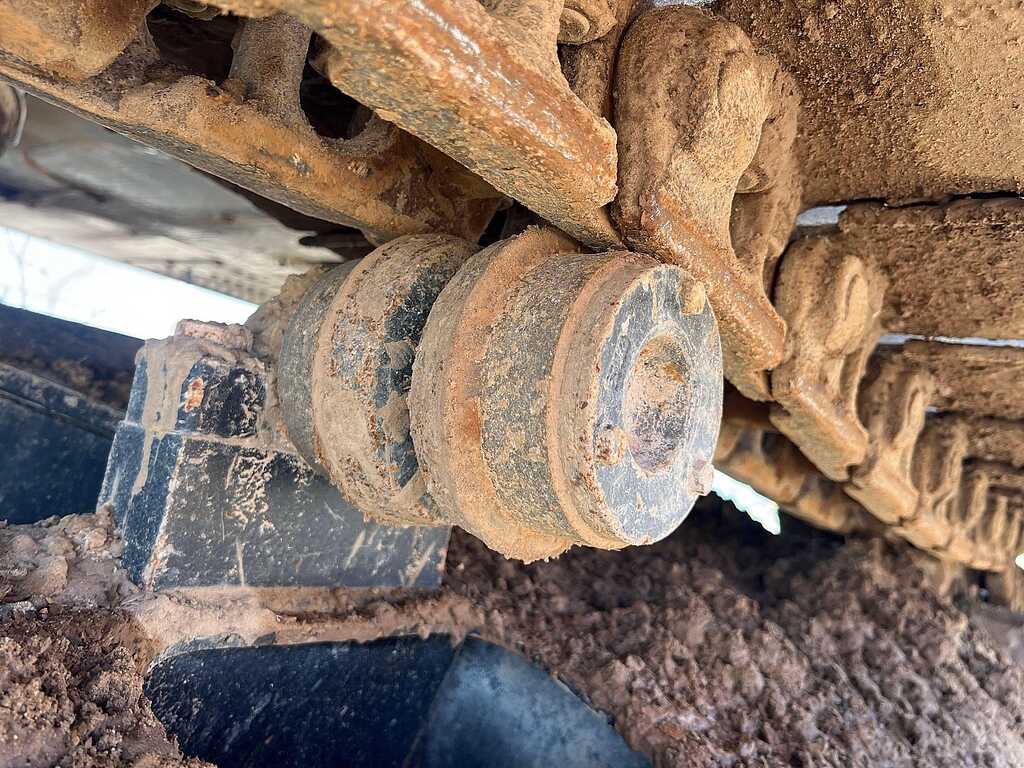

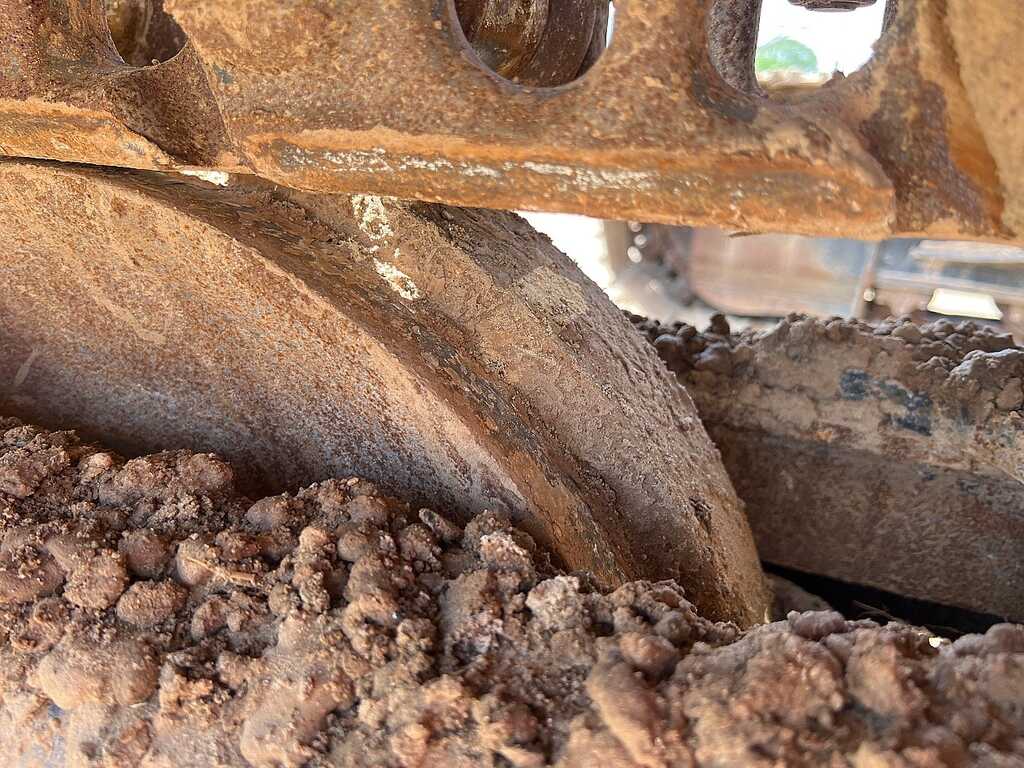

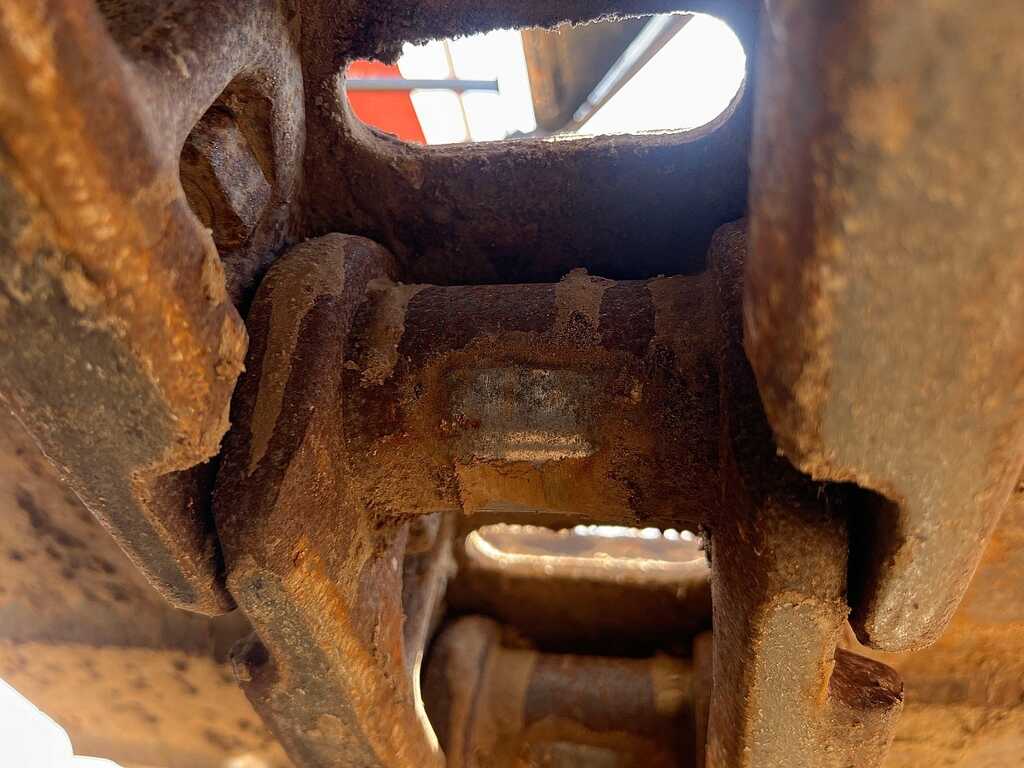

Undercarriage & Dimensions
Track Shoe Width: 31.5 in (≈ 800 mm)
Overall Width: 10 ft 6 in (≈ 3.19 m)
Overall Height: 10 ft 4–5 in (≈ 3.15 m)

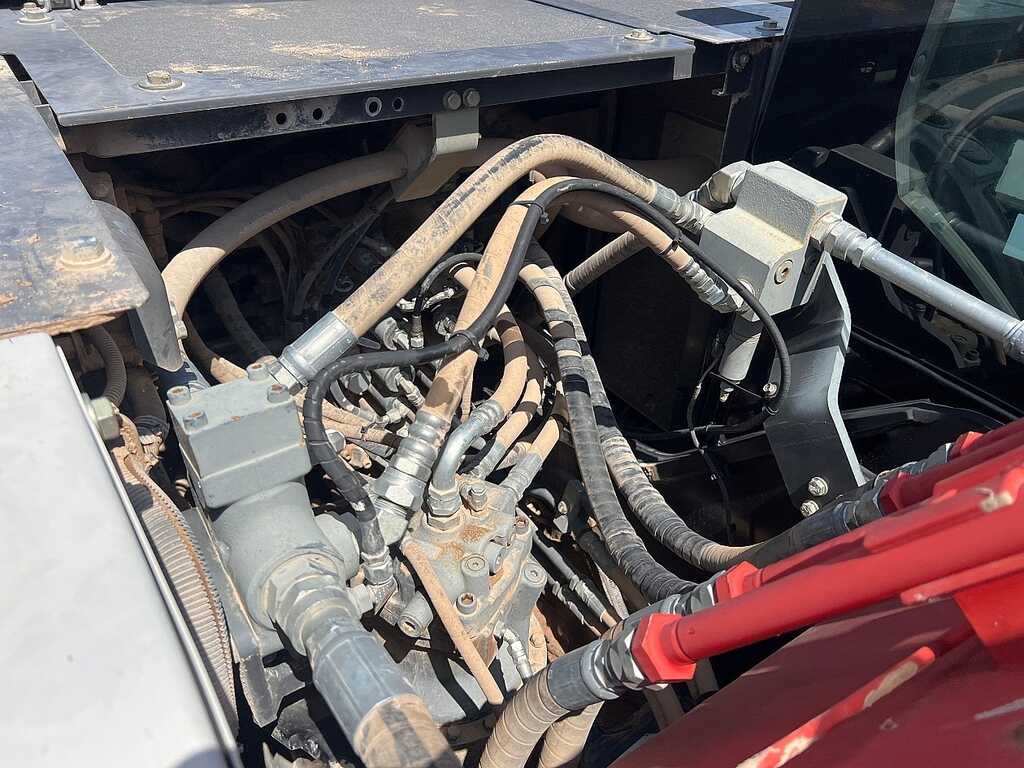

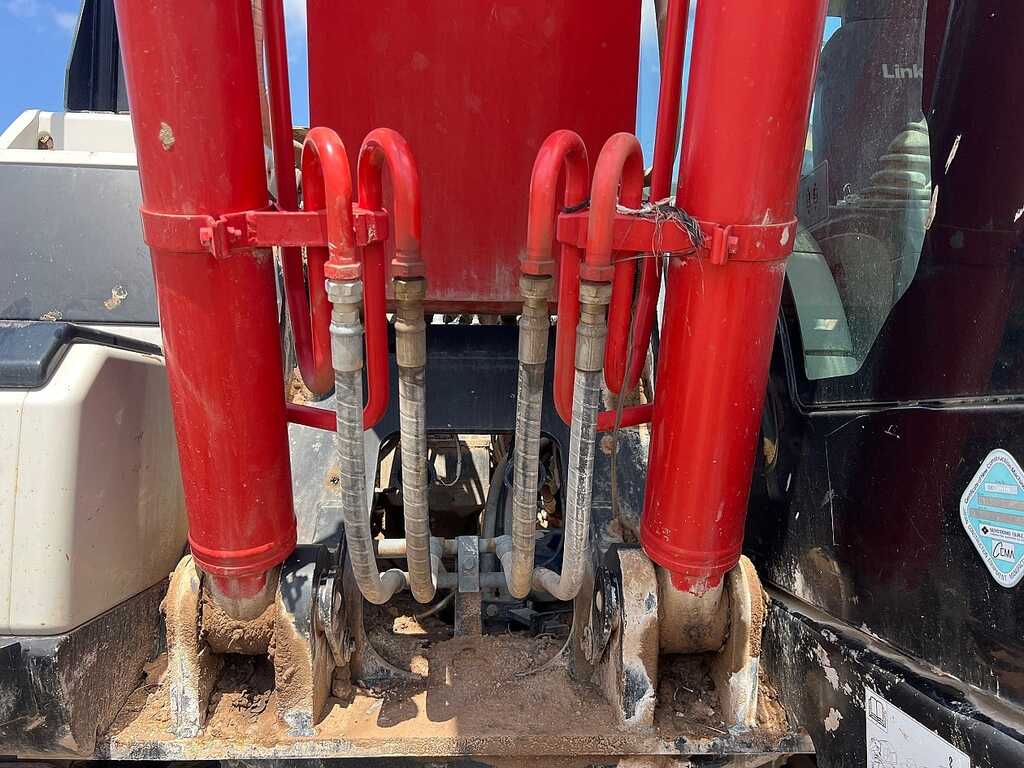

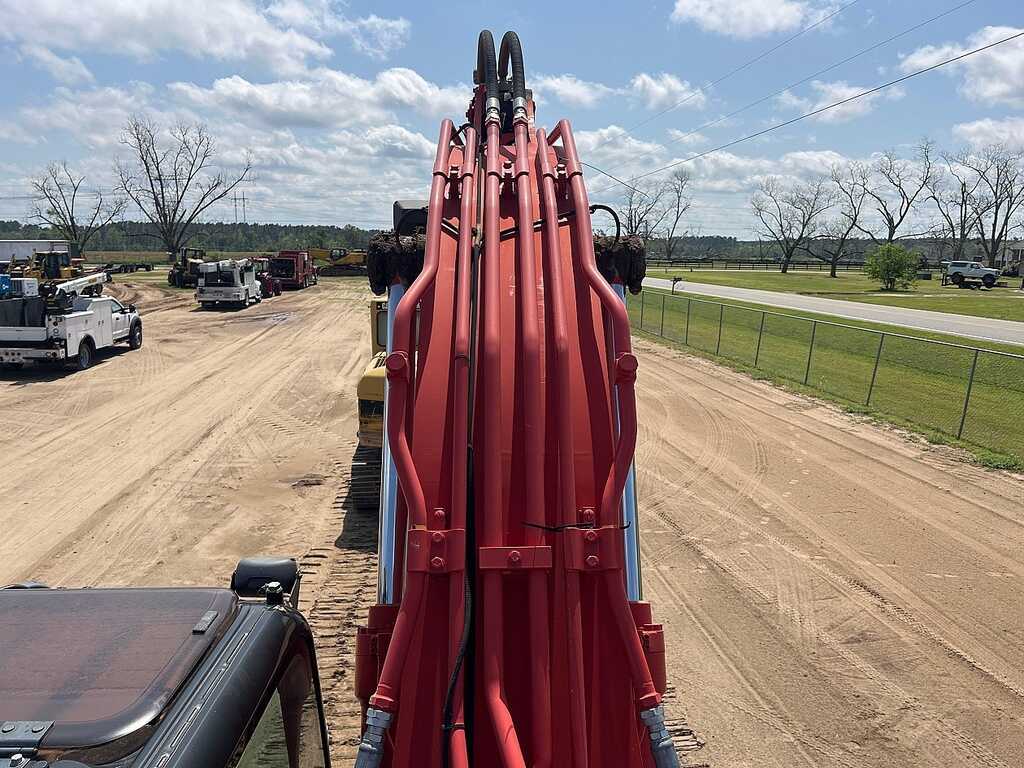

Hydraulic System
System Type: Open-center hydraulic system with auto-power boost
Main Pumps: Two electronically-controlled variable-displacement axial-piston pumps + one gear pump for pilot controls

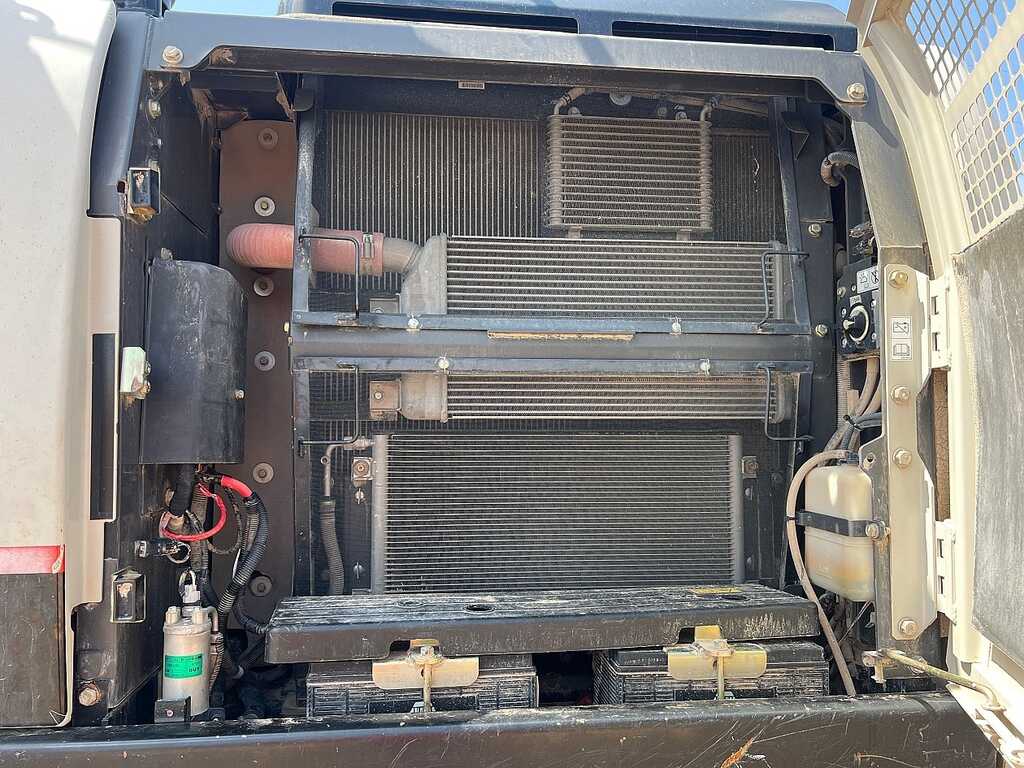

Features: Anti-drift valves, oil cooler, 6-micron return filter
