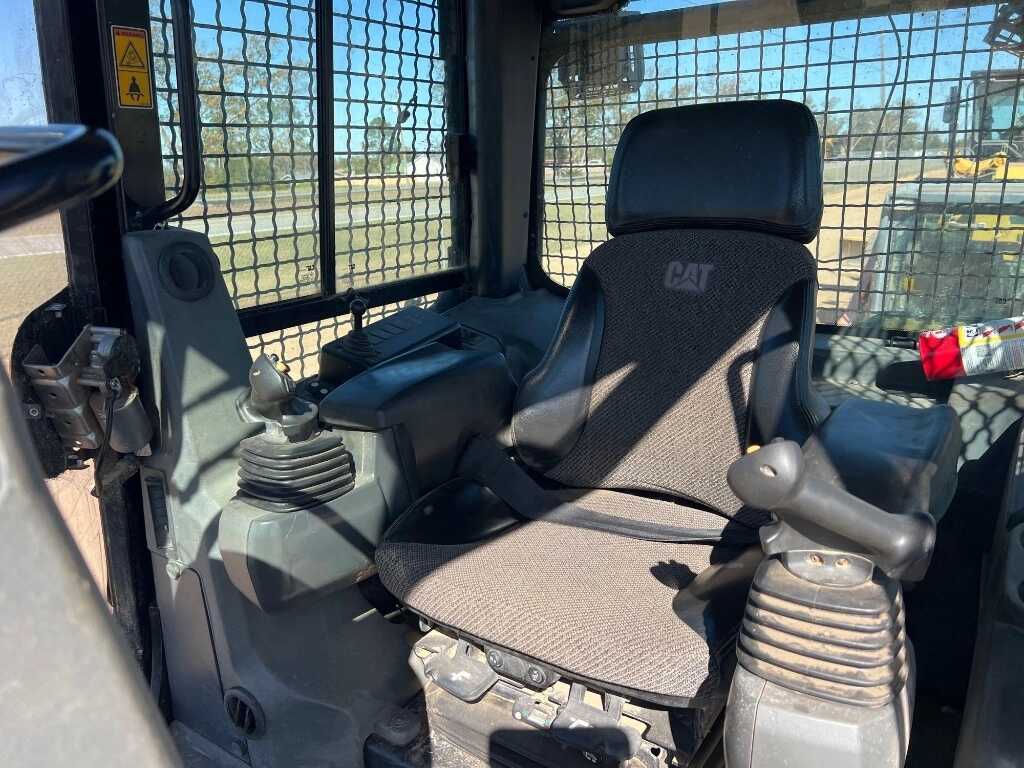

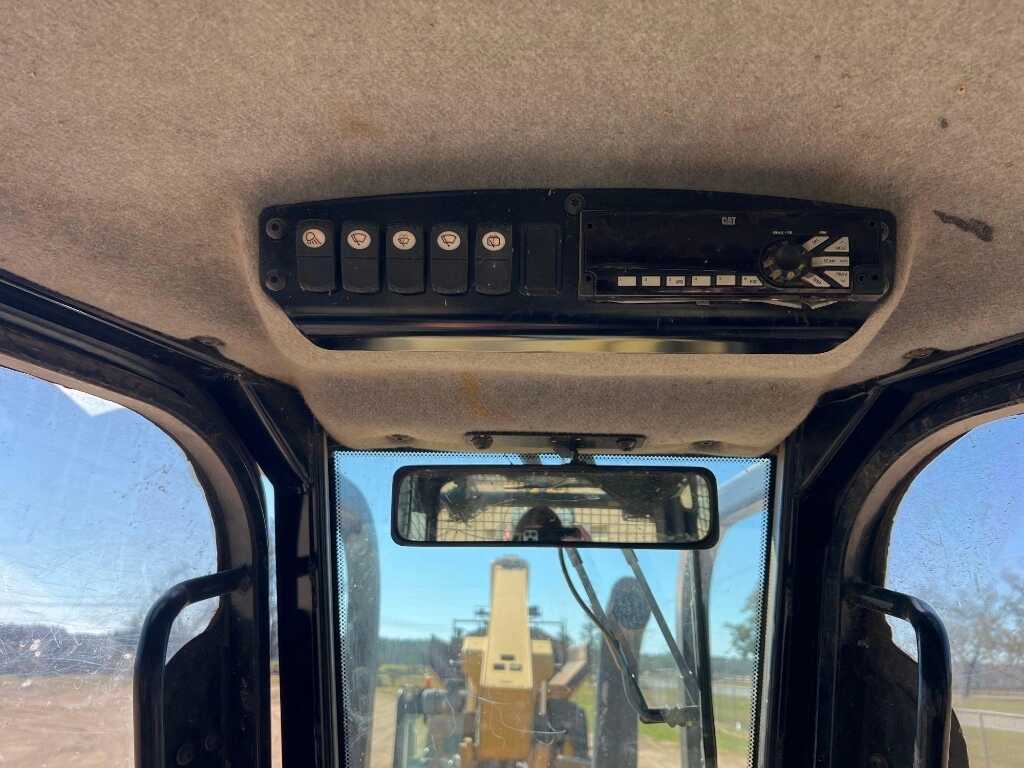

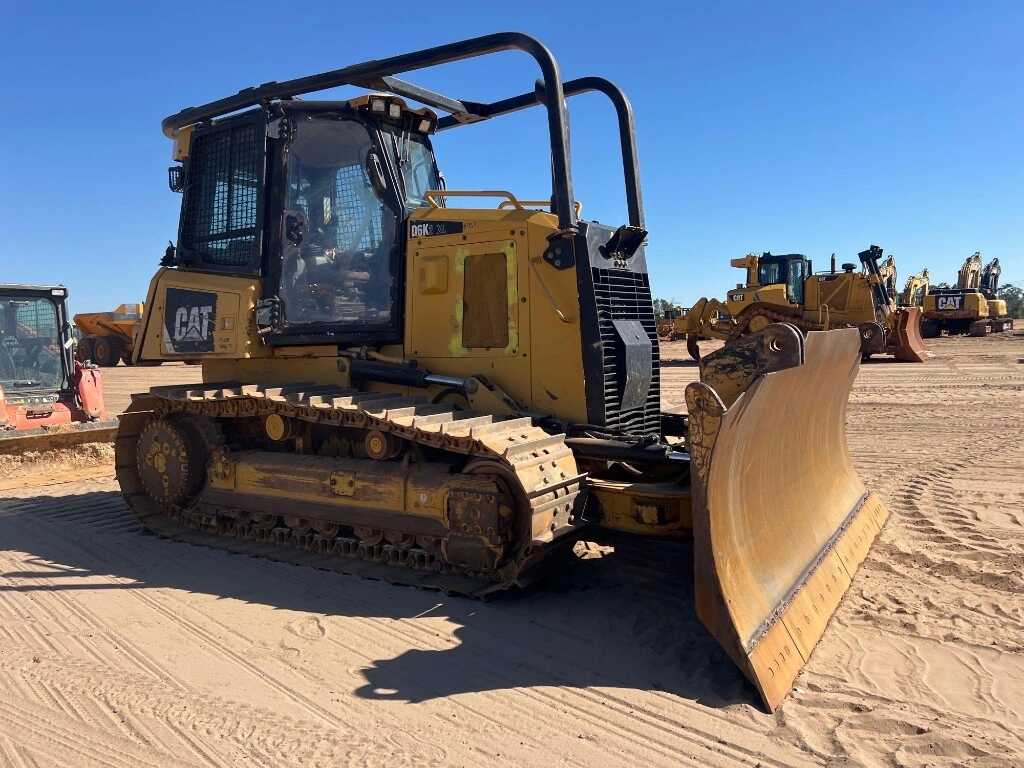

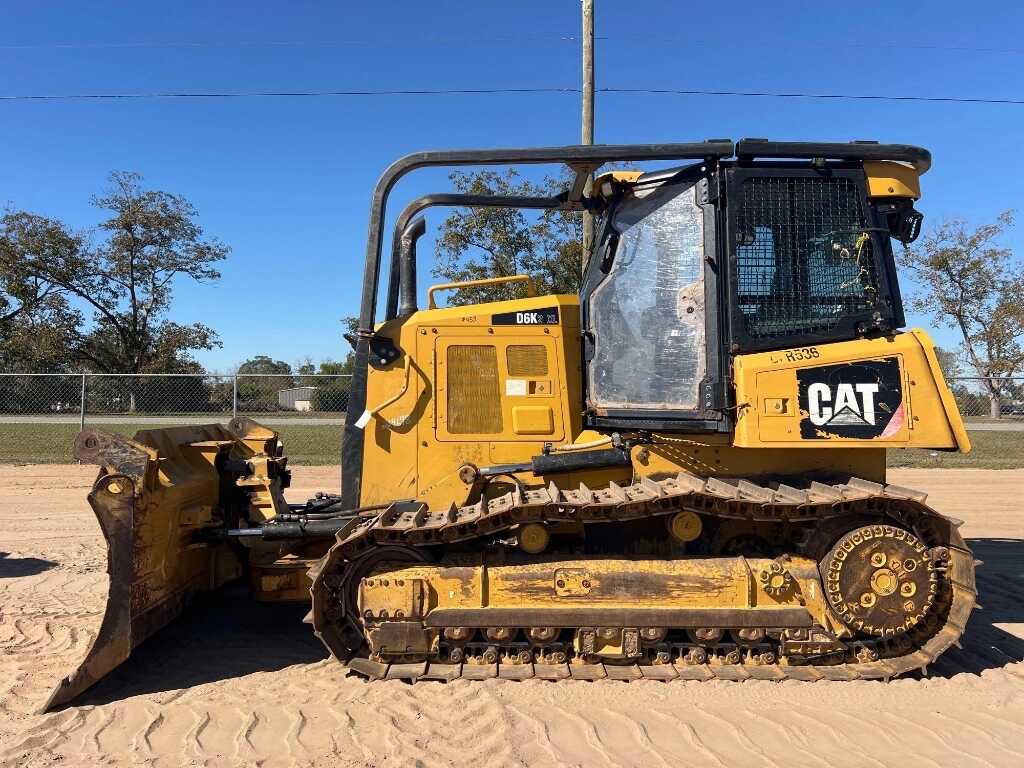

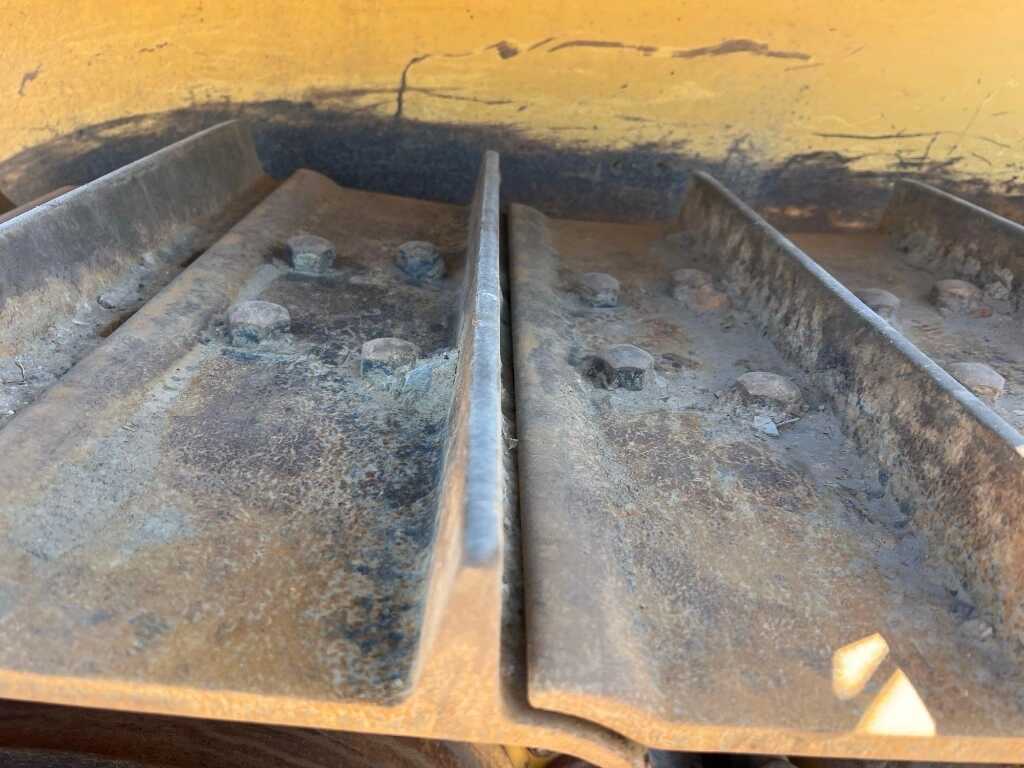

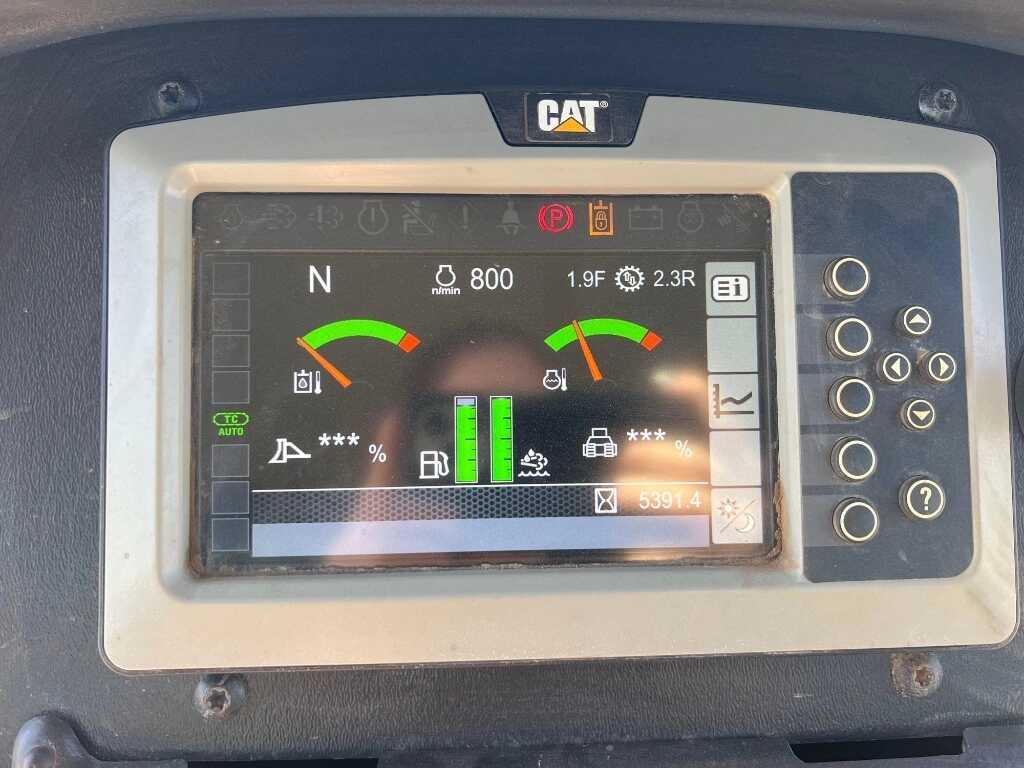

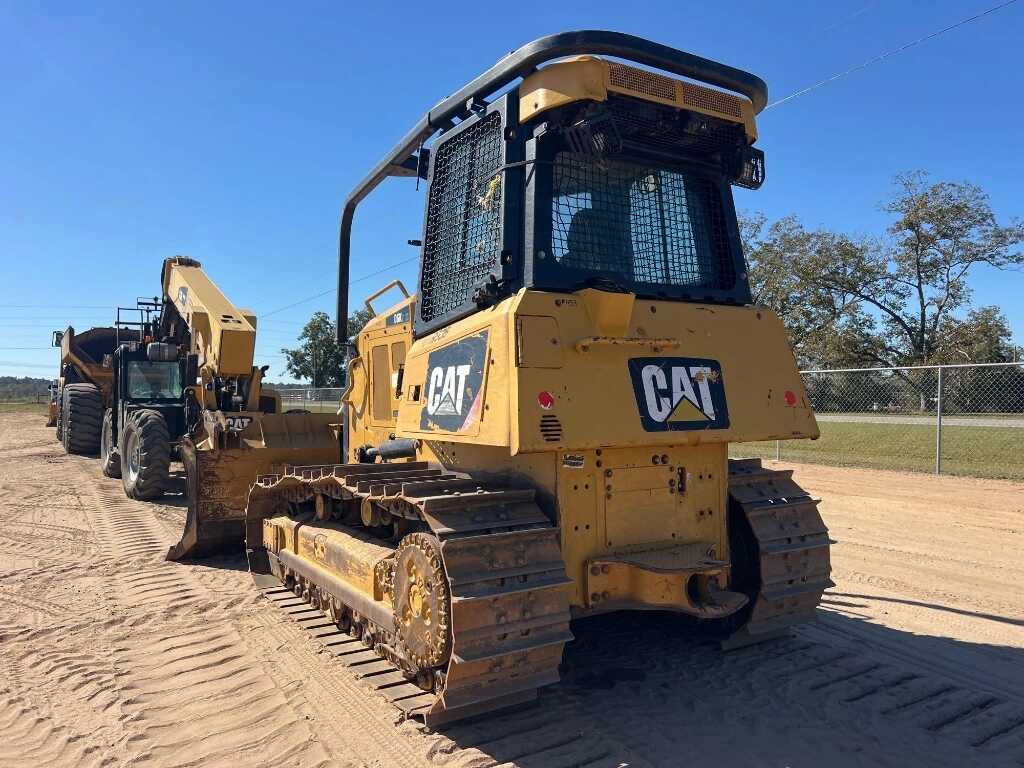

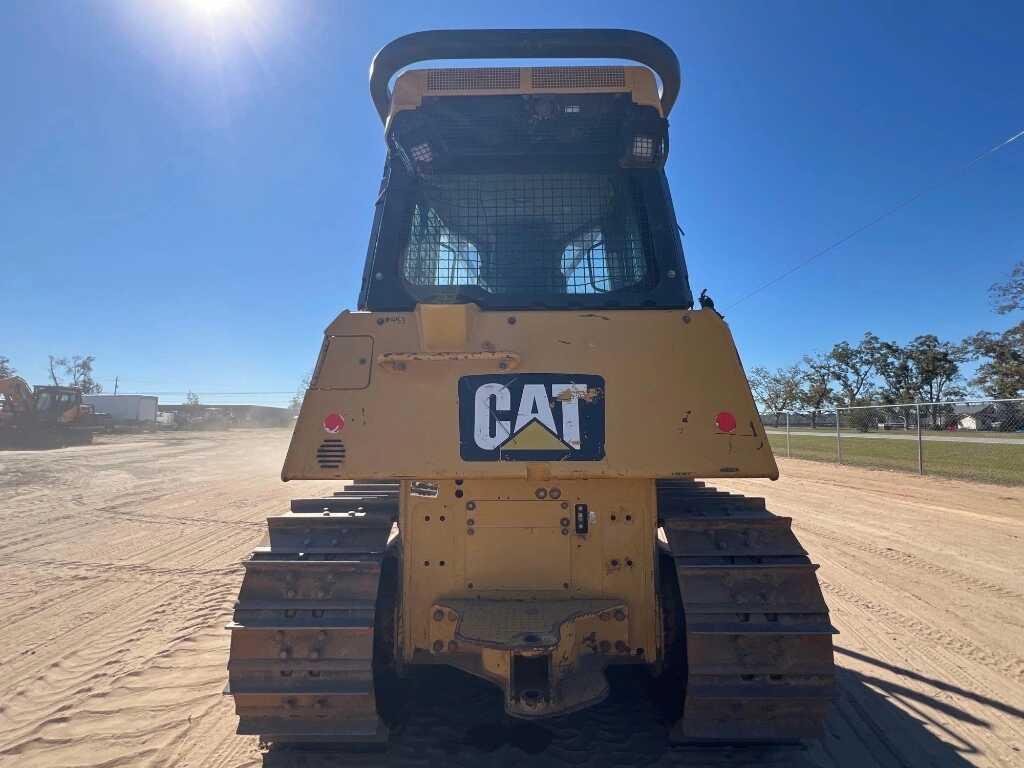

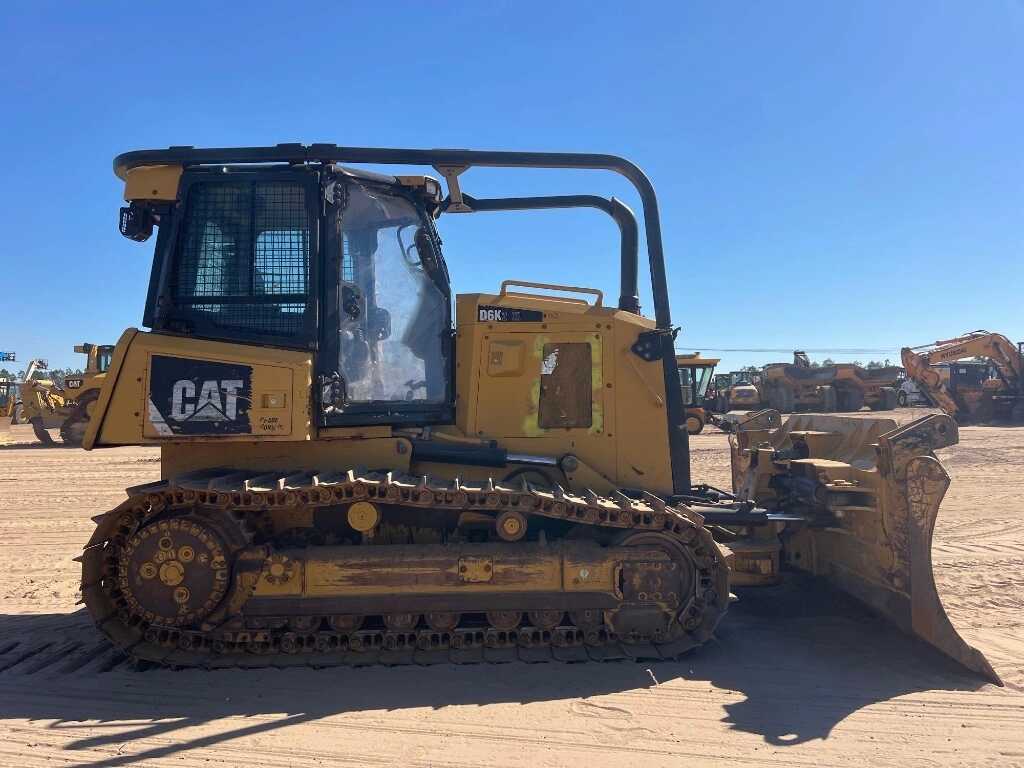

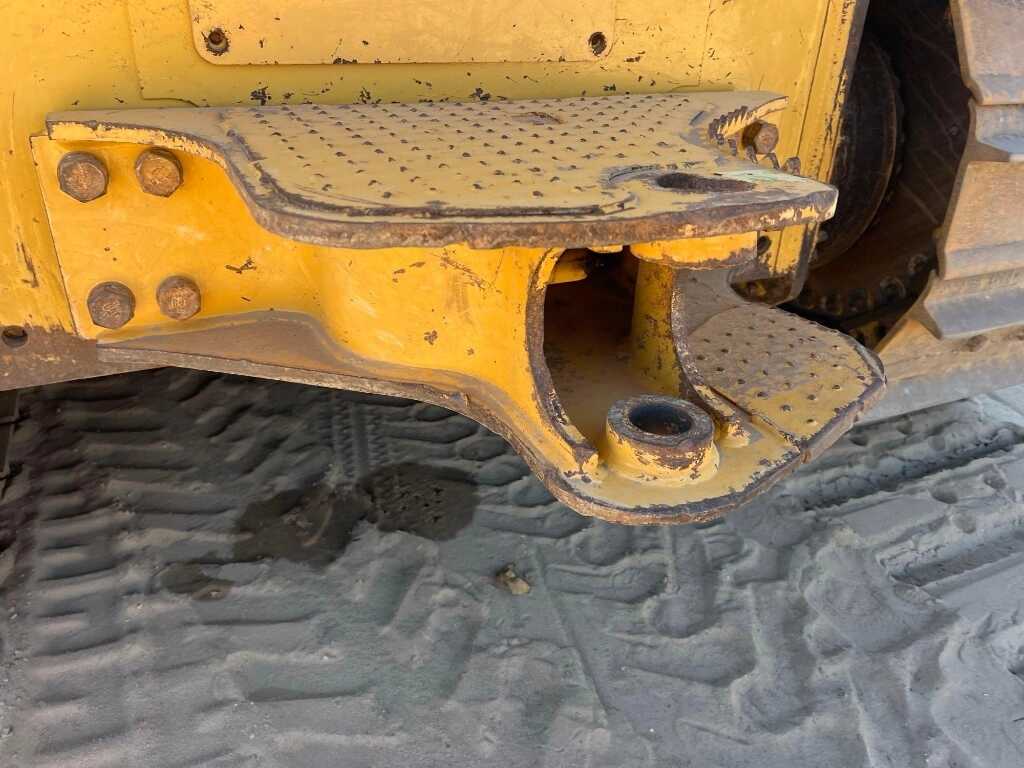

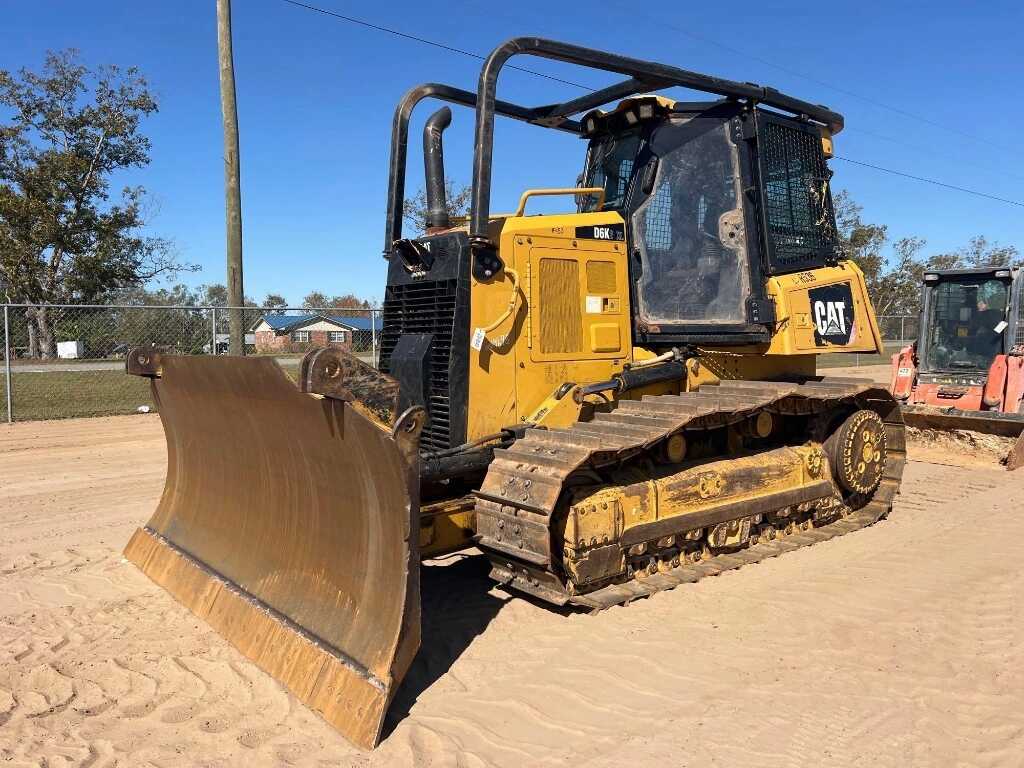

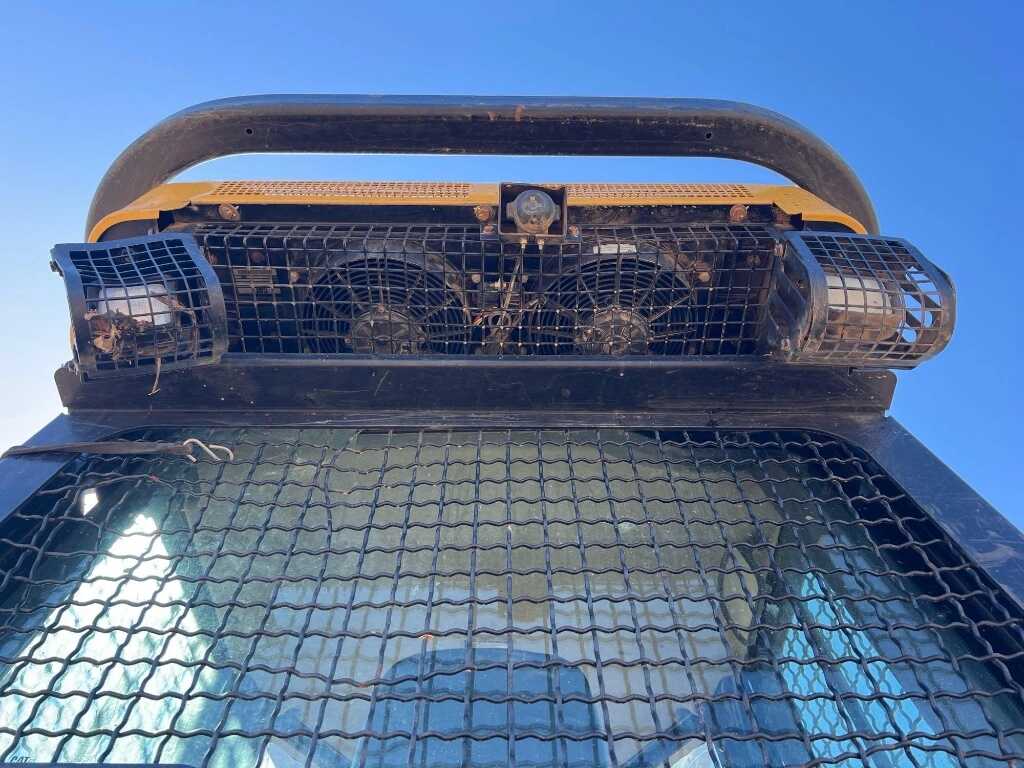

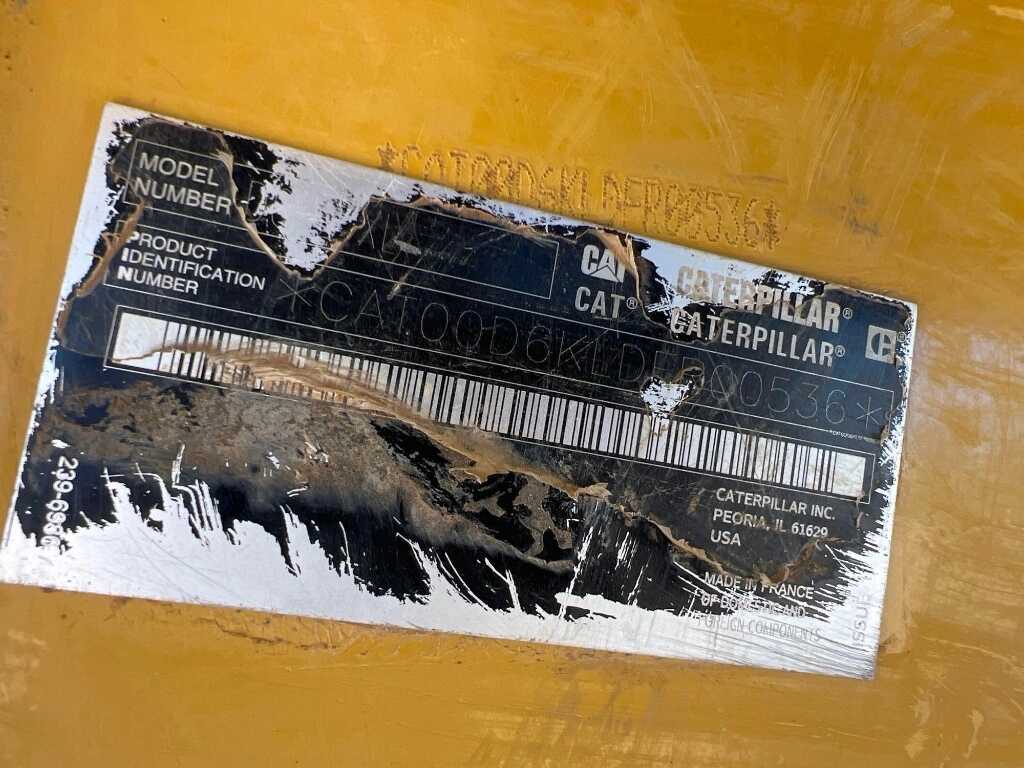

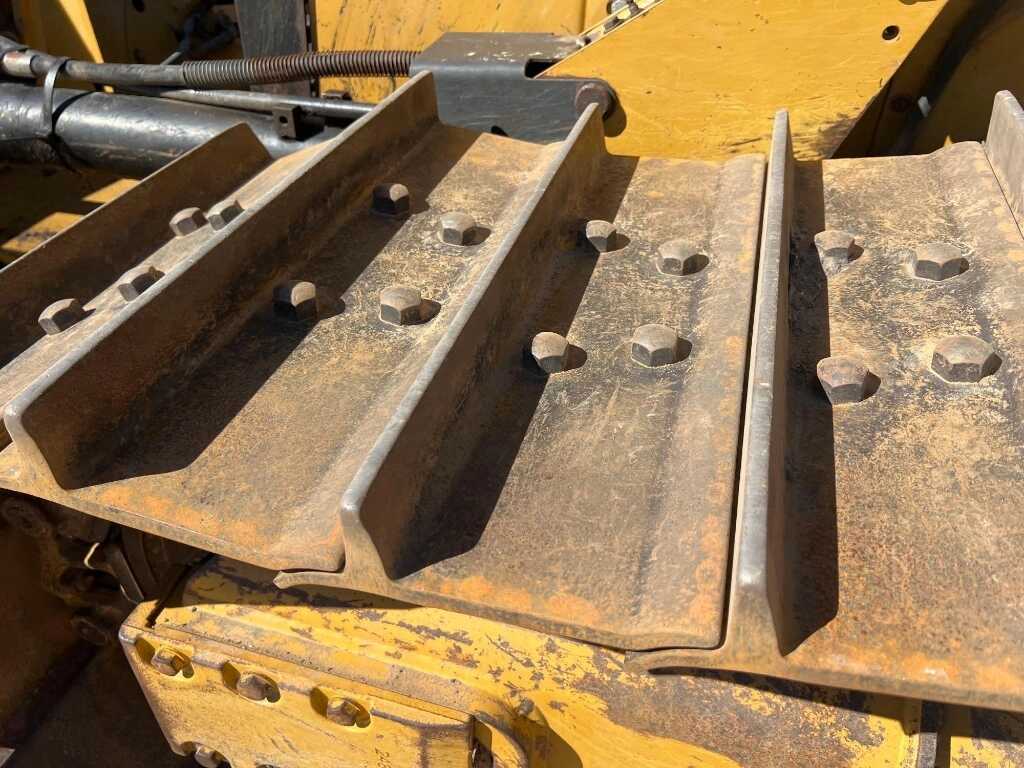

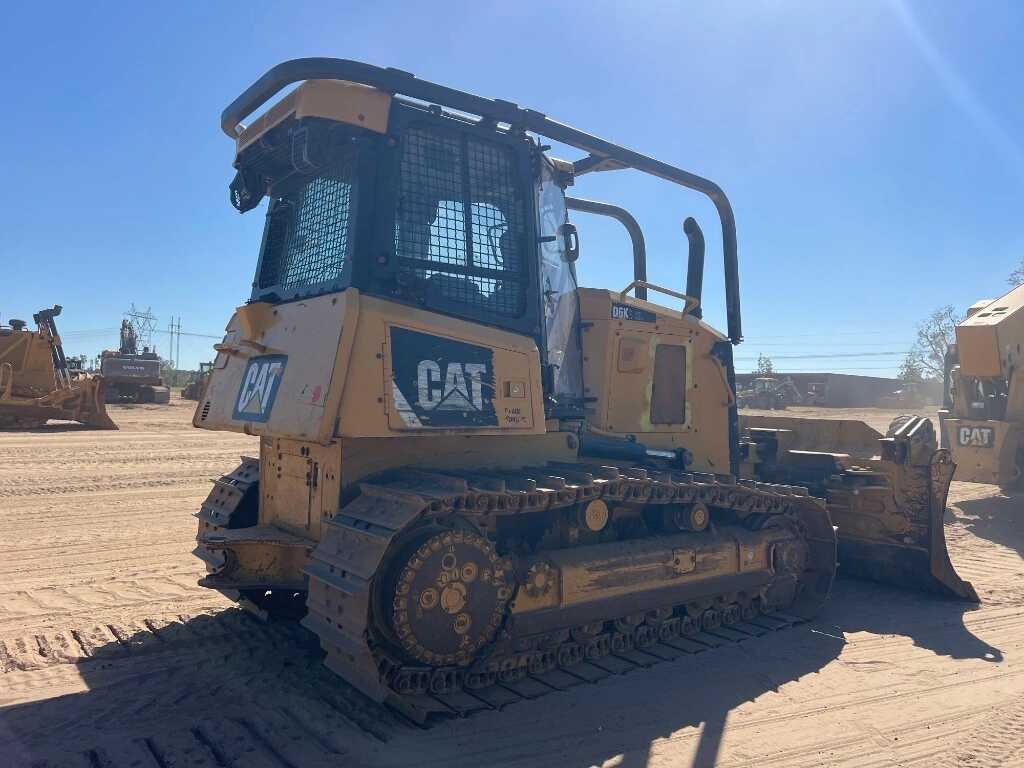

(HRS SHOW-5390), EROPS, SWEEPS, SCREENS, 124″ 6 WAY BLADE, 22″ METAL TRACKS, PULLBAR, S/N-CAT00D6KLDFR00536

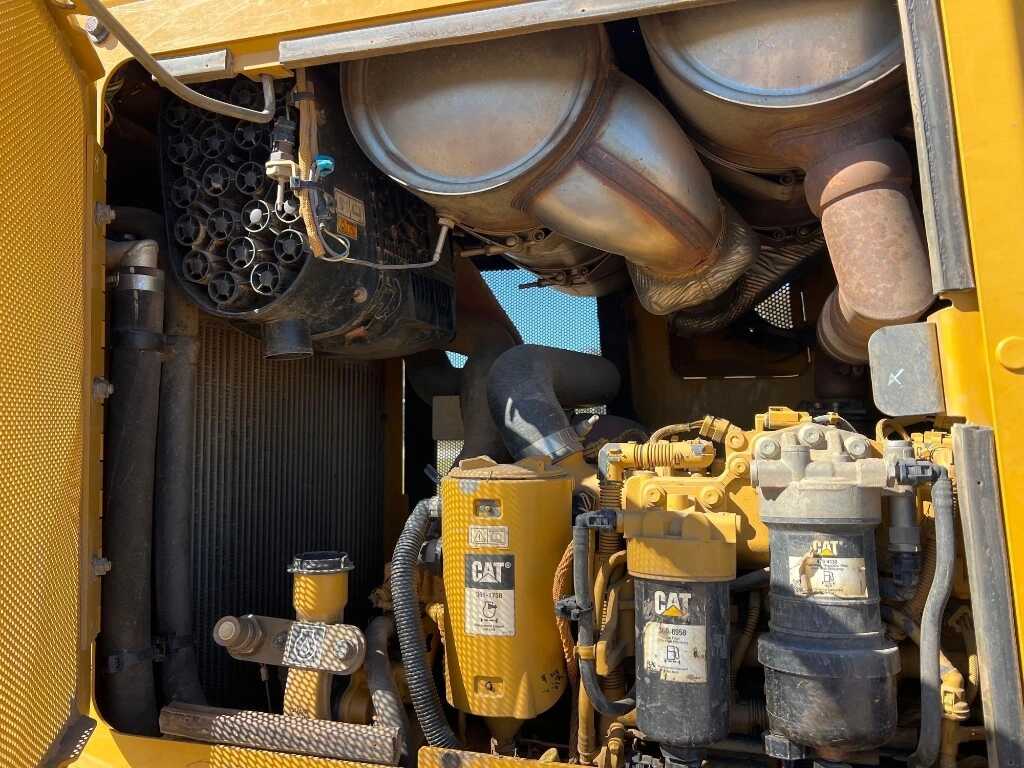

Engine

Model: Cat® C4.4 ACERT™ with twin turbo
Emissions: U.S. EPA Tier 4 Final/EU Stage IV/Korea Tier 4
Net Power (Rated): 130 hp (97 kW)
Displacement: 268.5 in³ (4.4 L)

Weights

Operating Weight: 30,664 lbs (13,909 kg)
Performance
Transmission Type: Hydrostatic
Travel Speed (Forward/Reverse): 0-6.2 mph (0-10 km/h)
Drawbar Pull: 50,000 lbf (222.4 kN)

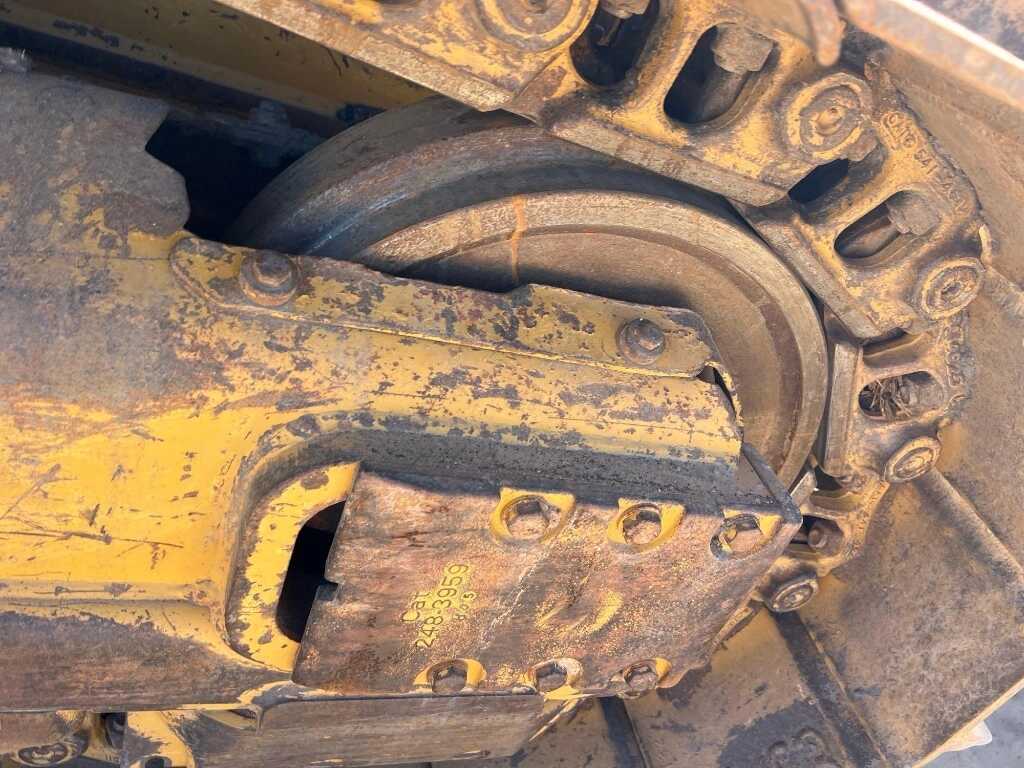

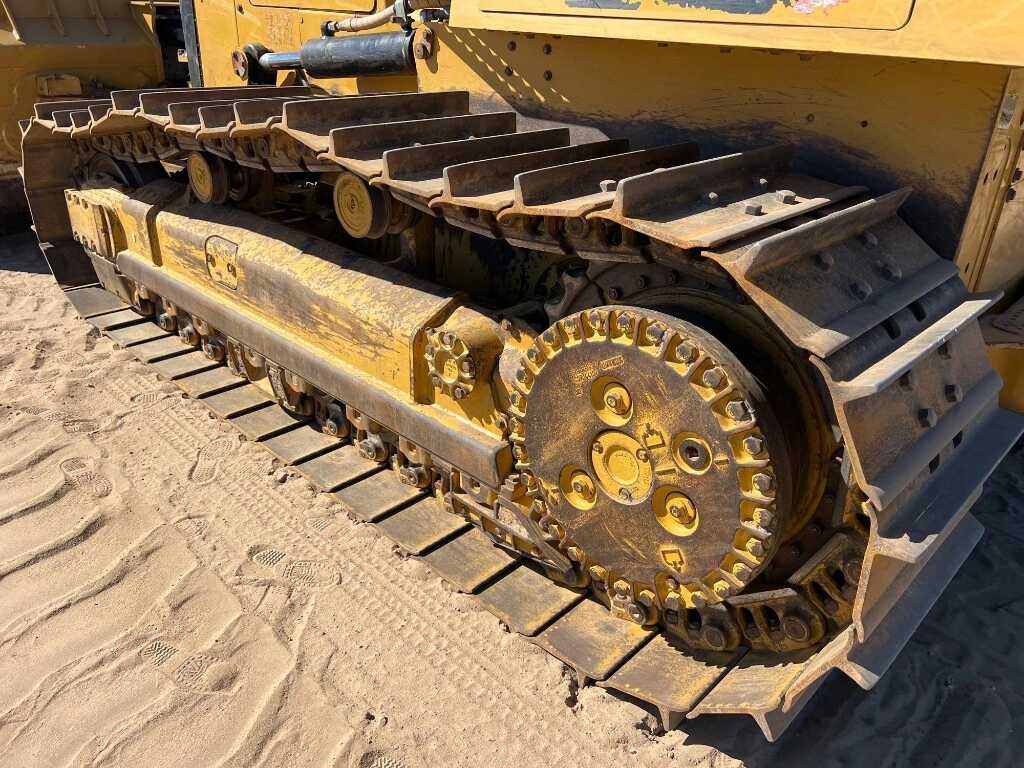

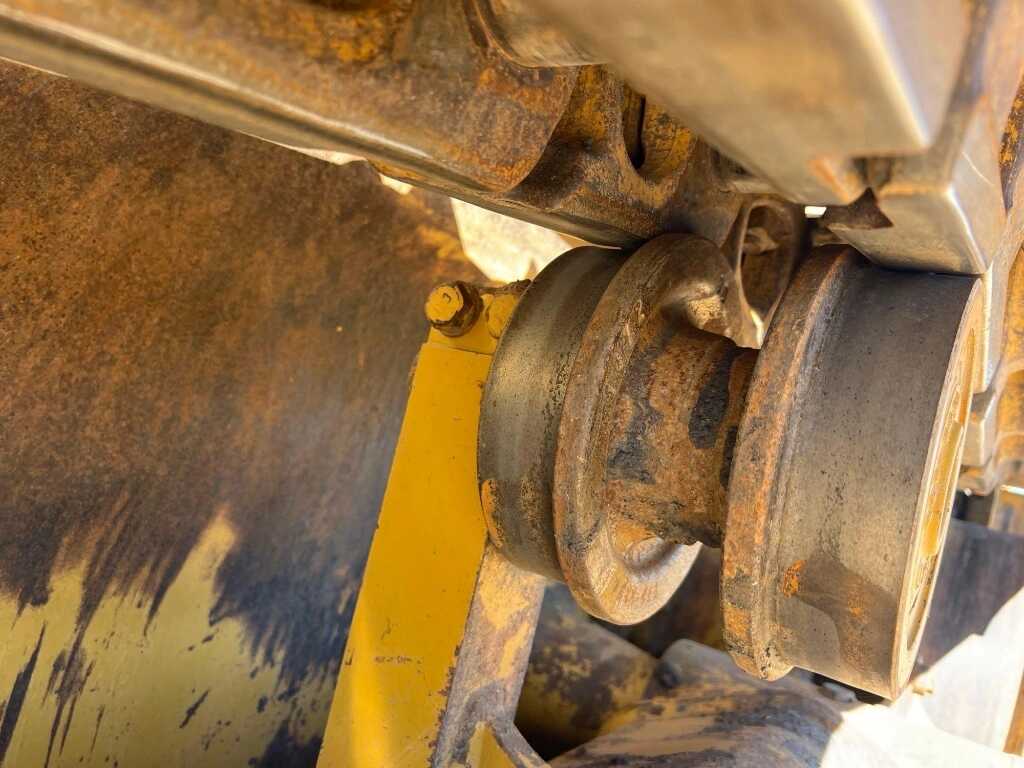

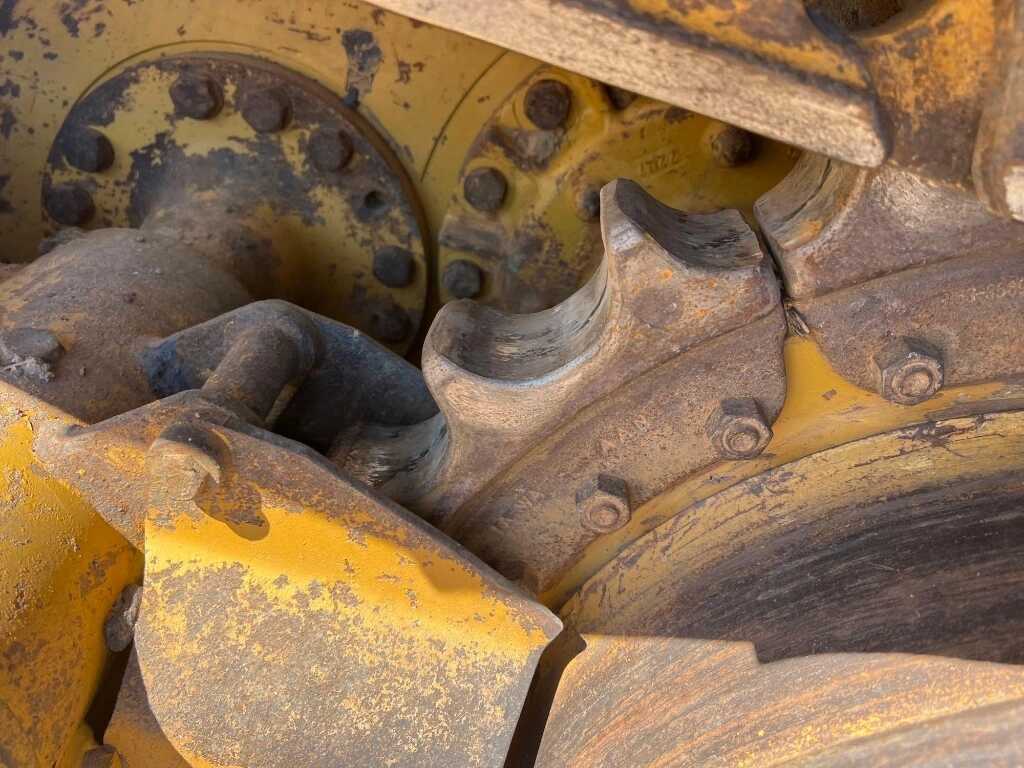

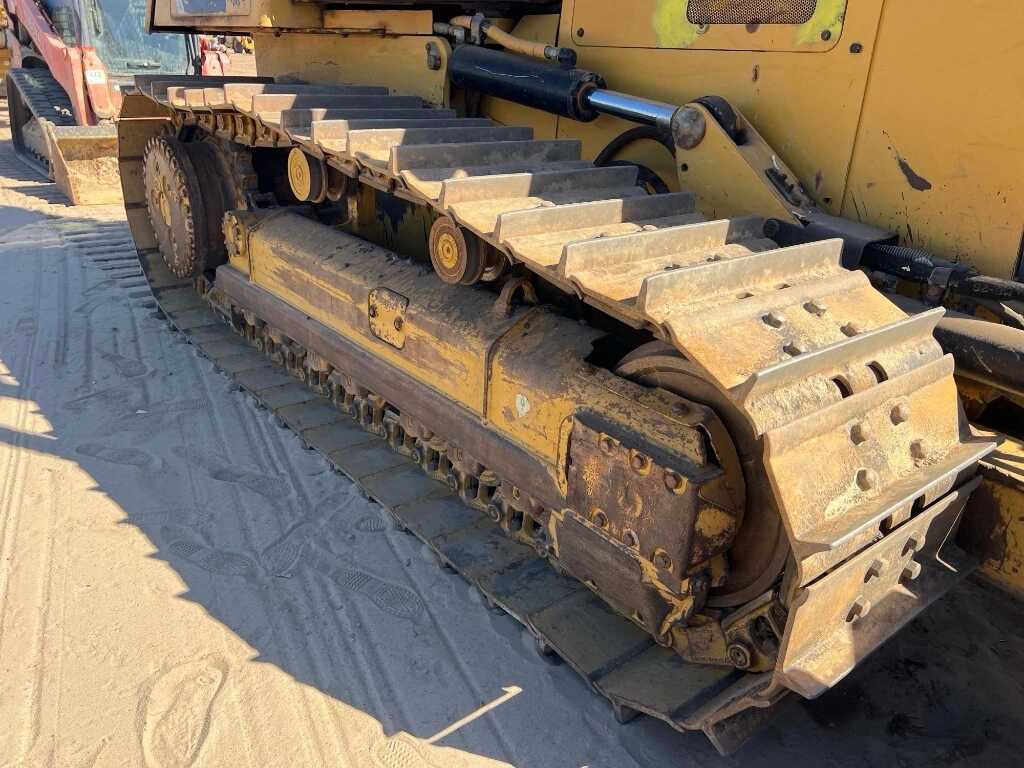

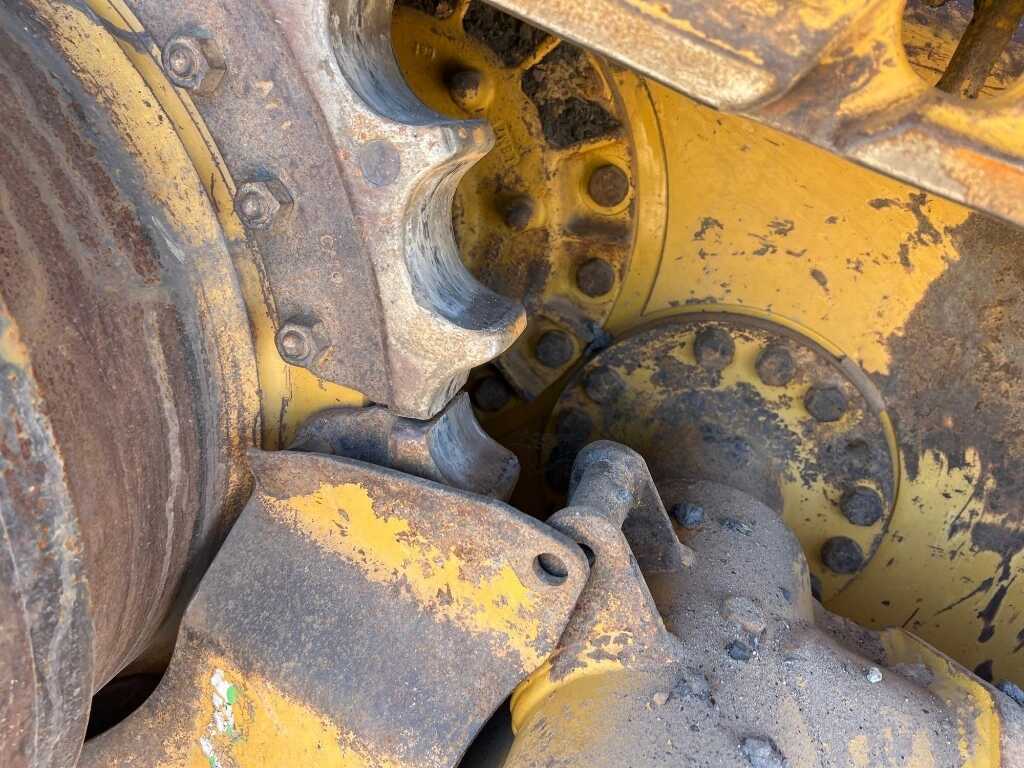

Undercarriage

Track Gauge: 79 in (2000 mm)
Width of Shoe: 30 in (760 mm)
Ground Contact Area: 6,912 in² (4.46 m²)
Ground Pressure: 4.44 psi (30.6 kPa)

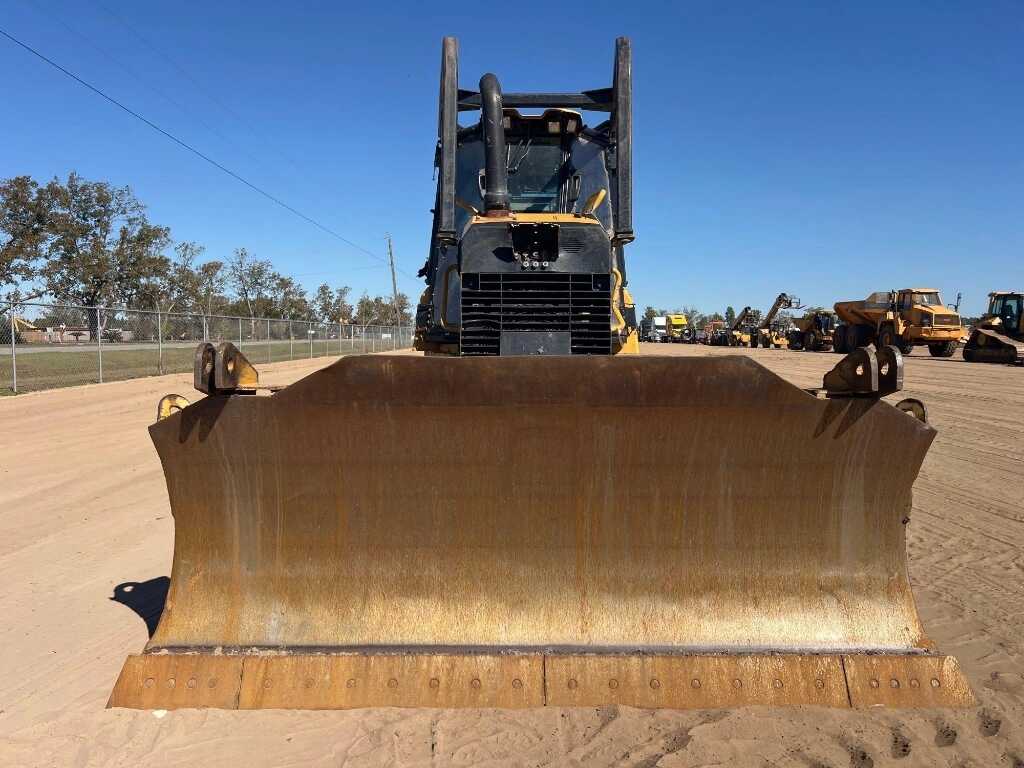

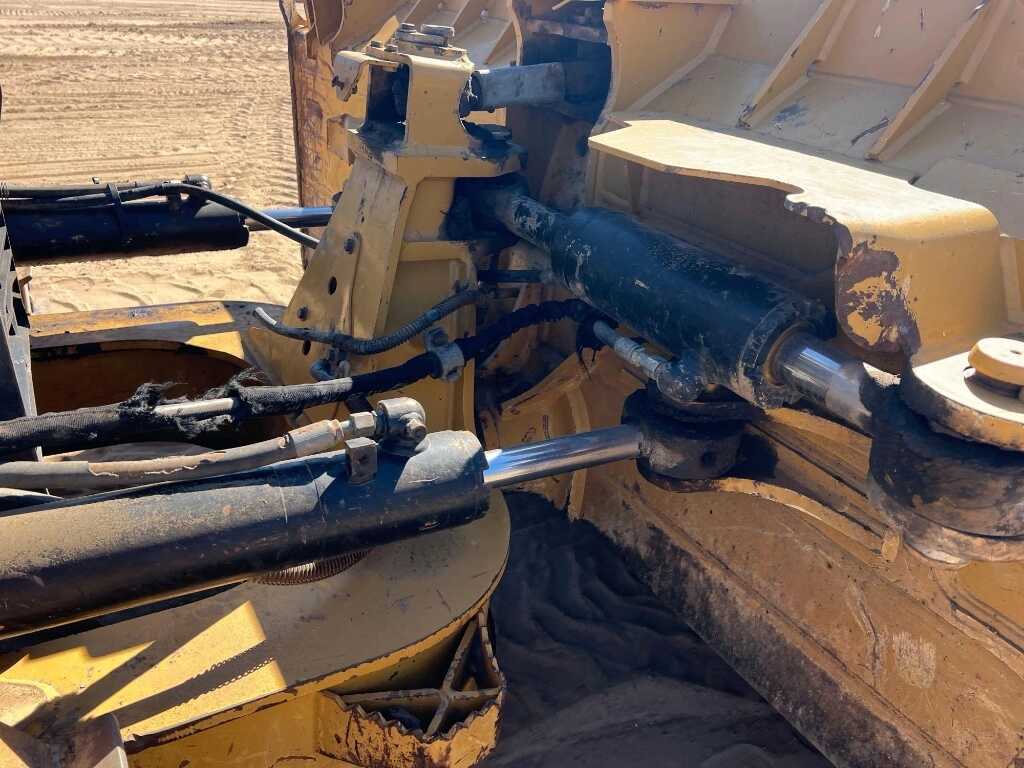

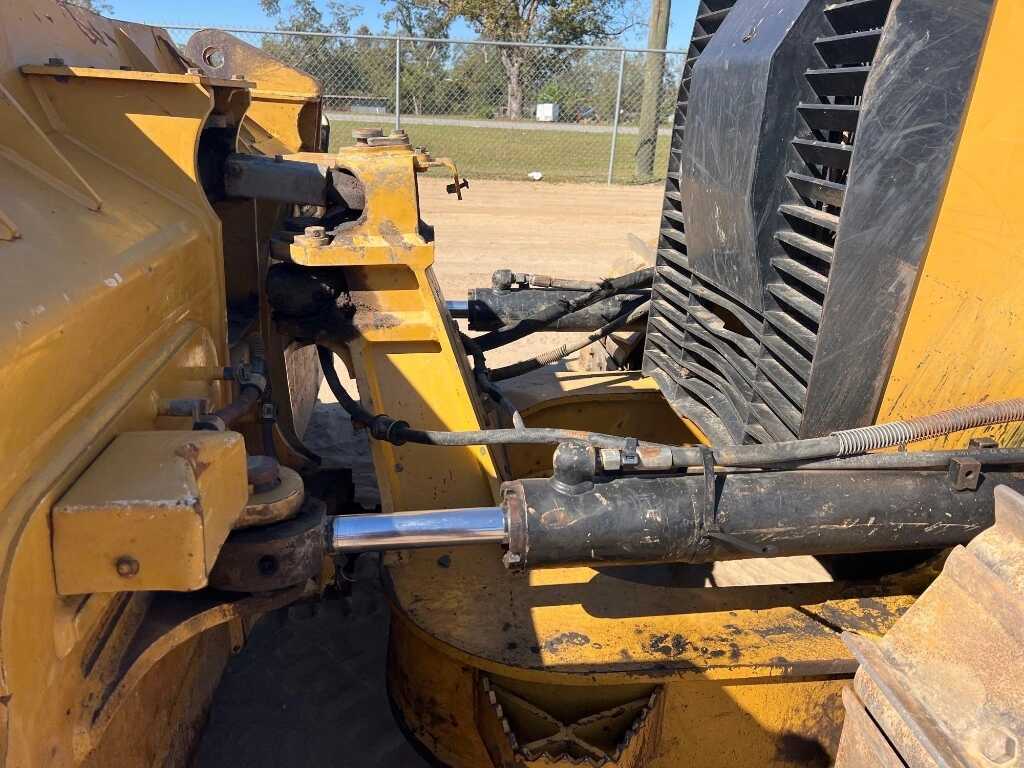

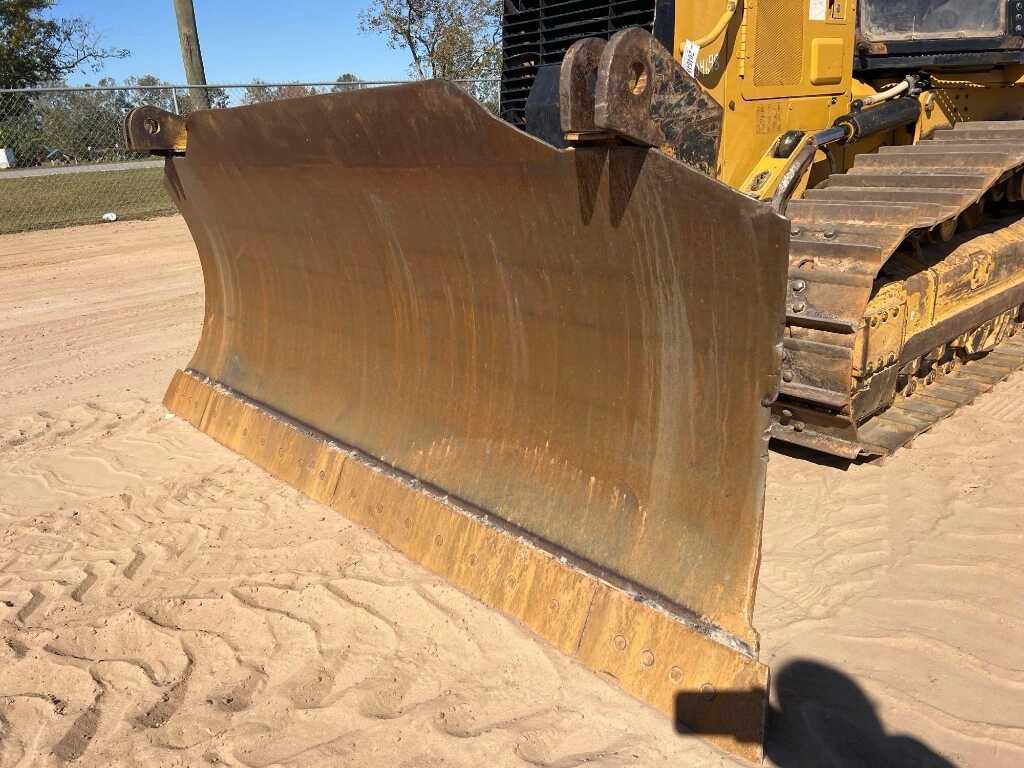

Blade

Blade Type: VPAT (Variable Pitch Angle Tilt)
Blade Capacity: 4.98 yd³ (3.81 m³)
Blade Width Over End Bits: 12 ft (3,682 mm)

Dimensions

Length (with blade): 15.4 ft (4,700 mm)
Width (over tracks): 9.81 ft (2,990 mm)
Height: 9.25 ft (2,820 mm)
Ground Clearance: 1.25 ft (380 mm)

Service Refill Capacities

Fuel Tank: 69 gal (260 L)
DEF Tank: 5 gal (19 L)
Cooling System: 7.9 gal (30 L)
Engine Crankca
