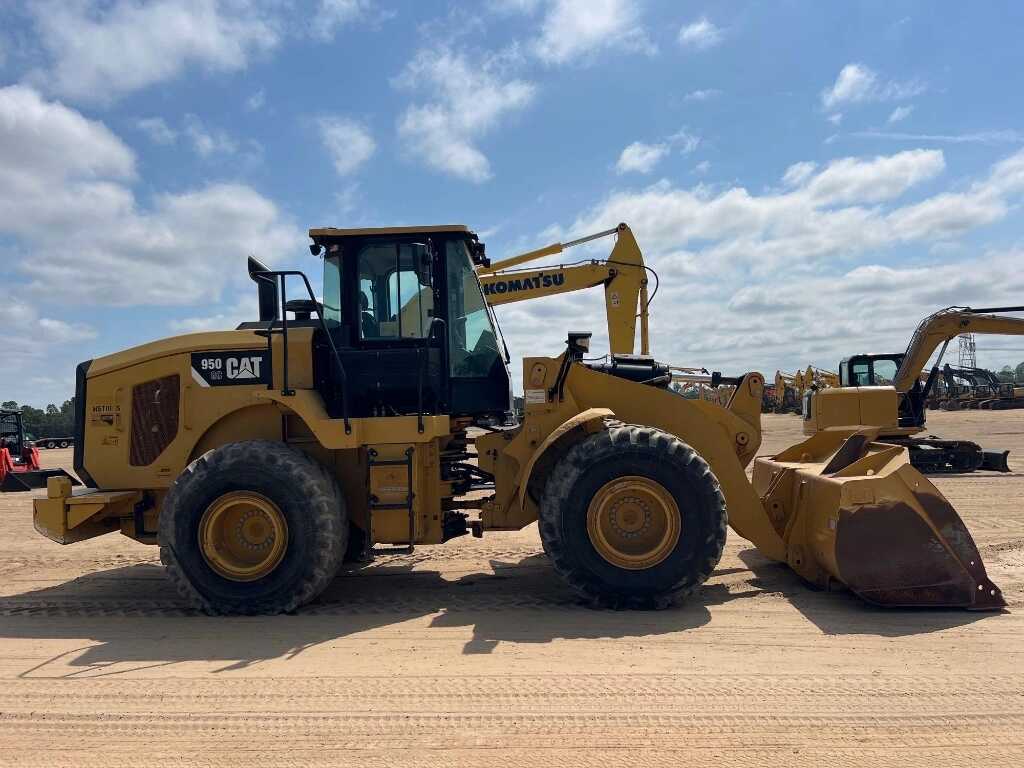

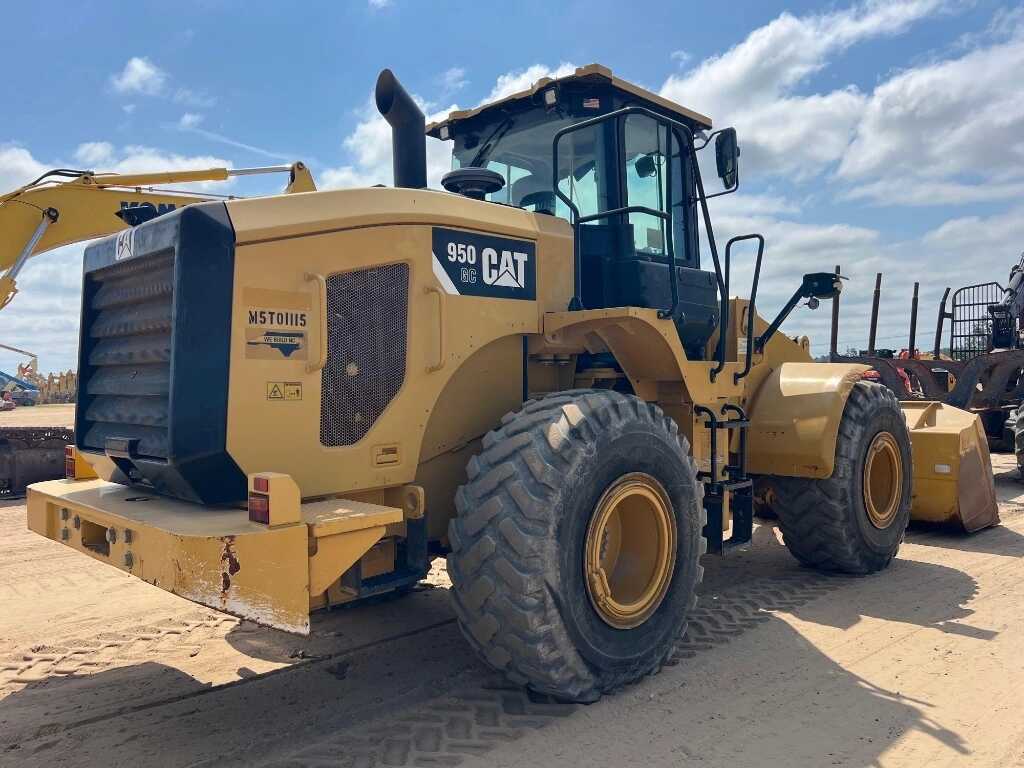

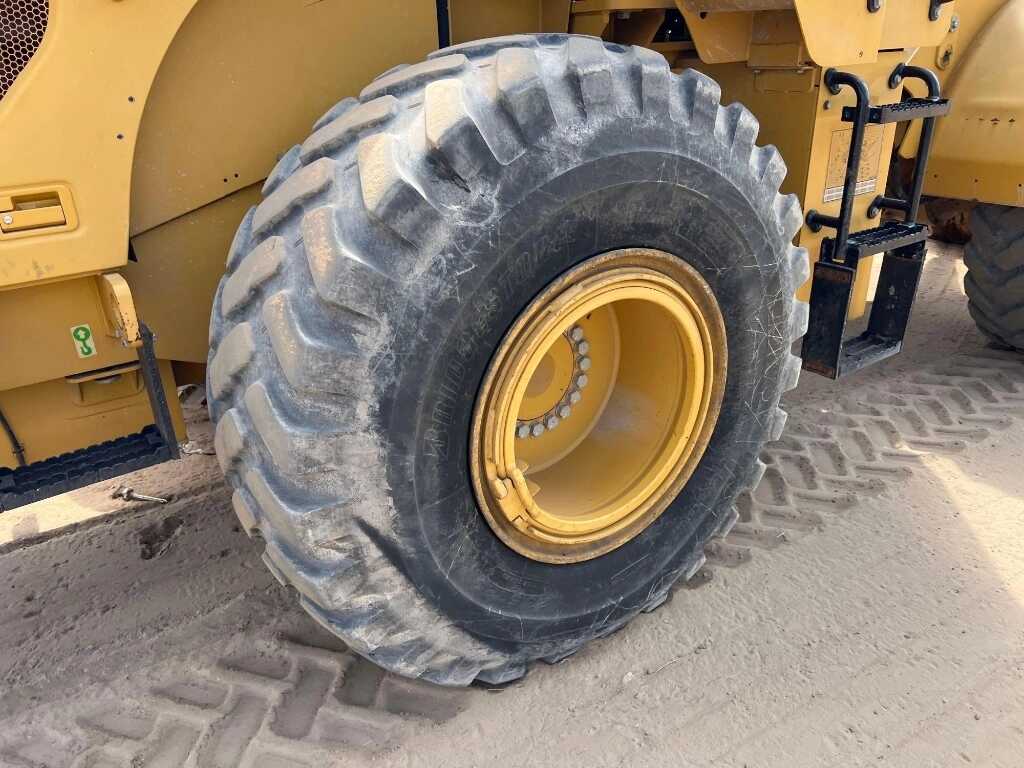

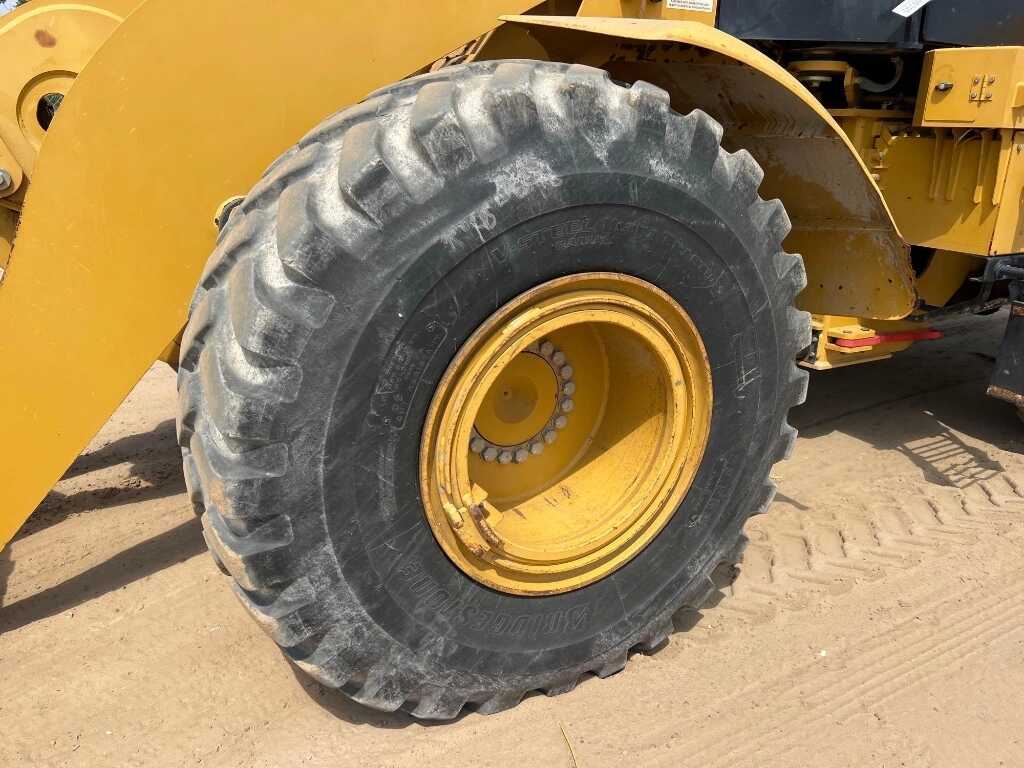

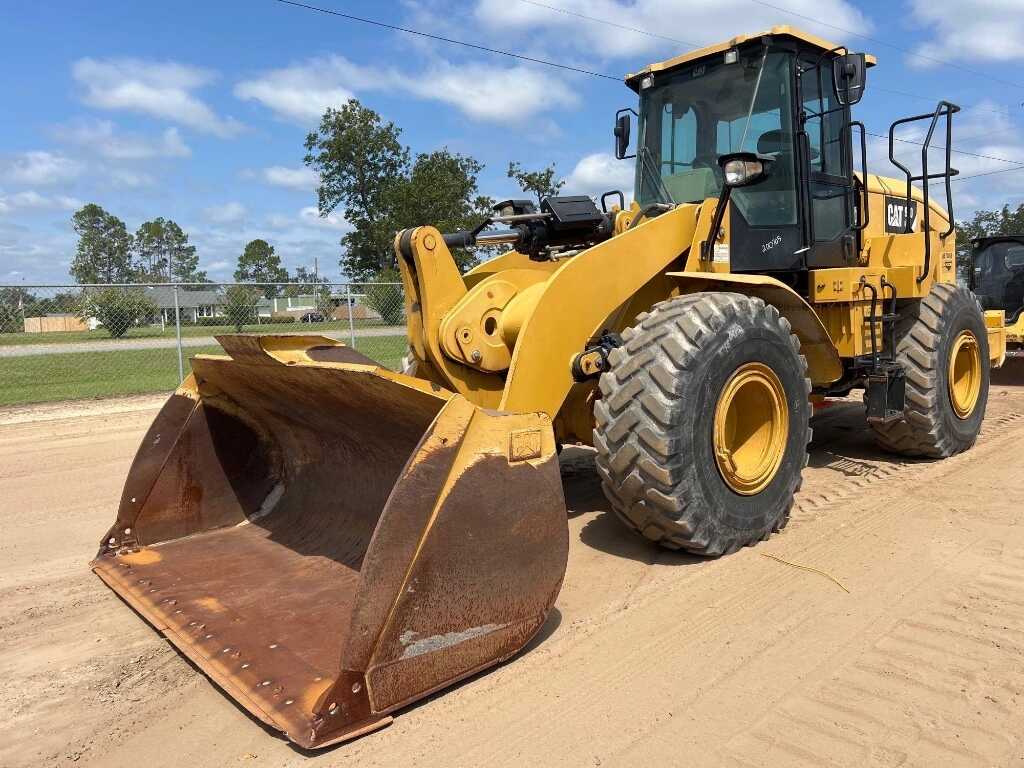

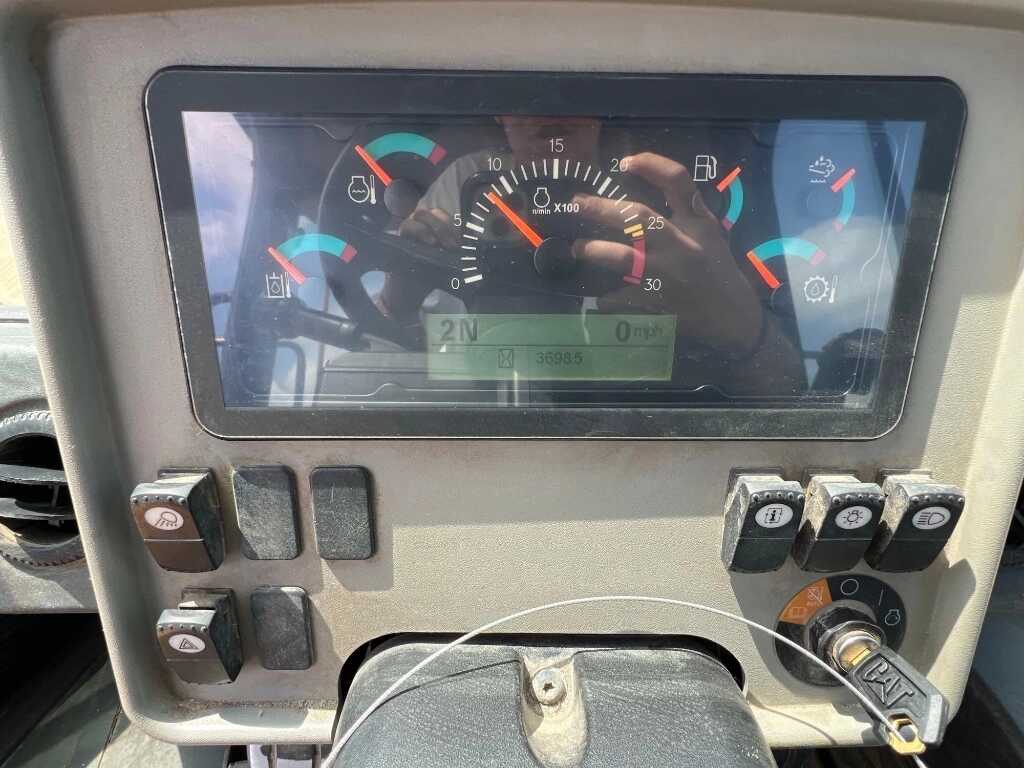

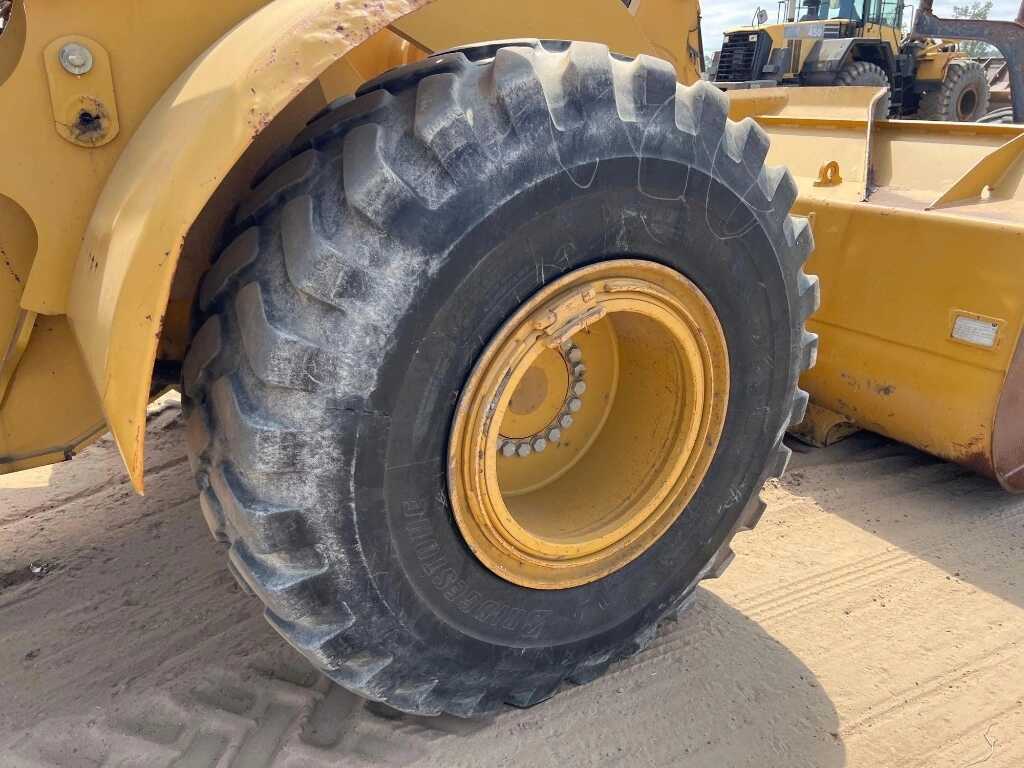

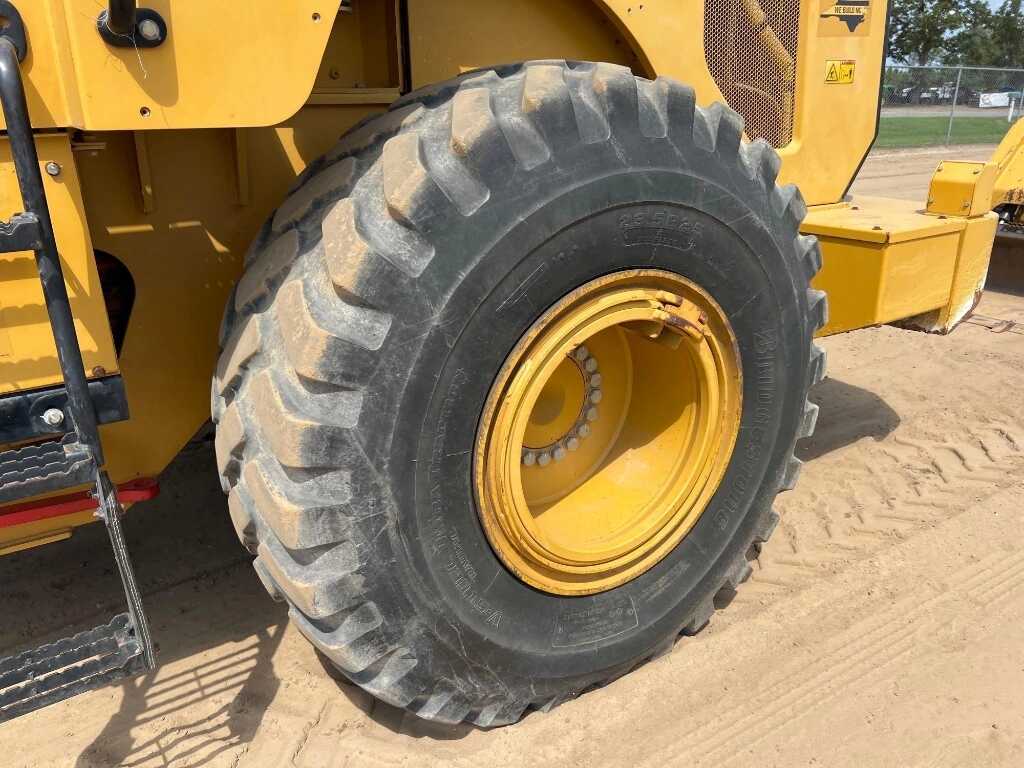

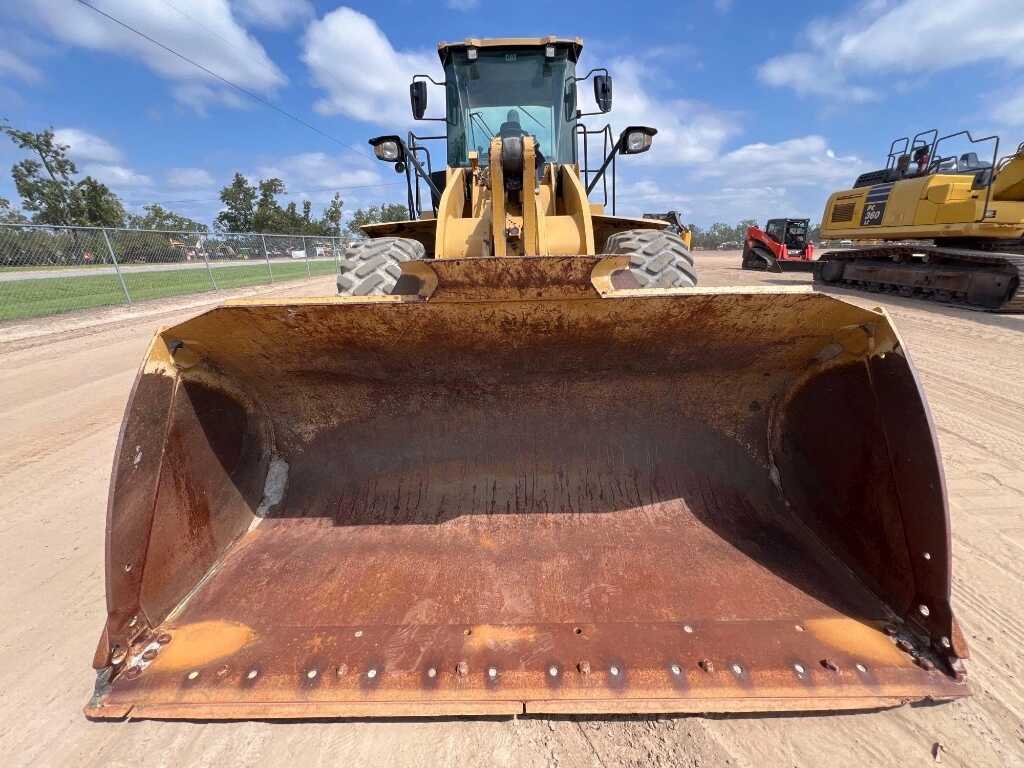

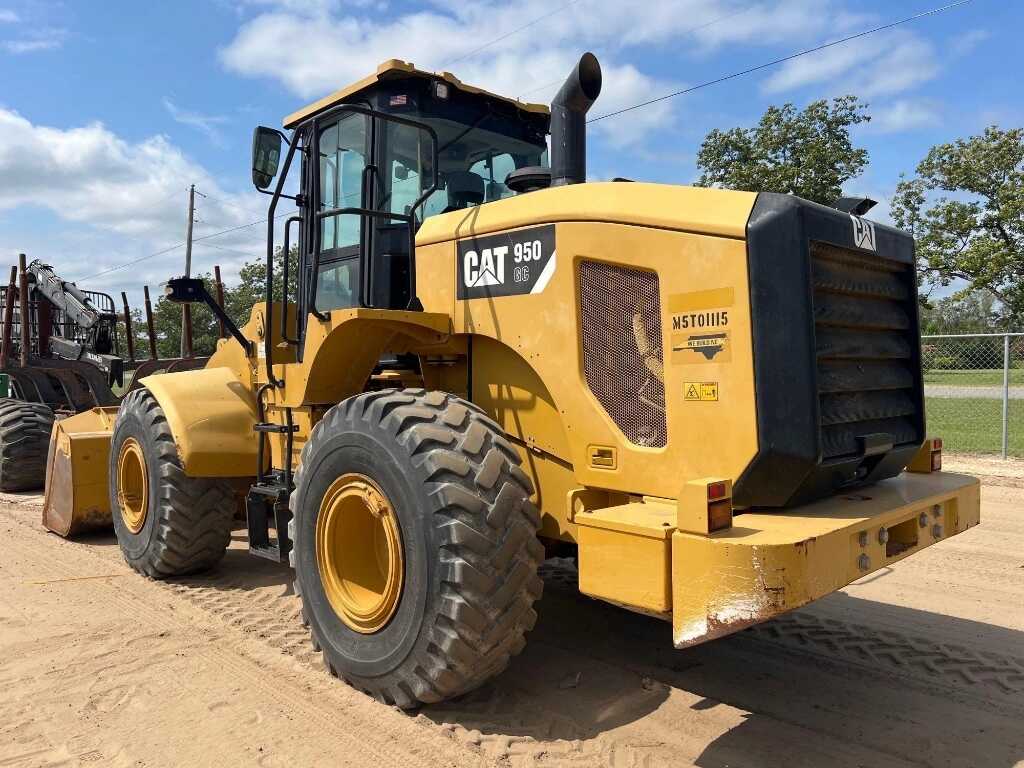

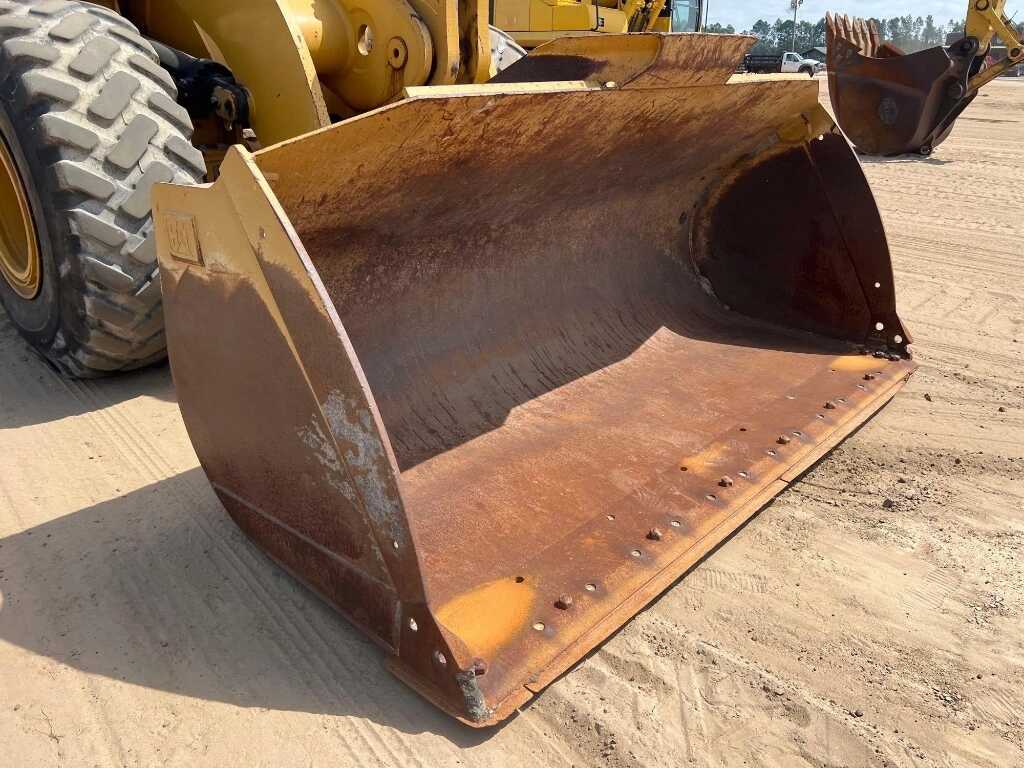

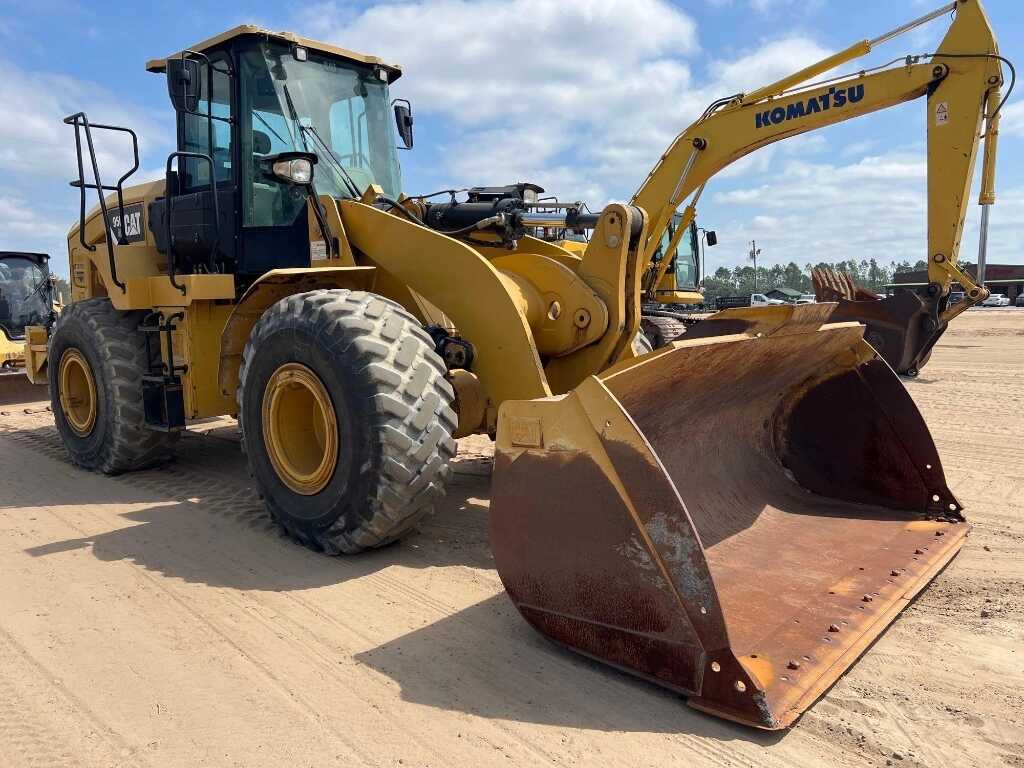

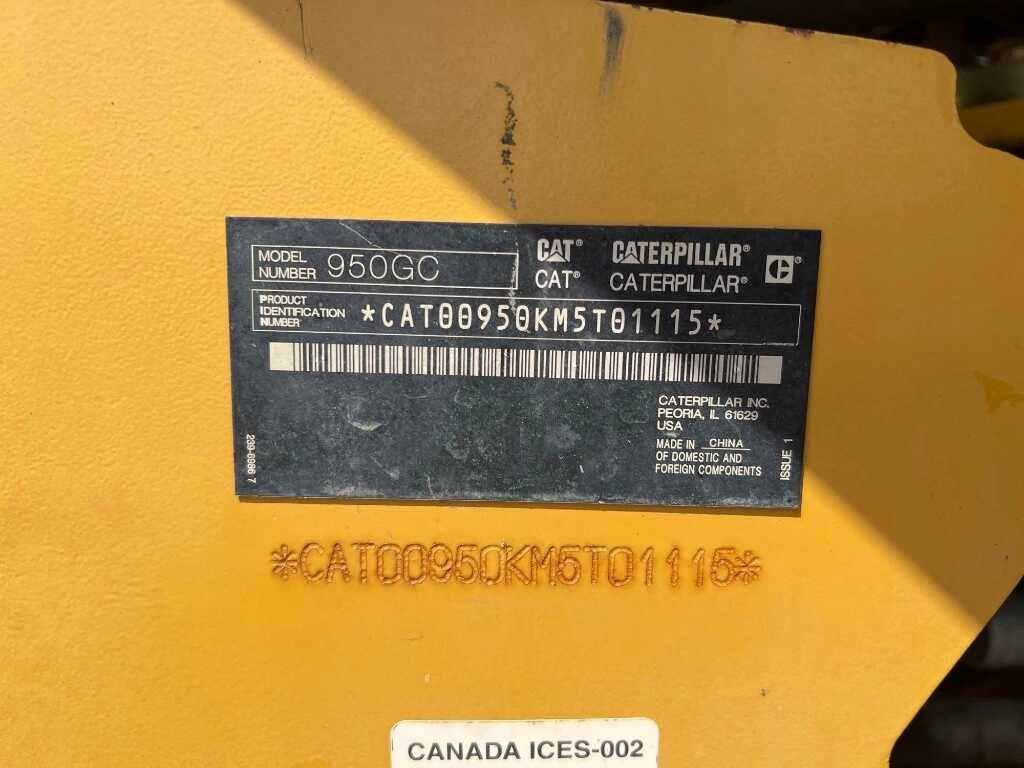

(HRS SHOW – 3698) 114″ BUCKET, 23.5R25 TIRES, PULLBAR, EROPS, S/N CAT00950KM5T01115

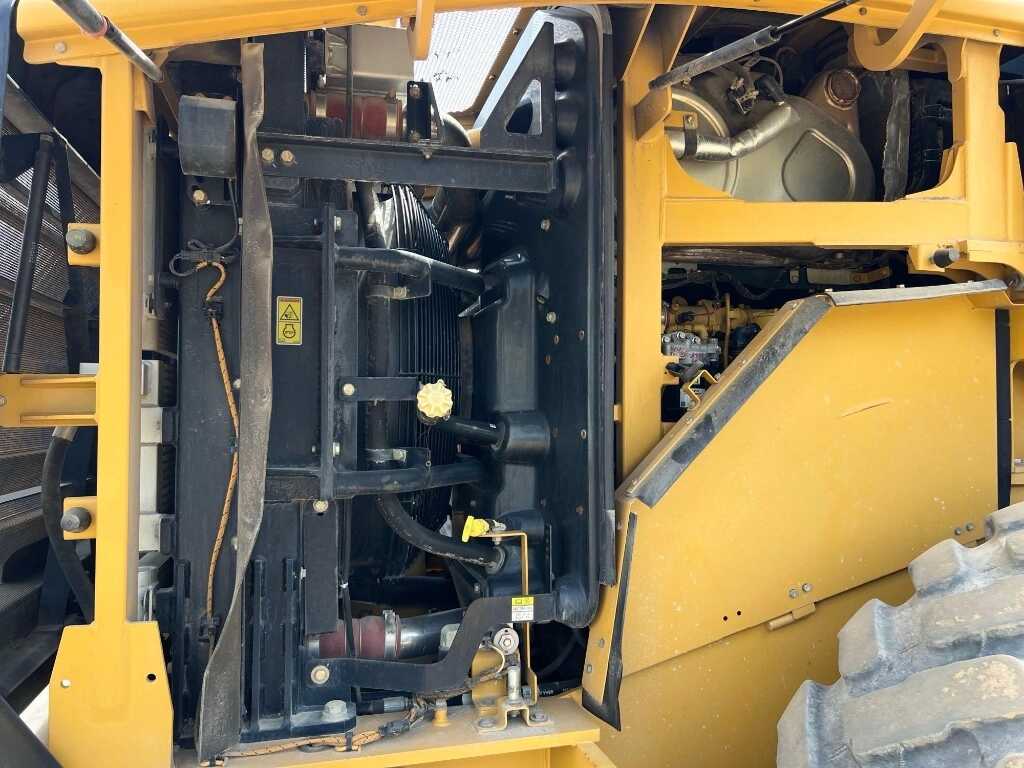

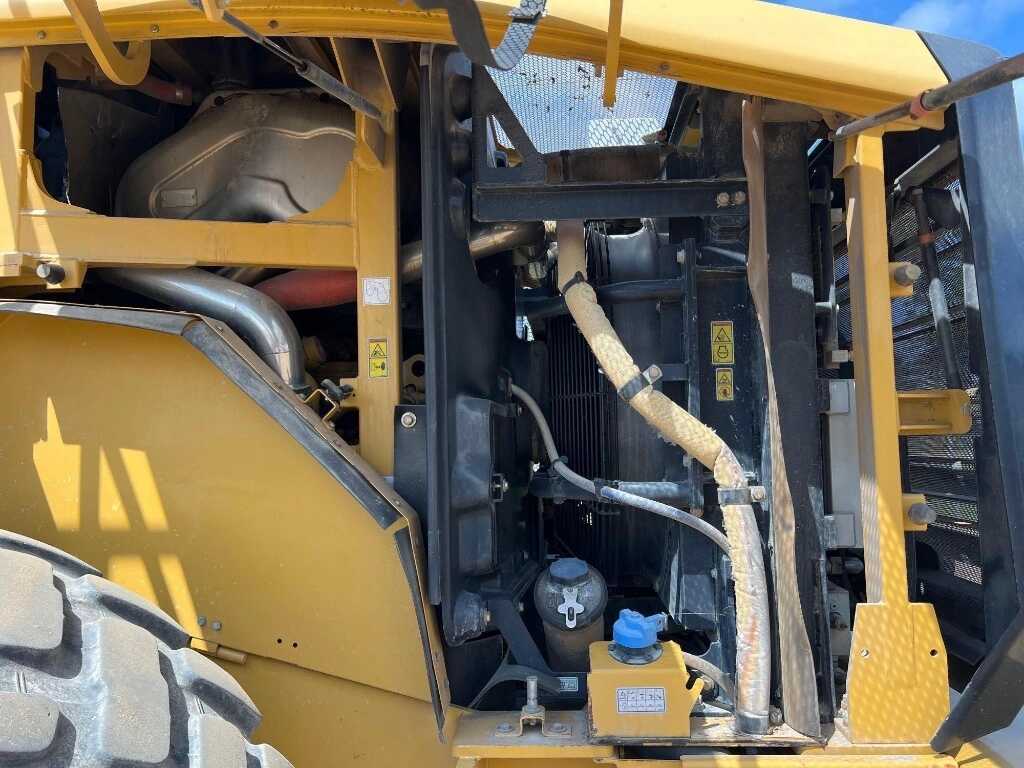

Engine & Powertrain
Engine Model: Cat C7.1 ACERT
Displacement: 428 cu in (7.0 L)
Gross Power (SAE J1995): 241 hp (179 kW)
Net Power (SAE J1349 / ISO 9249): 225 hp (168 kW)
Maximum Power (ISO 14396): 240 hp (243 hp metric)
Peak Torque: 805–811 lb-ft @ 1,400 rpm
Emissions: Tier 4 Final / EU Stage IV

Operating Weights & Capacities
Operating Weight: 41,554 lb (18,850 kg)
Tipping Load – Full Turn (ISO 14397-1): 24,264 lb
Tipping Load – Full Turn (Rigid Tires): 25,875 lb
Breakout Force: 34,638 lbf
Fuel Tank: 76.6 gal
DEF Tank: 4.2 gal
Cooling System: 13.2 gal
Hydraulic Tank: 29.6 gal
Transmission: 11.9 gal
Differentials (Front/Rear): 10.6 / 10.0 gal
Crankcase: 4.8 gal

Hydraulic System
Pump Type: Piston
Main Pump Output @ 2,390 rpm: 68 gpm
Operating Pressure: 4,047 psi
Cycle Time (Total): 9.4 s

Transmission & Travel
Type: Powershift, torque converter
Speeds: 4 forward / 3 reverse
Forward Gear Speeds: 4.5, 8.0, 14.2, 22.4 mph
Reverse Gear Speeds: 4.5, 8.0, 14.2 mph
Max Travel Speed: 22.4 mph (with empty bucket, standard L3 tires)

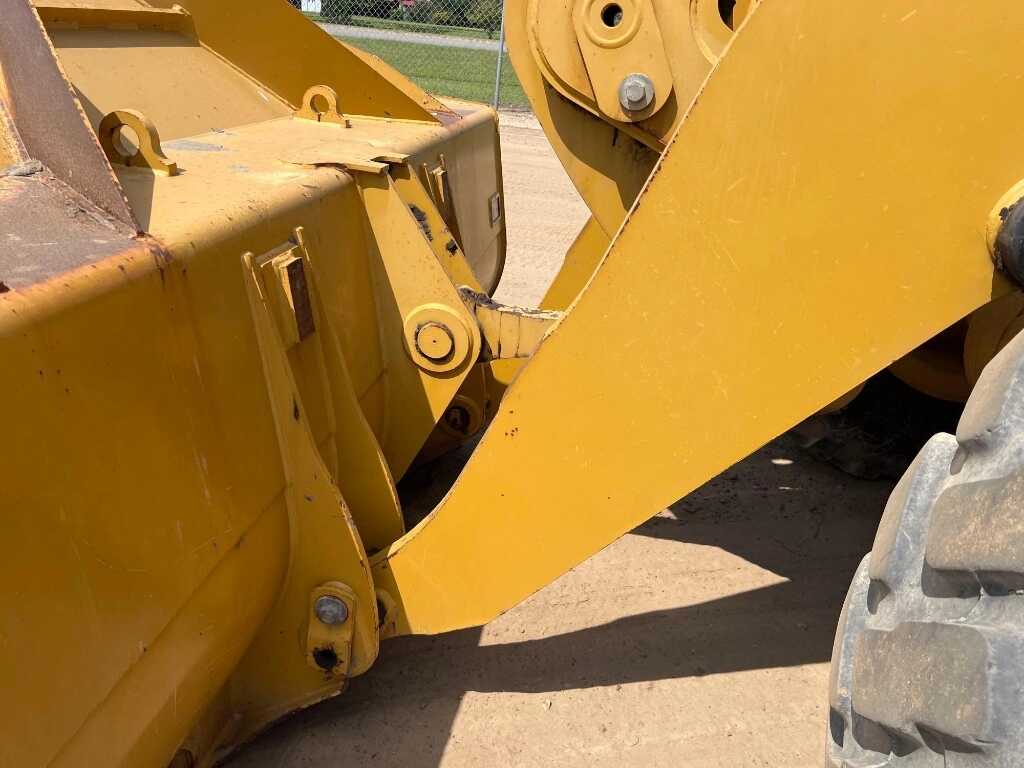

Buckets
Capacity Range: 2.9–4.4 m³ (3.75–5.75 yd³)
Reference Bucket: 3.1 m³ (4.0 yd³) GP with BOCE

Undercarriage & Dimensions
Ground Clearance: 1.5 ft
Wheelbase: 10.83 ft
Height to Top of ROPS: 11.33 ft
Height to Top of Exhaust: 134 in
Height to Top of Hood: 105 in
B-Pin Height: 13.75 ft
Lift Arm Clearance: 12 ft
Tail Measurements:
– Counterweight Clearance: 81 in
– Rear Axle to Hitch: 65.05 in
Rack Back Angles: 45° carry, 40° ground, 60° max lift

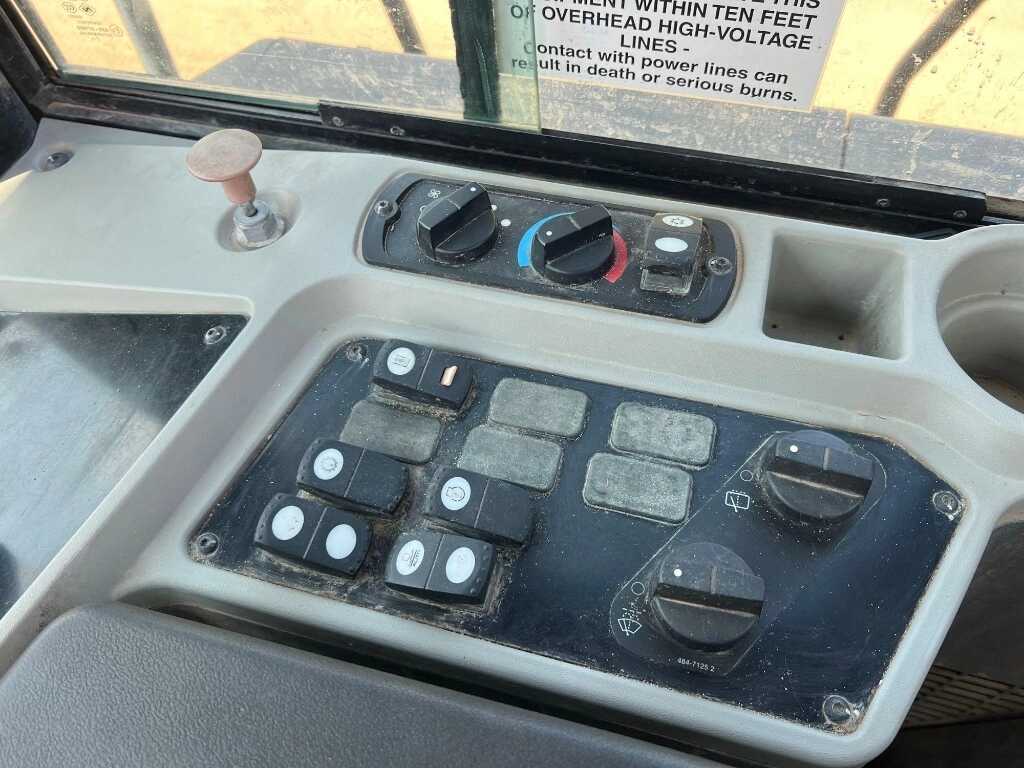

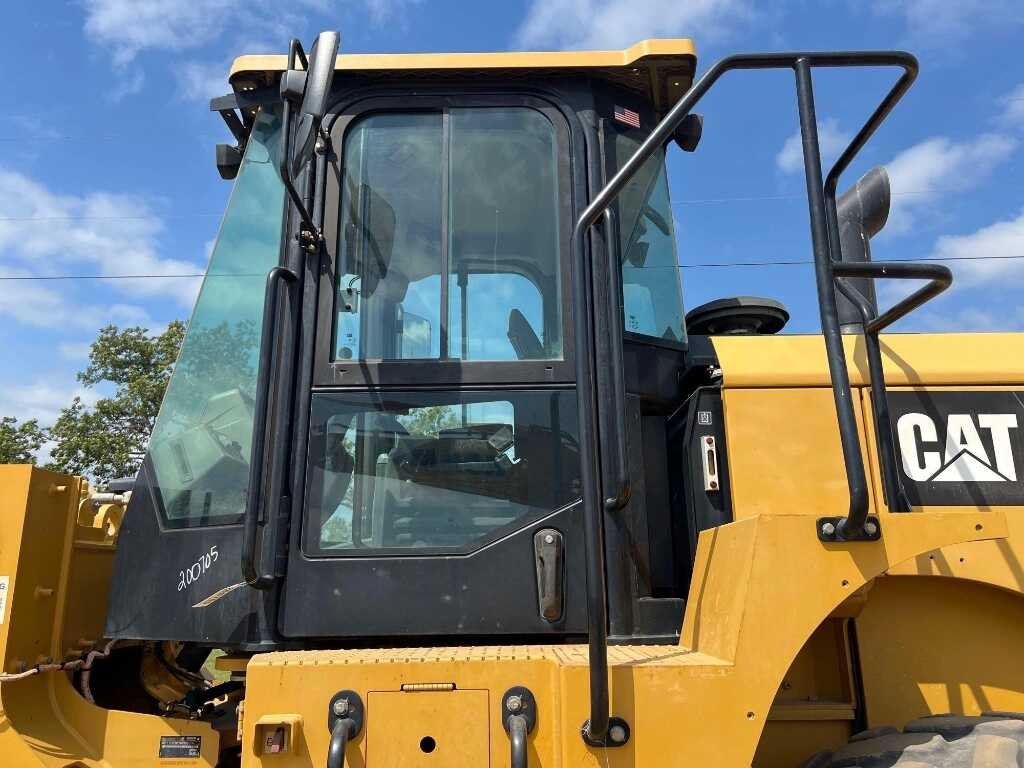

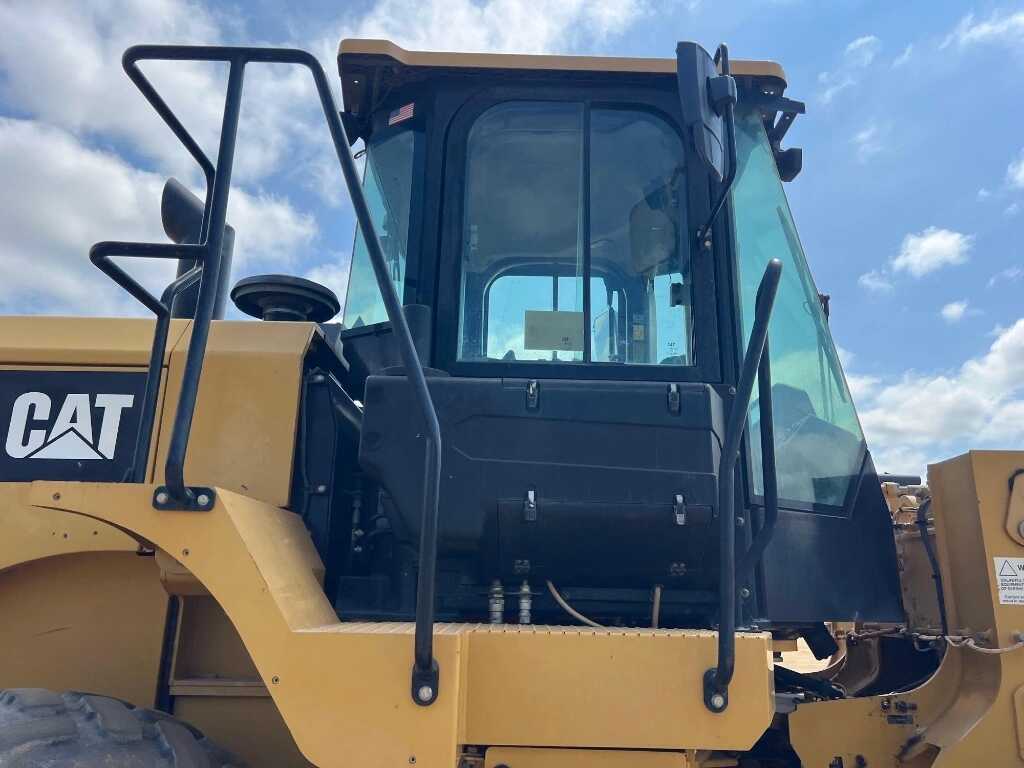

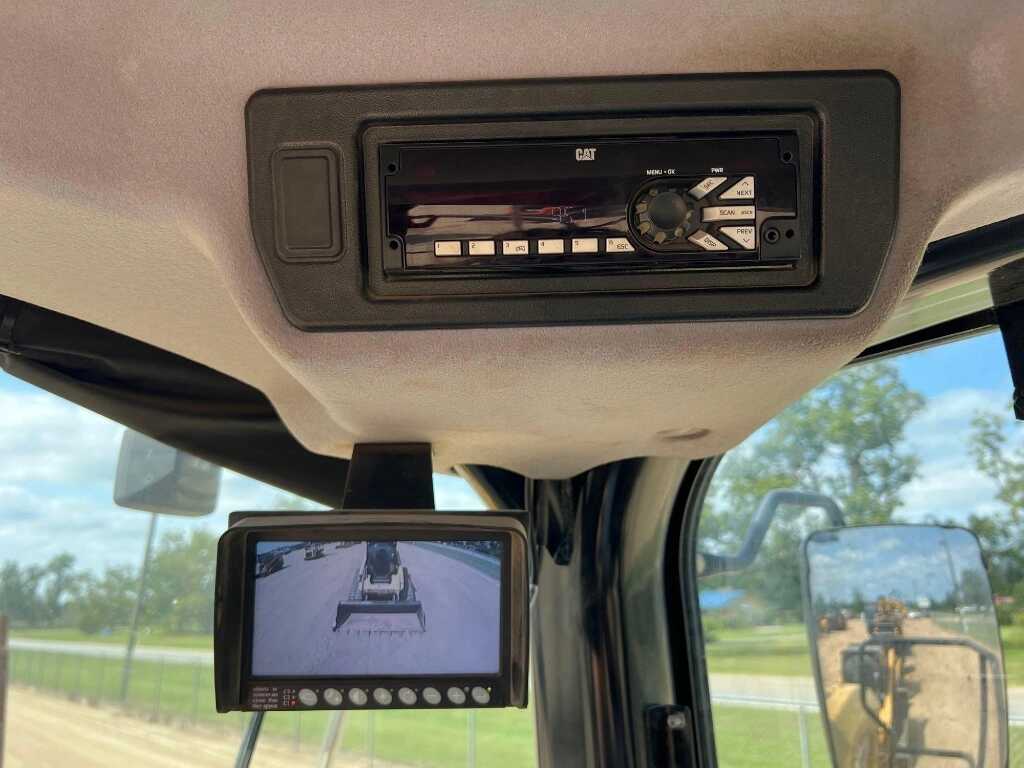

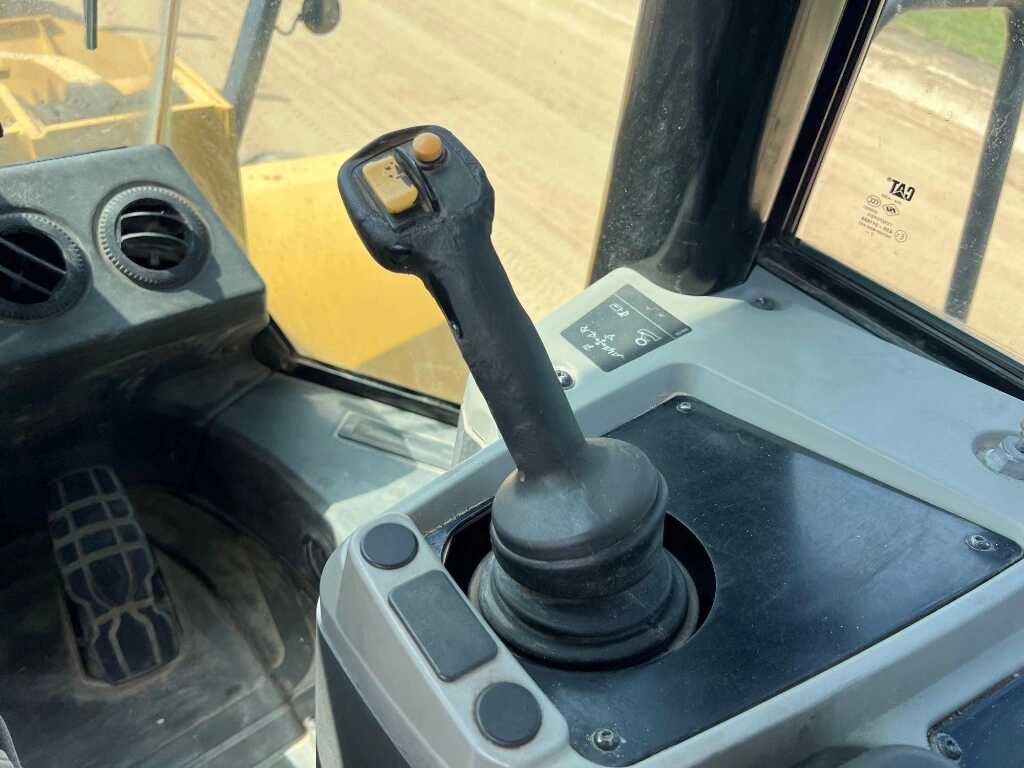

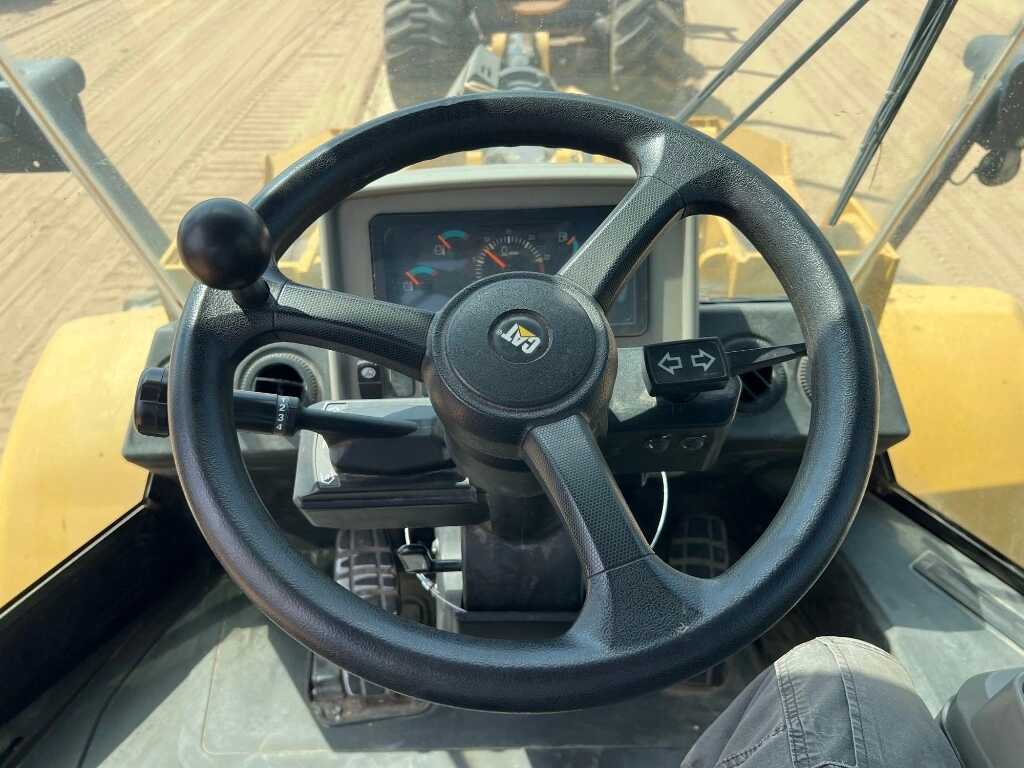

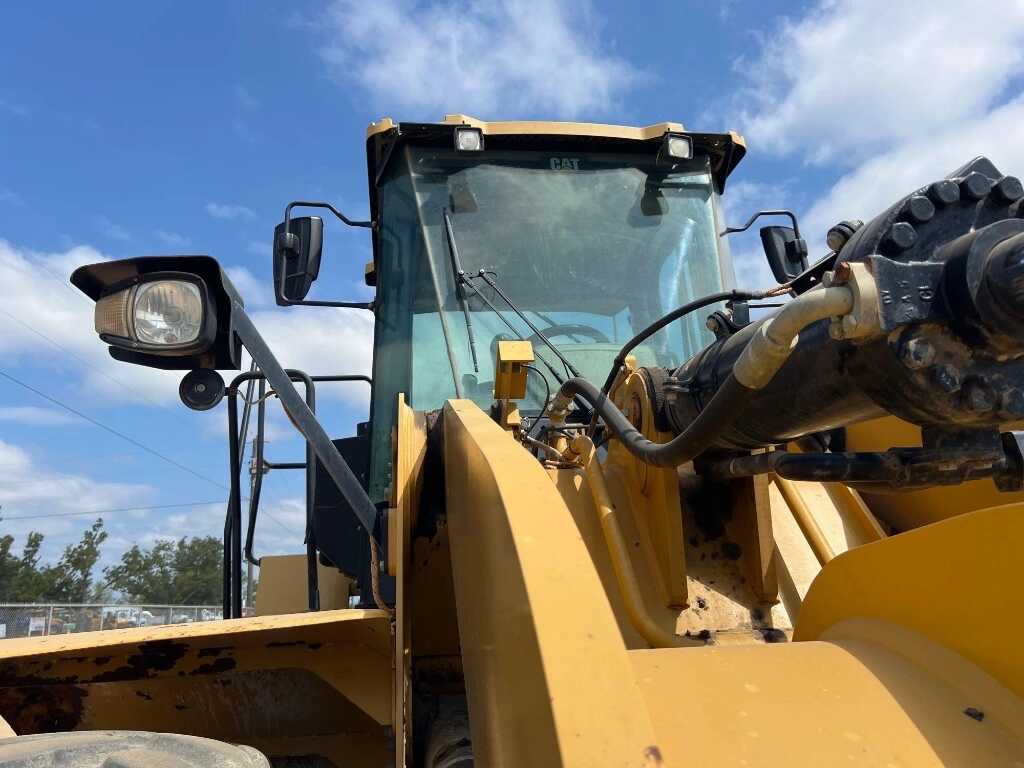

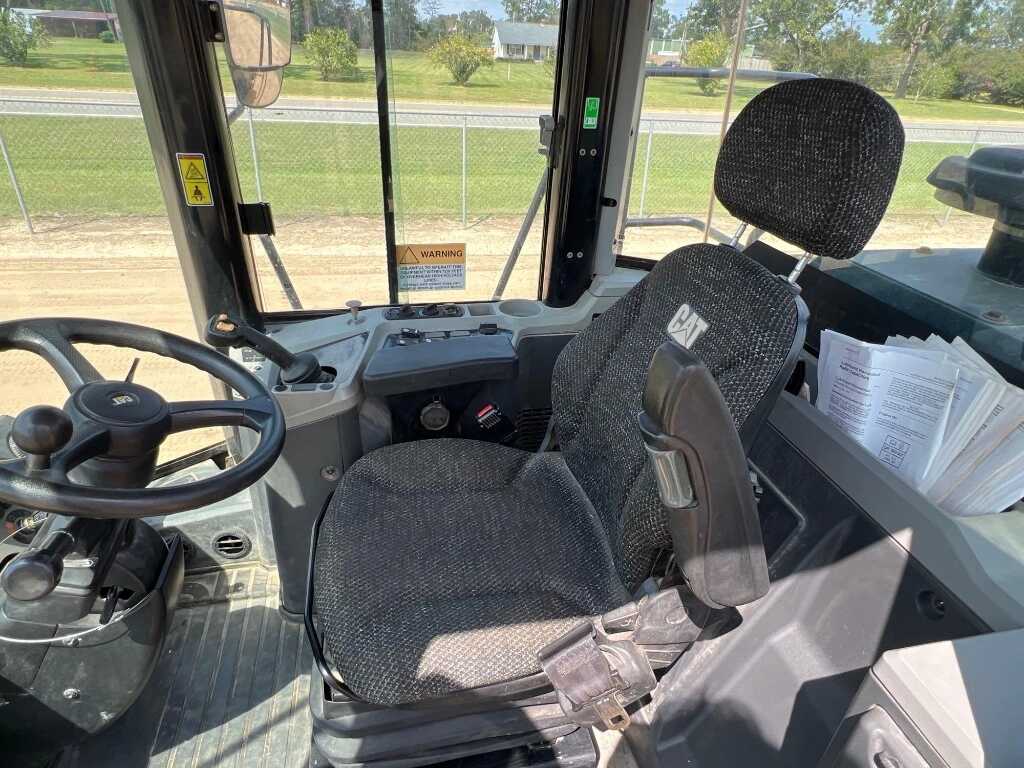

Cab & Operator Station
ROPS/FOPS: Certified ISO 3471 / ISO 3449
Operator Sound Pressure: 73 dB(A) (ISO 6396:2008)
Exterior Sound Power: 107–109 dB(A) (ISO 6395:2008)
Exterior Sound Pressure: 76 dB(A) (SAE J88:2013)
Air Conditioning: R134a refrigerant, 1.9 kg (4.2 lb) – CO₂ equivalent 2.717 metric tonnes
