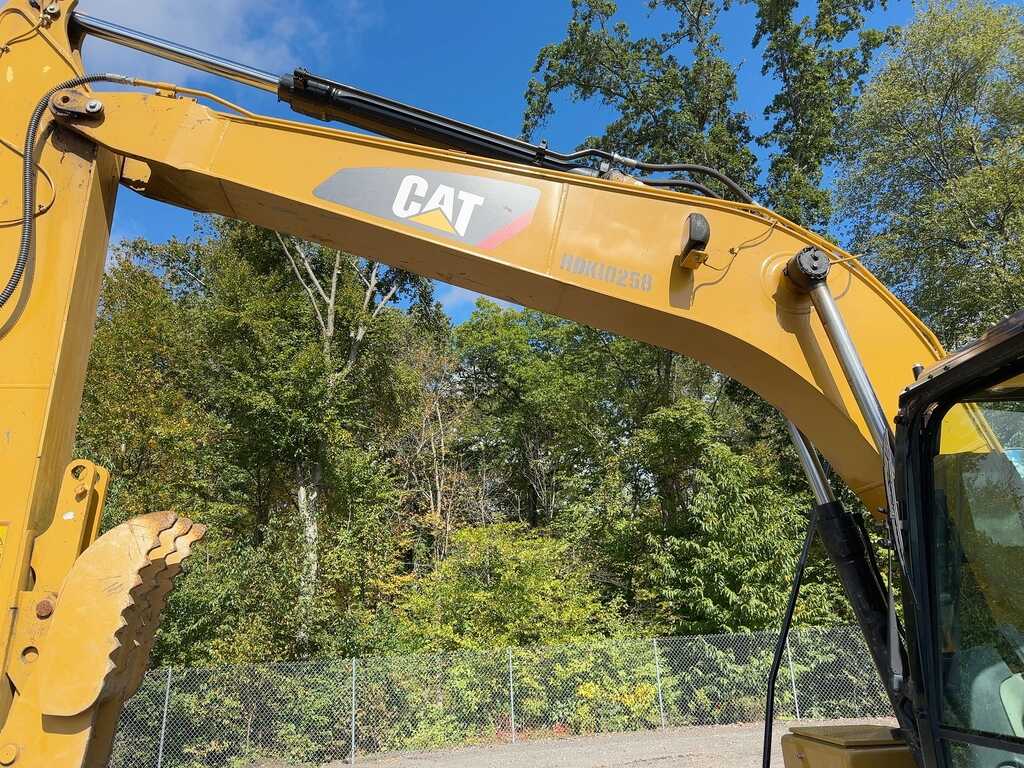

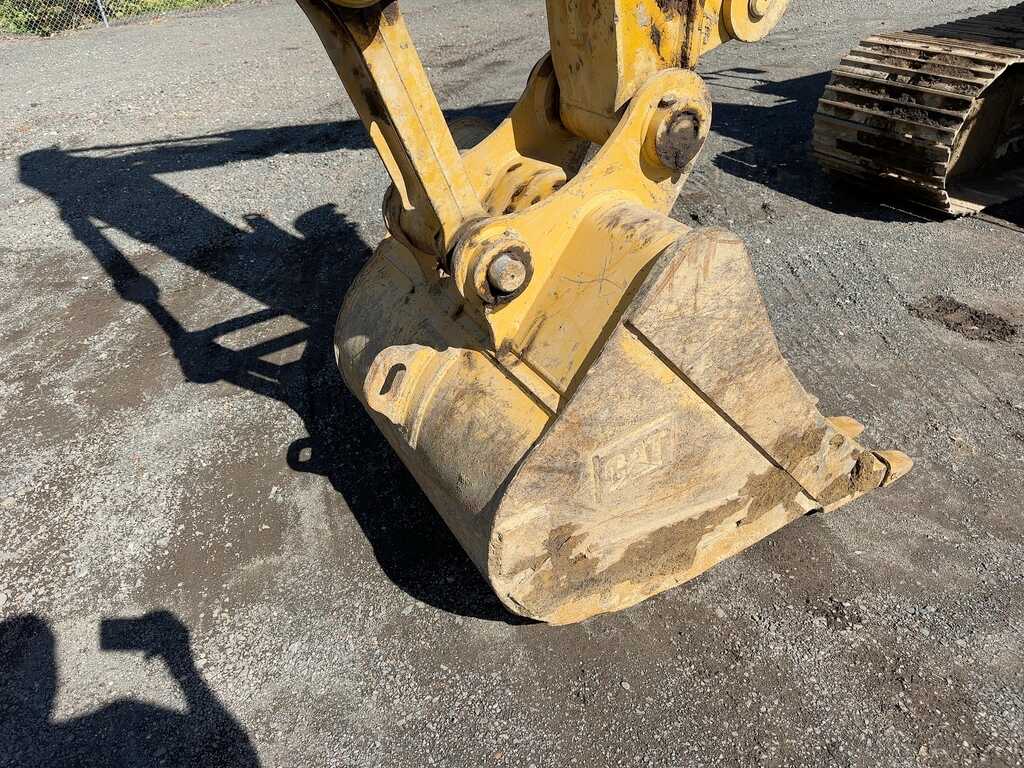

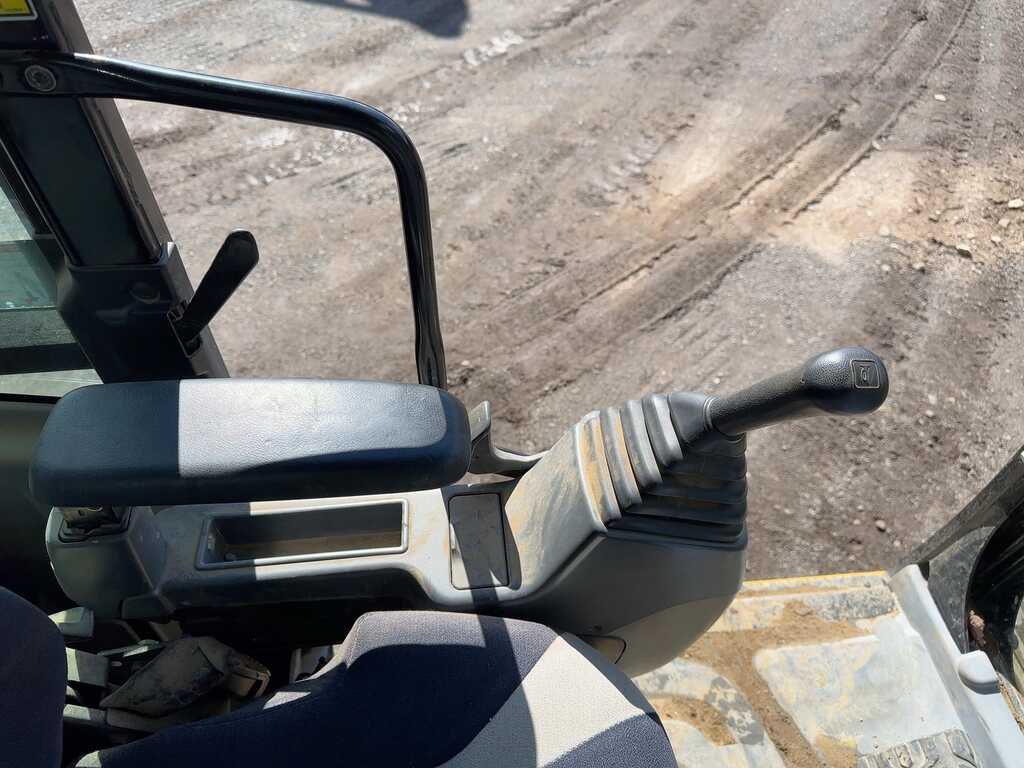

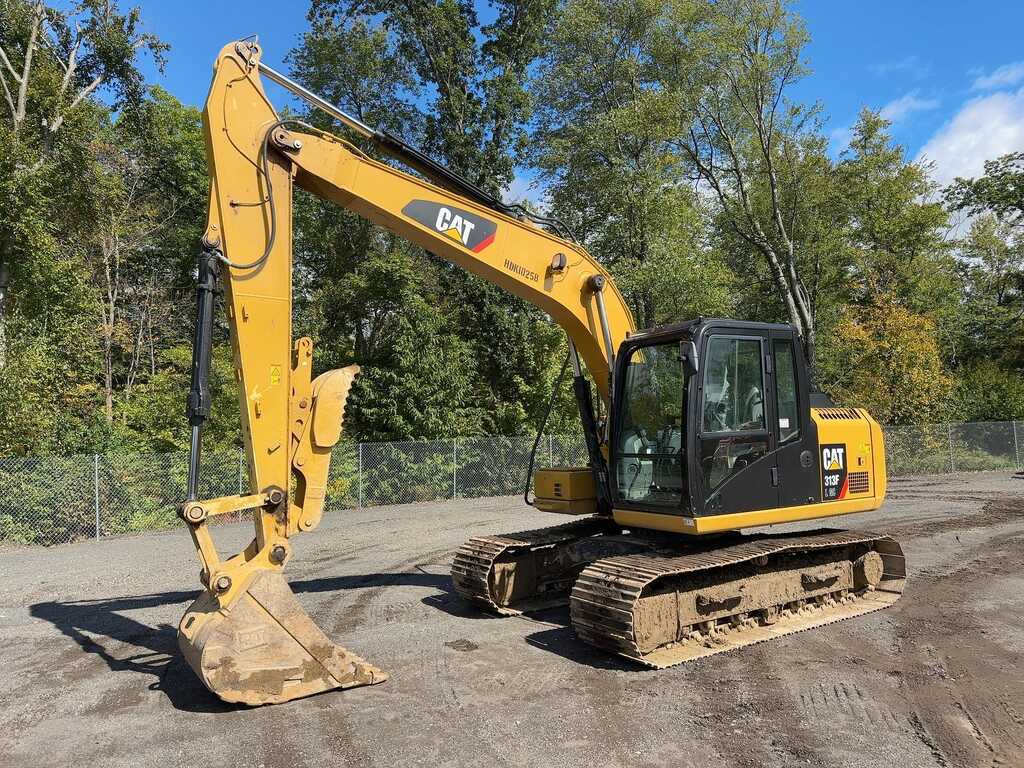

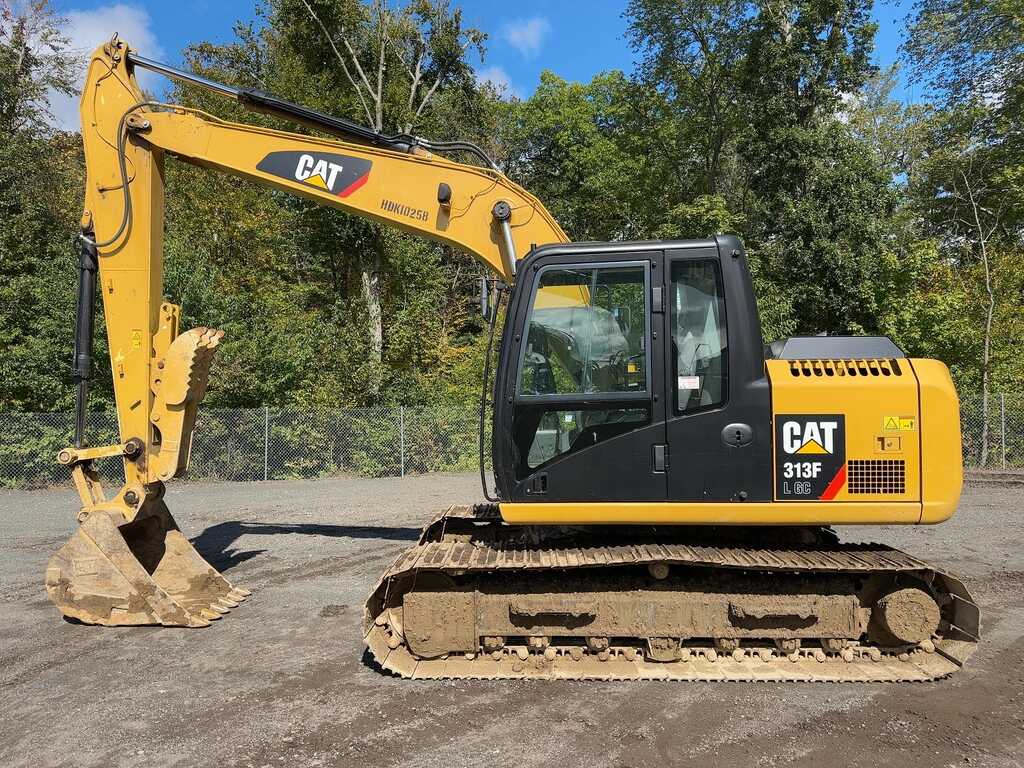

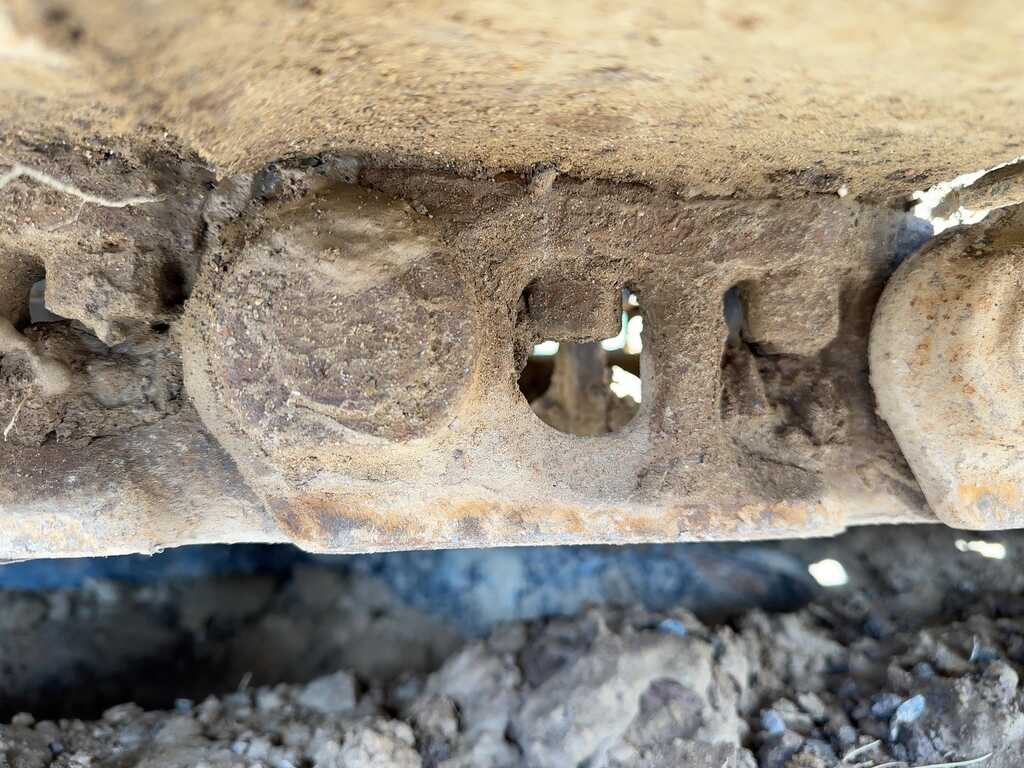

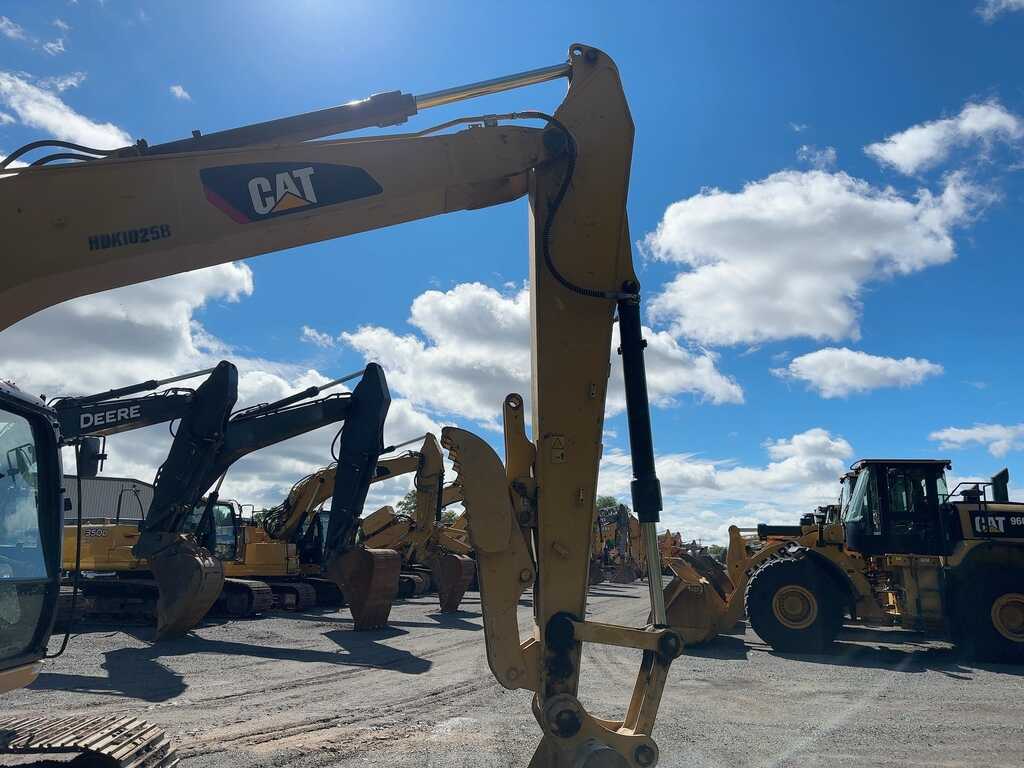

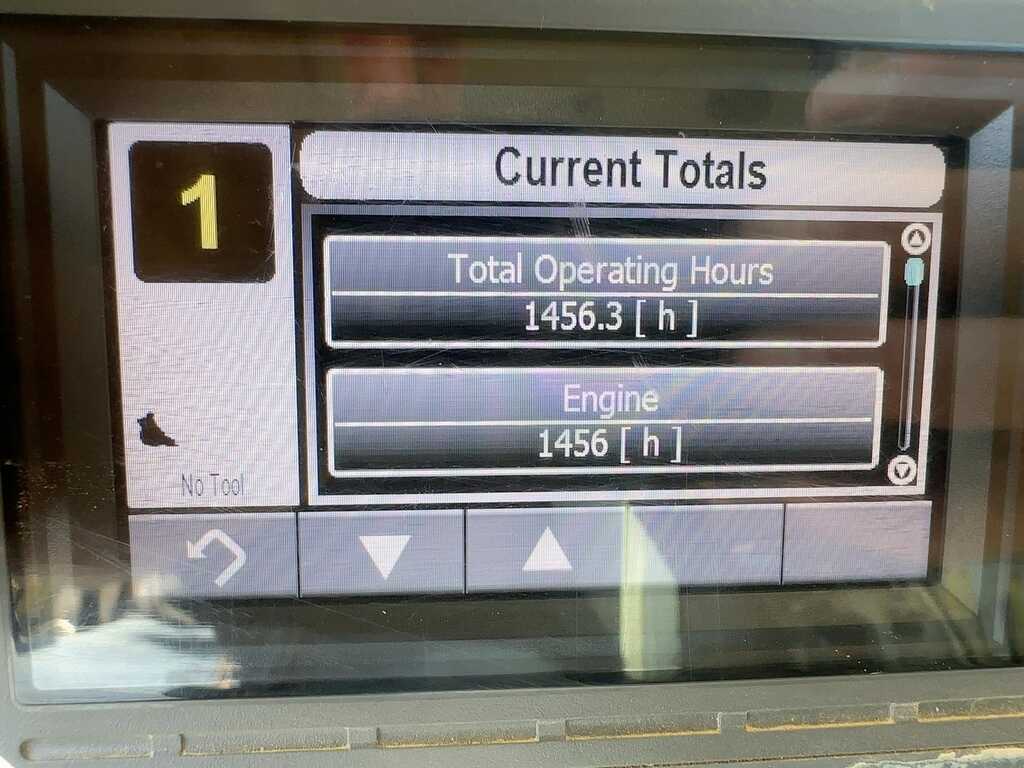

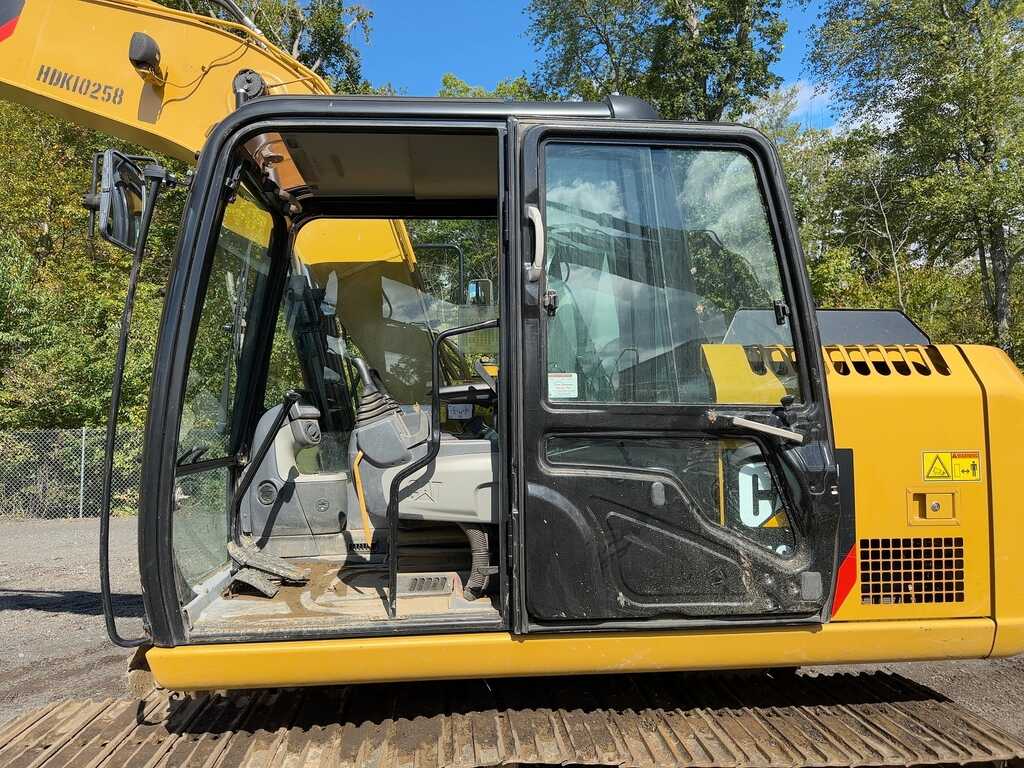

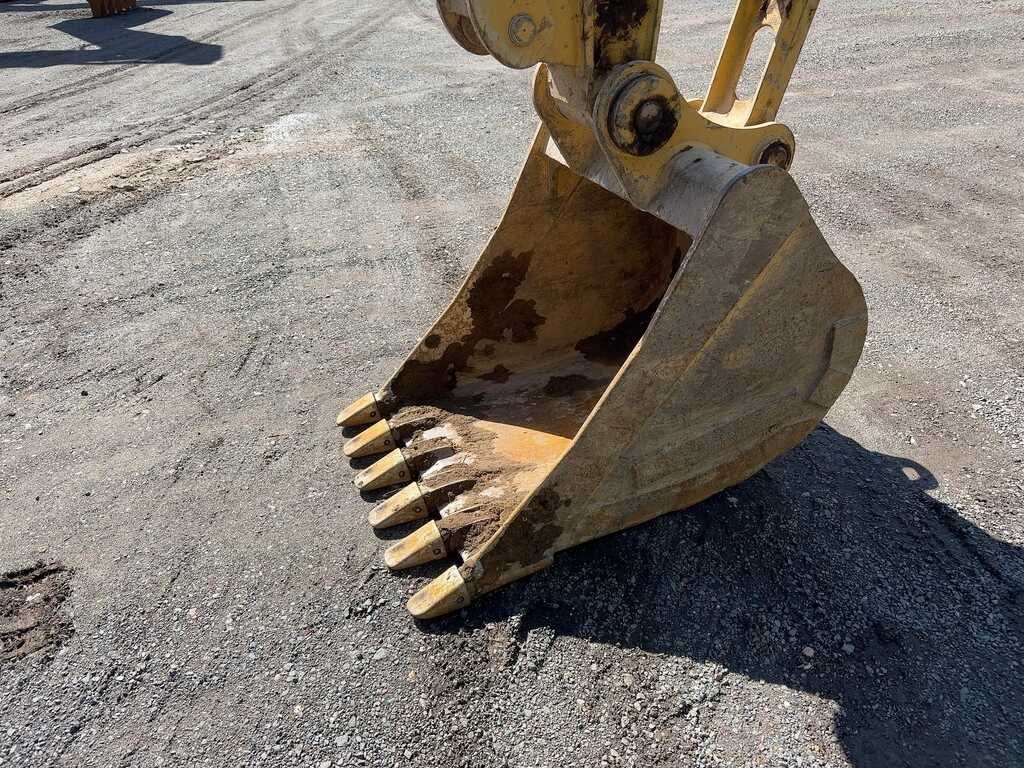

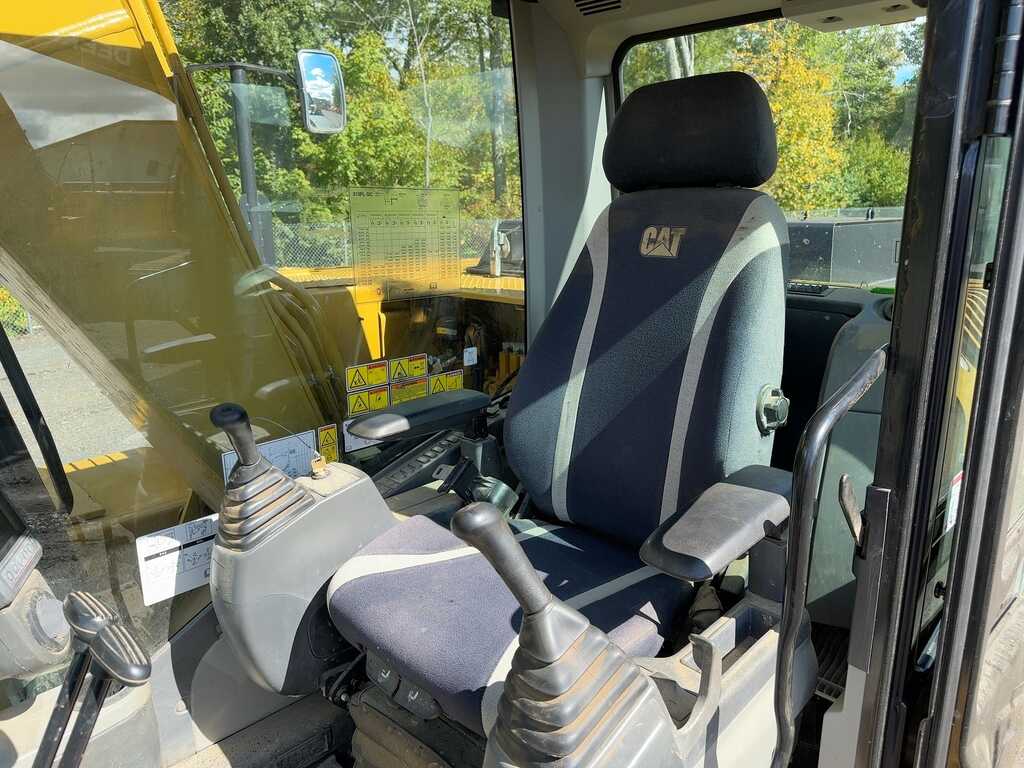

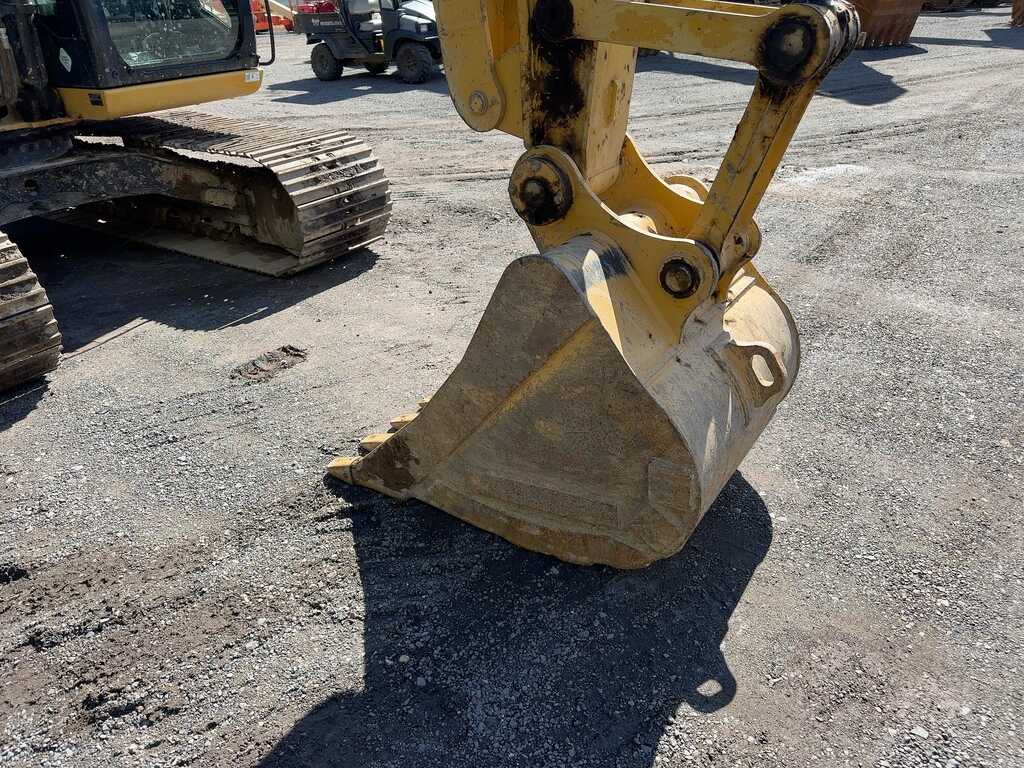

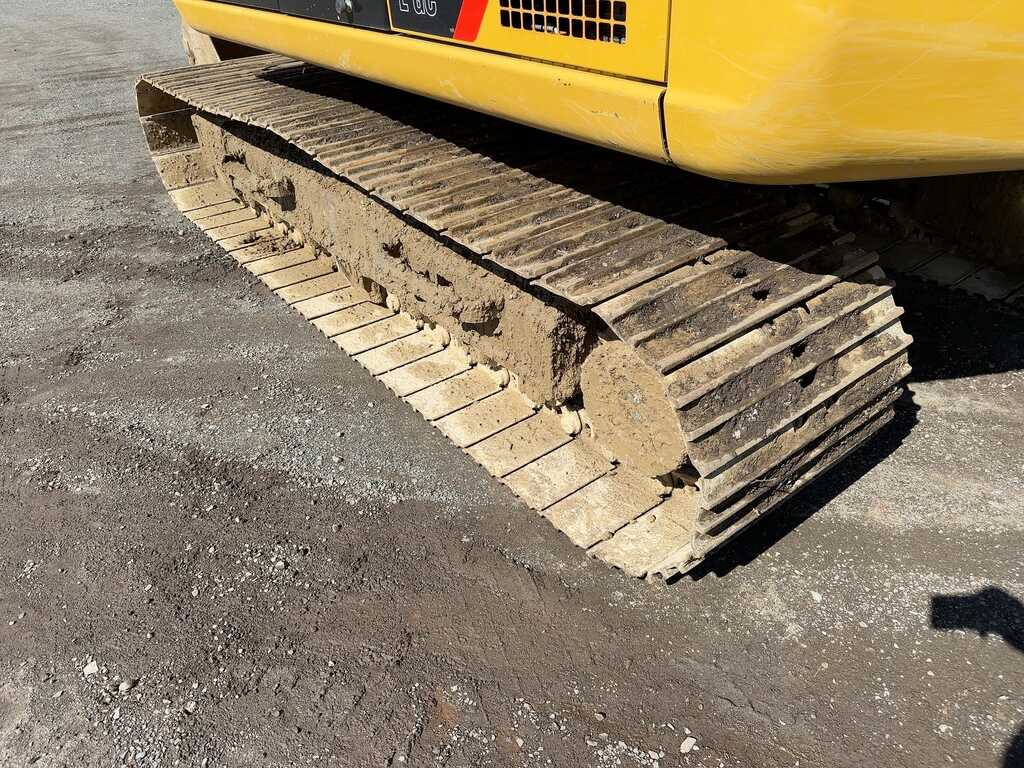

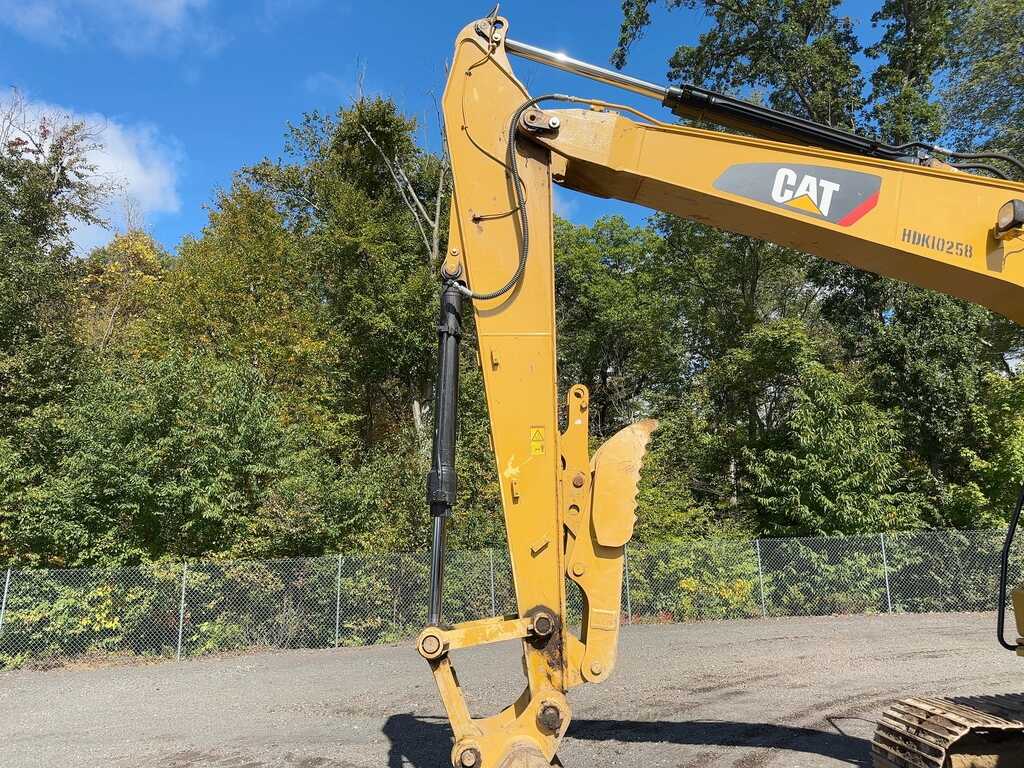

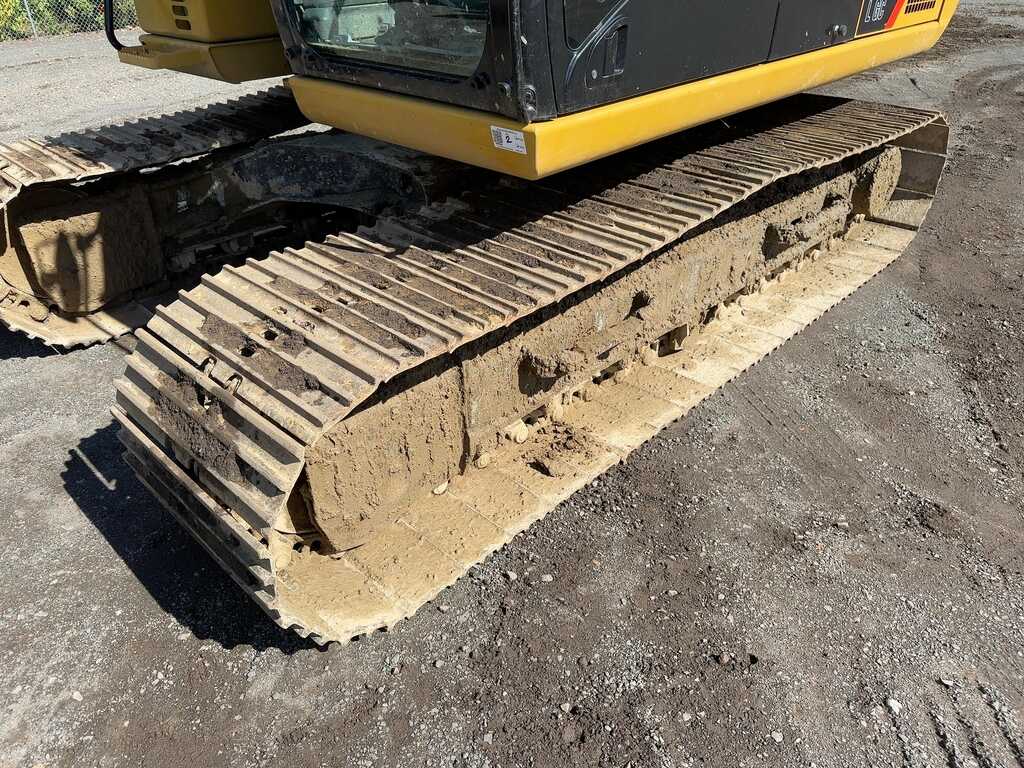

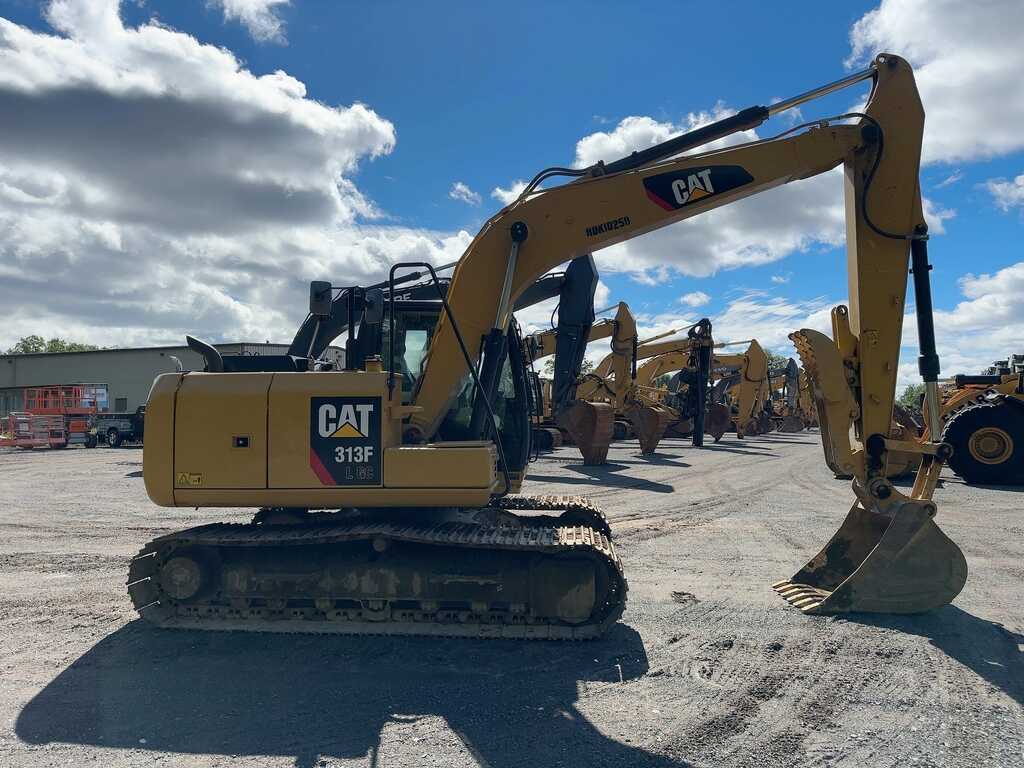

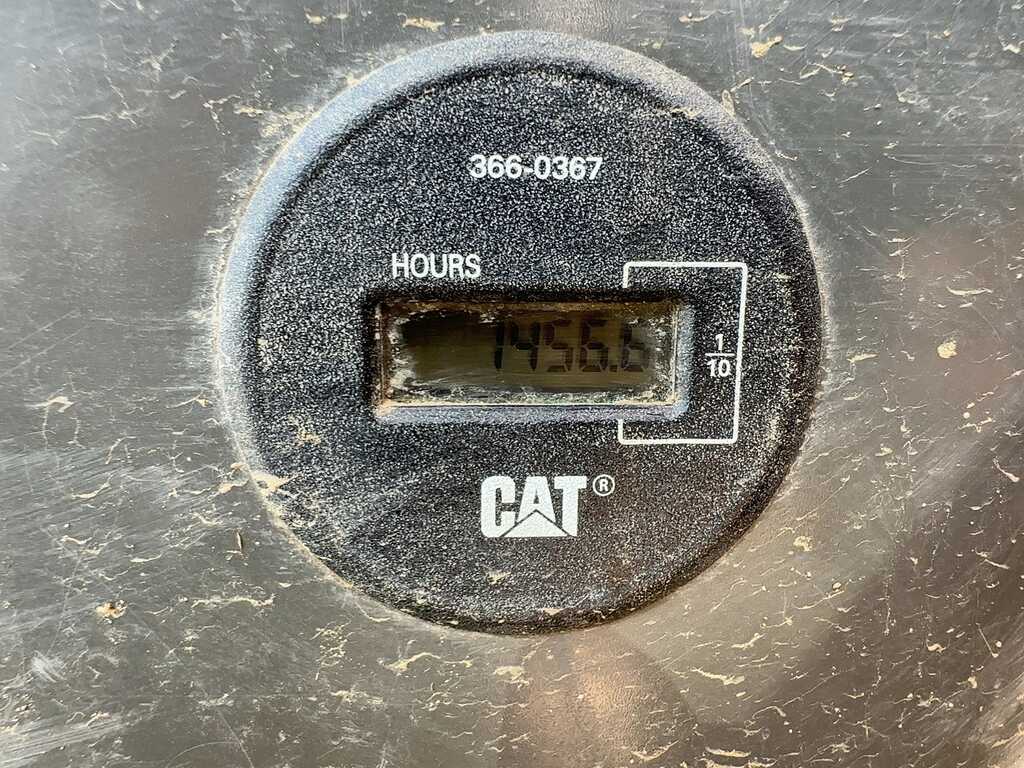

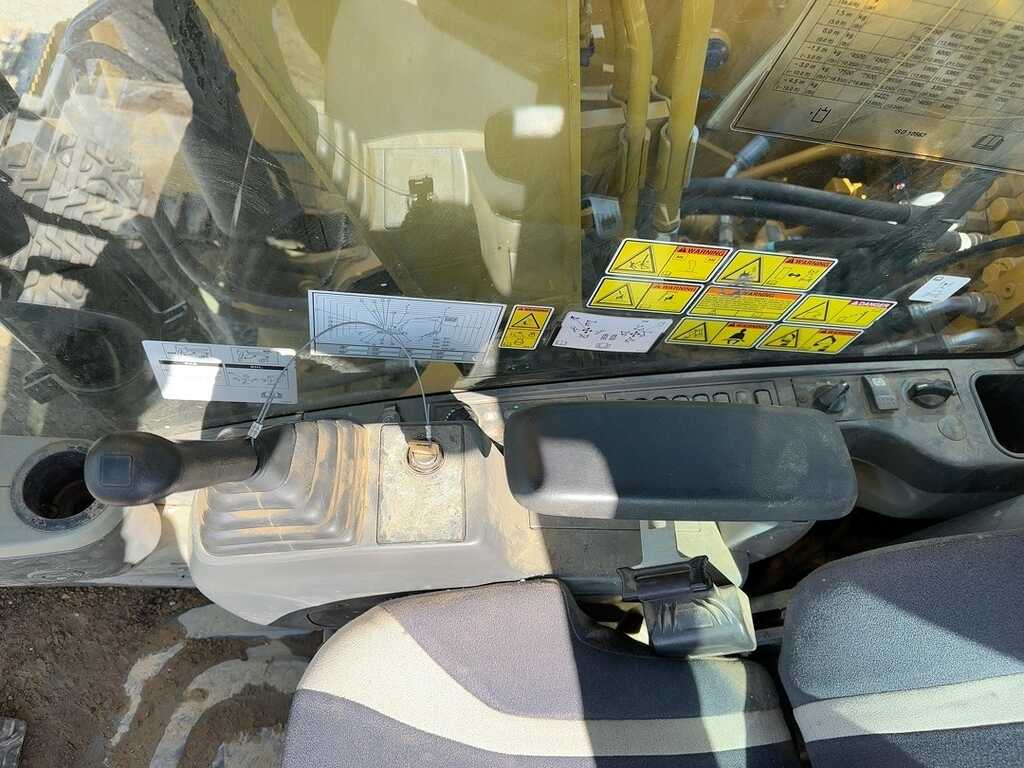

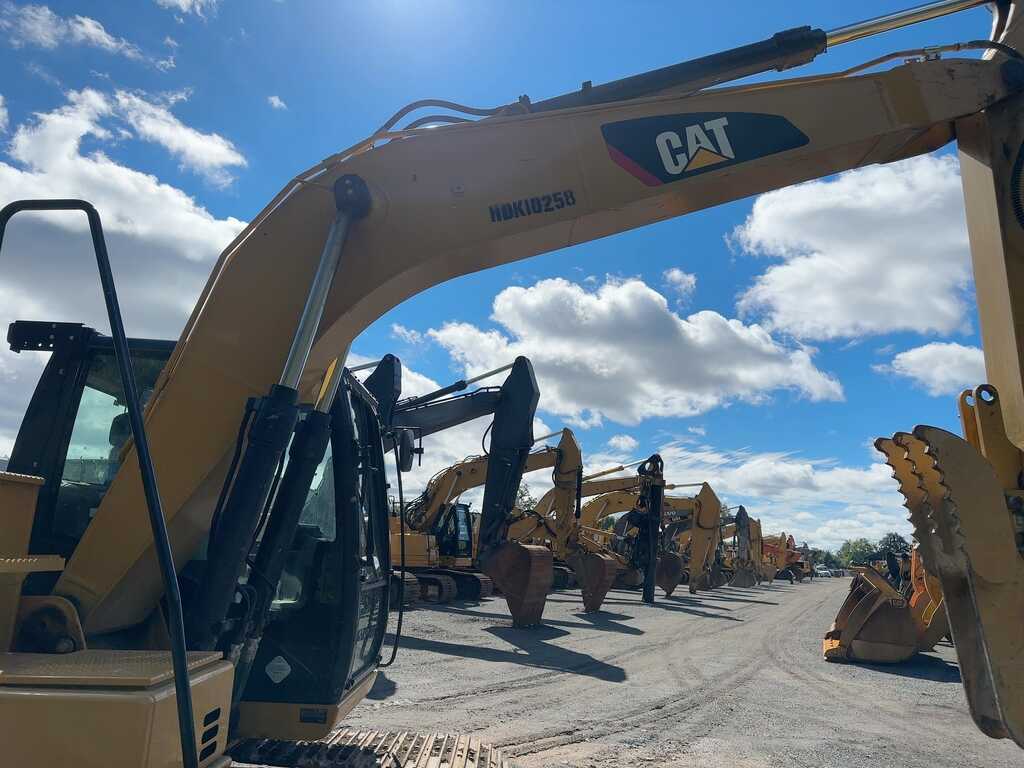

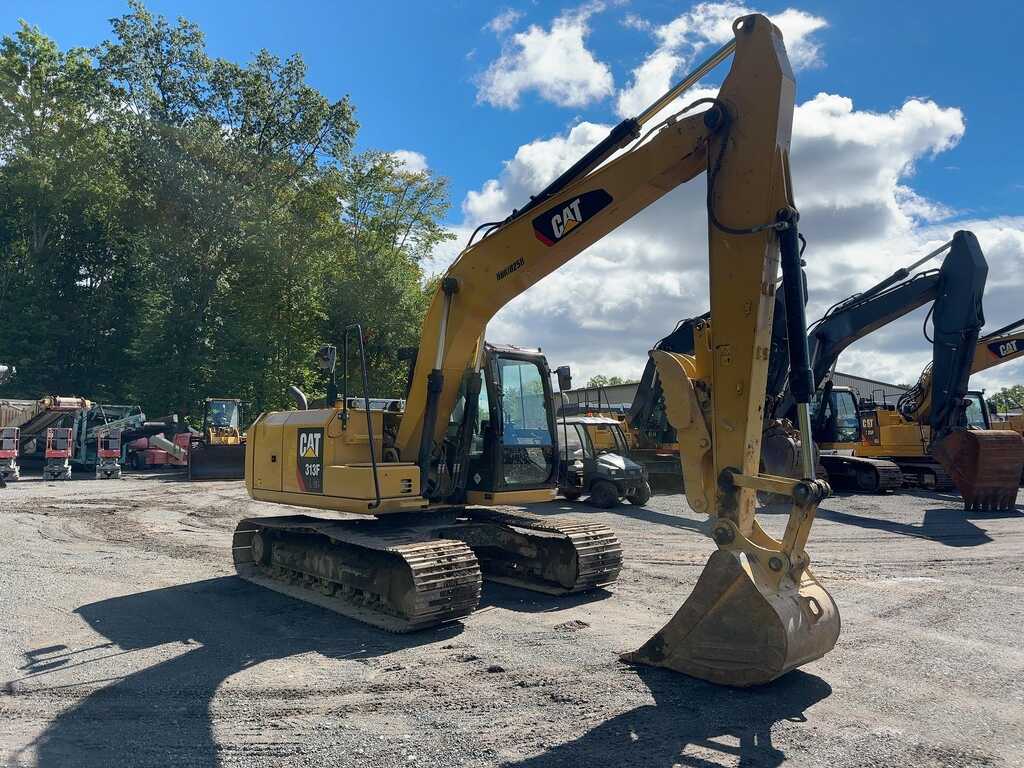

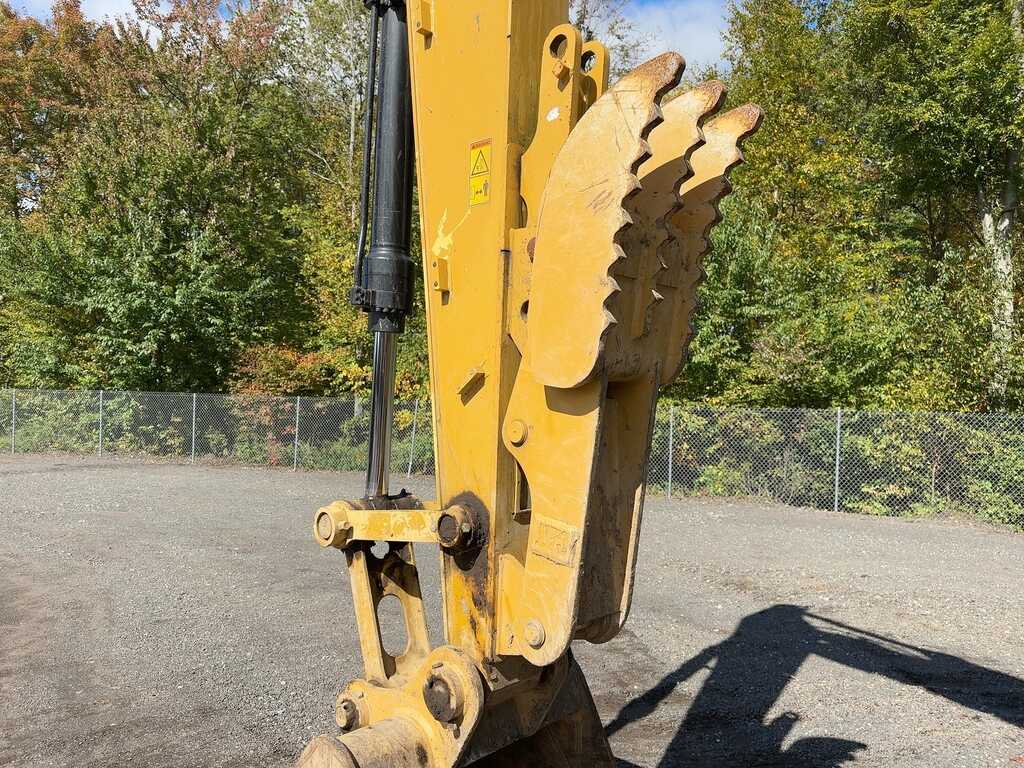

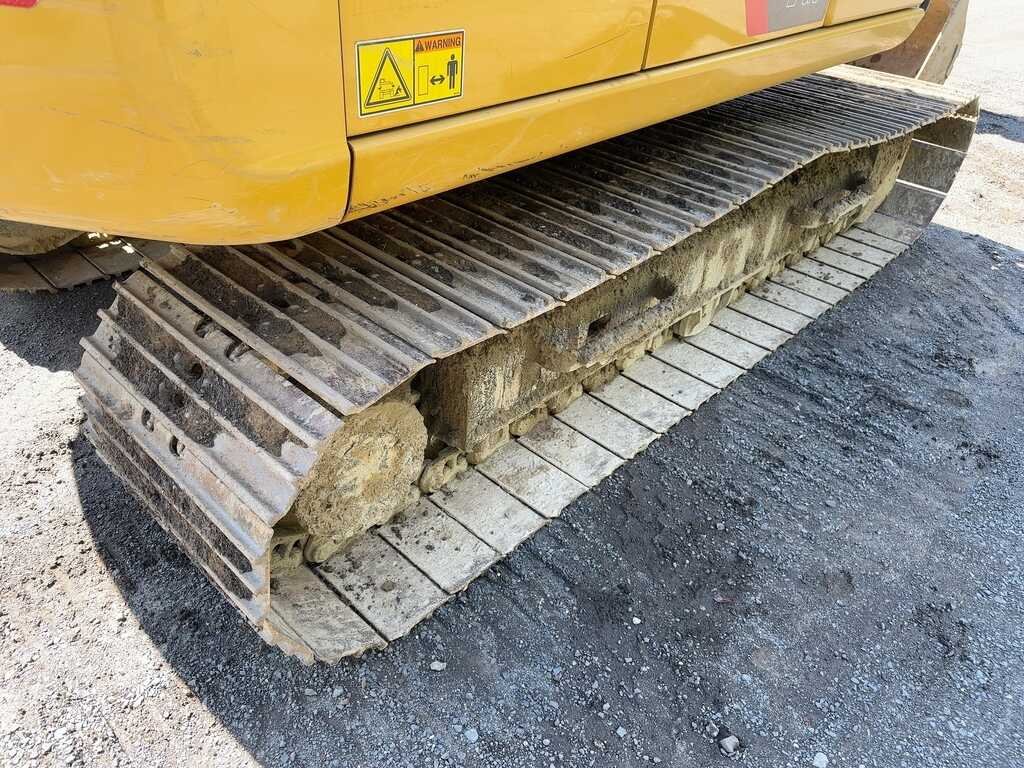

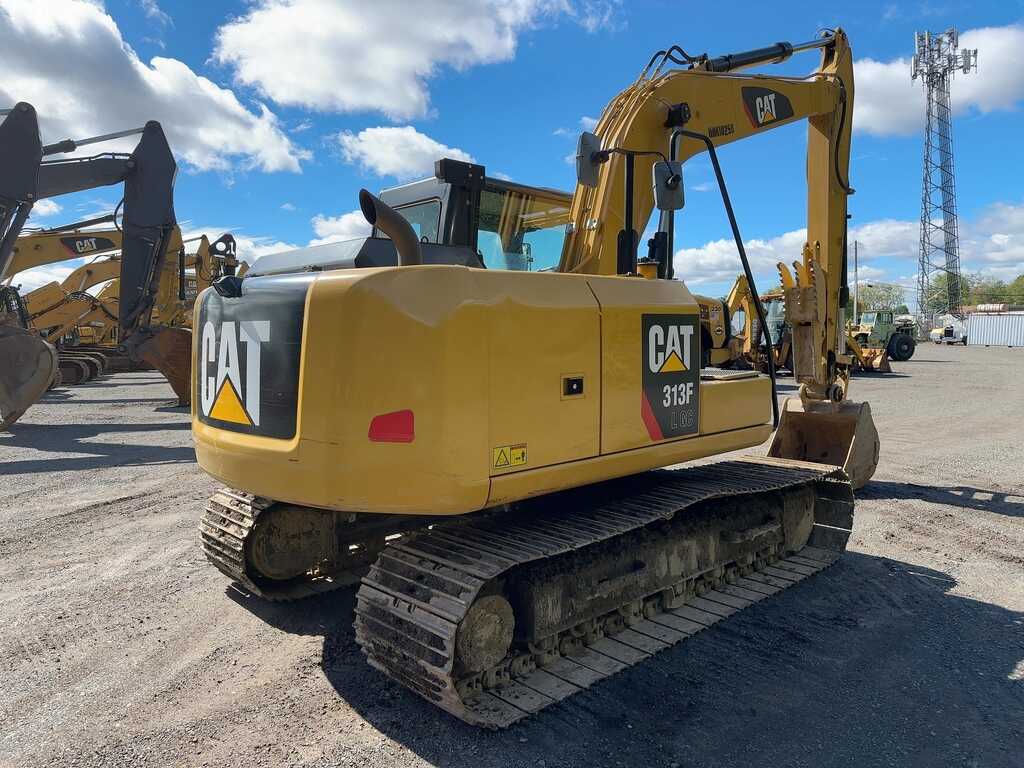

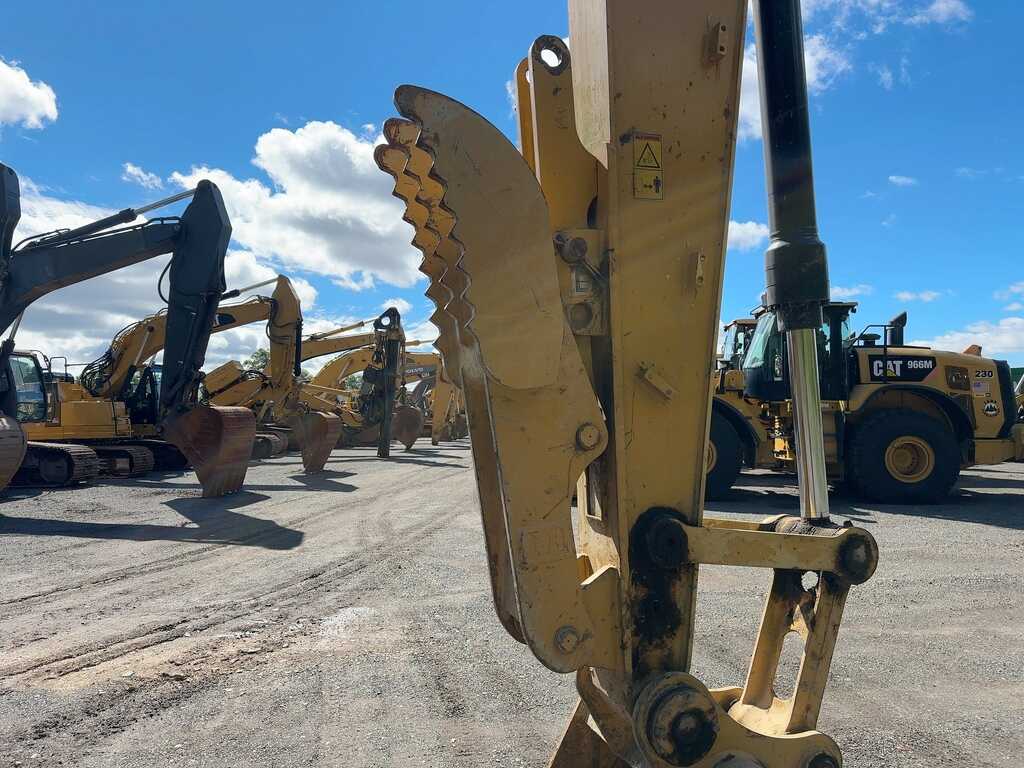

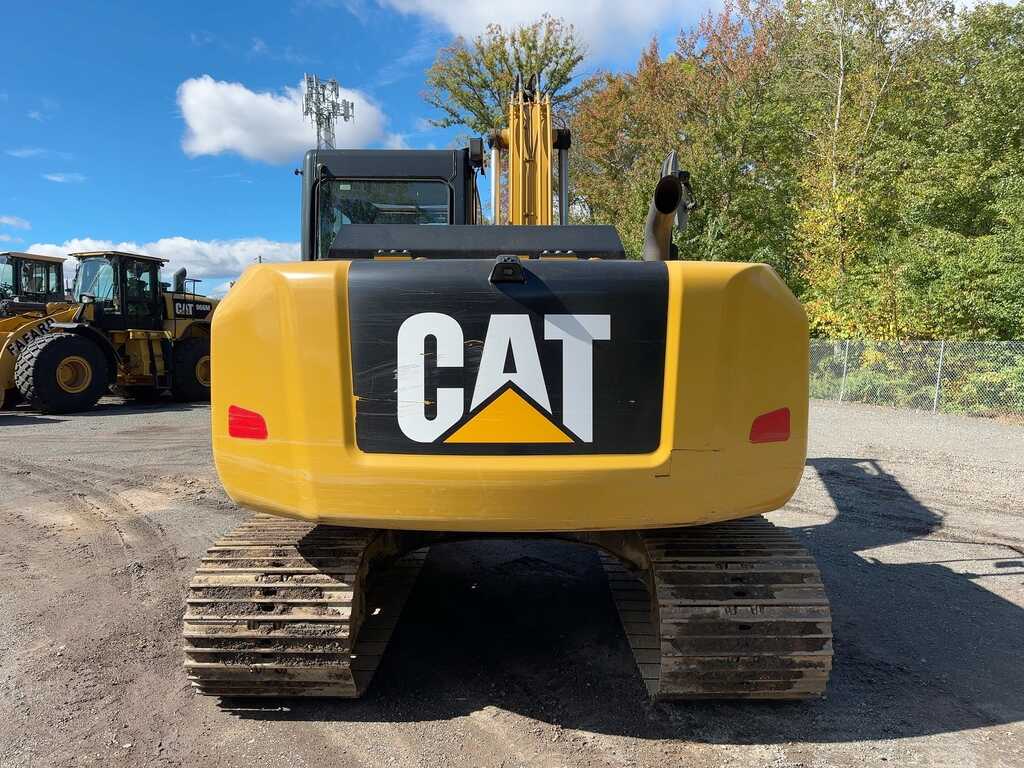

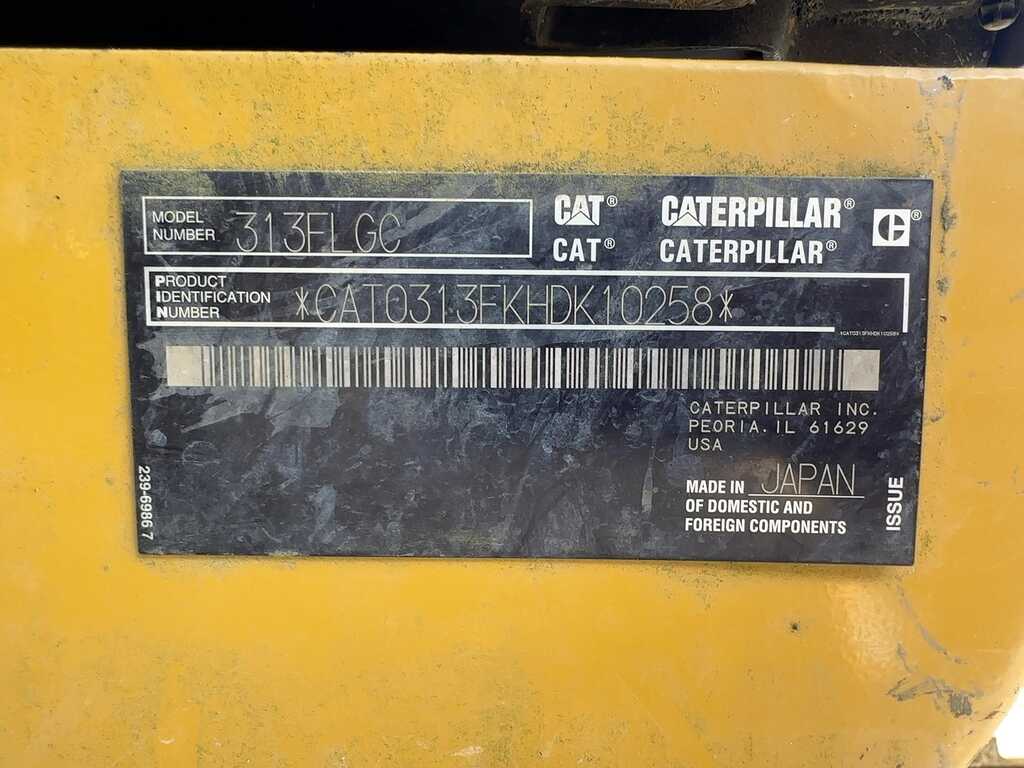

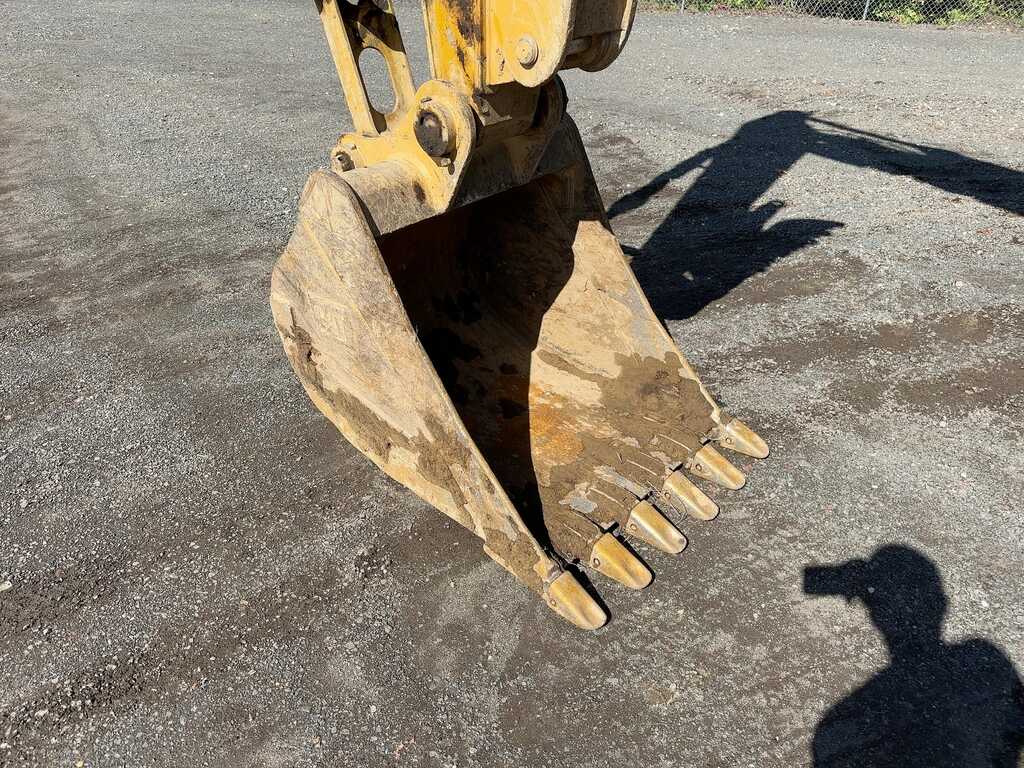

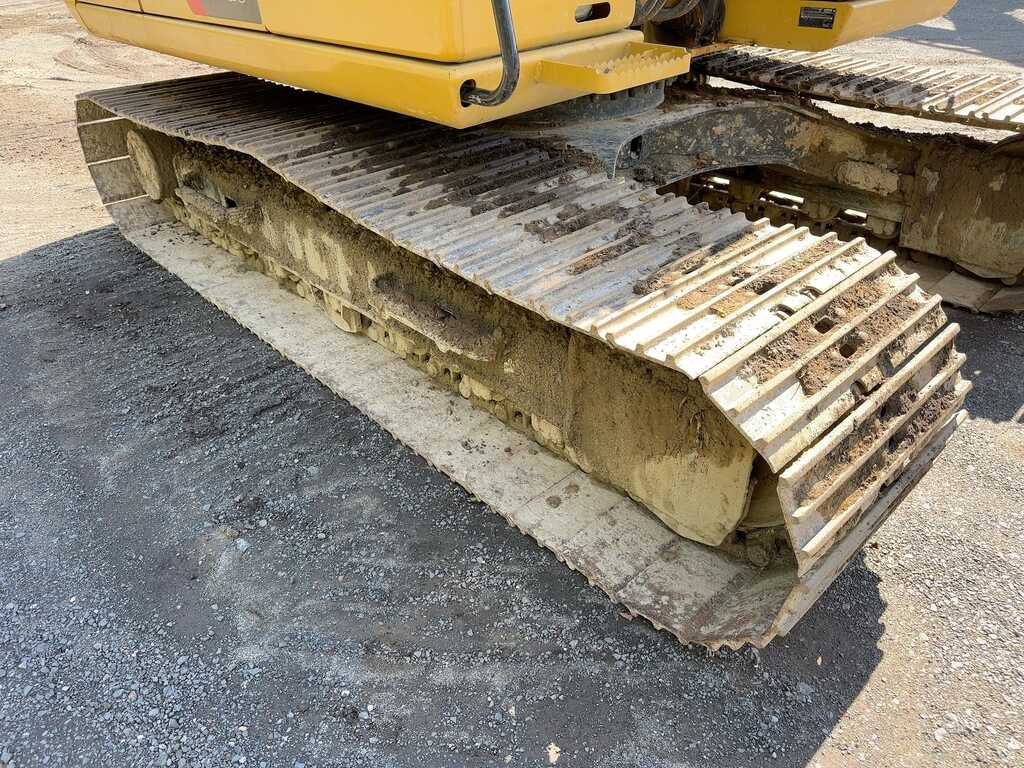

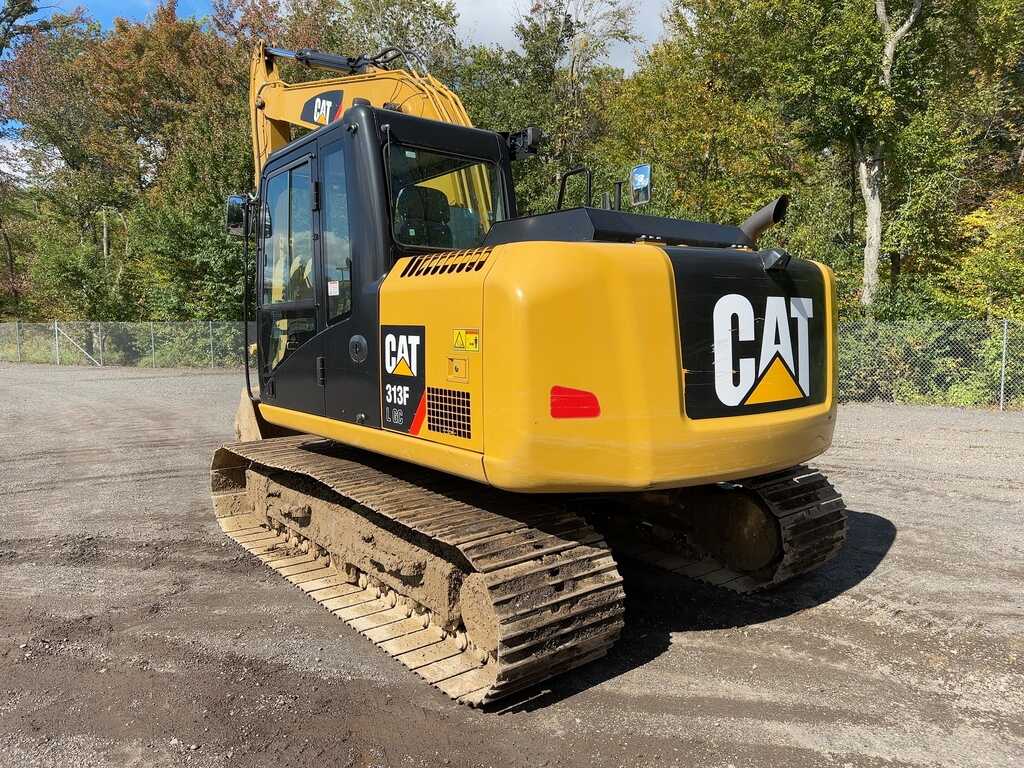

CATERPILLAR C3.4B 4 CYL TURBO DIESEL, CAB WITH HEAT, A/C, AUTO IDLE, 2 SPEED TRAVEL, 28″ TRACK PADS, 9′ 10″ STICK, THUMB, BUCKET WITH TEETH, METER READS 1456 HOURS, S/N CAT0313FKHDK10258

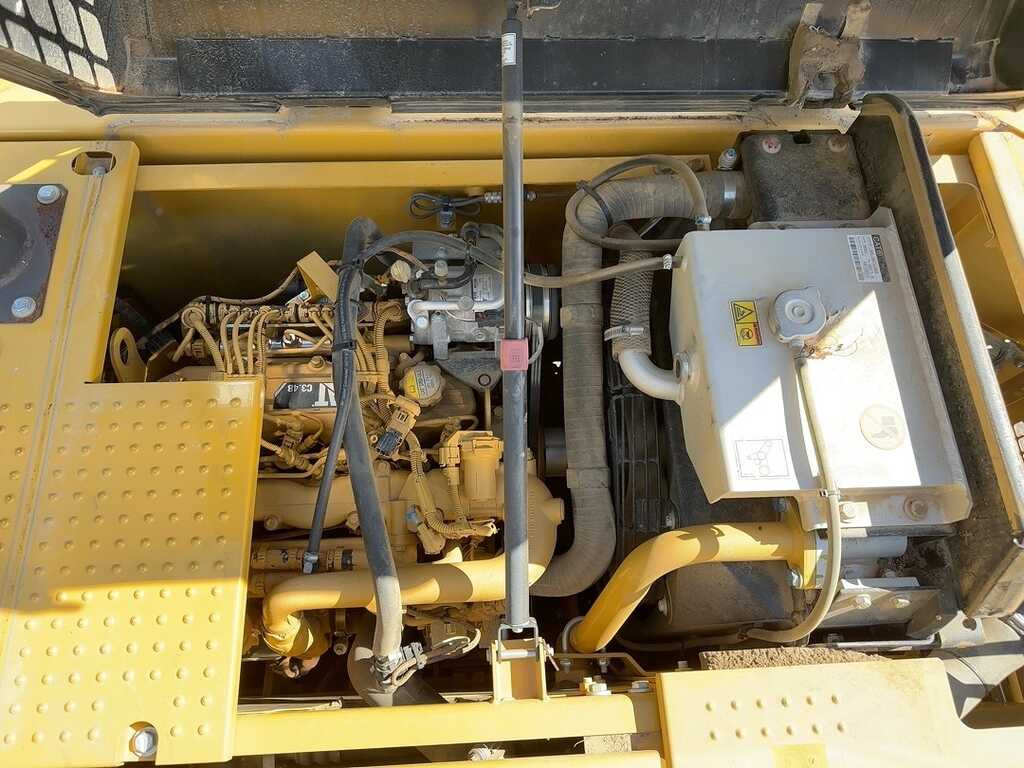

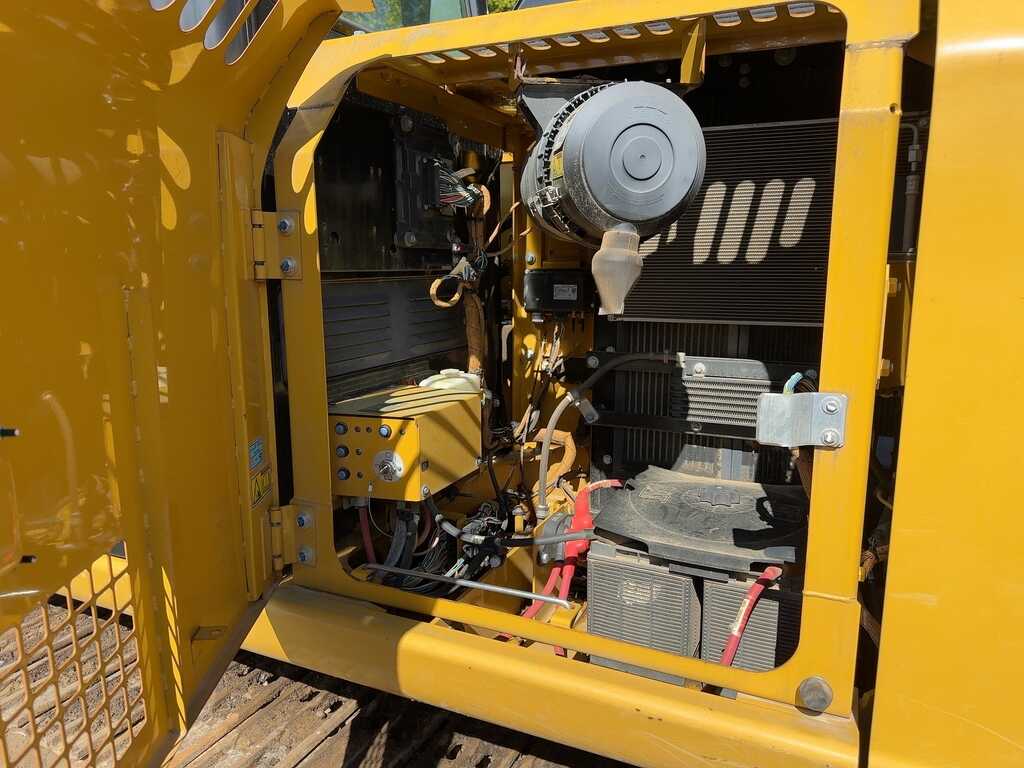

Engine
Model: Cat C3.4B
Gross Power: 74 hp (55 kW)
Net Power: 70 hp (52 kW)
Displacement: 207 in³ (3.4 L)
Engine RPM (Operation): 1,700 rpm
Engine RPM (Travel): 1,800 rpm

Weights
Operating Weight: 29,300 lbs (13,290 kg)
Maximum Operating Weight: 32,200 lbs (14,600 kg)
Minimum Operating Weight: 29,300 lbs (13,290 kg)

Performance
Maximum Travel Speed: 3.4 mph (5.5 km/h)
Drawbar Pull: 24,707 lbs (11,210 kg)
Swing Speed: 11.7 rpm
Swing Torque: 22,791 lb-ft (30,900 Nm)

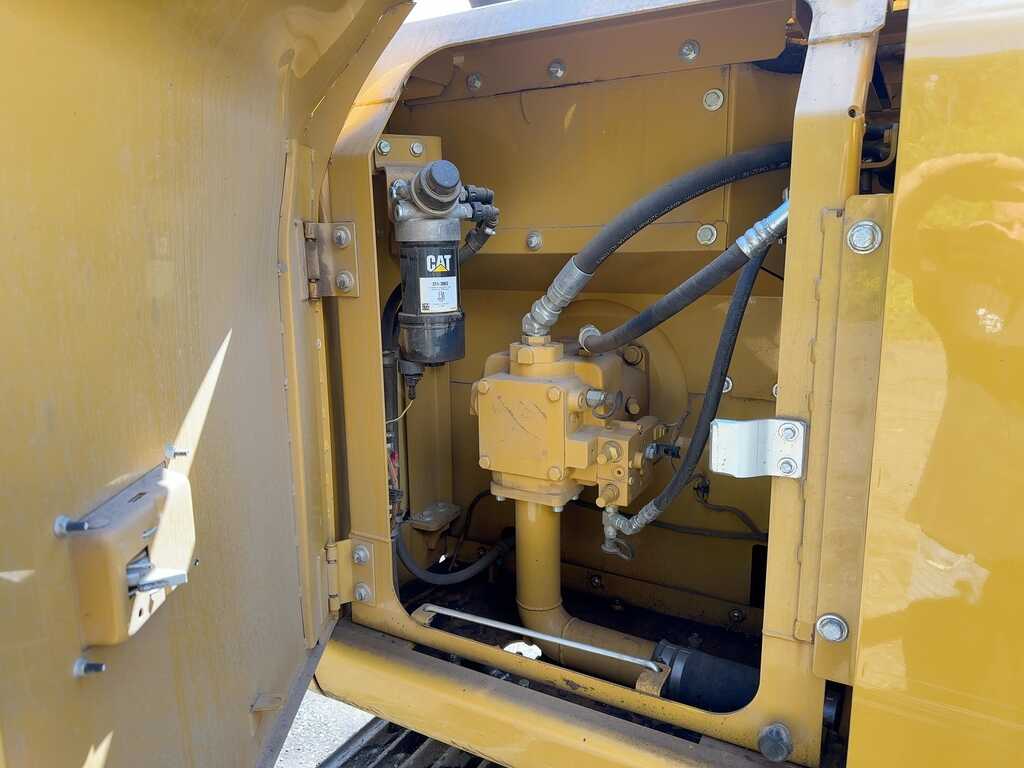

Hydraulics
Main System Maximum Flow: 63.4 gal/min (240 L/min)
Maximum Pressure (Equipment): 4,424 psi (30,500 kPa)
Maximum Pressure (Travel): 4,424 psi (30,500 kPa)
Maximum Pressure (Swing): 3,336 psi (23,000 kPa)

Dimensions
Ground Clearance: 1.45 ft (0.44 m)
Height to Top of Cab: 9.06 ft (2.76 m)
Length of Track on Ground: 12.31 ft (3.75 m)
Tail Swing Radius: 7.16 ft (2.18 m)
Counterweight Clearance: 2.89 ft (0.88 m)

Service Refill Capacities
Fuel Tank Capacity: 66.1 gal (250 L)
Cooling System Fluid Capacity: 4.8 gal (18 L)
Hydraulic System Fluid Capacity: 43.4 gal (164 L)
Engine Oil Capacity: 2.2 gal (8.5 L)
Swing Drive Fluid Capacity: 0.8 gal (3 L)
