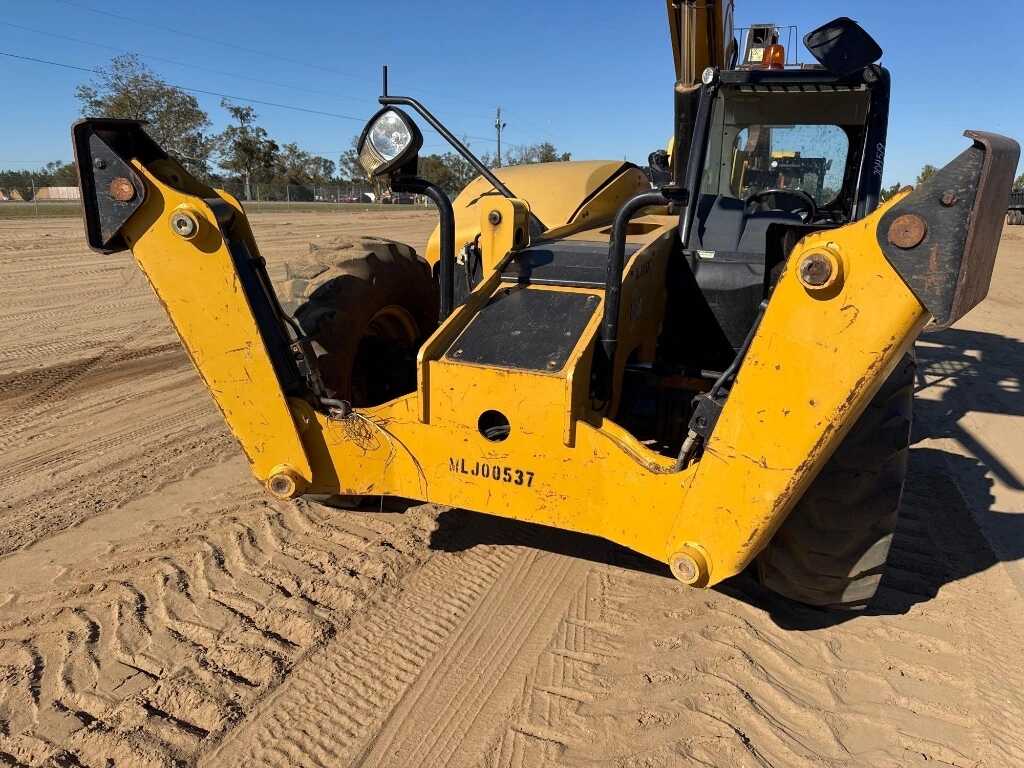

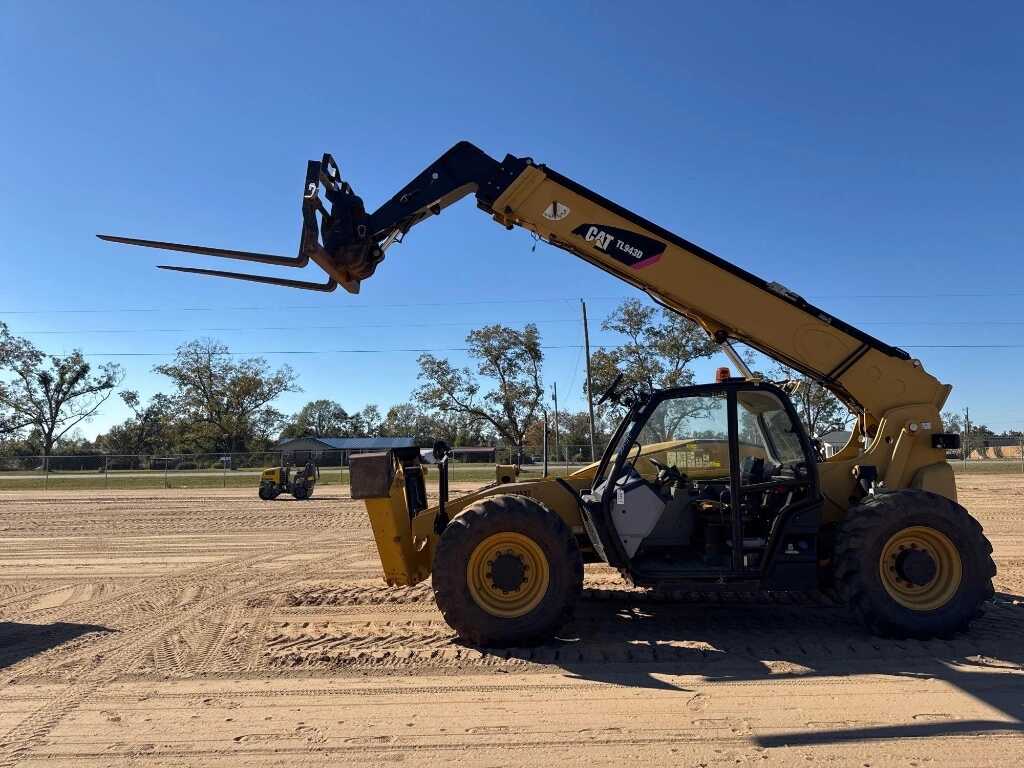

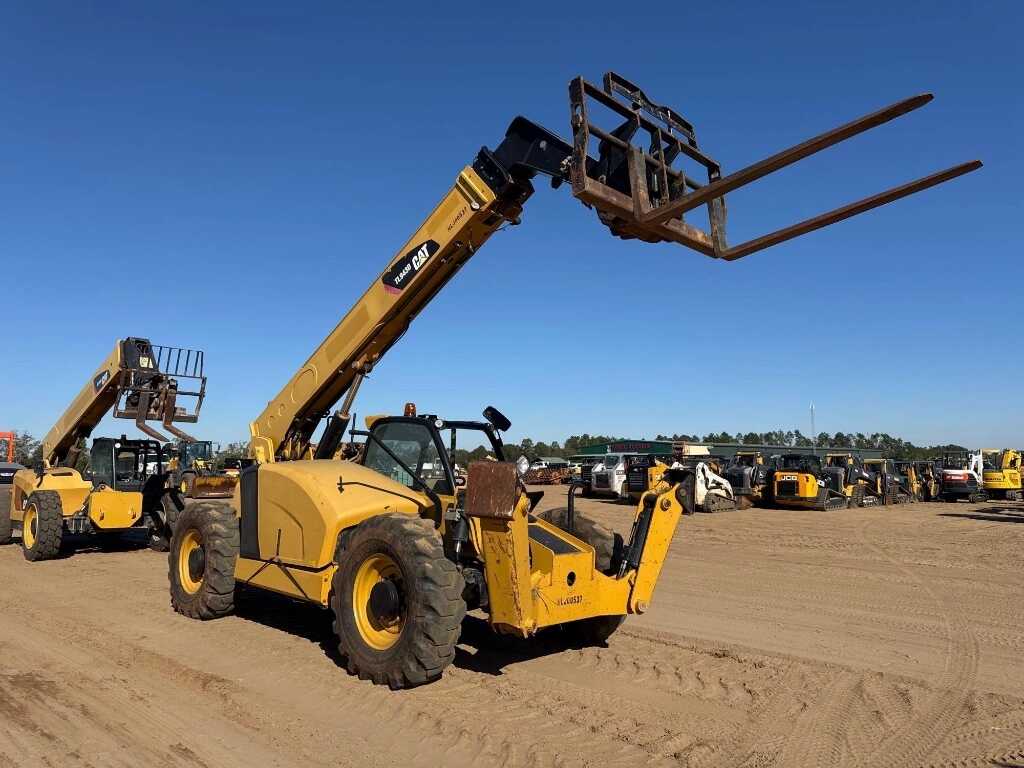

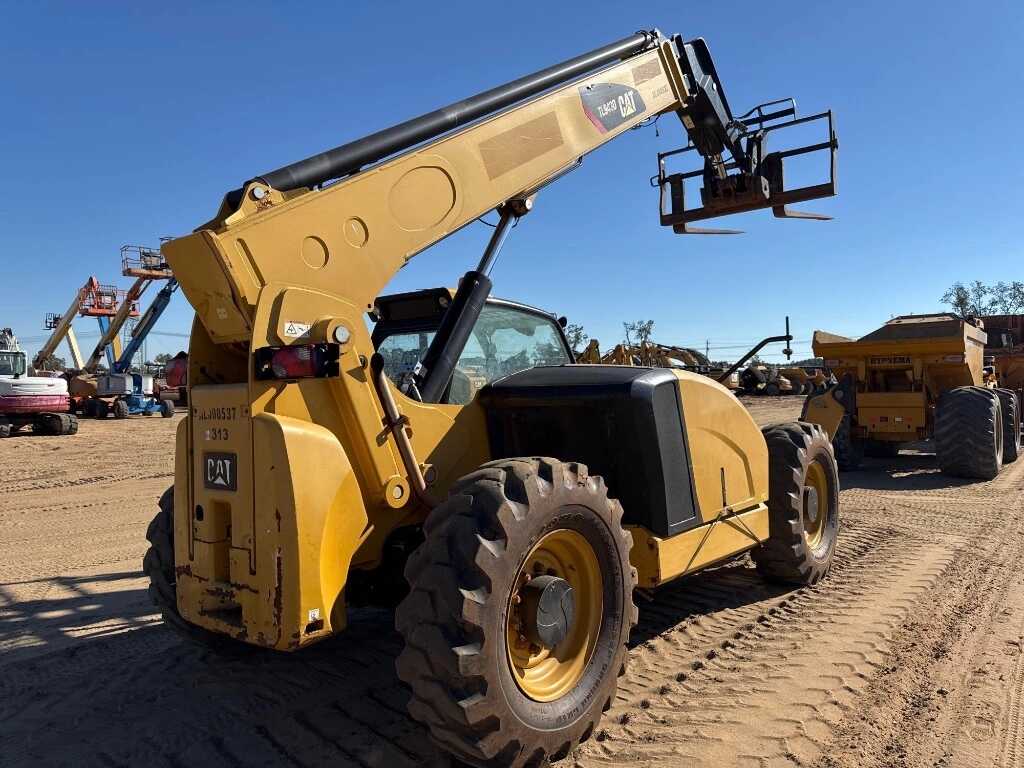

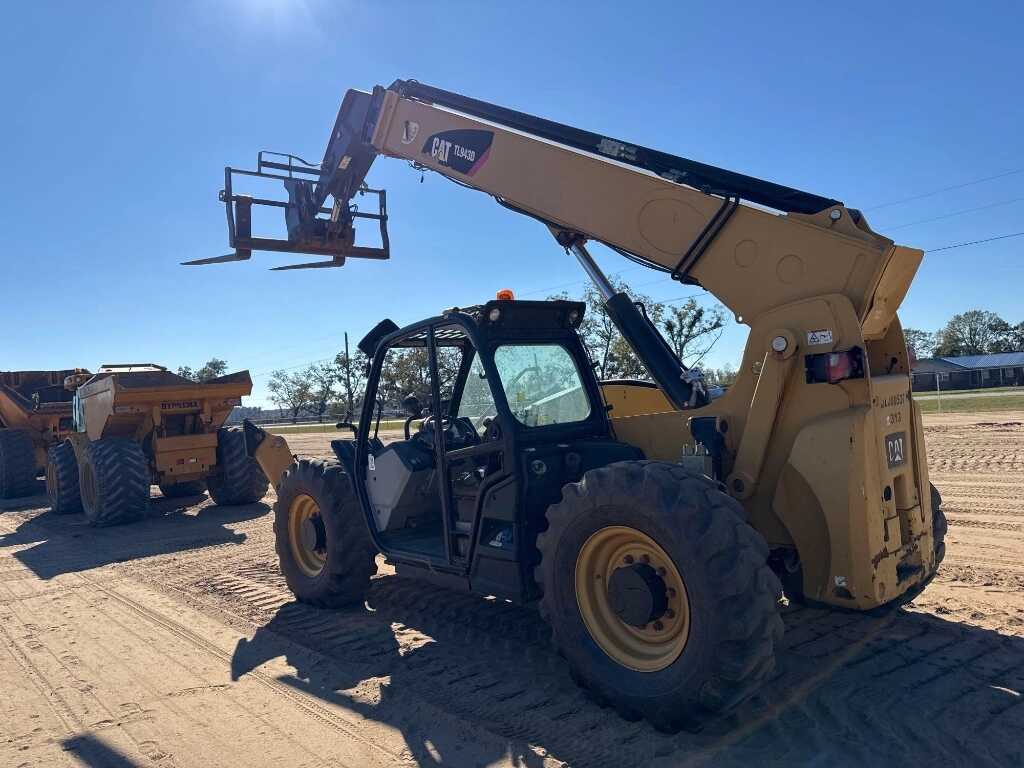

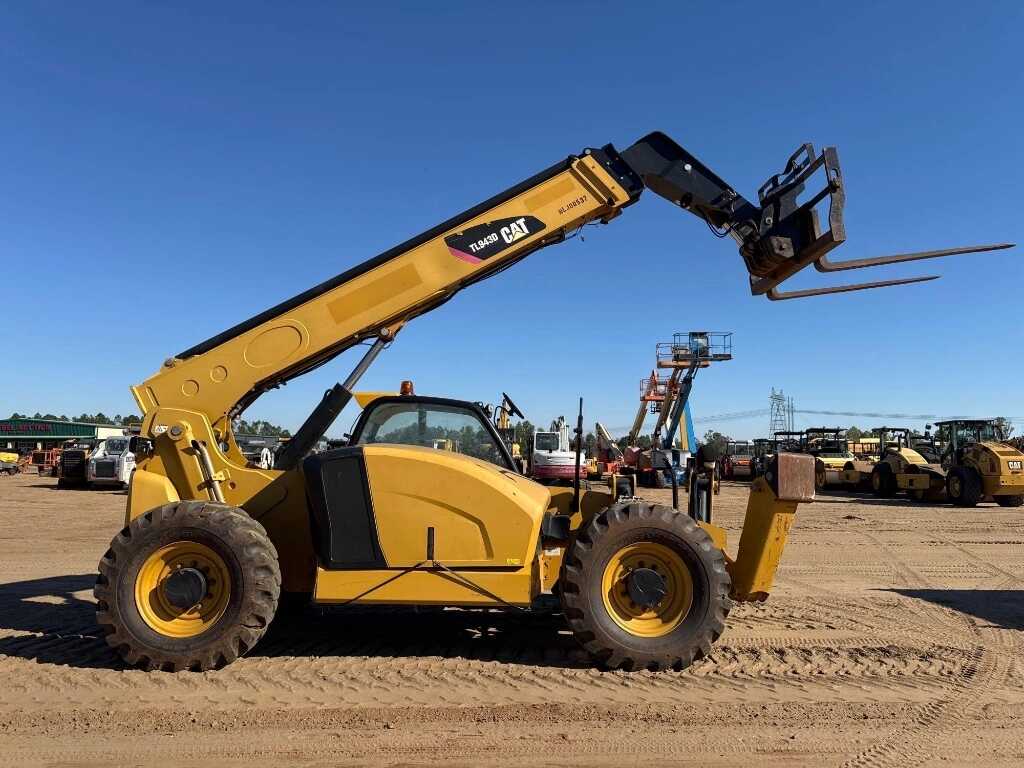

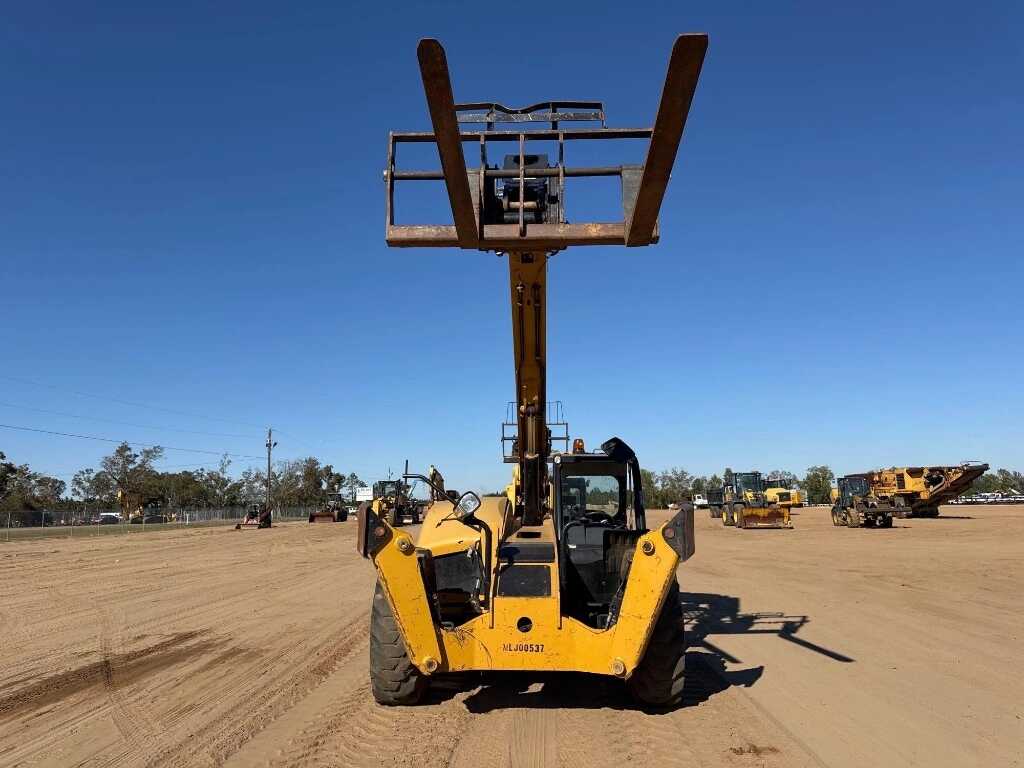

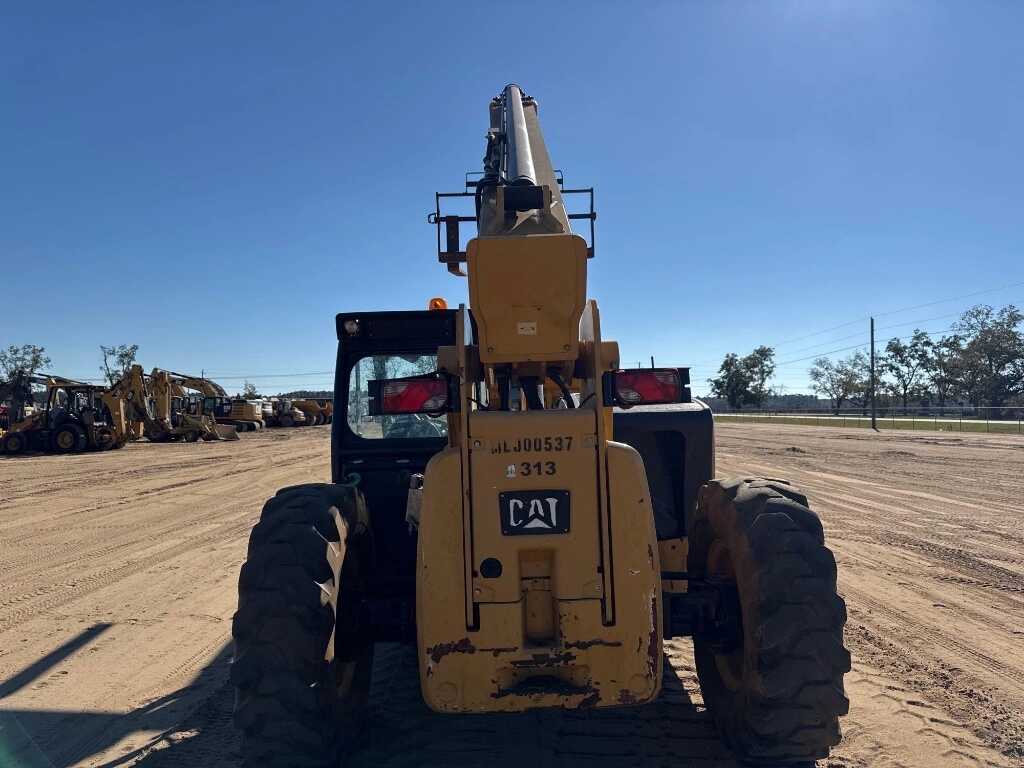

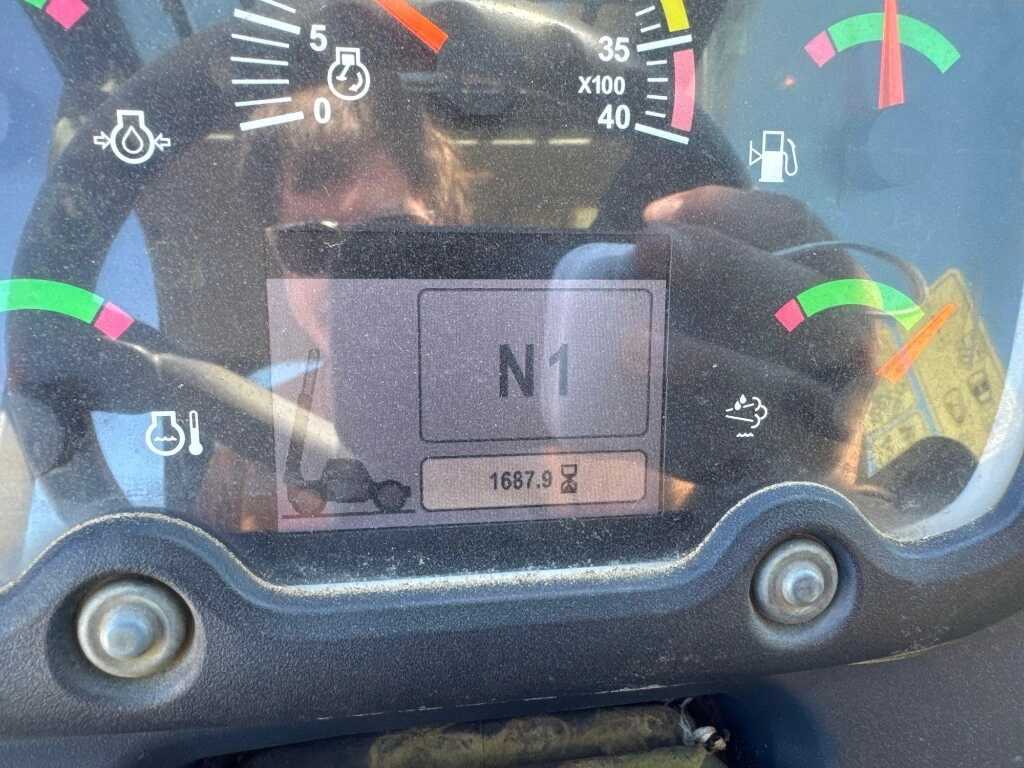

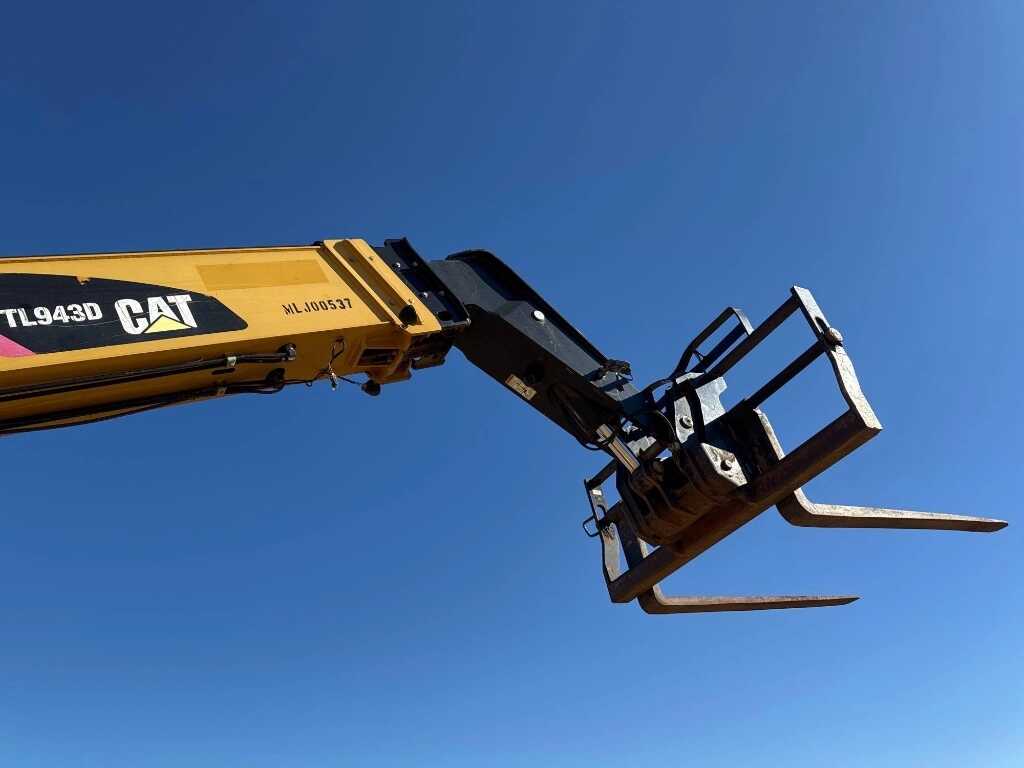

(HRS SHOW-1687), OROPS, TELESCOPIC BOOM W/ 72″ FORKS, AUX HYD, QUICK COUPLER, 4X4X4, OUTRIGGERS, S/N-MLJ00537

Engine
Engine Model: Cat C3.4B
Meets U.S. EPA Tier 4 Final emission standards
Gross Power (Basic): 111 hp

Operational
Operating Weight: 26,852 lb

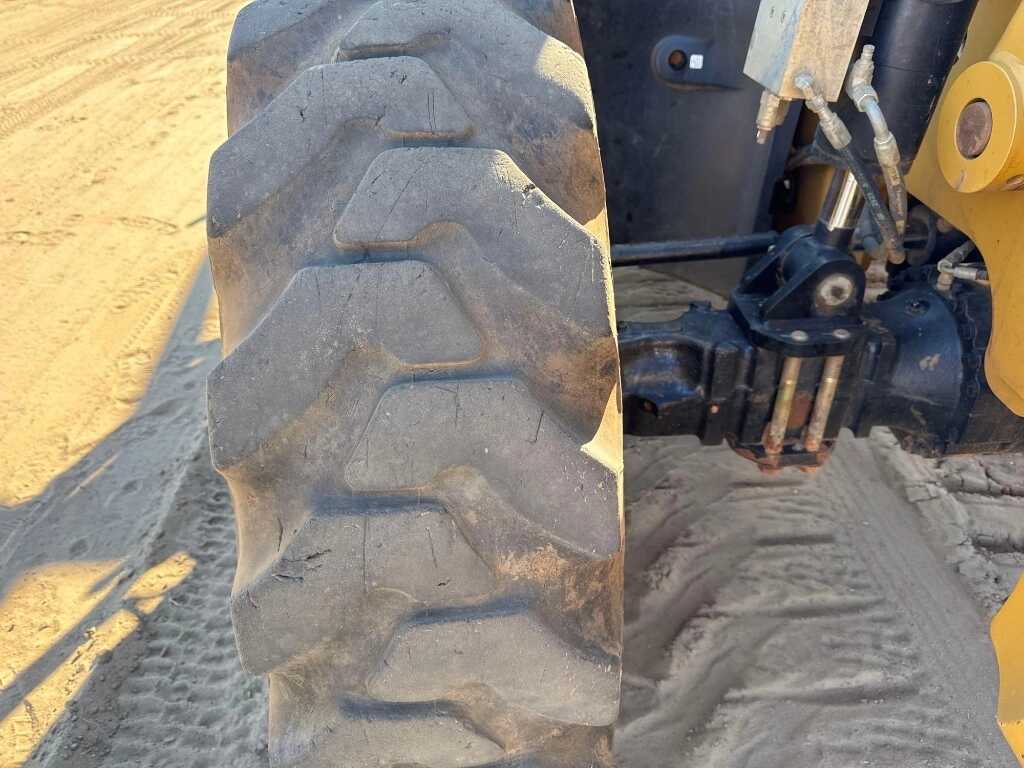

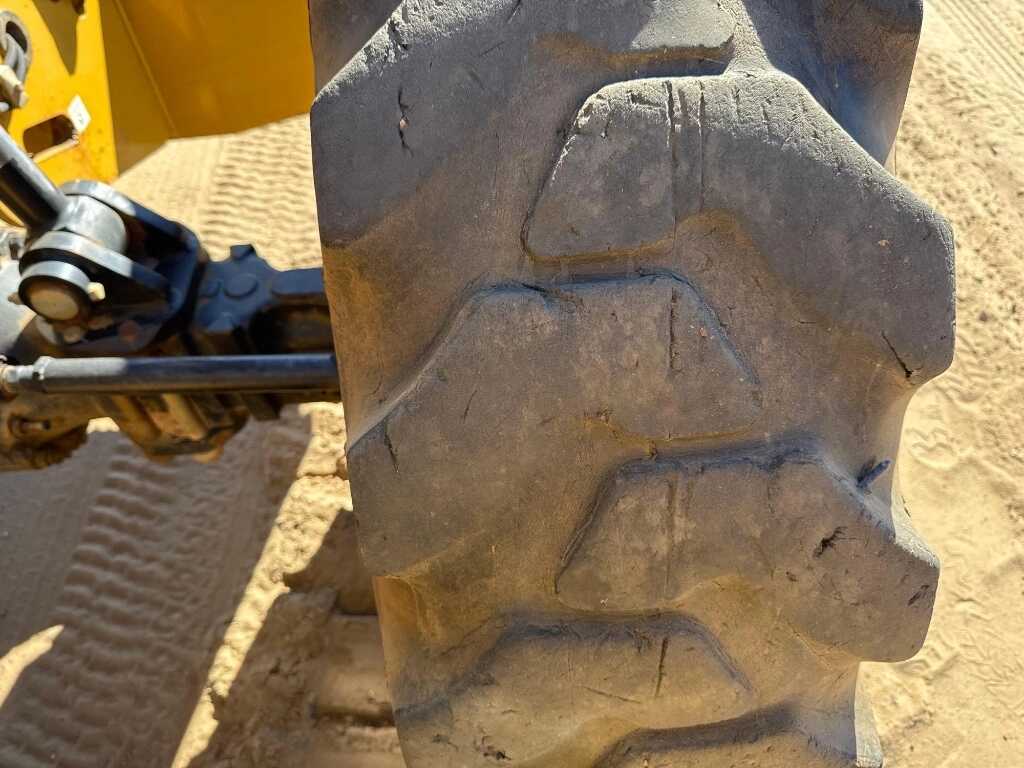

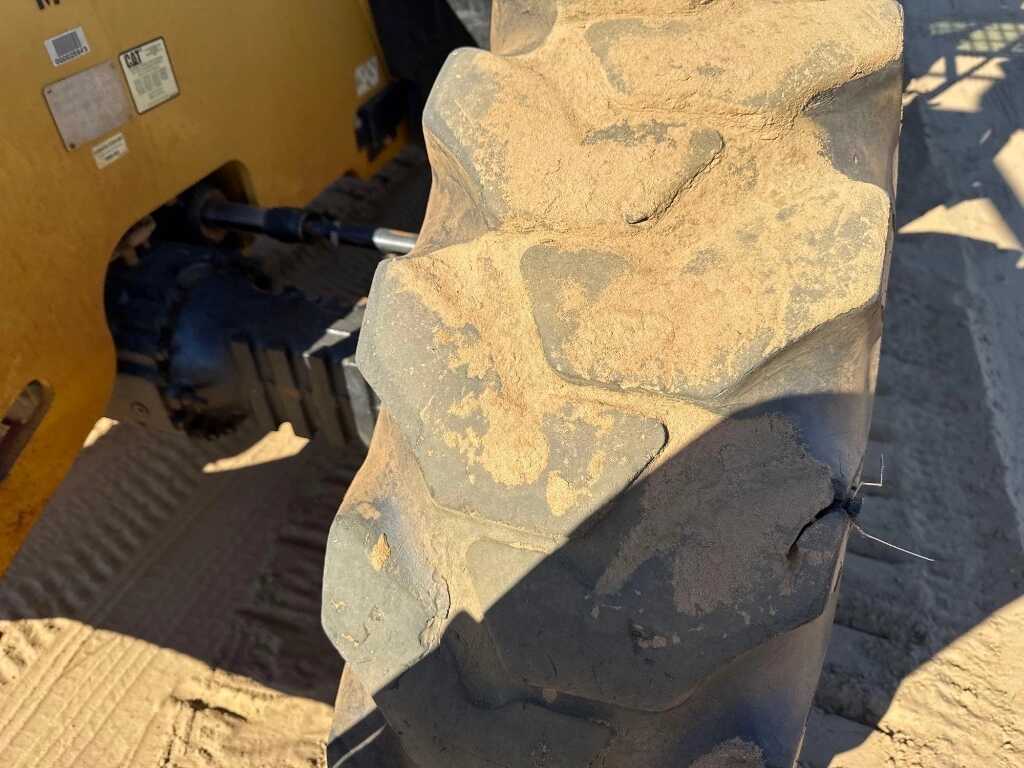

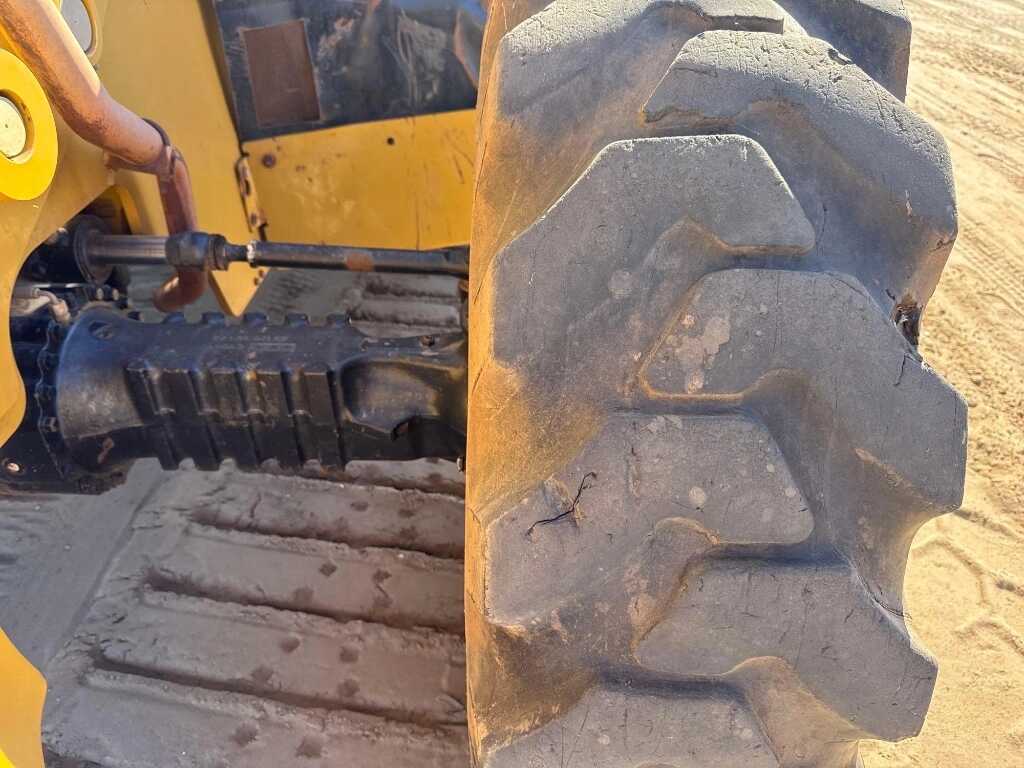

Tires (Standard): 370/75-28 Duraforce MT
Optional Tires: 13.00×24 Solid, 14×24-12 PR Foam, 14×24-16 PR Air, 370/75-28 Foam Duraforce

Hydraulic System
Auxiliary Hydraulic Flow: 25 gal/min
Auxiliary Hydraulic Pressure: 3,481 psi
System Operating Pressure: 3,770 psi
Pump Type: Variable displacement, load-sensing axial piston pump
Note: Auxiliary hydraulic circuit used for attachments with cylinders or hydraulic components

Axles
Type 1: Trunnion-mounted planetary 55° steer axles
Type 2: High-bias limited slip differential (front axle)

Brakes
Service Brakes: Inboard wet disc brakes (front and rear)
Parking Brakes: Wet disc, spring-applied, hydraulically released (front axle)

Operating Specifications
Rated Load Capacity: 9,000 lb
Maximum Lift Height: 43 ft
Capacity at Maximum Height (O/R Down): 7,000 lb
Capacity at Maximum Reach (O/R Down): 2,700 lb
Capacity at Maximum Reach (O/R Up): 1,100 lb
Top Travel Speed: 19 mph
Frame Leveling: 10°
Turning Radius (Over Tires): 12 ft
Drawbar Pull (Loaded): 21,582 lb-ft

Service Refill Capacities
Fuel Tank: 38 gal
Hydraulic System: 49 gal
DEF Tank: 5.7 gal

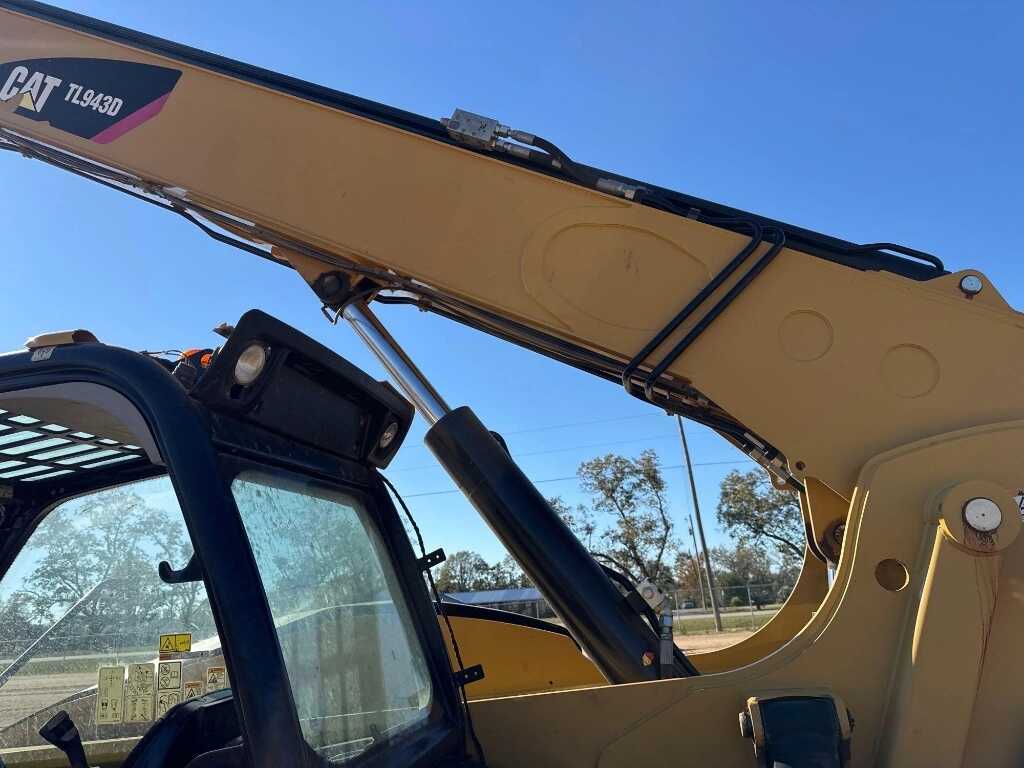

Boom Performance
Boom Up: 9.9 s
Boom Down: 8.5 s
Tele In: 14.6 s
Tele Out: 14.5 s

Transmission
Forward Gears: 4
Reverse Gears: 3

Work Tools
Hydraulic IT Coupler (includes auxiliary electrics)

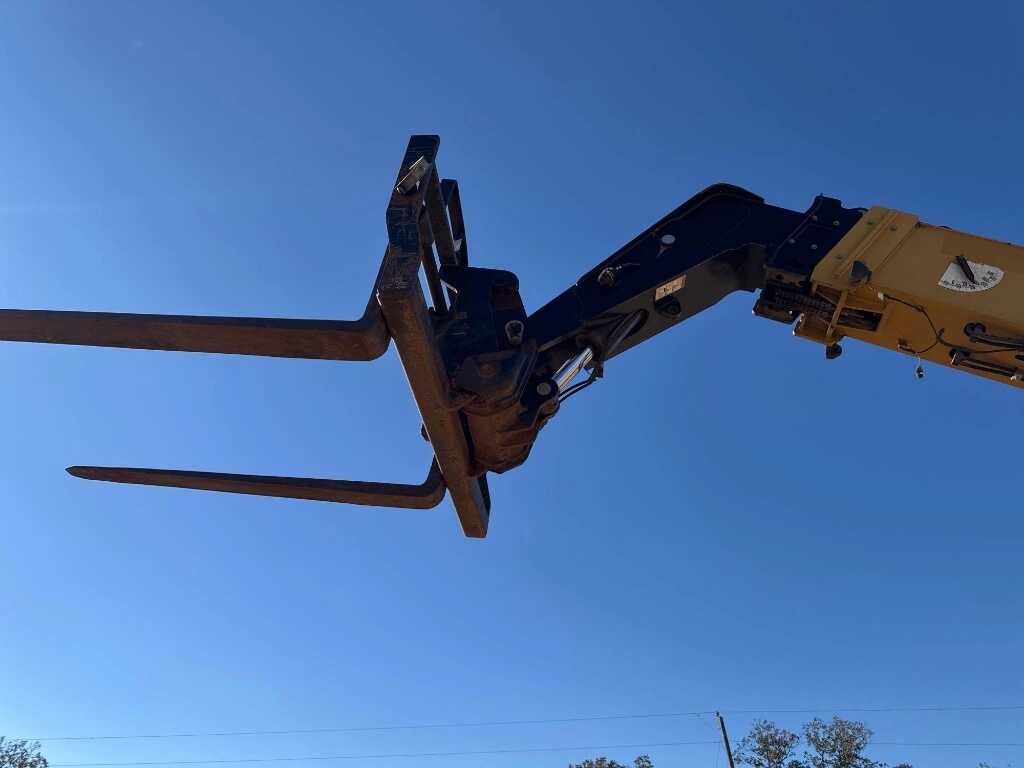

Pallet Fork Options:
– 48″, 60″, or 72″ fork lengths
– Various thicknesses from 2″ to 7″
Lumber Forks: 60″ or 72″ options
Cubing Forks: 48″ (2″x2″)
Carriage Options:
– Standard Tilt (50″)
– Wide Tilt (72″)
– Side Shift (48″)
– Standard Rotate (50″)
– Wide Rotate (72″)
– Swing (100°, 9,000 lb capacity, 5,000 lb swung)
– Dual Fork Positioning (50″)
