PRICE FIRM NO TAX OR FEES

Comes with 6M/1500HR FULL WARRANTY! Machine was just fully cleaned, serviced, greased and looked over. Photos just taken! Delivery available!

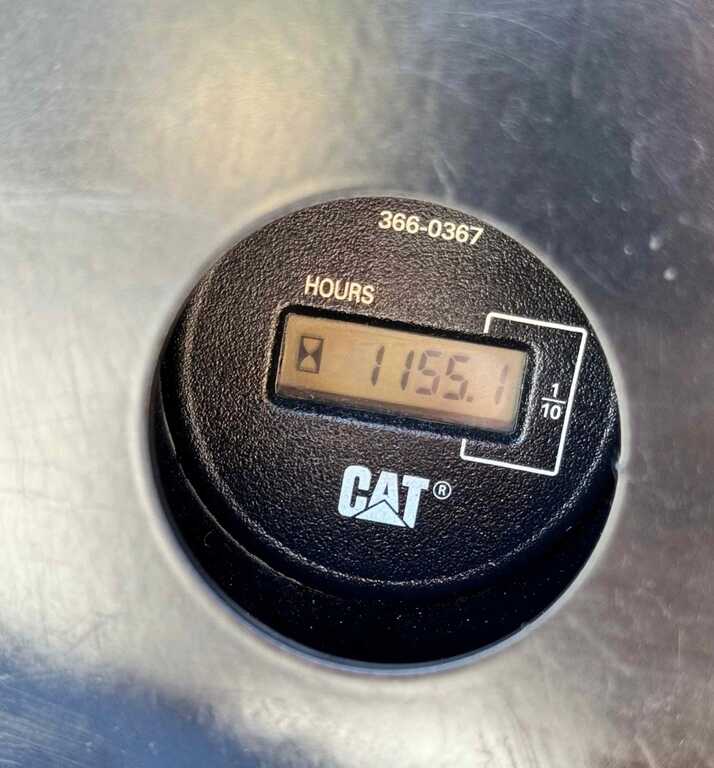

– 1,155 Well Maintained Hours!

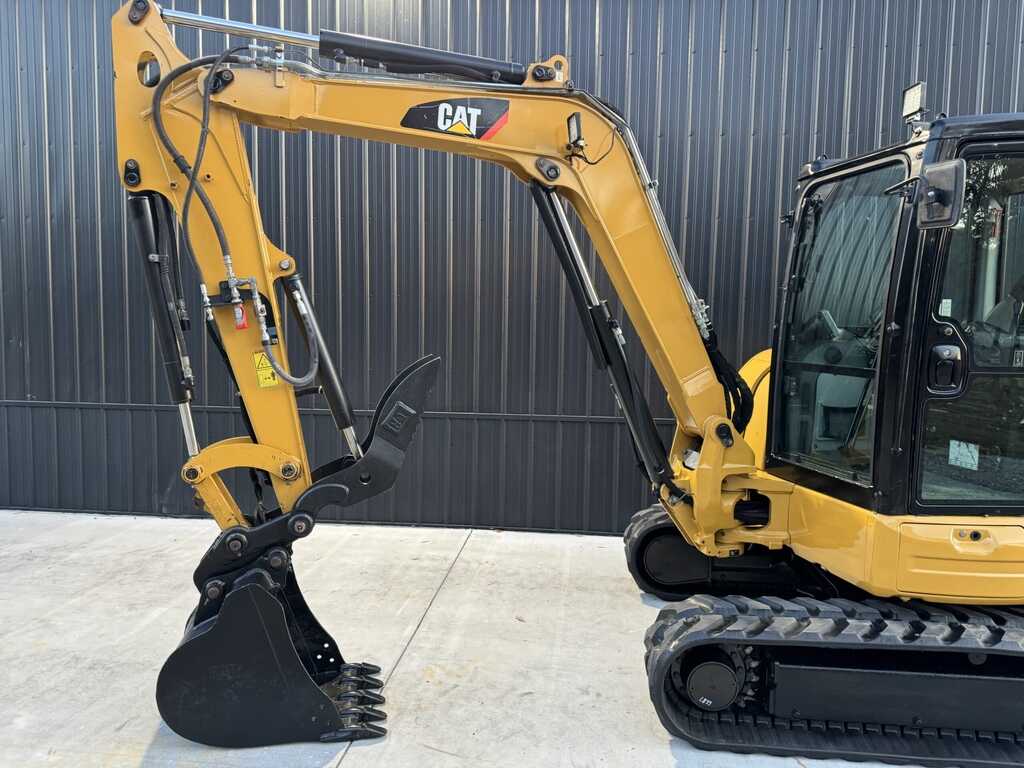

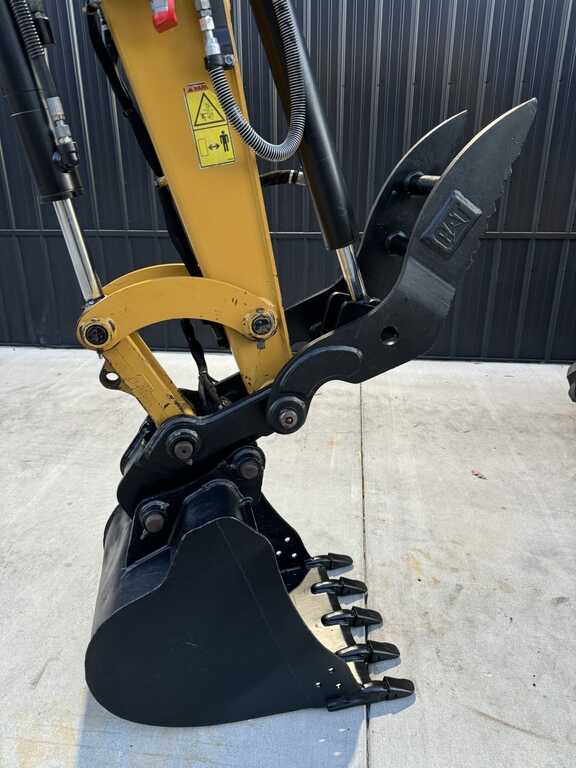

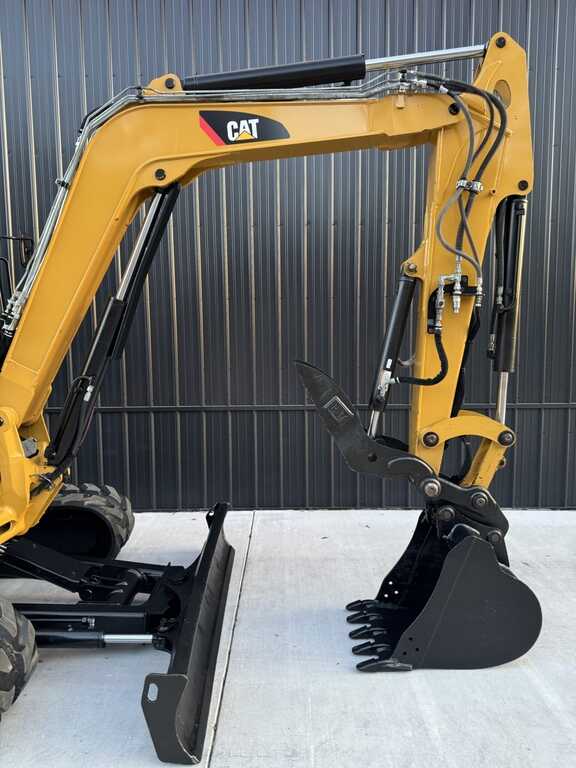

– Hydraulic Thumb
– Hydraulic Coupler

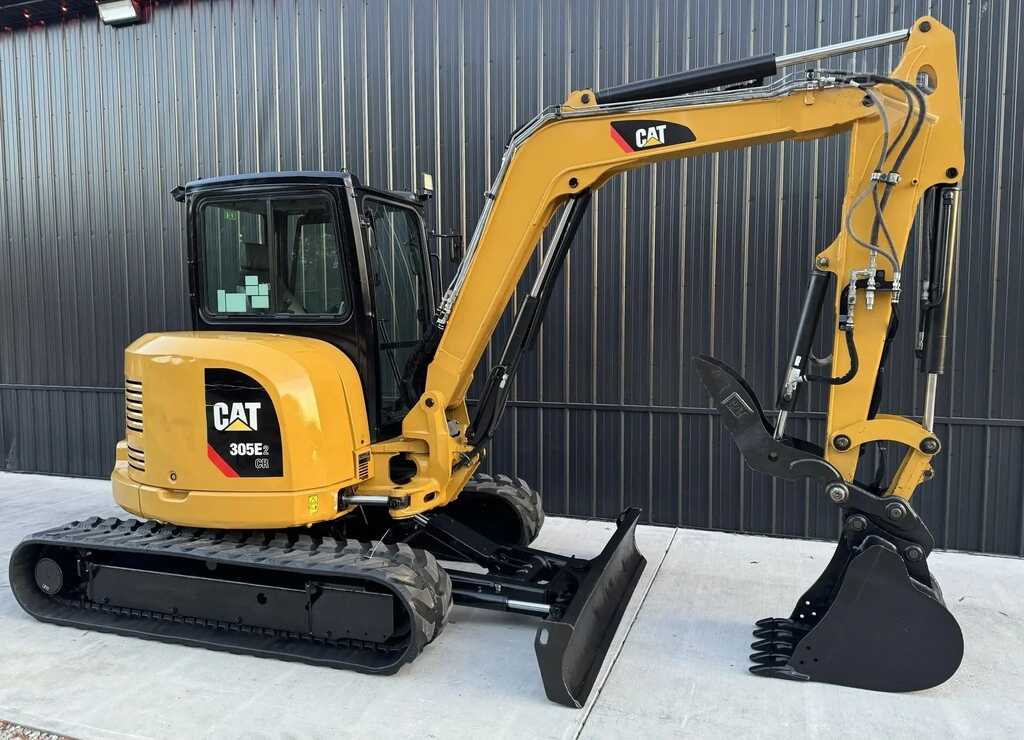

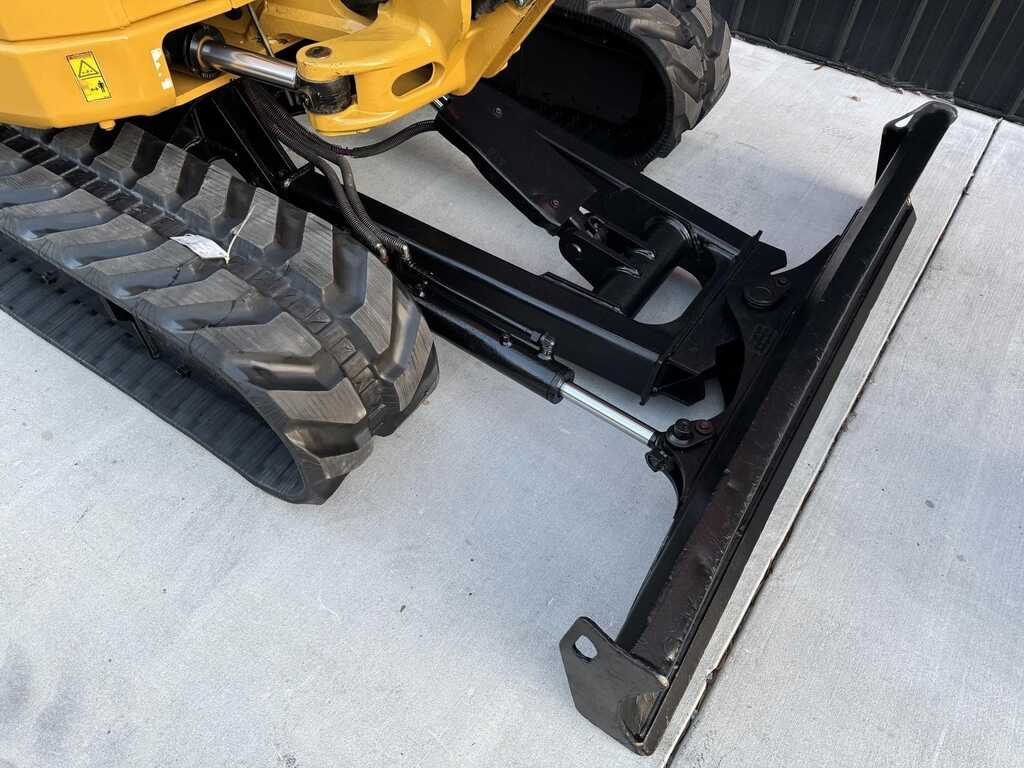

– Hydraulic Angle Blade

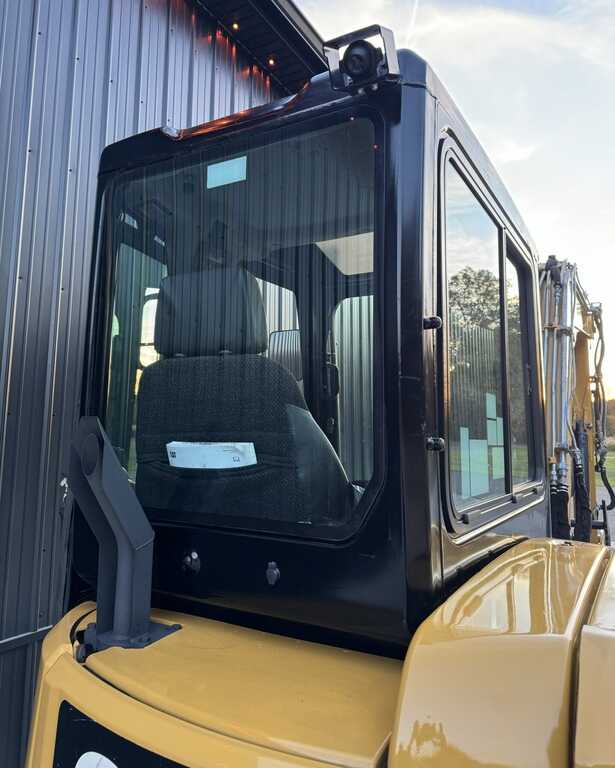

– Rear Camera

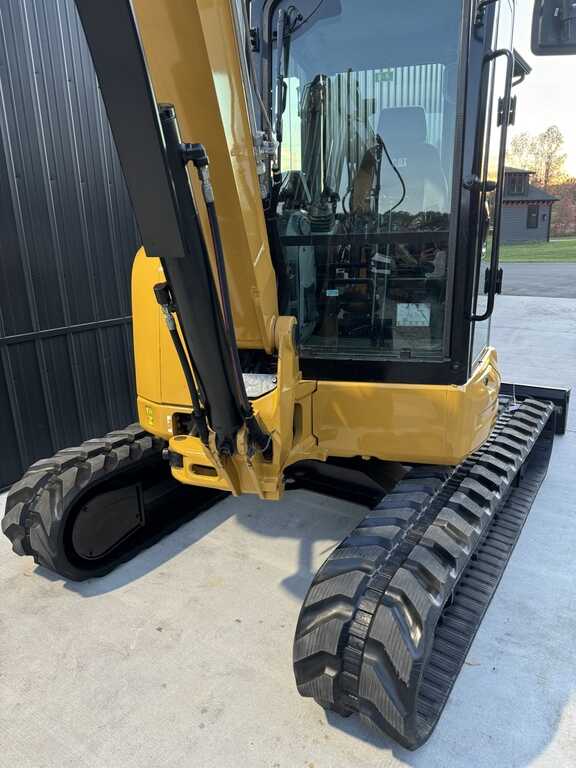

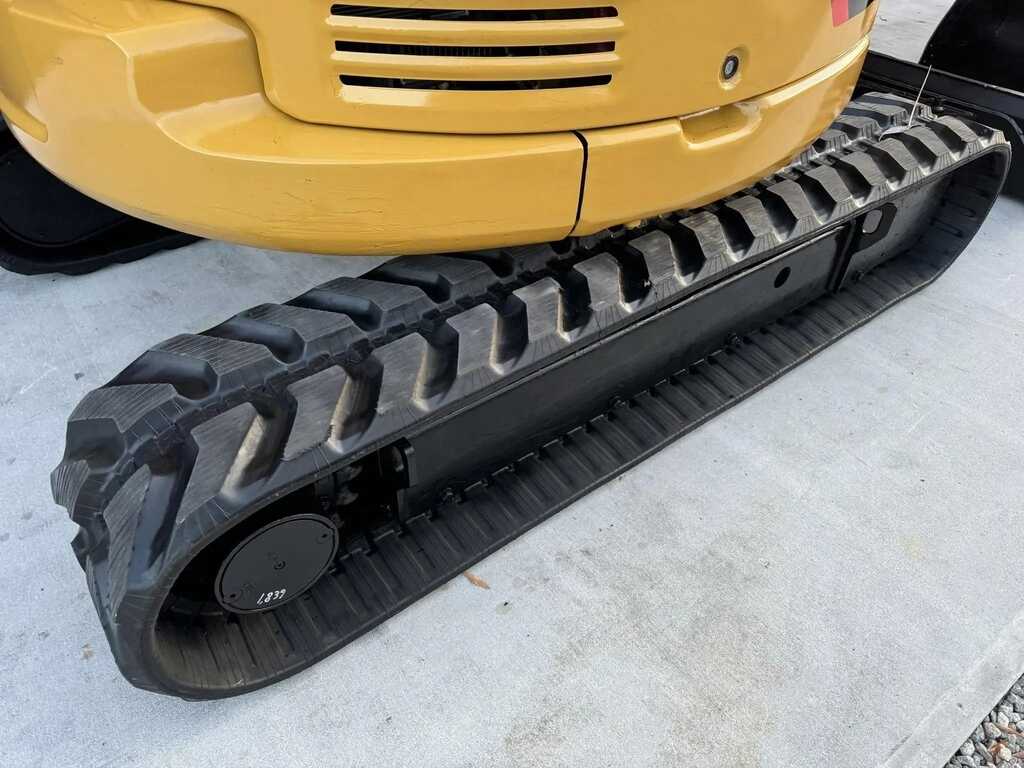

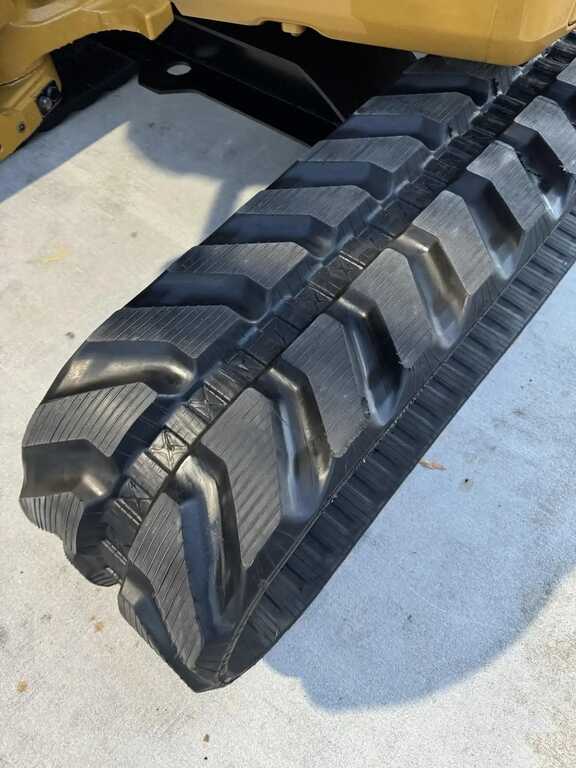

– BRAND NEW TRACKS

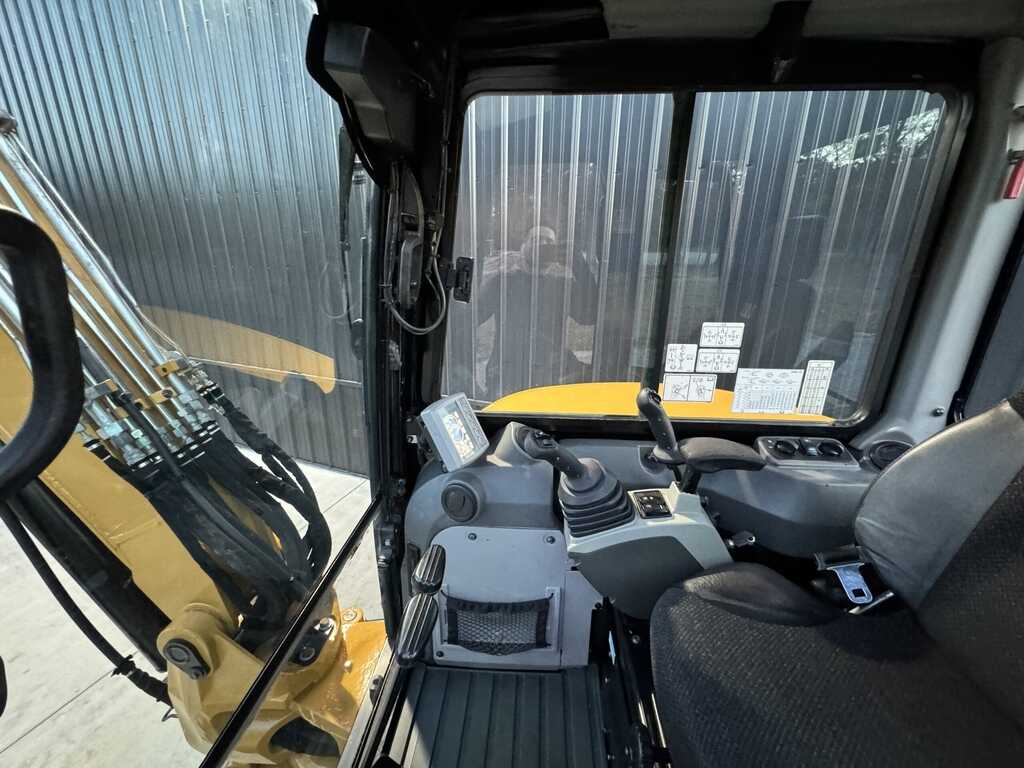

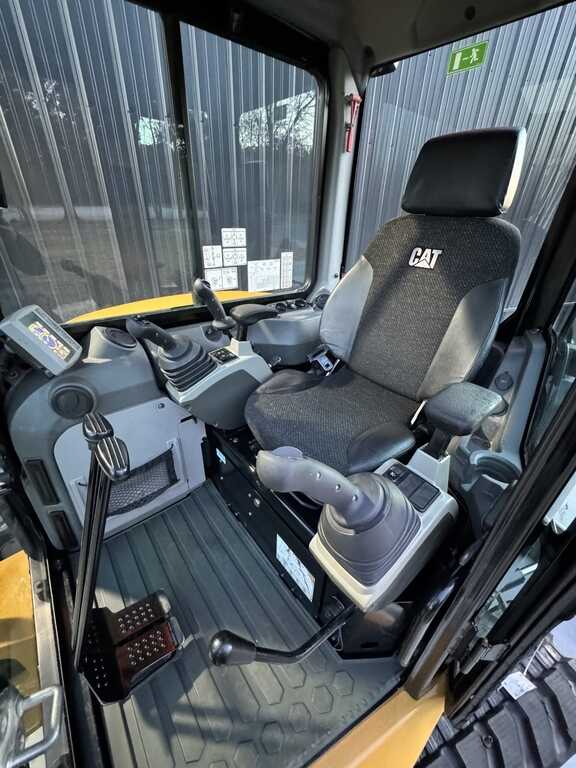

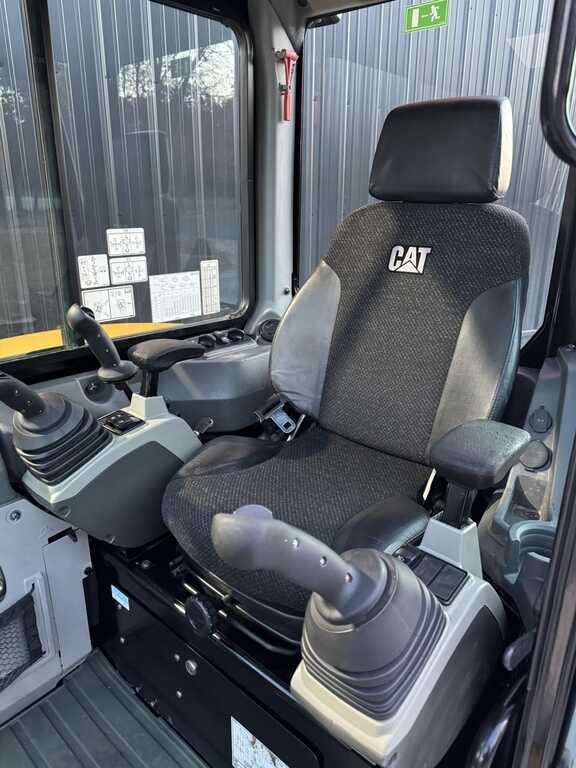

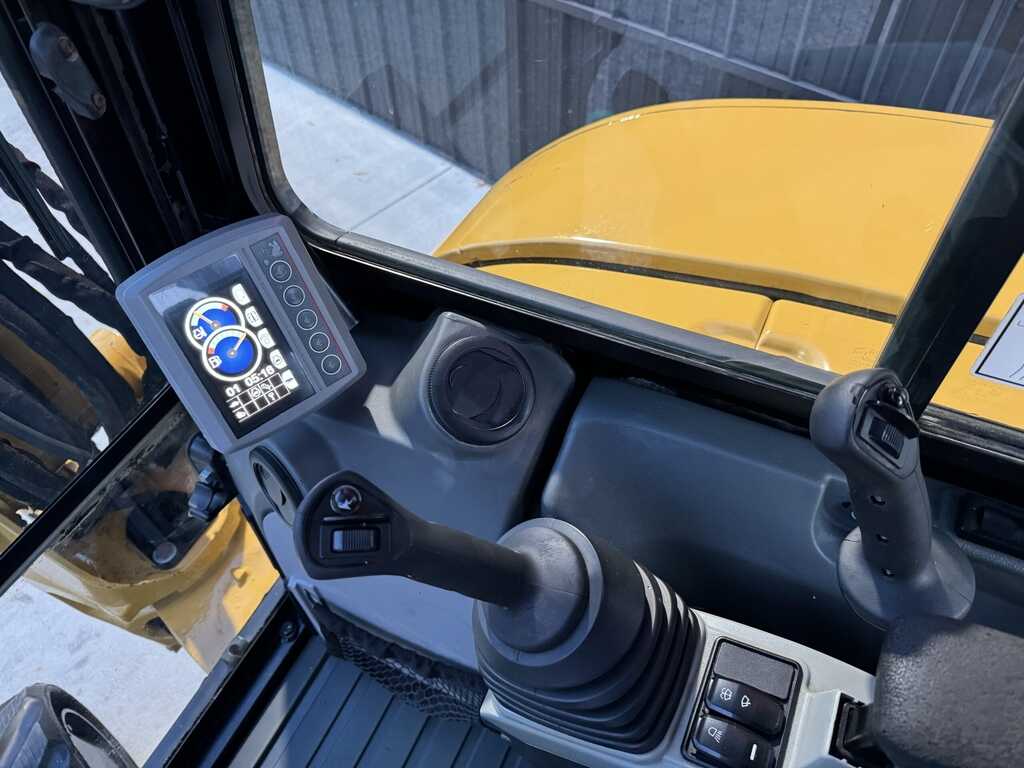

– Heat/AC/Radio
– 2 Speed
– 12″, 24″ and 36” Tooth Bucket
– Just Fully Serviced
– 11,500 Lbs

MACHINE IS READY TO WORK

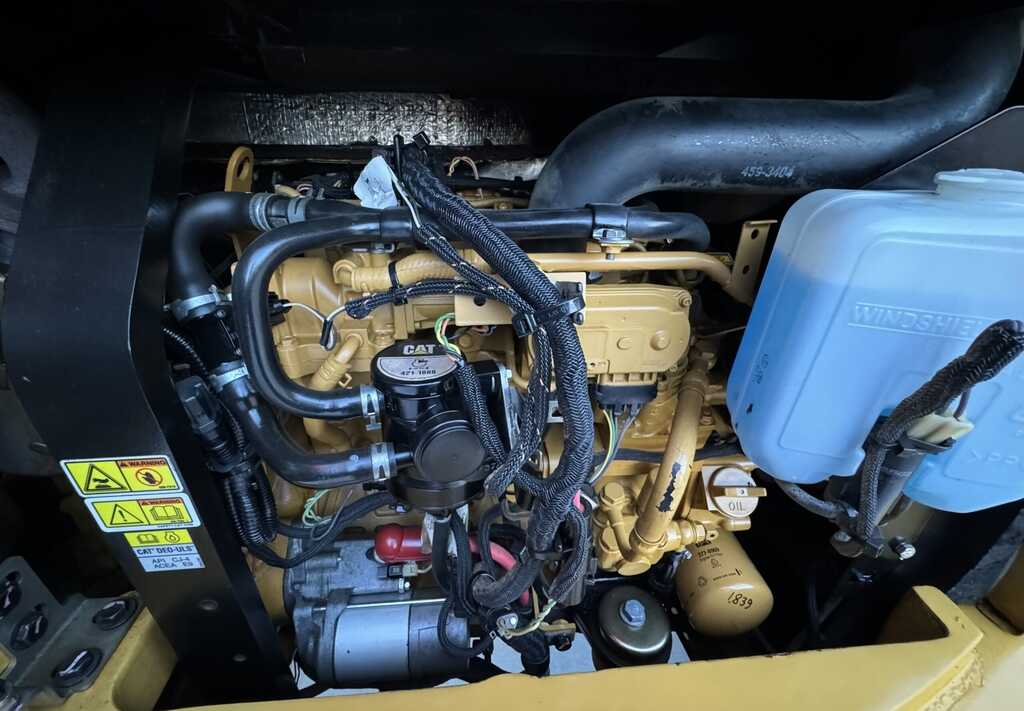

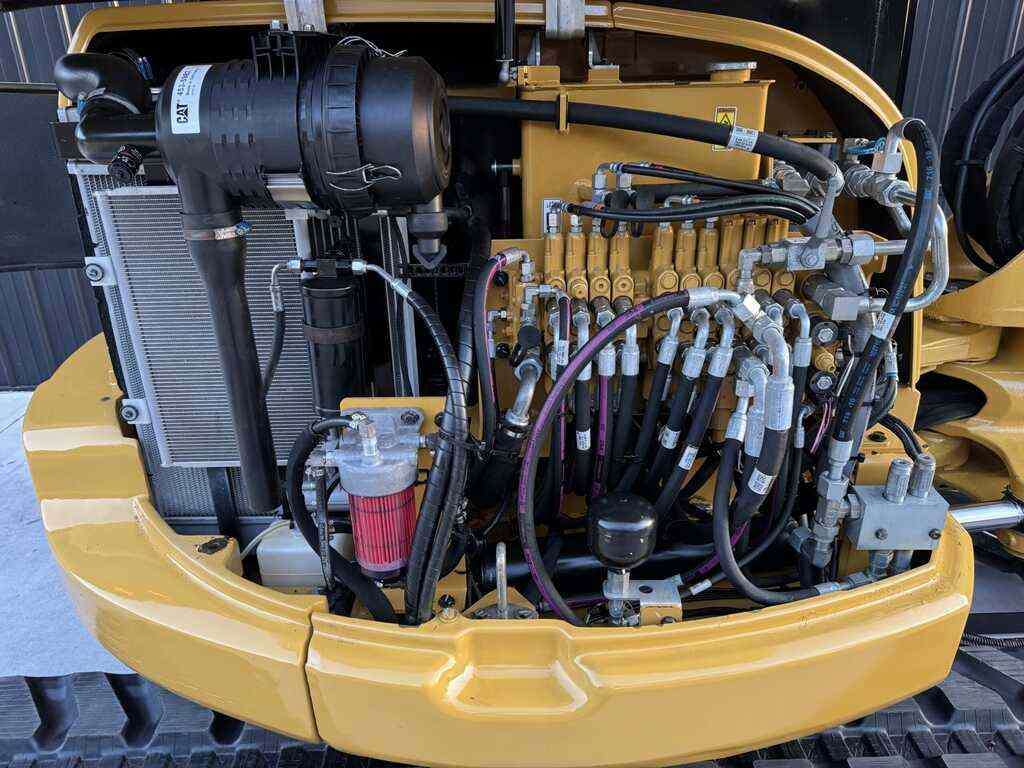

Engine
• Model: Cat C2.4
• Gross Power: 41.8 hp (31.2 kW)
• Net Power: 40.2 hp (30 kW)
• Displacement: 146 in³ (2.4 L)
• Emissions: U.S. EPA Tier 4 Final / EU Stage IIIA compliant

Weights
• Operating Weight (Cab, Standard Stick): 11,334 lbs (5,140 kg)
• Operating Weight (Cab, Long Stick): 11,443 lbs (5,185 kg)

Performance
• Max Digging Depth (Standard Stick): 10 ft 8 in (3.3 m)
• Max Digging Depth (Long Stick): 12 ft 1 in (3.7 m)
• Max Reach at Ground Level (Standard Stick): 17 ft 8 in (5.4 m)
• Max Reach at Ground Level (Long Stick): 19 ft 1 in (5.8 m)
• Bucket Digging Force: 10,050 lbf (44.7 kN)
• Stick Digging Force (Standard Stick): 5,550 lbf (24.7 kN)
• Stick Digging Force (Long Stick): 4,788 lbf (21.3 kN)

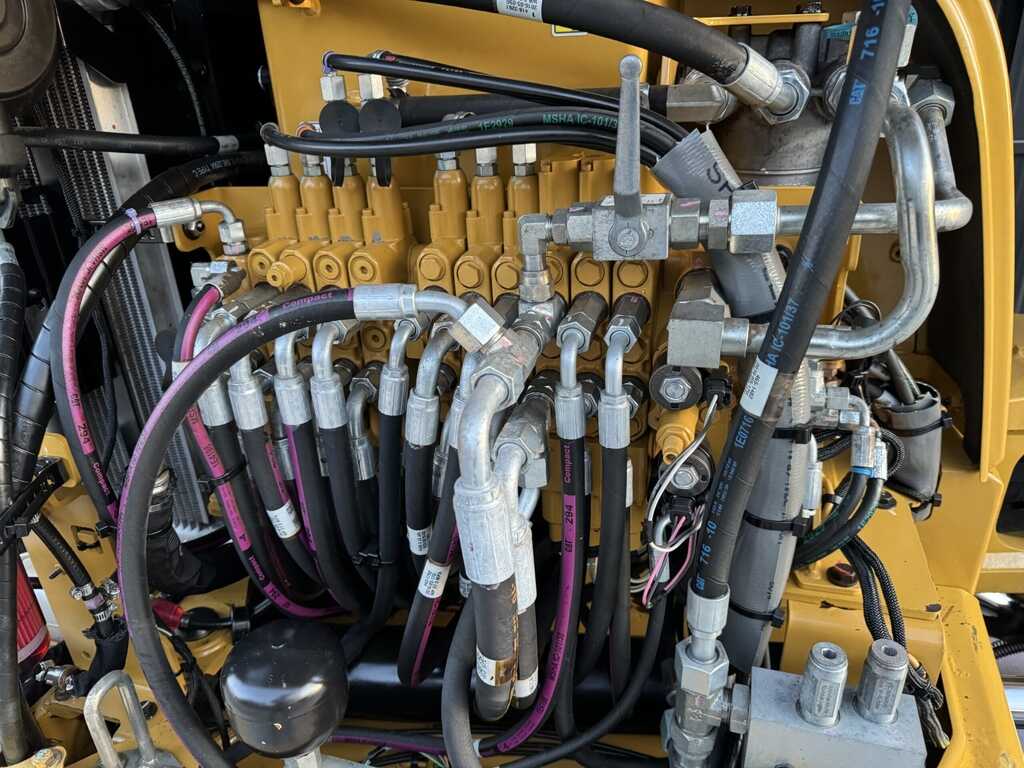

Hydraulics
• Main Pump Flow: 39.6 gal/min (150 L/min)
• Auxiliary Hydraulic Flow (Primary): 21.1 gal/min (80 L/min)
• Auxiliary Hydraulic Flow (Secondary): 6.6 gal/min (25 L/min)
• System Relief Pressure – Equipment: 3,553 psi (24.5 MPa)
• System Relief Pressure – Swing: 3,132 psi (21.6 MPa)

Dimensions
• Overall Length (Standard Stick): 17 ft (5.18 m)
• Overall Length (Long Stick): 17 ft 4 in (5.29 m)
• Overall Width: 6 ft 6 in (1.98 m)
• Overall Height: 8 ft 4 in (2.55 m)
• Tail Swing Radius: 3 ft 7 in (1.1 m)
• Ground Clearance: 1 ft 1 in (0.33 m)

Travel System
• Travel Speed – Low: 1.7 mph (2.8 km/h)
• Travel Speed – High: 2.7 mph (4.4 km/h)
• Max Traction Force – Low Speed: 10,161 lbf (45.2 kN)
• Max Traction Force – High Speed: 5,418 lbf (24.1 kN)
• Gradeability: 30°

Service Refill Capacities
• Fuel Tank: 16.6 gal (63 L)
• Hydraulic System: 20.6 gal (78 L)
• Hydraulic Tank: 18 gal (68.3 L)
• Engine Oil: 2.5 gal (9.5 L)
• Cooling System: 2.8 gal (10.5 L)
