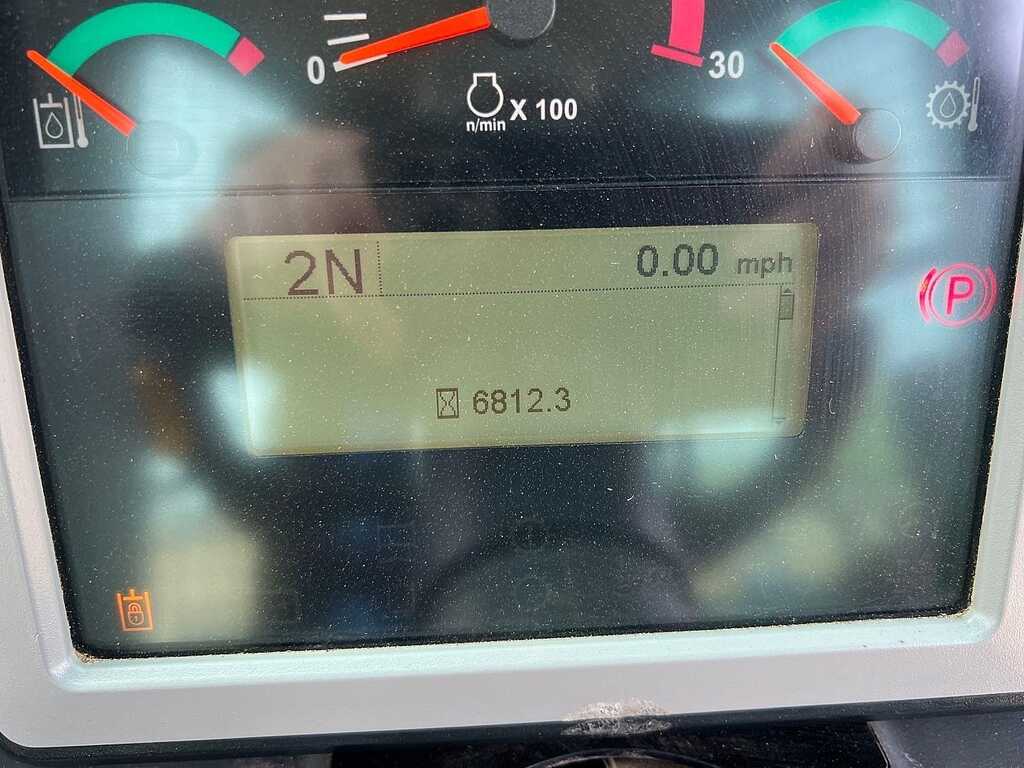

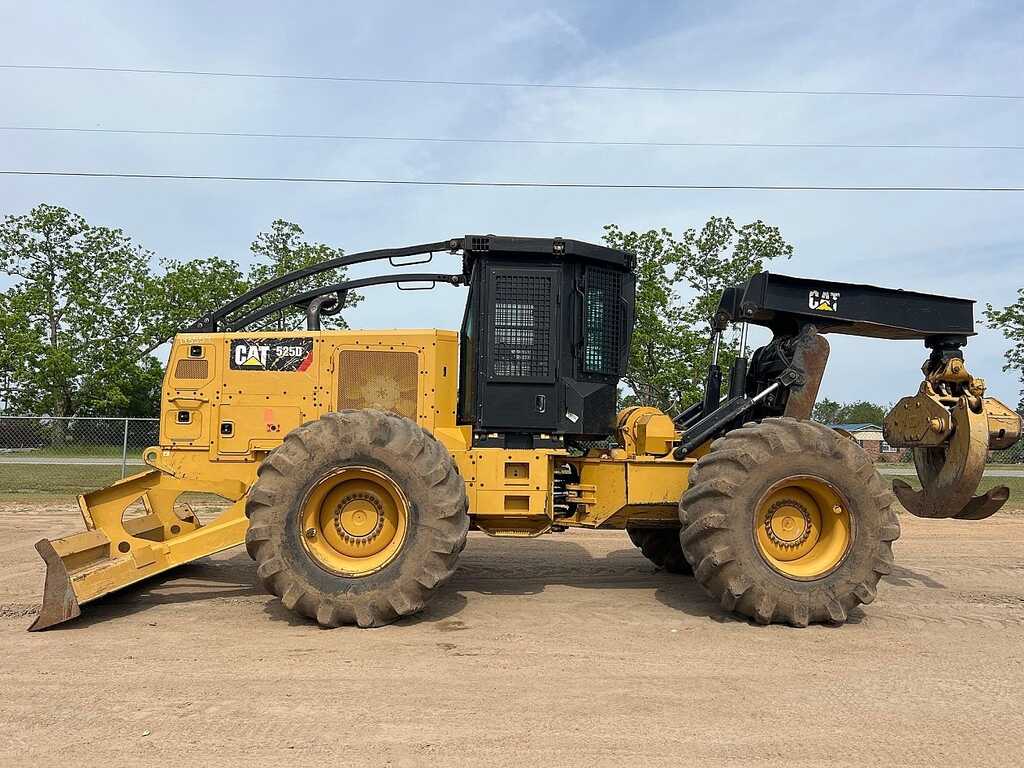

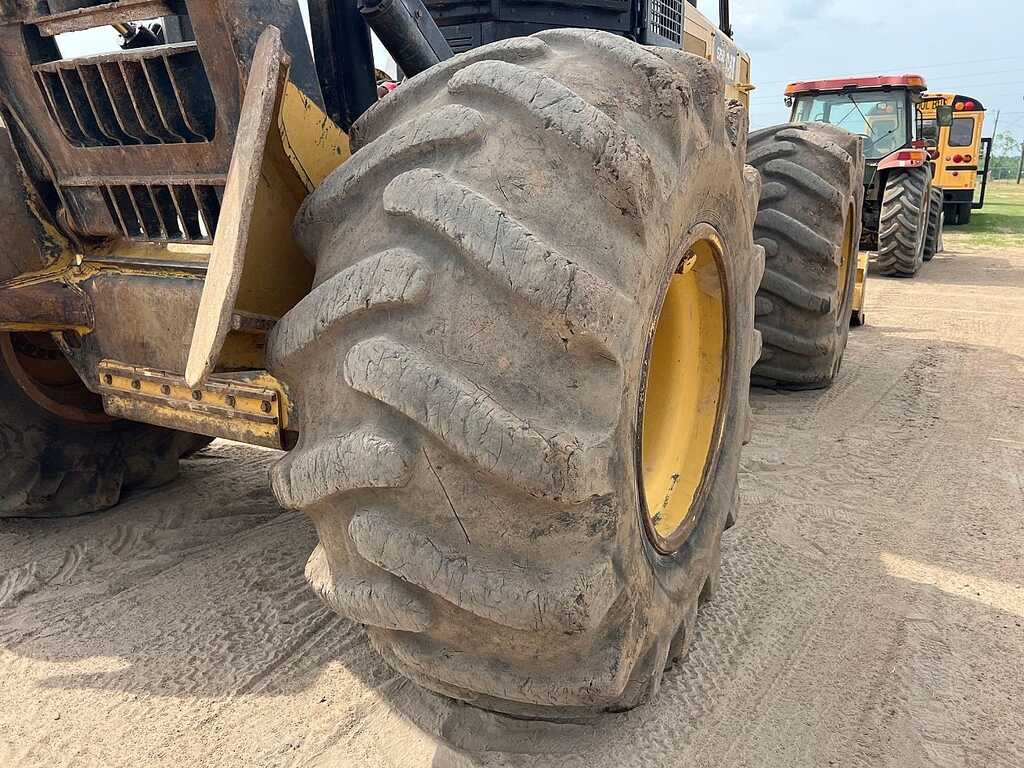

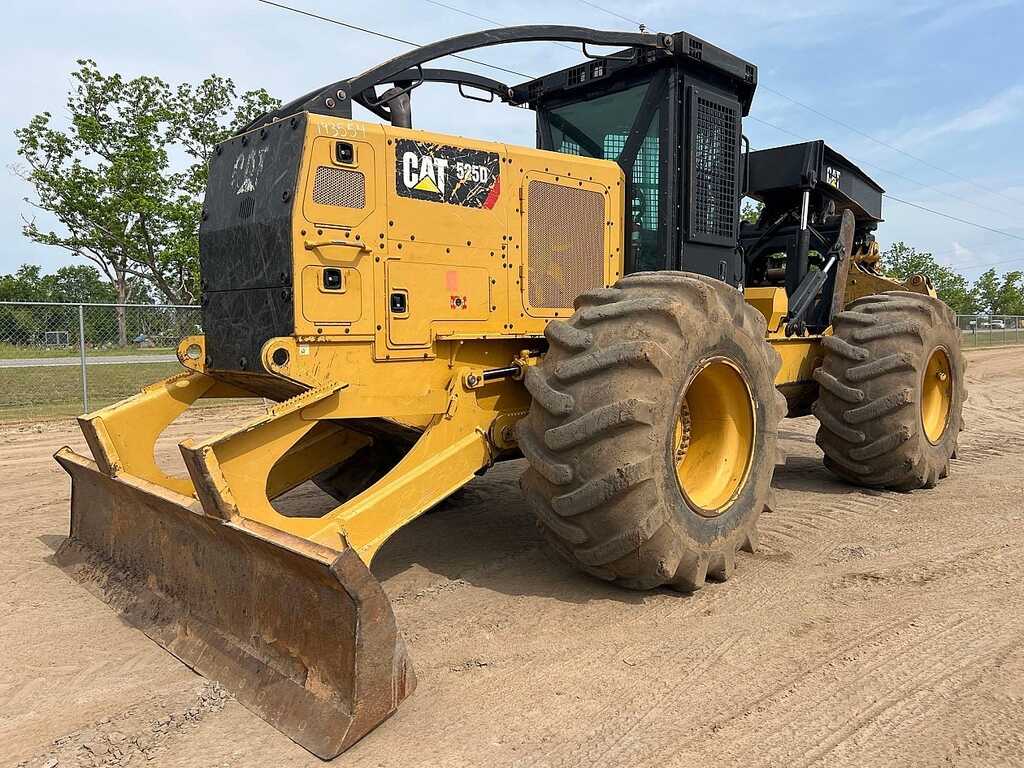

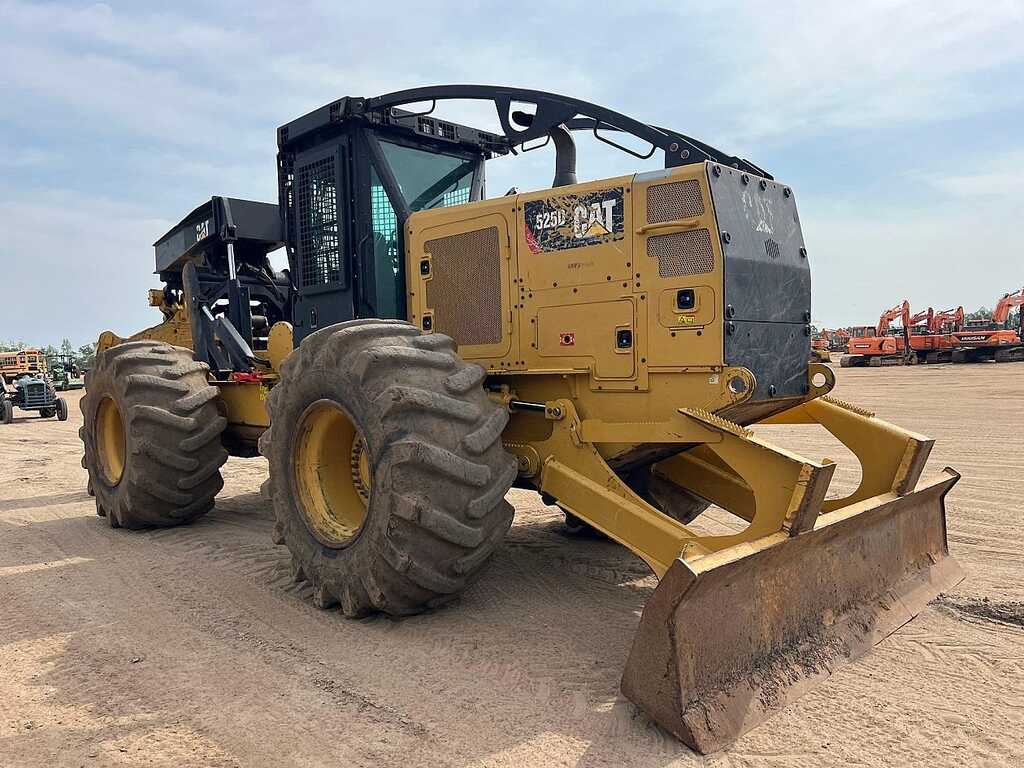

EROPS, PUSH BLADE, SWEEPS, SCREENS, 30.5L-32 TIRES, REAR GRAPPLE, SN- CAT0525DPGKP00199 (HRS SHOW – 6812)

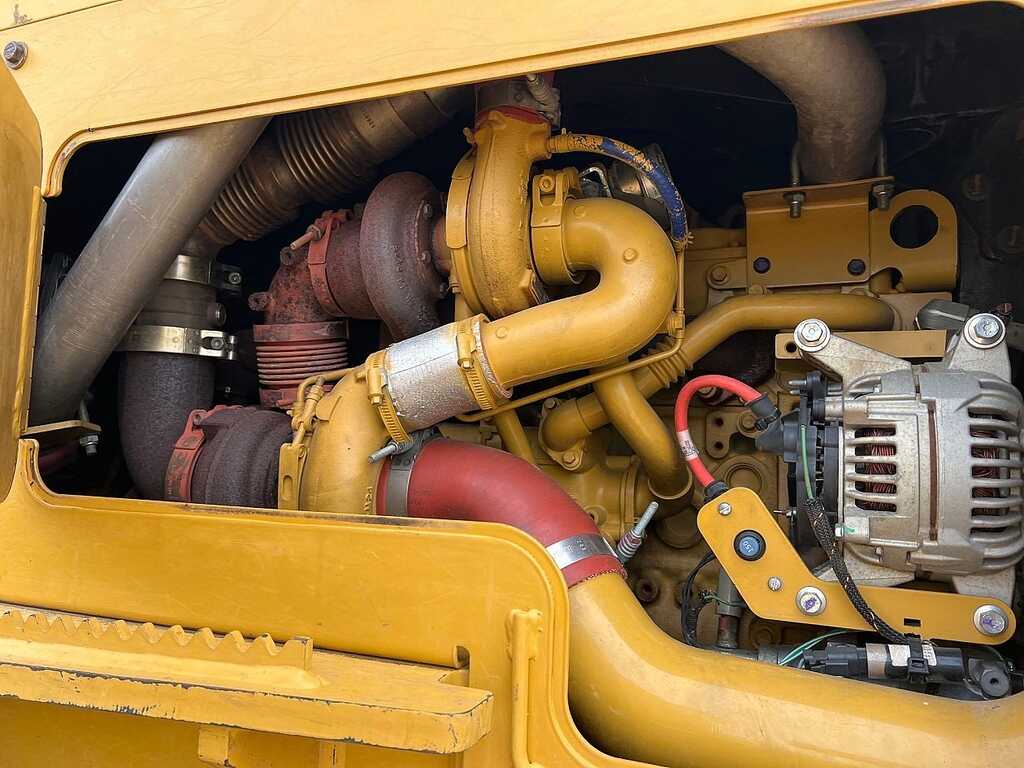

Engine & Powertrain
Engine Model: Cat 3304 DIT Diesel
Displacement: 425 cu in (7.0 L)
Cylinders: 4
Aspiration: Turbocharged
Gross Power: 175 hp (SAE J1995: 179 hp)
Net Power: 158–160 hp (SAE J1349 / ISO 9249 / EEC 80/1269)
Max Torque: 1,191 lb-ft @ 1,200 rpm
Peak Gross Torque: 1,260–1,275 lb-ft @ 1,200 rpm
Rated Speed: 2,200 rpm
Derating Altitude: 7,500 ft
Air Cleaner: Dry, dual element
Electrical System: 24V (2×12V batteries, 93 Ah each, 75–80 amp alternator)

Operating Weights & Capacities
Operating Weight: ~33,510 lb
Estimated Operating Weight: ~29,891 lb (base)
Fuel Tank: 68–70 gal
Cooling System: 9–9.6 gal
Engine Oil: 4–5.1 gal
Hydraulic System: 18–19.6 gal total (14 gal tank, 12.9 gal reservoir)
Transmission: 14–14.1 gal
Differentials (Front/Rear): 11 gal each
Winch Oil: 5.1 gal

Transmission & Travel
Type: Powershift, torque converter with cooler
Speeds: 4 forward / 3 reverse
Max Travel Speed (Forward): 16–16.9 mph
Max Travel Speed (Reverse): 11.8–12 mph
Forward Gear Speeds: 3.9, 6.5, 9.2, 16 mph
Reverse Gear Speeds: 3.9, 6.5, 11.8 mph

Hydraulic System
Type: Closed-center, variable flow
Pump Type: Axial piston
Pump Flow: 45.5 gpm
Relief Valve Setting: 3,000 psi
Cycle Times: Raise 6.0 s, Dump 2.1 s, Lower 3.4 s, Total 11.5 s

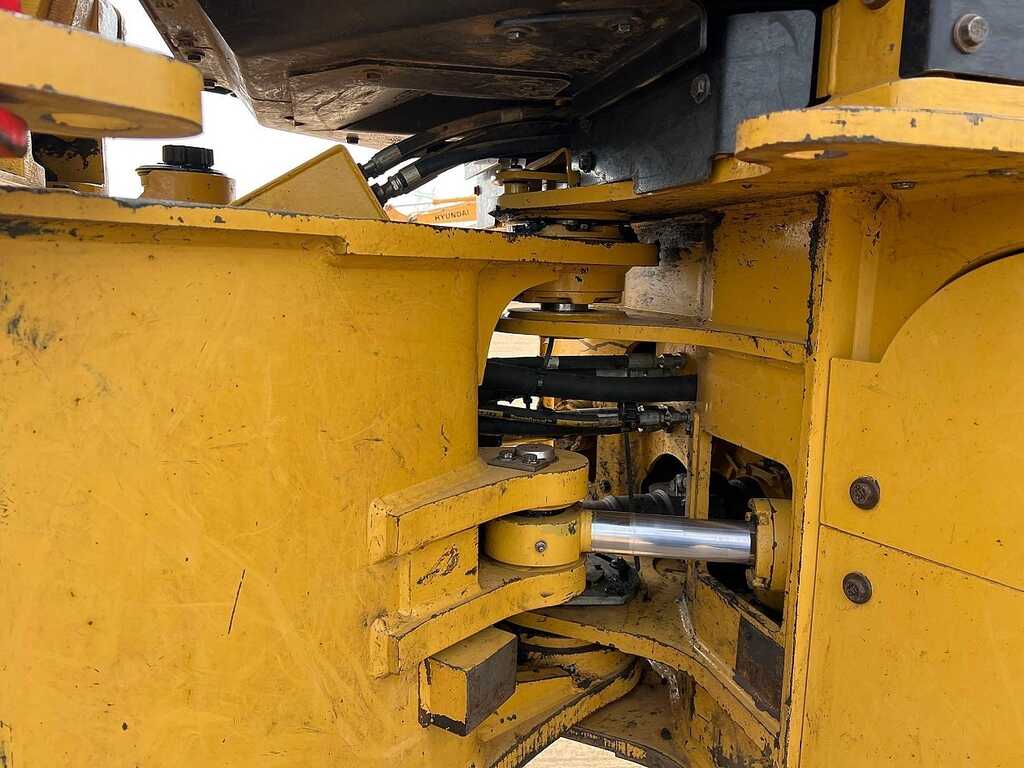

Steering: Direct-link, non-follow hydraulic
Steering Cylinder: Bore 3 in, Stroke 17 in, Rod 1.8 in

Axles & Tires
Front: Fixed
Rear: Oscillating ±15°
Max Single-Wheel Rise & Fall: 19.5–21.7 in

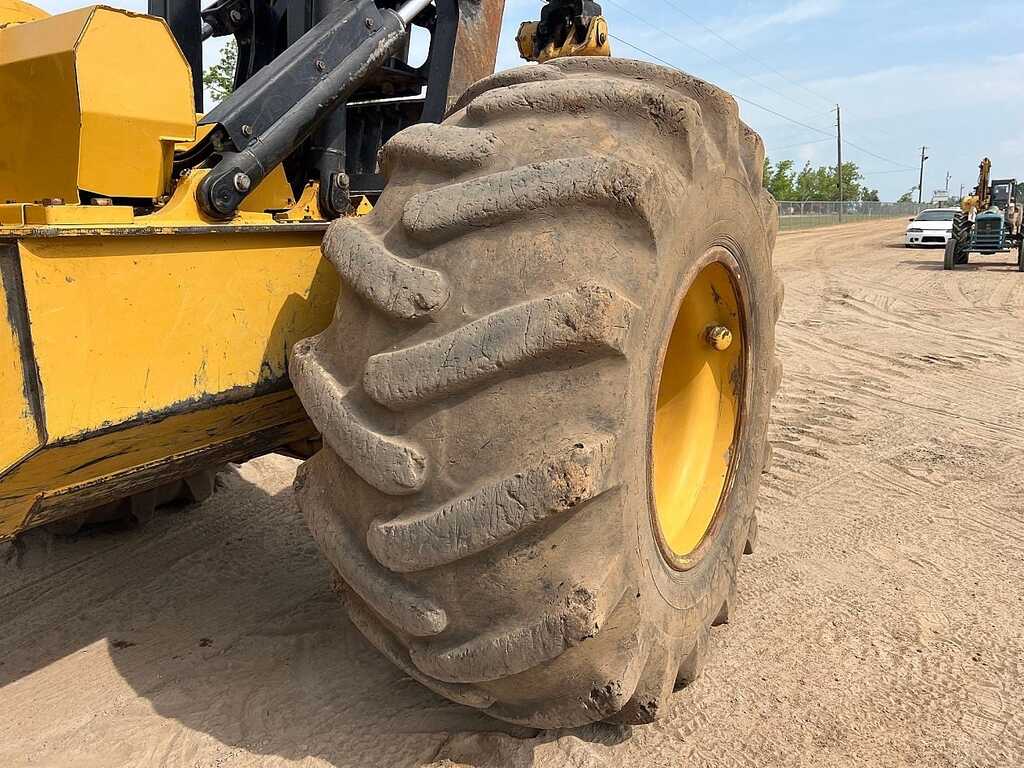

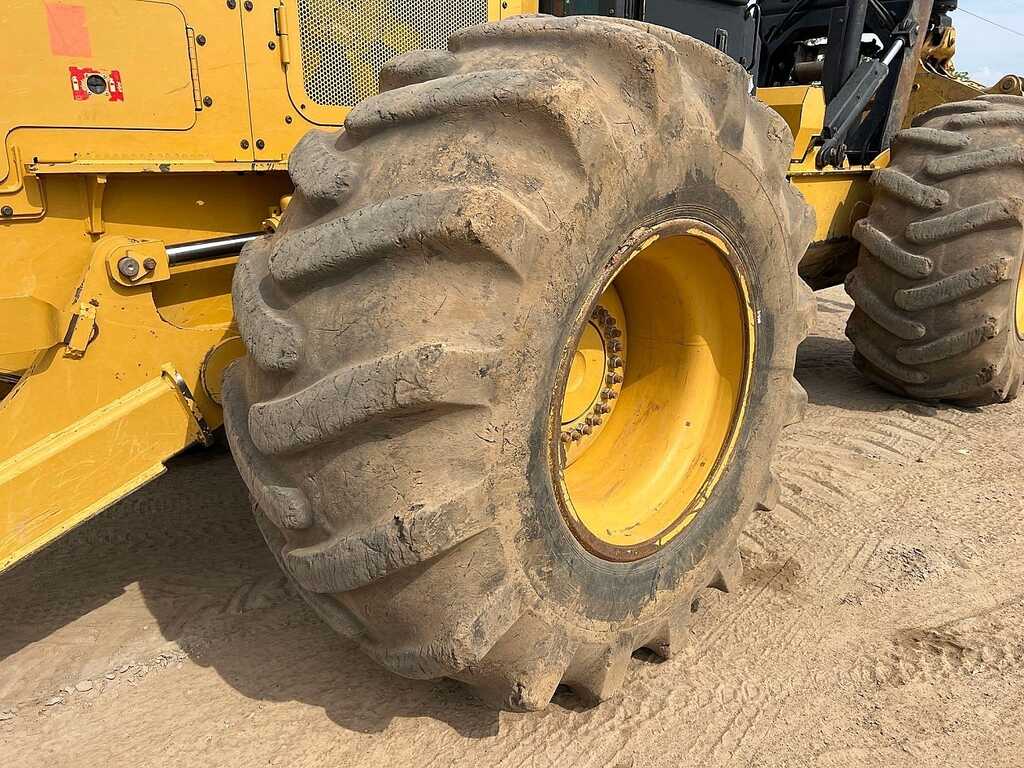

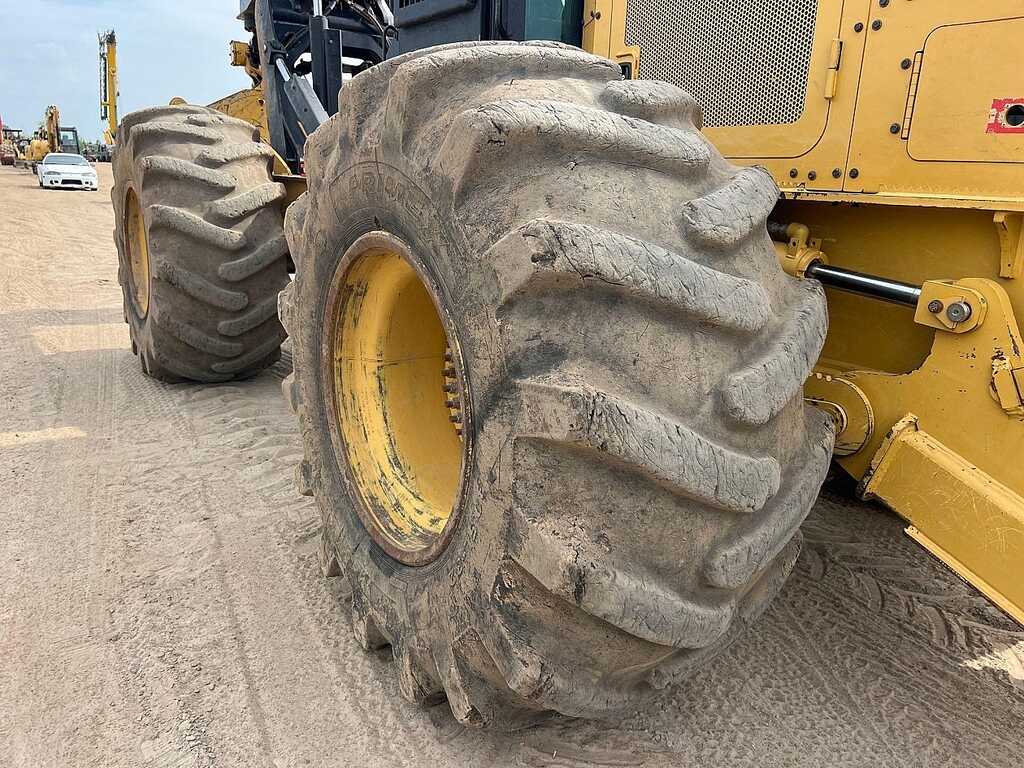

Standard Tires: 23.1–26

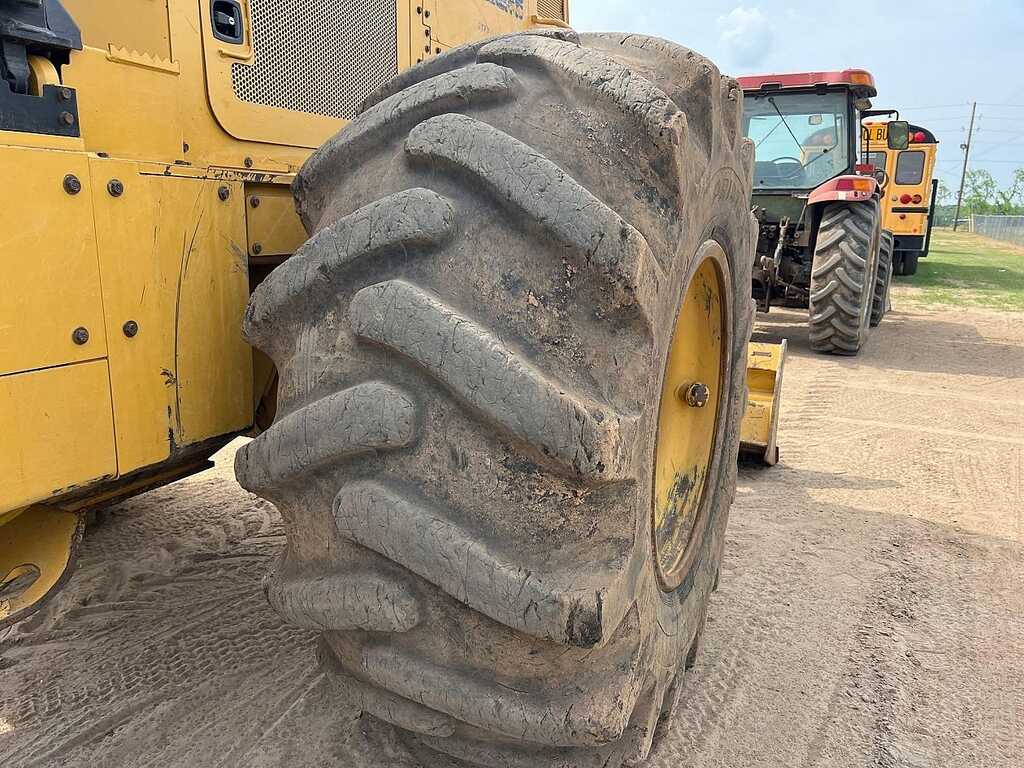

Optional Tires: 24.5×32 (16 PR), 30.5L×32 (16 PR)
Differentials: Final drive fluid capacity 11 gal each

Brakes & Steering
Service Brakes: Hydraulic actuated, oil disc
Parking Brakes: Mechanical shoe type
Steering: Fully hydraulic control

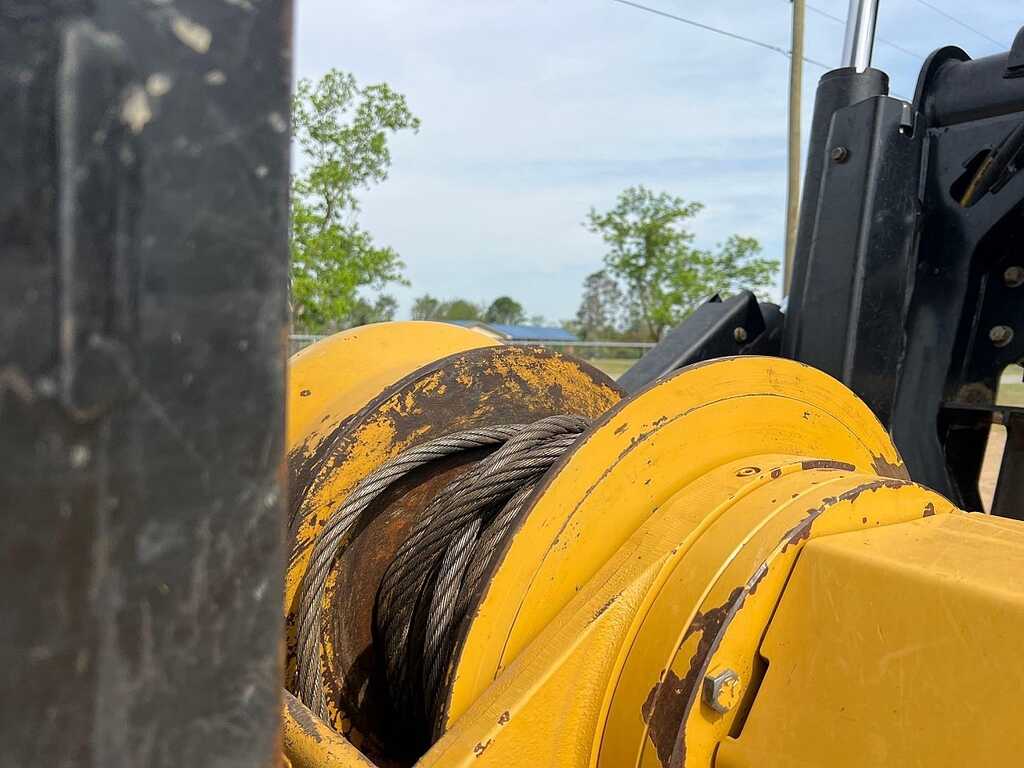

Winch
Max Line Pull (Bare Drum): 19,800–38,200 lb
Max Line Speed: 95–502 ft/min
Drum Diameter: 10–12 in
Drum Width: 7.9 in
Drum Capacity: 199 ft (3/4 in rope)

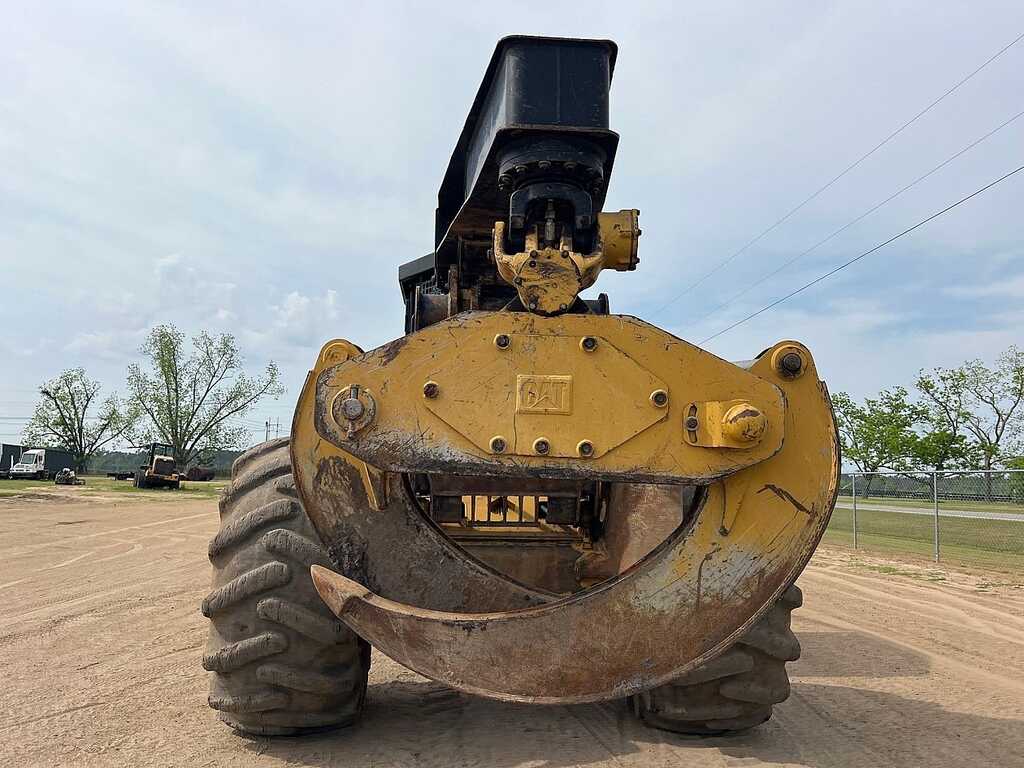

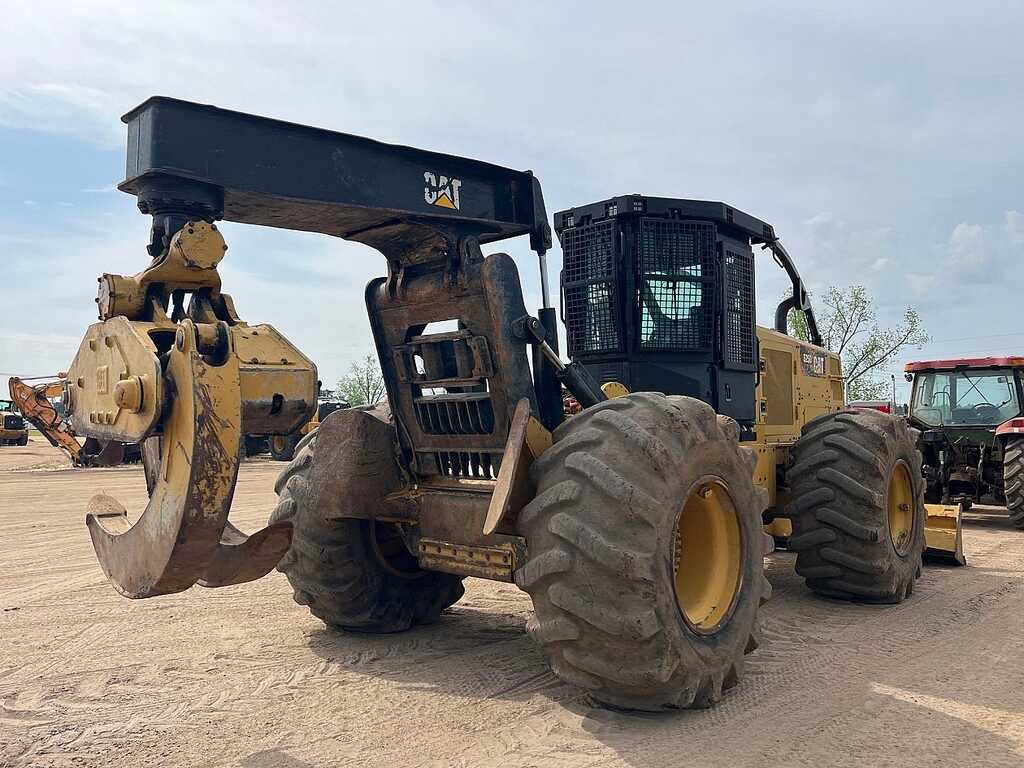

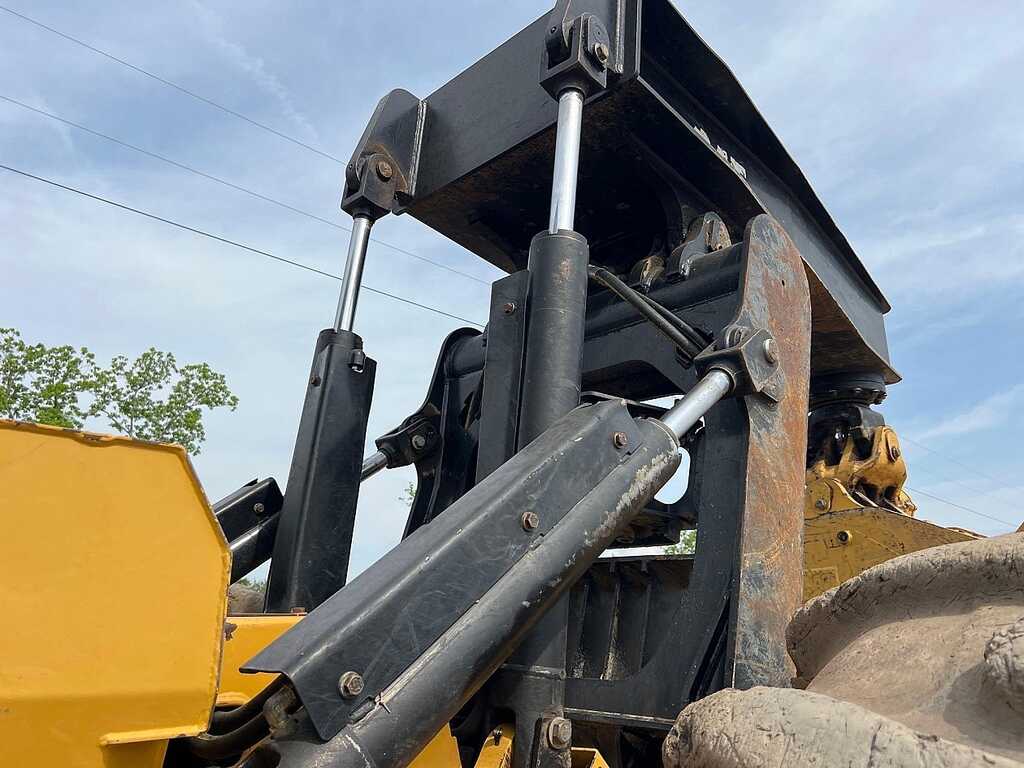

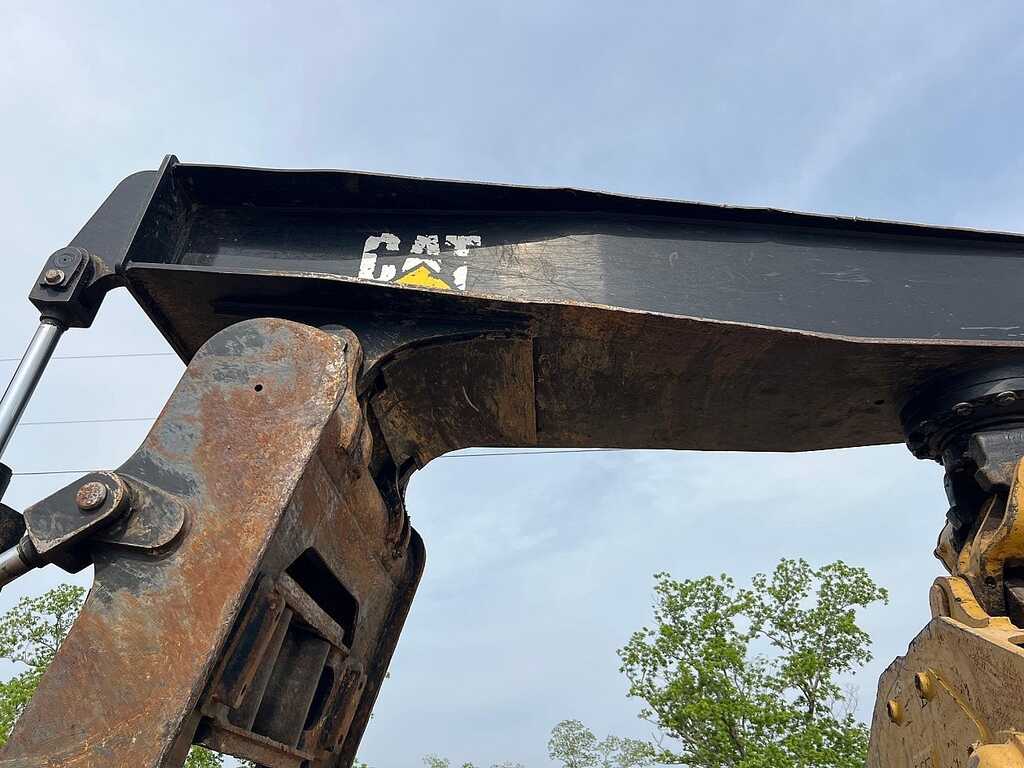

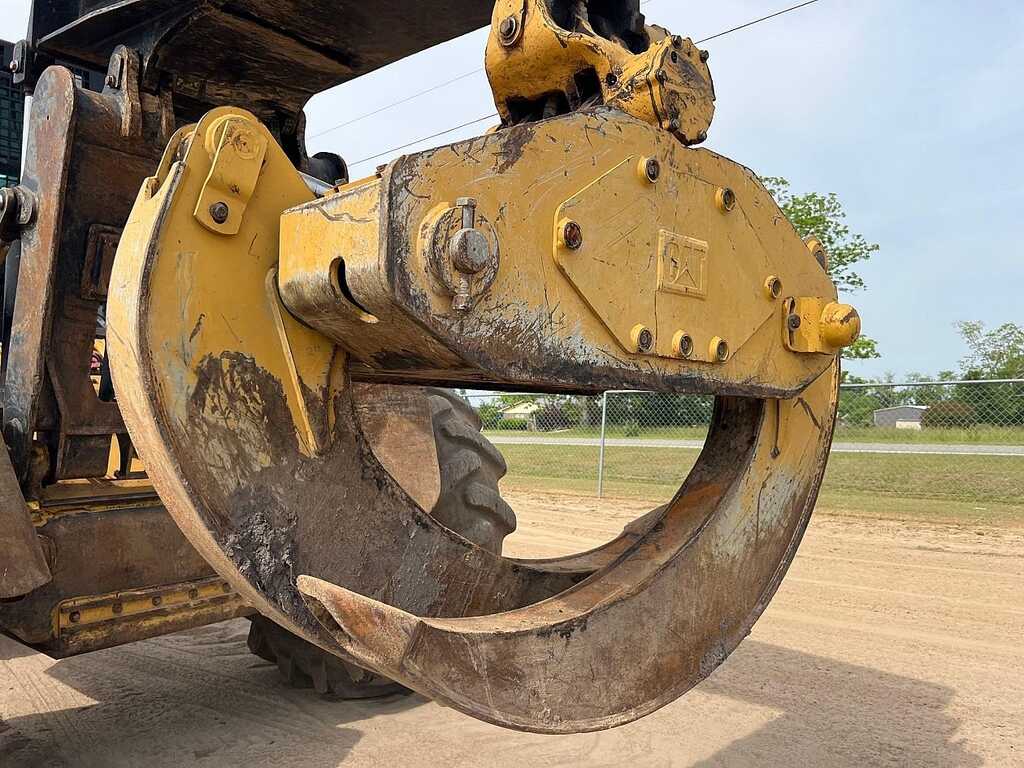

Grapple & Arch
Arch Types: Single / Dual / Cable
Grapple Capacities:
– Sorting: 9 ft²
– Bunching: 12.5 ft²
Grapple Tongs: Opening up to 120 in, heights 60–89 in (depending on configuration)
Dual Function Lift & Reach: Highest reach ~106 in, maximum reach ~107 in
Single Function Reach: Maximum ~99 in, minimum ~66 in

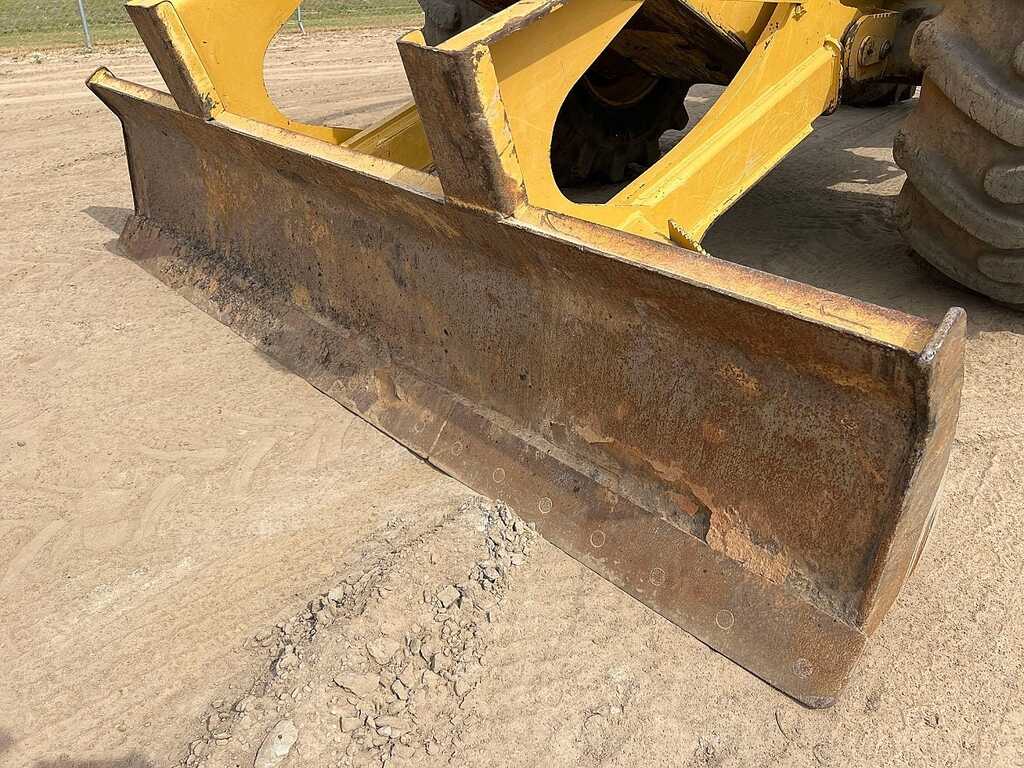

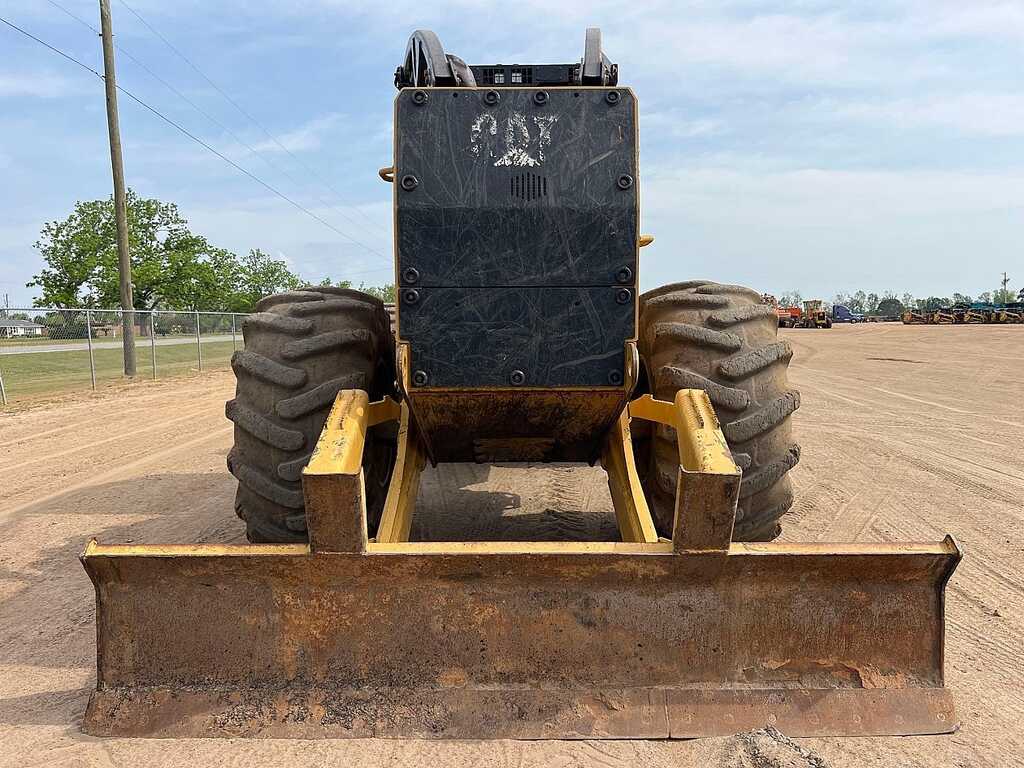

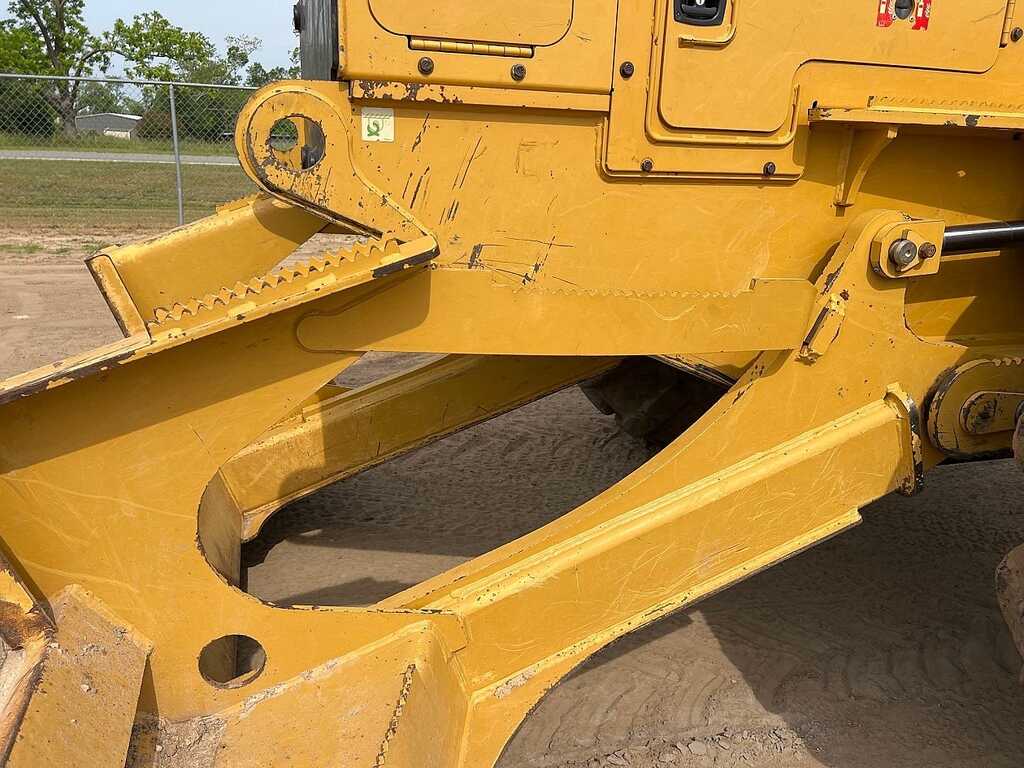

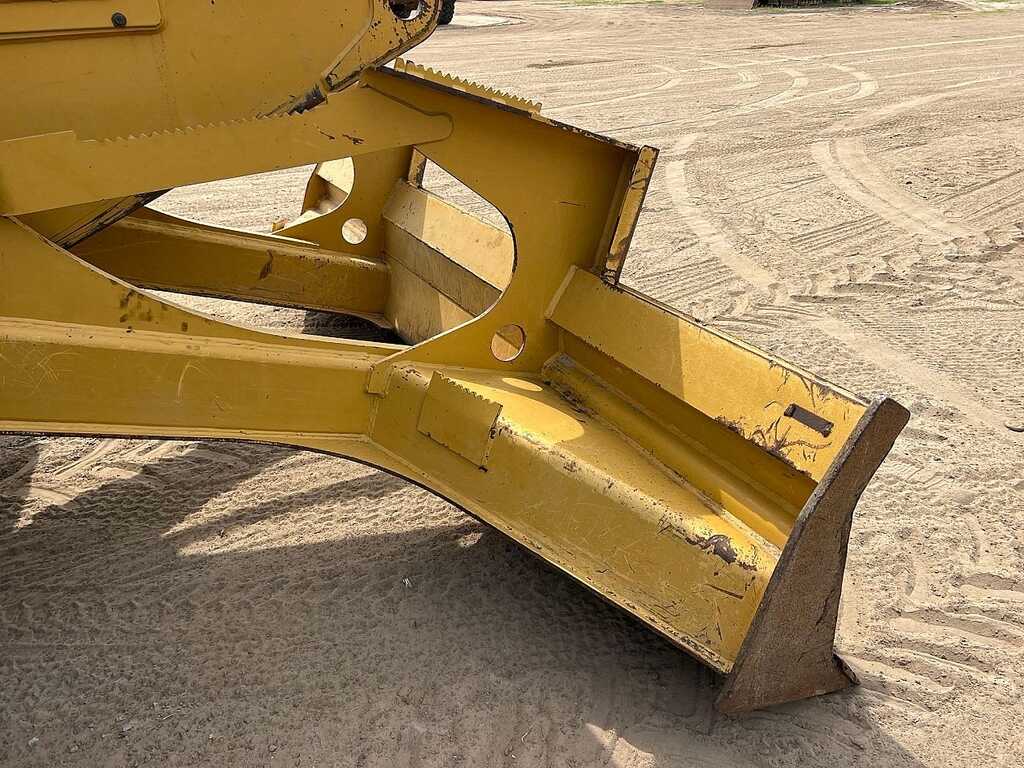

Dozer Blade (Optional)
Blade Width: 7.09 ft
Cylinder Bore × Stroke: 4 in × 14 in

Dimensions
Overall Length: ~18.2–19.7 ft
Overall Width: ~10.3 ft
Height to Cab: ~10 ft
Wheelbase: 11.5 ft
Ground Clearance: 1.7 ft
